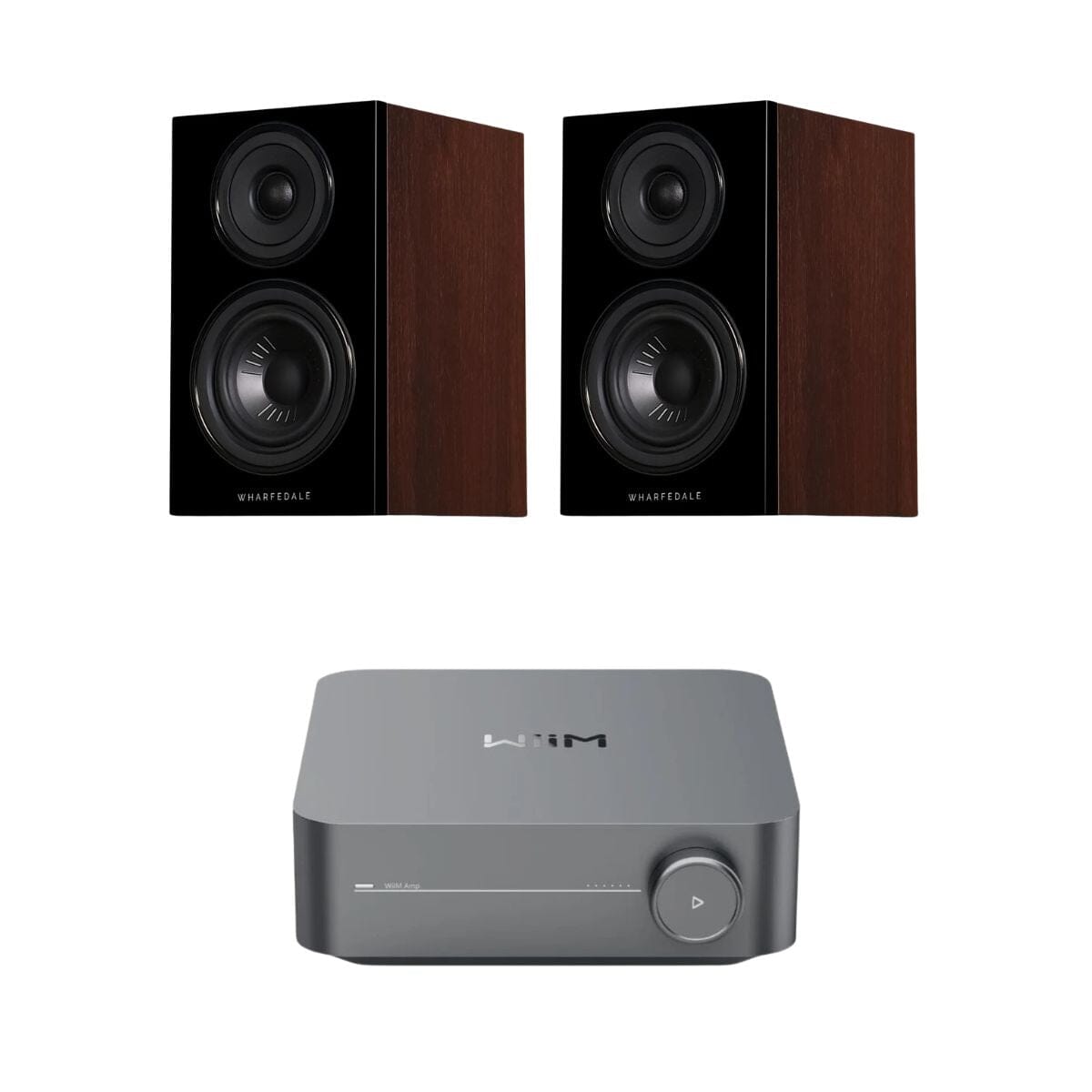

WiiM AMP + Wharfedale Diamond 12.0 4" Bookshelf Speakers

WiiM  |  SKU: KB00642
£479.00 £519.00
Colour: Black Oak

FREE QED Speaker Cable (Worth £7.50) With This Bundle (Add To Basket To Apply)

Need Advice? Call 02393 190955

We’re more than just an online retailer. We’re passionate about audio and offering the best customer service in the industry.

Need some advice? Call our audio experts on 02393 190955, live chat or email us and we’ll help you make the best decision. Learn More

2 Years Warranty + 60 Day Returns

DELIVERY

All orders to mainland UK over £99 are eligible for free standard delivery.

Need it fast? No problem, you’ll find express next day delivery rates available on most products. Learn More

RETURNS

We’re so confident that you’ll be happy with your purchase that we’ve extended our returns policy to 60 days. We call it the “Happy Sound Guarantee”.

If you’re not happy with your purchase for any reason simply send it back to us for a full refund. Learn More

Description

WiiM have taken the UK by storm, backed by a large electronics company, they've developed a powerful, easy to use and fully featured WiFi amplifier which sits way above its price point.

This package provides you with a ready to play, high-end bookshelf HiFi system with multiple ways to listen to your music at an unbeatable price point.

WiiM AMP

The WIIM AMP is the ultimate audio hub for your home audio system.

This powerful 60W per channel amplifier is capable of driving a wide range of high-quality speakers including bookshelf, floorstanding, in ceiling, in wall and outdoor.

You can play music via Bluetooth, WiFi streaming, Airplay 2, Spotify Connect, Tidal Connect, Internet Radio, USB Media drive, network store as well as the RCA and optical audio inputs.

It also features a HDMI ARC port for connecting to your television and with multiroom grouping you can easily group multiple WiiM devices together to play your music in perfect sync.

View All Product Details

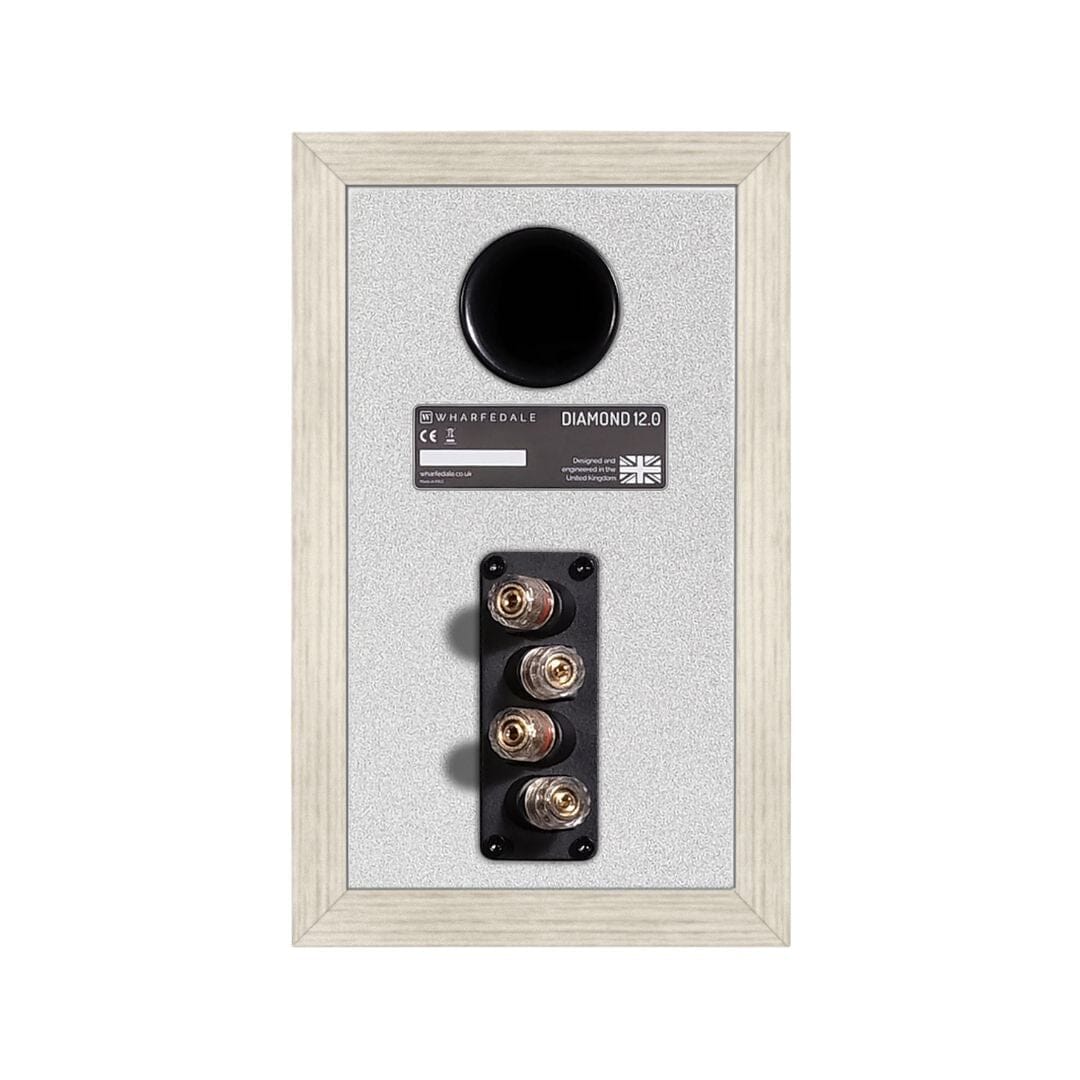

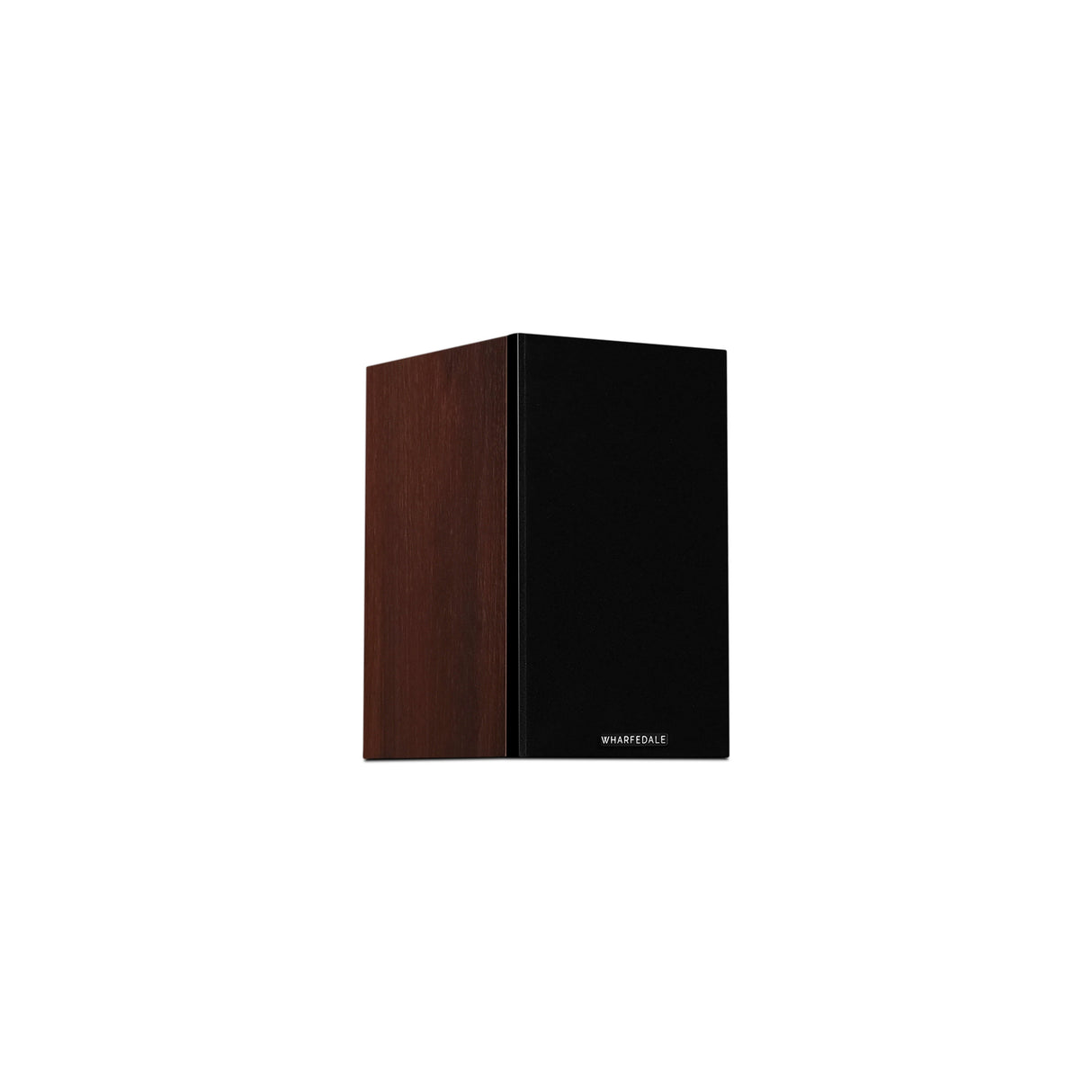

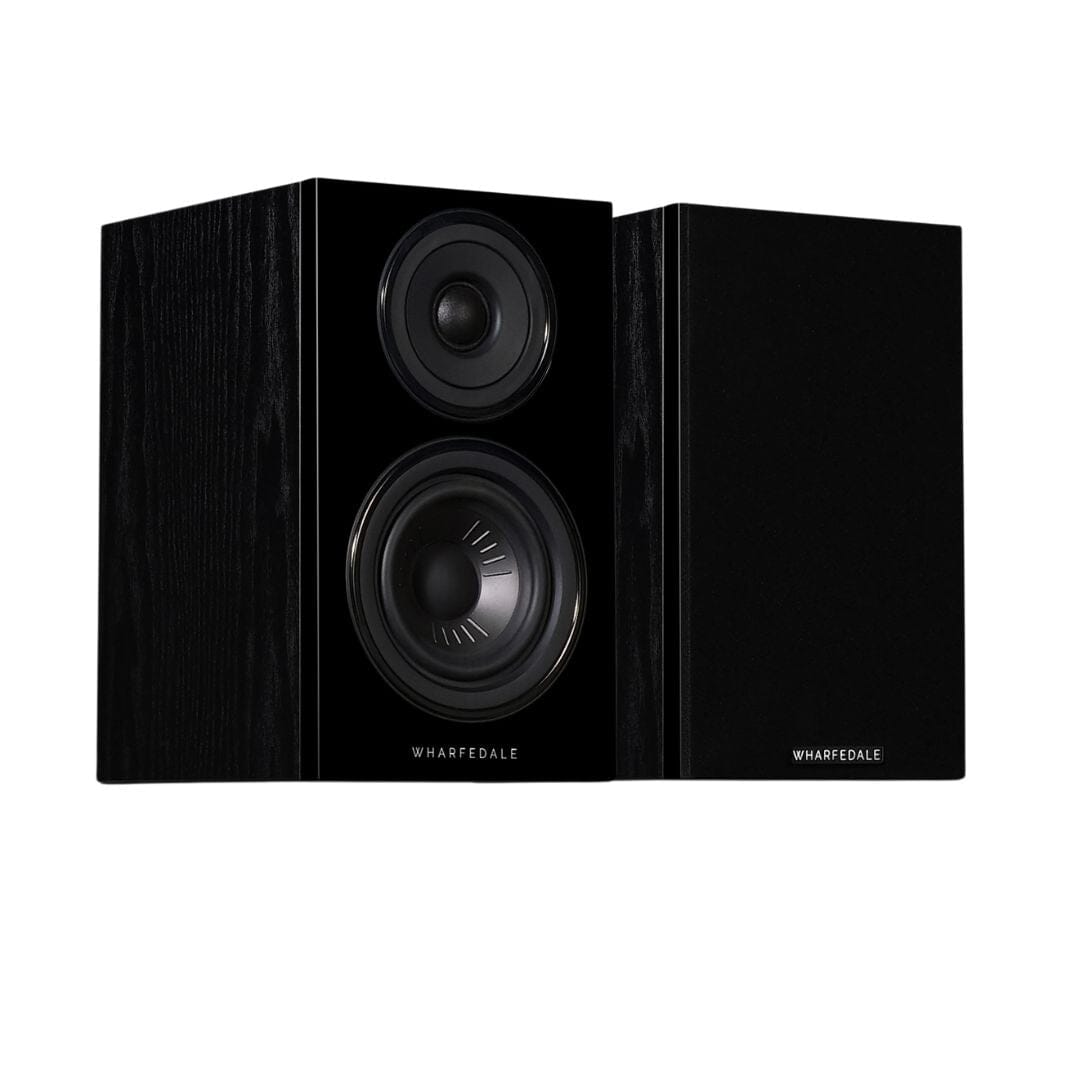

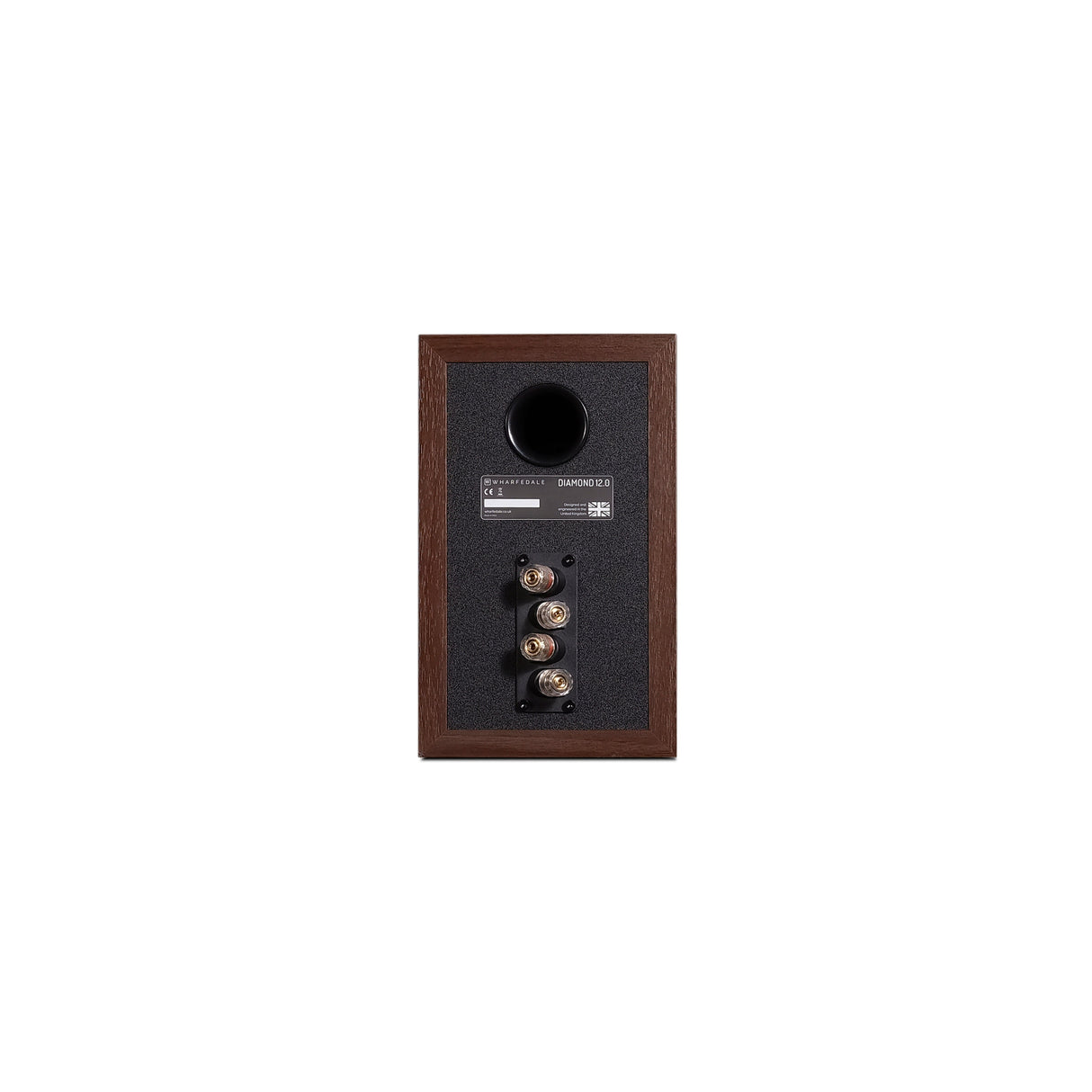

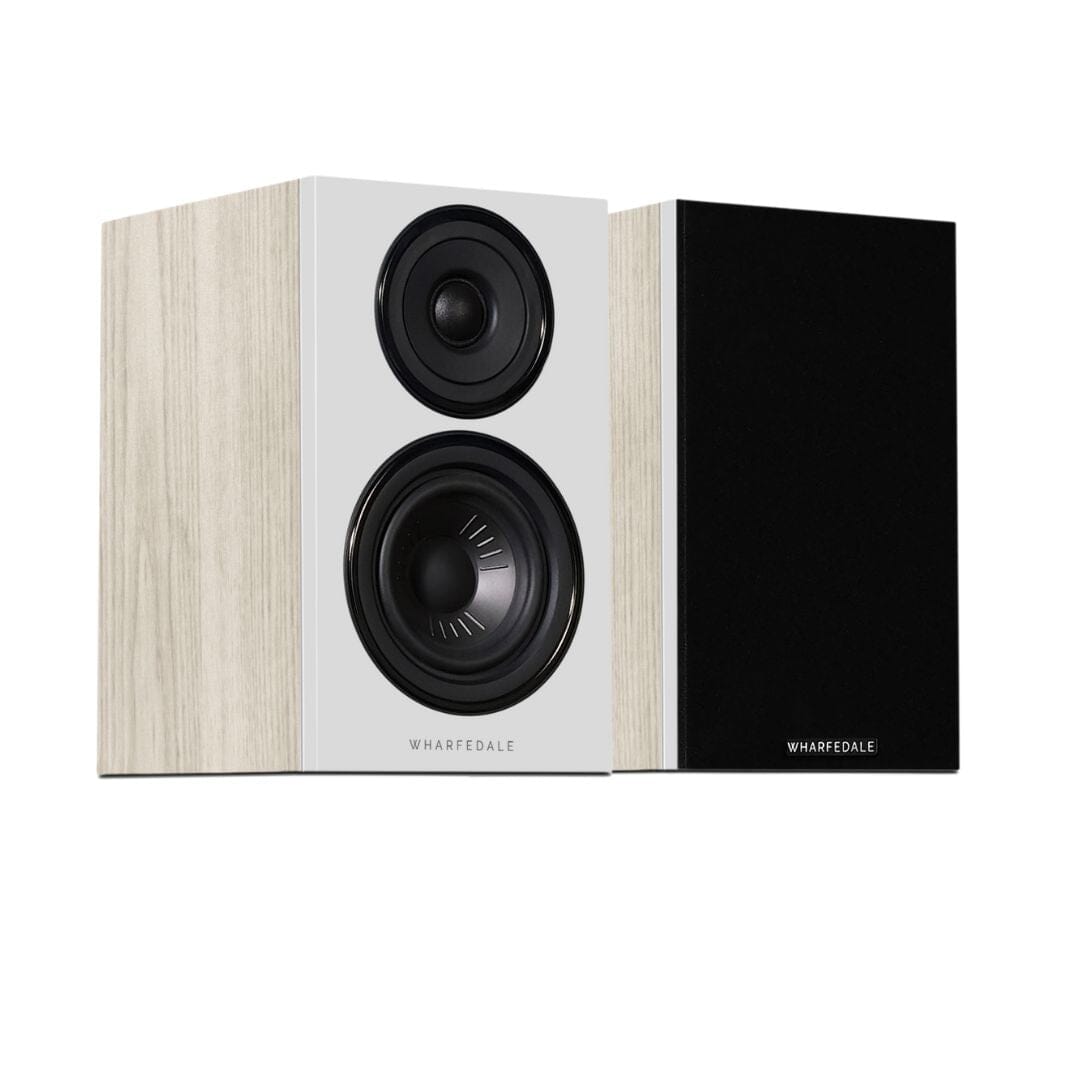

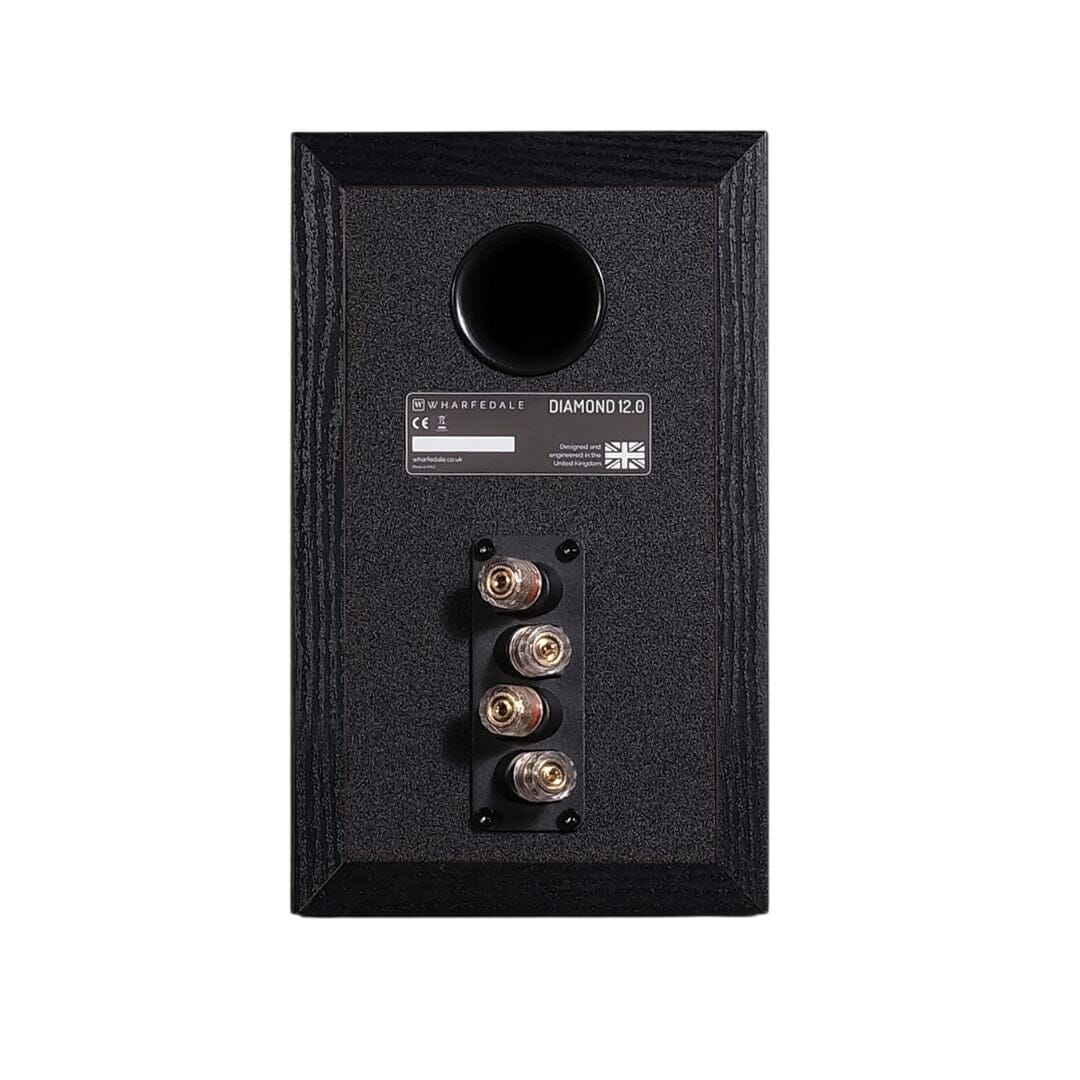

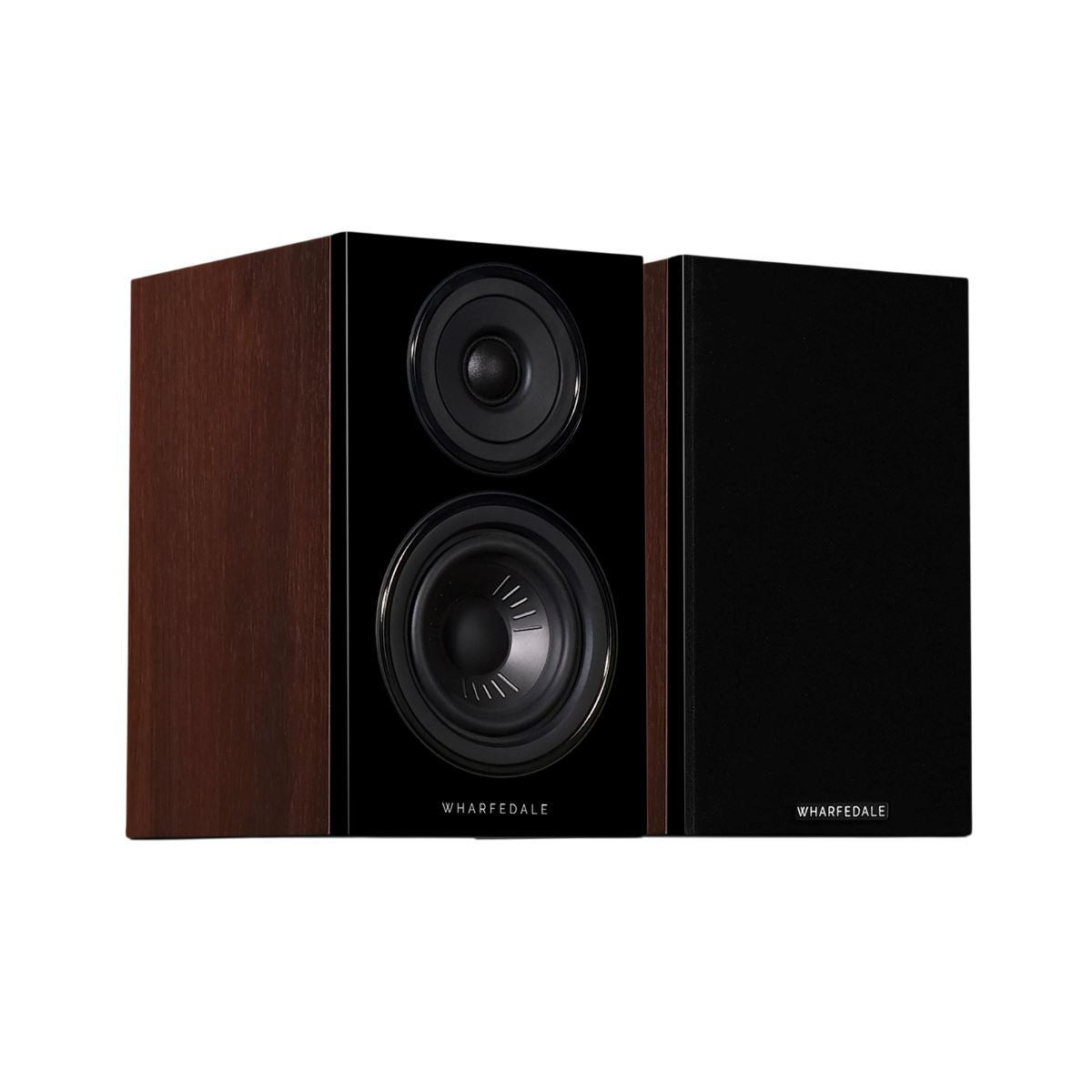

Whafedale Diamond 12.0 4" Bookshelf Speakers

The ultra-compact speaker in the DIAMOND 12 series, the DIAMOND 12.0 features all of the same technology as its larger siblings but is designed for small-footprint hi-fi systems, or even as a high-performance, compact satellite speaker in home theatre systems.

The DIAMOND 12.0 features a high-performance 100mm (4”) KlarityTM driver with a bass performance that exceeds its diminutive footprint, while the superb 25mm (1”) woven polyester dome tweeter brings open and smoothly extended high frequencies.

View All Product Details

Key Features

  • Zones
    Single Zone, Multi Zone
  • Placement
    Bookshelf, Stand Mount
  • Music Sources
    Bluetooth, WiFi, Airplay 2, Spotify Connect, Tidal Connect, Internet Radio, Alarm Clock
  • Inputs
    RCA, Optical, USB, HDMI, Ethernet
  • Outputs
    Subwoofer Out
  • Impedance
    8 Ohms
  • Driver Size
    4"
  • Sensitivity
    87 dB
  • Frequency Response
    71Hz - 21kHZ
  • Warranty
    2 Years

Specifications

    AMPLIFIER

    • Dimensions: 190 x 60 x 190 mm
    • Amplification Type: Class D TPA3255
    • Inputs: WiFi / Bluetooth / Stereo RCA / Optical / HDMI ARC / USB-A / HDMI ARC / Ethernet RJ45
    • Outputs: Speaker terminals / Subwoofer output
    • Output Power: 60W @ 8Ω / 100W @ 4Ω
    • Supported Network Protocols: AirPlay 2 / DLNA / Chromecast
    • Control App: WiiM Home
    • Compatible Voice Assistants: Amazon Alexa / Google Assistant / Siri

    SPEAKERS

    • General Description: 2-way bookshelf speaker
    • Enclosure Type: bass reflex
    • Transducer Complement: 2-way
    • Bass Driver: 4"(100mm) advanced PP Cone
    • Treble Driver: 1"(25mm) Textile Dome
    • AV Shield: No
    • Sensitivity (2.83V @ 1m): 87dB
    • Recommended Amplifier Power: 20-60W
    • Peak SPL: 95dB
    • Nominal Impedance: 8Ω Compatible
    • Minimum Impedance: 4.0Ω
    • Frequency Response (+/-3dB): 70Hz ~ 20kHz
    • Bass Extension (-6dB): 65Hz
    • Crossover Frequency: 2.7kHz
    • Cabinet Volume (in litres): 4.4L
    • Dimensions (H x W x D): 265 x 160 x (200+28) mm
    • Net Weight: 5.1kg/pcs

What's In The Box

    AMPLIFIER

    • 1 x WiiM Amp
    • 1 x Remote Control
    • 1 x Power Cable

    SPEAKERS

    • 2 x Speakers

    • 2 x Grilles
