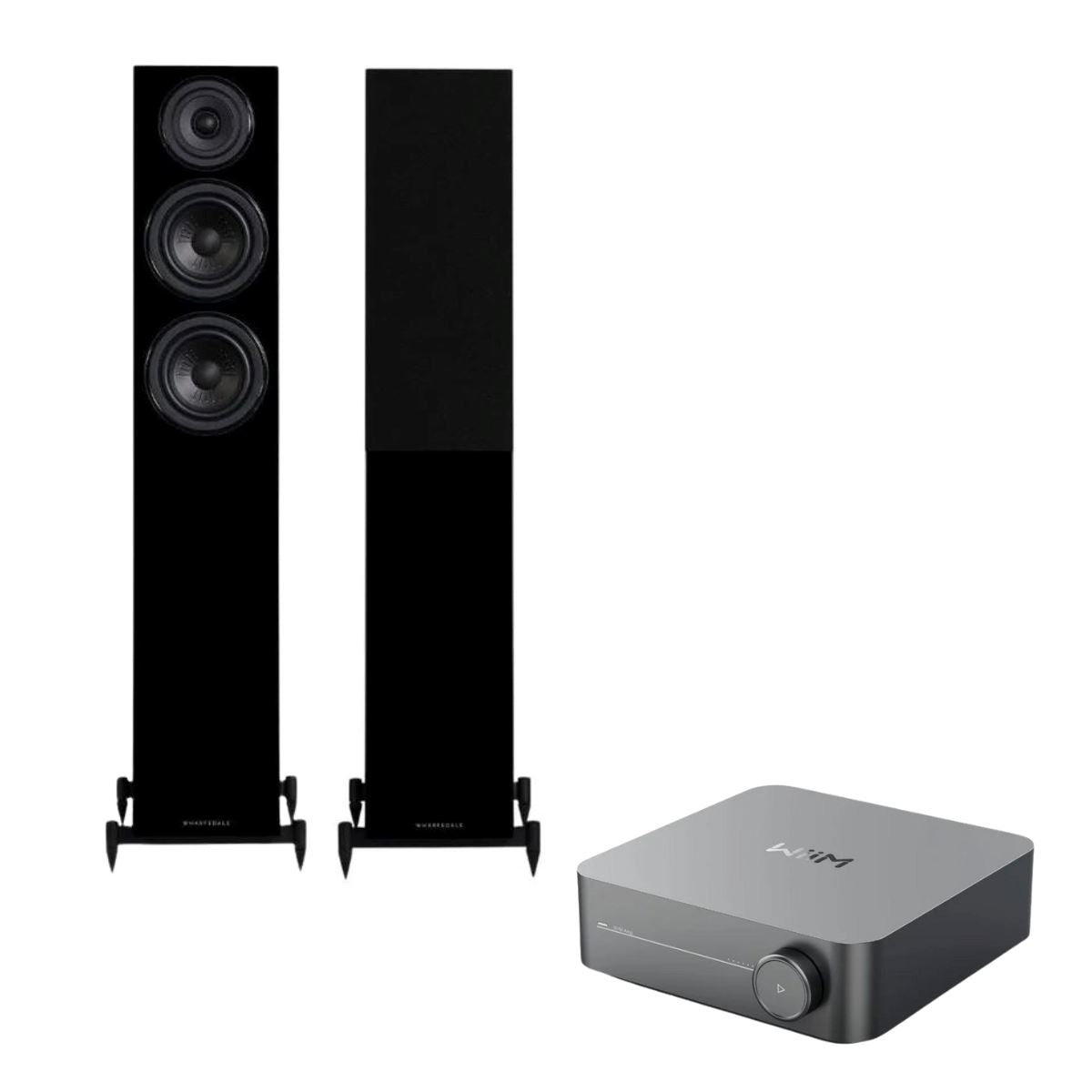

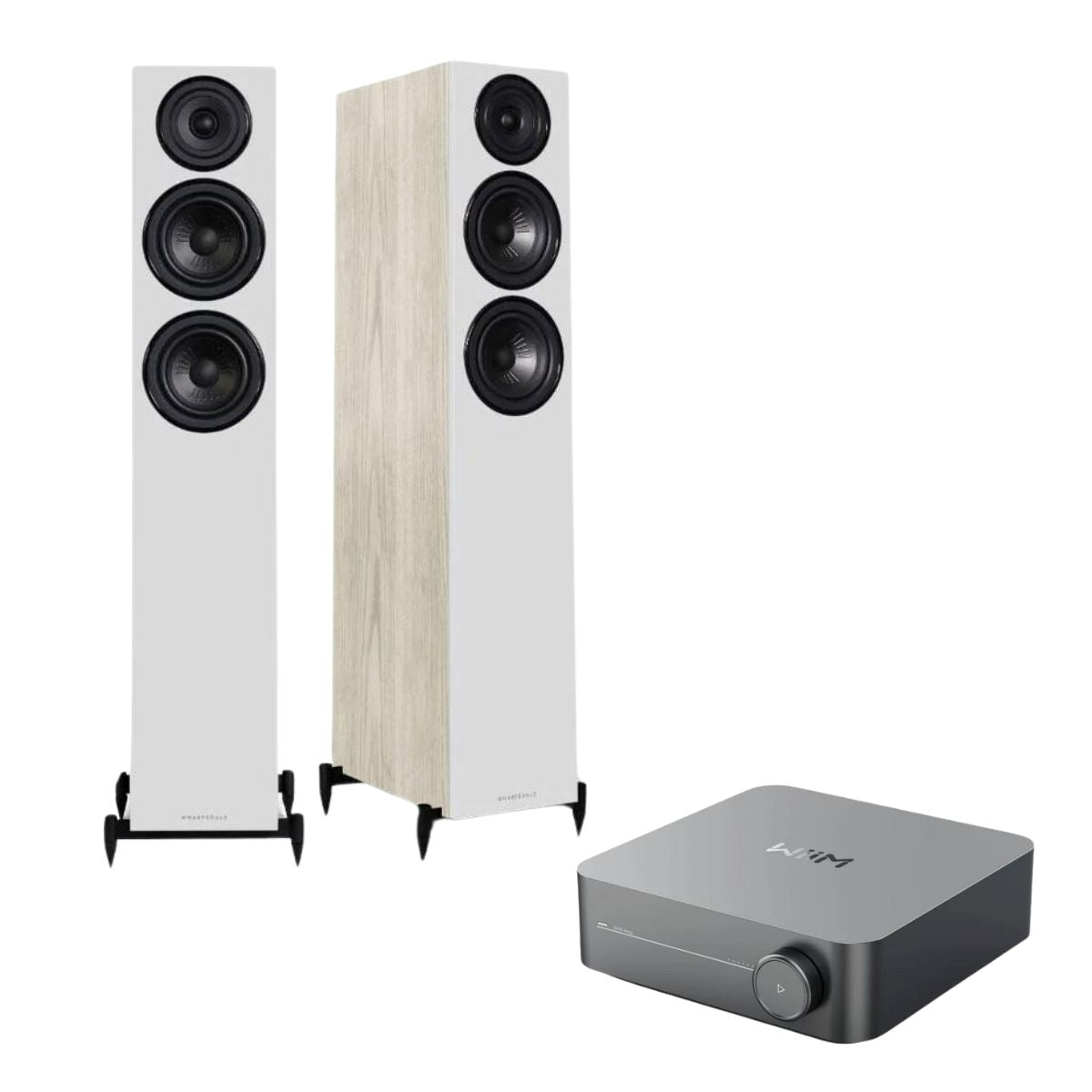

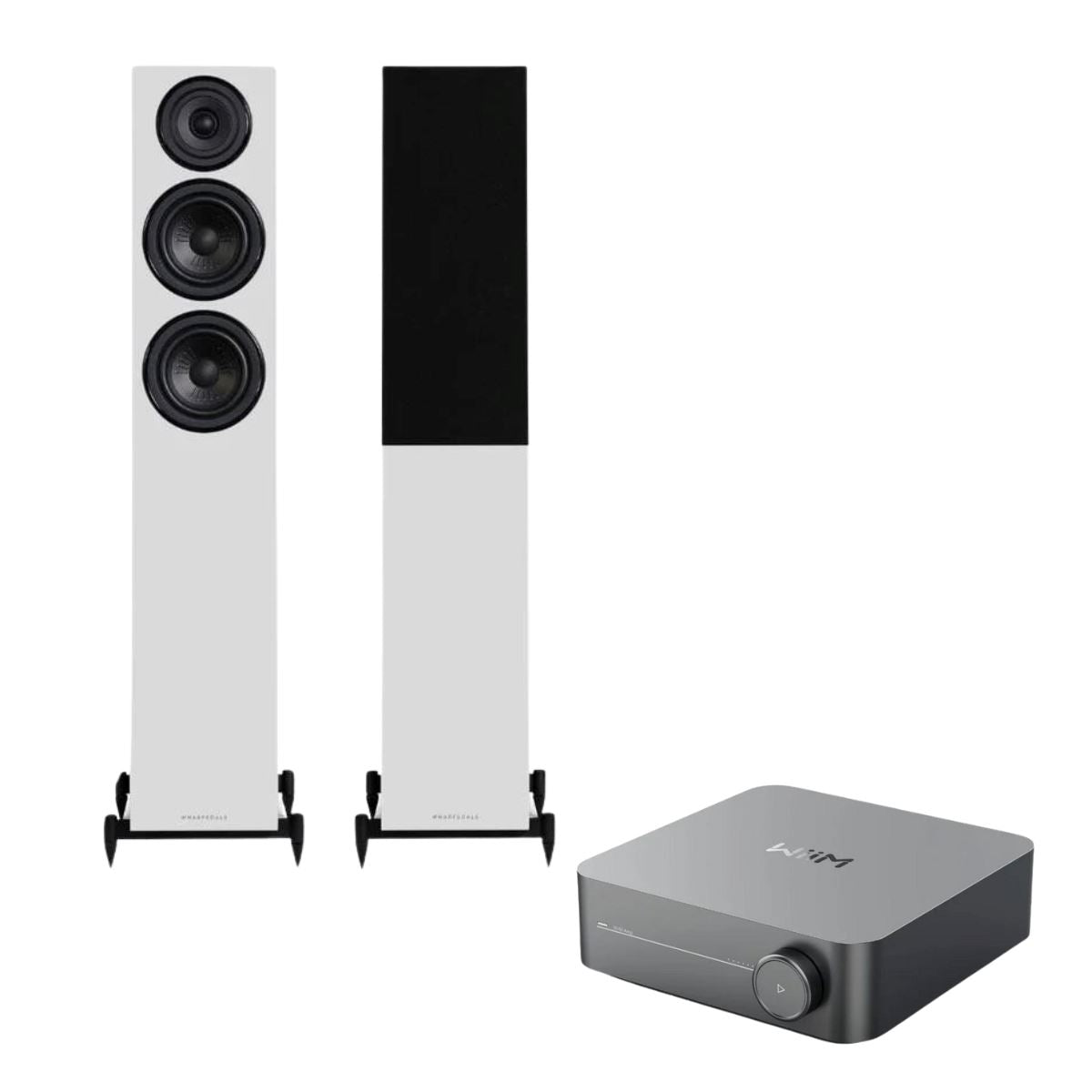

WiiM AMP + Wharfedale Diamond 12.3 Floorstanding Speakers

WiiM  |  SKU: KB01002
£799.00 £818.98
Colour: Black Oak

Need Advice? Call 02393 190955

We’re more than just an online retailer. We’re passionate about audio and offering the best customer service in the industry.

Need some advice? Call our audio experts on 02393 190955, live chat or email us and we’ll help you make the best decision. Learn More

2 Years Warranty + 60 Day Returns

DELIVERY

All orders to mainland UK over £99 are eligible for free standard delivery.

Need it fast? No problem, you’ll find express next day delivery rates available on most products. Learn More

RETURNS

We’re so confident that you’ll be happy with your purchase that we’ve extended our returns policy to 60 days. We call it the “Happy Sound Guarantee”.

If you’re not happy with your purchase for any reason simply send it back to us for a full refund. Learn More

Found A Cheaper Price?

Description

The WIIM AMP Class D Stereo Amplifier is a sleek and versatile audio hub, offering powerful performance and seamless integration with various platforms and devices. Its stylish grey design complements any space, allowing you to enjoy music, movies, and more with exceptional clarity.

The Wharfedale DIAMOND 12.3 is a compact yet powerful floorstanding speaker, perfect for both 2-channel hi-fi systems and home theatres. Featuring a 2.5-way system with dual 130mm Klarity™ drivers for refined mid-range and bass, and a 25mm dome tweeter for smooth high frequencies, the DIAMOND 12.3 delivers impactful, detailed sound at an affordable price.

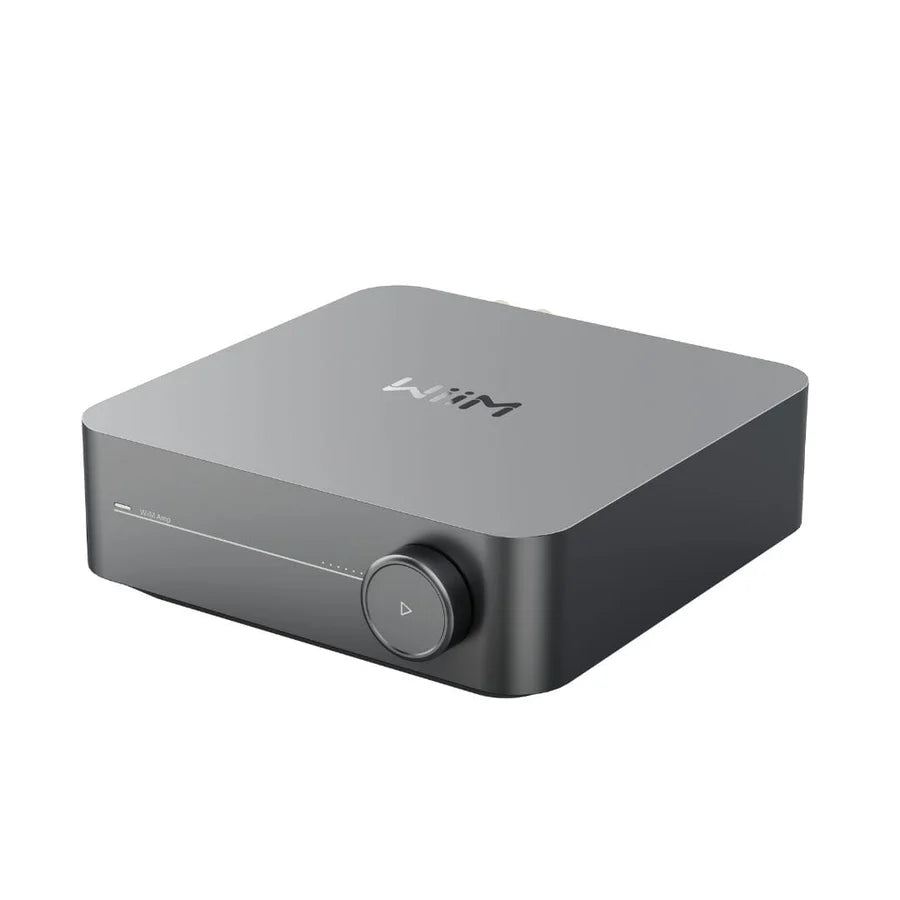

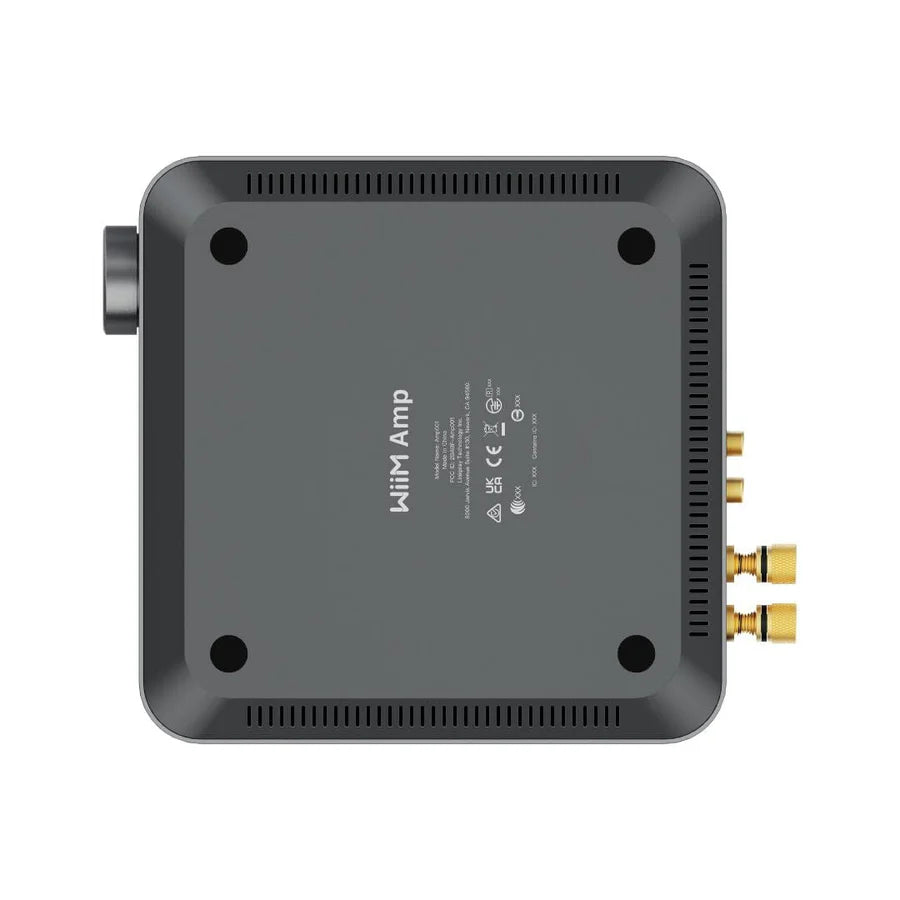

WIIM AMP WiFi & Bluetooth Amplifier

The WiiM AMP is a powerful 120W stereo amplifier that can comfortably drive your in ceiling speakers.

It features WiFi streaming, Airplay 2, Internet Radio, Spotify Connect, Tidal Connect, Bluetooth and much more. You can also connect wired devices such as a turntable into the RCA input and a TV into the HDMI input.

However you want to play your music the WiiM AMP has you covered!

View All Product Details

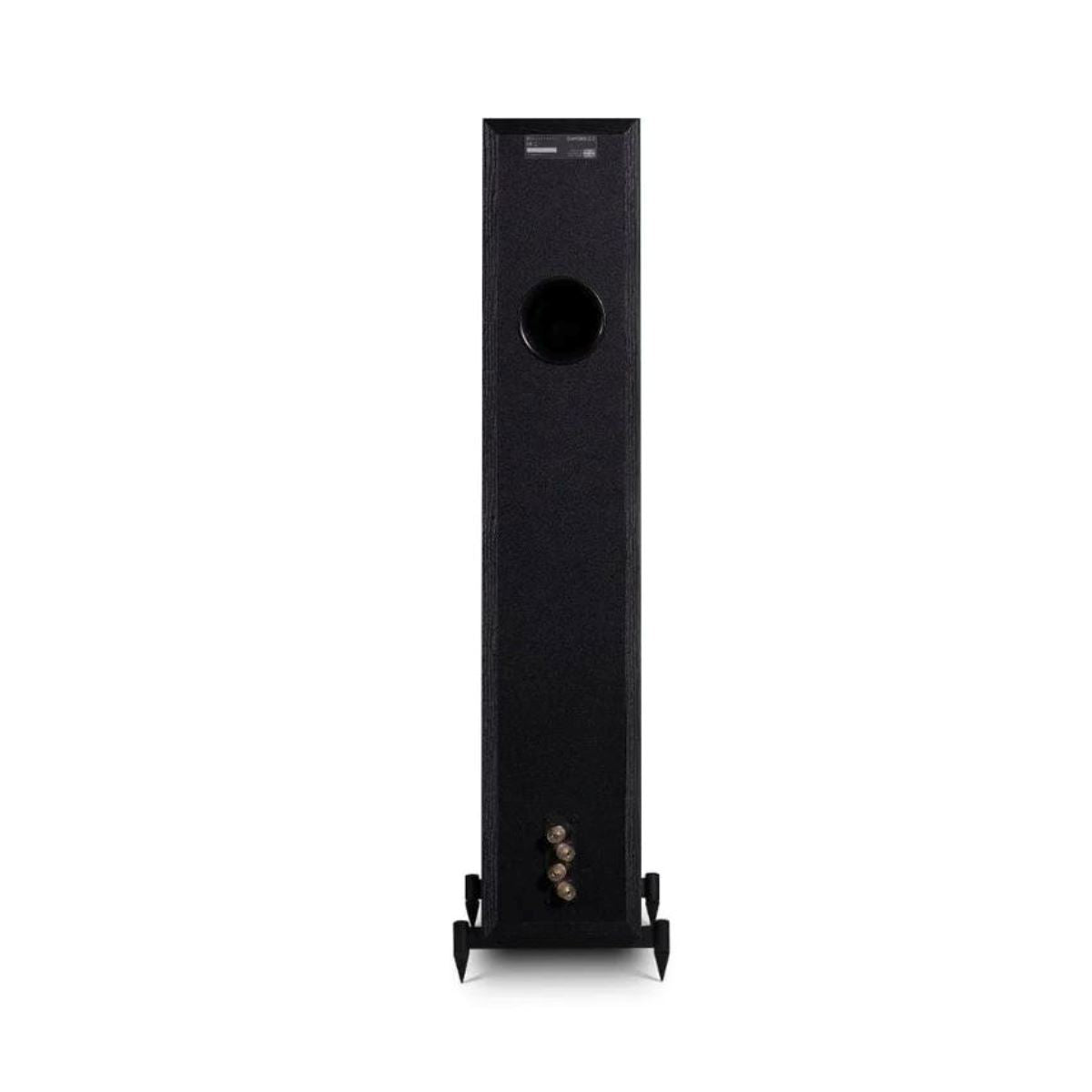

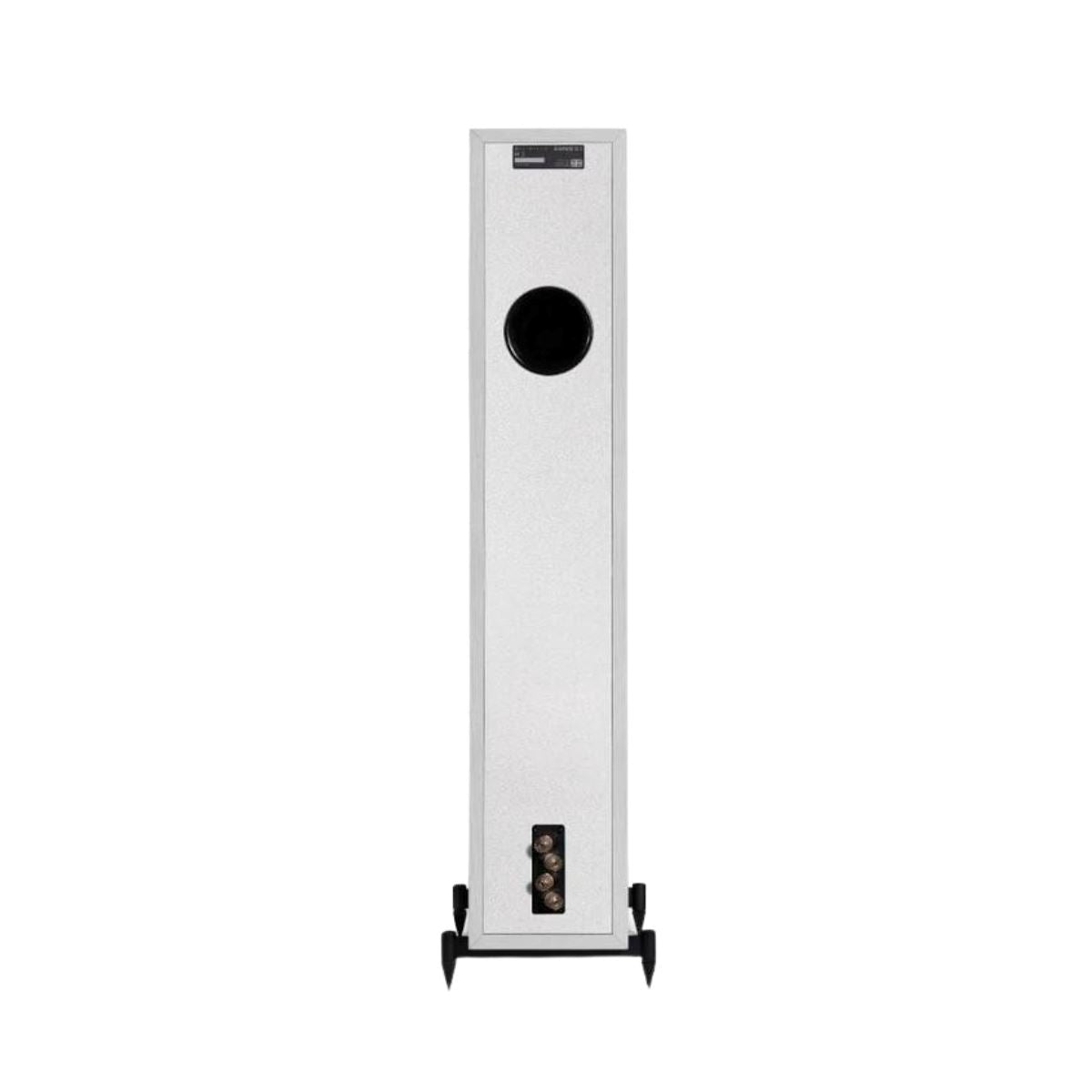

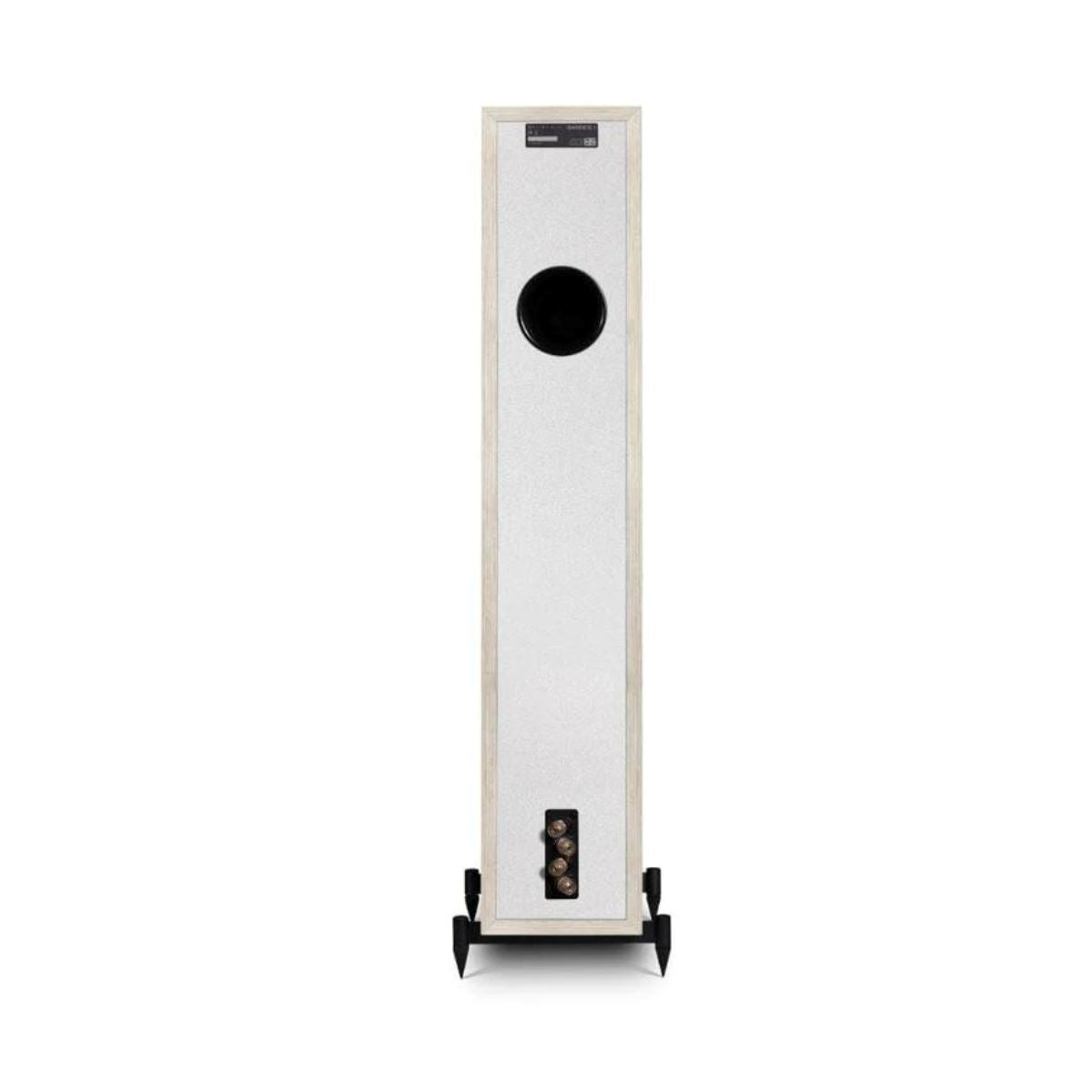

Wharfedale Diamond 12.3 Floorstanding Speakers

The more compact of the Wharfedale DIAMOND 12 series floorstanding options, the DIAMOND 12.3 loses none of the accuracy and musicality of the standmount (bookshelf) options. With enhanced presence and power, the DIAMOND 12.3 is refined and the perfect, affordable floorstanding speaker for 2-channel hi-fi systems, or as the front pair of a seriously impressive home theatre system.

Configured in a 2.5 way system with exception crossover technology, the DIAMOND 12.3 utilises dual 130mm (5”) KlarityTM drivers for impactful yet refined mid-range and bass frequencies, while the 25mm (1”) dome tweeter delivers open and smoothly extended high frequencies.

View All Product Details

Key Features

  • Zones
    Single Zone, Multi Zone
  • Placement
    Bookshelf, Stand Mount
  • Music Sources
    Bluetooth, WiFi, Airplay 2, Spotify Connect, Tidal Connect, Internet Radio, Alarm Clock
  • Inputs
    RCA, Optical, Ethernet, USB, HDMI
  • Outputs
    Subwoofer Out, Bluetooth Out
  • Warranty
    2 Years

Specifications

    AMPLIFIER

    • Dimensions: 190 x 60 x 190 mm
    • Amplification Type: Class D TPA3255

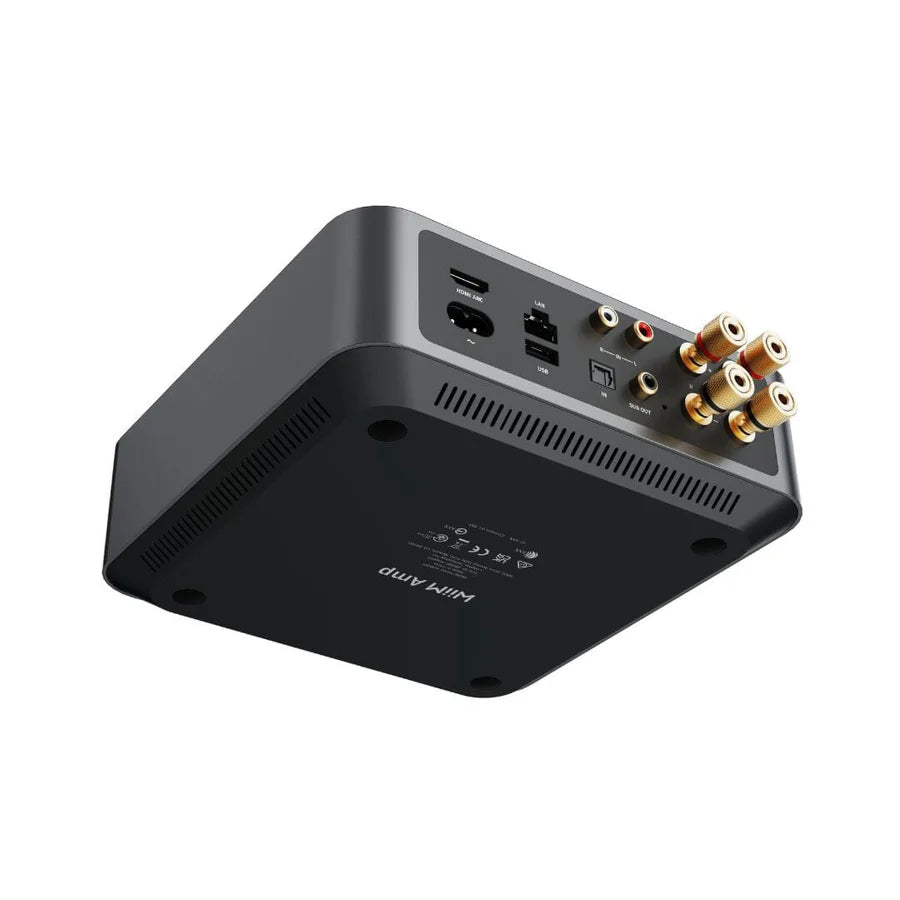

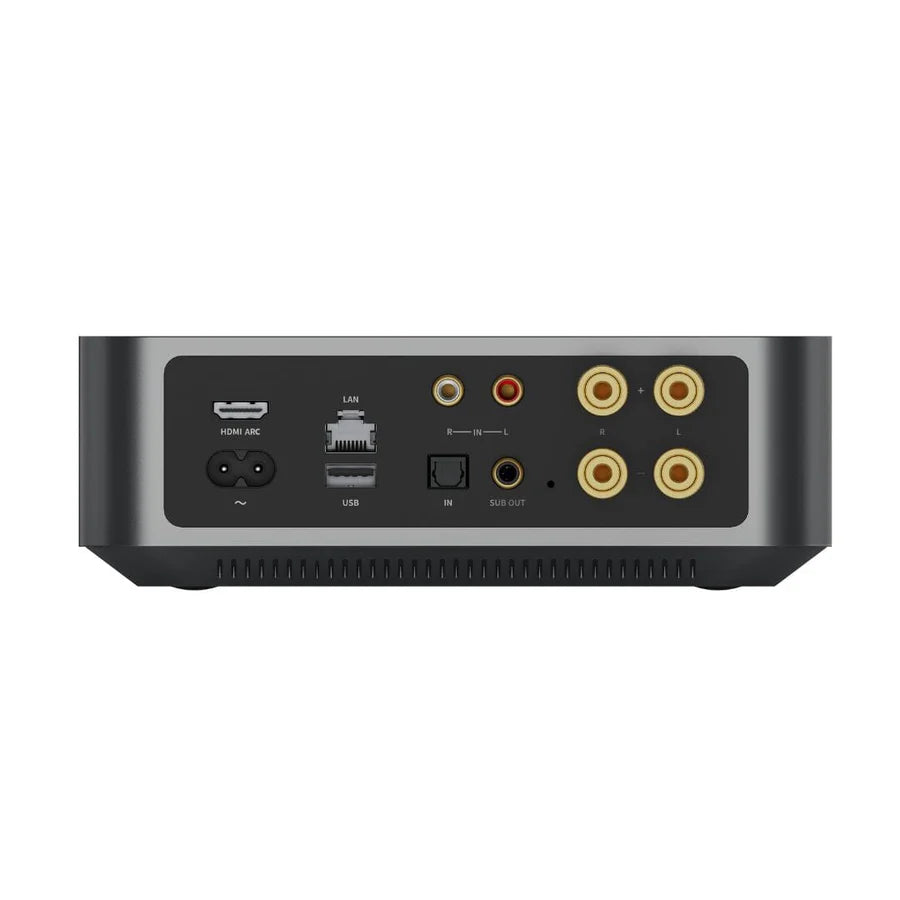

    • Inputs: WiFi / Bluetooth / Stereo RCA / Optical / HDMI ARC / USB-A / HDMI ARC / Ethernet RJ45
    • Outputs: Speaker terminals / Subwoofer output
    • Output Power: 60W @ 8Ω / 100W @ 4Ω
    • Supported Network Protocols: AirPlay 2 / DLNA / Chromecast
    • Control App: WiiM Home
    • Compatible Voice Assistants: Amazon Alexa / Google Assistant / Siri

    SPEAKERS

    • General Description: 2.5-way floorstanding speaker
    • Enclosure Type: bass reflex
    • Bass Driver: 5"(130mm) advanced PP Cone
    • Midrange Driver: 5"(130mm) advanced PP Cone
    • Treble Driver: 1"(25mm) Textile Dome
    • AV Shield: No
    • Sensitivity(2.83V @ 1m): 89dB
    • Recommended Amplifier Power: 30-150W
    • Peak SPL: 102dB
    • Nominal Impedance: 8Ω Compatible
    • Minimum Impedance:
    • Frequency Response(+/-3dB): 45Hz ~ 20kHz
    • Bass Extension(-6dB): 40Hz
    • Crossover Frequency: 2.2kHz
    • Cabinet Volume (in litres): 26.6L
    • Dimensions (H x W x D): (925+50) x 180 x (320+28) mm
    • Net Weight:19.5kg/pcs

What's In The Box

    AMPLIFIER

    • 1 x WiiM Amp

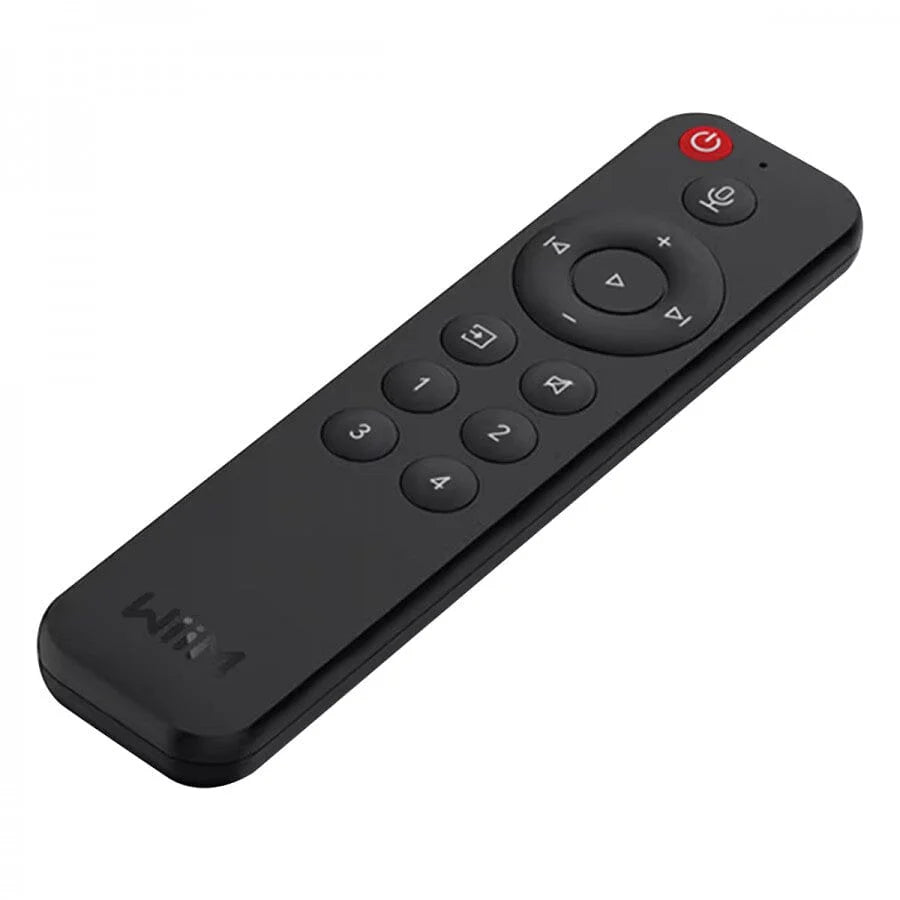

    • 1 x Remote Control
    • 1 x Power Cable

    SPEAKERS

    • 2 x Diamond 12.3 Floorstanding Speakers
    • 1 x User Manual
