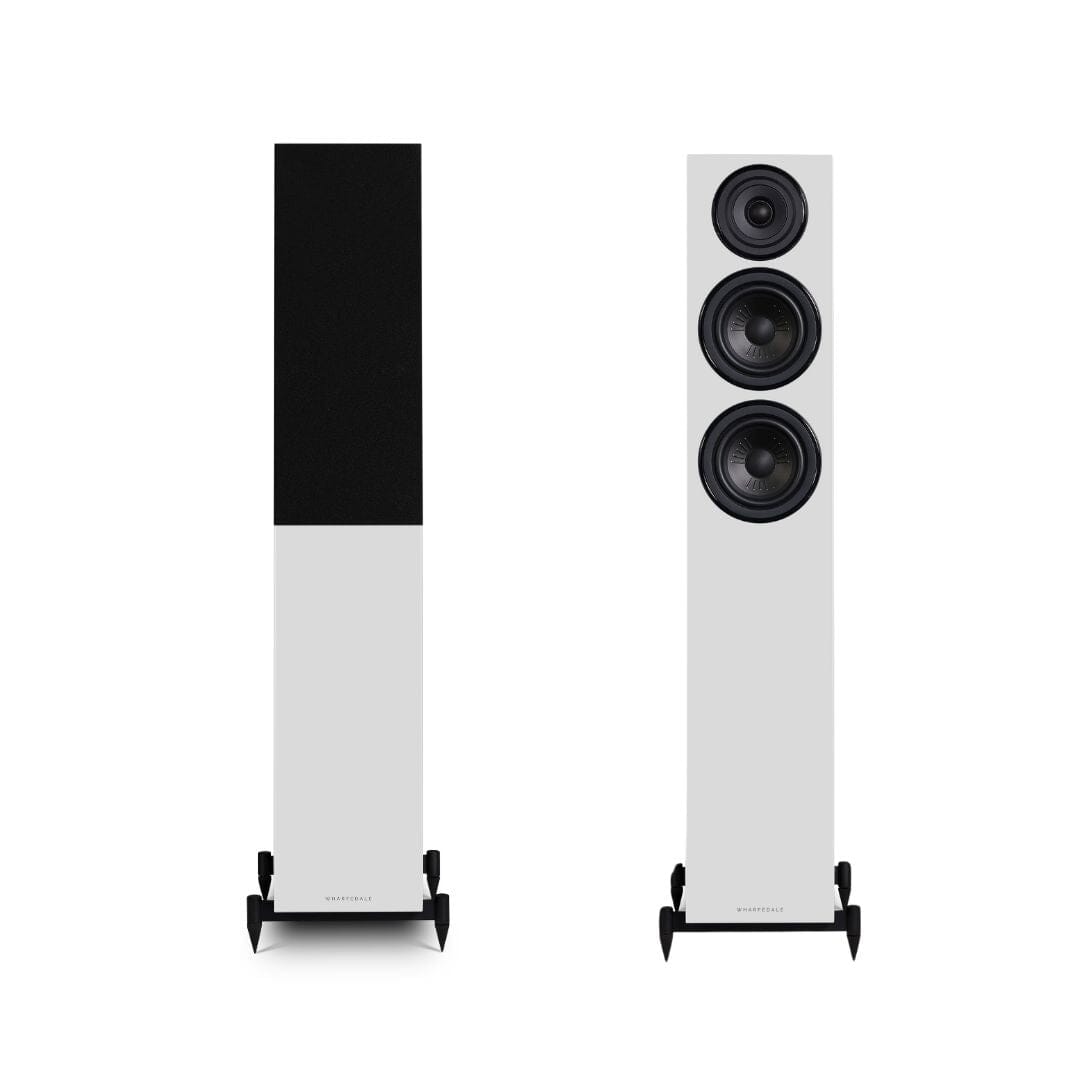

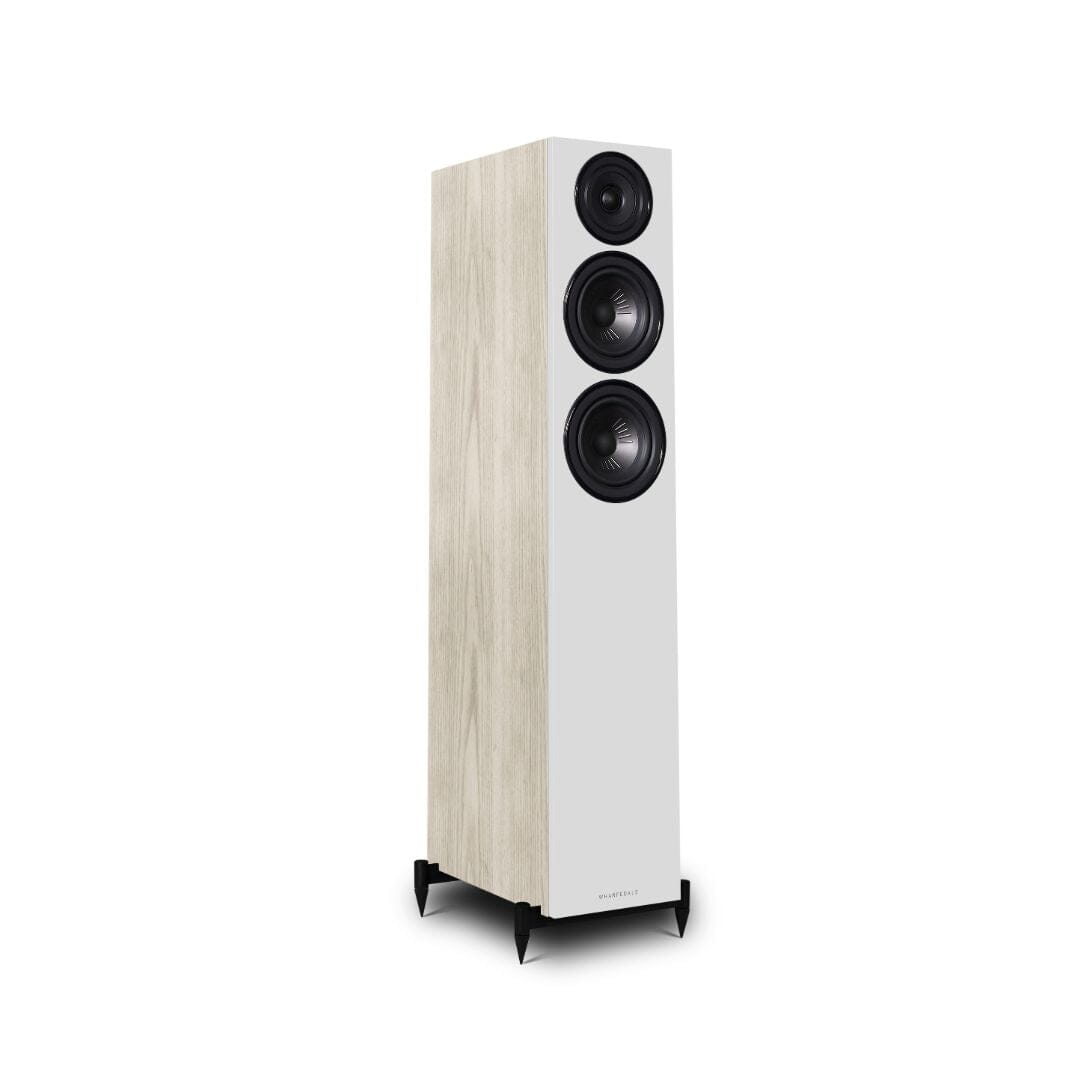

Wharfedale Diamond 12.4 Floorstanding Speakers (Pair)
Need Advice? Call 02393 190955
Need Advice? Call 02393 190955
We’re more than just an online retailer. We’re passionate about audio and offering the best customer service in the industry.
Need some advice? Call our audio experts on 02393 190955, live chat or email us and we’ll help you make the best decision. Learn More
3 Years Warranty + 60 Day Returns
3 Years Warranty + 60 Day Returns
DELIVERY
All orders to mainland UK over £99 are eligible for free standard delivery.
Need it fast? No problem, you’ll find express next day delivery rates available on most products. Learn More
RETURNS
We’re so confident that you’ll be happy with your purchase that we’ve extended our returns policy to 60 days. We call it the “Happy Sound Guarantee”.
If you’re not happy with your purchase for any reason simply send it back to us for a full refund. Learn More
Description
Description

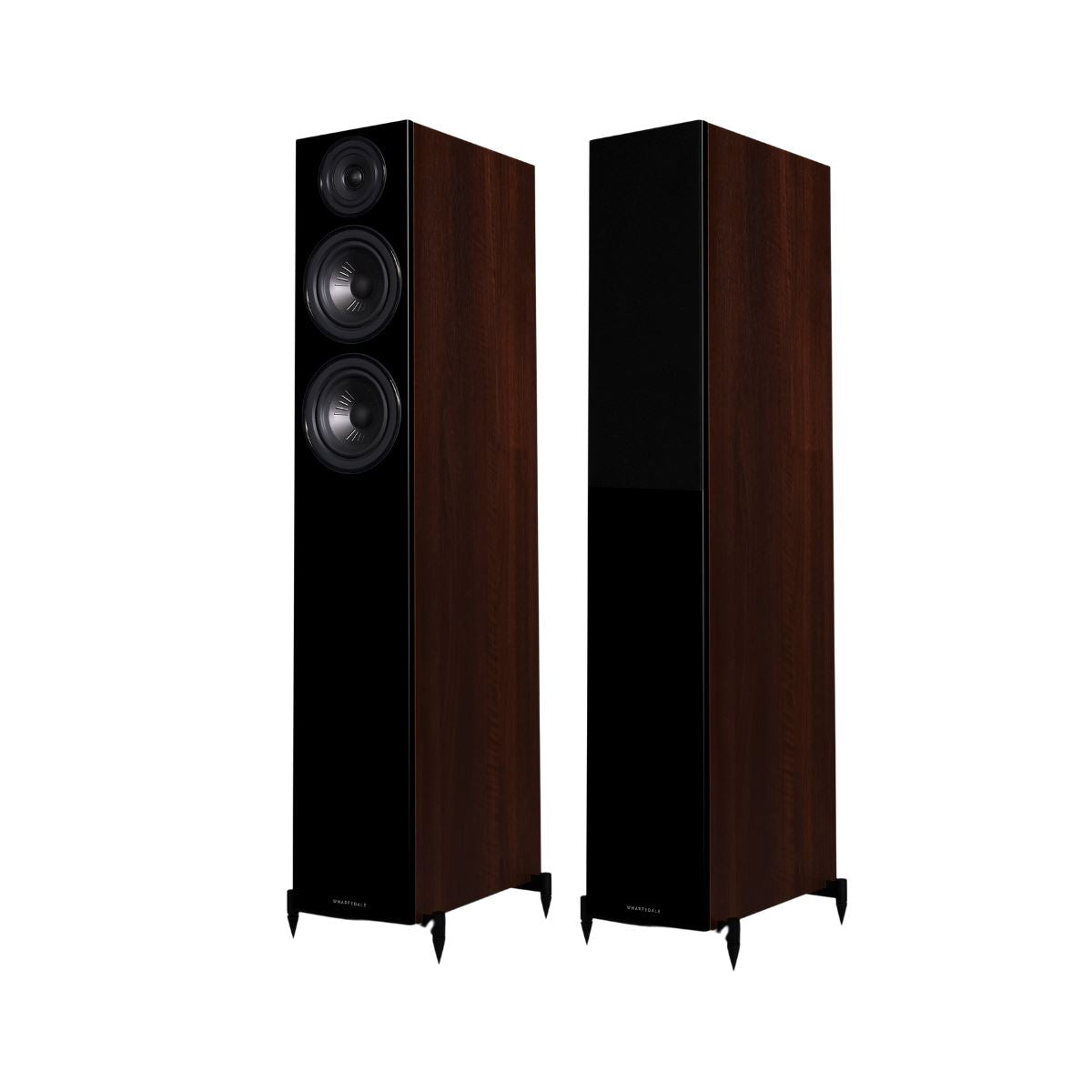

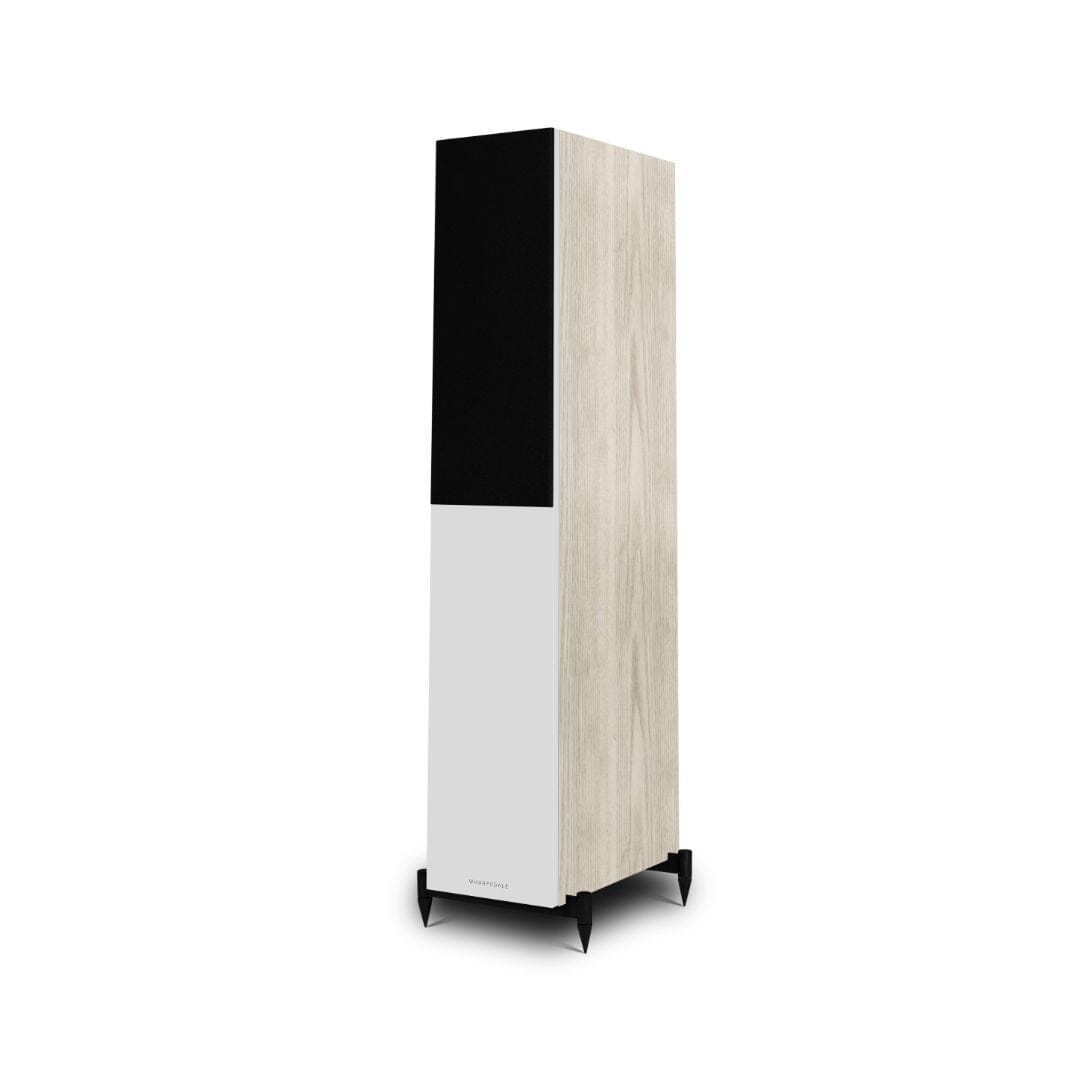

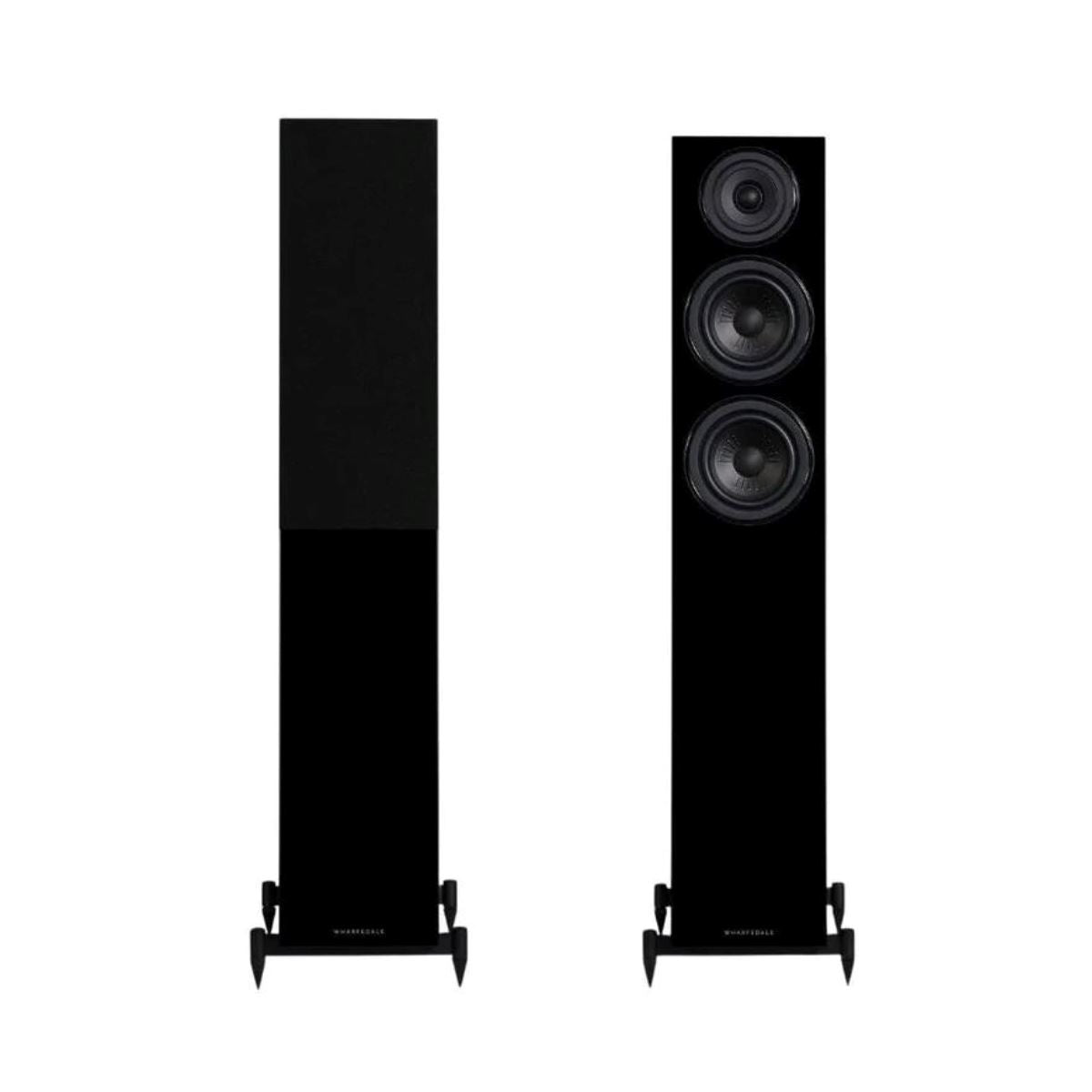

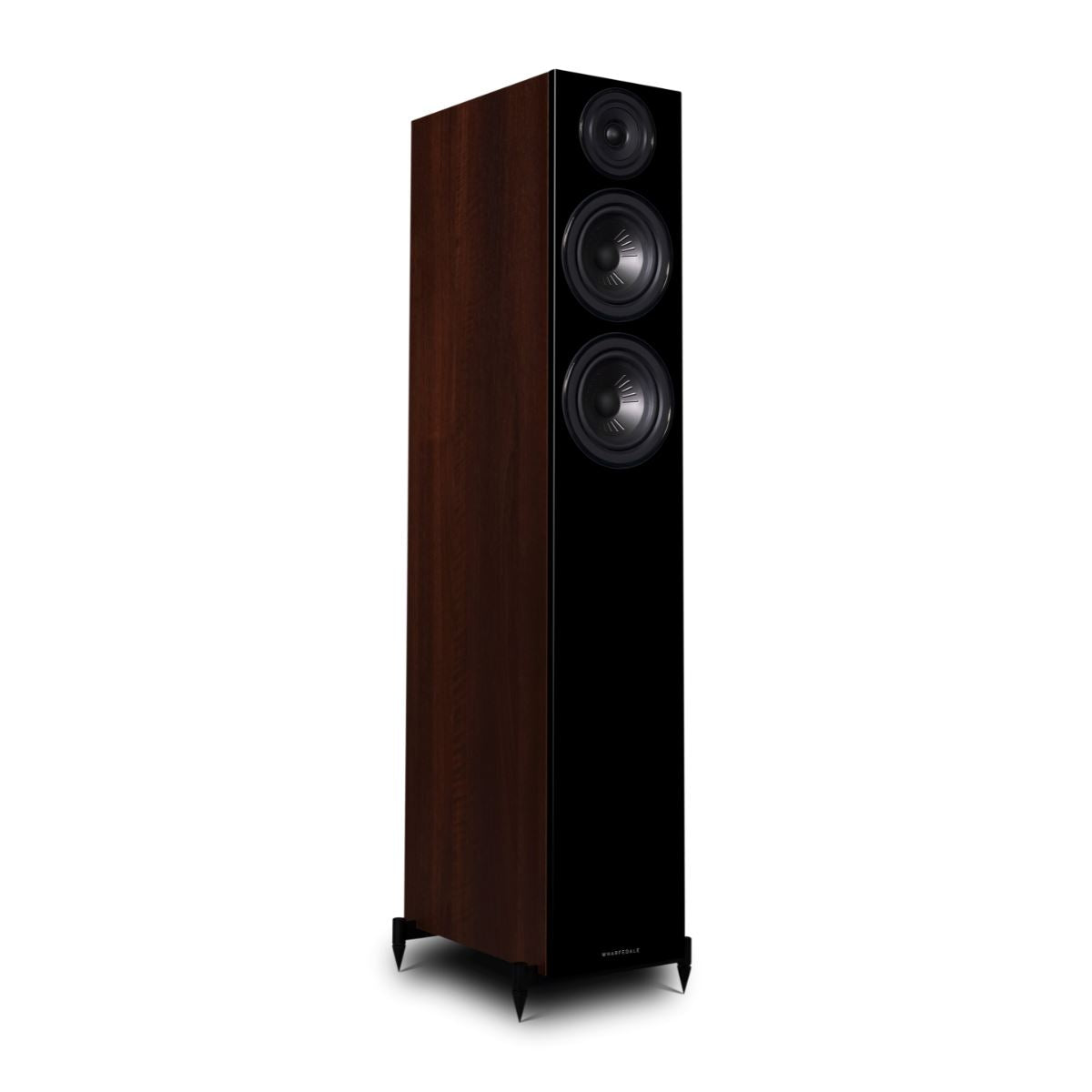

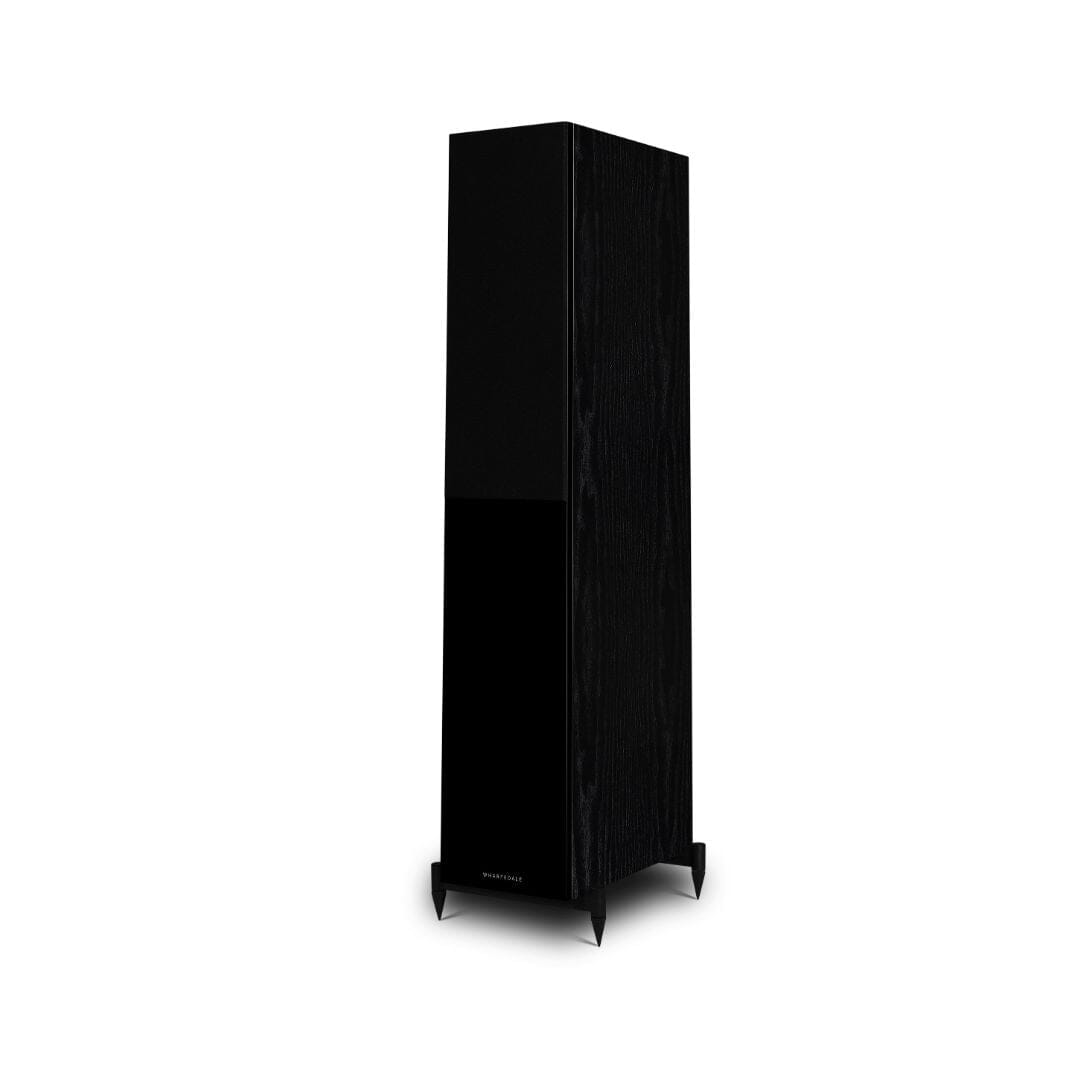

The powerhouse model of the Wharfedale DIAMOND 12 series, the DIAMOND 12.4 is the room-filling, chest-pounding, largest model in the series.
For larger, more powerful systems and cinema-style home theatre experiences, the DIAMOND 12.4 will fill your room with an impactful, immersive performance.
Configured in a 2.5 way system with exception crossover technology, the DIAMOND 12.3 utilises dual 150mm (6.5”) KlarityTM drivers for impactful yet refined mid-range and bass frequencies, while the 25mm (1”) dome tweeter delivers open and smoothly extended high frequencies.
FEATURES
-
Klarity Affords Focus: NEW Klarity™ cone material, formulated from a blend of Polypropylene and mica adds stiffness to reduce flexing, enabling a lightweight cone with high rigidity, low colouration and lightning-fast response.
-
Low Colour and Expression:The Klarity™ cone is fitted with a low-damping surround, thereby achieving both low colouration and expressive dynamics.
By simulating many different cone shapes and adding ribs to provide further stiffening, a flat response curve was achieved without resorting to a high-damping surround, thereby striking the ideal balance.
-
A Magnet of Forces:A precision-made magnet system with an aluminium compensation ring to minimise the effect of variations in inductance as the voice coil travels. This contributes to an absence of distortion and intermodulation generated by the ‘motor system’.
-
A Voice Coil Beyond this Class: The voice coil is wound on a high-power epoxy/glass fibre bobbin highly unusual in speakers at this price level.
This has the advantage of not adding eddy currents and delivering greater power handling than an aluminium bobbin, whilst also being much stiffer than the Kapton type associated with this price-class.
-
DIAMOND Highs:The 25mm dome is made from a woven polyester film with a high-loss coating to deliver open and smoothly extended high frequencies.
The magnet system and the front plate have been optimised for wide dispersion and uncompressed behaviour.
The front plate is flat and exposes the dome as much as possible; only a very short duct on the front plate balances the acoustic load and improves the SPL (sound pressure level) measurement.
-
A Crossover of Style: The crossover network uses an acoustic LKR 24dB topology. This includes air-core inductors of the type more commonly found in high-end speakers, selected because they produce the lowest distortion of all inductor types.
As the resistance of the coil is higher than a standard laminated steel or ferrite core inductor, the magnetic structure of the mid/bass driver has been modified to compensate, resulting in fast, clean bass with no distortion from the inductor.
-

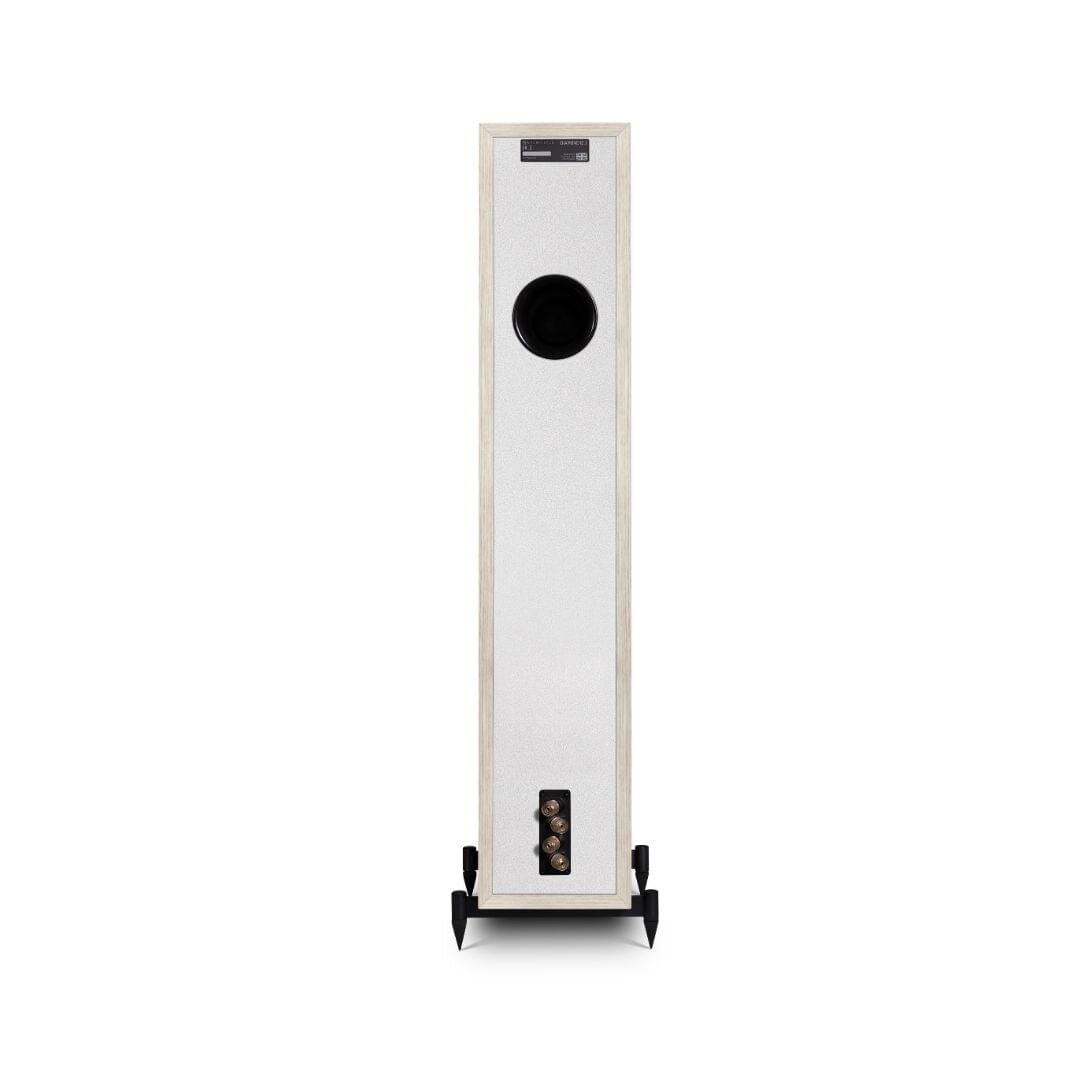

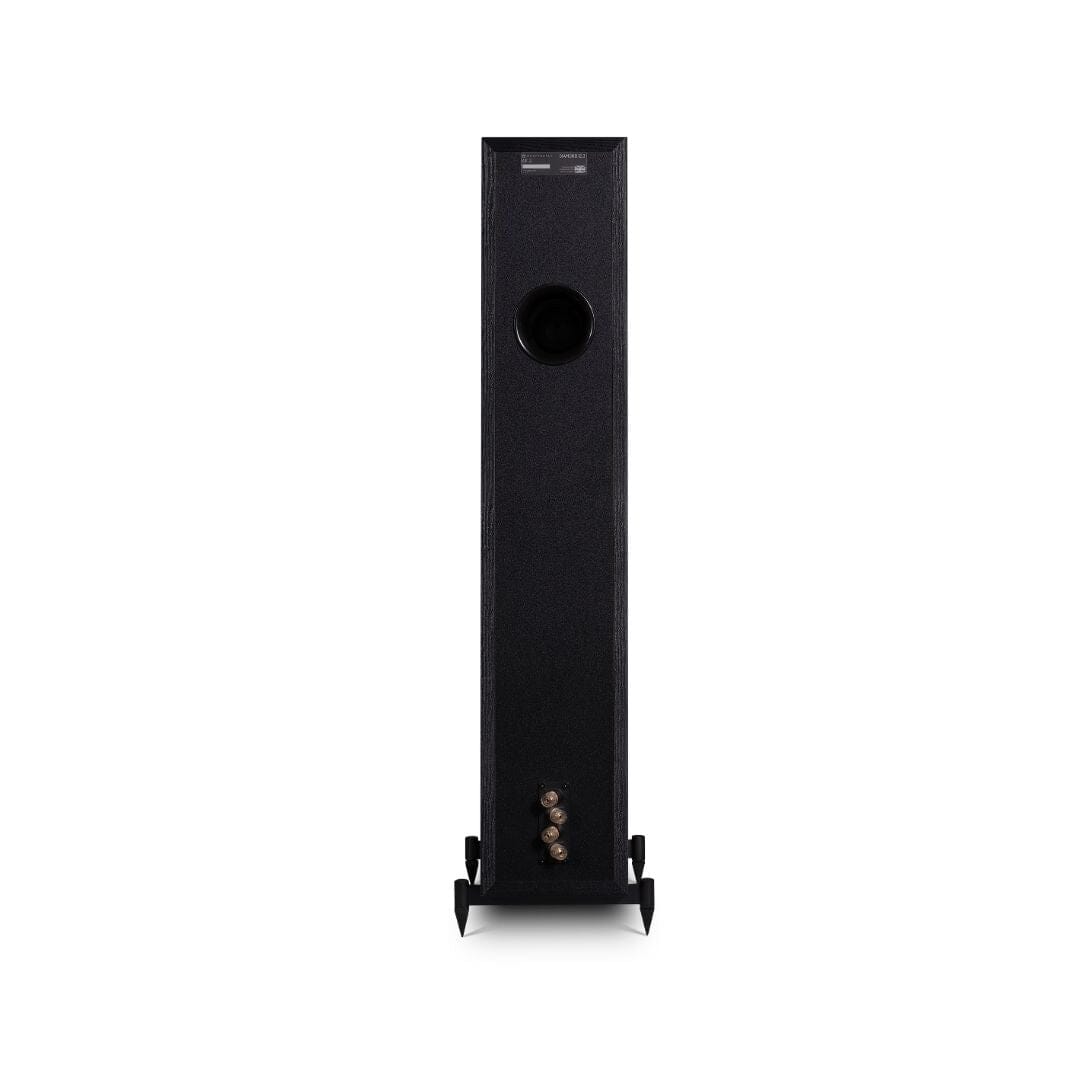

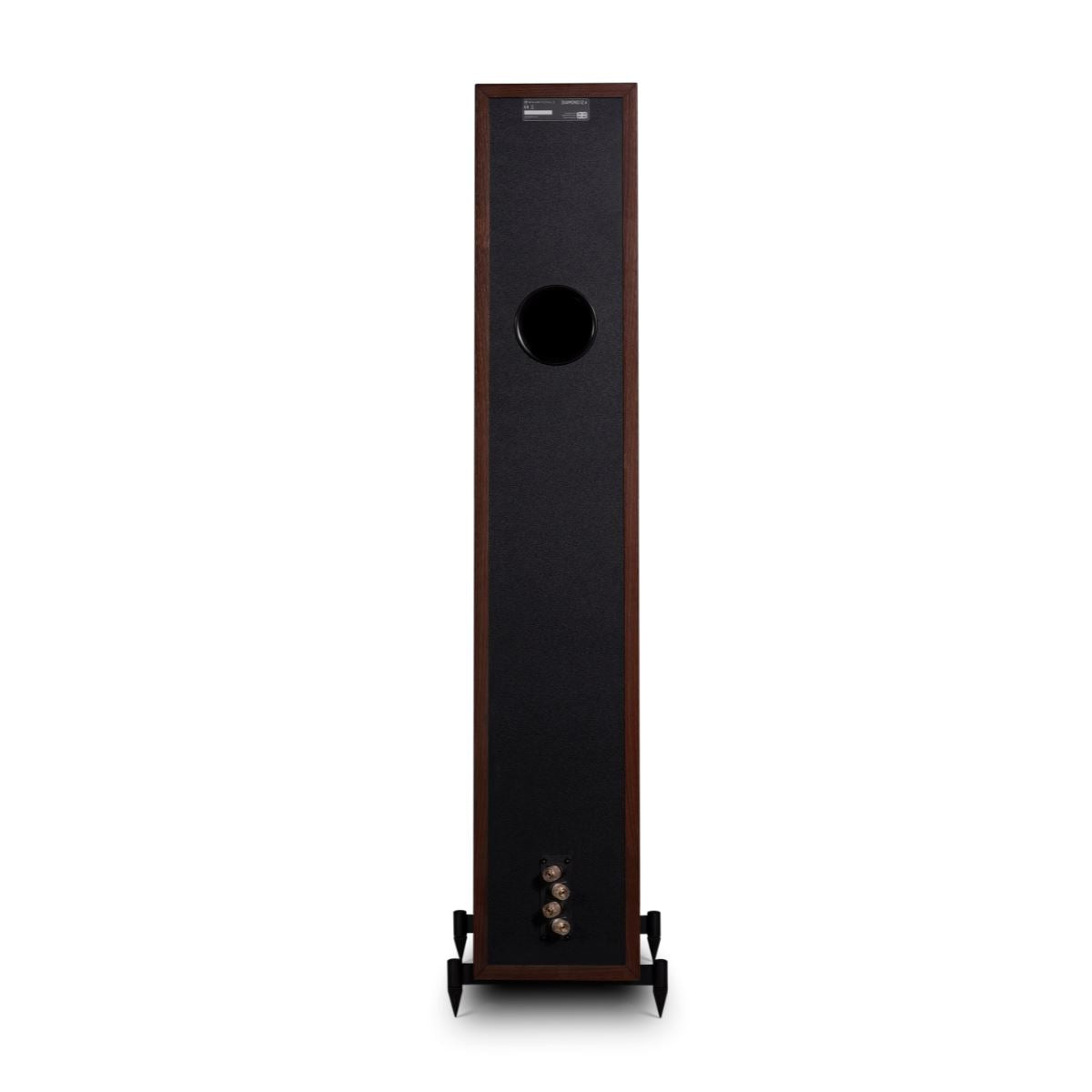

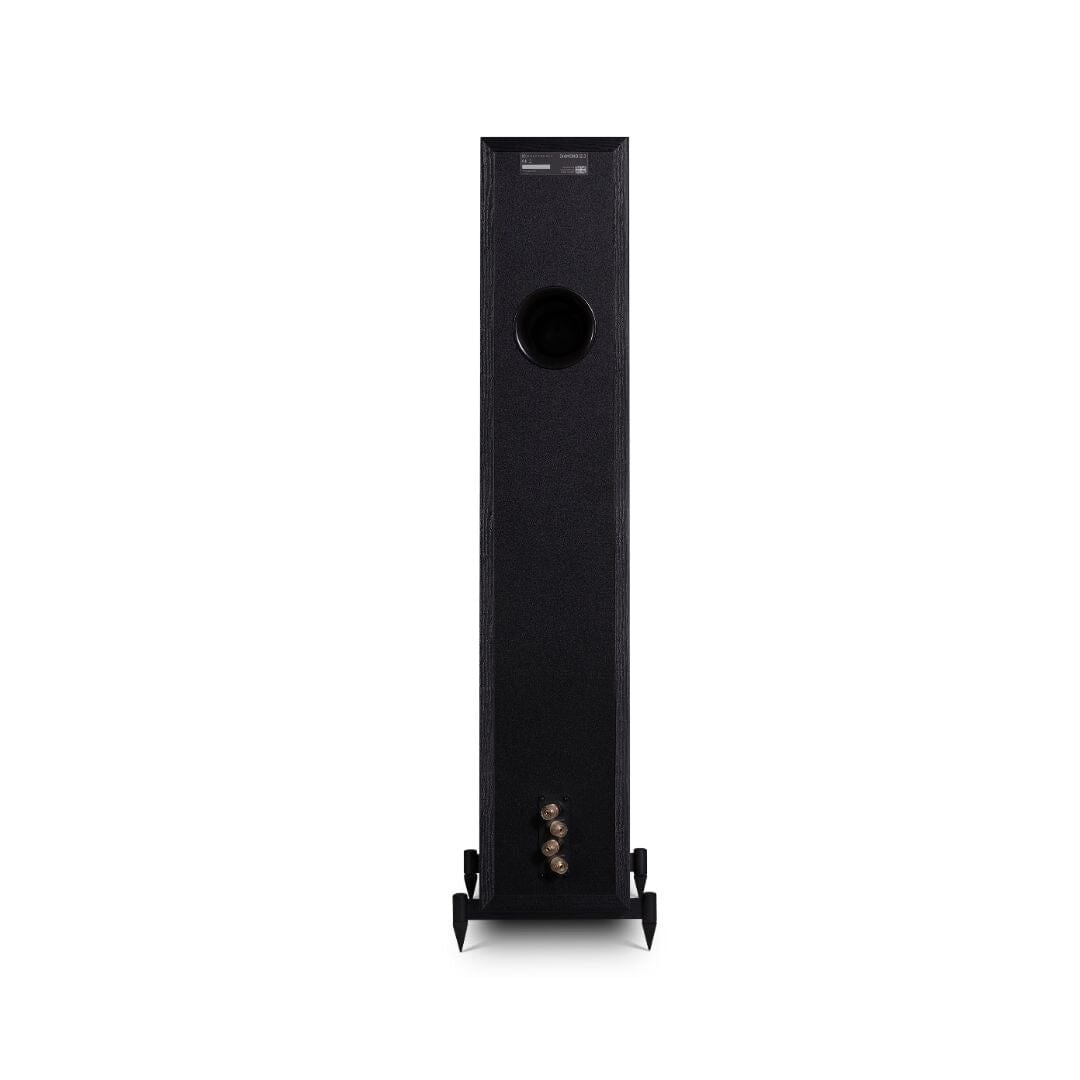

Firm and Fair:The DIAMOND 12.1 ’s rear-ported enclosure is precisely sized so that the internal volume works in harmony with the drive unit system to deliver the desired sonic result.
A multi-layered sandwich design subdues the identifiable characteristics of the cabinet’s ‘sound’. Even the resonant properties of the glue between the layers was measured to determine the optimum combination.
-
Brace Yourself: Inside the cabinet, Intelligent Spot Bracing connects opposite walls with a specific form of the wood brace to achieve an optimal reduction of cabinet resonance.
These braces are precisely modelled by computer simulation to improve upon the commonplace ‘figure of eight’ brace, which may simply transfer resonance from one wall to another.
Key Features
Key Features
-
Impedance
-
Driver Size
-
Sensitivity
-
Warranty
Specifications
Specifications
- General Description: 2.5-way floorstanding speaker
- Enclosure Type: bass reflex
- Bass Driver: 6.5"(150mm) advanced PP Cone
- Midrange Driver: 6.5"(150mm) advanced PP Cone
- Treble Driver: 1"(25mm) Textile Dome
- AV Shield: No
- Sensitivity(2.83V @ 1m): 89dB
- Recommended Amplifier Power: 30-200W
- Peak SPL: 102dB
- Nominal Impedance: 8Ω Compatible
- Minimum Impedance: 5Ω
- Frequency Response(+/-3dB): 40Hz ~ 20kHz
- Bass Extension(-6dB): 35Hz
- Crossover Frequency: 2.1kHz
- Cabinet Volume (in litres): 40.8L
- Dimensions (H x W x D): (1100+50) x 200 x (350+28) mm
- Net Weight:22.4kg/pcs
What's In The Box
What's In The Box
- 2 x 12.4 Floorstanding Speakers
