Q Acoustics E120 Bedroom + En-Suite Bluetooth / Radio Ceiling Speaker System

This bundle is the perfect setup for your bedroom and en-suite.

Featuring an FM/DAB radio tuner for quick access to your favourite radio stations plus wireless Bluetooth streaming from your smartphone or tablet.

The discreet in wall panel is installed in your bedroom and connects to a pair of high-definition in ceiling speakers.

You'll then have a water resistant stereo in ceiling speaker for the en-suite.

From the wall mounted switch (usually installed outside the bathroom) you can then easily switch between the bedroom speakers, the en-suite speakers or both on at the same time.

These dual-zone bundles offer great value for money and work really well for bedroom and en-suite setups.

FEATURES

• Dual Zones For Bedroom + En-Suite
• Wireless Bluetooth Streaming
• Built-In FM/DAB Radio Tuner
• AUX Input for TV / Bathroom TV
• Easy To Control From Wall Panel

AMPLIFIER

• Audio Sources: DAB / DAB+ / FM with RDS
• Bluetooth: Version 5.0, A2DP
• Analogue Input: Type: 3.5mm Stereo, Sensitivity: 350mV, Max Level: 1.5v, Impedance: 10k Ohm
• Optical Input: Type: mini TOSLINK, Resolution: 16 Bit 48 kHz
• Speaker Outputs: Left & Right, Stereo or Dual Mono
• Analogue Line: Type: 3.5mm Stereo, Modes: Fixed or Variable, Max Level: 670mV
• Amplifier: Type: Class D, Continuous Power: 2 x 25W @ 6 Ohms, THD: 0.07% @ 1W / 0.2% @ rated power, SNR: >75dB @ Rated Power, Frequency Response: 20Hx - 20 kHz +/- 1 dB
• IP Ratings: E120 Wall Panel: IP54, Splash Proof Remote: IP54
• Control: Touch Sensitive Buttons, Infrared Remote Control, Bluetooth AVRCP v1.6 Play, Pause, Skip, Track, Artist, Album Name
• Menu Languages: English, German, Dutch, French, Danish, Spanish, Italian, Norwegian, Polish, Finnish
• Alarms: x2 Once, Daily, Weekdays, Weekends
• Power Supply: Input: 100 - 240V AC 50/60Hz, Output: 22V DC 1.5A, Dimensions: (HxWxD) 30mm x 50mm x 115mm
• Power Consumption: Typical: 10W, Standby: <1W Deep Standby: <0.5W

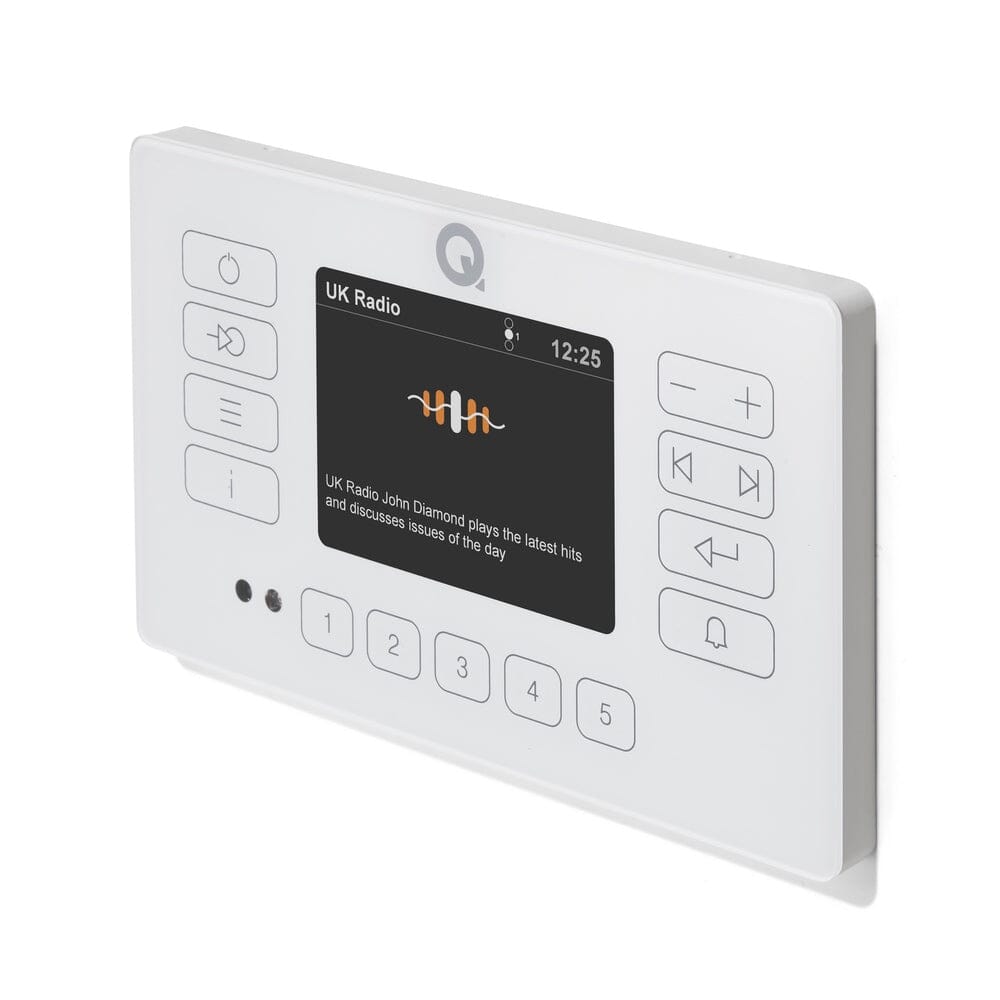

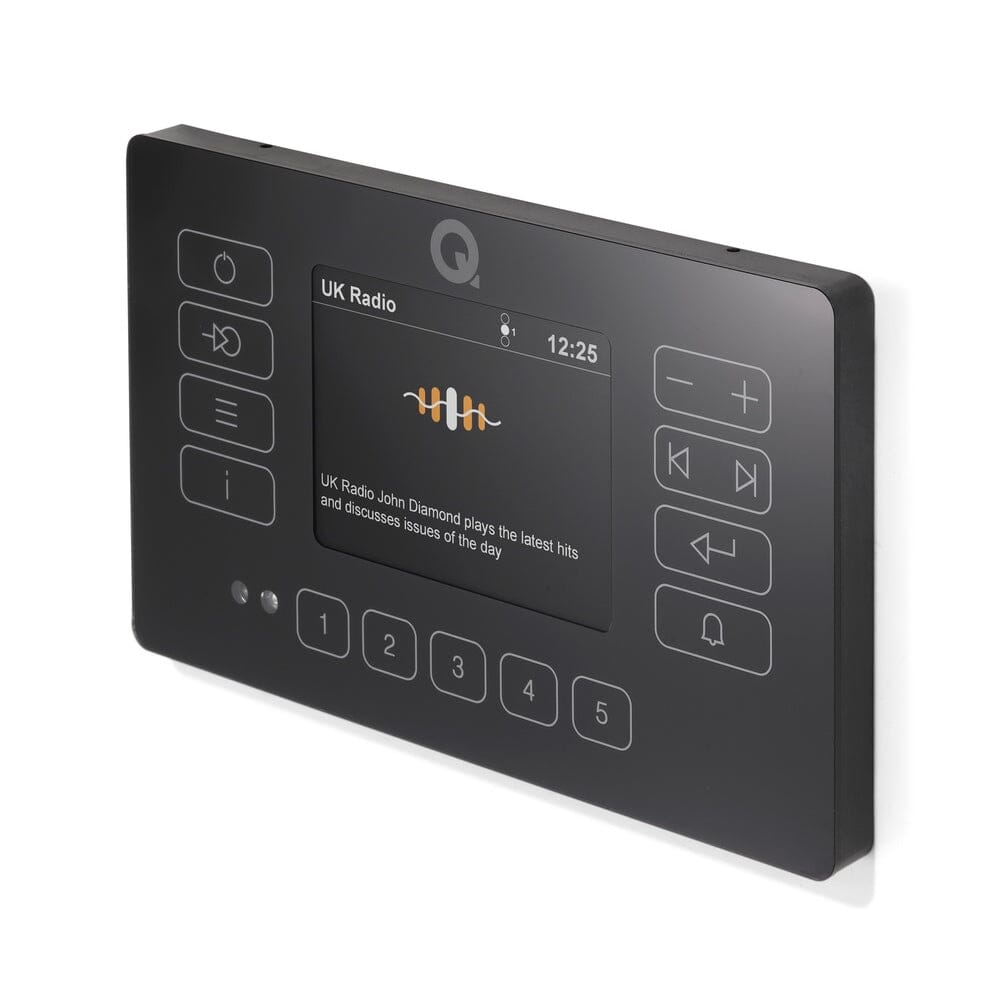

• Wall Panel: Net Weight: 0.251kg, Dimensions: (HxWxD): 91mm x 151mm x 33mm
• Speaker Cable: Gauge: 19AWG, Length: 2 x 7M
• DC Extension: Gauge: 16AWG, Length: 5M, Connectors: 5.5mm x 2.5mm DC male / 5,5mm x 2.5mm DC female

QI65C IN CEILING SPEAKERS (PAIR)

• Tweeter: Swivel
• Tweeter diameter: 0.75" (19mm)
• Woofer diameter: 6.5"
• Power handling (program): 15-60W
• Impedance (nominal) ohms: 8ohm
• Sensitivity dB spl (2.83V, 1m): 89
• Response(Low freq.) -3dB Hz: 75
• Maximum rear depth: 79mm
• Size(Round grilles): 232mm dia
• Cutout: 203mm
• Warranty: 5 Years

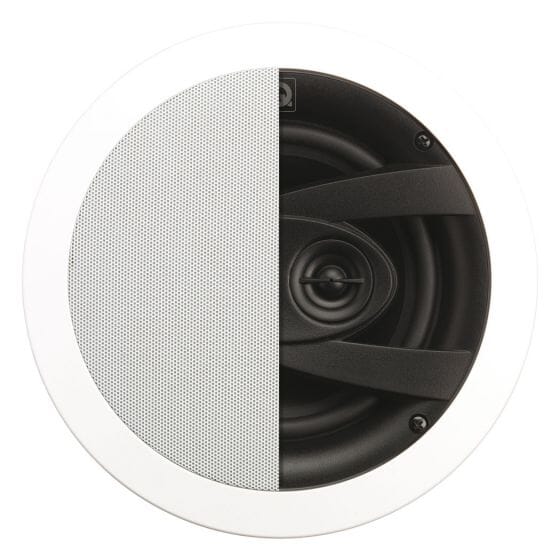

QI65CW-ST BATHROOM STEREO SPEAKER

• Tweeter: Swivel
• Tweeter diameter: 2 x 0.5" (13mm)
• Woofer diameter: 6.5"
• Power handling (program): 15-60W
• Impedance (nominal) ohms: 8 ohm
• Sensitivity dB spl (2.83V, 1m): 85
• Response(Low freq.) -3dB Hz: 65
• Cutout Size: 197mm
• Maximum rear depth: 84mm
• Size(Round grilles): 232mm dia
• Warranty: 5 Years

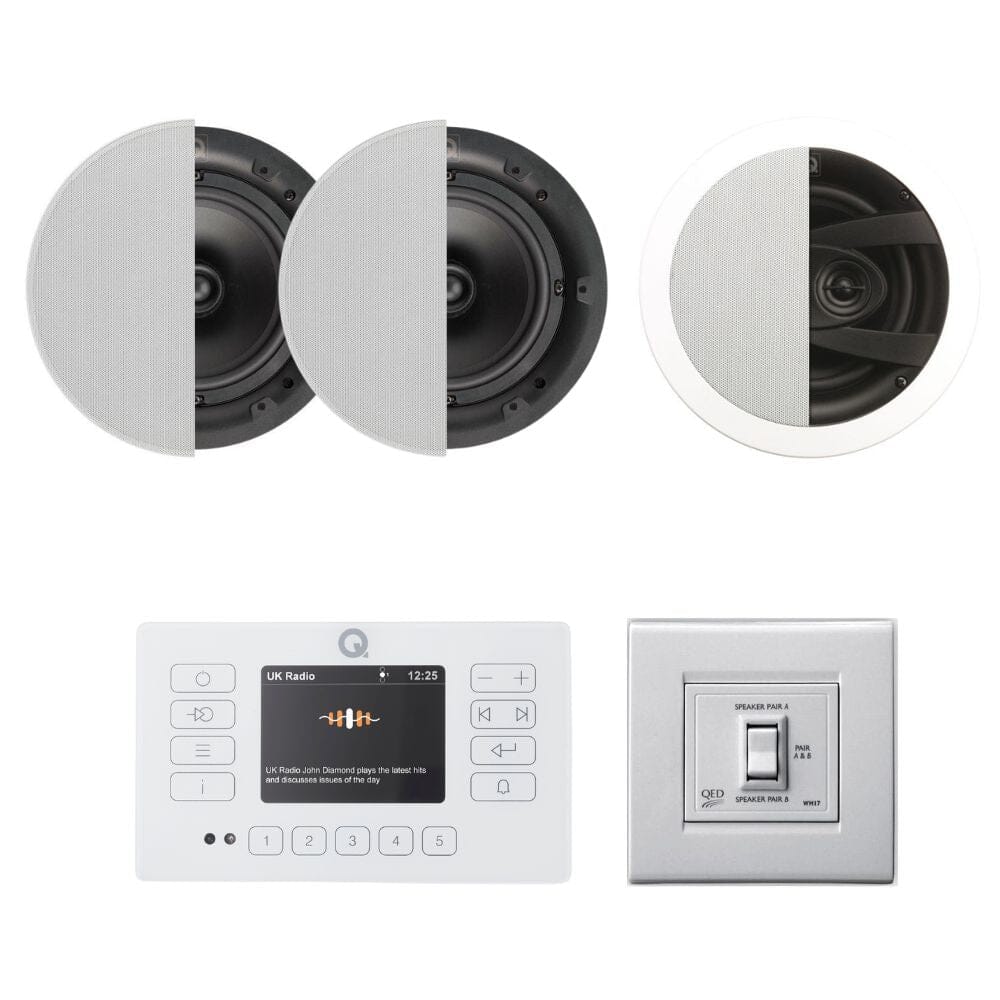

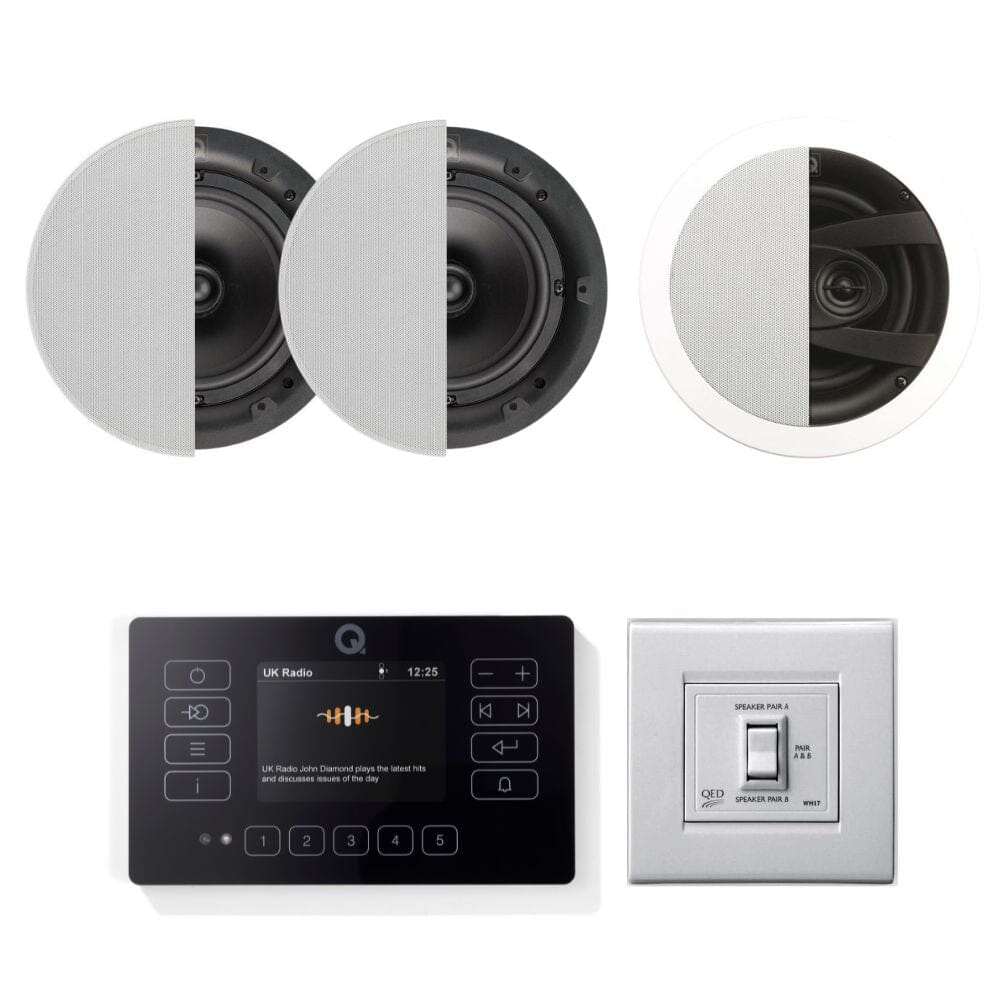

• 1 x E120 Wall Panel (Black or White)
• 2 x Q Acoustics QI65C 6.5" In Ceiling Speakers
• 2 x Low Profile Grilles
• 1 x Q Acoustics QI65CW-ST 6.5" Stereo Bathroom Ceiling Speaker
• 2 x 7m Speaker Cables
• 1 x Power Supply
• 1 x 5M DC Extension Cable
• 1 x Waterproof Remote Control
• 1 x Premium Remote Control
• 1 x Instruction Manual
• 20m x Additional Speaker Cable

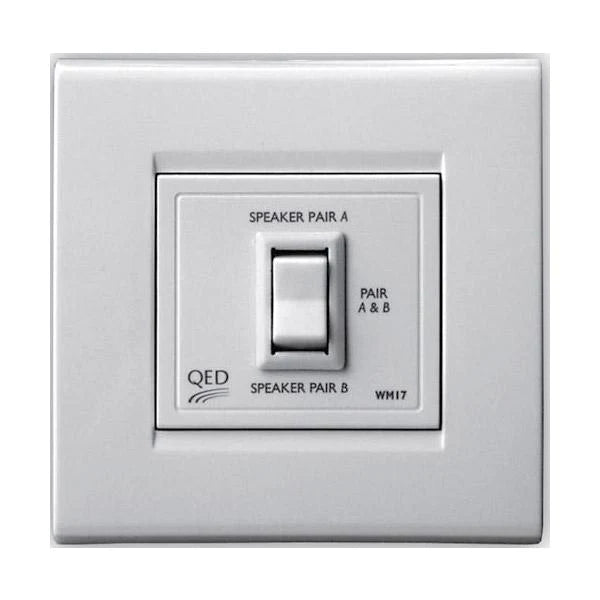

• 1 x QED WM17 In Wall Speaker Selector Switch
