Adastra RS Series 100V Line Slave Amplifier (120W - 480W)
Adastra RS Series 100V Line Slave Amplifier (120W - 480W) - 120W is available to order and will ship in 2-3 working days.
Description
Description

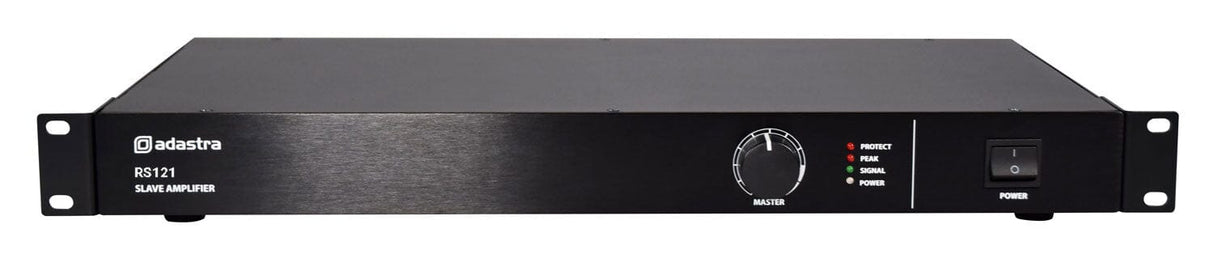

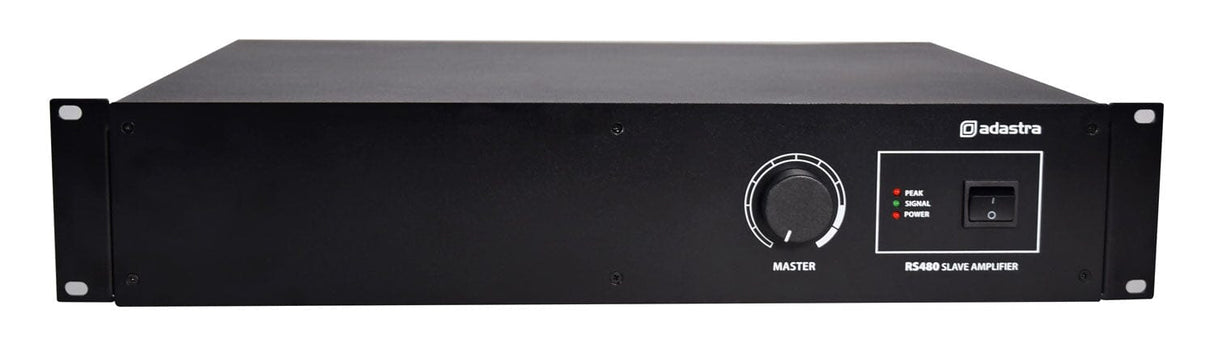

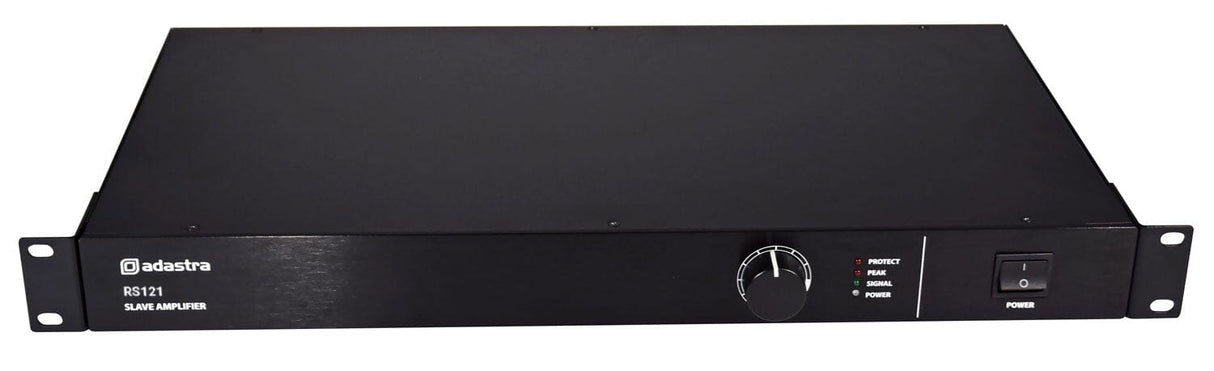

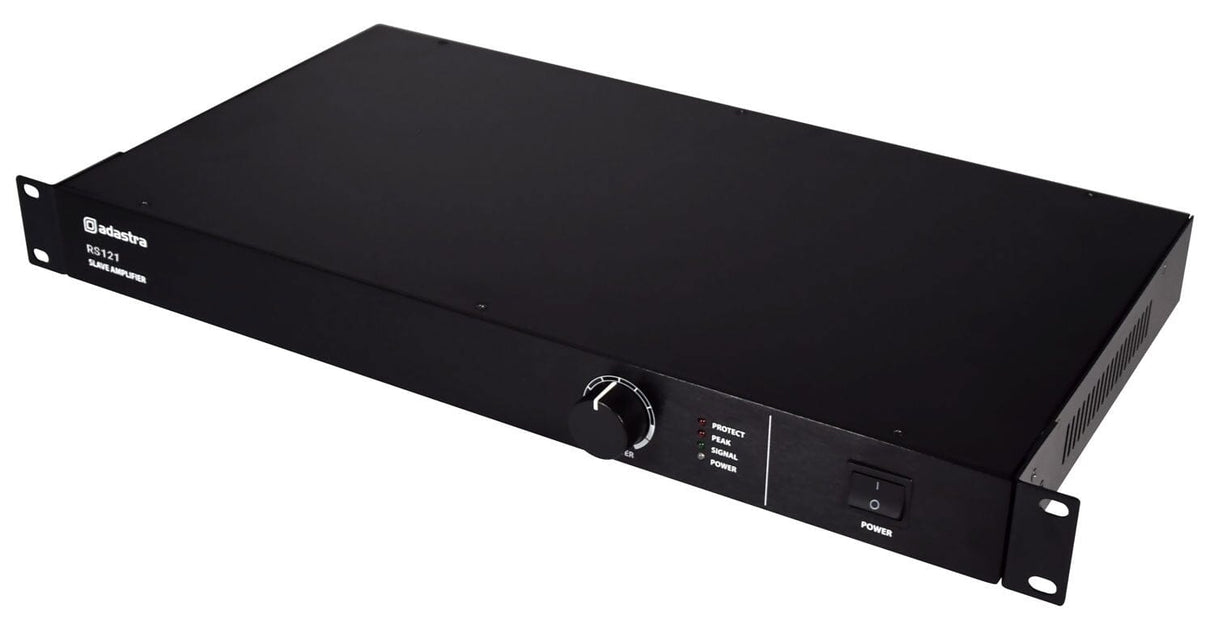

High power 100V line slave amplifiers in a 2U rack-mountable housing.
Slave inputs can be connected from Adastra RM series mixer amplifiers and slave outputs onto further RS slaves.
Master volume control governs output level to either low impedance or 100V speakers.
Designed to power medium to large installations from a mixer output or expand existing systems.
FEATURES

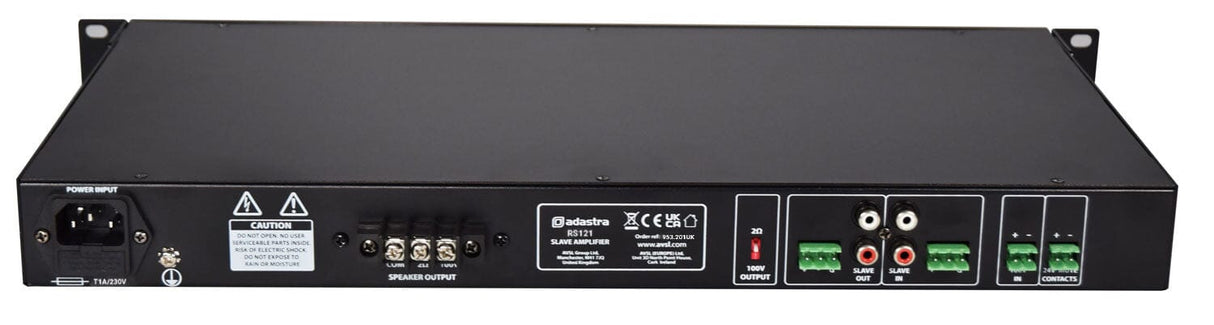

- RCA slave inputs and outputs
- 8 ohms and 100V line speaker output
- Supplied with rack-mount ears
- 2U 19" rack mountable
- Peak and signal LEDs
Key Features
Key Features
-
ZonesSingle Zone
-
PlacementFreestanding
-
InputsRCA
-
OutputsRCA Line Out
-
Warranty
Specifications
Specifications
- Power Supply: 110/240Vac, 50/60Hz (IEC)
- Input: RCA slave in
- Outputs: 2 x RCA
- Controls: Master volume
- THD: <1.0%
- Output Speaker: 100V and 8 ohms
- DC power: 24Vdc (screw terminals)
- Power Output: 120 Wrms
- Weight: 8.88kg
- Dimensions: 433 x 363 x 89mm
- Power Supply: 110/240Vac, 50/60Hz (IEC)
- Input: RCA slave in
- Outputs: 2 x RCA
- Controls: Master volume
- THD: <1.0%
- Output Speaker: 100V and 8 ohms
- DC power: 24Vdc (screw terminals)
- Power Output: 240 Wrms
- Weight: 10.06kg
- Dimensions: 433 x 363 x 89mm
- Power Supply: 110/240Vac, 50/60Hz (IEC)
- Input: RCA slave in
- Outputs: 2 x RCA
- Controls: Master volume
- THD: <1.0%
- Output Speaker: 100V and 8 ohms
- DC power: 24Vdc (screw terminals)
- Power Output: 360 Wrms
- Weight: 11.60kg
- Dimensions: 433 x 363 x 89mm
- Power Supply: 110/240Vac, 50/60Hz (IEC)
- Input: RCA slave in
- Outputs: 2 x RCA
- Controls: Master volume
- THD: <1.0%
- Output Speaker: 100V and 8 ohms
- DC power: 24Vdc (screw terminals)
- Power Output: 480 Wrms
- Weight: 13.50kg
- Dimensions: 433 x 363 x 89mm
RS120
RS240
RS360
RS480
