Ortofon Concorde Music Red Cartridge
Spend £50 For Free UK Delivery
Spend £50 For Free UK Delivery
All orders to mainland UK over £50 are eligible for free standard delivery.
For orders under £50 we have delivery rates starting from just £2.99
Need it fast? No problem, you’ll find express next day delivery rates available on most products. Learn More
60 Day Returns + Warranty
60 Day Returns + Warranty
We’re so confident that you’ll be happy with your purchase that we’ve extended our returns policy to 60 days.
We call it the “Happy Sound Guarantee”.
If you’re not happy with your purchase for any reason simply send it back to us for a full refund. Learn More
Warranty
K&B Audio are authorised dealers for Ortofon. All sales come with a manufacturers warranty and full technical support.
Description
Description

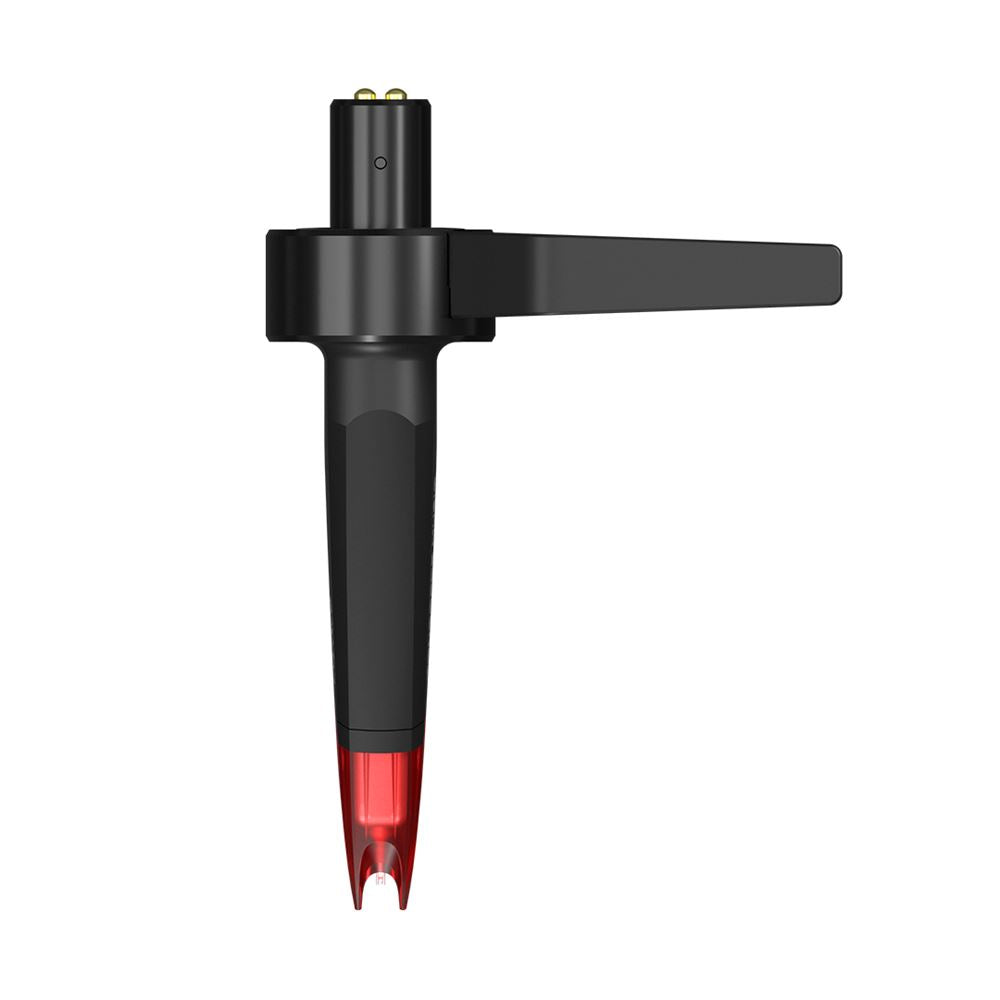

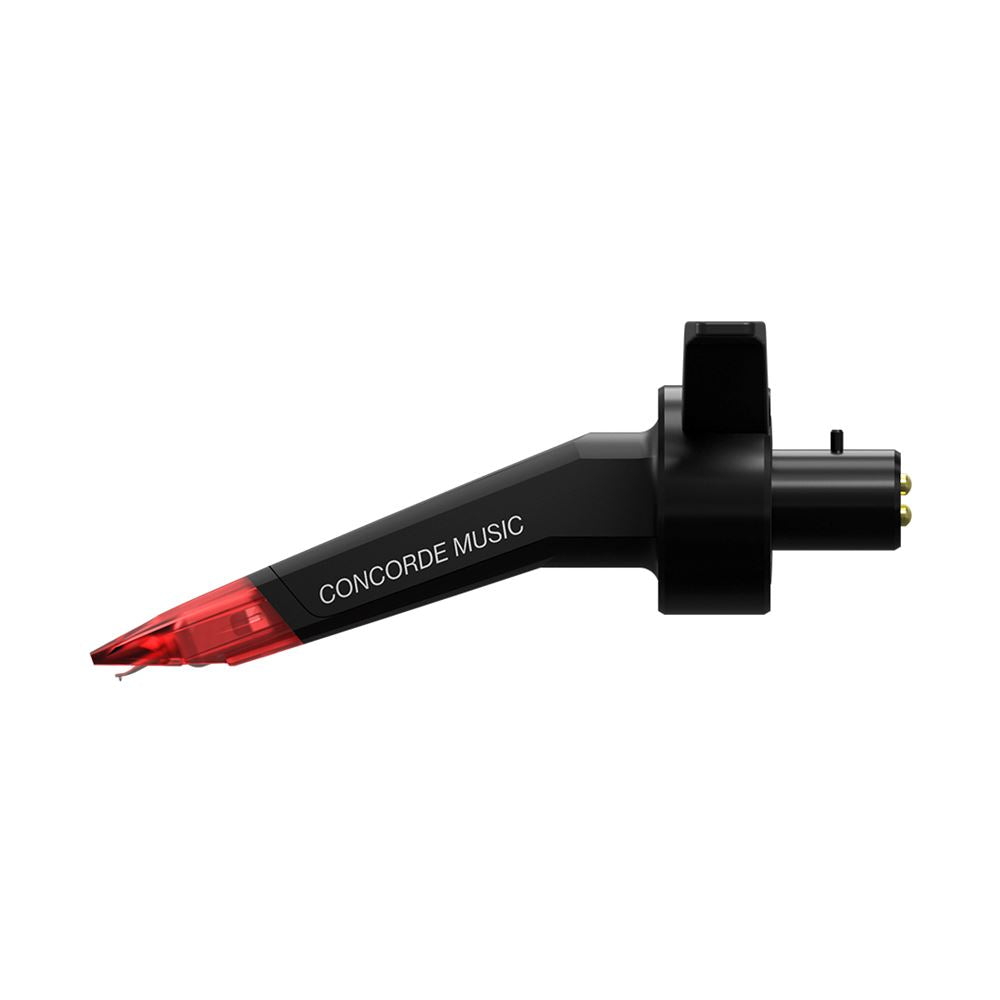

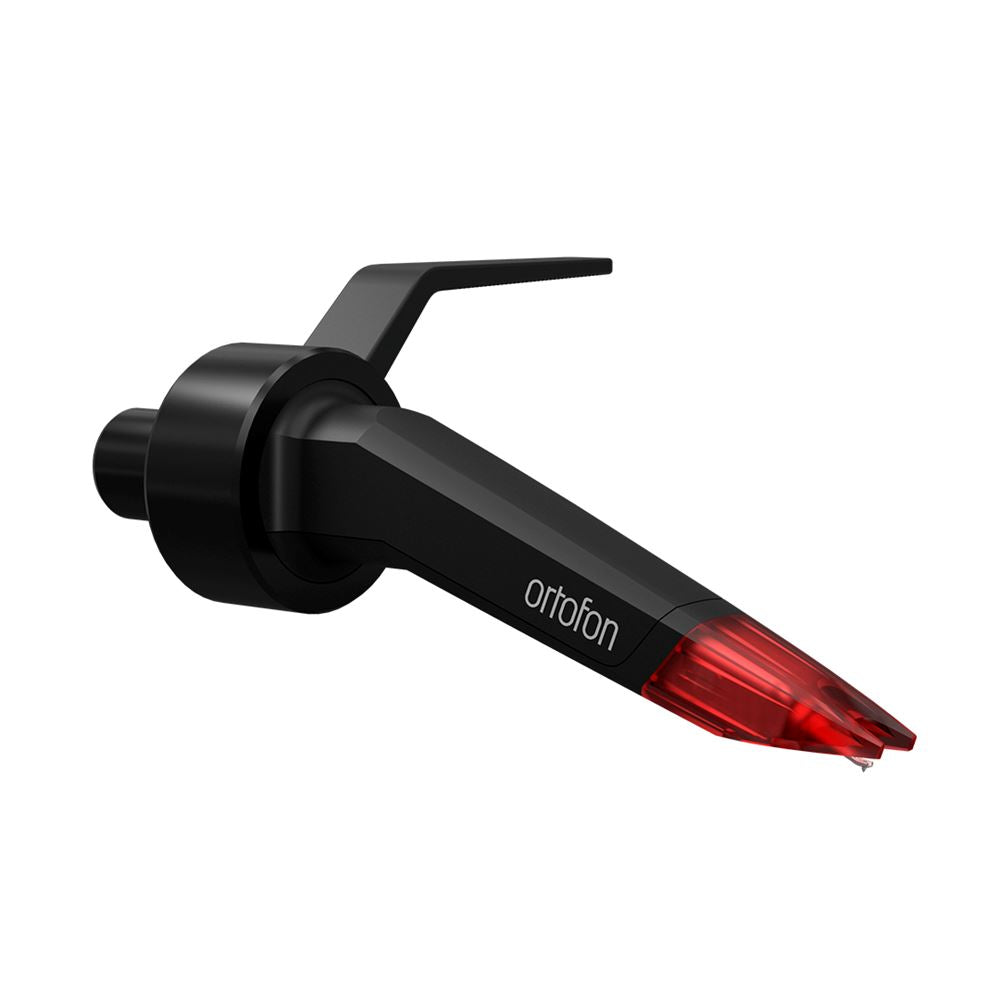

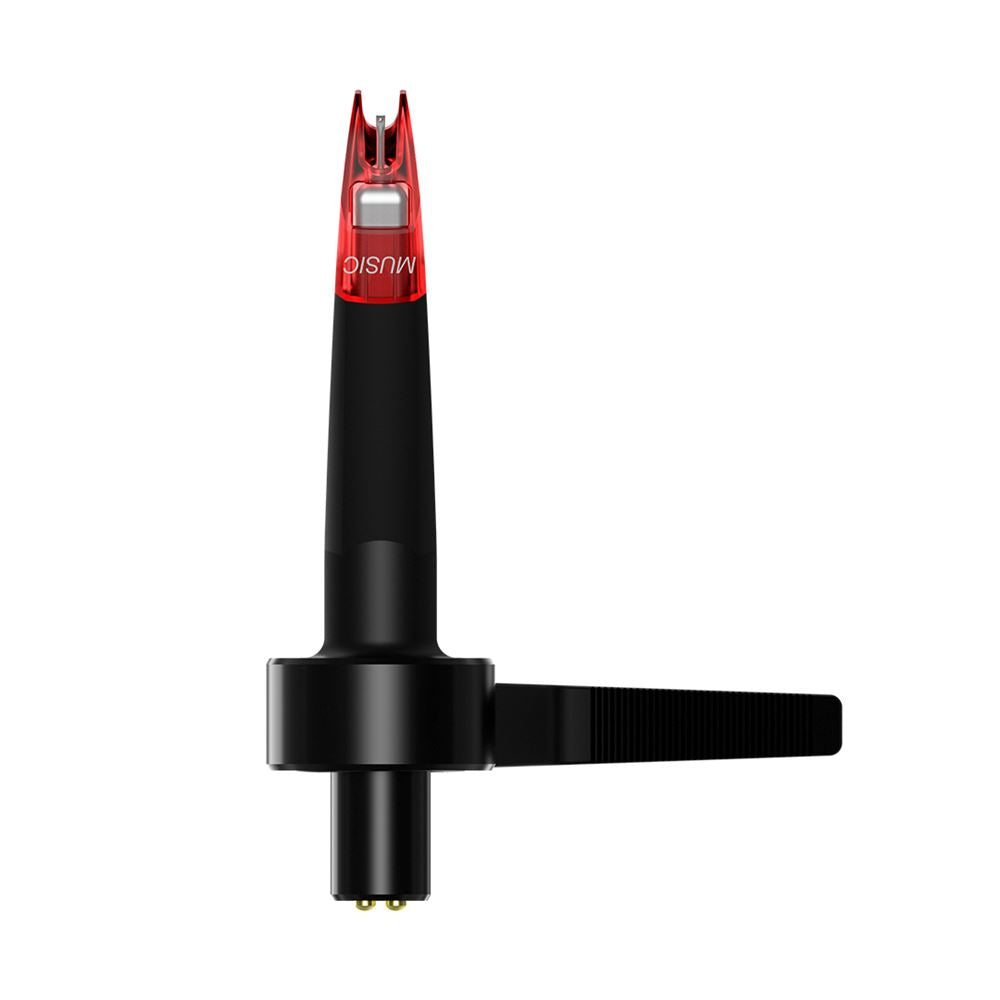

Experience balanced and dynamic sound quality with the Concorde Music Red. The Concorde Music Red features an Elliptical stylus on an Aluminium cantilever and can be upgraded through the entire series to Concorde Music Black LVB 250, simply by replacing the stylus.
The Concorde Music series
Developed by music lovers, for music lovers, the Concorde Music HiFi cartridges blend premium performance with an iconic design. Concorde Music, not just a cartridge, but a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.
Installing a Concorde Music cartridge on a turntable is easy and straightforward, no tools required making it hassle free and convenient.
Specifications
Specifications
- Channel balance at 1 kHz: 1.5 dB
- Output voltage at 1 kHz, 5cm/sec: 6mV
- Channel seperation at 1 kHz: 22 dB
- Channel seperation at 15 kHz: 15 dB
- Frequency response 20 Hz - 20 kHz: +3 / -1 dB
- Tracking ability at 315Hz at recommended tracking force: 80 µm
- Compliance, dynamic, lateral: 15 µm/mN
- Stylus type: Elliptical diamond on Aluminium cantilever
- Stylus tip radius: r/R 8/18 µm
- Tracking force, recommended: 1.8 g
- Tracking angle: 20°
- Internal impedance, DC resistance: 1.27 kΩ
- Cartridge colour: Black/Red
- Cartridge weight: 18 g
- Recommended load resistance: 47 kΩ
- Internal inductance: 815 mH
- Recommended load capacitance: 150-300 pF
What You Get
What You Get
- 1 x Concorde Music Red Cartridge inc. Stylus
