[OPEN BOX] Q Acoustics E120 In Wall Amplifier with Bluetooth/DAB+/FM (No Speakers) - White

Leading audio specialist Q Acoustics introduces the E120, an install wireless hi-fi system for any room in a home or property.

Drawing on the company’s rich audio expertise, the E120 continues Q Acoustics’ exemplary credentials of designing class-leading, award-winning loudspeakers and wireless music systems.

Pair the convenient wall-mounting E120 with Q Acoustics’ range of discreet in-ceiling or in-wall speakers and homeowners can experience a zero clutter, wireless home hi-fi system, powerful enough to fill any room with dynamic and superior audio - the perfect case of hearing but not seeing.

FEATURES

• Easy wall-mounting installation in any room in a home or property.
• Zero clutter design – pair with discreet Q Acoustics in-ceiling and in-wall speakers.
• High-quality built-in class D stereo amplifier serving up 2 x 25W of power.
• IP54-rating makes it suitable for kitchen and bathroom installations.
• Features Bluetooth 5.0 for wireless streaming of music from a compatible Device.
• Built-in DAB+ and FM radio with one-touch presets.
• Touch sensitive controls and splash proof remote control supplied.
• Sharp 3.2-inch colour display.
• Boasts digital and analogue inputs for connection of audio sources such as the TV audio and a subwoofer.

AMPLIFIER:

• Audio Sources: DAB / DAB+ / FM with RDS
• Bluetooth: Version 5.0, A2DP
• Analogue Input: Type: 3.5mm Stereo, Sensitivity: 350mV, Max Level: 1.5v, Impedance: 10k Ohm
• Optical Input: Type: mini TOSLINK, Resolution: 16 Bit 48 kHz
• Speaker Outputs: Left & Right, Stereo or Dual Mono
• Analogue Line: Type: 3.5mm Stereo, Modes: Fixed or Variable, Max Level: 670mV
• Amplifier: Type: Class D, Continuous Power: 2 x 25W @ 6 Ohms, THD: 0.07% @ 1W / 0.2% @ rated power, SNR: >75dB @ Rated Power, Frequency Response: 20Hx - 20 kHz +/- 1 dB
• IP Ratings: E120 Wall Panel: IP54, Splash Proof Remote: IP54
• Control: Touch Sensitive Buttons, Infrared Remote Control, Bluetooth AVRCP v1.6 Play, Pause, Skip, Track, Artist, Album Name
• Menu Languages: English, German, Dutch, French, Danish, Spanish, Italian, Norwegian, Polish, Finnish
• Alarms: x2 Once, Daily, Weekdays, Weekends
• Power Supply: Input: 100 - 240V AC 50/60Hz, Output: 22V DC 1.5A, Dimensions: (HxWxD) 30mm x 50mm x 115mm
• Power Consumption: Typical: 10W, Standby: <1W Deep Standby: <0.5W
• Wall Panel: Net Weight: 0.251kg, Dimensions: (HxWxD): 91mm x 151mm x 33mm
• Speaker Cable: Gauge: 19AWG, Length: 2 x 7M
• DC Extension: Gauge: 16AWG, Length: 5M, Connectors: 5.5mm x 2.5mm DC male / 5,5mm x 2.5mm DC female

• 1 x E120 Wall Panel (Black or White)
• 2 x 7m Speaker Cables
• 1 x Power Supply
• 1 x 5M DC Extension Cable

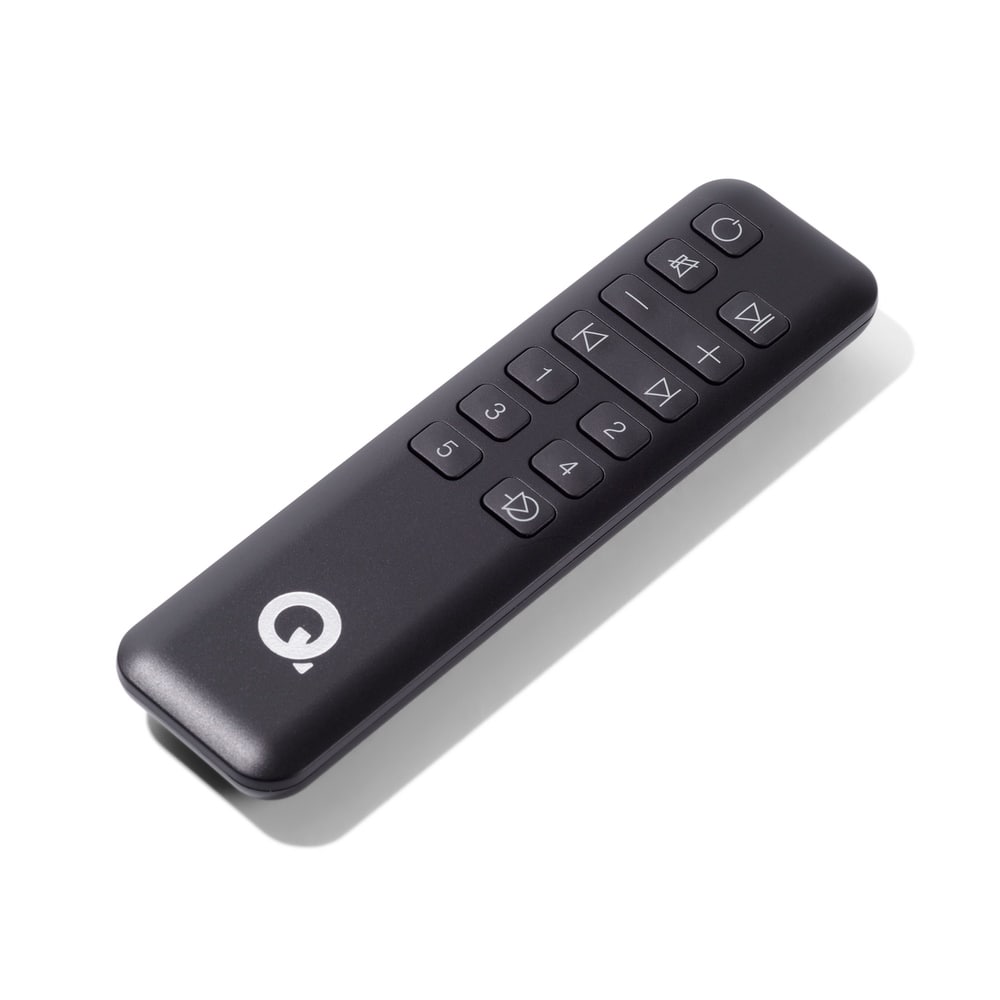

• 1 x Waterproof Remote Control
• 1 x Premium Remote Control
• 1 x Instruction Manual

• Q Acoustics E120 User Manual
• Q Acoustics E120 Installation Manual
• Q Acoustics E120 Datasheet
• How To Connect Four Speakers To The E120
