CYP DAC TV Connection Kit for Ceiling Speakers

Model: TB7349
Cable Type
Low Stock - 1 Available
Shop All CYP
Find More Accessories

Most modern TV's are now dropping the headphone jacks which is making connecting a TV to your sound system a little harder.

Luckily we've created this bundle to make the connection a lot easier.

Simply run the analogue cable from your television to your speaker system, connect the DAC (Digital To Anlogue Converter) to your television via the included optical cable and plug in your speaker system.

Now you'll be able to listen to your TV or other digital optical music source on your analogue speaker system.

If using with one of our speaker systems here's a handy guide on which one to buy.

RCA-RCA = Lithe Audio, Tangent Ampster, Denon HEOS, Sonos AMP

RCA-3.5MM = Systemline E50, K2 Audio Bluetooth Express, iEAST

If you would like any advice on connecting your TV please read this blog and also feel free to contact one of our audio experts.

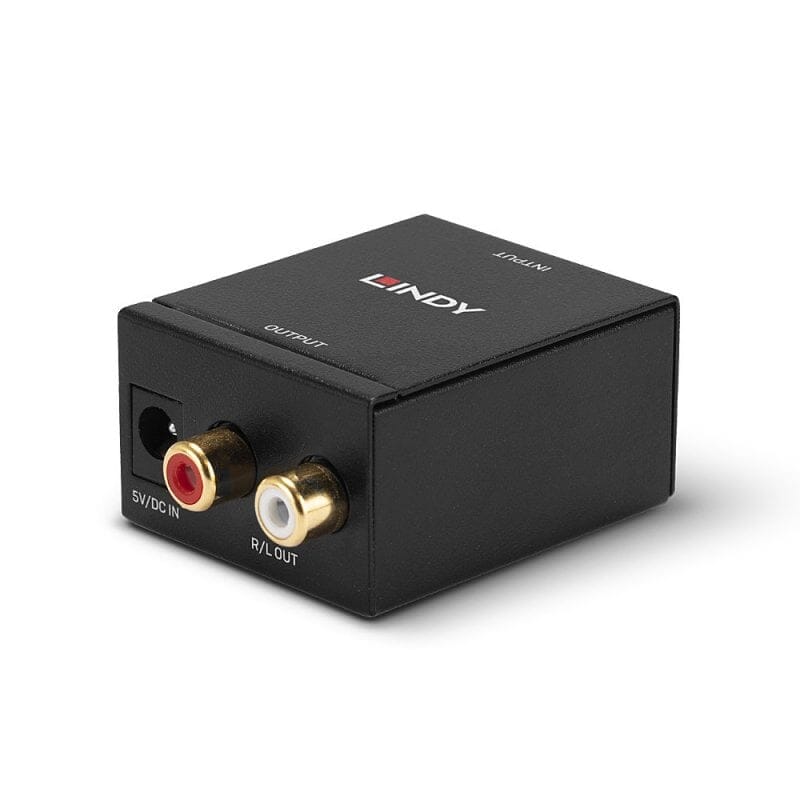

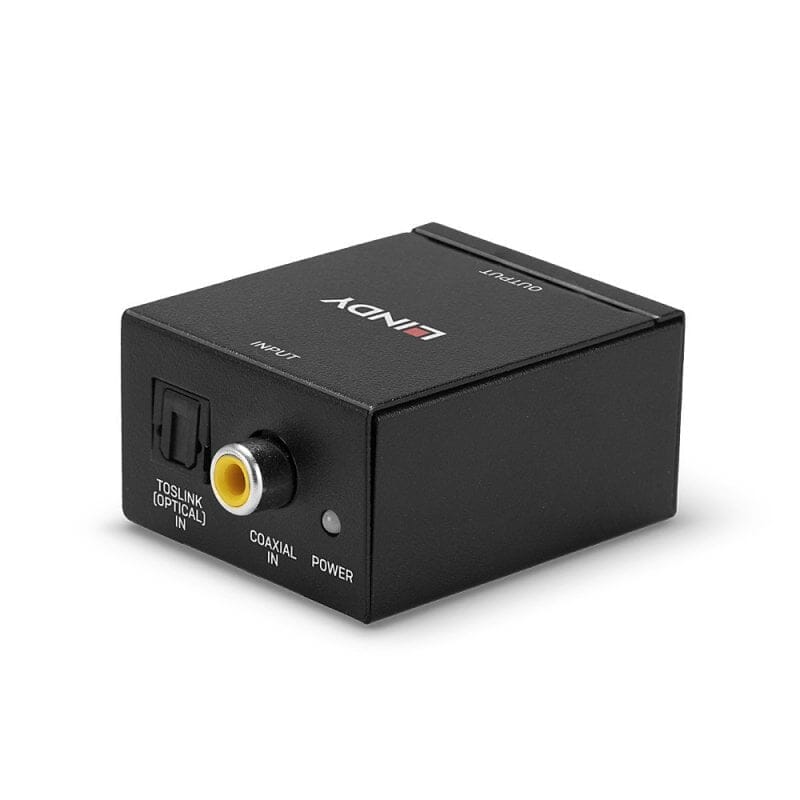

The AU-D3-192 is designed to convert either Coaxial or Optical signals from a digital stereo signal to analogue stereo audio. With an advanced 192kHz sampling rate, this unit is particularly useful for enhancing sound reproduction when connecting digital sources to analogue amplifier.


  • Supports digital audio signal (Coaxial/Optical) input and analogue audio signal (L/R) output.
  • Supports uncompressed digital stereo audio input.
  • Compact size and easy to install.
  • Supports SPDIF 192K/24 bits of data for the left and right channel.

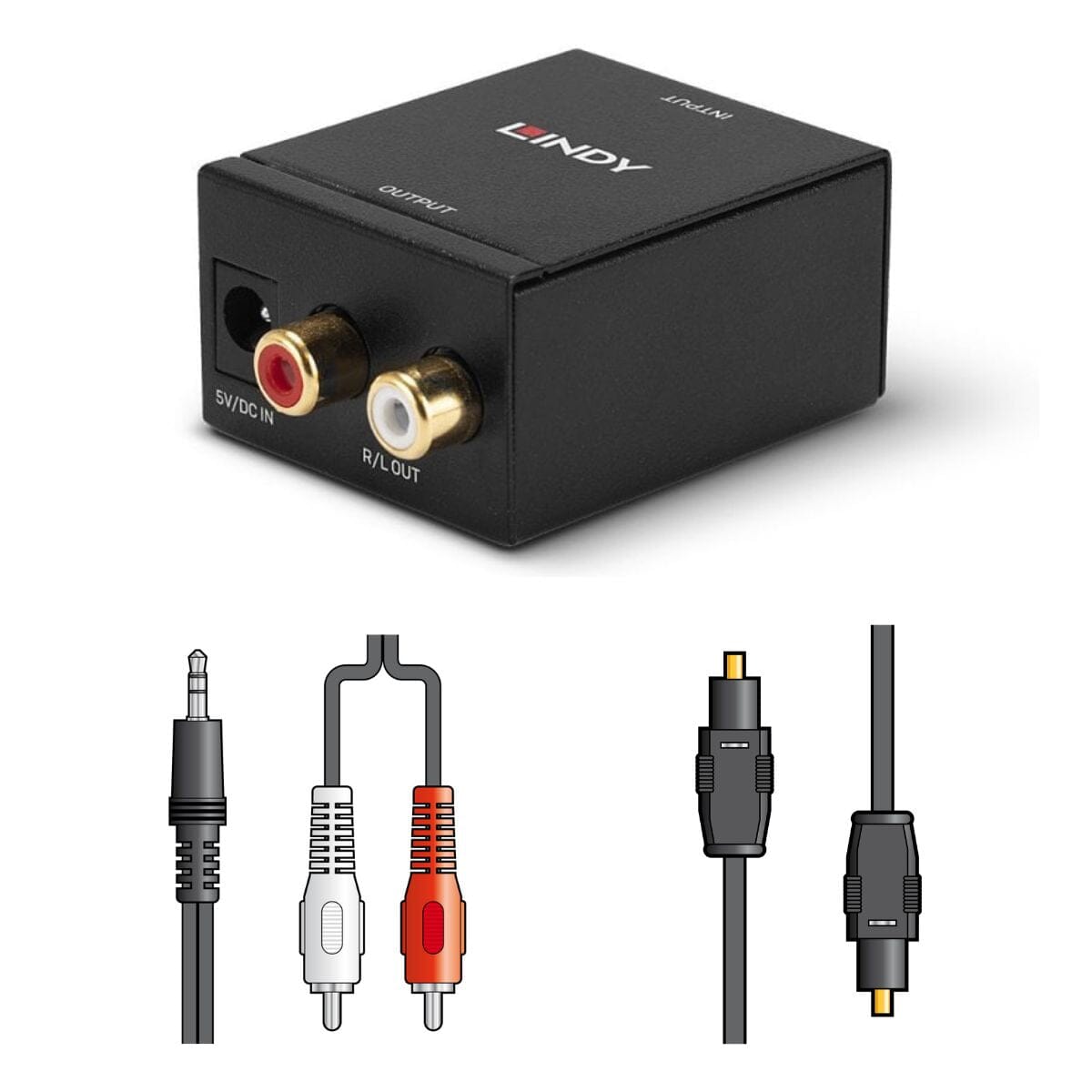

    • 1 x CYP AU-D3-192 Digital to Analogue Converter
    • 1 x 10M RCA to RCA Cable (or 3.5mm)
    • 1 x AV Link 1M Optical Connection Cable


    1 Year
    • Digital Audio to Left/Right Stereo Audio Converter (DAC) with improved 192kHz sample rate for enhanced sound reproduction
    • Integrated digital interpolator filter
    • Supports digital audio signal (Coaxial/Toslink) input and analogue audio signal (L/R) output
    • Accepts uncompressed digital stereo audio input
    • Accepts 16 or 24bit: 32, 44.1, 48, 88.2, 96, 176.4 and 192kHz sample rates

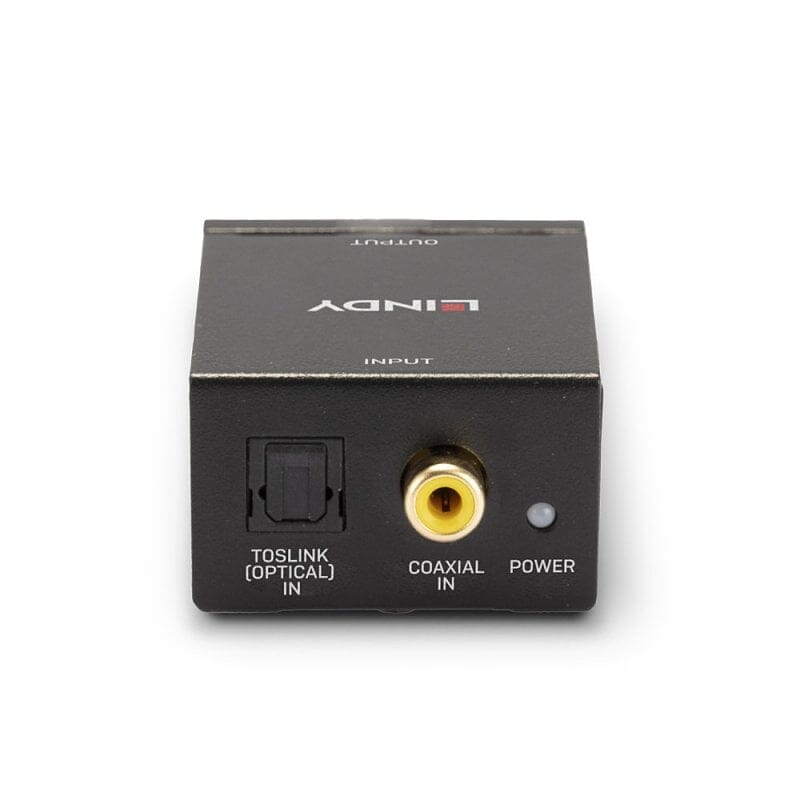

    • Inputs 1x RCA [1x Coaxial 2 Channel LPCM]
    • 1x Toslink [1x Optical 2 Channel LPCM]

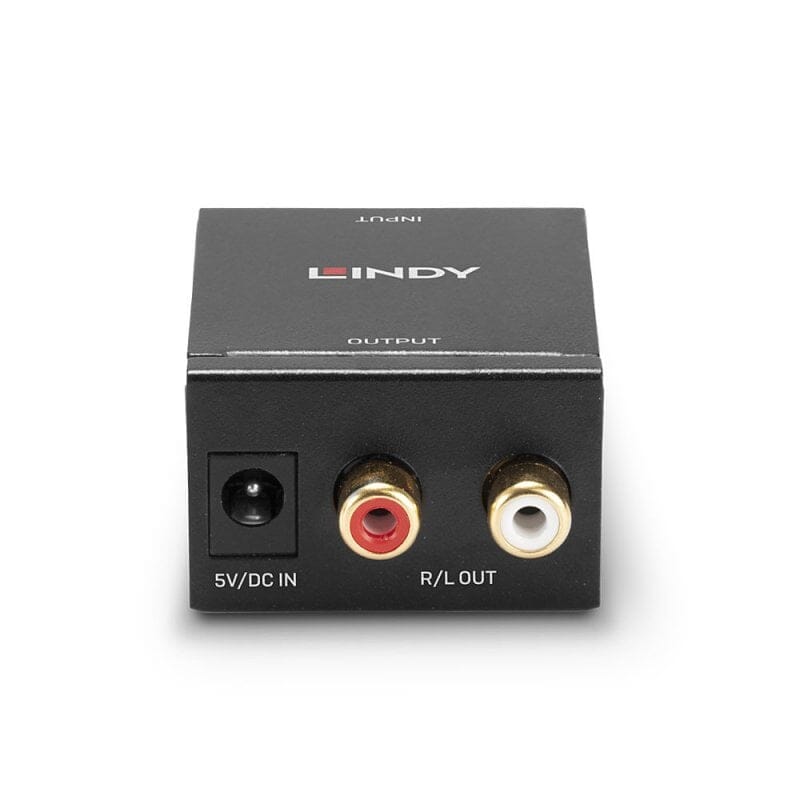

    • Outputs 2x RCA [1x Analogue Stereo (L/R)]
    • PSU: 5V/1.2A
    • Dimensions 42mm [W] x 57mm [D] x 25mm [H]
    • Net Weight 140g
    • Gross Weight 220g
