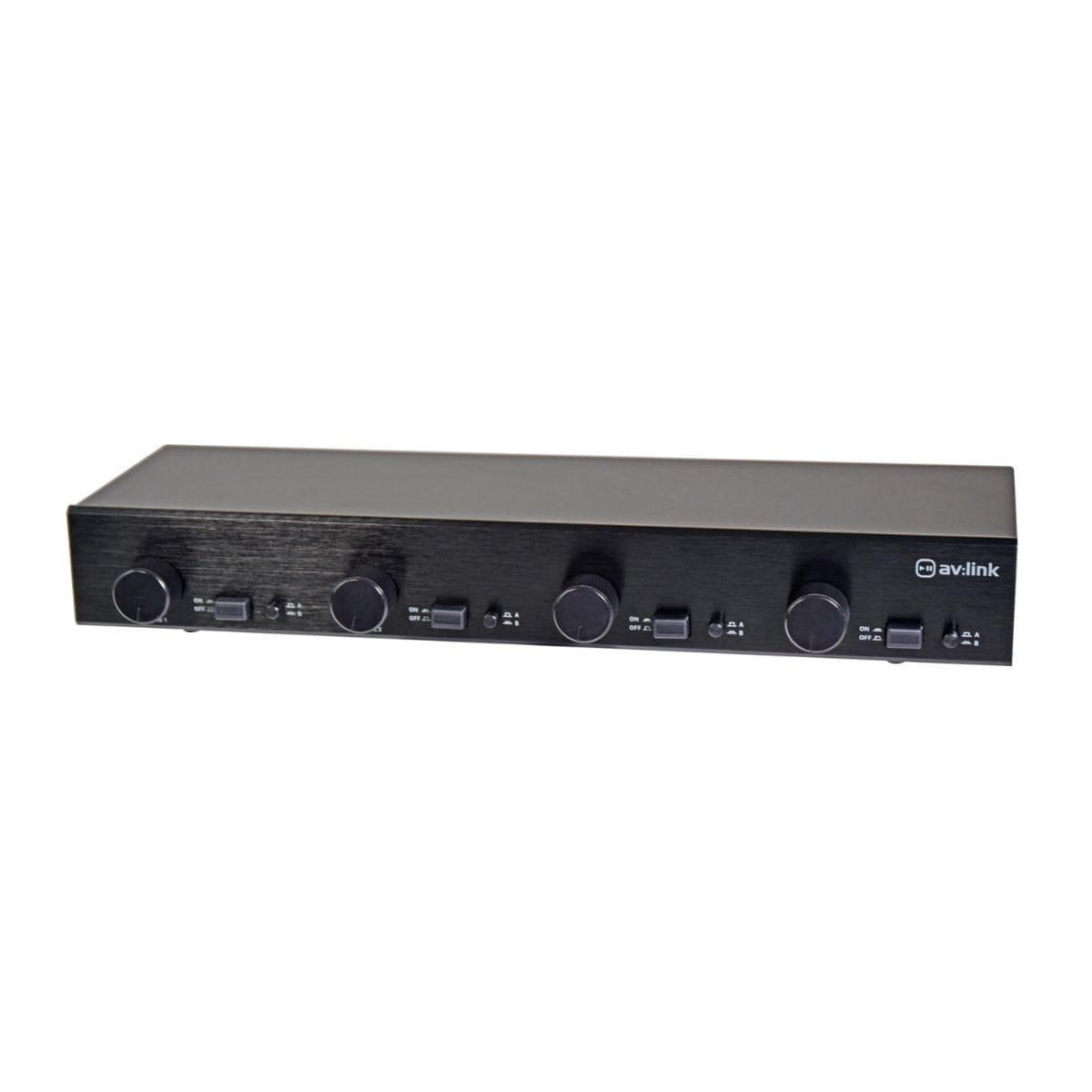

AV Link 2 x 4 Speaker Switch Matrix with Volume Control
Spend £50 For Free UK Delivery
Spend £50 For Free UK Delivery
All orders to mainland UK over £50 are eligible for free standard delivery.
For orders under £50 we have delivery rates starting from just £2.99
Need it fast? No problem, you’ll find express next day delivery rates available on most products. Learn More
60 Day Returns + 1 Year Warranty
60 Day Returns + 1 Year Warranty
We’re so confident that you’ll be happy with your purchase that we’ve extended our returns policy to 60 days.
We call it the “Happy Sound Guarantee”.
If you’re not happy with your purchase for any reason simply send it back to us for a full refund. Learn More
Warranty
K&B Audio are authorised dealers for AV Link. All sales come with a 1 Year manufacturers warranty and full technical support.
Description
Description
This matrix switcher for stereo amplifiers has 2 inputs and 4 outputs.
Any of the inputs may be routed to any of the outputs, or the same input may be routed to all outputs or any combination.

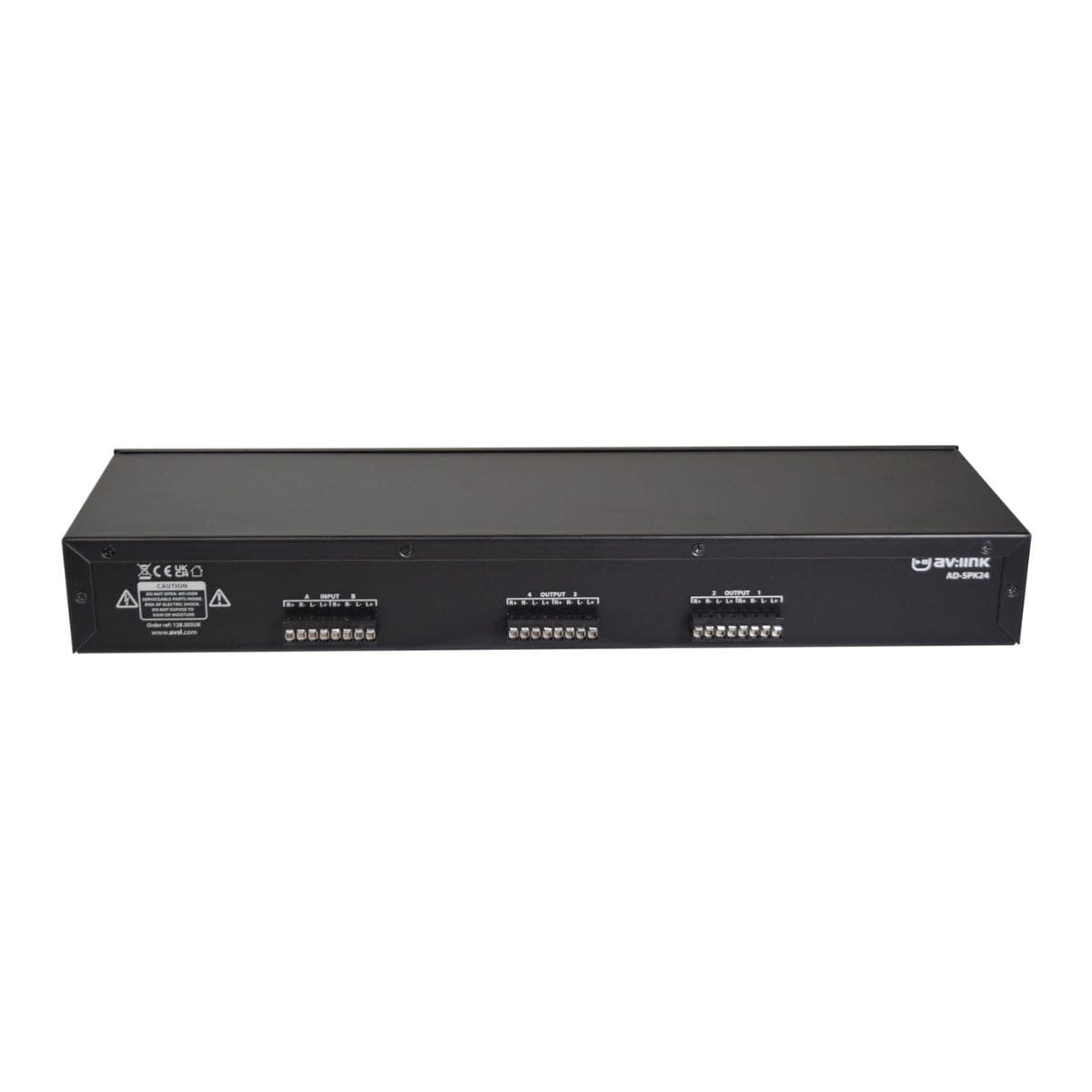

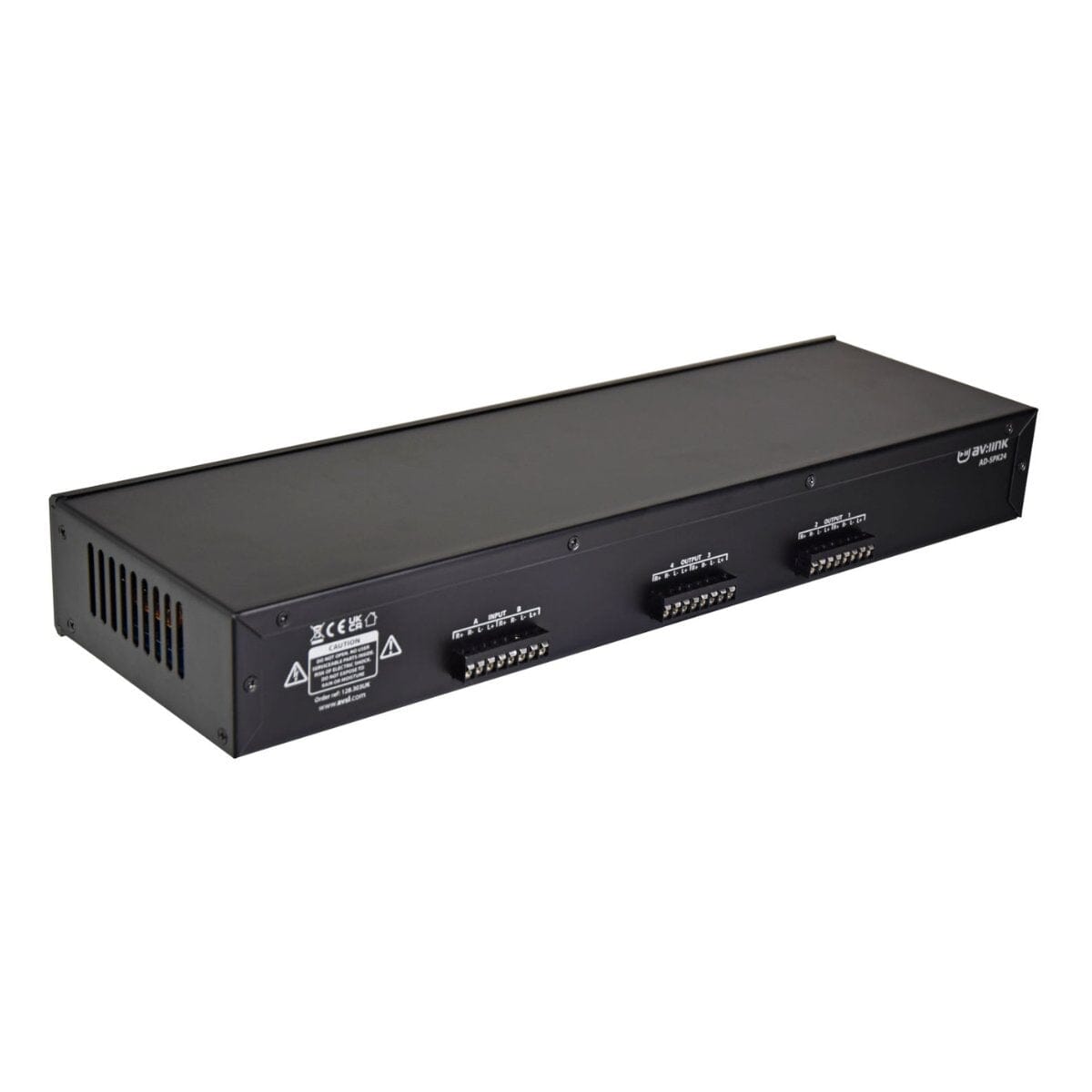

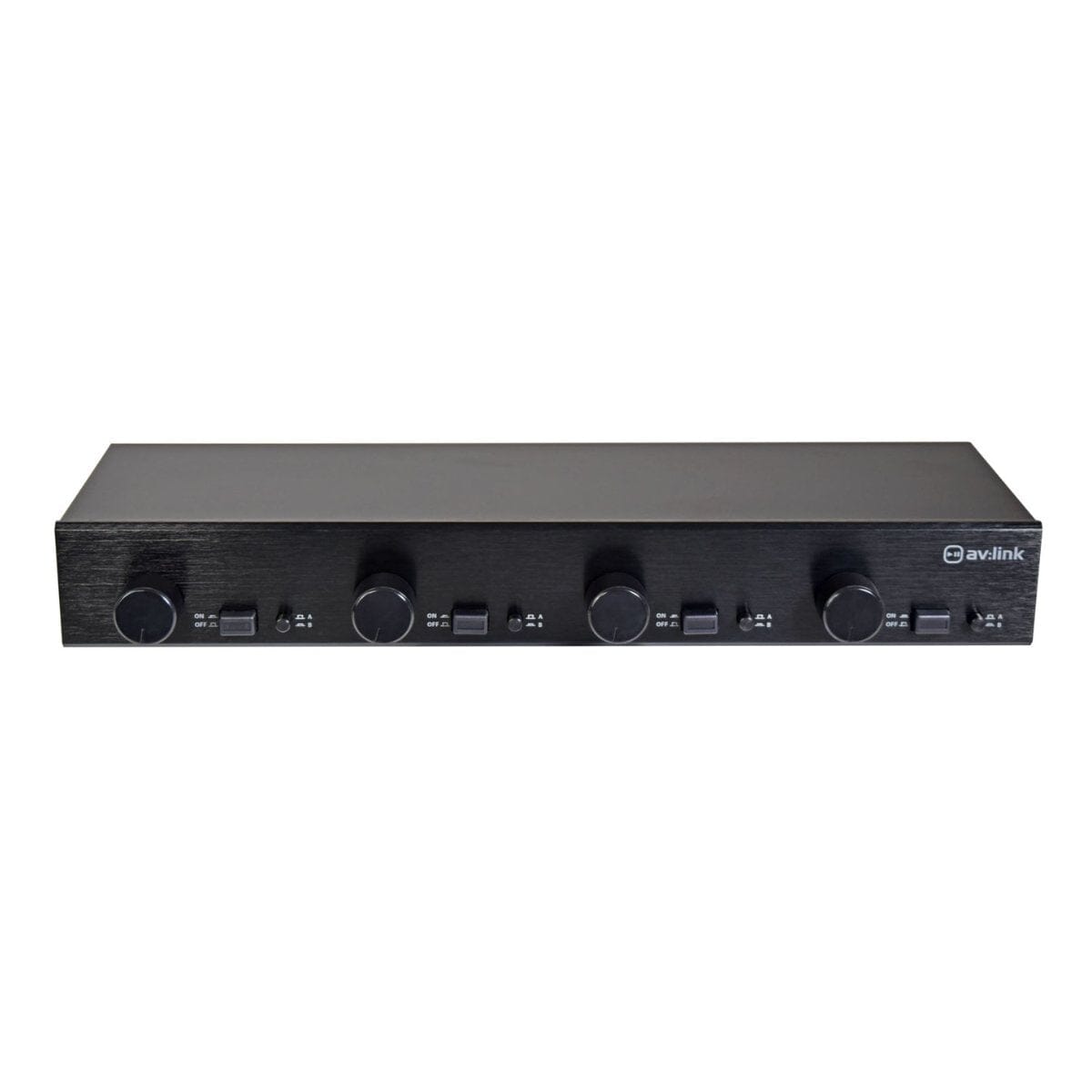

Simply connect the output of the amplifiers to the inputs, these inputs can then be routed to four different stereo speaker sets in four different locations, each speaker set can be individually activated via the push buttons on the front of the box and individual volume controls.
FEATURES
- Enables four pairs of speakers to be connected to two separate amplifiers
- Heavy-duty push buttons
- Built-in overload protection
- Designed for 4-16 ohms speakers
- Black aluminium housing
- Individual volume controls with black aluminium finish
- Accepts up to 14 gauge speaker cable
- Individual A/B switch per zone
Key Features
Key Features
-
Warranty
Specifications
Specifications
- Wiring Gauge: 11 to 22 gauge
- Inputs: 2 x Stereo
- Outputs: 4 x Stereo @ 4-16 ohms
- Power per Channel: 100W Max
- Dimensions: 432 x 133 x 64mm
- Weight: 3.67kg
