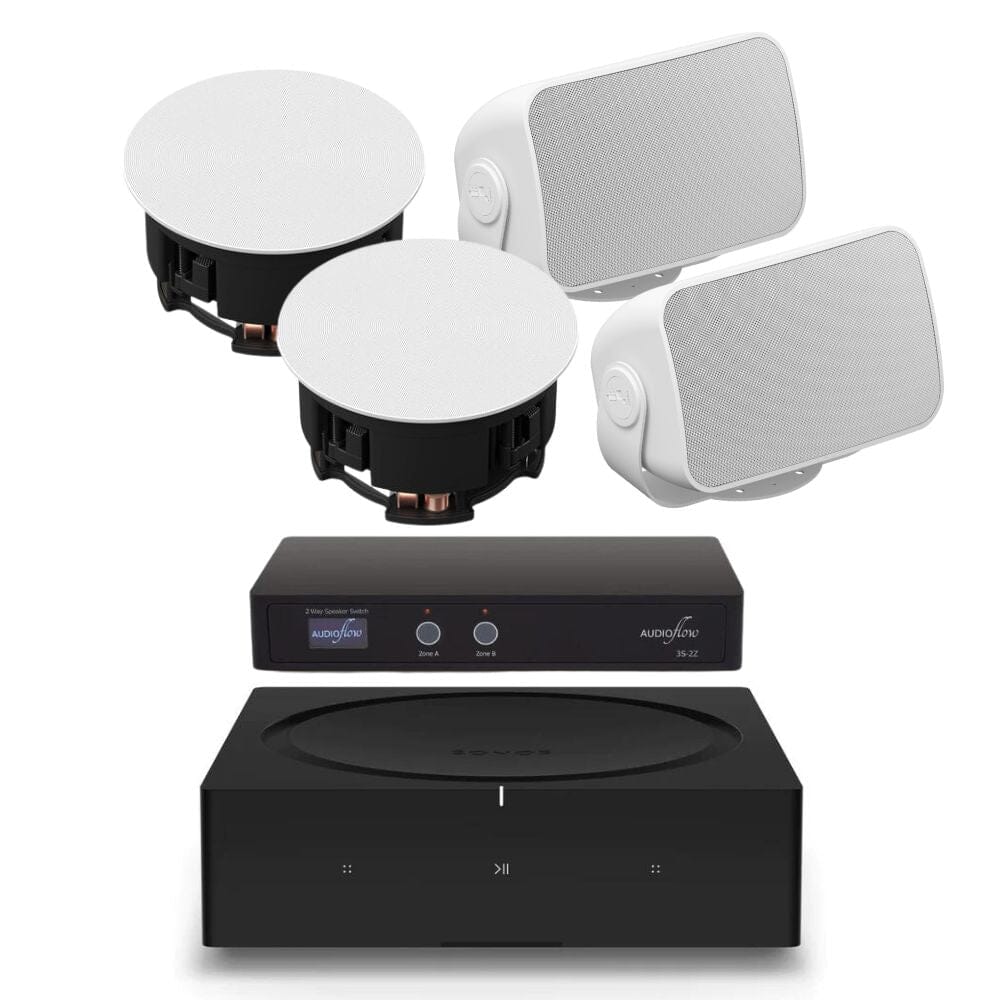

Sonos AMP + Audioflow 2 Way Speaker Selector Switch + 1 x Sonos In Ceiling Speaker Pair + 1 x Sonos Outdoor Speaker Pair

This set is designed for Sonos users who desire top-notch speakers.

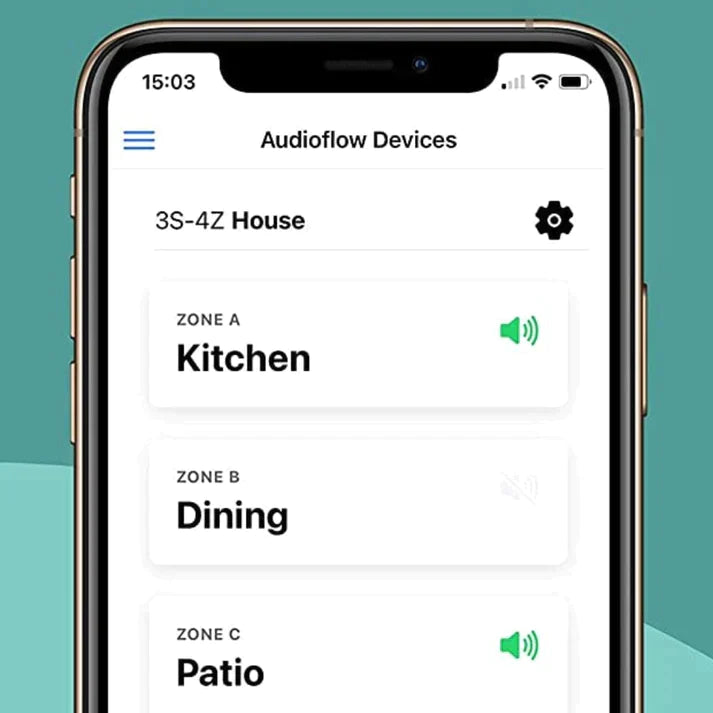

The Audioflow 2-Way Speaker Selector Switch offers incredible flexibility, letting you enable/disable your speakers through the switch buttons, the Wi-Fi app for iOS/Android, the Alexa Voice Assistant, or Contact Closure connections.

When added to the Sonos AMP with up to 125W of power per channel, the package is perfect for TVs, turntables, and other analog audio sources, with an AMP, the speakers, and cables included.

FEATURES

• POWERFUL AMP BUILT IN: With a mighty 125 watts per channel, the Amp is over twice as powerful as the Sonos Connect Amp. This level of power makes all the difference with inefficient speakers or for when you’re running larger speakers that need to fill a big room with immersive sound. For even more bass, use the sub output to connect your choice of powered subwoofer.


• CONNECT UP YOUR TV AND HI-FI: A handy HDMI socket makes it easy to connect your TV. If you’ve no spare HDMI socket on your TV, then purchasing an optional Sonos optical to HDMI convertor lets you use the TV’s optical output. For hi-fi sources, the Amp has a set of line level RCA phonos. These are perfect for a CD player, turntable (with built-in phono pre-amp) or any other music source with a line level output.


• SWITCH BETWEEN SPEAKERS: The Audioflow switch offers convenient, safe switching between multiple speakers in multi-room audio systems. Connect ceiling, on-wall, in-wall, bookshelf and outdoor speakers to one amp output. Set up different rooms—bedroom, dressing room, en suite, etc.—or an open plan kitchen/dining/living/garden without buying multiple amps. Switch speakers via unit buttons, Wi-Fi app (iOS/Android), Alexa voice assistant, or contact closure connections.

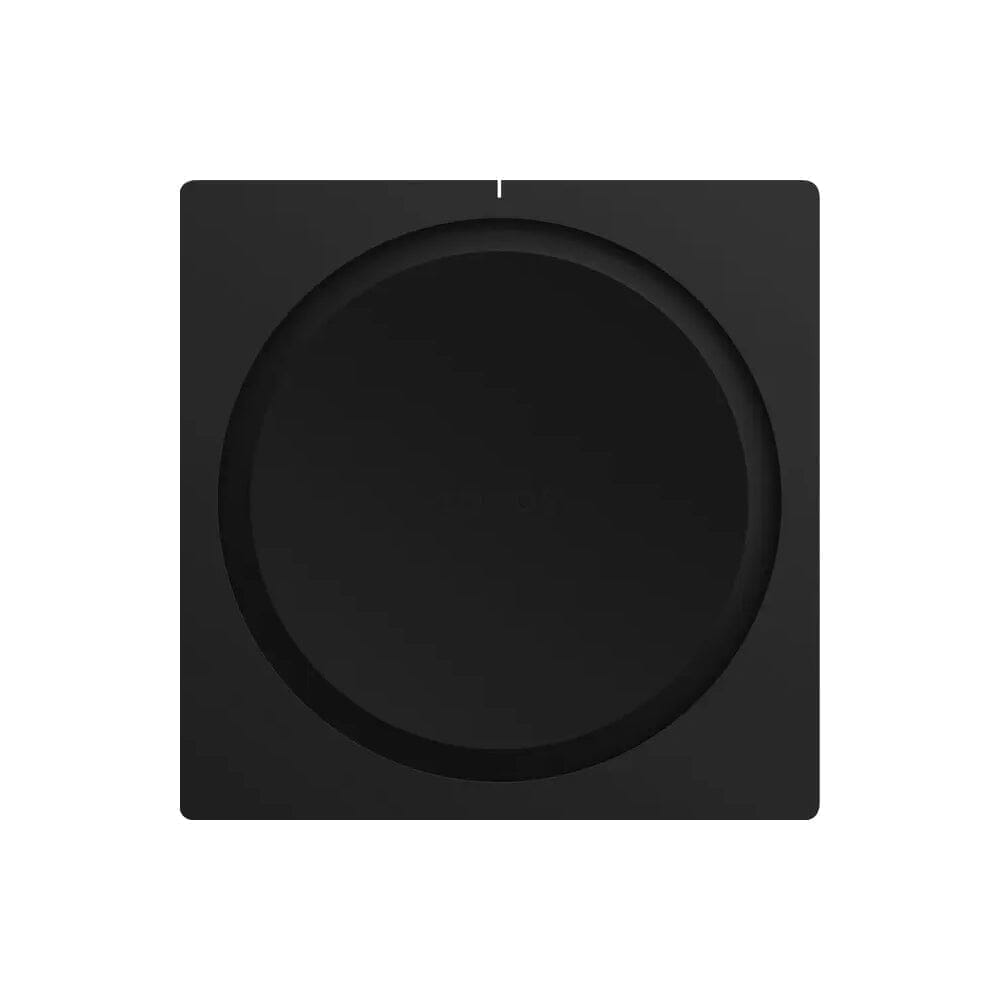

AMPLIFIER

• Power: 125 watts per channel at 8 ohms
• Output: Stereo or dual mono sound
• Trueplay: This software measures the acoustics of the room then fine-tunes your speakers.
• Home Theater Audio Formats: Stereo PCM, Dolby Digital, DTS Digital Surround* (*This is not an indication of a licensed decoder.) The Sonos app's Now Playing screen will display what type of audio is being decoded.
• EQ: Use the Sonos app to adjust bass, treble, and loudness to optimize sound performance.
• Dimensions Height: 2.52 in (64 mm) Width: 8.54 in (217 mm) Depth: 8.54 in (217 mm)
• Weight: 4.6 lb (2.1 kg)
• Controls: Use the capacitive touch controls on the product to play, pause, skip, replay, adjust the volume, and more.
• LED: Light on the product indicates connection status.
• WiFi: Connect to WiFi with any 802.11b/g/n 2.4 GHz broadcast-capable router. For 5 GHz routers, you can either enable 2.4 GHz 802.11b/g/n in router settings or hardwire a Sonos product.

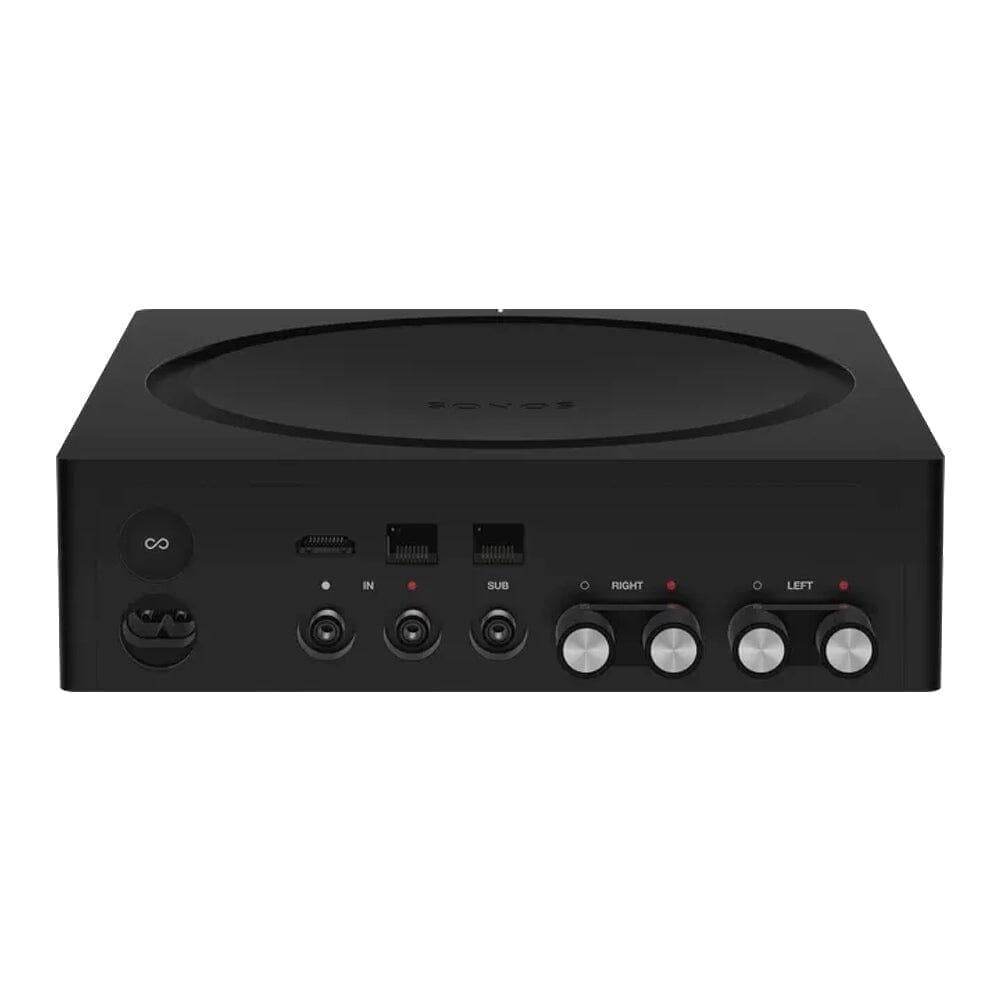

• Speaker Output Connections: Custom-designed banana plugs (2) that can be swapped for standard diameter banana plugs.
• Subwoofer Output: Auto-detecting RCA type, user-adjustable 50-110 Hz crossover
• HDMI ARC: Connect to your TV's HDMI eARC/ARC port with a HDMI cable.
• Voltage: 100-240V 50/60Hz internal power supply
• CPU: Quad Core 1.3 GHz A7
• Line-in: Connect an audio device using an RCA cable.
• Ethernet: Dual 10/100 port for hardwiring to your router
• Apple AirPlay 2: Works with AirPlay 2 on Apple devices iOS 11.4 and higher

CEILING SPEAKERS

• Woofer: One high-excursion polypropylene woofer produces rich mid and low ranges.
• Tweeter: One-inch tweeter produces crisp, high frequencies.
• Power Handling: 5 watts minimum, 130 watts maximum
• Frequency Response: 44Hz - 20KHZ (±3dB)
• Rated Impedance: 8 Ohms nominal
• Sensitivity: 89dB SPL (2.83V/1m)
• Diameter: 9.27 in (235 mm)
• Cut Out Diameter: 8.25 in (210 mm)
• Depth: 4.73 in (120 mm)
• Weight: 5.01 lb (2.28 kg) each
• Colours: White
• Finish: Matte

OUTDOOR SPEAKERS

• Woofer: One high-excursion pivoting woofer produces rich mid and low frequencies.
• Tweeter: One-inch tweeter produces crisp, high frequencies.
• Power Handling: 5 watts minimum, 130 watts maximum
• Frequency Response: 55Hz - 20KHz (±3dB)
• Rated Impedance: 8 Ohms nominal
• Sensitivity: 89dB SPL (2.83V/1m)
• IP66: Dustproof and weatherproof, conforming to Mil Spec 810 for humidity, salt spray, temperature and UV exposure
• Temperature: -13°F to 149°F, (-25°C to 65°C)
• Dimensions: Height: 7.51 in (190.8 mm), Width: 12.93 in (328.4 mm), Depth: 7.86 in (199.6 mm)
• Weight: 7.1 lb (3.2 kg) each, 14.2 lb (6.4 kg) per pair
• Colours: White
• Finish: Matte

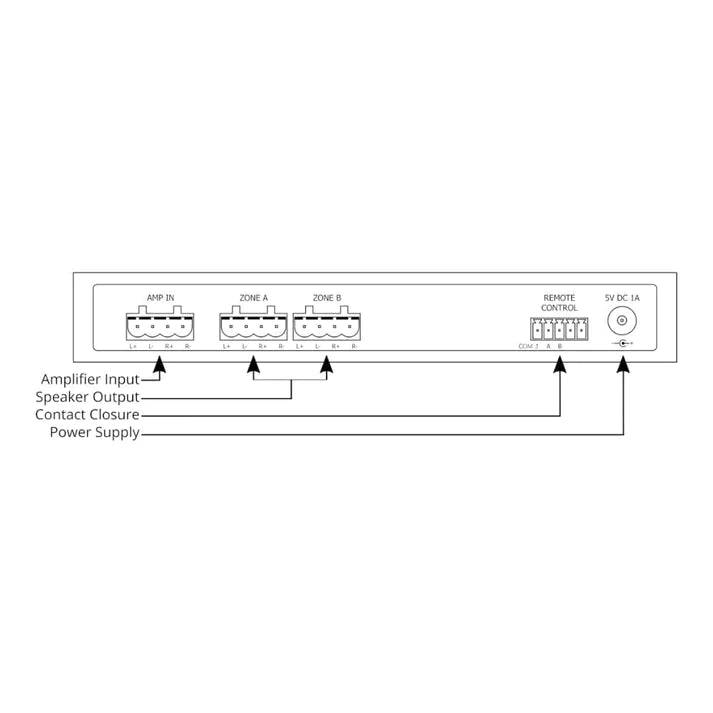

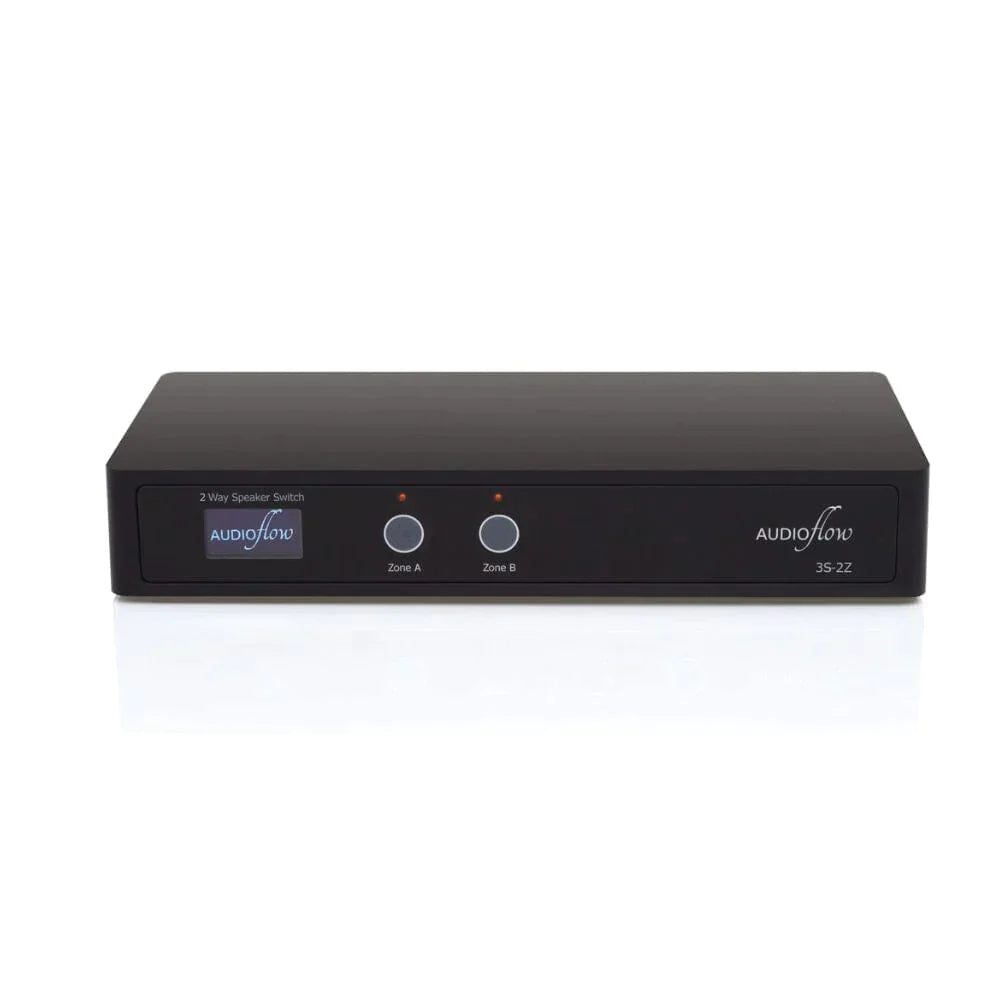

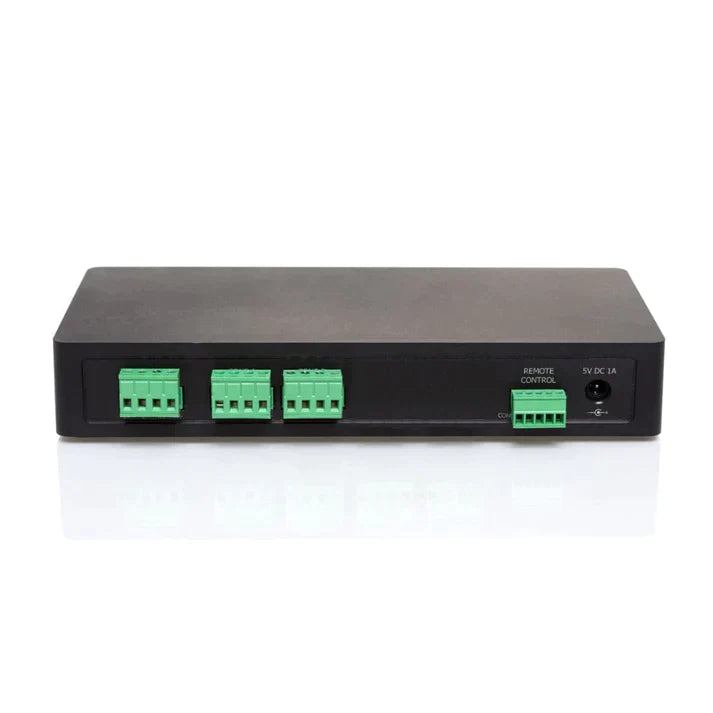

SPEAKER SWITCH

• Model Number: 3S-2Z
• Product Dimensions, Weight: H38 x W216 x D100 mm, 286g
• Boxed Dimensions, Weight: H90 x W355 x D127 mm, 687g
• Power Input: 5V DC 1A, 2.1 x 5.5mm Barrel Plug, Centre Positive
• Power Supply: 100-240V 50/60Hz, 1.8m Lead, UK/EU/USA/AUS Plugs
• Switching Relays: Max 8A @ 250V AC
• Amplifier Power: Max 300W @ 8Ω
• Cable Connection: Max 2.5mm2 or 14AWG
• Speaker System Design: Series Switching
• All Zones Off: Amplifier Protection 200Ω Dummy Load
• Wi-Fi Support: 2.4GHz 802.11b/g/n, WPA/WPA2 PSK
• Supported OS (Provisioning): Android 6.0+ (Google Play Store) / Apple iOS 11.0+ (App Store)

• 1 x Sonos AMP
• 1 x Audioflow 2 Way Speaker Switch
• 1 x Sonos In Ceiling Speakers (Pair)
• 1 x Sonos Outdoor Speakers (Pair)
• 1 x White Grilles (Pair)
• 1 x Cut Out Template (Pair)
• 2 x 20m Speaker Cable
• 1 x User Manual

GENERAL

• Sonos User Guide

SPEAKERS

• Sonos In Ceiling Speakers User Manual
