Description
Description

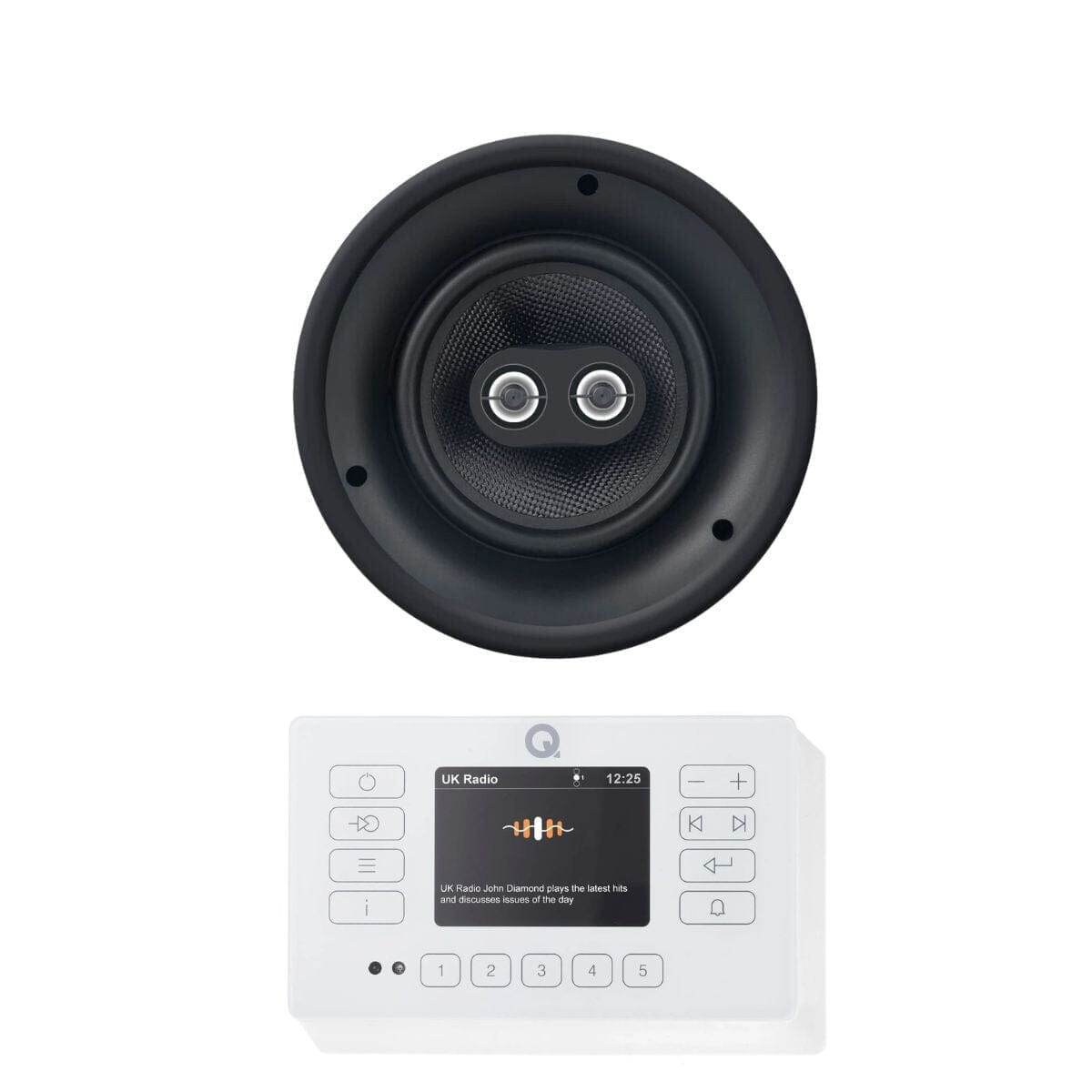

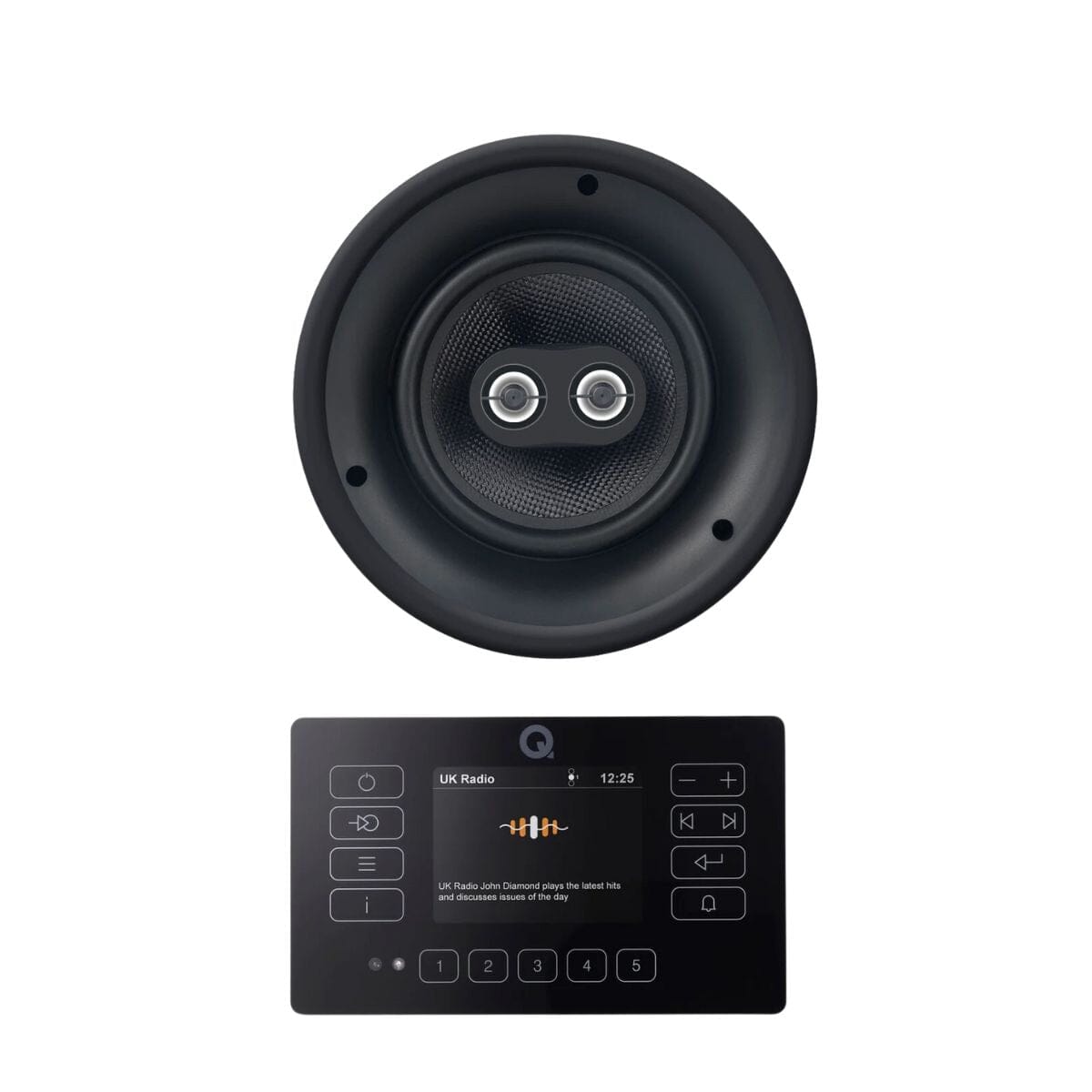

The Q Acoustics E120 paired with the OSD Audio ACE840TT 8" Single Stereo Ceiling Speaker which is perfect for high-quality sound in smaller spaces such as kitchens, home offices etc.
Whether you're streaming your tunes from Bluetooth, enjoying DAB/FM radio, or connecting to other devices such as a TV, this package is designed to deliver immersive, room-filling sound.
With the E120’s in-wall design and intuitive touchscreen interface, controlling your audio experience is effortless.
FEATURES

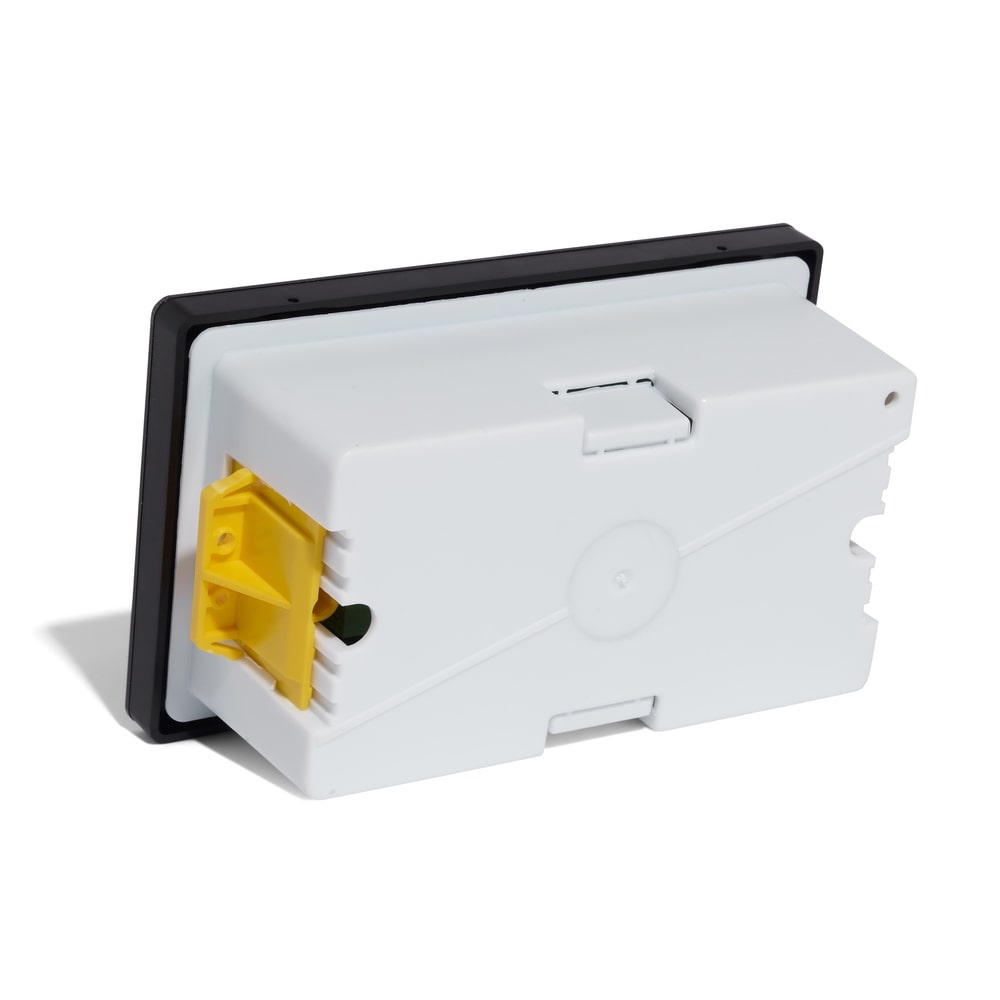

- In-Wall Amplifier: A compact and stylish amplifier with Bluetooth connectivity, DAB/FM radio, and a touchscreen control interface, ensuring easy access to your favourite music.
- Stereo Sound: The ACE840TT ceiling speaker provides stereo sound from a single ceiling speaker, perfect for smaller rooms.
- Bluetooth Connectivity: Effortlessly stream music wirelessly from your smartphone, tablet, or other Bluetooth-enabled devices.
- DAB/FM Radio: Enjoy crystal-clear digital radio alongside traditional FM stations for a wide range of listening options.
- Audio Input: Connect an analog or digital audio device via the rear mounted 3.5mm AUX / Digital Optical audio input.
- Subwoofer Output: Connect an external subwoofer to the rear mounted subwoofer output.

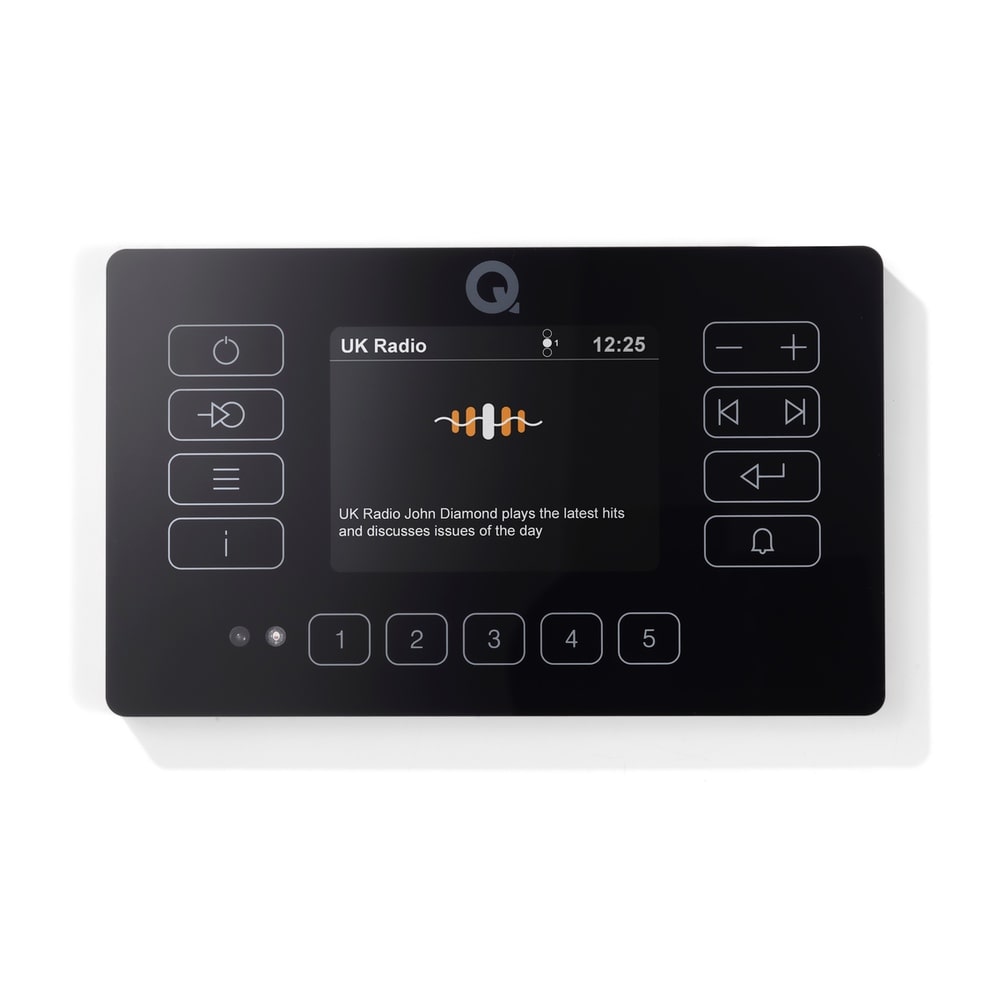

- Touchscreen Control Panel: The E120’s sleek in-wall design and intuitive interface make adjusting settings and accessing audio sources simple and convenient.

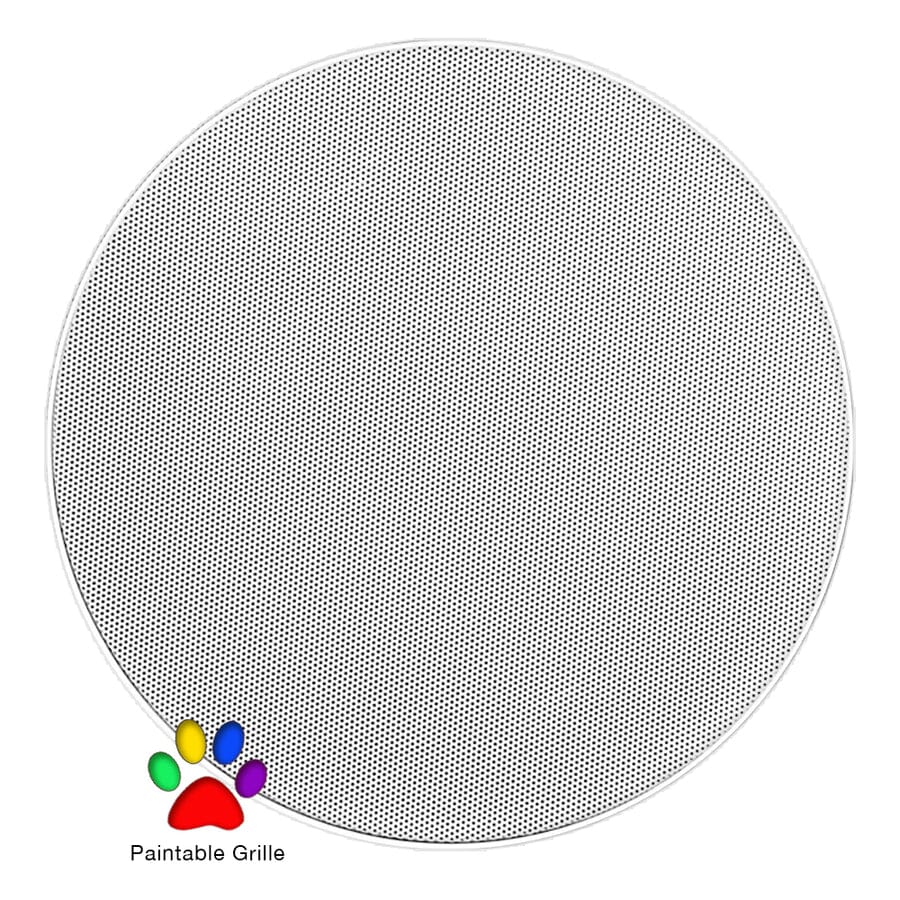

- Paintable Grilles: The ACE840 speakers include paintable grilles, allowing them to blend seamlessly into your ceiling for a clean, unobtrusive finish.
- Ready To Install Kit: The package includes everything needed for easy installation, making it suitable for both professionals and DIY enthusiasts.
Key Features
Key Features
-
ZonesSingle Zone
-
PlacementIn Ceiling
-
Music SourcesBluetooth
-
Inputs3.5mm AUX
-
Warranty
Specifications
Specifications
- Audio Sources: DAB / DAB+ / FM with RDS
- Bluetooth: Version 5.0, A2DP
- Analogue Input: Type: 3.5mm Stereo, Sensitivity: 350mV, Max Level: 1.5v, Impedance: 10k Ohm
- Optical Input: Type: mini TOSLINK, Resolution: 16 Bit 48 kHz
- Speaker Outputs: Left & Right, Stereo or Dual Mono
- Analogue Line: Type: 3.5mm Stereo, Modes: Fixed or Variable, Max Level: 670mV
- Amplifier: Type: Class D, Continuous Power: 2 x 25W @ 6 Ohms, THD: 0.07% @ 1W / 0.2% @ rated power, SNR: >75dB @ Rated Power, Frequency Response: 20Hx - 20 kHz +/- 1 dB
- IP Ratings: E120 Wall Panel: IP54, Splash Proof Remote: IP54

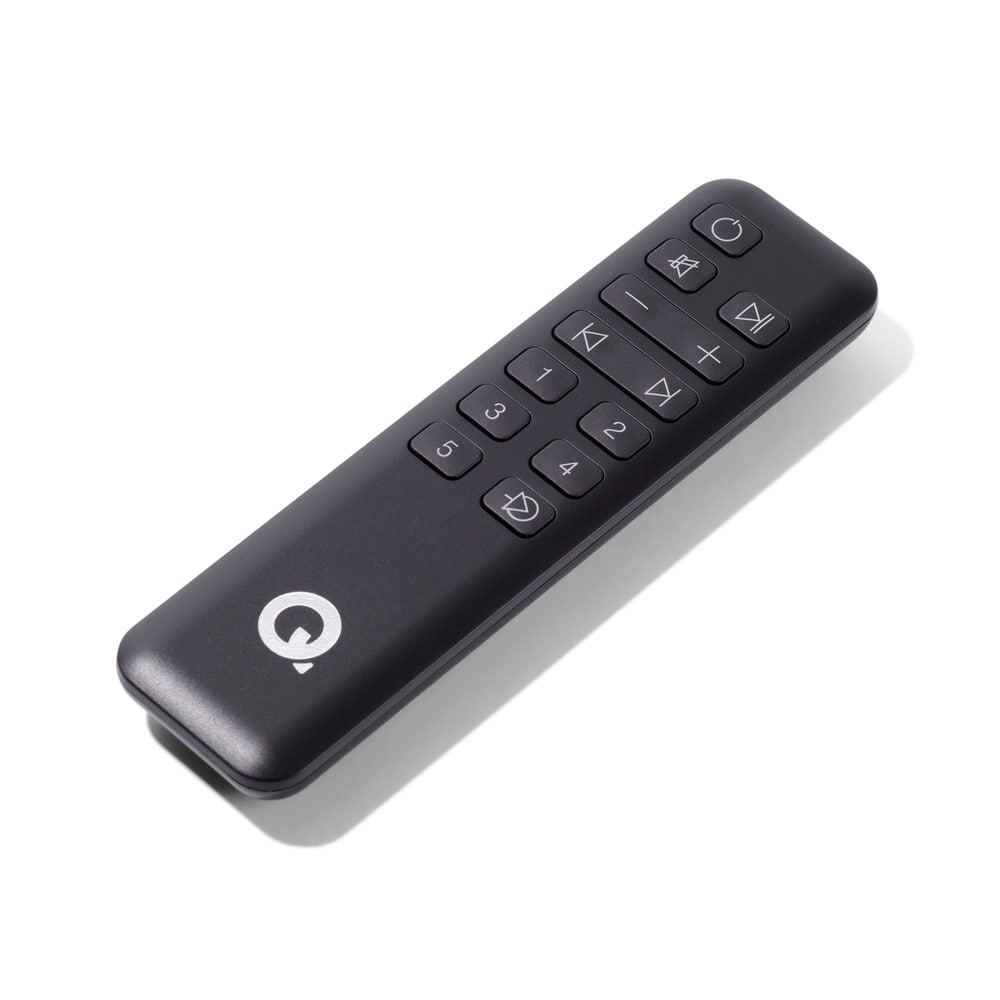

- Control: Touch Sensitive Buttons, Infrared Remote Control, Bluetooth AVRCP v1.6 Play, Pause, Skip, Track, Artist, Album Name
- Menu Languages: English, German, Dutch, French, Danish, Spanish, Italian, Norwegian, Polish, Finnish
- Alarms: x2 Once, Daily, Weekdays, Weekends
- Power Supply: Input: 100 - 240V AC 50/60Hz, Output: 22V DC 1.5A, Dimensions: (HxWxD) 30mm x 50mm x 115mm
- Power Consumption: Typical: 10W, Standby: <1W Deep Standby: <0.5W
- Wall Panel: Net Weight: 0.251kg, Dimensions: (HxWxD): 91mm x 151mm x 33mm
- Speaker Cable: Gauge: 19AWG, Length: 2 x 7M
- DC Extension: Gauge: 16AWG, Length: 5M, Connectors: 5.5mm x 2.5mm DC male / 5,5mm x 2.5mm DC female

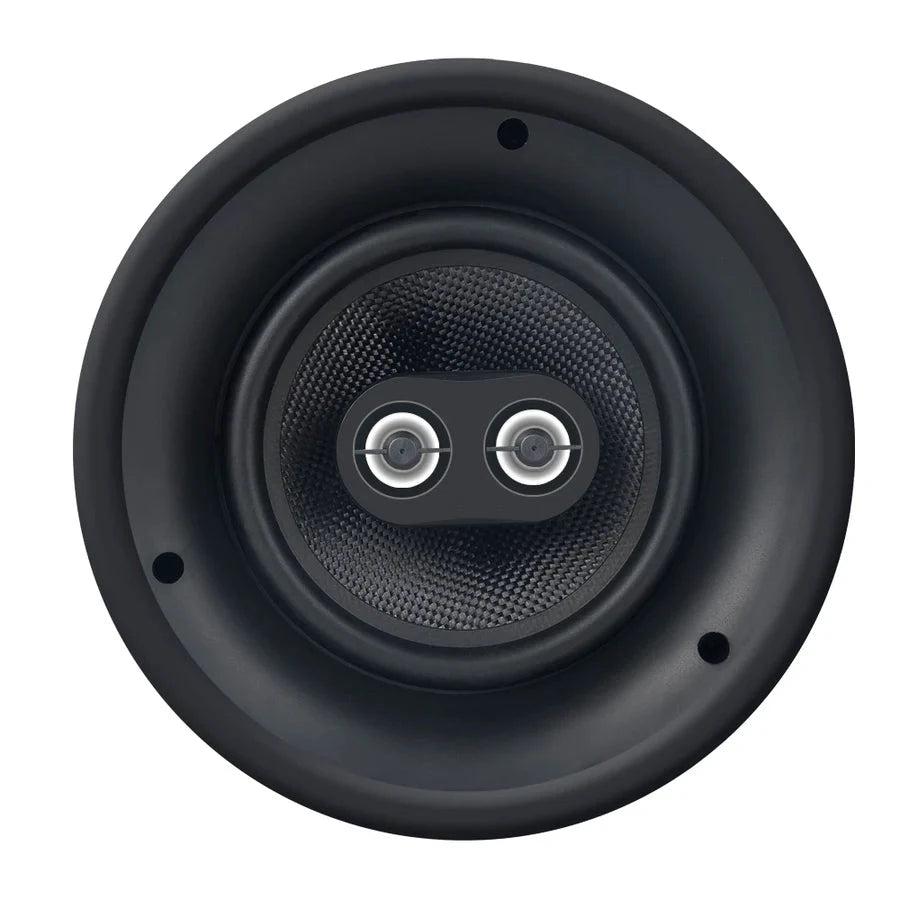

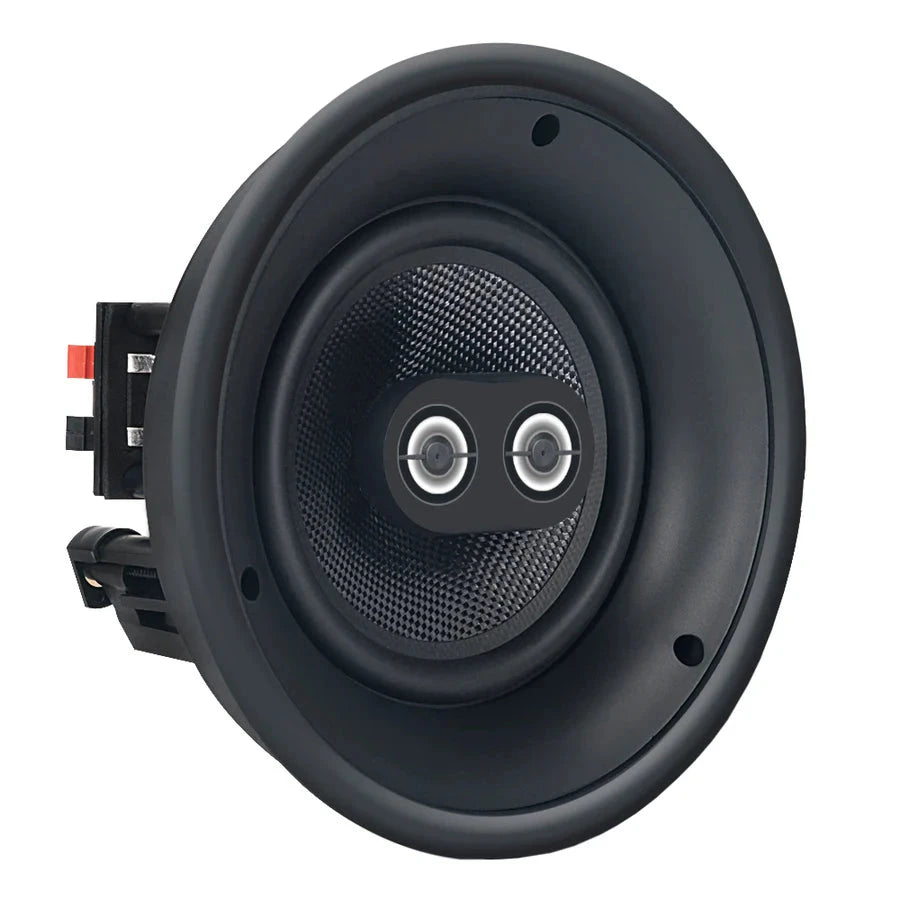

- Speaker Type: 8" Dual Tweeter Trimless Ceiling Speaker
- Woofer: 8" Fiber Glass Cone
- Tweeter: Dual .5" Titanium Coated Dome
- Frequency Response: 38Hz - 20kHz
- Power Handling: 120W
- Sensitivity: 88 dB 1w/1m
- Impedance: 8 Ohms
- Dual Voice Coil (DVC) Provides Stereo Sound Within One Speaker
- Spray Paintable Magnetic Grille Included

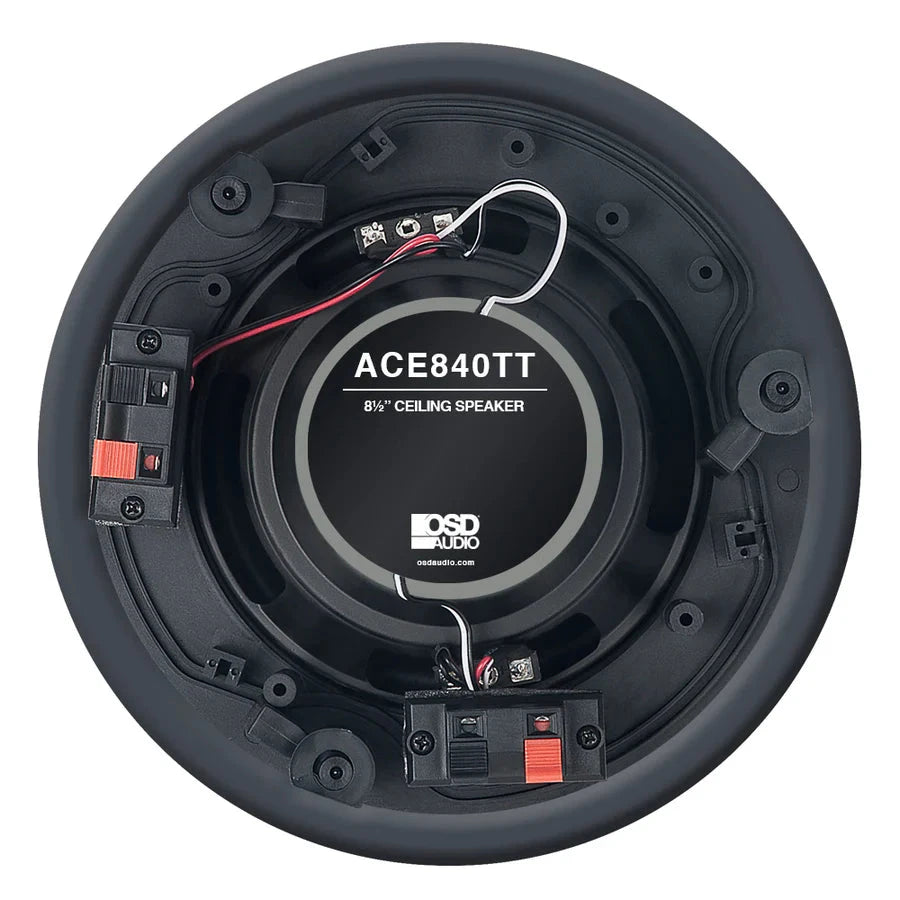

- Inputs: Spring Loaded Binding Posts
- Install-friendly Dog Ear Installation Brackets
- Diameter & Depth: 10.79" x 4.02"
- Cutout Diameter: 9.37"
- Sold As: Single
- Warranty: 10 Years
AMPLIFER
SPEAKER
What's In The Box
What's In The Box
- 1 x Q Acoustics E120 In Wall HiFi Amplifier
- 1 x OSD Audio ACE840TT 8" Stereo Ceiling Speaker (Each)
- 1 x 20m - Flex Audio 2 Core 42 Strand Speaker Cable
