Description
Description

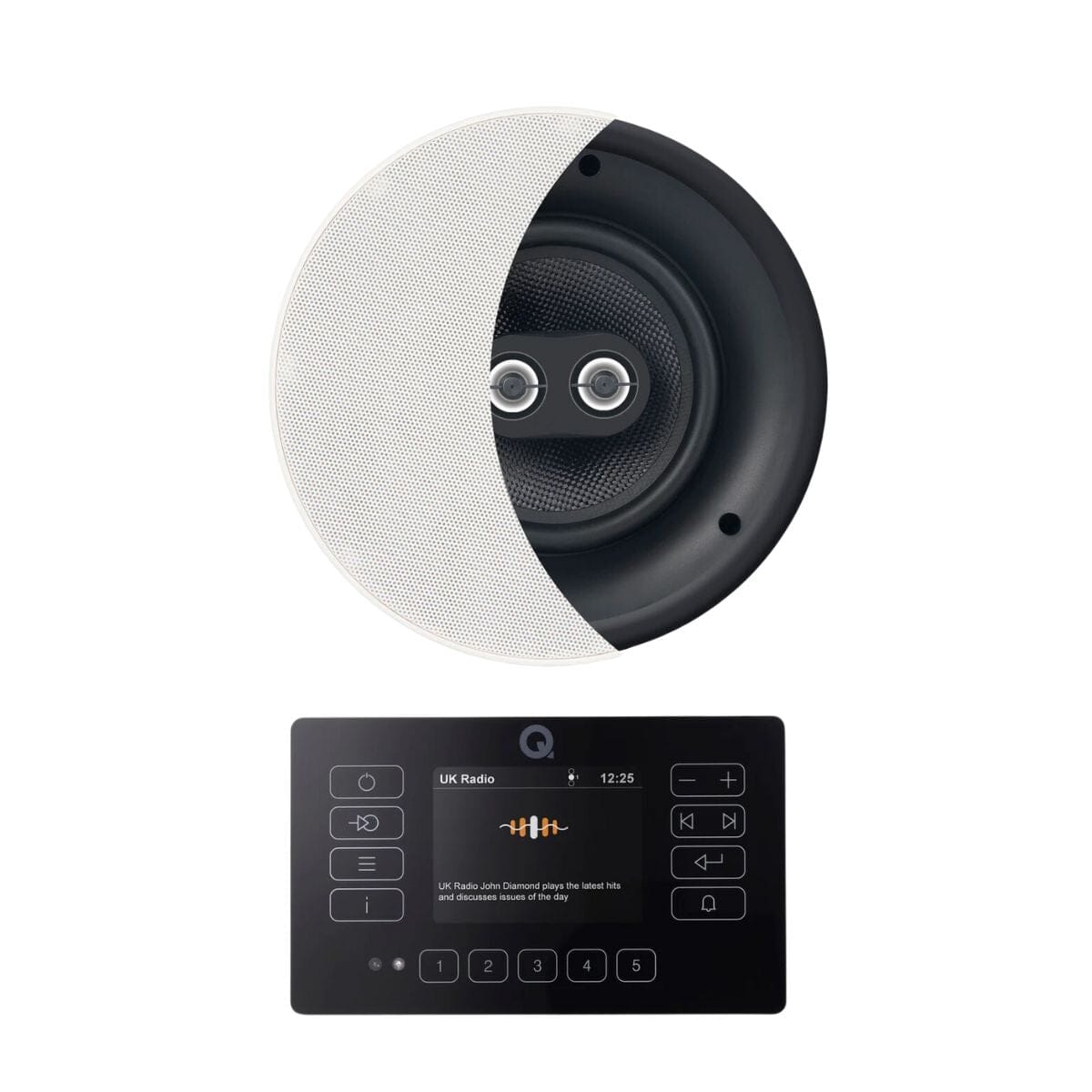

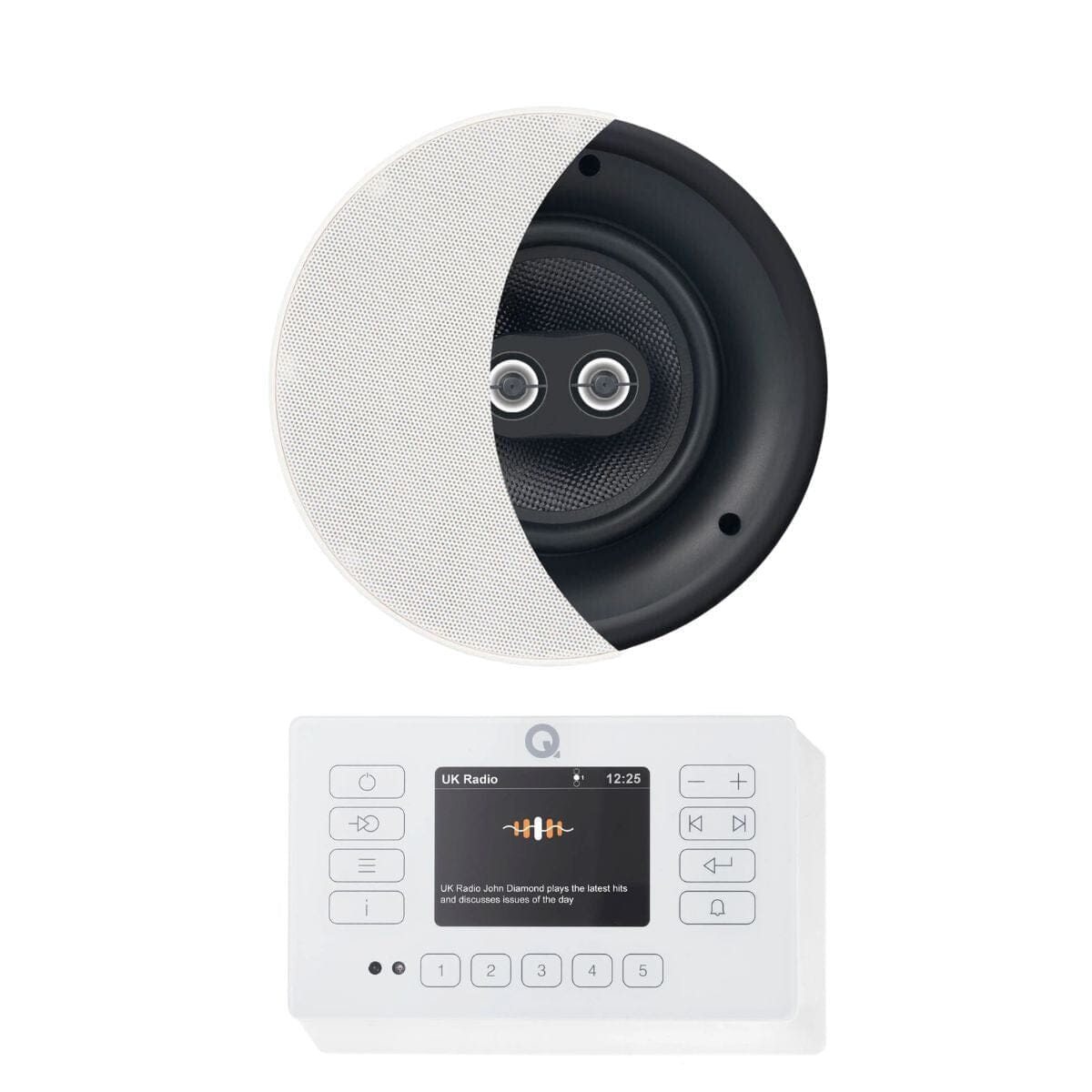

The Q Acoustics E120 and OSD Audio ACE640TT stereo ceiling speaker system is the ultimate audio solution for modern homes and workspaces.
This all-in-one kit includes a powerful in-wall amplifier and high-performance 6.5" ceiling speakers, providing a premium listening experience for music lovers and audiophiles alike. Designed for seamless integration, this system is perfect for use in kitchens, living rooms, offices, or home cinemas.
With a sleek, minimalist design and advanced features such as wireless Bluetooth streaming, FM/DAB radio, and multiple audio inputs, it caters to every audio need. The included ceiling speakers deliver rich, immersive sound while maintaining a discreet appearance.
FEATURES
- In-Wall Digital Amplifier: The E120 amplifier delivers 50W of powerful, crystal-clear audio and fits effortlessly into any wall space for a tidy installation.
- Wireless Bluetooth Streaming: Enjoy the freedom of streaming your favourite tracks from any Bluetooth-enabled device.
- FM/DAB Radio Tuner: Access a wide array of digital and FM radio stations with crisp, interference-free quality.
- Subwoofer Output: Expand your system with an optional subwoofer for deeper bass tones.
- 3.5mm AUX & Digital Optical Input: Connect a variety of audio sources for versatile playback options.
- Alarm Clock Functionality: Ideal for bedrooms or home offices, the built-in alarm ensures functionality beyond entertainment.
- High-Quality Ceiling Speakers: The OSD Audio ACE640TT speakers feature a 6.5" dual voice coil woofer for rich, stereo sound from a single discreet unit.
- Complete Installation Kit: Includes all necessary components for quick and straightforward setup.
Key Features
Key Features
-
ZonesSingle Zone
-
PlacementIn Ceiling
-
Music SourcesBluetooth
-
Inputs3.5mm AUX
-
Warranty
Specifications
Specifications
- Audio Sources: DAB / DAB+ / FM with RDS
- Bluetooth: Version 5.0, A2DP
- Analogue Input: Type: 3.5mm Stereo, Sensitivity: 350mV, Max Level: 1.5v, Impedance: 10k Ohm
- Optical Input: Type: mini TOSLINK, Resolution: 16 Bit 48 kHz
- Speaker Outputs: Left & Right, Stereo or Dual Mono
- Analogue Line: Type: 3.5mm Stereo, Modes: Fixed or Variable, Max Level: 670mV
- Amplifier: Type: Class D, Continuous Power: 2 x 25W @ 6 Ohms, THD: 0.07% @ 1W / 0.2% @ rated power, SNR: >75dB @ Rated Power, Frequency Response: 20Hx - 20 kHz +/- 1 dB
- IP Ratings: E120 Wall Panel: IP54, Splash Proof Remote: IP54
- Control: Touch Sensitive Buttons, Infrared Remote Control, Bluetooth AVRCP v1.6 Play, Pause, Skip, Track, Artist, Album Name
- Menu Languages: English, German, Dutch, French, Danish, Spanish, Italian, Norwegian, Polish, Finnish
- Alarms: x2 Once, Daily, Weekdays, Weekends
- Power Supply: Input: 100 - 240V AC 50/60Hz, Output: 22V DC 1.5A, Dimensions: (HxWxD) 30mm x 50mm x 115mm
- Power Consumption: Typical: 10W, Standby: <1W Deep Standby: <0.5W
- Wall Panel: Net Weight: 0.251kg, Dimensions: (HxWxD): 91mm x 151mm x 33mm
- Speaker Cable: Gauge: 19AWG, Length: 2 x 7M
- DC Extension: Gauge: 16AWG, Length: 5M, Connectors: 5.5mm x 2.5mm DC male / 5,5mm x 2.5mm DC female

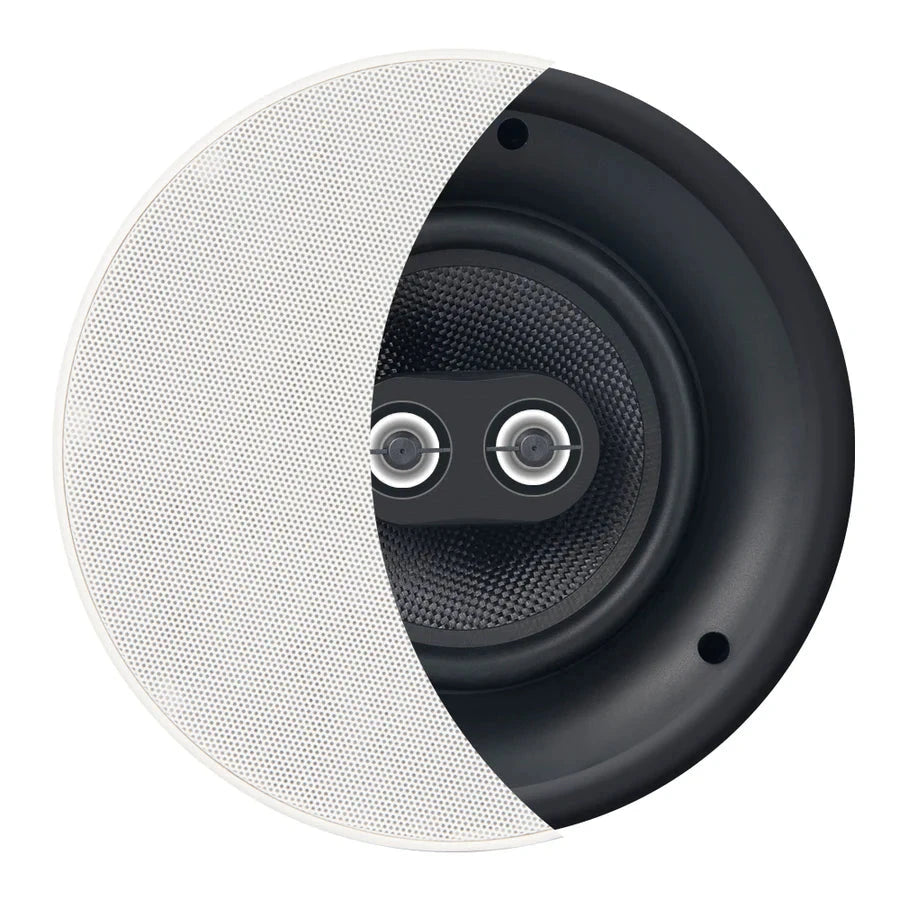

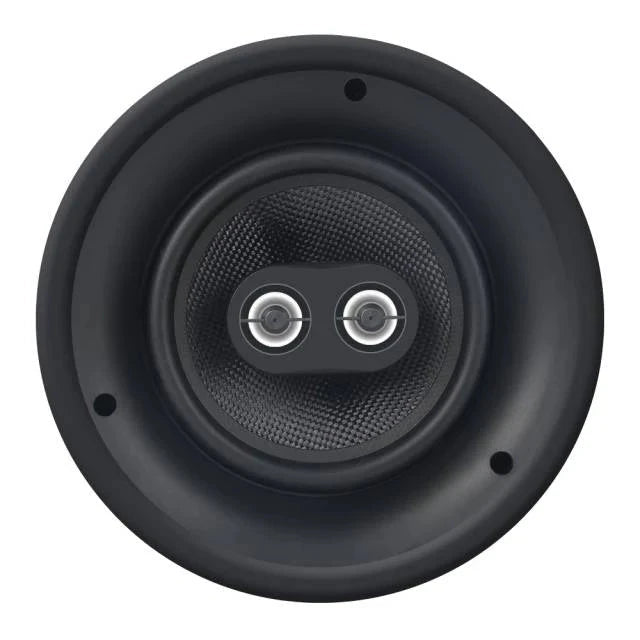

- Speaker Type: 6.5" DVC Dual Tweeter Trimless Ceiling Speaker
- Woofer: 6.5" Fiber Glass Cone
- Tweeter: Dual .5" Titanium Coated Dome
- Frequency Response: 45Hz - 20kHz
- Power Handling: 120W
- Sensitivity: 89 dB
- Impedance: 8 Ohms
- Dual Voice Coil (DVC) Provides Stereo Sound Within One Speaker

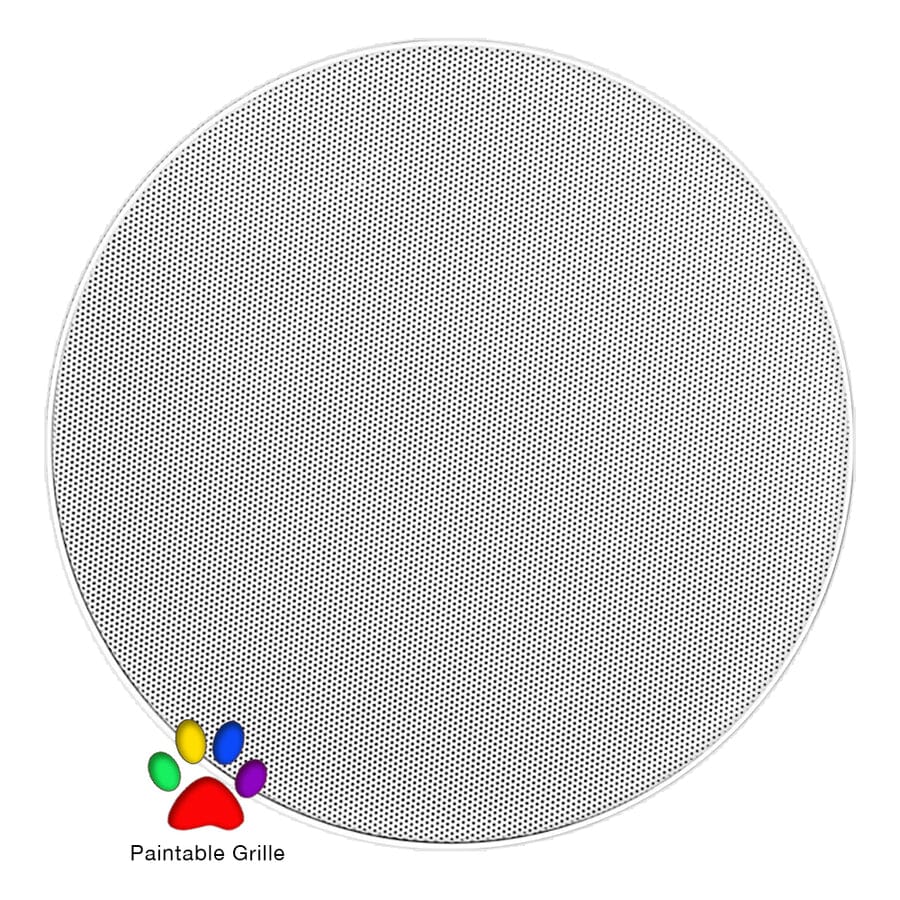

- Spray Paintable Magnetic Grille Included

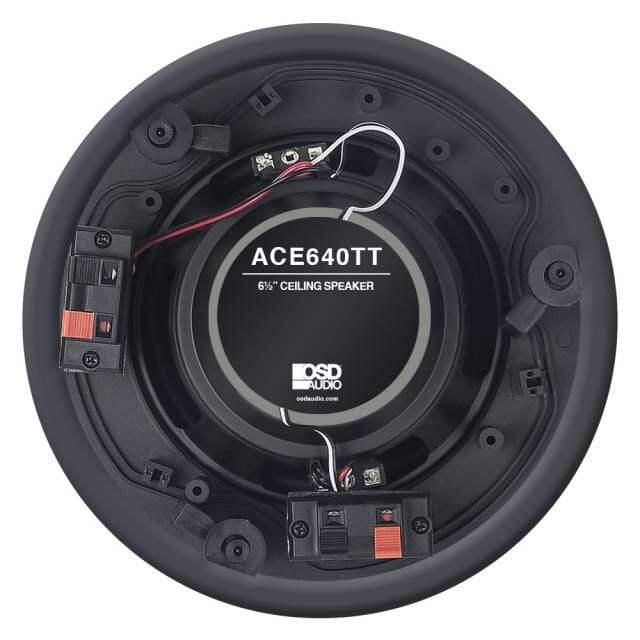

- Inputs: Spring Loaded Binding Posts

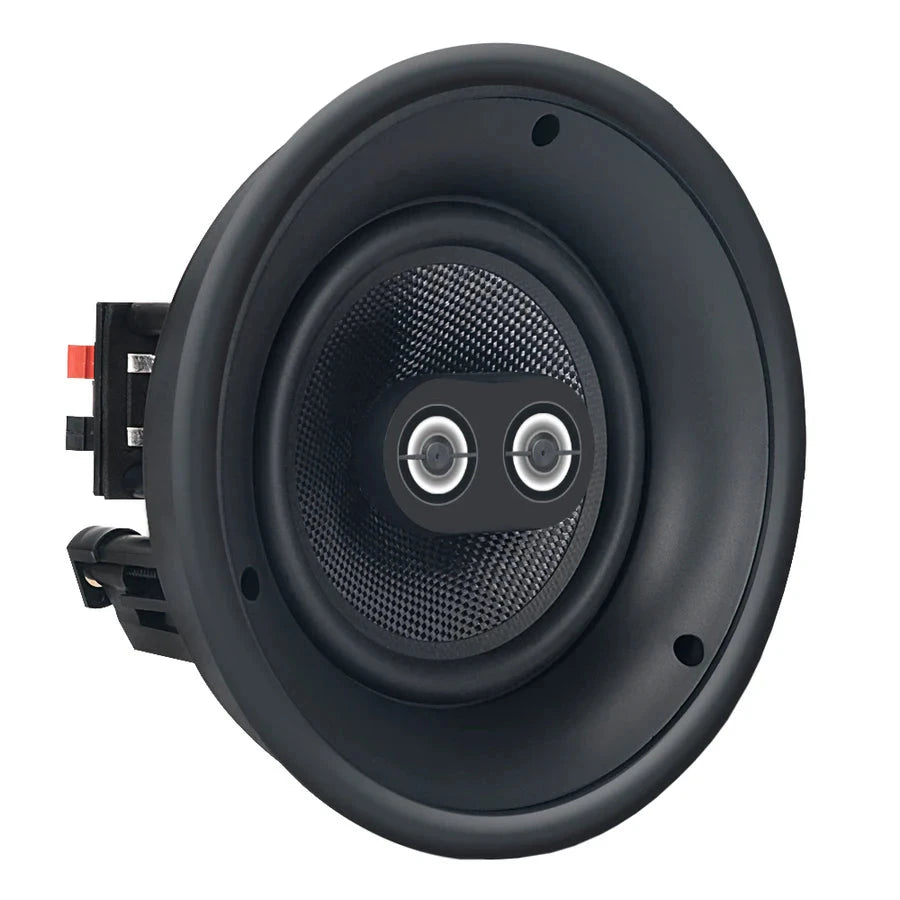

- Install-friendly Dog Ear Installation Brackets
- Diameter & Depth: 8.86" x 3.54"
- Cutout Diameter: 7.80"
- Sold As: Single
- Warranty: 10 Years
AMPLIFIER
SPEAKER
What's In The Box
What's In The Box
- 1 x Q Acoustics E120 In Wall HiFi Amplifier
- 1 x OSD Audio ACE640TT 6.5" Stereo Ceiling Speaker
- 1 x 20m - Flex Audio 2 Core 42 Strand Speaker Cable
