Q Acoustics E120 6.5" Ceiling Speaker HiFi System with Subwoofer

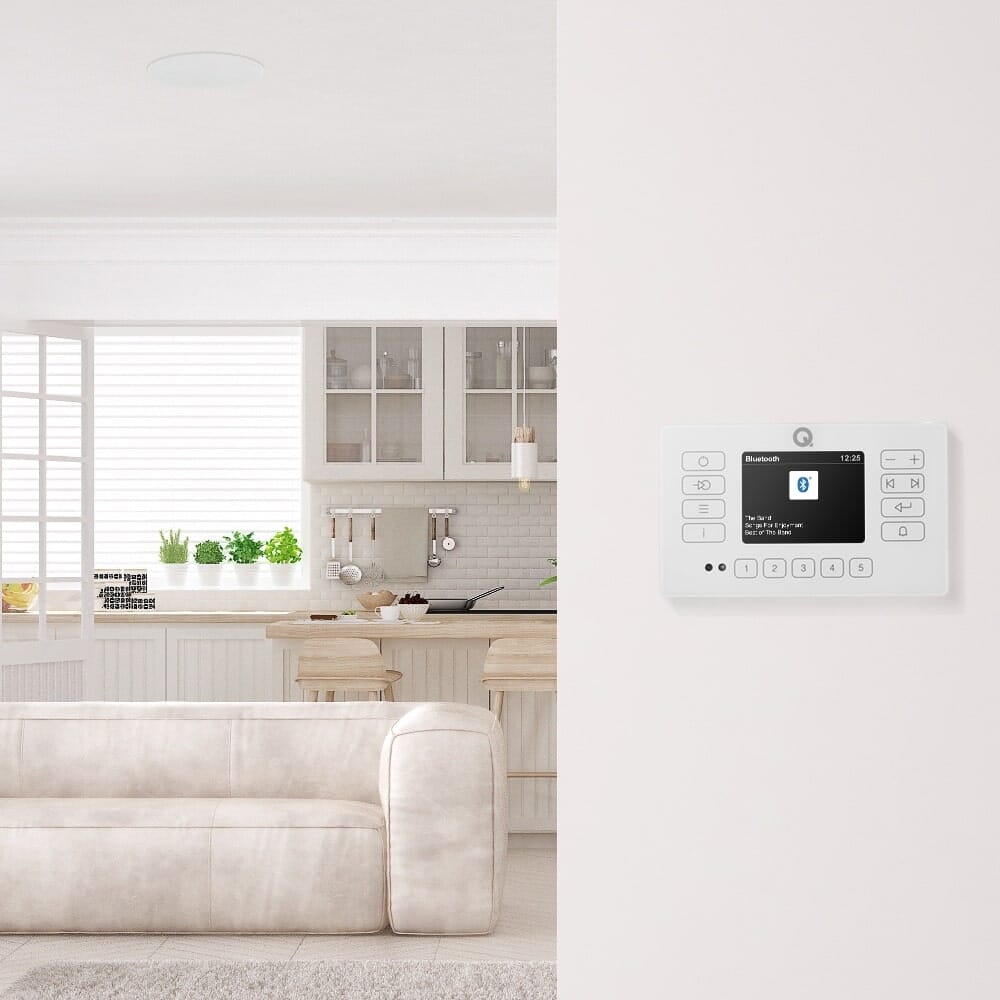

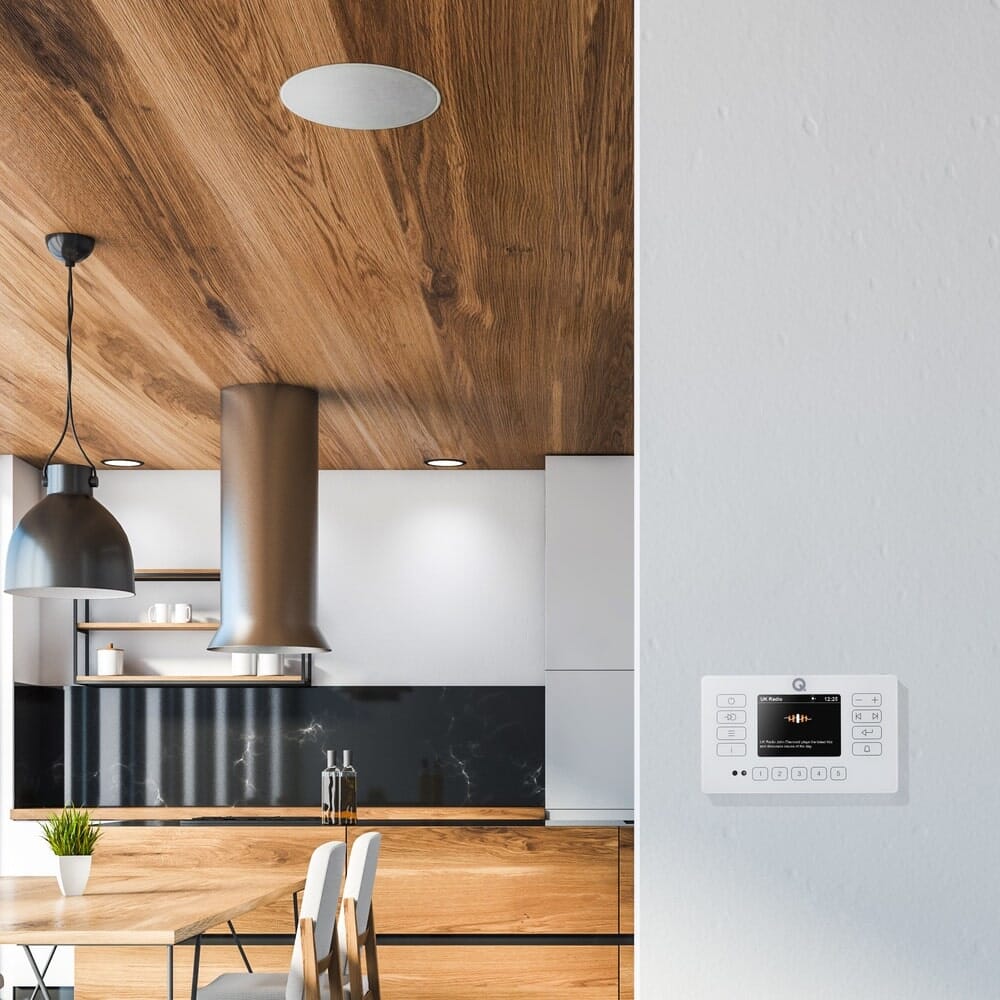

This is the ultimate 2.1 ceiling speaker system for your kitchen or living space.

With a powerful 25W per channel digital amplifier, two high definition in ceiling speakers and a 150W 8" active subwoofer your kitchen or living space will sound incredible!

FEATURES

• DAB+ / FM RADIO: Enjoy your favourite DAB+ and/or FM radio stations in high quality.


• BLUETOOTH: Connect your smart phone, tablet or computer via Bluetooth to enjoy your music. You can also connect an Amazon Alexa or Google Home via Bluetooth for hands free playback.


• AUX / OPTICAL INPUT: The E120 is the first in wall system on the market to support a direct digital input via a 3.5mm optical input. Now you can easily connect your television or digital audio system to the E120 without the need for a costly DAC. Simply plug it in with an optical cable.


• SUBWOOFER OUTPUT: Another first for the E120 is the built in subwoofer output. Simply connect the active subwoofer to the amplifier using the supplied 3.5mm to RCA subwoofer cable and add significant depth and warmth to your music.

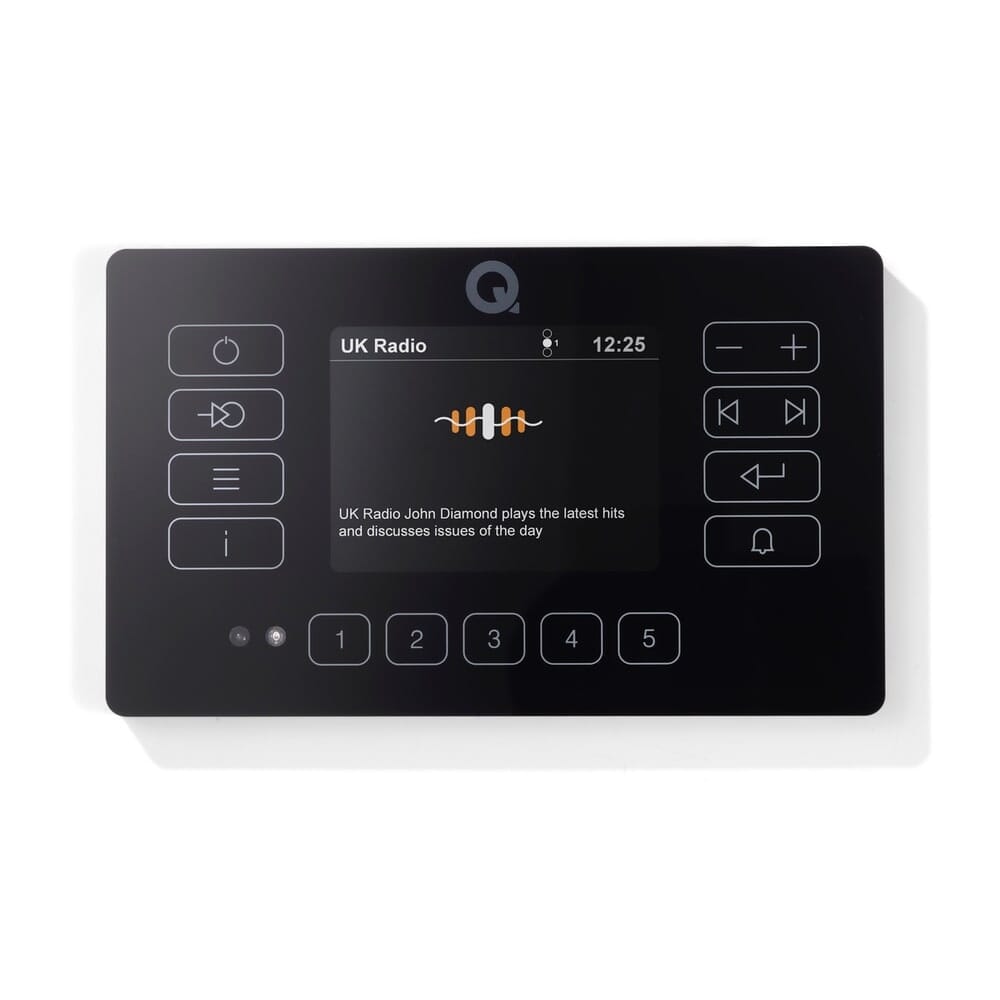

• COLOUR SCREEN: A high quality colour screen displays radio artwork and the touch sensitive buttons make it easy to control your music and volume.

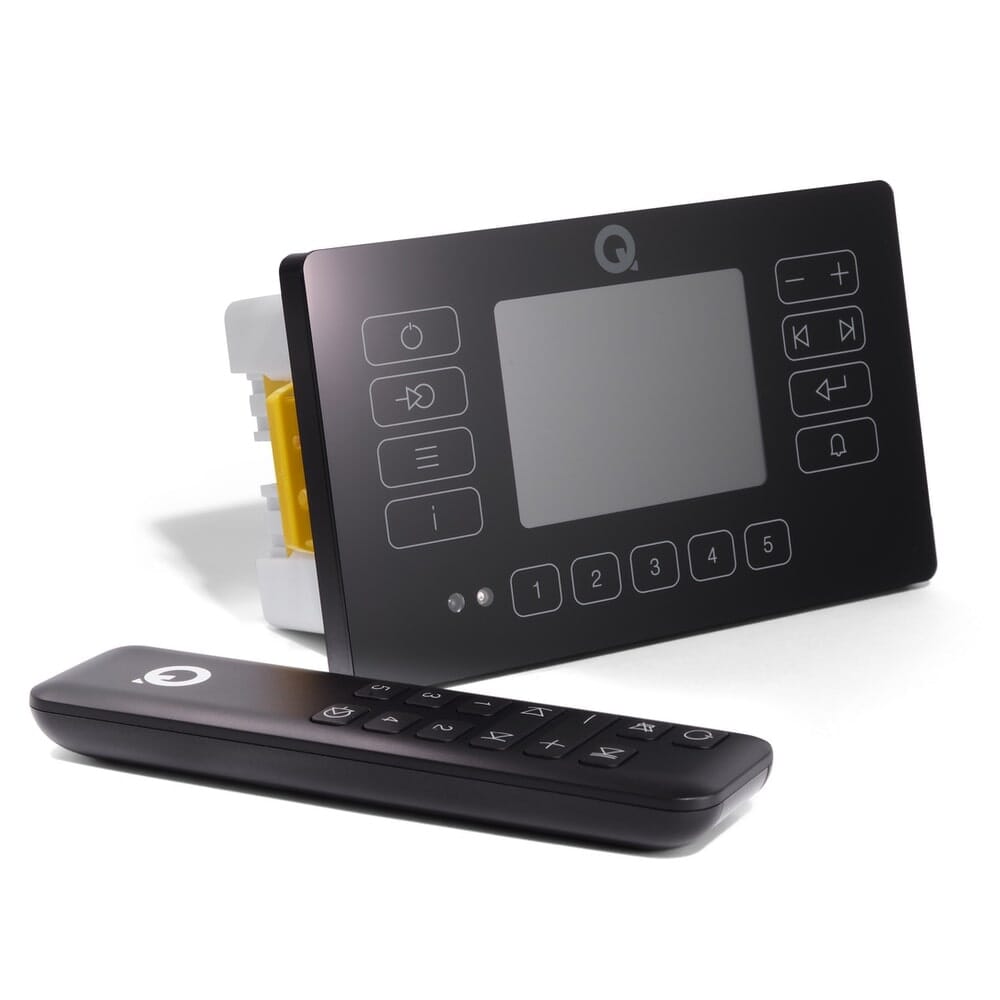

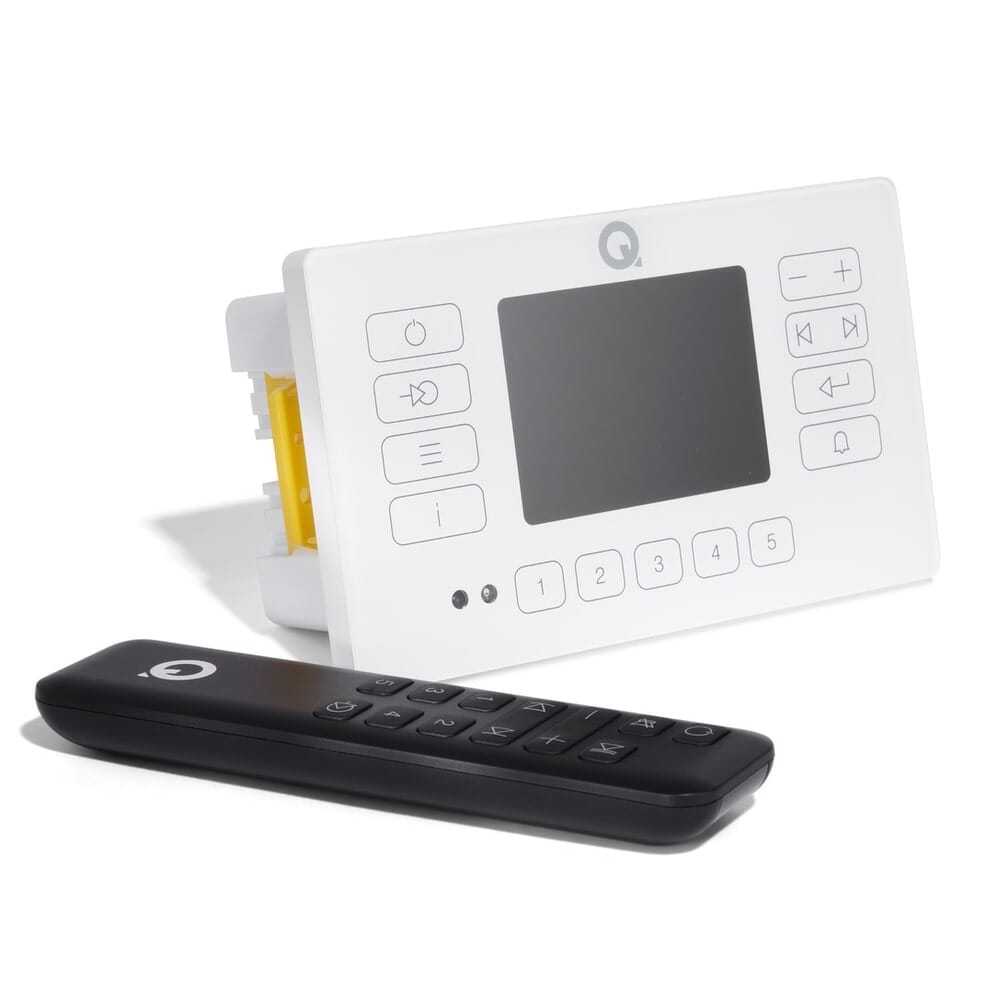

• REMOTE CONTROL: You'll get two remote controls as standard, the standard hand held remote and also a fully waterproof remote control which you can use from the bath!

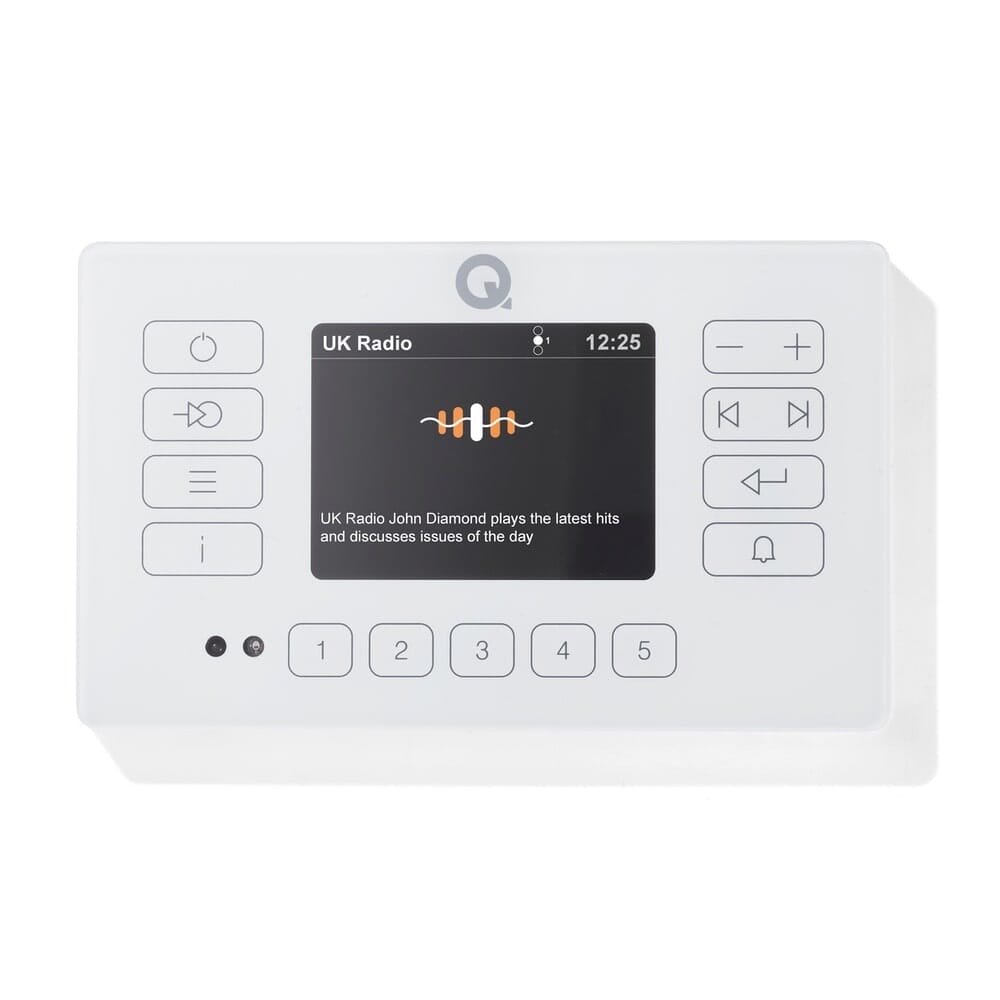

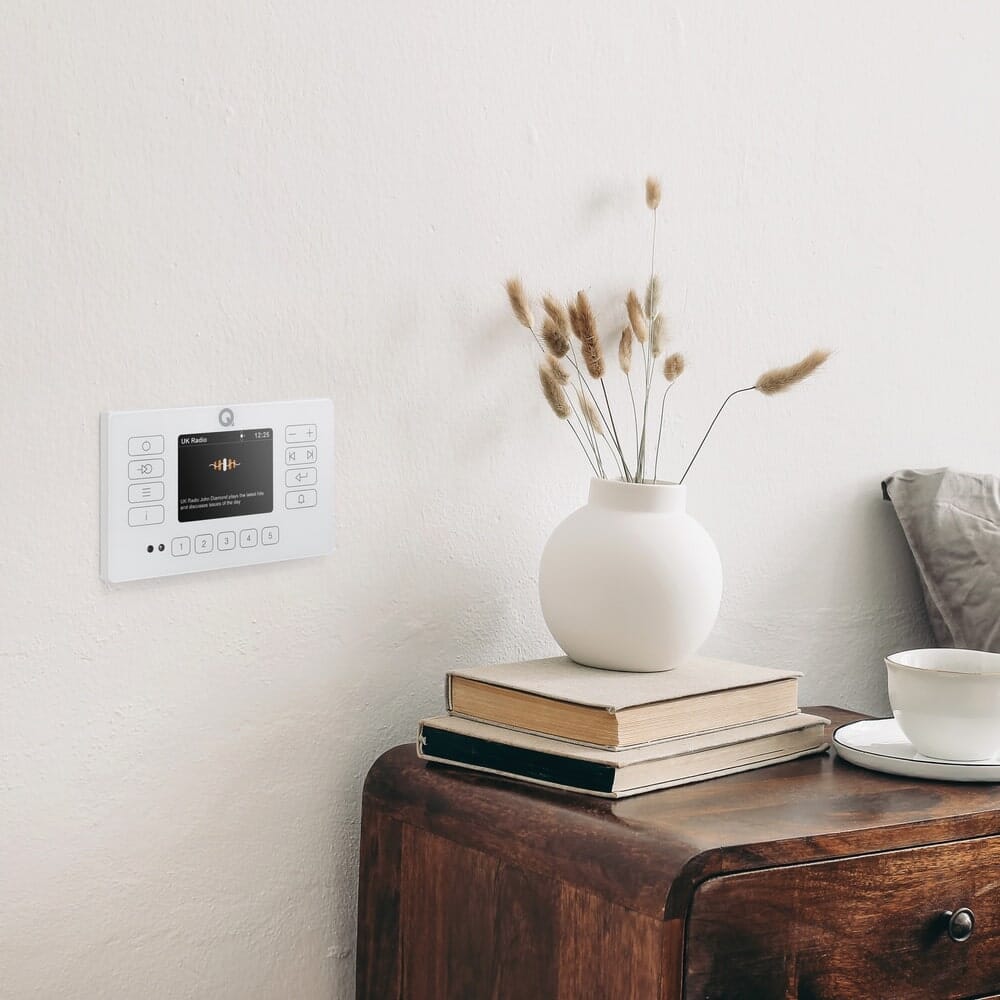

• BLACK OR WHITE: The new E120 is available in high gloss black or high gloss white to match any interior. The nicely curved corners and low profile make it discreet and will blend nicely with any interior.


• IP RATED: Now with an IP54 rating you can safely install the E120 inside zone 3 of your bathroom.

AMPLIFIER

• Audio Sources: DAB / DAB+ / FM with RDS
• Bluetooth: Version 5.0, A2DP
• Analogue Input: Type: 3.5mm Stereo, Sensitivity: 350mV, Max Level: 1.5v, Impedance: 10k Ohm
• Optical Input: Type: mini TOSLINK, Resolution: 16 Bit 48 kHz
• Speaker Outputs: Left & Right, Stereo or Dual Mono
• Analogue Line: Type: 3.5mm Stereo, Modes: Fixed or Variable, Max Level: 670mV
• Amplifier: Type: Class D, Continuous Power: 2 x 25W @ 6 Ohms, THD: 0.07% @ 1W / 0.2% @ rated power, SNR: >75dB @ Rated Power, Frequency Response: 20Hx - 20 kHz +/- 1 dB
• IP Ratings: E120 Wall Panel: IP54, Splash Proof Remote: IP54
• Control: Touch Sensitive Buttons, Infrared Remote Control, Bluetooth AVRCP v1.6 Play, Pause, Skip, Track, Artist, Album Name
• Menu Languages: English, German, Dutch, French, Danish, Spanish, Italian, Norwegian, Polish, Finnish
• Alarms: x2 Once, Daily, Weekdays, Weekends
• Power Supply: Input: 100 - 240V AC 50/60Hz, Output: 22V DC 1.5A, Dimensions: (HxWxD) 30mm x 50mm x 115mm
• Power Consumption: Typical: 10W, Standby: <1W Deep Standby: <0.5W
• Wall Panel: Net Weight: 0.251kg, Dimensions: (HxWxD): 91mm x 151mm x 33mm
• Speaker Cable: Gauge: 19AWG, Length: 2 x 7M
• DC Extension: Gauge: 16AWG, Length: 5M, Connectors: 5.5mm x 2.5mm DC male / 5,5mm x 2.5mm DC female

SPEAKERS

• Speaker: In-ceiling
• Number of channels: 2
• Tweeter (treble): 25 mm silk dome, orientation 35 to 40° in all directions
• Bass: 165 mm paper cone, rubber edge
• Recommended amplifier: 100 W
• Frequency Response (±3dB): 70Hz - 20kHz
• Cutoff frequency: 2950 Hz
• Sensitivity: 87dB / 1W / 1m
• Impedance: 8 Ohms
• Dimensions: Ø230 x D102 mm
• Cutting dimension Ø: 200 mm
• Weight: 1.45kg

SUBWOOFER

• Enclosure Type: Infinite Baffle
• Bass Unit: 200mm / 8” High-Excursion Driver
• Enclosure Material: MDF
• Amplifier Power: 150W Class-D
• Frequency Response: 35Hz - 200Hz
• Overall Dimensions (H x W x D): 324 x 480 x 150(mm) / 12.7” x 18.9” x 5.9”
• Weight: 11.0Kg
• Power: 100V-240V 50/60Hz
• Warranty: 2 Years

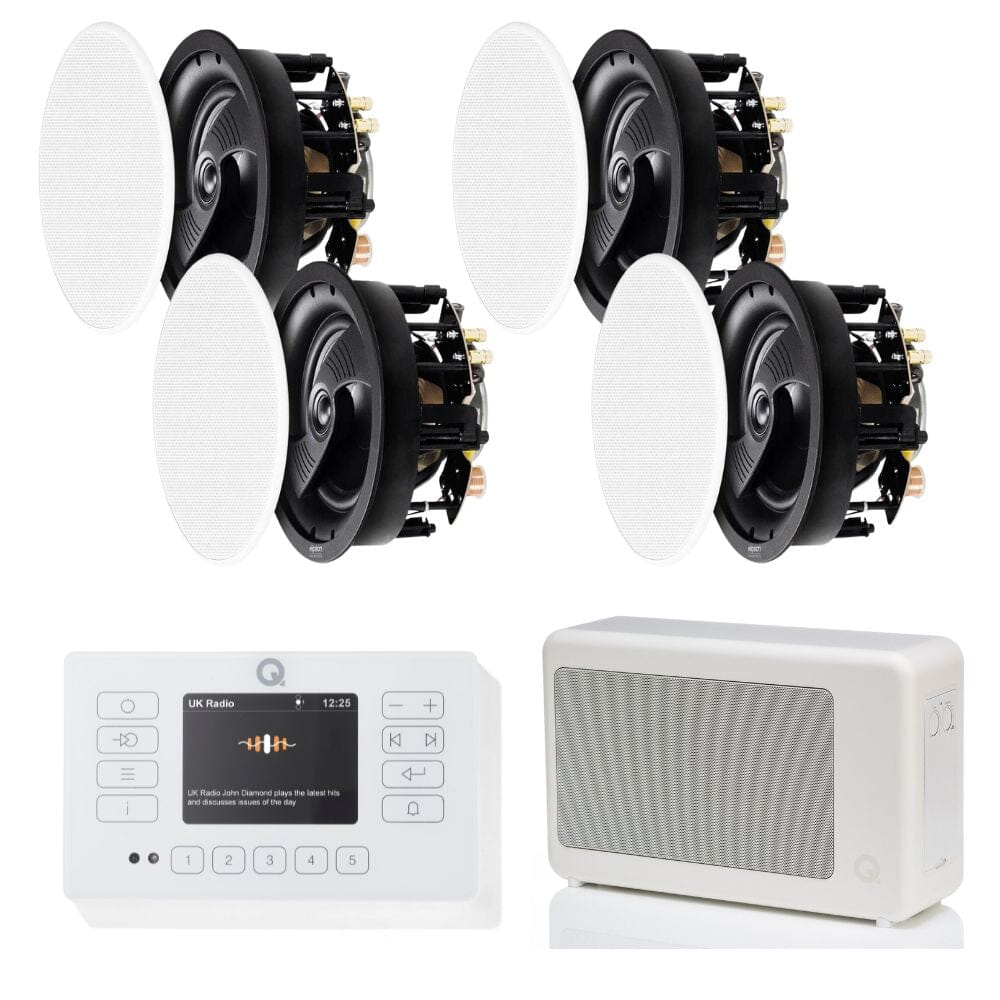

ALL BUNDLES

• 1 x E120 Wall Panel (Black or White)
• 1 x Q Acoustics 7060S Subwoofer (Black or White)
• 1 x 5m 3.5mm - RCA Subwoofer Connection Cable
• 2 x 7m Speaker Cables
• 1 x Power Supply
• 1 x 5M DC Extension Cable
• 1 x FM/DAB Antenna
• 1 x 5M Antenna Extension Cable
• 1 x Waterproof Remote Control
• 1 x Premium Remote Control
• 1 x Instruction Manual

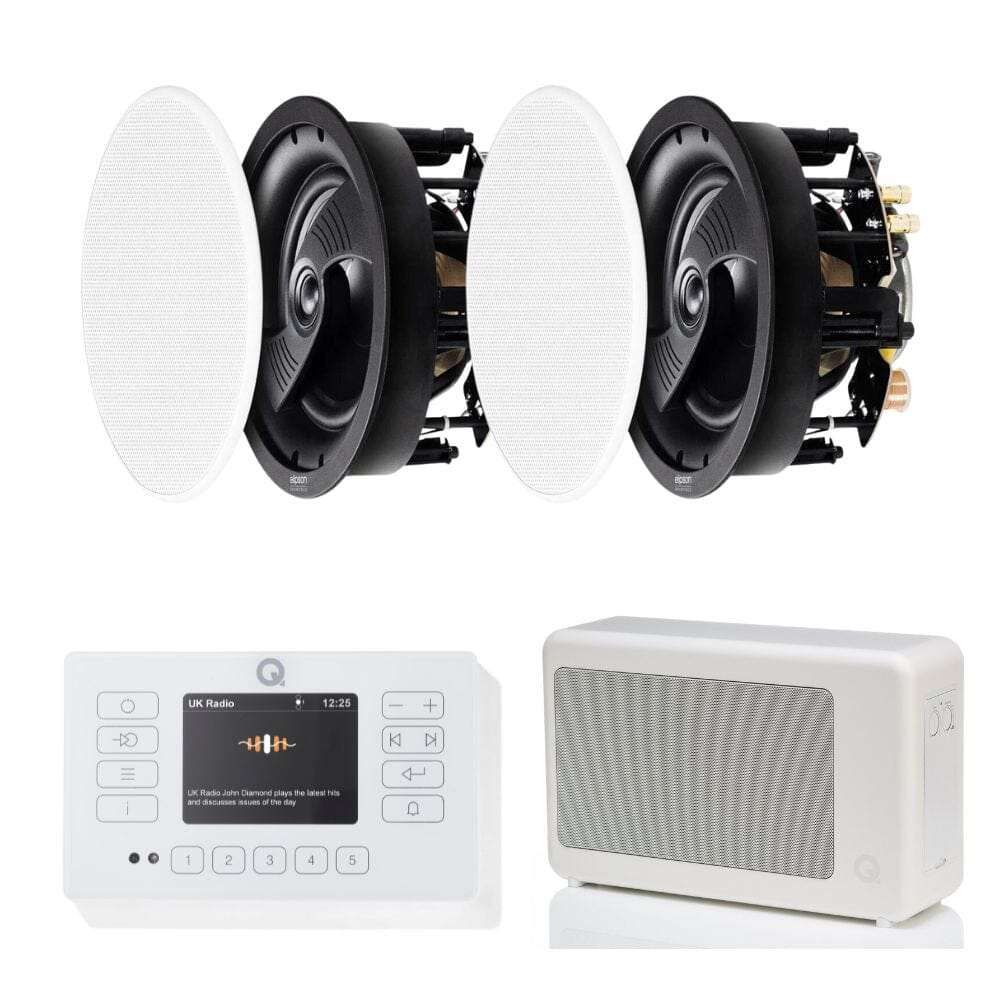

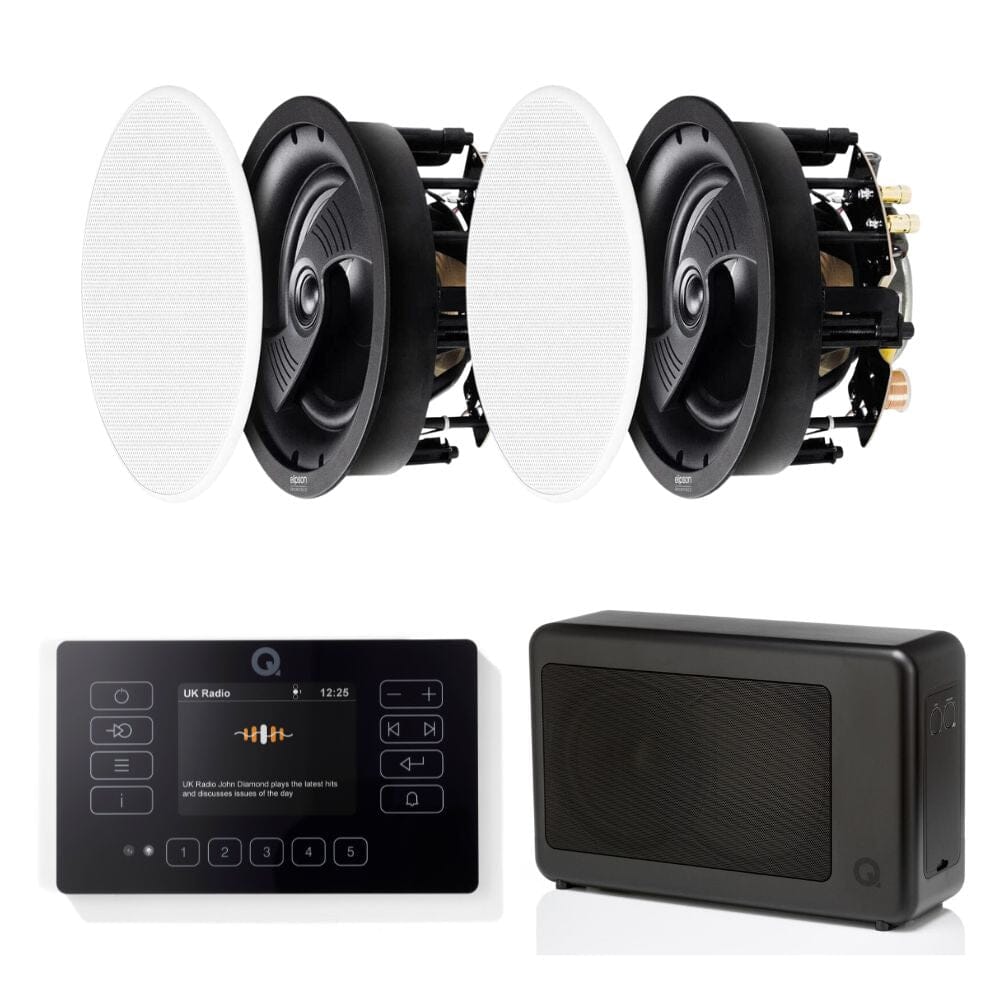

TWO SPEAKERS

• 2 x Elipson IC6 High Definition 6.5" Ceiling Speakers

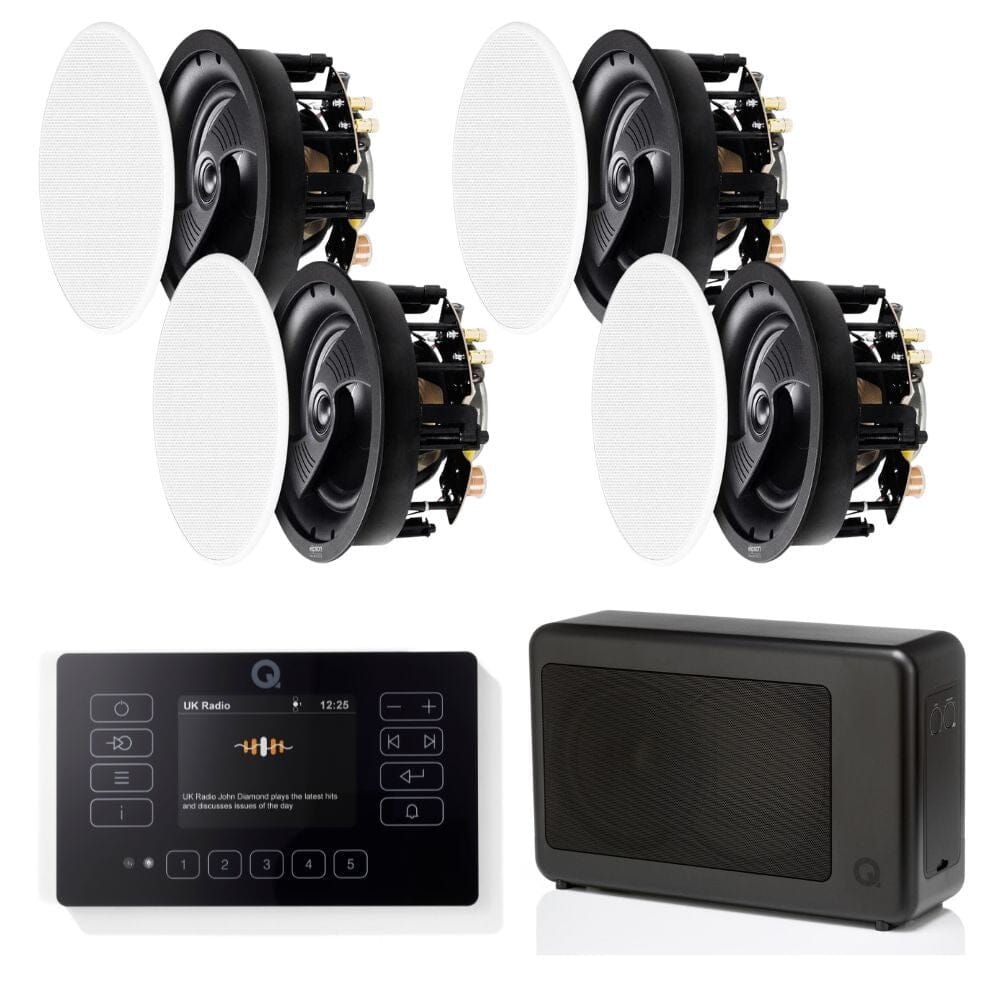

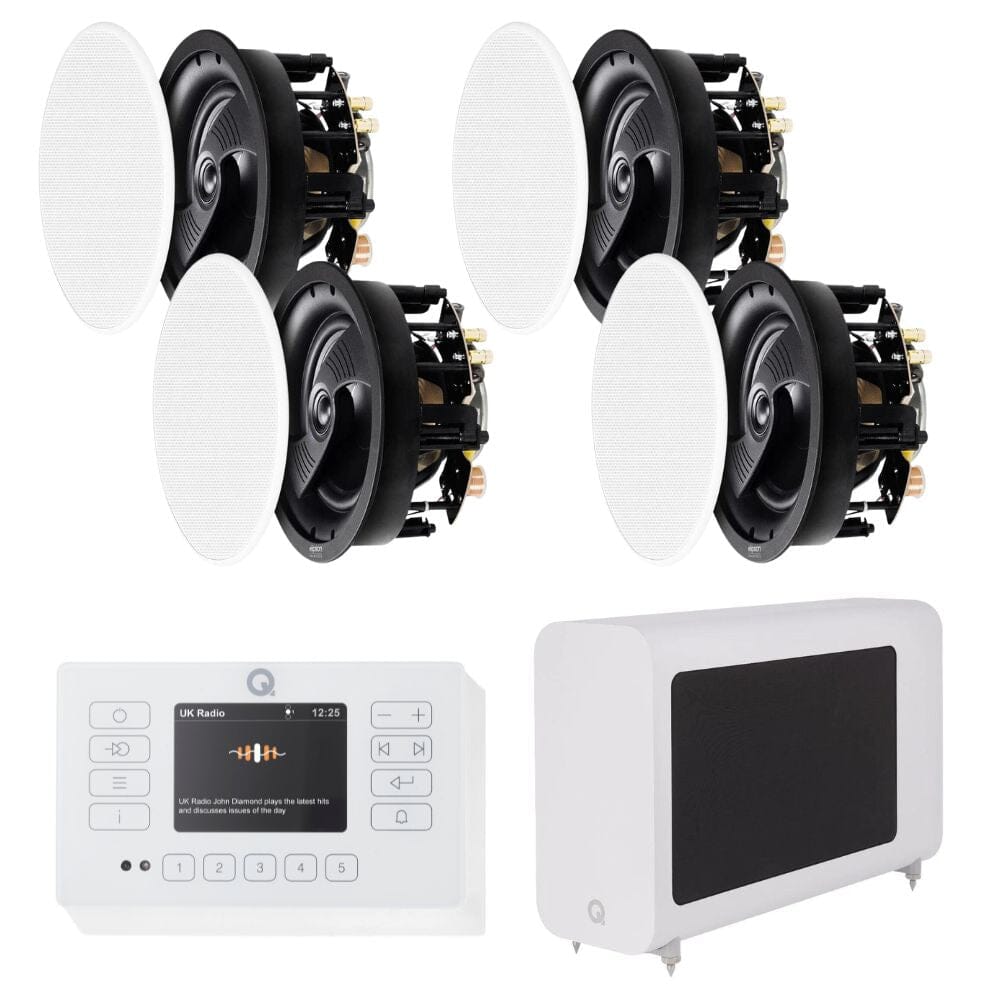

FOUR SPEAKERS

• 4 x Elipson IC6 High Defintiion 6.5" Ceiling Speakers
• 20m x Speaker Cable
