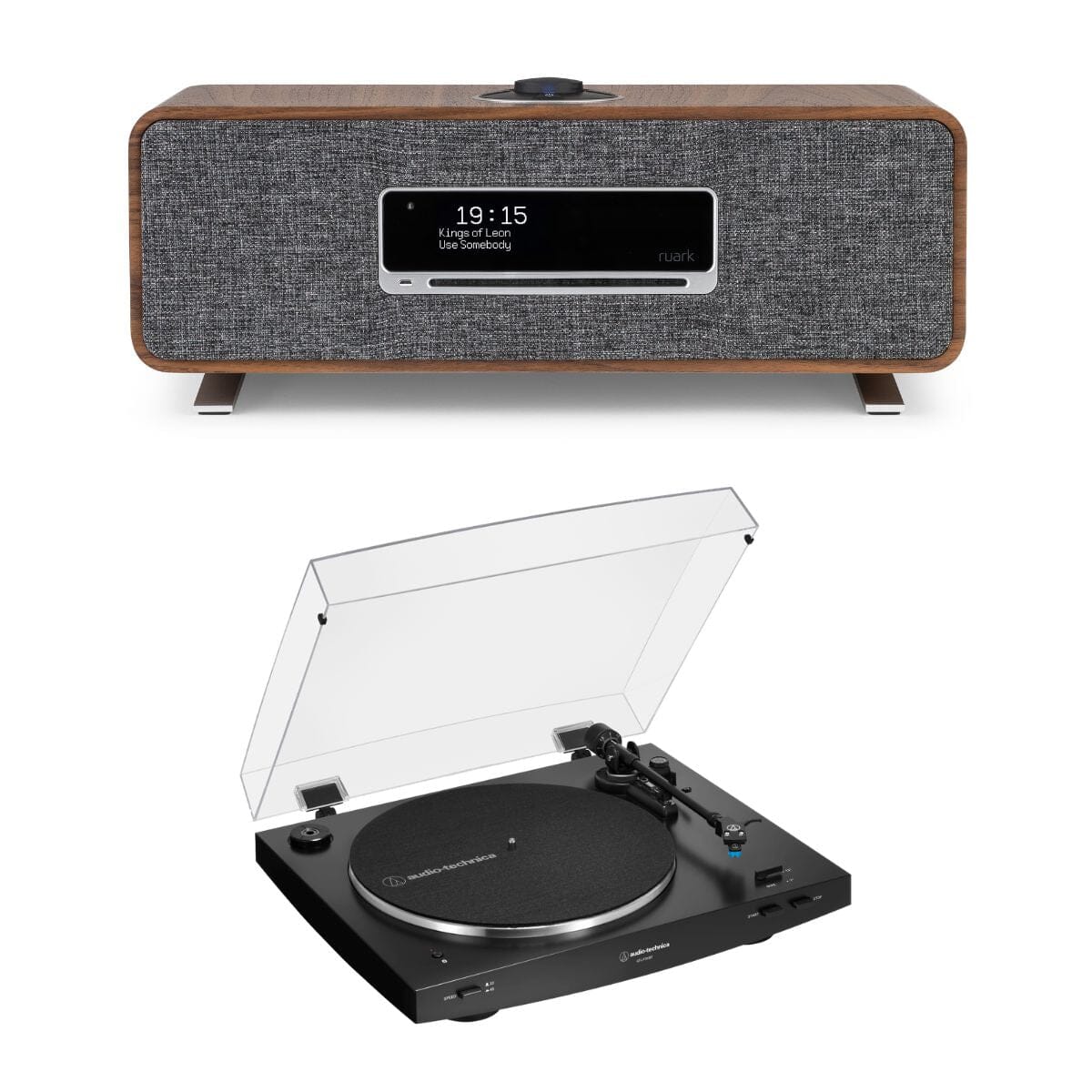

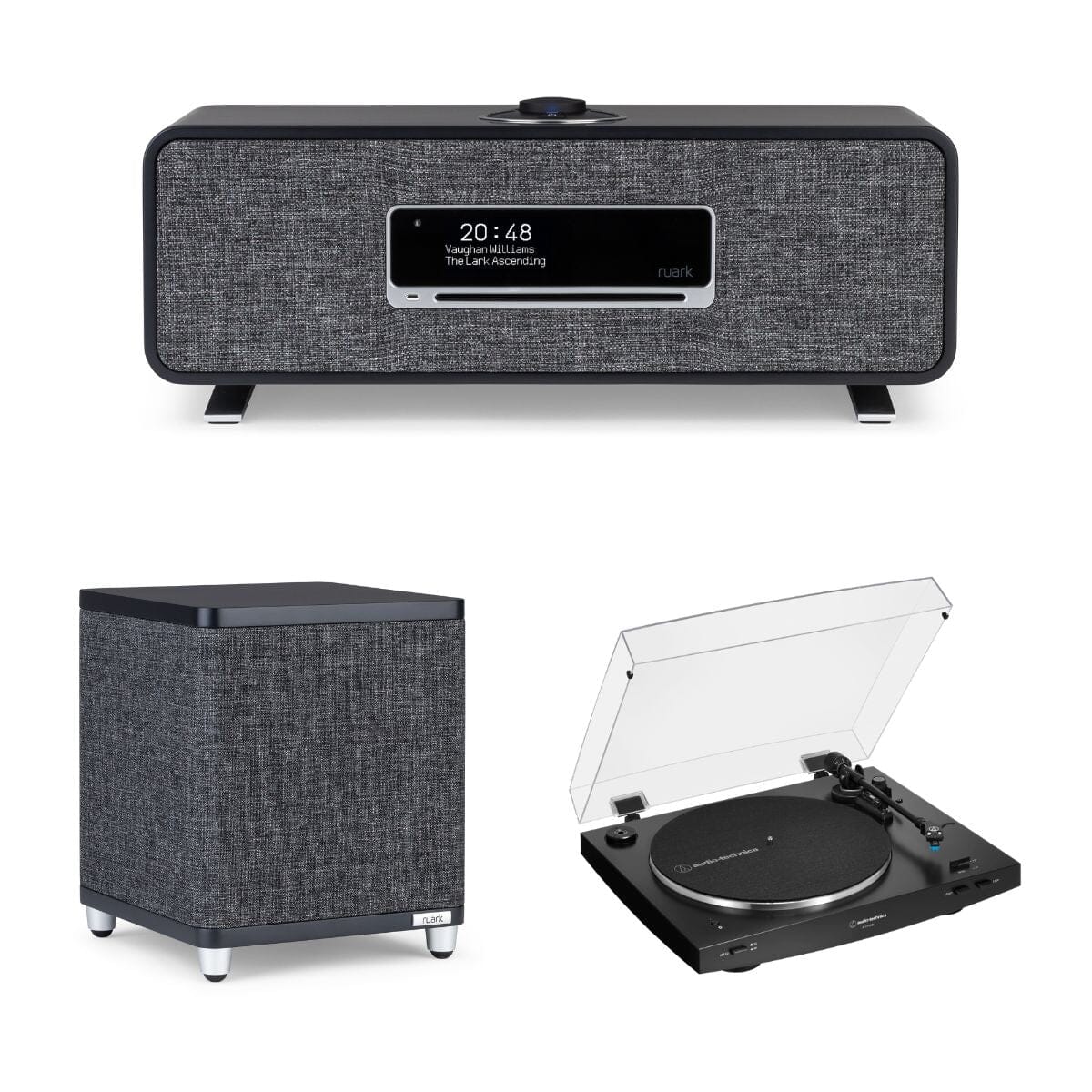

Ruark R3S Compact Music System + Audio-Technica LP3XBT Automatic Bluetooth Turntable

Ruark / Audio-Technica | SKU: KB02095

£925.00

Colour: Charcoal

Subwoofer

No Yes

Free Delivery

On Orders Over £50

60 Day Returns

Happy Sound Guarantee

Need Advice? Call 02393 190955

We’re more than just an online retailer. We’re passionate about audio and offering the best customer service in the industry.

Need some advice? Call our audio experts on 02393 190955, live chat or email us and we’ll help you make the best decision. Learn More

2 Years Warranty + Expert Support

K&B Audio are authorised retailers for Ruark / Audio-Technica. All sales come with a 2 Years manufacturers warranty and full technical support.

Price Match Promise

Product Description

The Ruark R3S Compact Music System + Audio-Technica LP3XBT Bluetooth Turntable is a versatile all-in-one music setup designed for both modern streaming and vinyl playback.

The Ruark R3S combines powerful stereo amplification, Wi-Fi streaming, radio and a built-in CD player, while the Audio-Technica LP3XBT adds fully automatic belt-drive turntable performance.

Ideal for living rooms, bedrooms or offices, this system allows you to enjoy vinyl records alongside streaming services, digital radio and CDs.

With premium build quality and elegant design, it delivers rich, room-filling sound without the complexity of a traditional hi-fi stack.

FEATURES

All-In-One Hi-Fi Music System: The Ruark R3S integrates amplification, speakers, streaming and CD playback into a single elegant unit for powerful, balanced sound.
Fully Automatic Turntable Operation: The Audio-Technica LP3XBT automatically starts and returns the tonearm, making vinyl playback simple and convenient.
Precision Belt-Drive Design: Low-vibration motor and belt-drive mechanism ensure stable platter rotation and accurate record playback.
Pre-Fitted Moving Magnet Cartridge: Factory-installed cartridge provides reliable tracking and clear, detailed vinyl sound straight out of the box.
High-Resolution Wi-Fi Streaming: Access leading music services and network audio libraries through the R3S for modern listening flexibility.
Internet, DAB & FM Radio: Enjoy both local broadcasts and thousands of global stations from a single system.
Integrated Slot-Loading CD Player: Play your existing CD collection directly from the R3S without needing an additional player.
Bluetooth Connectivity: Stream music wirelessly from smartphones, tablets or laptops for convenient everyday listening.
Elegant Cabinet Design: Real wood veneer and premium materials ensure the system complements modern and traditional interiors.
Simple System Setup: The turntable connects directly to the R3S, creating a complete vinyl and streaming system with minimal cables.

This bundle combines classic vinyl listening with modern streaming technology, offering a stylish and complete music solution for the home.

Specifications

SPEAKERS

Frequency Response (Typical In-Room): 50Hz - 20kHz
Speaker Units: 2 × Ruark 75mm NS+ full range driver
Amplifier: 30W nominal Class AB
Enhancements: Adjustable bass and treble (-6dB to +6dB), Switchable loudness EQ, Switchable 3D Audio
Cabinet Type: Twin bass reflex
Features: Adjustable input levels (Line in and Optical)
Alarms: 2 × daily, weekdays, weekends and custom
App Control: Oktiv (iOS and Android)
Auto Standby: Adjustable power saving mode
Daylight Saving Time (DST): Configurable daylight savings
Display: OLED with auto dimming
Presets: 8 presets per mode
Remote Control: IR remote
Sleep Function: Yes
Snooze Function: Yes
Software Updates: Over-the-air, LAN and USB
User Interface Languages: EN, DA, DE, ES, FR, IT, NL, NO, PL, SV
Aerial Connector: 75Ω F-type connector
Bluetooth (Version & Codecs): V5.2, SBC
Built-In Music Streaming Services: Spotify Connect, Deezer, Amazon Music
CD Player: Built-in CD player, plays CD-DA and CD-R discs
CD Media Formats Supported: WAV 16-bit 44.1kHz, MP3, WMA and AAC up to 320Kbps
Headphone Output: 3.5mm jack socket

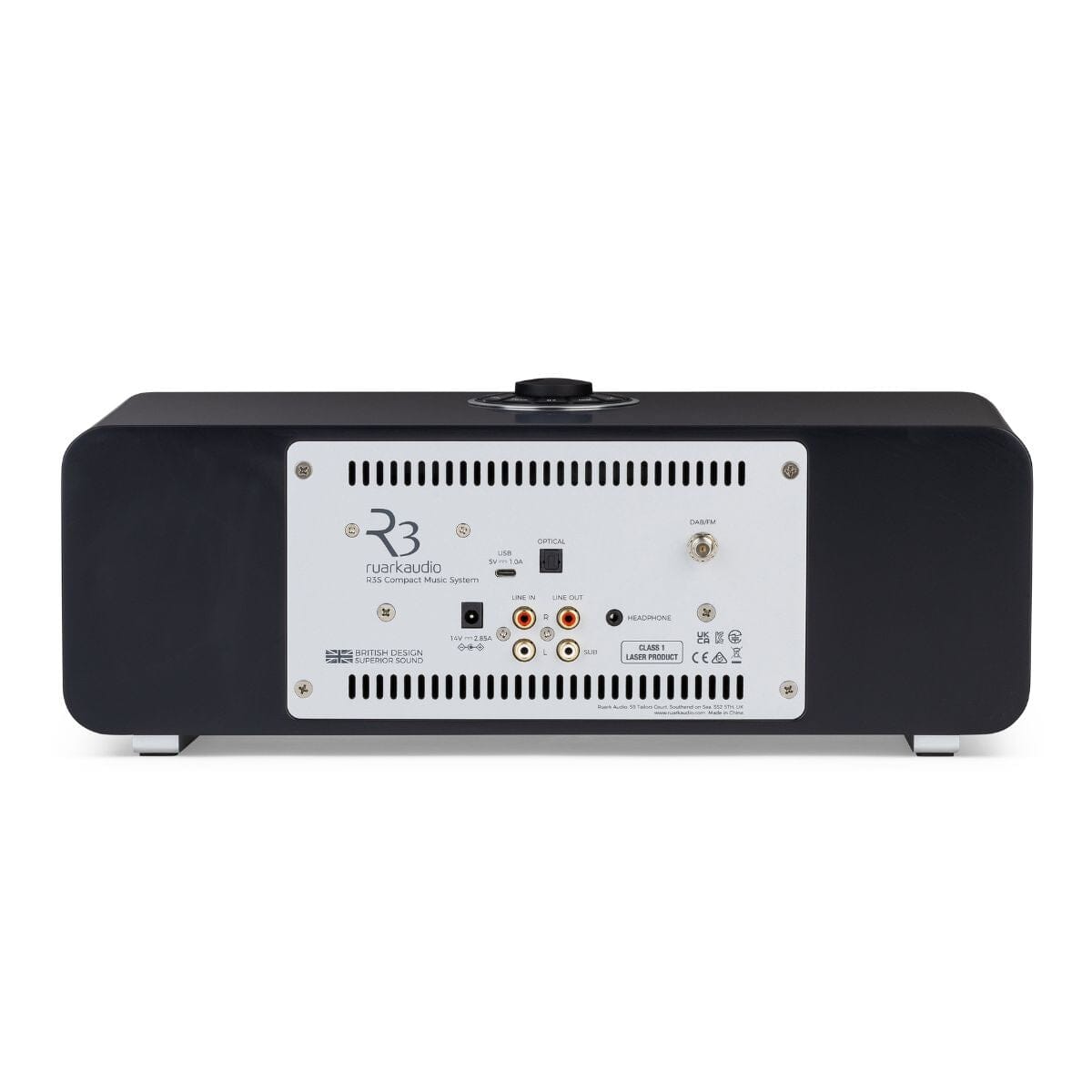

Line In: Stereo RCA input (up to 2.3Vrms)
Line Output: Stereo RCA connectors
Optical Input: Up to 24-bit 96kHz PCM
Podcast Source: Yes
Radio: Internet Radio, DAB/DAB+/FM with RDS (87.5–108MHz)
Subwoofer Output: Mono RCA
USB-C Port: 5V 1A (5W) charging, MP3 48kHz 320kbps playback (FAT32 format only)
Wi-Fi: 802.11b/g/n, WPS 2, WEP, WPA, WPA2
Supported Audio Formats: MP3 up to 48kHz 320kbps
Standard Finishes: Rich Walnut cabinet with Dark Slate fabric grille, Soft Grey Lacquer cabinet with Lead Grey fabric grille, Charcoal Lacquer cabinet with Dark Slate fabric grille
Product Dimensions (Cabinet): H135 × W420 × D205mm
Product Dimensions (Max – inc. feet, controls and cables etc.): H165 × W420 × D235mm
Product Weight: 5.2kg
Product Power Input: 12–14VDC 2A
Power Inlet Connector: 5.5 × 2.1mm DC jack socket
AC Power Adaptor: 100–240VAC, 50–60Hz input, 14VDC 2.85A output (1.8m lead)
Power Consumption: 1.6W standby, 7W typical

TURNTABLE

Type: Belt-drive, fully automatic operation
Motor: DC motor
Drive Method: Belt drive
Speeds: 33-1/3 RPM, 45 RPM
Turntable Platter: Die-cast aluminium
Wow and Flutter: < 0.2 % WRMS (33 RPM) at 3 kHz
Signal-to-Noise Ratio: > 60 dB
Output Level PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec
LINE: 252 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain: 36 dB nominal, RIAA equalized
Power Supply Requirements: 100 to 240 V, 50/60 Hz, 0.6 A Max
Power Consumption: 2 W
Dimensions: 435.6mm (17") ×374 mm (15 ") ×128 mm (5.0") (W × D × H)
Weight: 5.0 kg (11 lbs)
Replacement Stylus: AT-VM95 (sold separately)
Replacement Headshell: AT-HS3 BK (sold separately)
Replacement Belt: AT-LP3XBT exclusive belt (sold separately)
Communication System: Bluetooth version 5.2
Frequency Band: 2.402 GHz to 2.480 GHz
Maximum RF Output: 2.5 mW EIRP
Maximum Communication Range: Line of sight - approx. 10 m (33')
Modulation Method: GFSK, Pi/4DQPSK, 8DPSK
Compatible Bluetooth Profile: A2DP
Support Codec: Qualcomm® aptX™ Adaptive audio, Qualcomm® aptX™

SUBWOOFER (OPTIONAL)

Frequency Response (Typical In-Room): 35Hz - 180Hz
Speaker Units: 165mm / 6.5" Ruark long-throw subwoofer, 165mm / 6.5" Ruark passive radiator
Amplifier: 100W nominal Class D
Enhancements: Auto standby and wake-up, 180 degree phase switch, Adjustable crossover (50–180Hz), Adjustable level control, Soft clip protection filter
Cabinet Type: Tuned passive radiator
Cabinet Volume: 9.5 litres
Tuning Frequency: 45Hz
Sub-Input: Mono RCA input (max 2.3 Vrms)
Standard Finishes: Charcoal Lacquer panels with Dark Slate fabric grille, Rich Walnut panels with Dark Slate fabric grille
Product Dimensions (Cabinet): H270 × W250 × D250mm
Product Dimensions (Max – inc. feet, controls and cables etc.): H300 × W250 × D285mm
Product Weight: 6.7kg
Product Power Input: 90–240VAC 50–60Hz 2.5A
Power Input Connector: IEC C8 cloverleaf AC socket
Power Consumption: 0.5W standby, 7W typical

What's In The Box

SPEAKERS

1 x R3S Radio
1 x Universal AC power adaptor
1 x Quick Start Guide
1 x Telescopic aerial and spanner
1 x IR remote control

TURNTABLE

1 x Audio-Technica LP3XBT Turntable
1 x Dust cover
1 x Felt mat
1 x Platter (with drive belt)
1 x Dust cover hinges
1 x Counterweight
1 x Headshell (AT-HS3 BK) with VM stereo cartridge (AT-VM95C)
1 x 45-RPM adapter
1 x RCA audio cable (Approx. 1.0 m (3.3'))
1 x AC adapter (Approx. 1.5 m (4.9'))

SUBWOOFER (OPTIONAL)

RS1 Subwoofer
2m AC power cable (IEC C7 figure of 8)
2m AC power cable
3m RCA subwoofer cable
Quick Start Guide

Downloads

SPEAKER

TURNTABLE

User Manual

SUBWOOFER (OPTIONAL)
