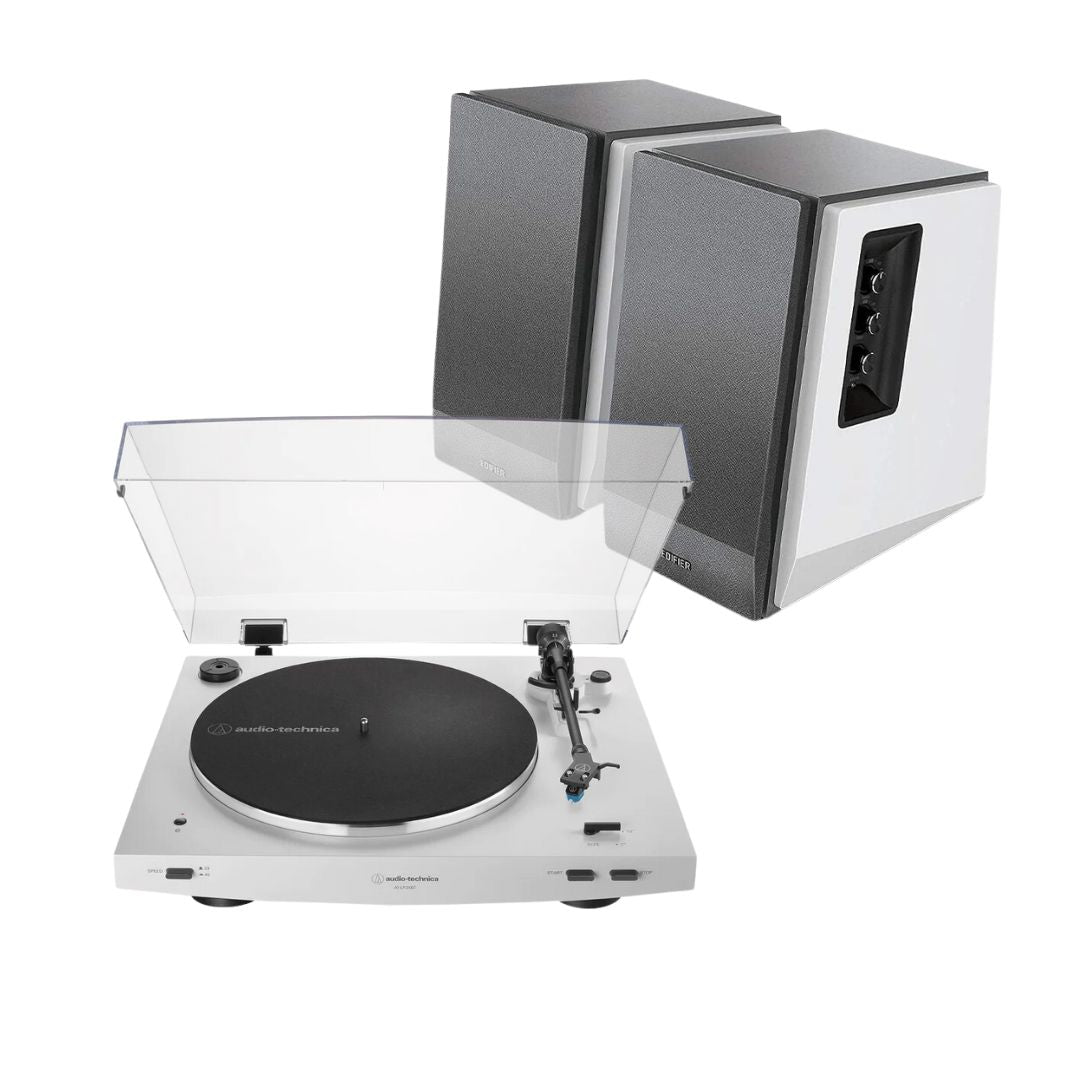

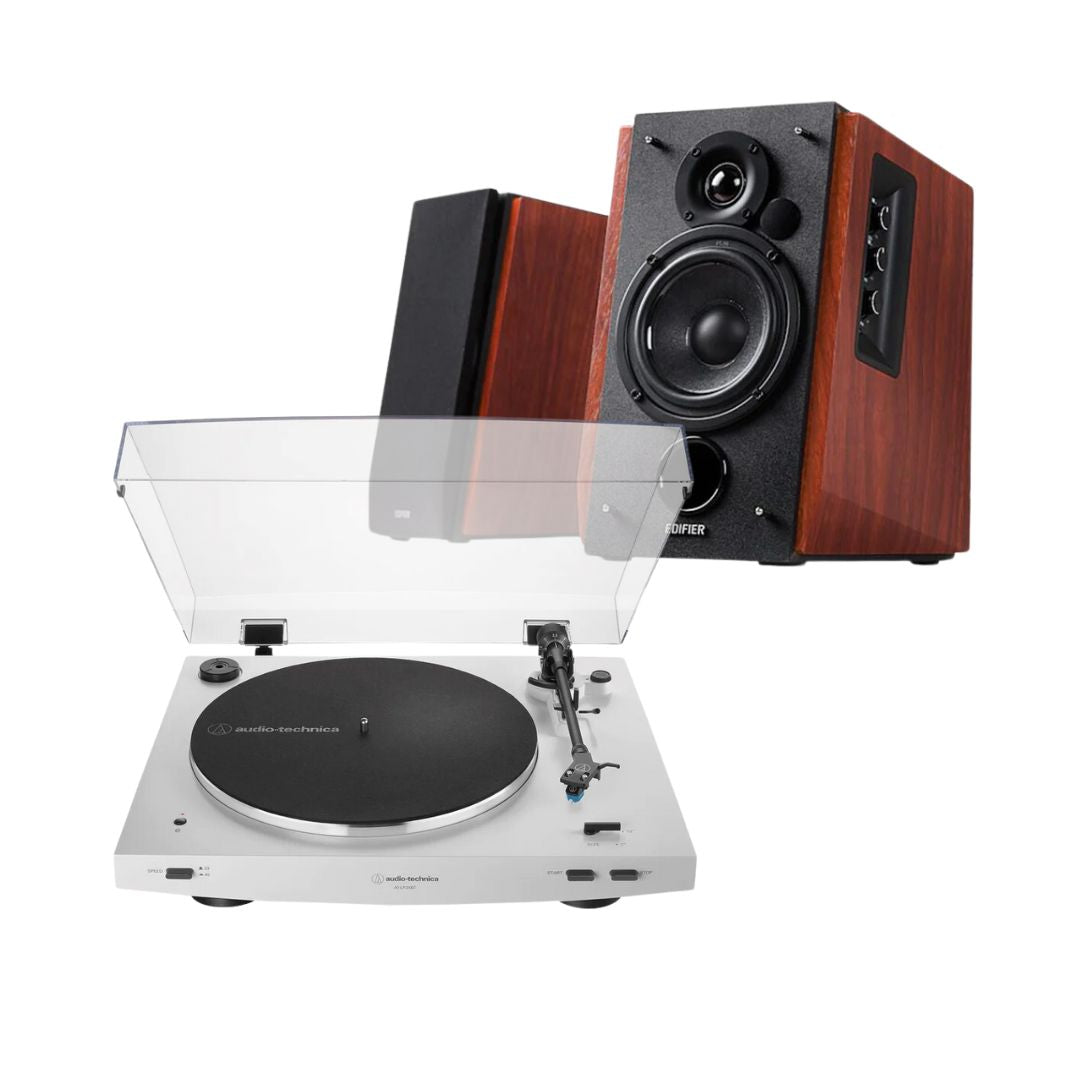

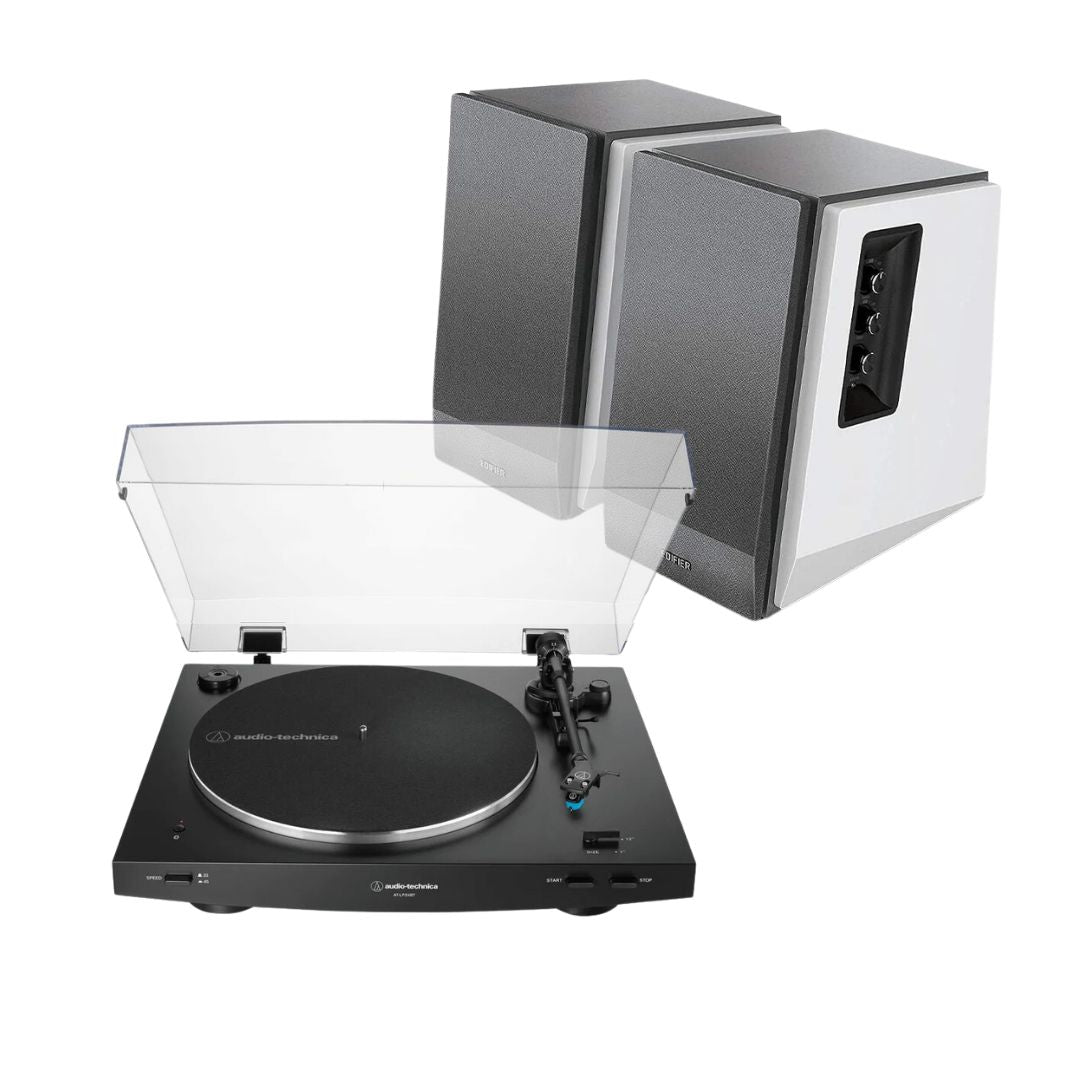

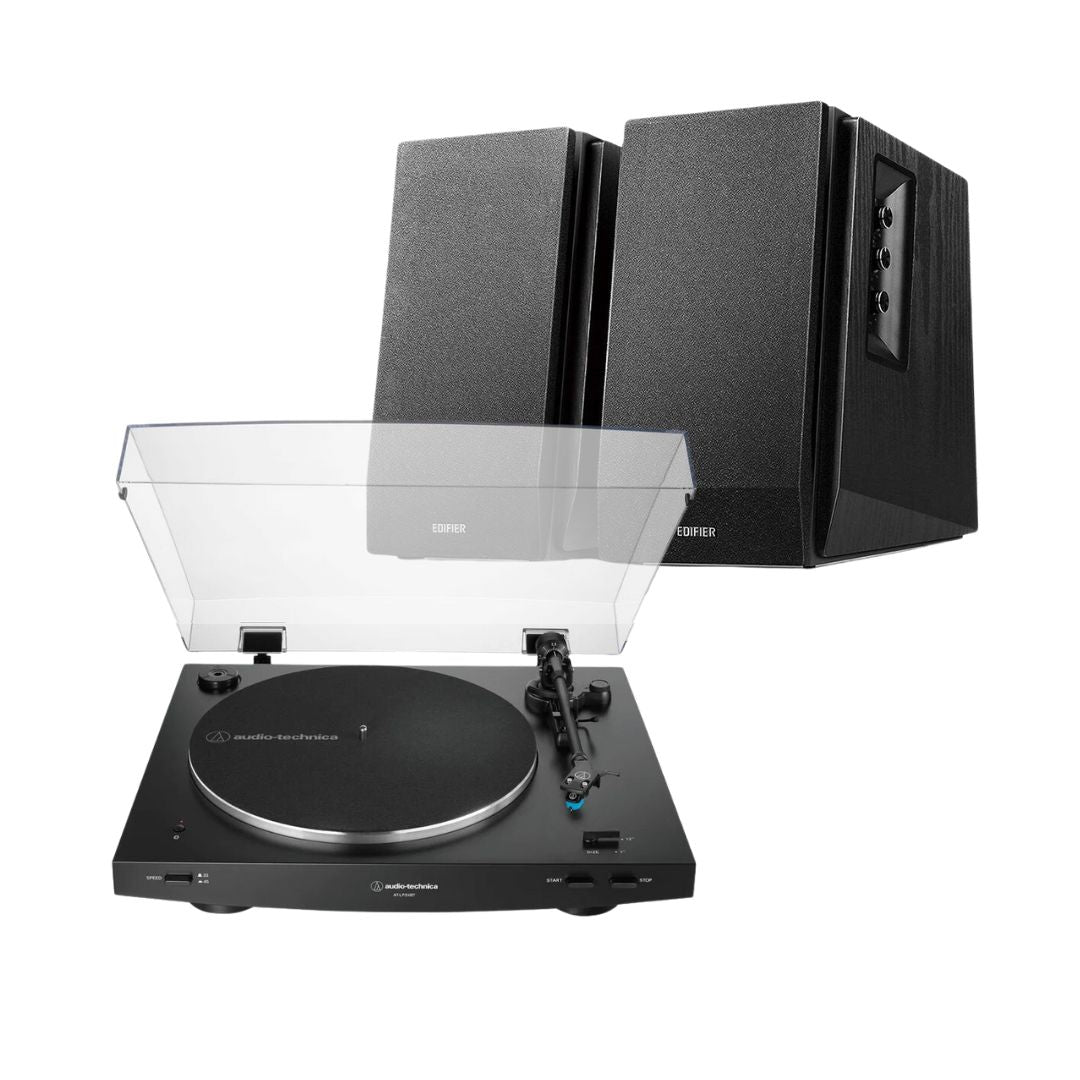

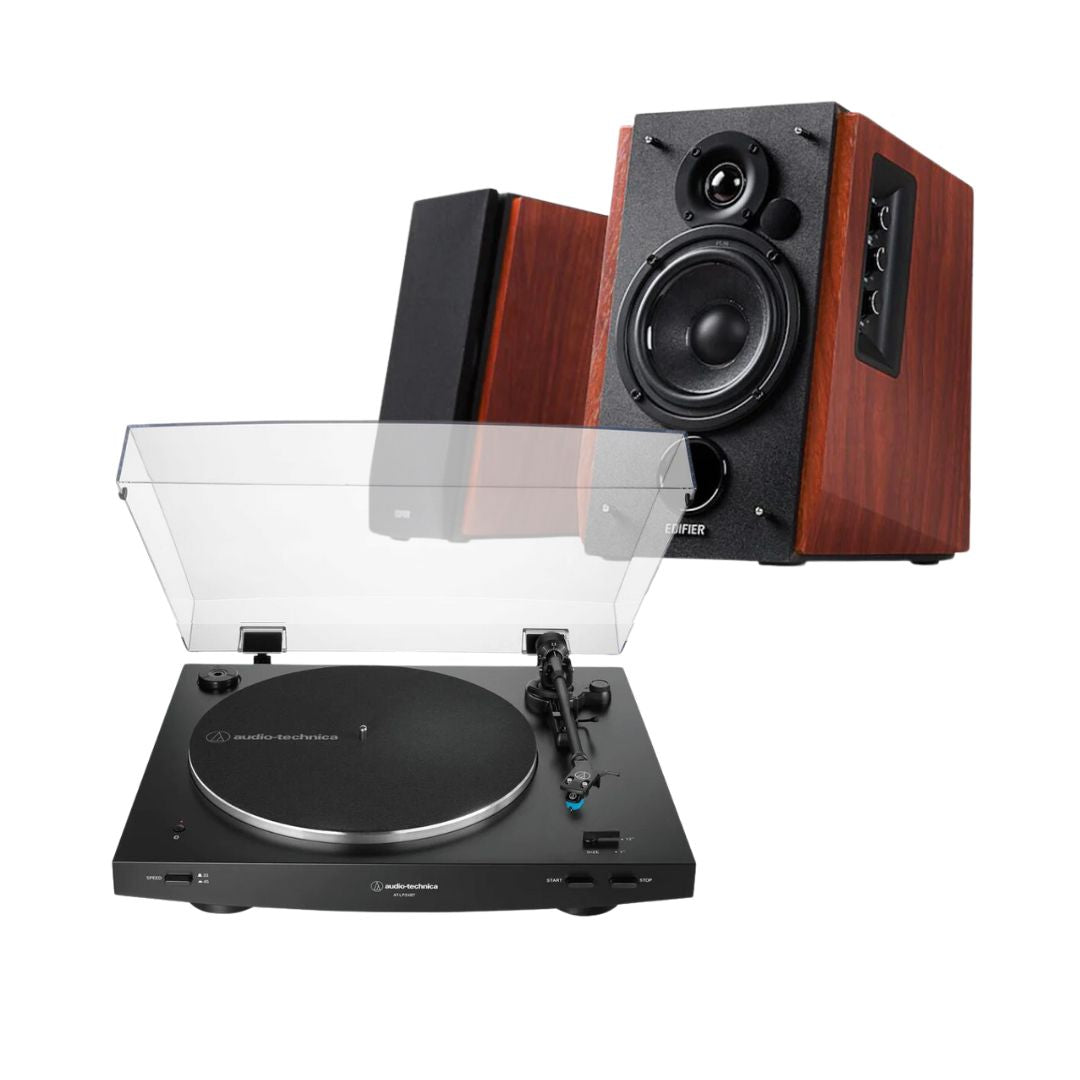

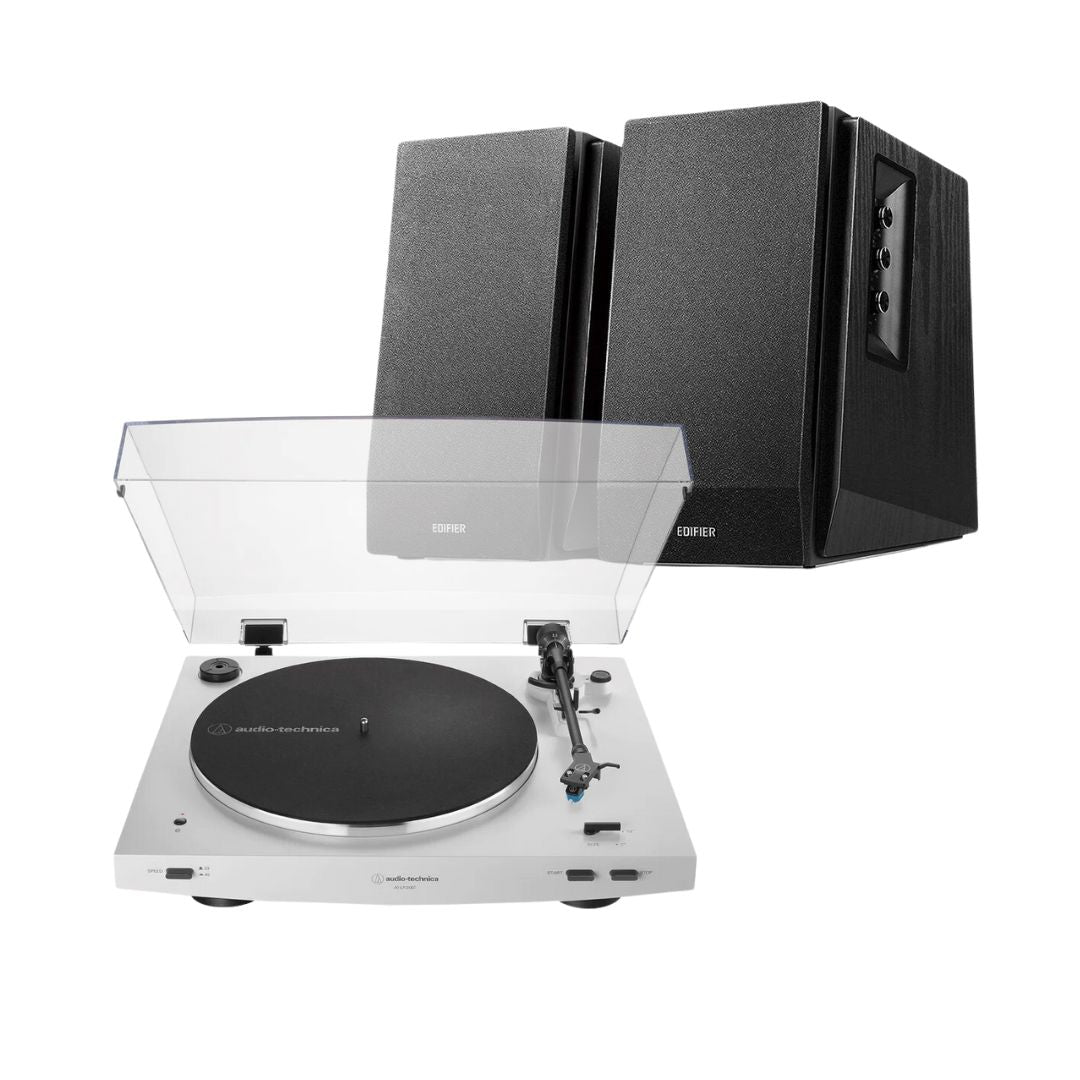

Edifier R1700BT + Audio-Technica AT-LP3XBT Turntable with Bluetooth Speakers

Experience the perfect blend of analogue and wireless audio with the Audio-Technica AT-LP3XBT turntable paired with Edifier R1700BT Bluetooth speakers.

This setup offers plug-and-play convenience, allowing you to enjoy your vinyl collection and stream music wirelessly from your smartphone or tablet.

With a powerful 66W output, built-in pre-amplifier for seamless connectivity, and simple setup process, the Audio-Technica AT-LP3XBT and Edifier R1700BT combination delivers outstanding sound quality and versatility.

FEATURES

• Plug & Play: Enjoy hassle-free setup and playback with the plug-and-play functionality.


• Stream Bluetooth From Smart Phone or Tablet: Wirelessly stream music from your smartphone or tablet for convenient listening.


• Powerful 66W: Experience powerful and immersive audio with a total output of 66W.


• Built-in Pre-amplifier: Connect directly to your speakers without the need for an external pre-amplifier, simplifying your setup.


• Simple to Setup: Set up your turntable and speakers effortlessly with a straightforward installation process.

Speakers

• Total power output: RMS 15W x2 (treble) + 18W x2 (bass) (DRC ON)
• Signal to noise ratio: 60Hz-20KHz （±6dB）
• Frequency response:

  • R/L 4.0KHZ-20KHZ

  • SW:30Hz-3KHZ

• Distortion: ≤0.5%
• Input sensitivity:

  • Line In1: 700±50mV

  • Line In2: 550±50mV

• Audio input: PC, AUX, Bluetooth
• Adjustment (remote): Wireless remote control for audio source selection, mute and volume adjustment.
• Adjustment (Unit): Volume, bass and treble adjustment
• Treble unit: Φ19mm silk dome tweeter
• Bass Unit: 4 inch (116mm)
• Dimension each Speaker: 154 mm x 254mm x 214mm (W x H x D)
• Weight: 6.6kg/7.6kg (net/gross)

Turntable

• Type: Belt-drive, fully automatic operation
• Motor: DC motor
• Drive Method: Belt drive
• Speeds: 33-1/3 RPM, 45 RPM
• Turntable Platter: Die-cast aluminium
• Wow and Flutter: < 0.2 % WRMS (33 RPM) at 3 kHz
• Signal-to-Noise Ratio: > 60 dB
• Output Level PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec
• LINE: 252 mV nominal at 1 kHz, 5 cm/sec
• Phono Pre-Amp Gain: 36 dB nominal, RIAA equalized
• Power Supply Requirements: 100 to 240 V, 50/60 Hz, 0.6 A Max
• Power Consumption: 2 W
• Dimensions: 435.6mm (17") ×374 mm (15 ") ×128 mm (5.0") (W × D × H)
• Weight: 5.0 kg (11 lbs)
• Replacement Stylus: AT-VM95 (sold separately)
• Replacement Headshell: AT-HS3 BK (sold separately)
• Replacement Belt: AT-LP3XBT exclusive belt (sold separately)
• Communication System: Bluetooth version 5.2
• Frequency Band: 2.402 GHz to 2.480 GHz
• Maximum RF Output: 2.5 mW EIRP
• Maximum Communication Range: Line of sight - approx. 10 m (33')
• Modulation Method: GFSK, Pi/4DQPSK, 8DPSK
• Compatible Bluetooth Profile: A2DP
• Support Codec: Qualcomm® aptX™ Adaptive audio, Qualcomm® aptX™

Speakers

• 1 x R1700BT Active Speaker
• 1 x R1700BT Passive Speaker
• 1 x 2.5m Speaker Connecting Cable
• 1 x Remote Control
• 1 x 1.2m 3.5mm - RCA Audio Cable
• 1 x 1.2m RCA - RCA Audio Cable
• 1 x R1700BT User Manual

Turntable

• 1 x Audio-Technica LP3XBT Turntable
• 1 x Dust cover
• 1 x Felt mat
• 1 x Platter (with drive belt)
• 1 x Dust cover hinges
• 1 x Counterweight
• 1 x Headshell (AT-HS3 BK) with VM stereo cartridge (AT-VM95C)
• 1 x 45-RPM adapter
• 1 x RCA audio cable (Approx. 1.0 m (3.3'))
• 1 x AC adapter (Approx. 1.5 m (4.9'))

Speakers

• Edifier R1700BT User Manual

Turntable

• Audio-Technica AT-LP3XBT User Manual
