Flex Audio TV Connection Kit – Digital to Analogue Audio Converter Bundle

The Flex Audio TV Connection Kit is a complete plug-and-play solution for connecting a digital TV or source device to an analogue amplifier or 2-channel speaker system.

At the heart of the kit is a Lindy TosLink (Optical) & Coaxial to Phono DAC, which converts digital audio signals from either an optical (TosLink) or digital coaxial input into a stereo analogue output via L/R phono connectors.

Everything you need is included in the box — the DAC, an RCA to 3.5mm cable, and an optical cable — so you can get connected straight away without hunting for additional accessories.

• Complete Kit: Includes the Lindy DAC, RCA to 3.5mm cable, and optical cable — everything needed to connect a digital TV or source to an analogue amplifier.
• Dual Digital Inputs: Accepts both TosLink optical and digital coaxial inputs, giving flexibility depending on which output your TV or source device provides.
• High-Quality Conversion: Supports uncompressed stereo audio (LPCM 2.0) at up to 24-bit / 96kHz, delivering clean, detailed sound without compromise.
• Compact and Discreet: The DAC's small footprint (51 × 26 × 41 mm) makes it easy to tuck behind a TV unit or rack for a tidy installation.
• Broad Compatibility: Works with TVs, Blu-ray players, games consoles, and any source with a digital audio output — ideal for breathing new life into an existing analogue amplifier.

Specifications

• DAC Manufacturer: Lindy (Part No. 70368)
• Digital Inputs: TosLink (Optical), Digital Coaxial
• Analogue Output: L/R Phono (RCA)
• Supported Audio: LPCM 2.0 (Uncompressed Stereo)
• Maximum Sample Rate: 24-bit / 96kHz
• Chipset: IA8416
• Input Impedance: 75 Ohm
• Output Impedance: 75 Ohm
• Output Voltage: 0.7 V
• Frequency Response: 10–20kHz
• Signal to Noise Ratio: 100 dB
• Power Requirements: 5VDC 1A (USB Type A to DC cable included)
• DAC Dimensions (W × D × H): 51.0 × 26.0 × 41.0 mm
• DAC Weight: 0.08 kg
• Housing Material: Plastic
• Colour: Black
• Certifications: CE, FCC, RoHS, REACH, California Proposition 65
• DAC Warranty: 2 years

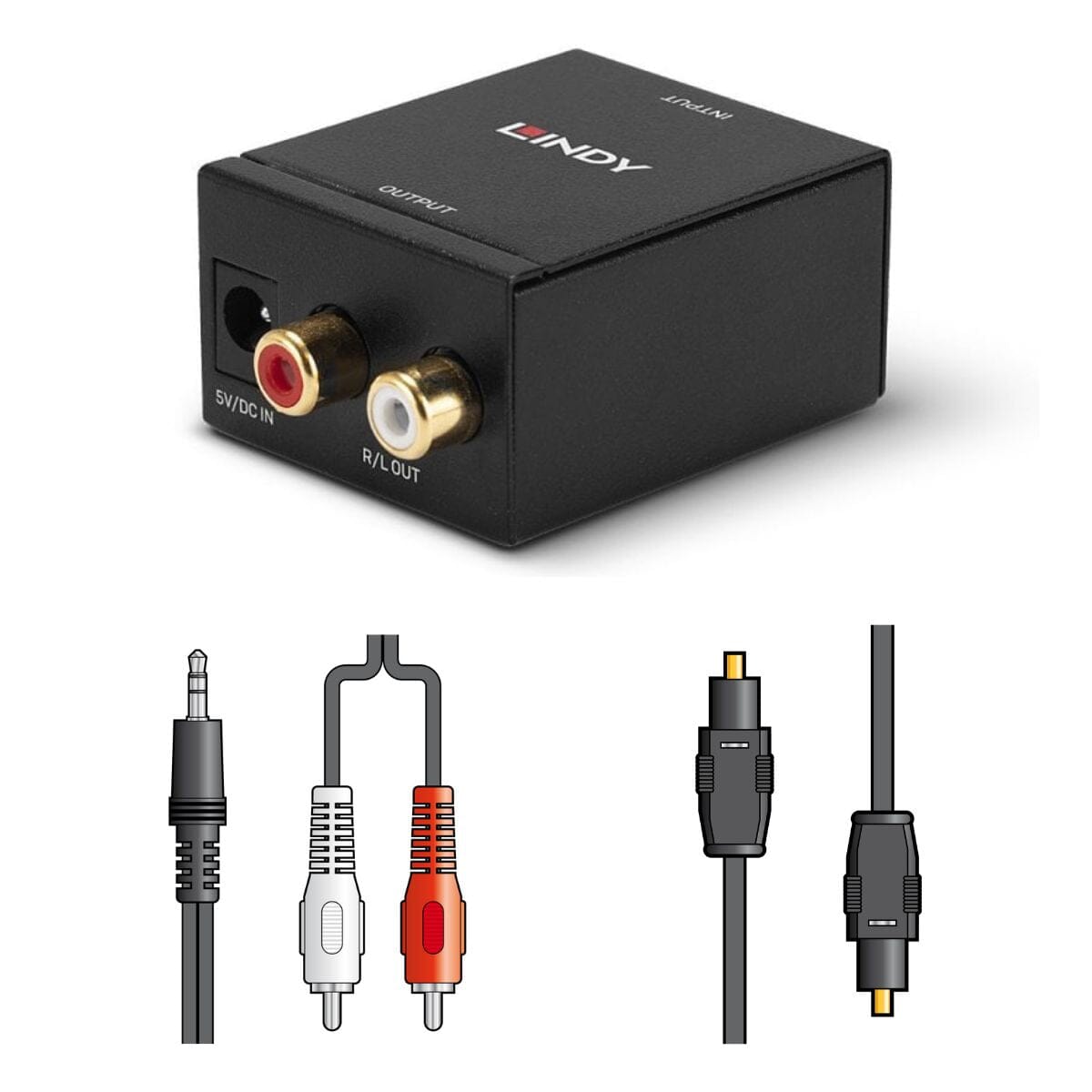

• Kit Contents: Lindy TosLink & Coaxial to Phono DAC, RCA to 3.5mm cable, optical cable

What You Get

• 1 x CYP AU-D1 Digital to Analogue Converter
• 1 x 3.5mm - RCA Audio Cable (5M / 10M)
• 1 x TOS Link Optical Audio Cable (1M)

Specifications

• Supports digital audio optical input and converts to L/R analogue audio output signal (DAC)
• Uncompressed digital LPCM stereo audio input support
• Supports LPCM audio sampling rates up to 96 kHz (including 32, 44.1, 48, 88.2 and 96 kHz).
• Supports S/PDIF bitstream 24-bit of data for the left and right channels
• USB powered : 0.75m USB cable included
• Note : Does not support the decoding of Dolby Digital Signals (Please see AU-D1D for Dolby Downmixing)
• Inputs:1 x Toslink [1x Optical 2 Channel LPCM]
• Outputs:2 x RCA [1x Analogue Stereo (L/R)]
• PSU:USB Powered
• Dimensions:55mm [W] x 85mm [D] x 25mm [H]
• Net Weight:0.04kg
• Gross Weight:0.16kg
