WiiM AMP Ultra Wi-Fi & Bluetooth Amplifier + DALI Phantom E-80 8" Ceiling Speakers

WiiM / DALI  |  SKU: KB02133
Save Up To £158.00
New
Sale price £939.00 Regular price £1,097.00

Free Delivery

On Orders Over £50

60 Day Returns

Happy Sound Guarantee

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Need Advice? Call 02393 190955

We’re more than just an online retailer. We’re passionate about audio and offering the best customer service in the industry.

Need some advice? Call our audio experts on 02393 190955, live chat or email us and we’ll help you make the best decision. Learn More

2 Years Warranty + Expert Support

K&B Audio are authorised retailers for WiiM / DALI. All sales come with a 2 Years manufacturers warranty and full technical support.

Price Match Promise

Product Description

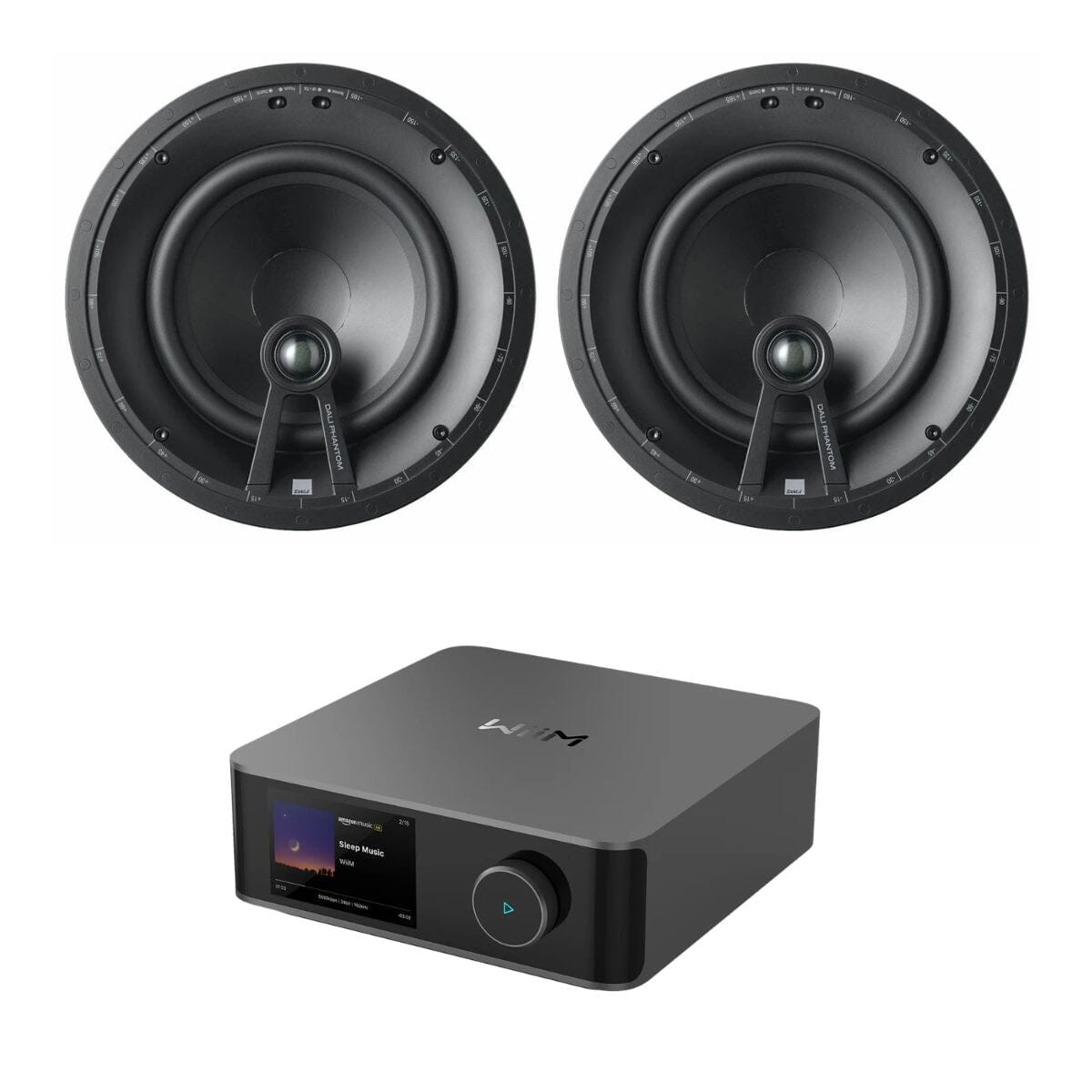

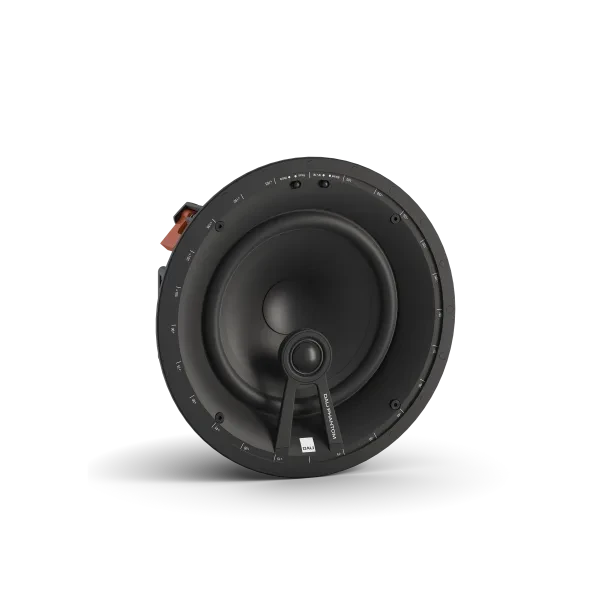

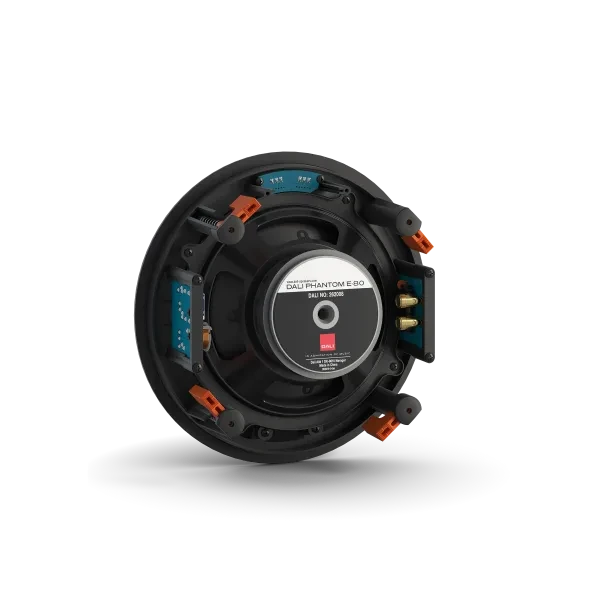

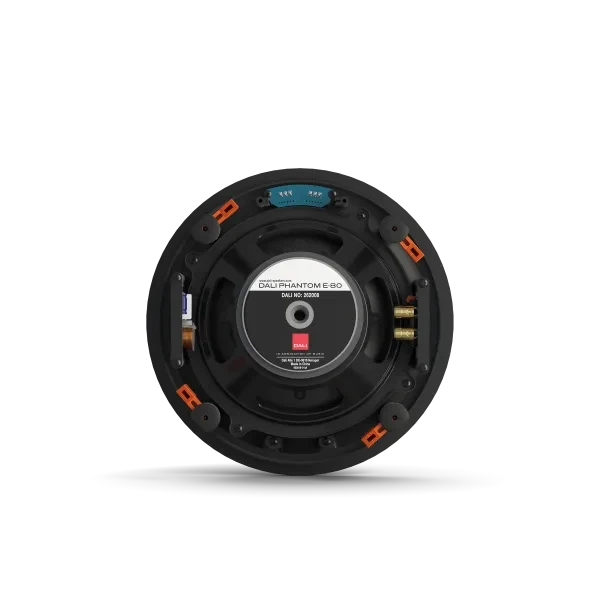

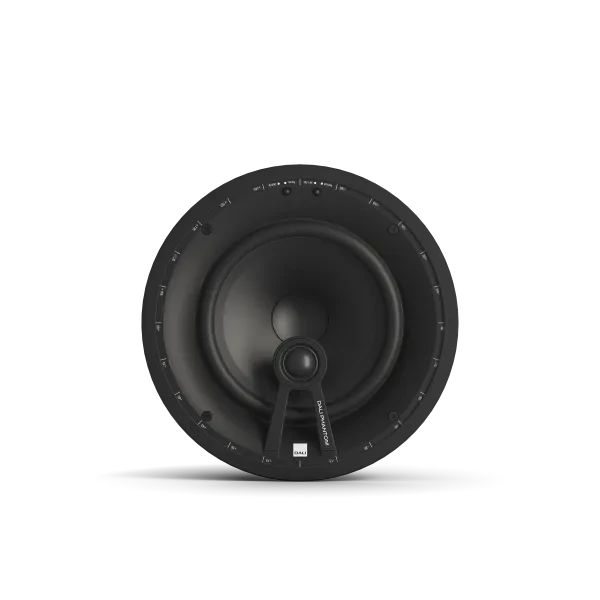

This high-performance ceiling speaker system combines the powerful WiiM AMP Ultra streaming amplifier with a pair of DALI Phantom E-80 8-inch ceiling speakers.

Designed for larger rooms and open-plan living spaces, it delivers rich, room-filling sound while keeping the installation clean and discreet.

Stream music wirelessly, connect your TV, or play audio from multiple devices while enjoying the deep bass and wide sound coverage provided by the large ceiling speakers.

The WiiM AMP Ultra offers modern streaming features including Wi-Fi, Bluetooth, and HDMI ARC connectivity, allowing seamless integration with music services and televisions.

Paired with the DALI Phantom E-80 speakers, the system produces powerful bass, clear vocals, and balanced audio that spreads evenly across the room, making it ideal for living rooms, kitchens, dining areas, and whole-home audio systems.

FEATURES

  • Wi-Fi Music Streaming: Stream music from services such as Spotify, TIDAL, Amazon Music, and more using the WiiM Home app or compatible streaming platforms.

  • Bluetooth Wireless Playback: Quickly connect smartphones, tablets, or laptops via Bluetooth for easy music playback without cables.

  • HDMI ARC Input For TV: Connect your television using HDMI ARC to improve TV audio while keeping the system discreetly installed in the ceiling.

  • Powerful Stereo Amplifier: The WiiM AMP Ultra delivers strong, efficient amplification that drives the ceiling speakers with clarity and impact.

  • Large 8-Inch Ceiling Speakers: The DALI Phantom E-80 speakers feature large bass drivers that produce deeper low frequencies and fuller sound, ideal for larger rooms.

  • Wide Dispersion Sound: DALI’s wide dispersion design spreads sound evenly across the room, ensuring balanced audio coverage without needing precise listening positions.

  • Discreet Ceiling Installation: Low-profile magnetic grilles allow the speakers to sit flush with the ceiling and can be painted to match your décor.

  • App Control And Multi-Room Audio: Control music, volume, and sources through the WiiM Home app, with the option to integrate the amplifier into a wider multi-room system.

Specifications

AMPLIFIER

  • Supported Streaming Services: Spotify Connect, Tidal, Qobuz, Amazon Music, Deezer, and SoundCloud
  • Apple AirPlay Support: AirPlay 2
  • Roon Support: Roon Ready + Roon Tested
  • Network Connectivity: Wi-Fi & Ethernet
  • Amplifier Class: D
  • Power Output (4Ω): 120 W
  • Power Output (8Ω): 60 W
  • Tone Control: Adaptive EQ and Graphic Equaliser built-in
  • Signal To Noise Ratio: 108 dB
  • THD + N: (-92dB) 0.0025 %
  • RCA Input(s): Yes
  • Bluetooth Input: Yes
  • Bluetooth Version: 5.1
  • HDMI Input(s): ARC Input
  • Optical Input(s): 1
  • DAC Chip: ESS 9018K2M
  • File Limit Support (PCM): 24-bit, 192kHz
  • Subwoofer Output(s): Yes
  • App Control: WiiM Home
  • Dimensions (W x H x D): 190 x 190 x 63 mm
  • Weight: 1.84 kg

SPEAKERS

  • Frequency Range: 49–25,000 Hz ±3 dB
  • Sensitivity: 89.5 dB @ 1m (2.83V)
  • Nominal Impedance: 6 ohm
  • Maximum SPL: 107 dB
  • Crossover Frequency: 3,200 Hz
  • Crossover Principle: 2-way
  • Recommended Amplifier Power: 30–150 W
  • High Frequency Driver: 1 × 25 mm soft dome
  • High Frequency Diaphragm: Soft woven fabric
  • Low/Mid Frequency Driver: 1 × 8"
  • Low/Mid Frequency Diaphragm: Polypropylene
  • Connection Input: Single wire
  • Enclosure Type: Open back
  • Other Features: Normal/High+, Normal/Mid+
  • Installation Location: In-ceiling / In-wall
  • Recommended Placement: Ceiling / Front / Centre / Surround
  • IP Rating: N/A
  • Outer Dimensions (Incl. Grille): Ø295 × 116 mm
  • Outer Dimensions (Excl. Grille): Ø278 × 113 mm
  • Cut-out Dimensions: Ø261 mm
  • Mounting Depth: 109 mm
  • Recommended Rear Volume (Backbox): 10–100 litres
  • Optimum Rear Volume: 30 litres
  • Ceiling/Wall Thickness (Dog-leg Span): 10–70 mm
  • Weight (Incl. Grille): 2.5 kg
  • Shipping Weight: 3.5 kg
  • Finish: White
  • Accessories: Manual, Cut-out template, Front grille, Logo badge
  • Optional Accessories: Classic, Square and Design grilles, Pre-construction kit, PHANTOM UNIVERSAL 25 backbox

What's In The Box

AMPLIFIER

  • 1 x WiiM Amp
  • 1 x RCA Audio Cable
  • 1 x Optical Audio Cable
  • 1 x HDMI Cable
  • 1 x Remote Control
  • 1 x Power Cable
  • 1 x Quick Start Guide

SPEAKERS

  • 2 x Ceiling Speakers
  • 2 x Grilles
  • 2 x Cut Out Template
  • 1 x User Manual
  • 20m x Speaker Cable
