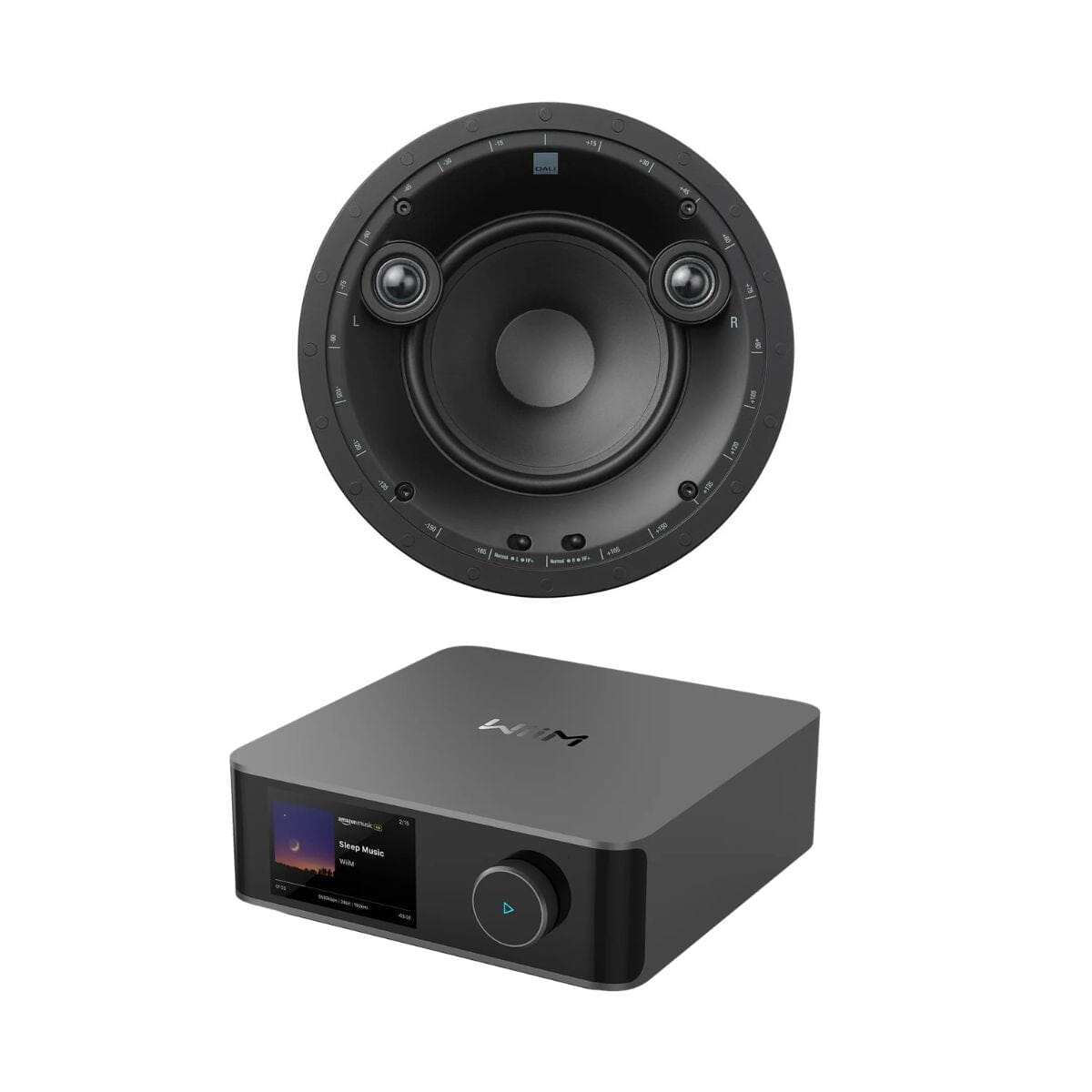

WiiM AMP Ultra Wi-Fi & Bluetooth Amplifier + DALI Phantom E-60 S 6.5" Stereo Ceiling Speaker

The WiiM AMP Ultra paired with the DALI Phantom E-60 S stereo ceiling speaker creates a discreet, high-quality music system that delivers true stereo sound from a single ceiling speaker.

Ideal for kitchens, bathrooms, bedrooms, and offices, this system provides powerful amplification, modern wireless streaming, and a clean in-ceiling installation that blends seamlessly with your décor.

The WiiM AMP Ultra offers flexible connectivity including Wi-Fi streaming, Bluetooth, HDMI ARC for TV audio, and app-based control.

Combined with the DALI Phantom E-60 S, which produces both left and right channels from one speaker, the system provides clear, balanced audio while keeping installation simple and unobtrusive.

FEATURES

• Wi-Fi Music Streaming: Stream music from popular services including Spotify, TIDAL, Amazon Music, and more using the WiiM Home app or compatible streaming platforms.

• Bluetooth Streaming: Quickly connect smartphones, tablets, or laptops via Bluetooth for easy wireless music playback.

• HDMI ARC Input For TV: Connect your television using HDMI ARC to enjoy improved sound for TV, films, and streaming content through your ceiling speaker system.

• Powerful Amplifier Performance: The WiiM AMP Ultra provides strong and efficient amplification to deliver clear, dynamic sound throughout the room.

• Single Speaker Stereo Sound: The DALI Phantom E-60 S features dual tweeters that reproduce both left and right audio channels from one ceiling speaker, perfect for rooms where installing two speakers is not practical.

• 6.5-Inch Woofer For Full Sound: The dedicated bass driver delivers balanced midrange and controlled low frequencies, ensuring music sounds rich and natural.

• Discreet Ceiling Installation: The low-profile magnetic grille sits flush with the ceiling and can be painted to match your décor for a clean, minimalist appearance.

• App Control And Smart Integration: Control volume, inputs, and streaming services directly from the WiiM Home app, with the option to integrate into multi-room audio systems.

What You Get

AMPLIFIER

• 1 x WiiM Amp
• 1 x RCA Audio Cable
• 1 x Optical Audio Cable
• 1 x HDMI Cable
• 1 x Remote Control
• 1 x Power Cable
• 1 x Quick Start Guide

SPEAKERS

• 2 x Ceiling Speakers
• 2 x Grilles
• 2 x Cut Out Template
• 1 x User Manual
• 20m x Speaker Cable

Specifications

AMPLIFIER

• Supported Streaming Services: Spotify Connect, Tidal, Qobuz, Amazon Music, Deezer, and SoundCloud
• Apple AirPlay Support: AirPlay 2
• Roon Support: Roon Ready + Roon Tested
• Network Connectivity: Wi-Fi&Ethernet
• Amplifier Class: D
• Power Output (4Ω): 120 W
• Power Output (8Ω): 60 W
• Tone Control: Adaptive EQ and Graphic Equaliser built-in
• Signal To Noise Ratio: 108 dB
• THD + N: (-92dB) 0.0025 %
• RCA Input(s): Yes
• Bluetooth Input: Yes
• Bluetooth Version: 5.1
• HDMI Input(s): ARC Input
• Optical Input(s): 1
• DAC Chip: ESS 9018K2M
• File Limit Support (PCM): 24-bit, 192kHz
• Subwoofer Output(s): Yes
• App Control: WiiM Home
• Dimensions (W x H x D): 190 x 190 x 63 mm
• Weight: 1.84 kg

SPEAKERS

• Frequency Range: 57–25,000 Hz ±3 dB
• Sensitivity: 90 dB @ 1m (2.83V, both channels)
• Nominal Impedance: 8 + 8 ohm
• Maximum SPL: 105 dB
• Crossover Frequency: 2,600 Hz
• Crossover Principle: 2+2-way
• Recommended Amplifier Power: 2 × 20–80 W
• High Frequency Driver: 2 × 20 mm soft dome
• High Frequency Diaphragm: Soft woven fabric
• Low/Mid Frequency Driver: 1 × 6.5"dual voice coil
• Low/Mid Frequency Diaphragm: Polypropylene
• Connection Input: 2 × Single wire
• Enclosure Type: Open back
• Other Features: Normal L High+, Normal R High+
• Installation Location: In-ceiling / In-wall
• Recommended Placement: Ceiling / Front / Centre / Surround
• IP Rating: N/A
• Outer Dimensions (Incl. Grille): Ø258 × 109 mm
• Outer Dimensions (Excl. Grille): Ø242 × 105 mm
• Cut-out Dimensions: Ø225 mm
• Mounting Depth: 101 mm
• Recommended Rear Volume (Backbox): 5–35 litres
• Optimum Rear Volume: 15 litres
• Ceiling/Wall Thickness (Dog-leg Span): 10–70 mm
• Weight (Incl. Grille): 2 kg
• Shipping Weight: 3 kg
• Finish: White
• Accessories: Manual, Cut-out template, Front grille, Logo badge
• Optional Accessories: Classic, Square and Design grilles, Pre-construction kit, PHANTOM UNIVERSAL 25 backbox
• Warranty: 2 Years
