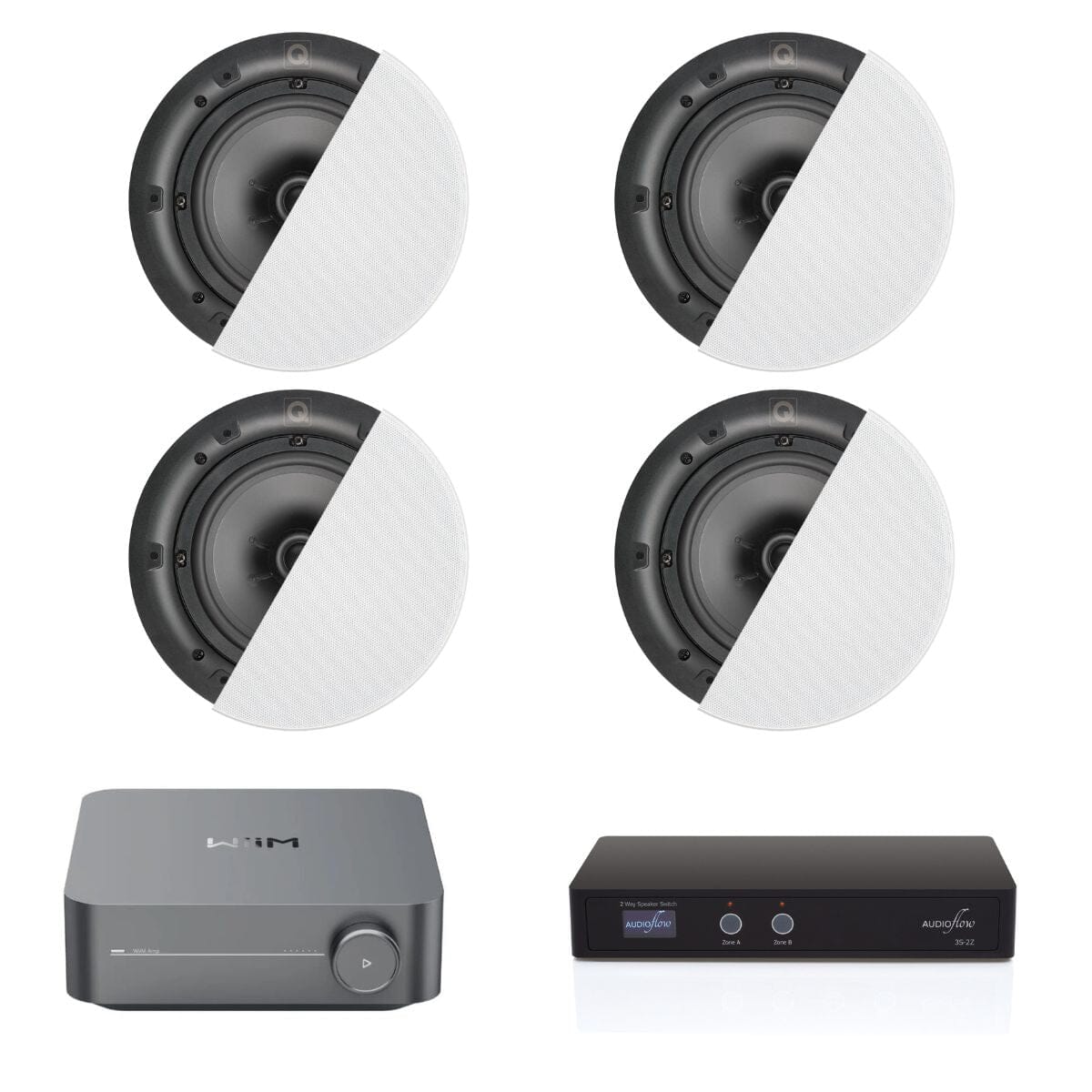

WiiM Amp + Q Acoustics QI65C Dual Zone Ceiling Speaker System

Elevate your home audio with the WiiM AMP + Q Acoustics QI65C Dual Zone Ceiling Speaker System.

This complete bundle offers seamless audio streaming across two adjacent or open plan rooms, perfect for spaces like your kitchen and dining area.

With the ability to turn each set of speakers on or off independently or run both simultaneously, this system provides ultimate control over your listening experience.

Enjoy high-quality sound paired with the convenience of modern smart home integration, all in a sleek and unobtrusive setup.

• WiiM AMP Wi-Fi Multiroom Amplifier: Enjoy powerful and versatile audio streaming with built-in Wi-Fi, AirPlay 2, and Bluetooth, allowing effortless connection to your favourite devices and platforms.
• Q Acoustics QI65C Ceiling Speakers: Experience exceptional sound quality with these 6.5-inch ceiling speakers featuring high-performance drivers for crystal-clear audio in any room.
• Audioflow 2-Way Smart Speaker Switch: Control your audio zones effortlessly with this smart switch, enabling independent on/off control for each speaker set or simultaneous operation for both zones.
• Smart Home Compatibility: Integrated with Alexa and AirPlay 2, this system works seamlessly with your smart home setup, allowing voice or app control for added convenience.
• Stylish and Space-Saving Design: With discreet in-ceiling speakers and a compact amplifier, this system blends beautifully into your home decor without compromising functionality.

Note that this bundle features one amplifier and four speakers so all four speakers will play the same music at the same volume. You can turn each set on / off but you cannot listen to different music in each area at the same time.

Dual zone bundles are perfect for open-plan areas or adjacent rooms where you want to play the same music, but not necessarily all the time.

What You Get

AMPLIFIER

• 1 x WiiM Amp
• 1 x RCA Audio Cable
• 1 x Optical Audio Cable
• 1 x HDMI Cable
• 1 x Remote Control
• 1 x Power Cable
• 1 x Quick Start Guide

SPEAKER SWITCH

• 1 x 2 Way Speaker Selector Switch
• 1 x Power Supply
• 1 x Connection Plugs
• 1 x Cable Ties
• 1 x Quick Start Guide

SPEAKERS

• 4 x QI65C 6.5" Ceiling Speakers
• 4 x White Grilles
• 1 x User Manual
• 1 x Cut Out Template
• 30M x 2 Core Speaker Cable

Specifications

AMPLIFIER

• Supported Streaming Services: Spotify Connect, Tidal, Qobuz, Amazon Music, Deezer, and SoundCloud
• Apple AirPlay Support: AirPlay 2
• Roon Support: Roon Ready + Roon Tested
• Network Connectivity: Wi-Fi&Ethernet
• Amplifier Class: D
• Power Output (4Ω): 120 W
• Power Output (8Ω): 60 W
• Tone Control: Adaptive EQ and Graphic Equaliser built-in
• Signal To Noise Ratio: 108 dB
• THD + N: (-92dB) 0.0025 %
• RCA Input(s): Yes
• Bluetooth Input: Yes
• Bluetooth Version: 5.1
• HDMI Input(s): ARC Input
• Optical Input(s): 1
• DAC Chip: ESS 9018K2M
• File Limit Support (PCM): 24-bit, 192kHz
• Subwoofer Output(s): Yes
• App Control: WiiM Home
• Dimensions (W x H x D): 190 x 190 x 63 mm
• Weight: 1.84 kg

SPEAKER SWITCH

• Model Number: 3S-2Z
• Product Dimensions, Weight: H38 x W216 x D100 mm, 0.286kg
• Boxed Dimensions, Weight: H90 x W355 x D127 mm, 0.687kg
• Power Input: 5V DC 1A, 2.1 x 5.5mm Barrel Plug, Centre Positive
• Power Supply: 100-240V 50/60Hz, 1.8m Lead, UK/EU/USA/AUS Plugs
• Switching Relays: Max 8A @ 250V AC
• Amplifier Power: Max 300W @ 8Ω
• Cable Connection: Max 2.5mm2 or 14AWG
• Speaker System Design: Series Switching
• All Zones Off: Amplifier Protection 200Ω Dummy Load
• Wi-Fi Support: 2.4GHz 802.11b/g/n, WPA/WPA2 PSK
• Supported OS (Provisioning): Android 6.0+ (Google Play Store) / Apple iOS 11.0+ (App Store)

CEILING SPEAKERS

• Tweeter: Swivel
• Tweeter diameter: 0.75"(19mm)
• Woofer diameter: 6.5"
• Power handling (program): 15-60W
• Impedance (nominal) ohms: 8ohm
• Sensitivity dB spl (2.83V, 1m): 89
• Response(Low freq.) -3dB Hz: 75
• Maximum rear depth: 79mm
• Size(Round grilles): 232mm dia
• Cutout: 203mm
• Warranty: 5 Years
