WiiM AMP Pro + OSD Audio R63 6.5" Ceiling Speakers

WiiM  |  SKU: KB01725
Sale price £699.00 Regular price £839.00

Bank Holiday Weekend Sale! Ends Monday. Discounts already applied.

Speakers

Delivery £4.50 or Free Over £50

All orders to mainland UK over £50 are eligible for free standard delivery.

For orders under £50 we have delivery rates starting from just £2.99

Need it fast? No problem, you’ll find express next day delivery rates available on most products. Learn More

60 Day Returns + 2 Years Warranty

We’re so confident that you’ll be happy with your purchase that we’ve extended our returns policy to 60 days.

We call it the “Happy Sound Guarantee”.

If you’re not happy with your purchase for any reason simply send it back to us for a full refund. Learn More

Warranty

K&B Audio are authorised dealers for WiiM. All sales come with a 2 Years manufacturers warranty and full technical support.

Description

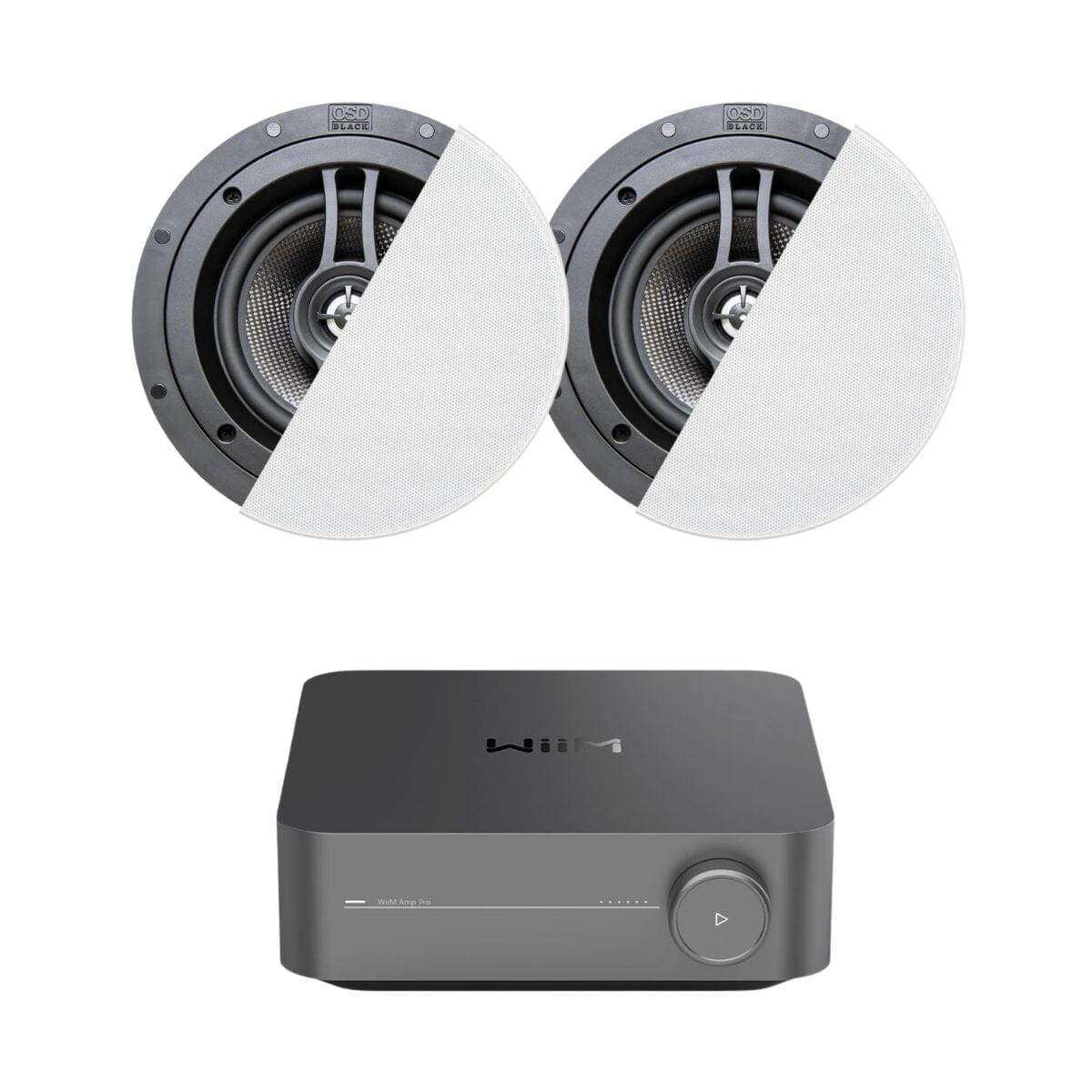

Transform your home audio setup with the WiiM AMP Pro and OSD Audio R63 bundle, a powerful combination that delivers high-fidelity sound and modern streaming flexibility.

Whether you're upgrading your living room, kitchen or open-plan space, this system offers seamless wireless control and immersive sound quality, all while blending neatly into your ceiling for a clean, professional finish.

At the heart of this bundle is the WiiM AMP Pro, a sleek and compact streaming amplifier with advanced Wi-Fi and Bluetooth connectivity.

Paired with the OSD Audio R63 6.5" ceiling speakers, you’ll experience rich mids, detailed highs and deep, accurate bass thanks to high-quality components designed for clarity and precision.

This setup is perfect for music lovers and smart home enthusiasts looking for a discreet yet dynamic multiroom audio solution.

FEATURES

  • High-Power Amplification: The WiiM AMP Pro delivers 60W per channel into 8 ohms, offering plenty of headroom for room-filling sound with excellent dynamics.
  • Wireless Multiroom Streaming: Stream directly via Wi-Fi, Chromecast, Spotify Connect, TIDAL Connect, and more for true whole-home audio.
  • Audiophile-Grade Components: With a premium DAC supporting 24-bit/192kHz playback and low-noise circuitry, enjoy studio-quality sound from all your sources.
  • Voice & App Control: Use Alexa, Google Assistant or Siri, or control every room from the intuitive WiiM Home app, ideal for effortless music management.
  • Discrete Ceiling Speakers: The OSD R63 speakers feature a slim profile and paintable grilles, making them ideal for modern, minimal interiors.
  • Precision Audio Design: 6.5" polypropylene woofers and 1" pivoting silk dome tweeters ensure smooth, natural sound with wide dispersion.
  • Easy Installation: Dog-ear mounting brackets make ceiling installation quick and secure, perfect for both retrofit and new build projects.
  • Flexible Audio Zones: Combine this bundle with additional WiiM products to expand your system and enjoy synchronised or independent music in every room.
  • Built for Longevity: High-quality build materials and robust design ensure reliable performance for years to come.

Key Features

  • Zones
    Multi Zone
  • Placement
    In Ceiling
  • Music Sources
    Bluetooth, WiFi, Chromecast, Spotify Connect, Tidal Connect, Internet Radio, Alarm Clock, Roon, USB Stick
  • Inputs
    RCA, Optical, USB, Ethernet, HDMI
  • Outputs
    Subwoofer Out
  • TV Connection
    Yes - HDMI (TV Controls Volume)
  • Smart Features
    Works With Alexa (WiFi)
  • Driver Size
    6.5"
  • Warranty
    2 Years

Specifications

AMPLIFIER

  • Supported Streaming Services: Spotify Connect, Tidal, Qobuz, Amazon Music, Deezer, and SoundCloud
  • Apple AirPlay Support: AirPlay 2
  • Roon Support: Roon Ready + Roon Tested
  • Network Connectivity: Wi-Fi & Ethernet
  • Amplifier Class: D
  • Power Output (4Ω): 120 W
  • Power Output (8Ω): 60 W
  • Tone Control: Adaptive EQ and Graphic Equaliser built-in
  • Signal To Noise Ratio: 108 dB
  • THD + N: (-92dB) 0.0025 %
  • RCA Input(s): Yes
  • Bluetooth Input: Yes
  • Bluetooth Version: 5.1
  • HDMI Input(s): ARC Input
  • Optical Input(s): 1
  • DAC Chip: ESS 9018K2M
  • File Limit Support (PCM): 24-bit, 192kHz
  • Subwoofer Output(s): Yes
  • App Control: WiiM Home
  • Dimensions (W x H x D): 190 x 190 x 63 mm
  • Weight: 1.84 kg

SPEAKERS

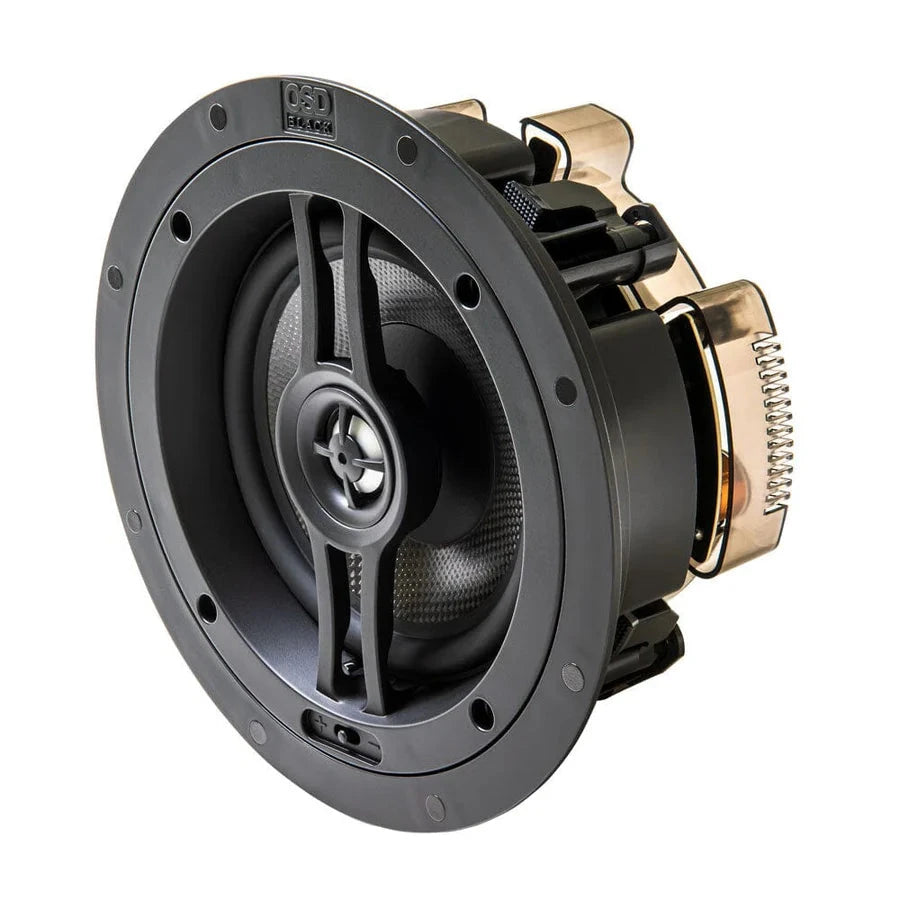

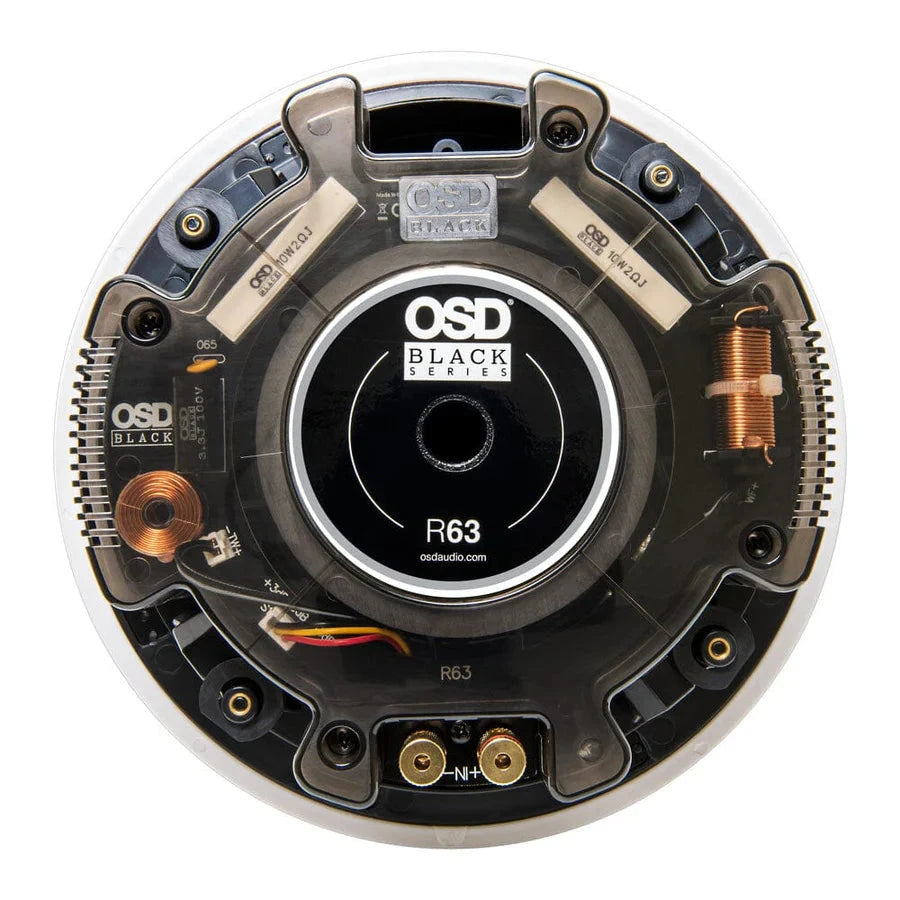

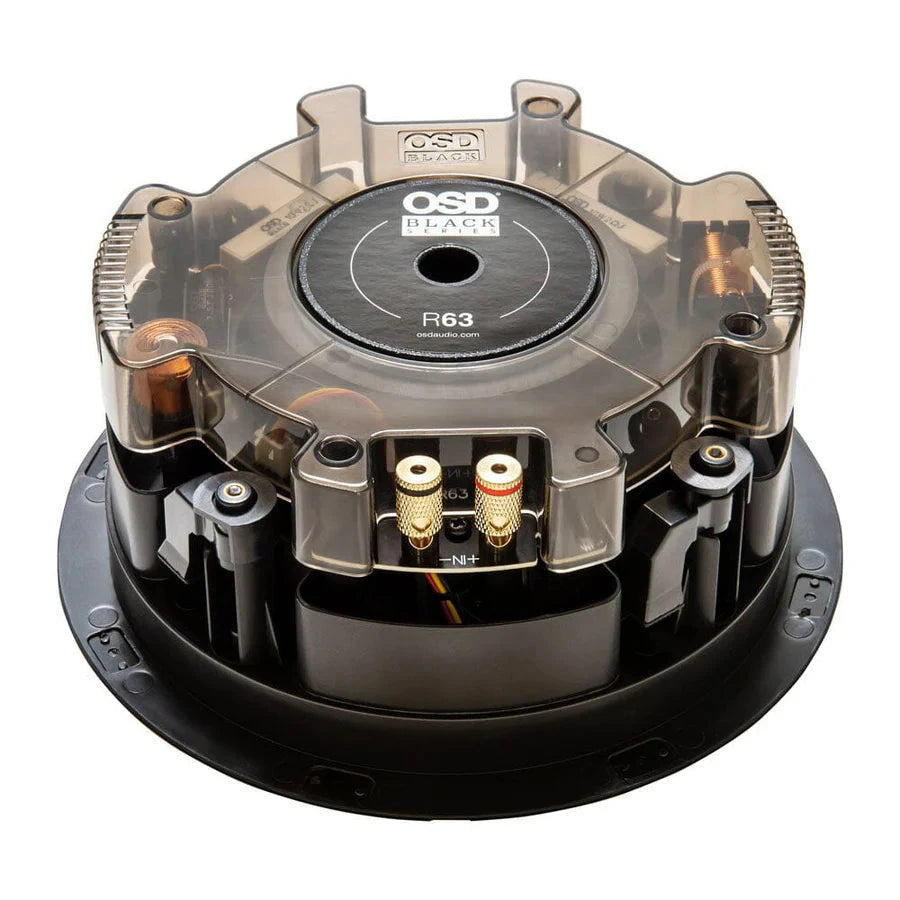

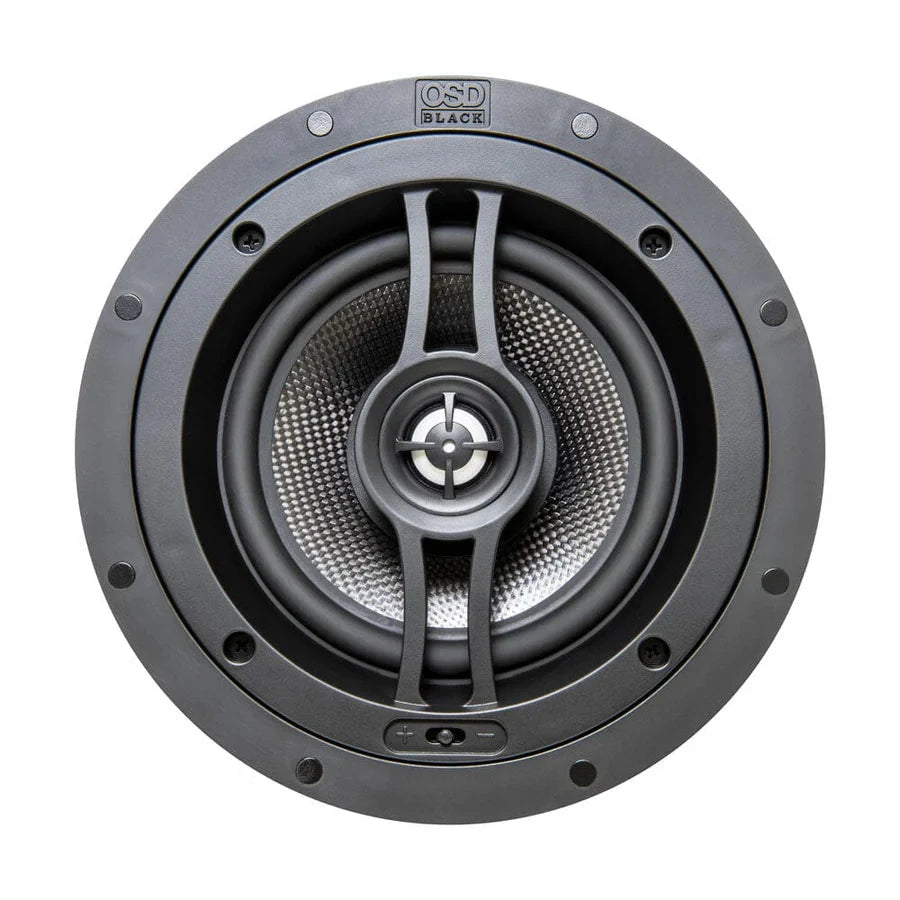

  • Speaker Type: 6.5" In-Ceiling Speaker
  • Woofer: 6.5" Carbon Fiber w/TPR Thermal Surround
  • Tweeter: 1" Ceramic Coated Aluminum Pivoting Dome Tweeter w/12dB Crossover and Contour Switch
  • Frequency Response: 38Hz - 20kHz
  • Power: 150W
  • Sensitivity: 89dB
  • Impedance: 8 Ohm
  • Diameter & Depth: 8.76" x 3.62"
  • Cutout Diameter: 7.8"
  • Selling Unit: Pair
  • Optional Square-Grille Kit: Sold Separately
  • Warranty: Limited Lifetime

What You Get

AMPLIFIER

  • 1 x WiiM Amp
  • 1 x RCA Audio Cable
  • 1 x Optical Audio Cable
  • 1 x HDMI Cable
  • 1 x Remote Control
  • 1 x Power Cable
  • 1 x Quick Start Guide

SPEAKERS (ONE PAIR)

  • 2 x R63 Ceiling Speakers
  • 2 x White Grilles
  • 1 x Cut Out Template
  • 1 x Owners Manual
  • 20m x 2 Core Speaker Cable

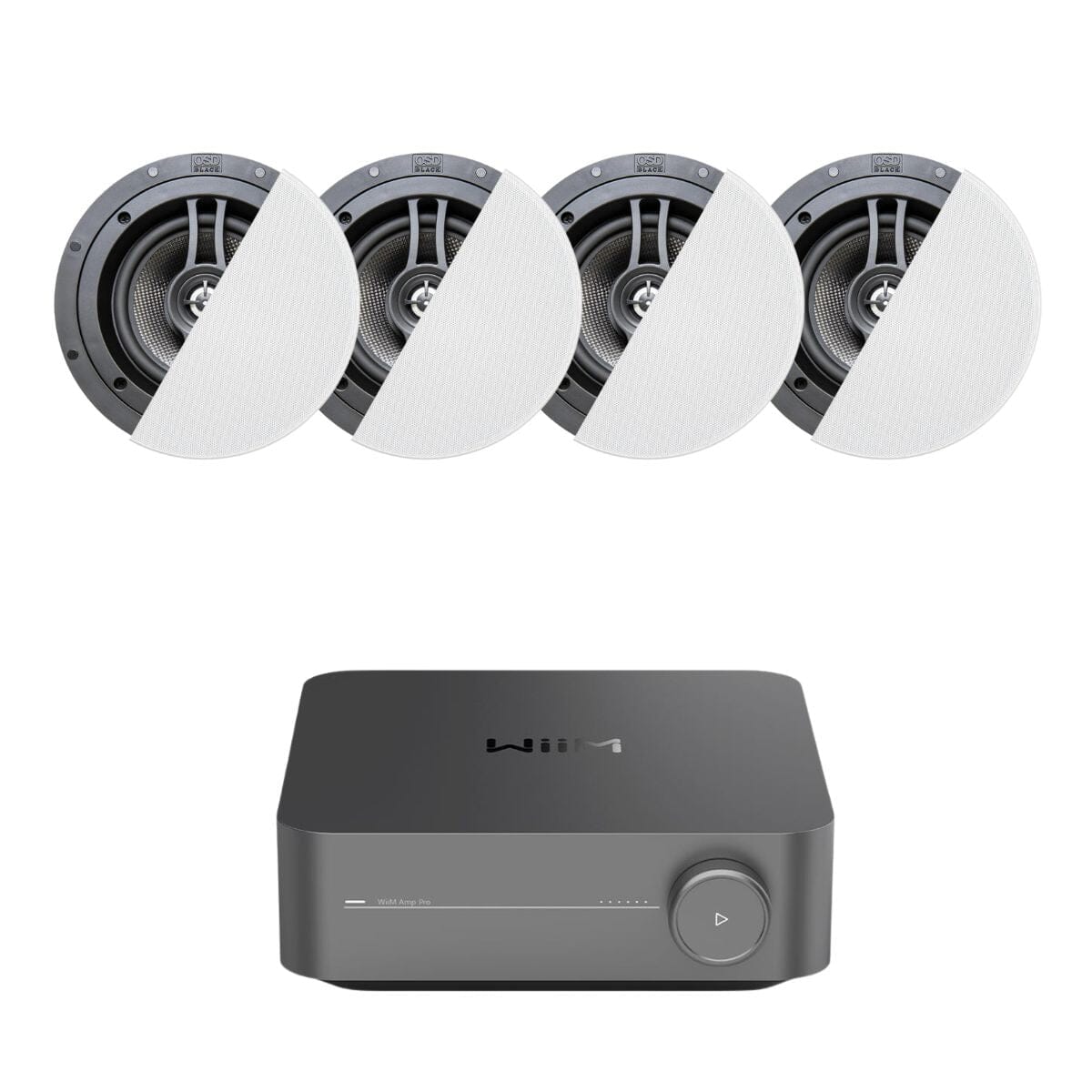

SPEAKERS (TWO PAIRS)

  • 4 x R63 Ceiling Speakers
  • 4 x White Grilles
  • 1 x Cut Out Template
  • 1 x Owners Manual
  • 30m x 2 Core Speaker Cable
