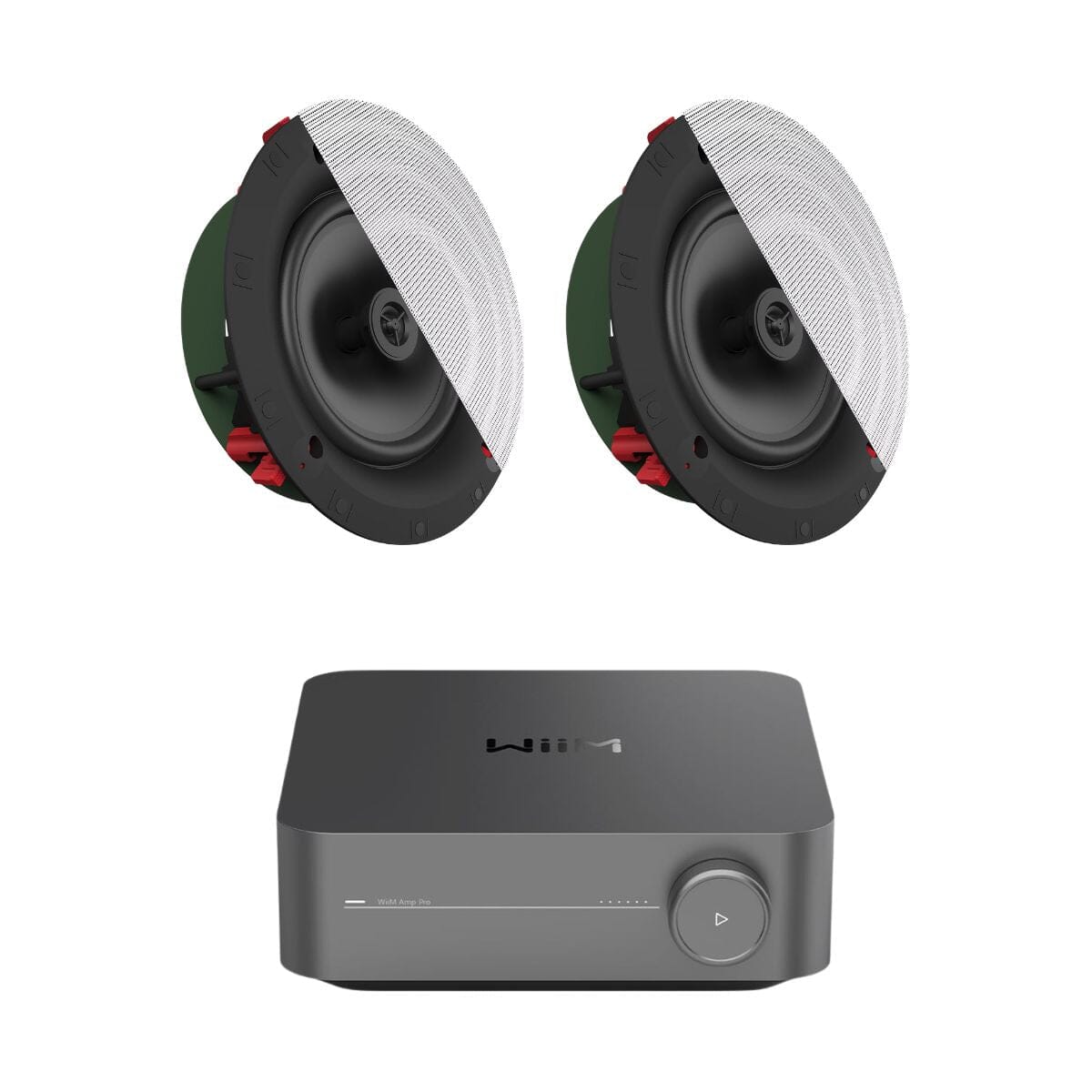

WiiM AMP Pro + Klipsch DS-160CDT 6.5" Ceiling Speakers

WiiM  |  SKU: KB01733
Sale price £899.00 Regular price £979.00

Bank Holiday Weekend Sale! Ends Monday. Discounts already applied.

Speakers

Delivery £4.50 or Free Over £50

All orders to mainland UK over £50 are eligible for free standard delivery.

For orders under £50 we have delivery rates starting from just £2.99

Need it fast? No problem, you’ll find express next day delivery rates available on most products. Learn More

60 Day Returns + 2 Years Warranty

We’re so confident that you’ll be happy with your purchase that we’ve extended our returns policy to 60 days.

We call it the “Happy Sound Guarantee”.

If you’re not happy with your purchase for any reason simply send it back to us for a full refund. Learn More

Warranty

K&B Audio are authorised dealers for WiiM. All sales come with a 2 Years manufacturers warranty and full technical support.

Description

Transform your home audio experience with the WiiM AMP Pro and Klipsch DS-160CDT ceiling speaker bundle — the perfect pairing for discreet, high-performance multiroom sound.

Designed for music lovers and modern households, this setup delivers powerful, immersive audio without sacrificing aesthetics.

Whether you're streaming your favourite playlists, syncing rooms together, or enhancing your TV sound, this system delivers exceptional clarity and versatility.

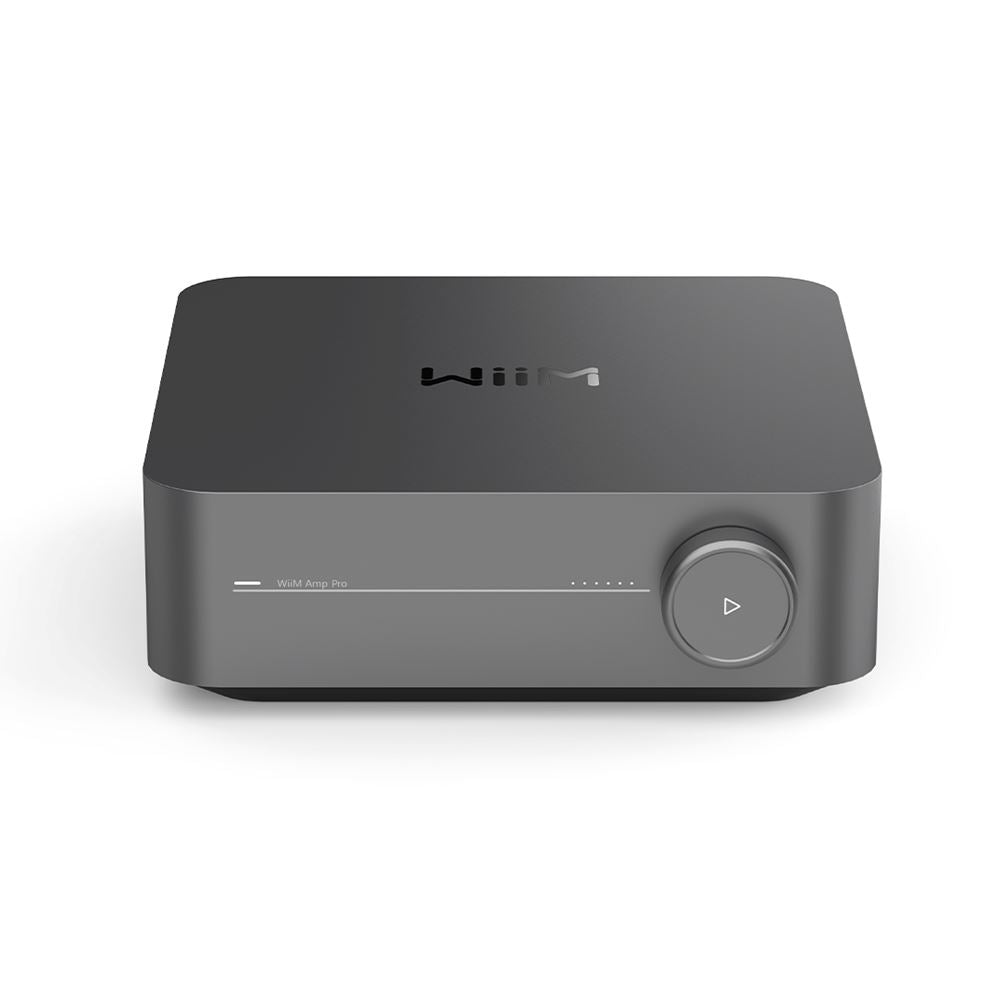

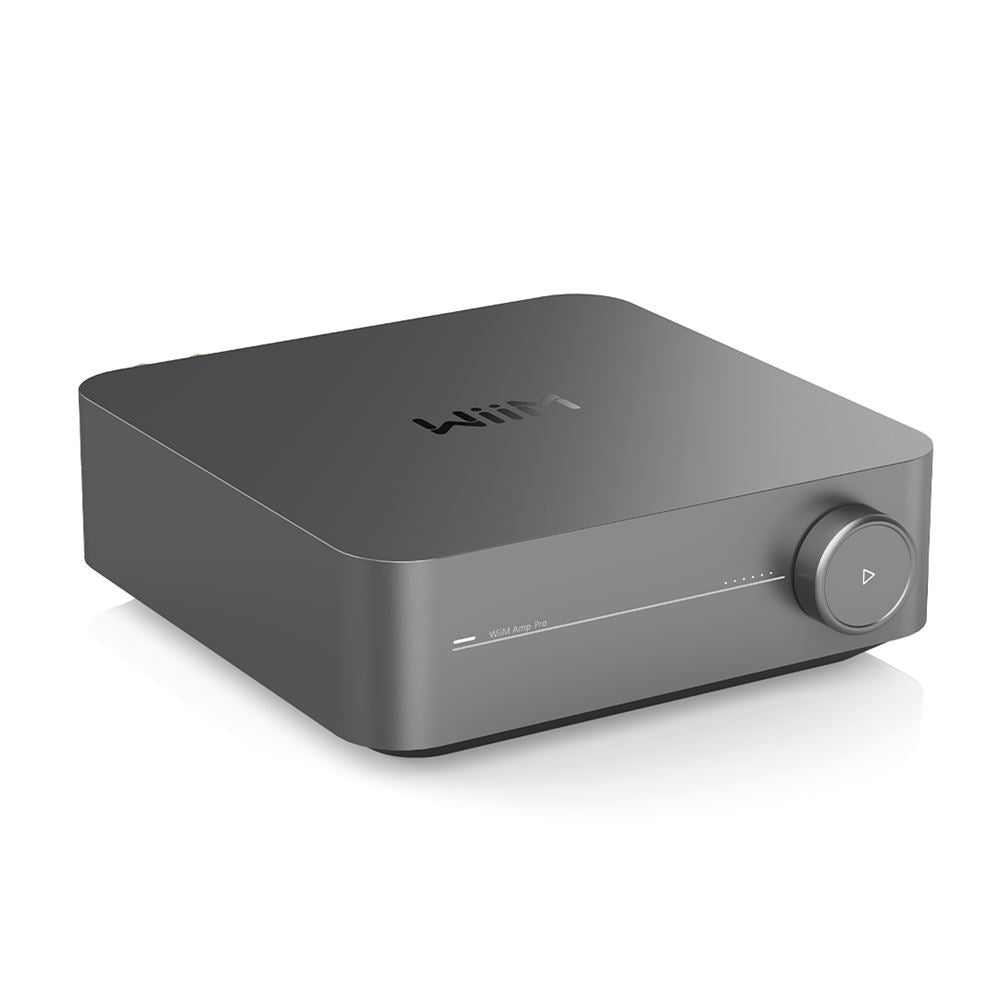

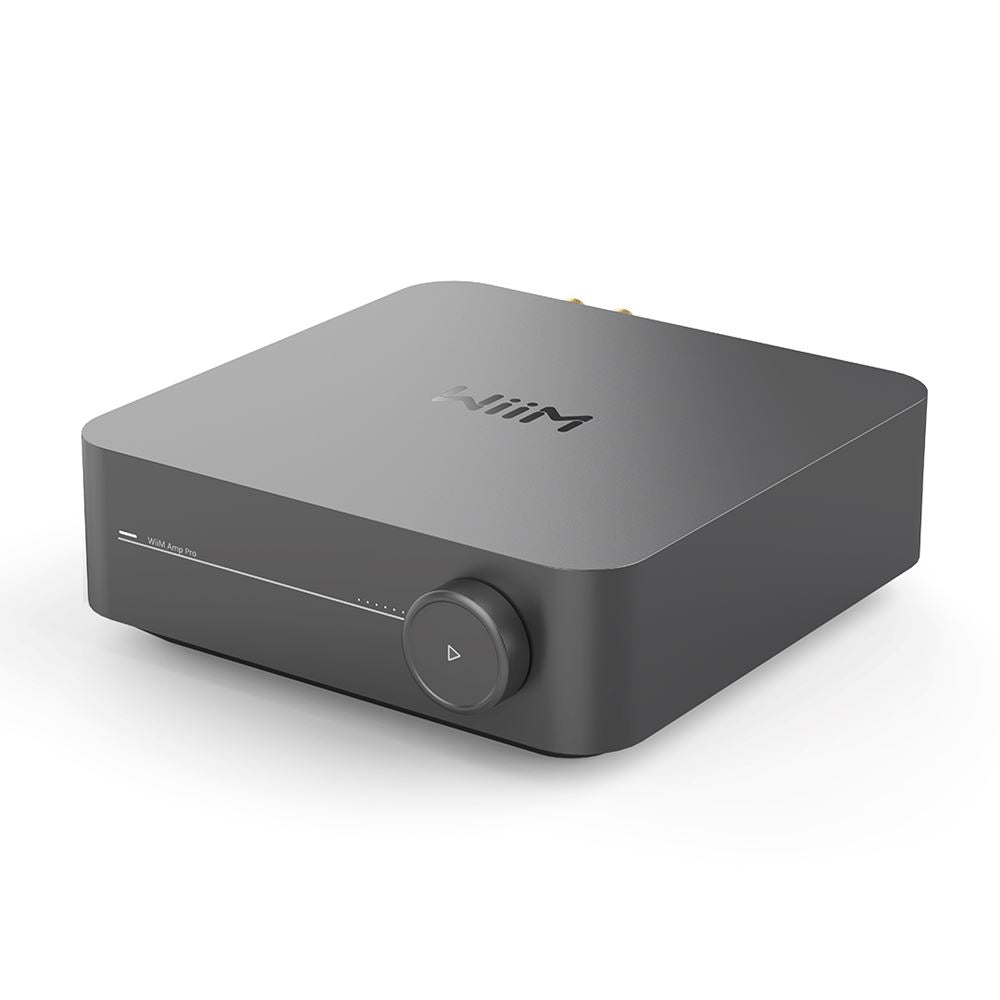

The WiiM AMP Pro offers next-gen streaming capabilities with seamless app control, voice assistant compatibility, and support for all major platforms including Spotify, TIDAL and more.

Paired with the Klipsch DS-160CDT ceiling speakers, known for their wide dispersion and punchy detail, this bundle suits living rooms, kitchens, home offices, and open-plan spaces where premium audio and clean design matter most.

FEATURES

  • WiiM AMP Pro Streaming Amplifier: Enjoy high-resolution wireless audio with support for Wi-Fi, Chromecast, and Bluetooth. Perfect for streaming music directly from your phone or integrating into a whole-home system.
  • 120W Per Channel Power Output: Delivers more than enough clean power to drive the Klipsch ceiling speakers with impressive dynamics and volume.

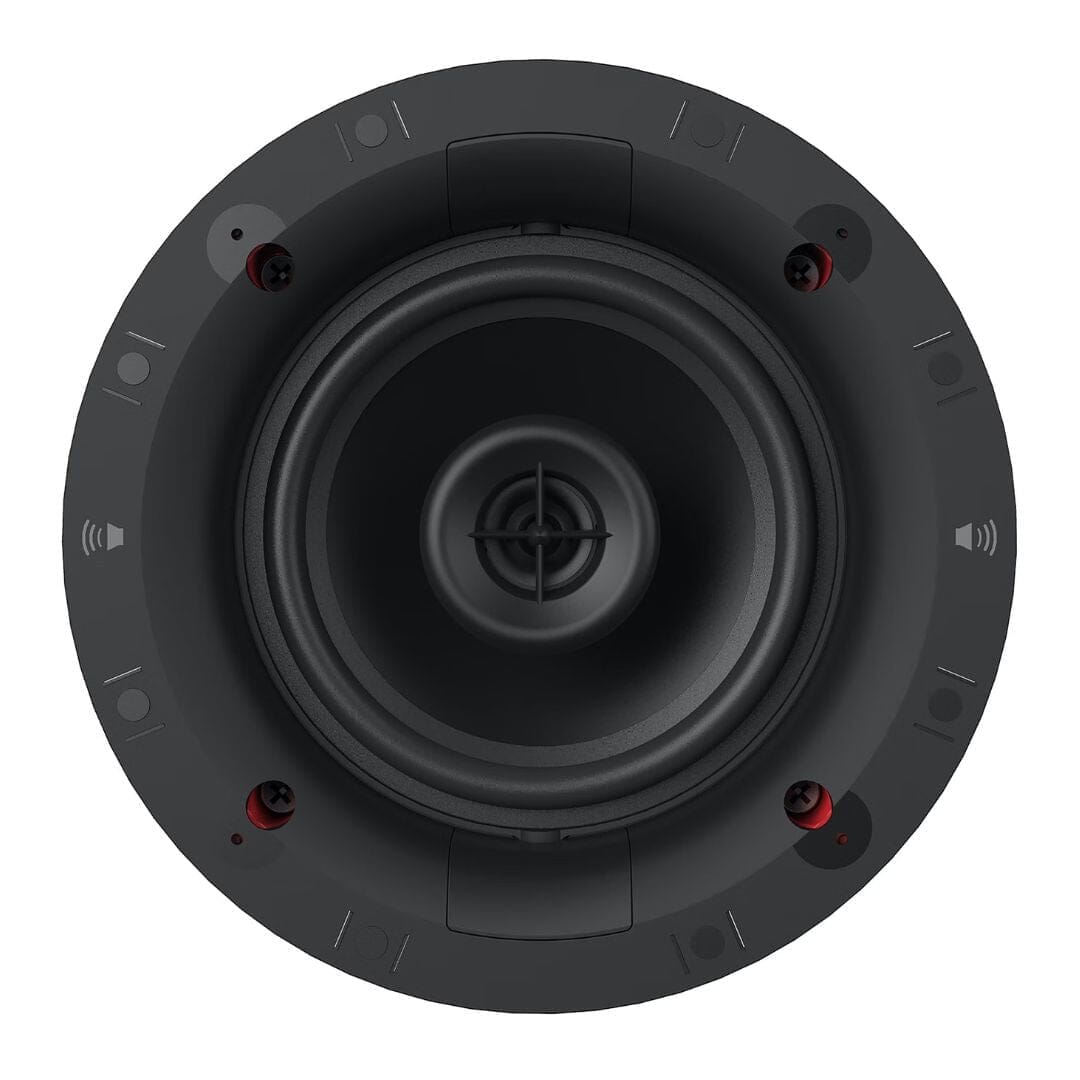

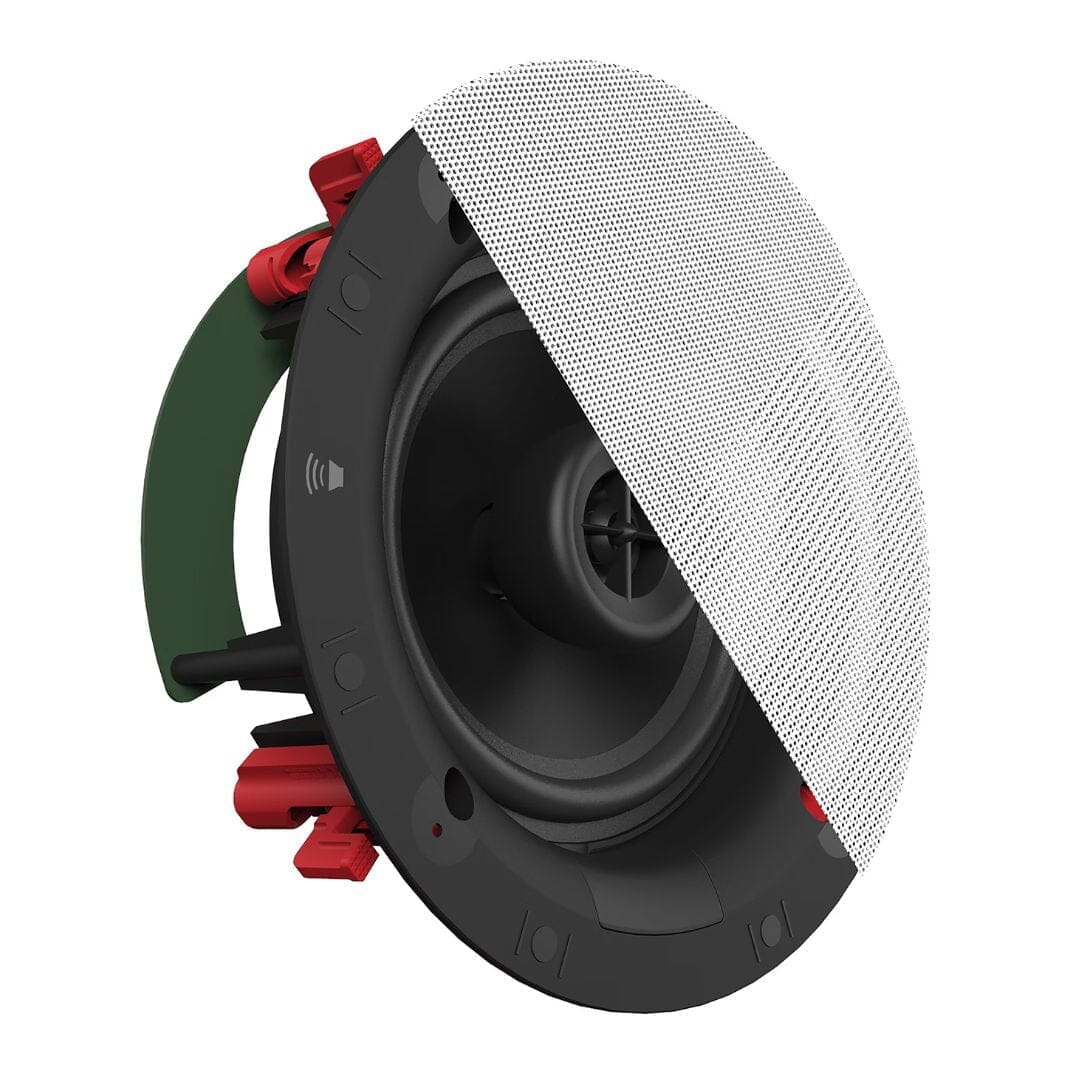

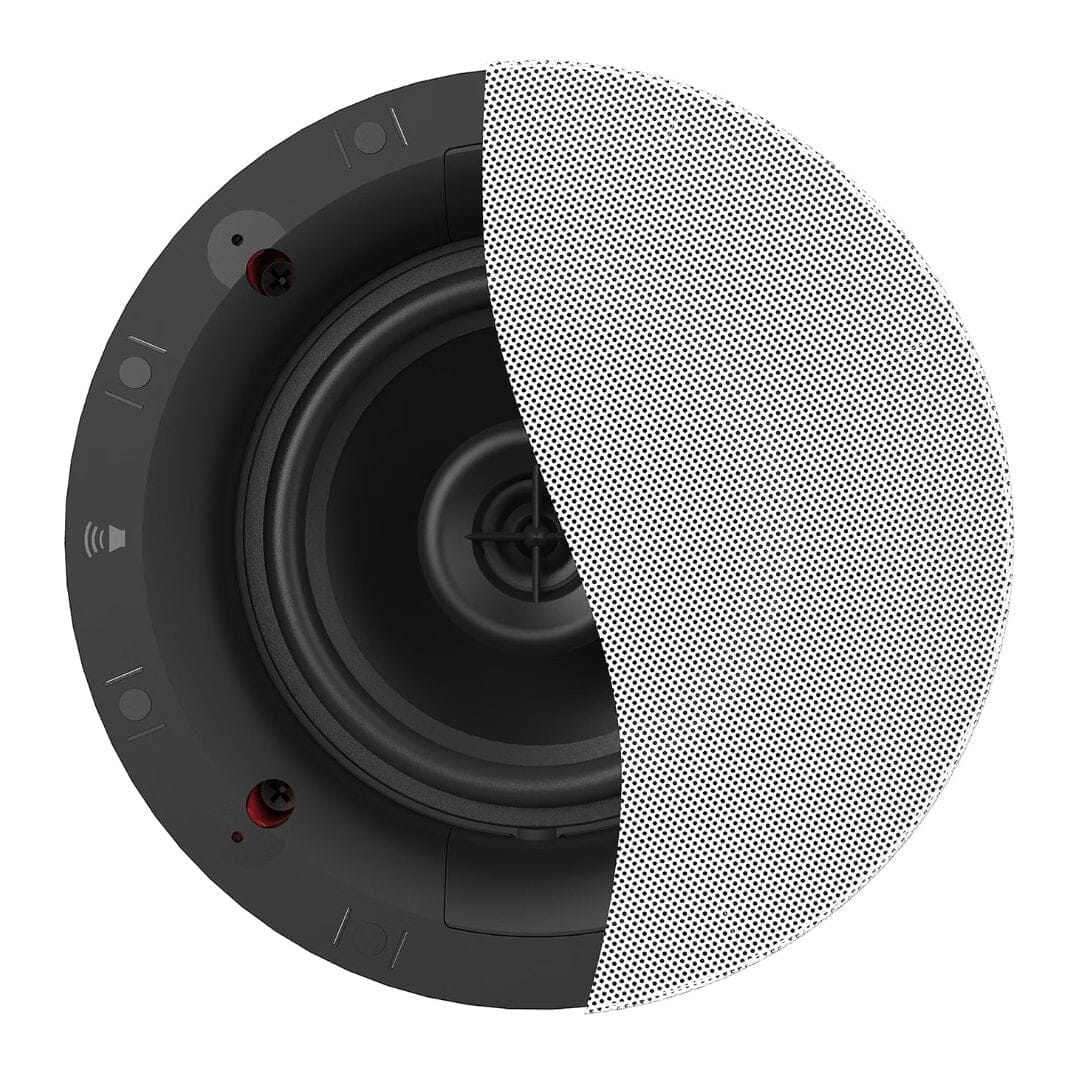

  • Klipsch DS-160CDT Speakers: Each speaker features a 6.5" polypropylene woofer and a 1" pivoting silk dome tweeter, providing crisp highs and deep bass from above.
  • Controlled Dispersion Technology (CDT): Pivoting drivers allow you to direct sound where it's needed most, making it ideal for flexible placement and room layouts.
  • Ultra-Low Profile Grilles: Paintable magnetic grilles sit nearly flush with the ceiling for a sleek, virtually invisible finish that blends with any décor.
  • Multiroom Capability: Group zones using the WiiM app to play music throughout your home or enjoy different content in each room.
  • Voice Control Ready: Works with Alexa, Google Assistant, and Siri for hands-free operation of your music and volume.
  • Simple Installation: With dog-leg clamps and clear instructions, the Klipsch speakers are easy to install in both new builds and retrofits.
  • Hi-Res Audio Support: Stream 24-bit/192kHz audio for uncompromised sound quality, whether you're listening to vinyl rips or lossless digital files.
  • All-In-One Solution: Everything you need for a complete in-ceiling audio setup — just add your music source and enjoy.

Key Features

  • Zones
    Multi Zone
  • Placement
    In Ceiling
  • Music Sources
    Bluetooth, WiFi, Chromecast, Spotify Connect, Tidal Connect, Internet Radio, Alarm Clock, Roon, USB Stick

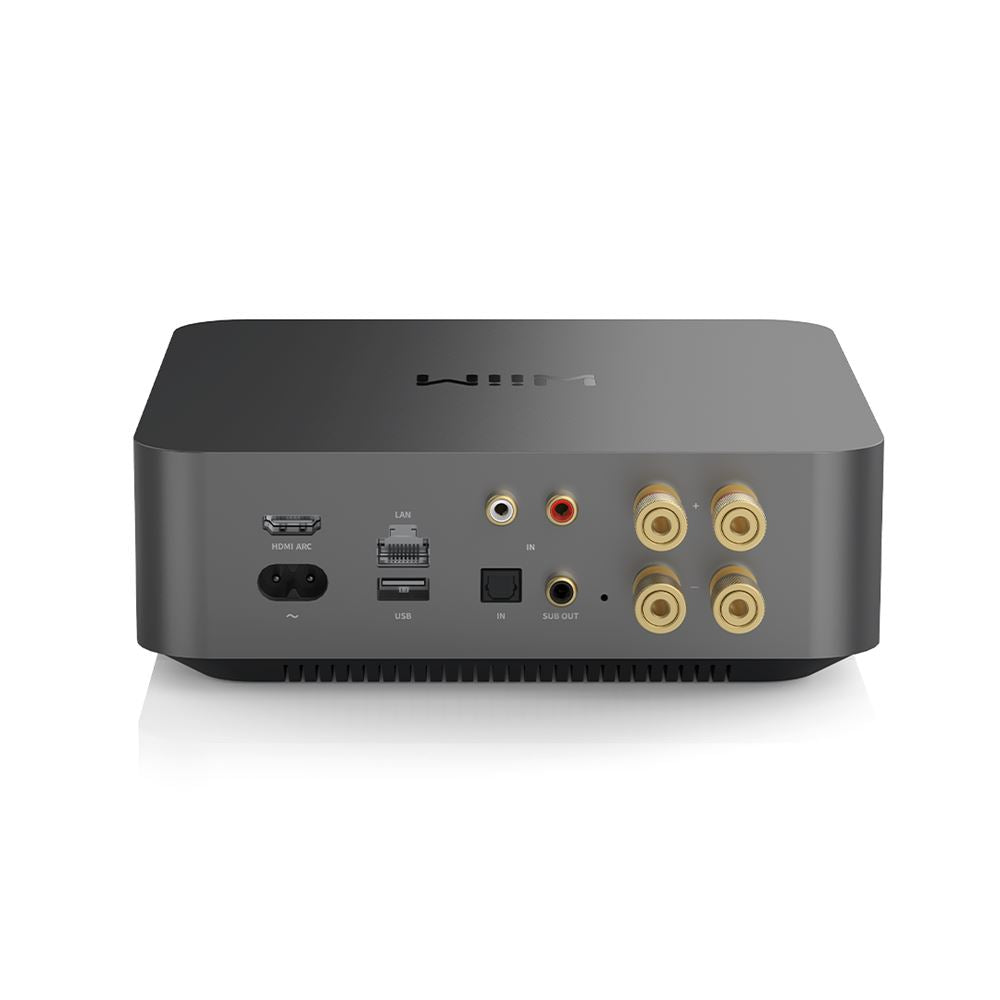

  • Inputs
    RCA, Optical, USB, Ethernet, HDMI
  • Outputs
    Subwoofer Out
  • TV Connection
    Yes - HDMI (TV Controls Volume)
  • Smart Features
    Works With Alexa (WiFi)
  • Driver Size
    6.5"
  • Warranty
    2 Years

Specifications

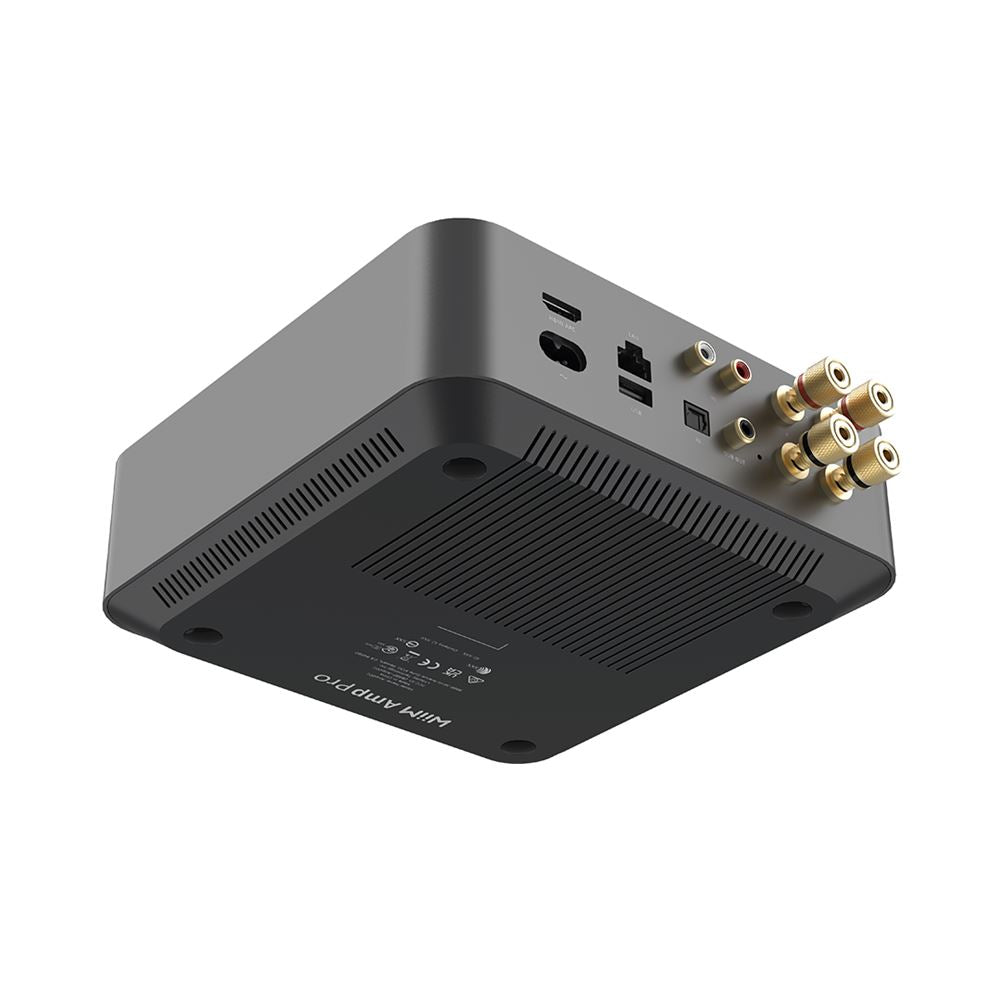

AMPLIFIER

  • Supported Streaming Services: Spotify Connect, Tidal, Qobuz, Amazon Music, Deezer, and SoundCloud
  • Apple AirPlay Support: AirPlay 2
  • Roon Support: Roon Ready + Roon Tested
  • Network Connectivity: Wi-Fi & Ethernet
  • Amplifier Class: D
  • Power Output (4Ω): 120 W
  • Power Output (8Ω): 60 W
  • Tone Control: Adaptive EQ and Graphic Equaliser built-in
  • Signal To Noise Ratio: 108 dB
  • THD + N: (-92dB) 0.0025 %
  • RCA Input(s): Yes
  • Bluetooth Input: Yes
  • Bluetooth Version: 5.1
  • HDMI Input(s): ARC Input
  • Optical Input(s): 1
  • DAC Chip: ESS 9018K2M
  • File Limit Support (PCM): 24-bit, 192kHz
  • Subwoofer Output(s): Yes
  • App Control: WiiM Home
  • Dimensions (W x H x D): 190 x 190 x 63 mm
  • Weight: 1.84 kg

SPEAKERS

  • Frequency Range:  65Hz - 20kHz +/- 3dB
  • High Frequency Driver: 1" (25.4 mm) Silk Dome Tweeter mated to a round Tractrix® Horn
  • Low Frequency Driver: 6.5” (165.1 mm) Polypropylene Woofer
  • Sensitivity: 91 dB @ 2.83V / 1m
  • Coverage: Angle 100°
  • Power Handling: 50W RMS / 200W RMS
  • Impedance: 8 Ohm Compatible
  • Enclosure Material/Type: ABS/Infinite Baffle
  • Finish: Black Baffle/Frame White Paintable Grille
  • Product Dimensions: 233 x 233 x 115 mm (WxHxD)
  • Mounting Depth: 122 mm
  • Cutout Dimensions: 203 mm
  • Product Weight: 3.18 kg
  • Included in Box: Round Magnetic Grille
  • Install Kit: IK-650-C II (Sold Separately)
  • Fire Rated Enclosure: ME-650-C (Sold Separately)
  • Built From: 2017

What You Get

AMPLIFIER

  • 1 x WiiM Amp
  • 1 x RCA Audio Cable
  • 1 x Optical Audio Cable
  • 1 x HDMI Cable
  • 1 x Remote Control
  • 1 x Power Cable
  • 1 x Quick Start Guide

SPEAKERS (ONE PAIR)

  • 2 x DS-160CDT Ceiling Speaker
  • 2 x White Grilles
  • 1 x Cut Out Template
  • 1 x User Manual
  • 20m x 2 Core Speaker Cable

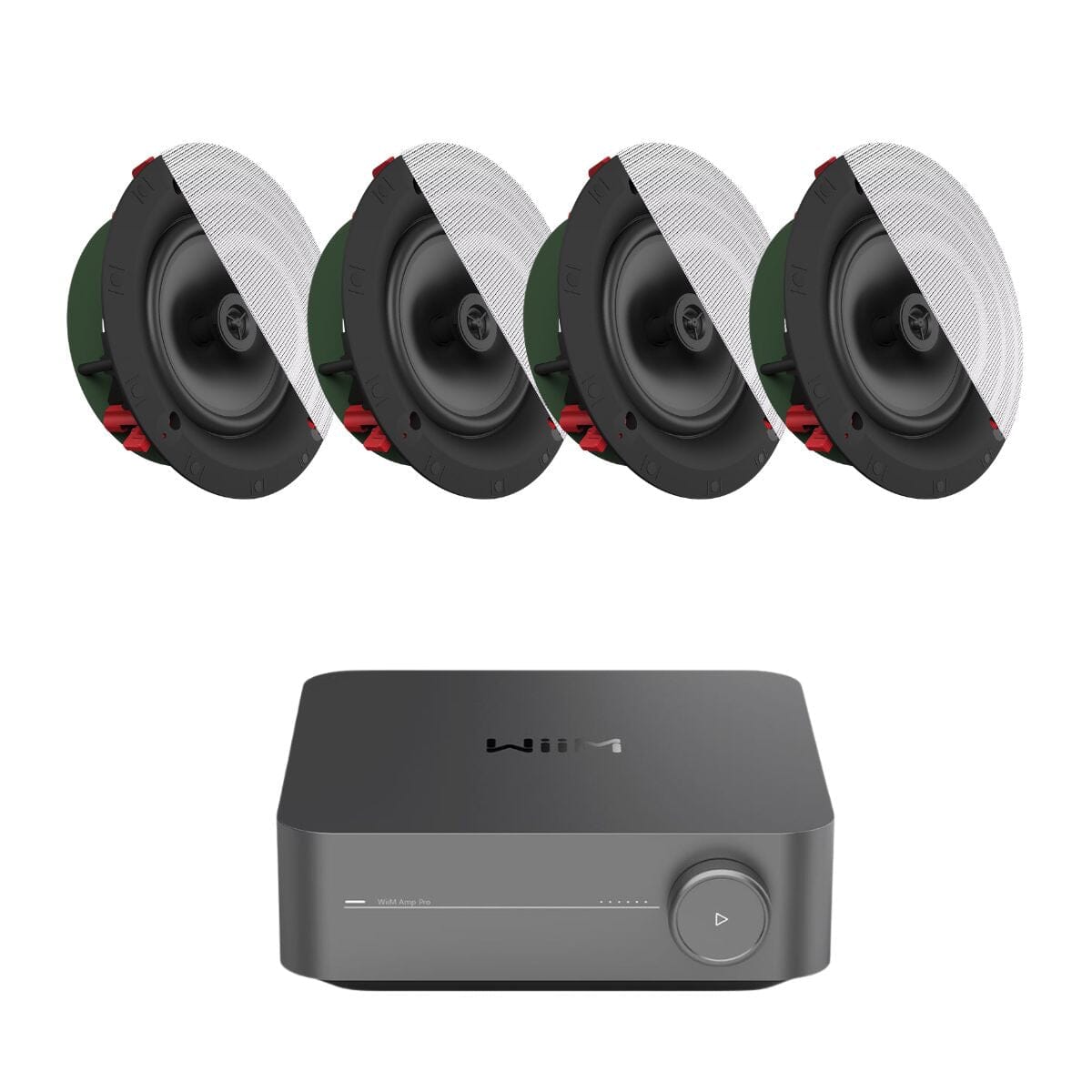

SPEAKERS (TWO PAIRS)

  • 4 x DS-160CDT Ceiling Speaker
  • 4 x White Grilles
  • 1 x Cut Out Template
  • 1 x User Manual
  • 30m x 2 Core Speaker Cable
