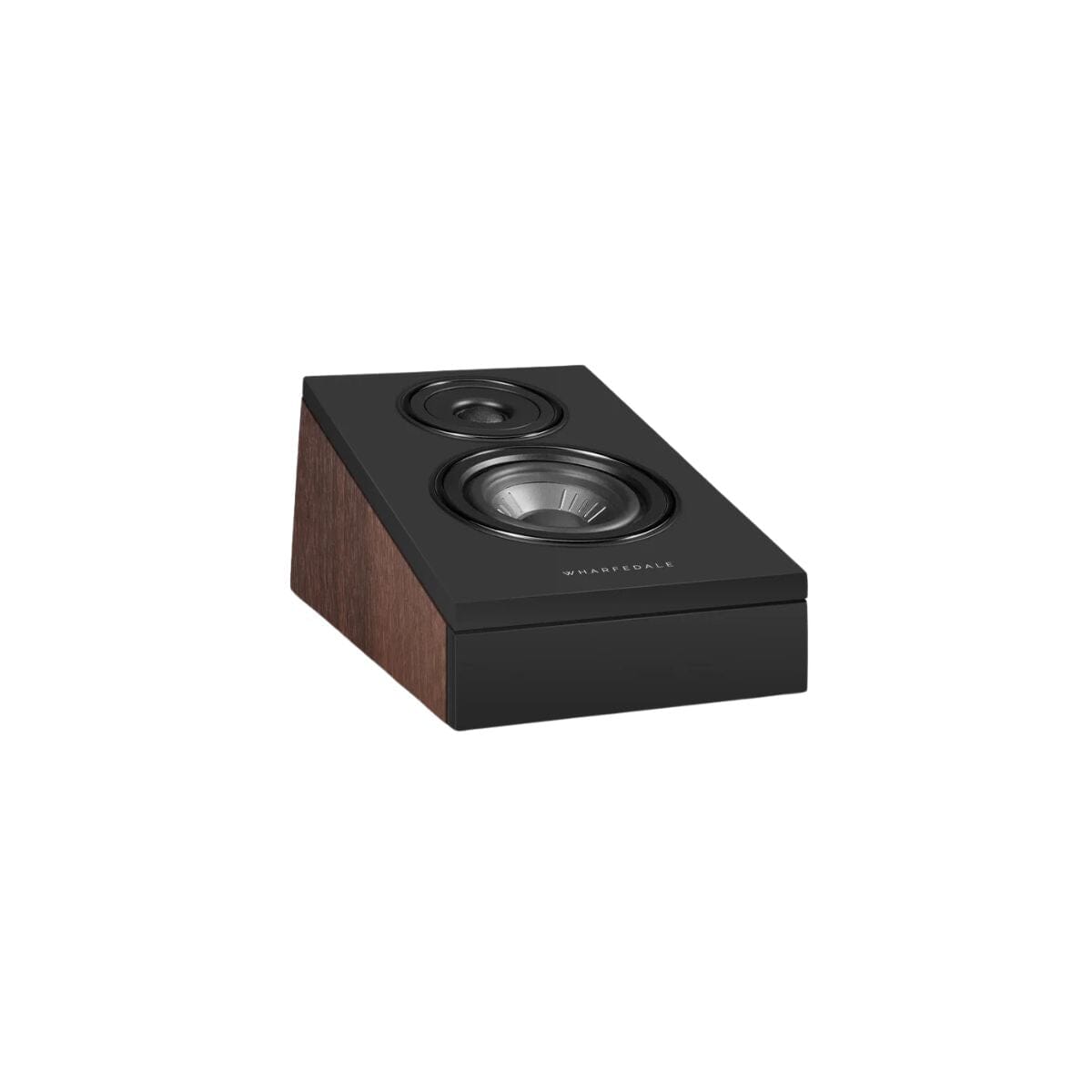

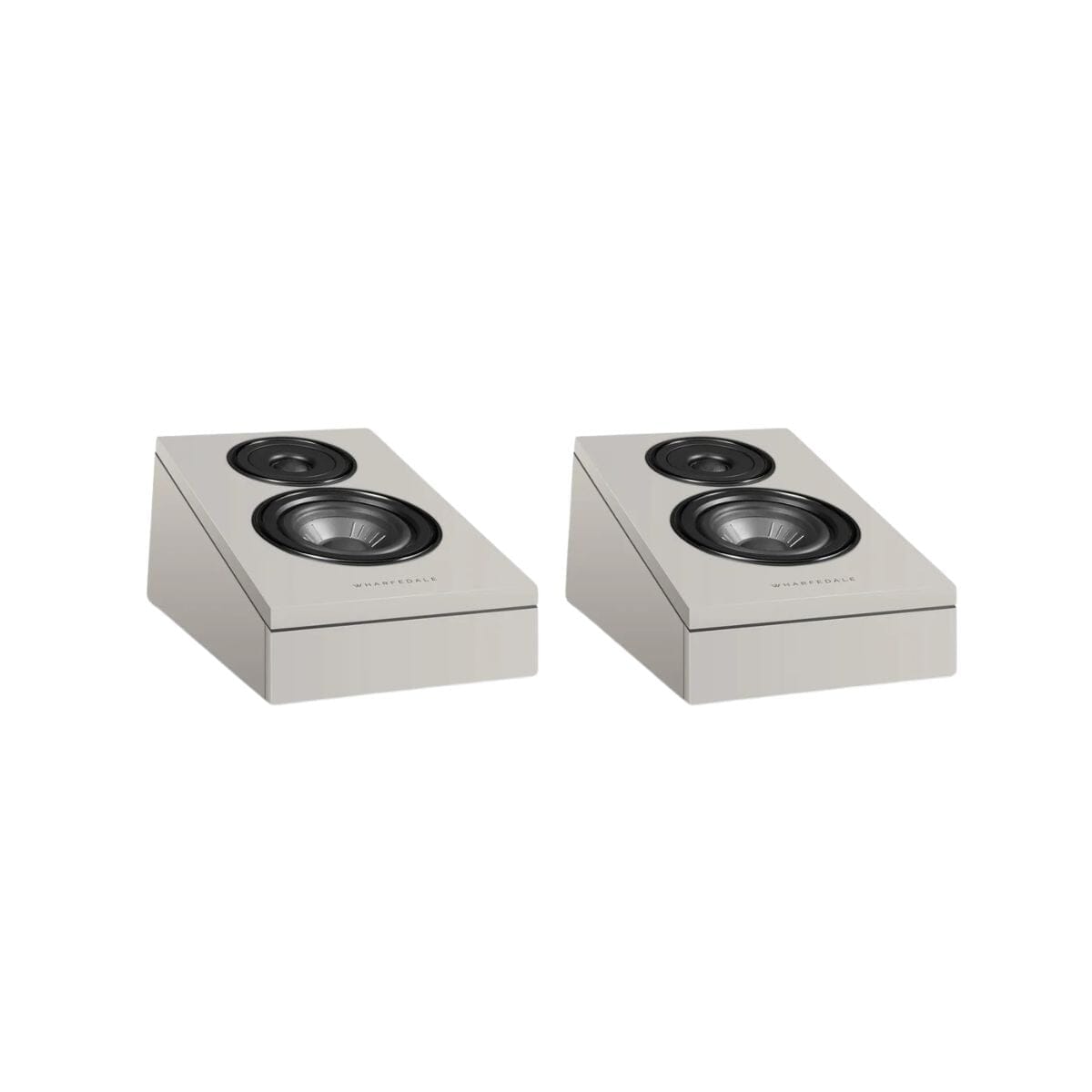

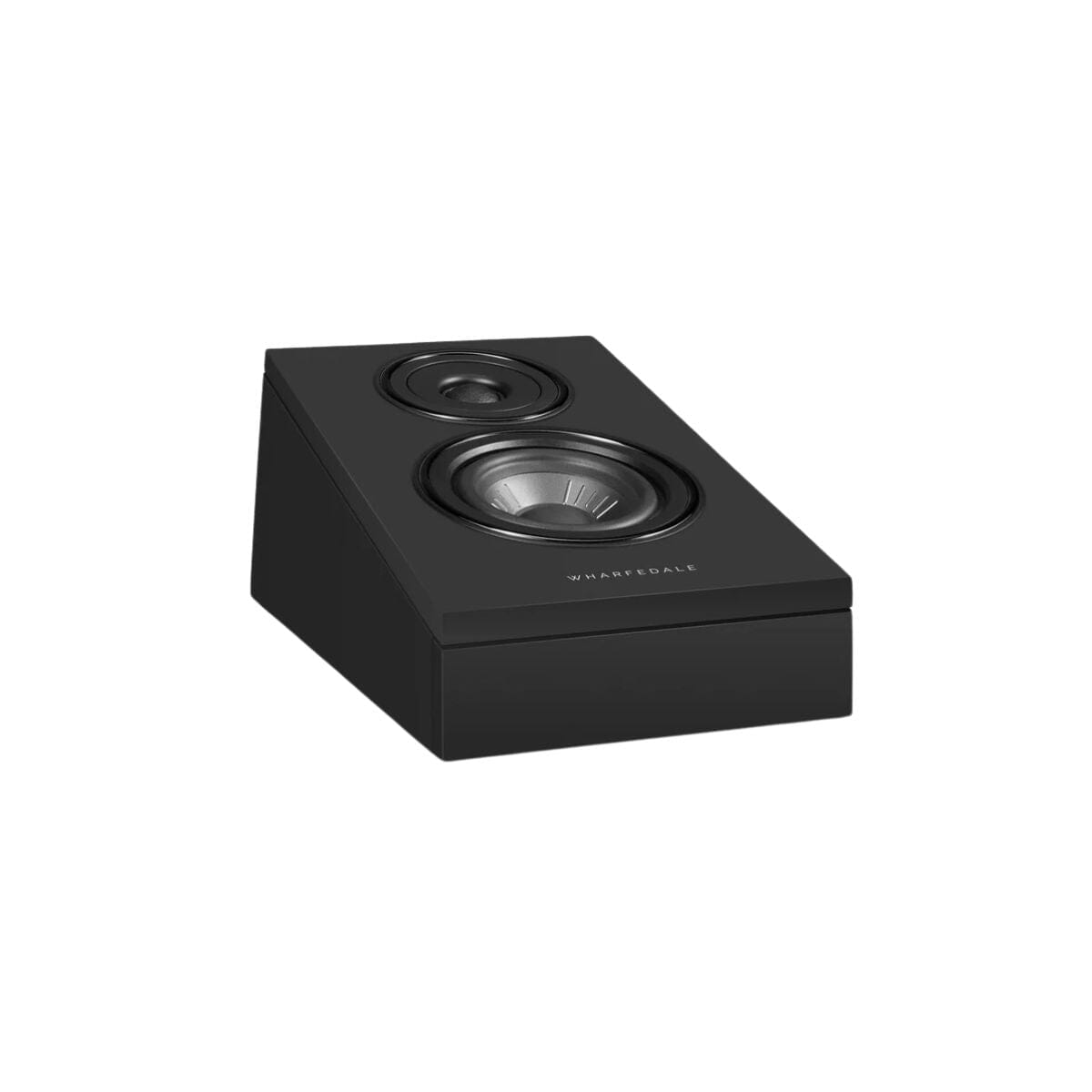

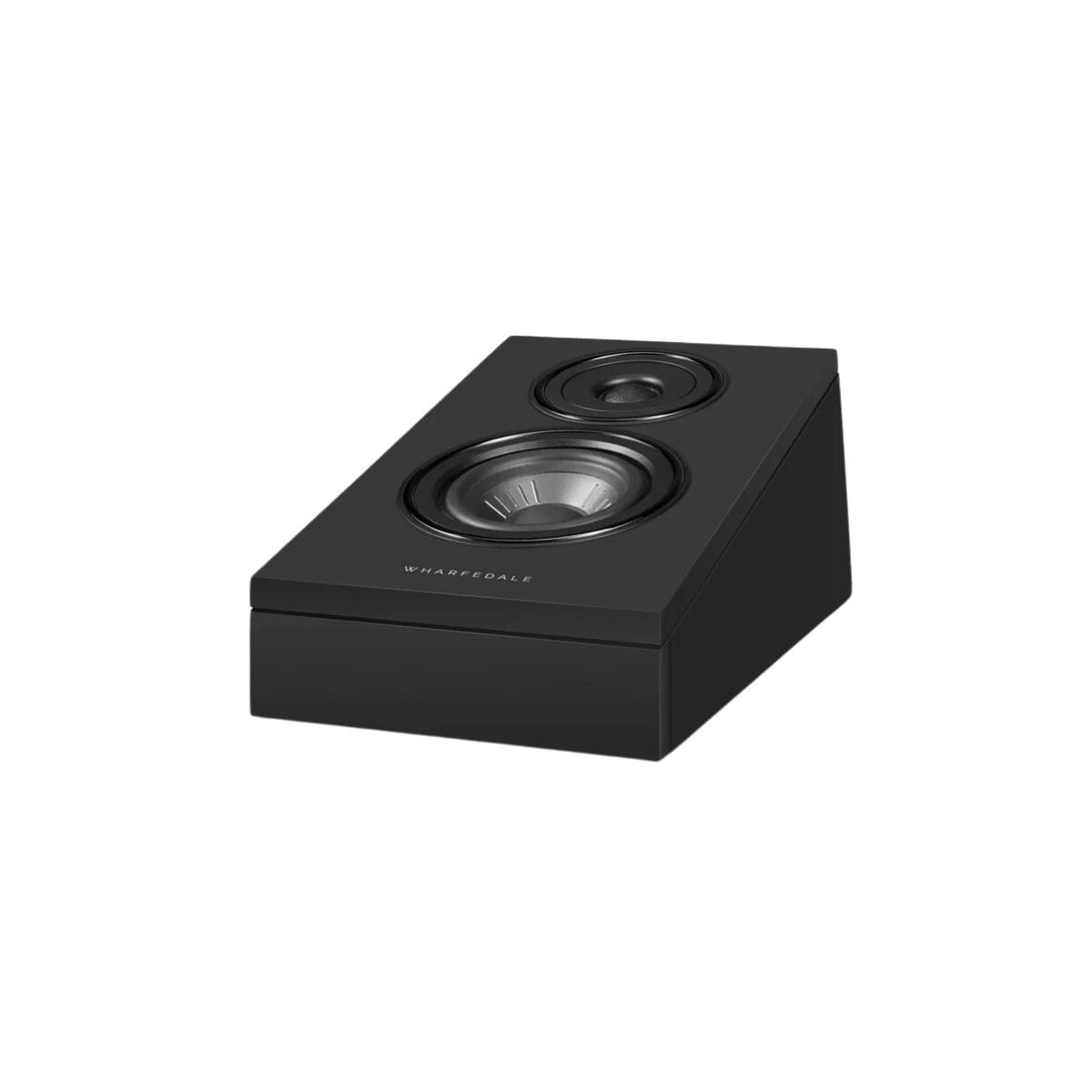

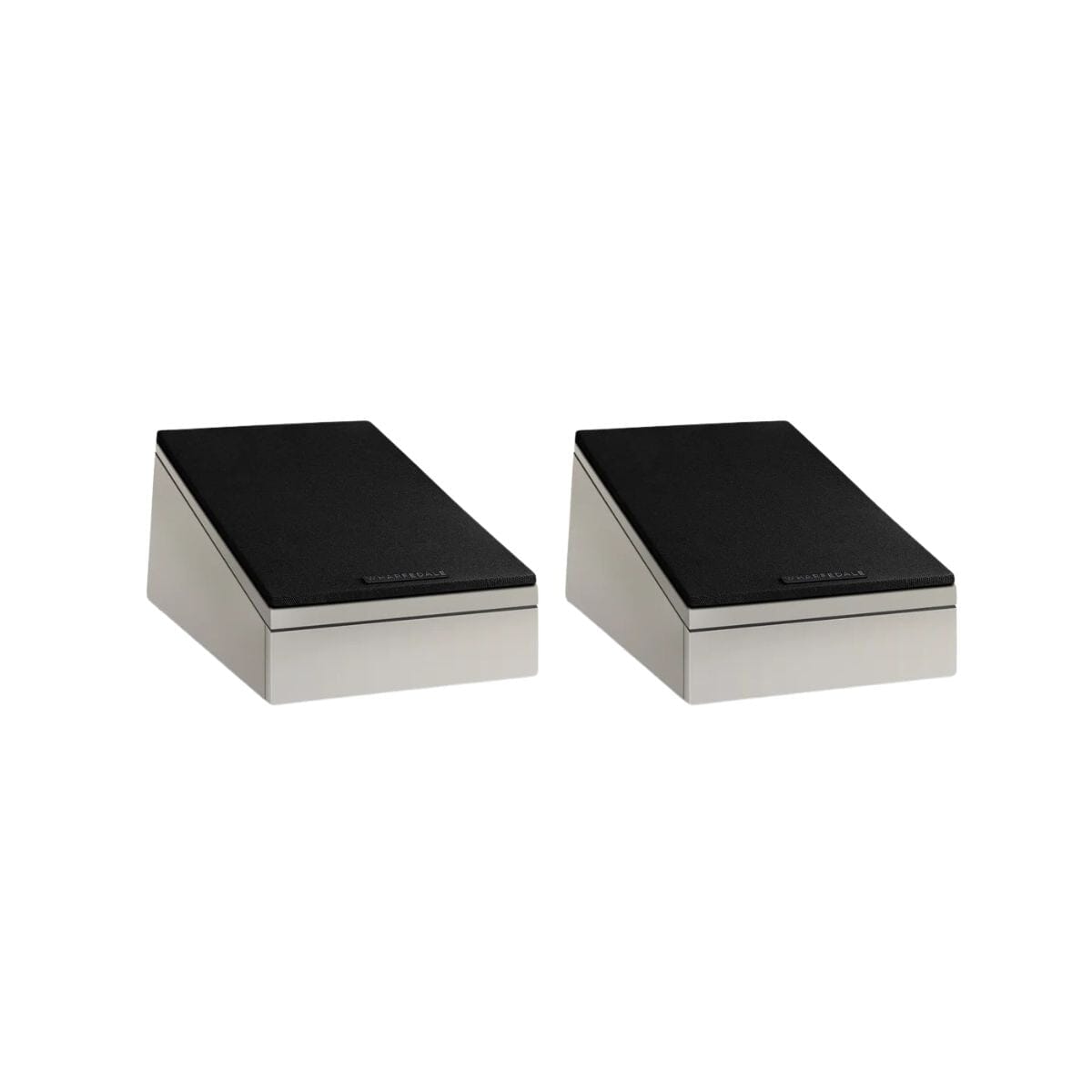

Wharfedale Diamond 12 3Di Atmos Speakers (Pair)

Wharfedale  |  SKU: 12-3DI-WA
Regular price £349.95

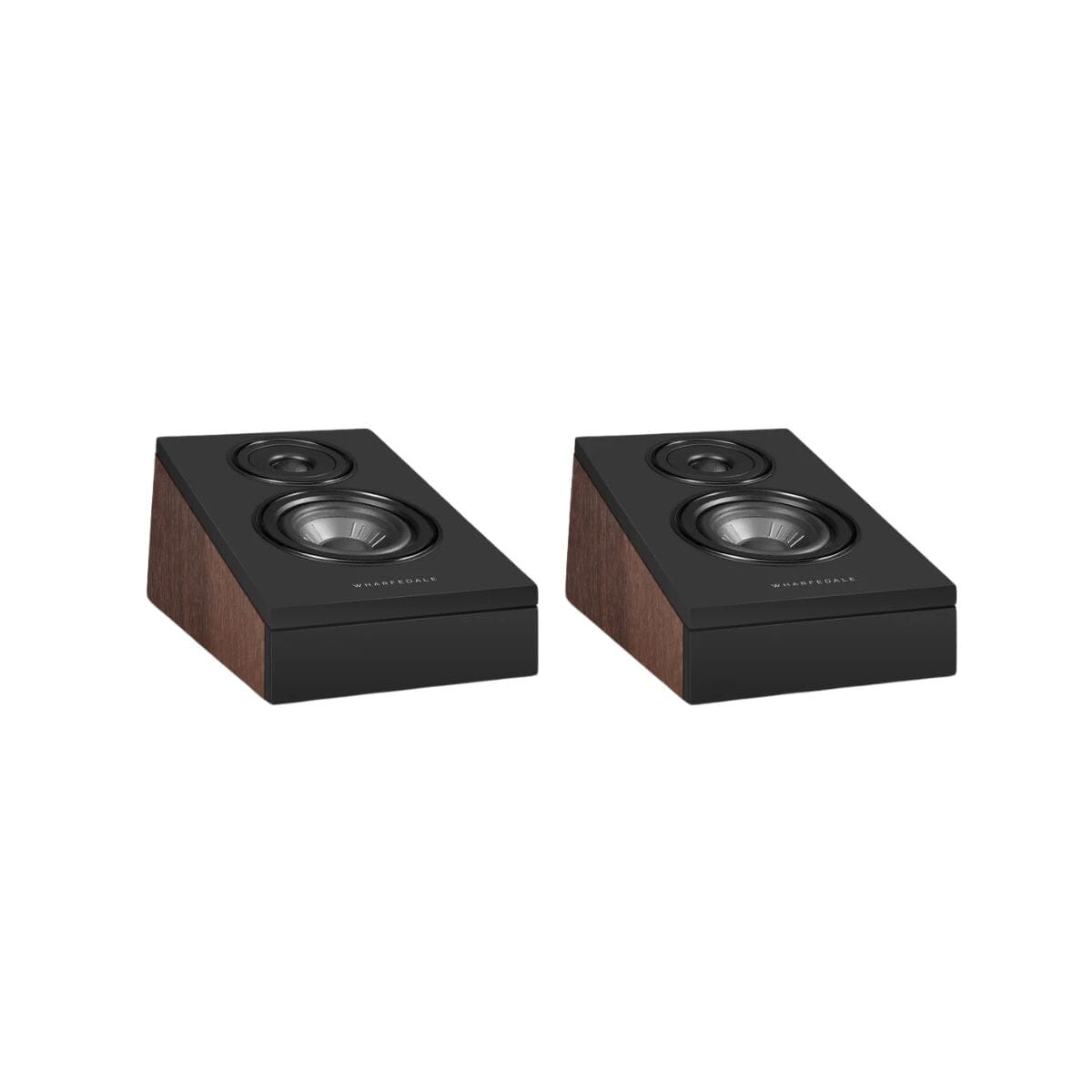

Colour: Walnut

Spend £50 For Free Delivery

All orders to mainland UK over £50 are eligible for free standard delivery.

For orders under £50 we have delivery rates starting from just £2.99

Need it fast? No problem, you’ll find express next day delivery rates available on most products. Learn More

60 Day Returns + 3 Years Warranty

We’re so confident that you’ll be happy with your purchase that we’ve extended our returns policy to 60 days.

We call it the “Happy Sound Guarantee”.

If you’re not happy with your purchase for any reason simply send it back to us for a full refund. Learn More

Warranty

K&B Audio are authorised dealers for Wharfedale. All sales come with a 3 Years manufacturers warranty and full technical support.

Price Match Promise

Description

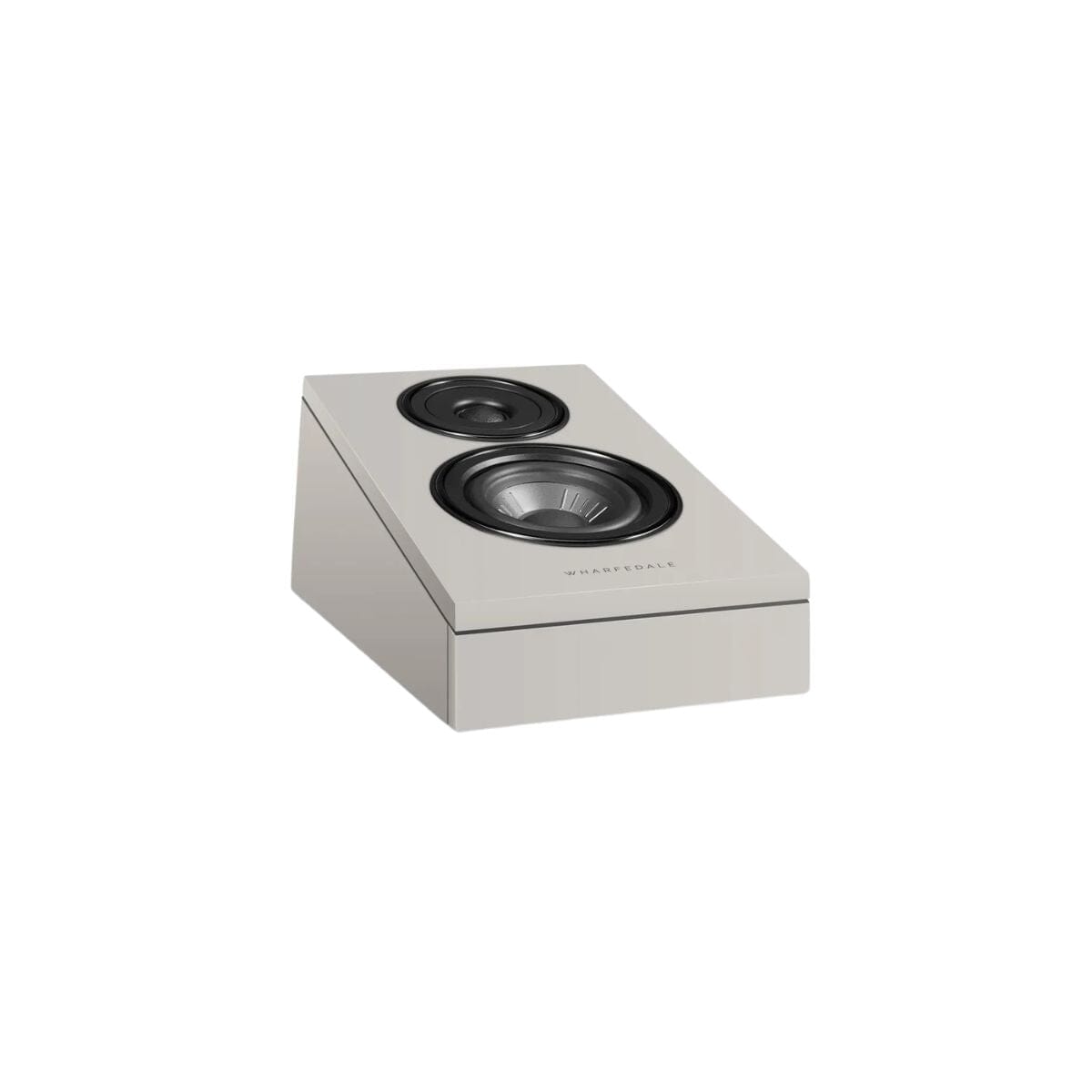

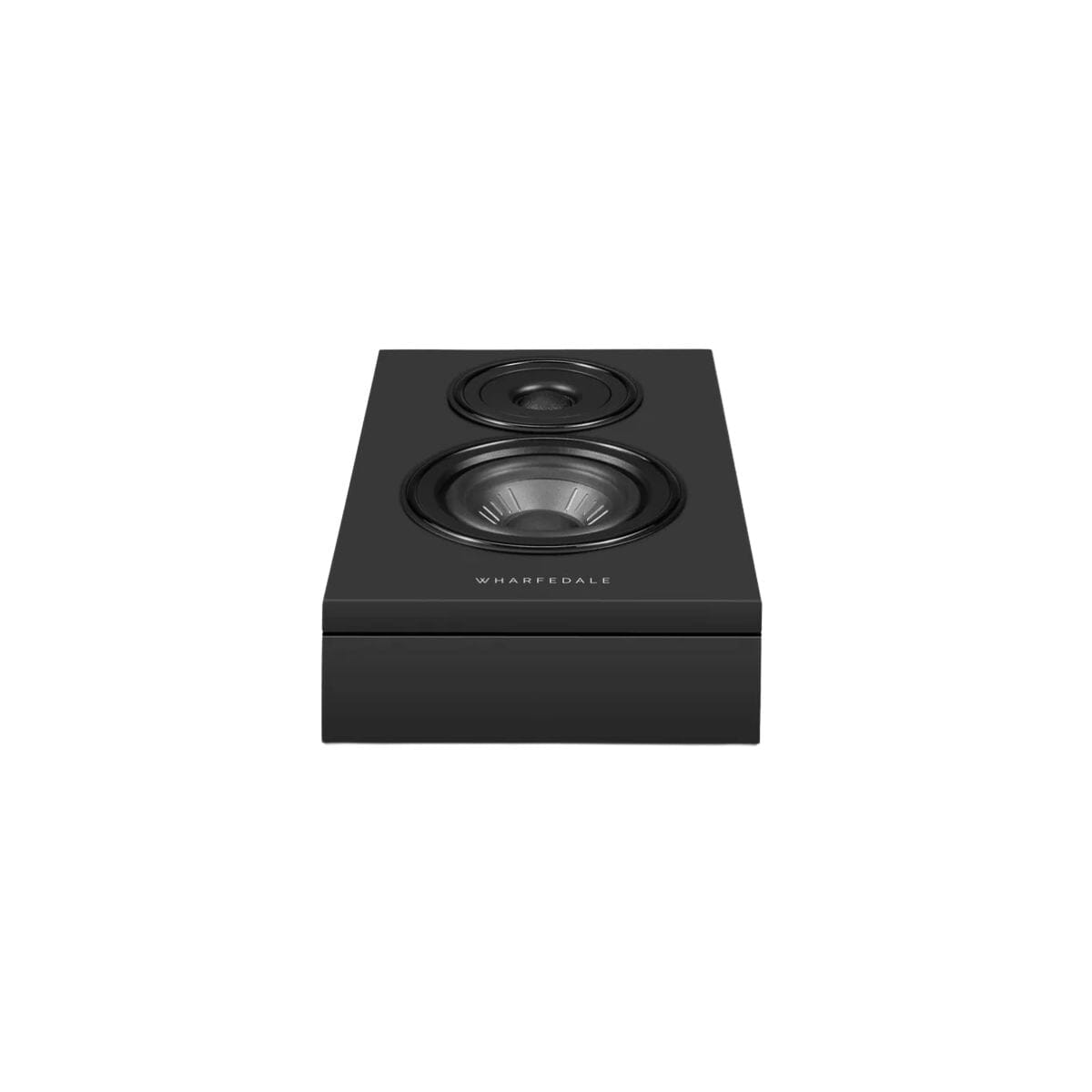

The Wharfedale Diamond 12.3Di Atmos speakers are designed to add immersive height effects to a home cinema system, delivering overhead sound without the need for in-ceiling installation.

Ideal for Dolby Atmos setups, they sit neatly on top of compatible speakers or can be wall-mounted to create a more enveloping, three-dimensional soundstage.

Part of the Diamond 12i series from Wharfedale, the 12.3Di uses the same advanced driver technology and cabinet engineering found across the range.

This ensures seamless tonal matching with other Diamond speakers, making them a natural upgrade for existing Wharfedale-based surround systems.

FEATURES

  • Dolby Atmos-Enabled Design: Angled drivers project sound upwards, reflecting audio off the ceiling to create convincing height and overhead effects without visible ceiling speakers.
  • Klarity™ Mid/Bass Driver: A 100mm woven polypropylene cone delivers clean, controlled midrange performance, ensuring Atmos effects remain precise and well defined.
  • Soft Dome Tweeter: The 25mm textile dome tweeter provides smooth, detailed high frequencies for natural-sounding effects and ambience.
  • Perfect Series Matching: Voiced to integrate seamlessly with other Diamond 12 and 12i speakers for a cohesive surround sound experience.

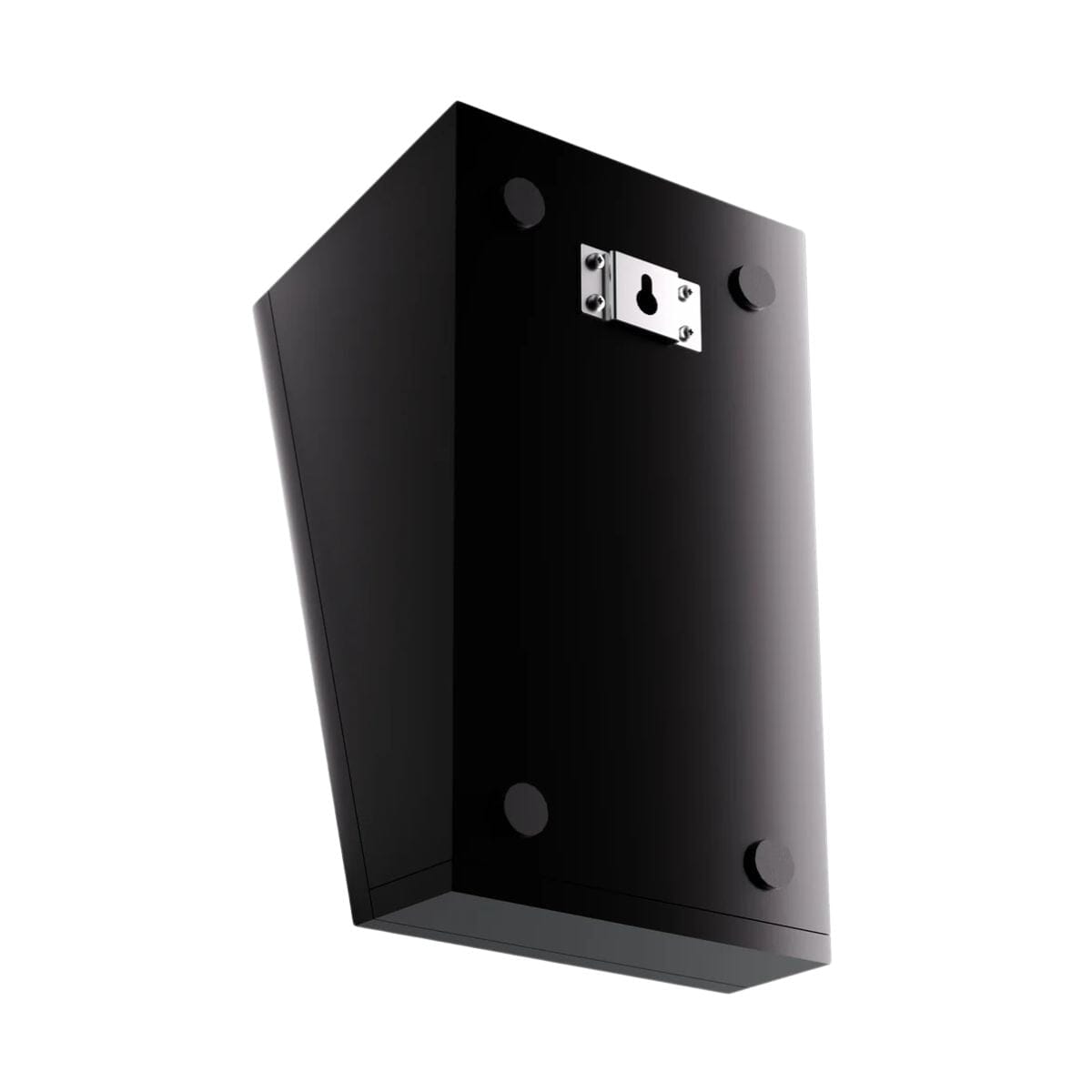

  • Flexible Placement Options: Designed to sit on top of floorstanding or bookshelf speakers, or to be wall-mounted for added installation flexibility.
  • Rigid, Low-Resonance Cabinet: Internally braced construction reduces vibration, allowing Atmos effects to sound clear, accurate and immersive.

Specifications

  • Model: DIAMOND 12 3Di SURROUND
  • General Description: 2-way Atmos speaker
  • Enclosure Type: Closed-box system
  • Transducer Complement: 2-way
  • Bass Driver: 4" (100mm) advanced PP Cone
  • Treble Driver: 1" (25mm) Textile Dome
  • AV Shield: No
  • Sensitivity (2.83V @ 1m): 82dB
  • Recommended Amplifier Power: 20–100W
  • Peak SPL: 95dB
  • Nominal Impedance: 8Ω compatible
  • Minimum Impedance: 4.3Ω
  • Frequency Response (+/-3dB): 110Hz – 20kHz
  • Bass Extension (-6dB): 90Hz
  • Crossover Frequency: 3kHz
  • Cabinet Volume: 2.7L
  • Dimensions (H x W x D): 145 x 180 x 310 mm
  • Net Weight: 3.2kg / pcs

What’s In The Box

  • 2 x Speakers

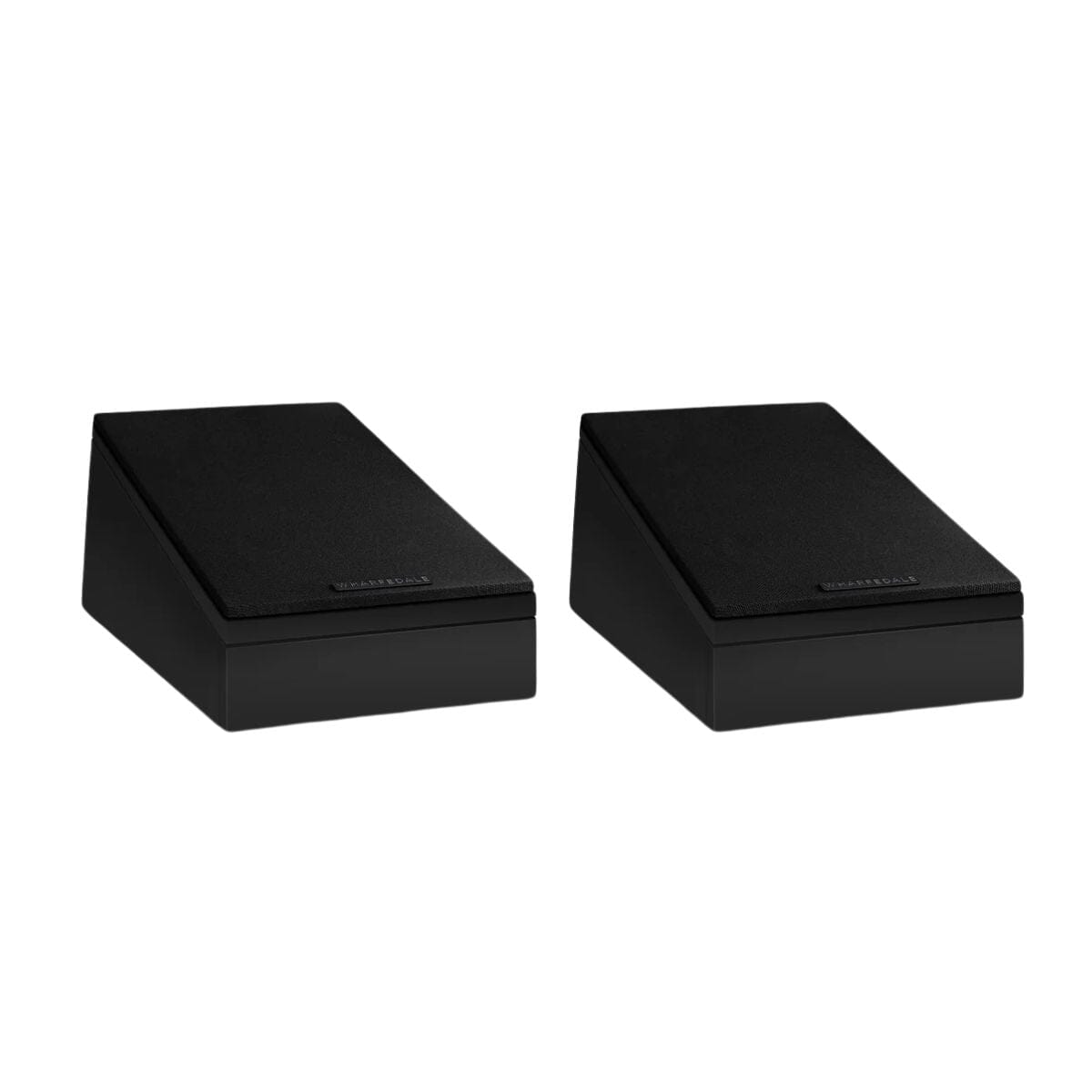

  • 2 x Grilles
