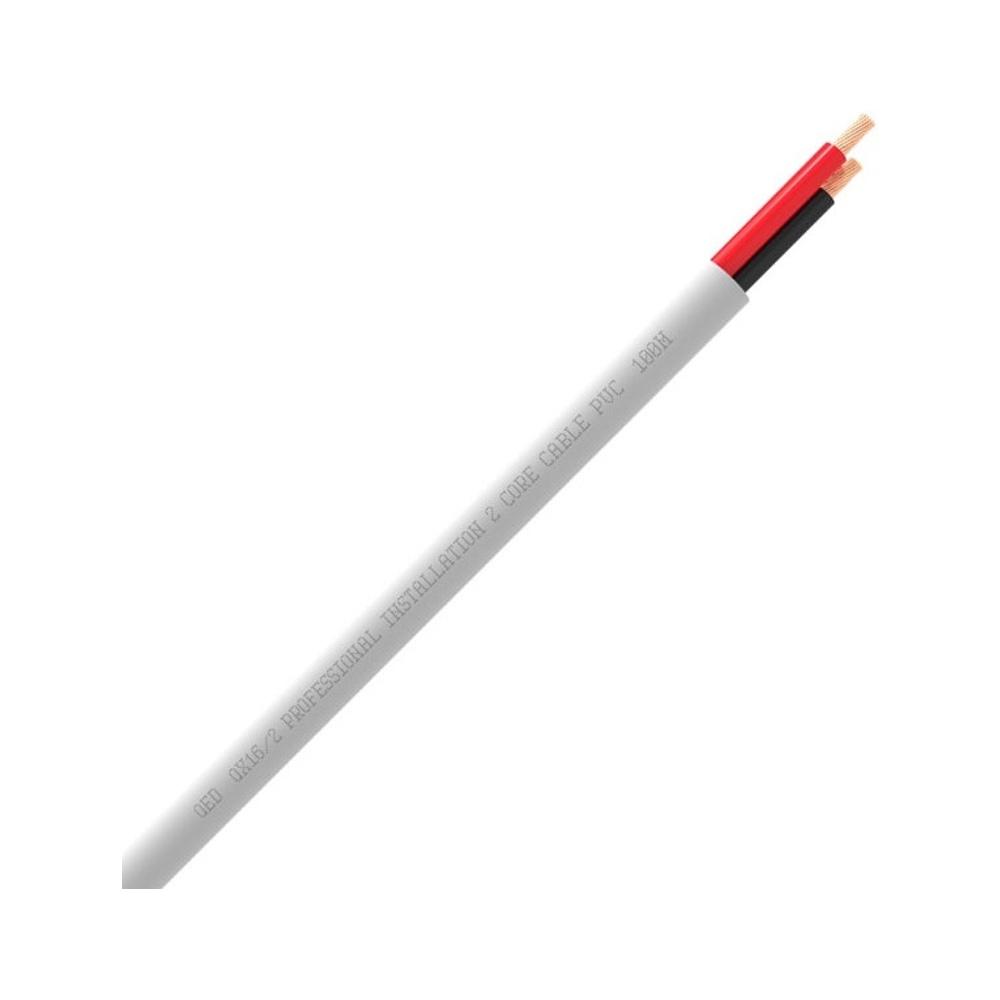

QED QX16/2 - 2 Core Speaker Cable - PVC - White (100m)

QX16/2 and QX16/4 PVC are high performance and exceptional quality installation speaker cables with a flame retardant PVC outer sheath.

They are designed to deliver excellent levels of performance vs. cost in all multi-room and home cinema installations where low smoke zero halogen (LSZH) cables are not specified.

• Large cross-sectional area of high purity copper conductors
• Ensures good performance levels are maintained even on longer runs
• Sequentially metre marked - counting down so you always know what you have left on the reel or in the box
• PVC Flame retardant high performance outer jacket
• Colour-coded conductor sheaths
• Fully tested flame retardant design meets and exceeds IEC60332-1
• Full test report available on request
• RoHS2 Compliant

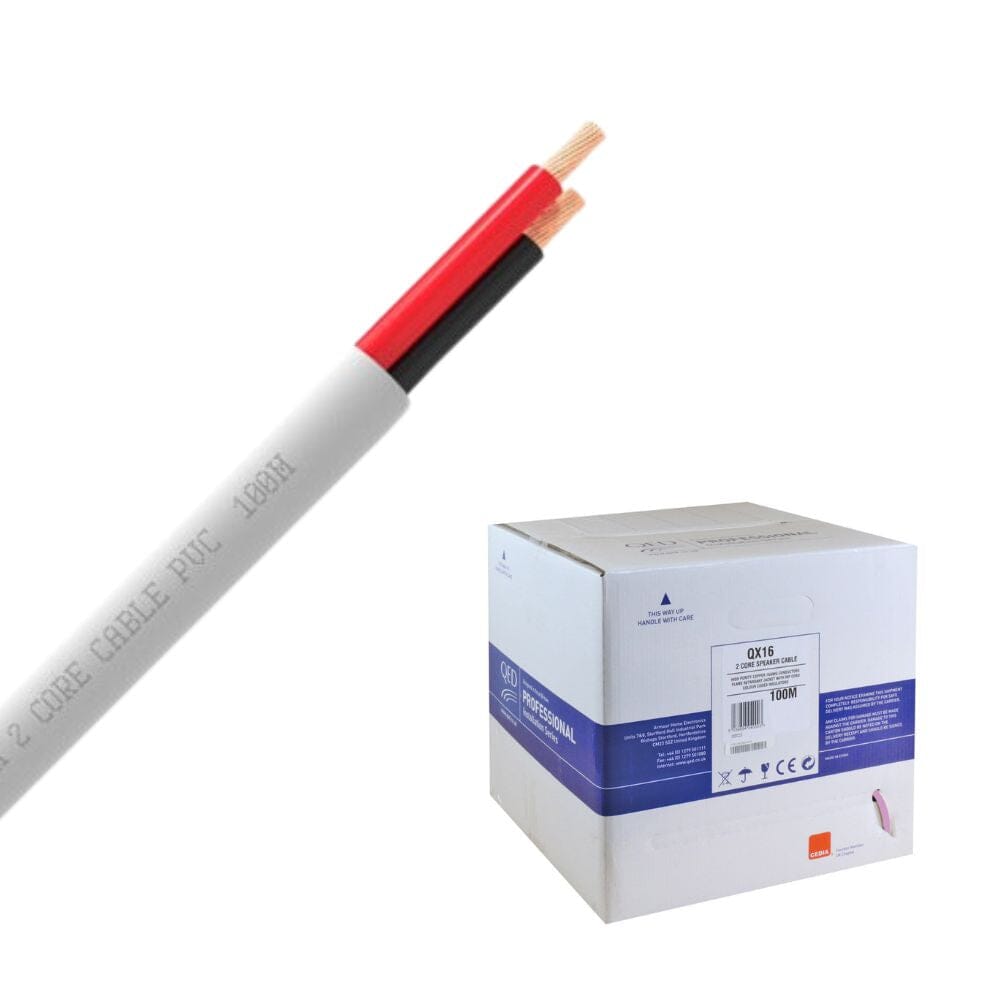

• Supplied in 100m (328ft) PRObox.

Specifications

• Conductor Size: 16 AWG
• Conductor Construction: 30/0.26
• Conductor Resistance: 13.3 Ω/km
• Conductor Cross-sectional Area: 1.5 mm2
• Insulation Colour: 16/2 Red, Black: 16/4 Red, Black, White, Green
• Dielectric Strength: 600 kV AC
• Jacket Material: PVC
• Outside Diameter: 16/2 - 6.20 mm 16/4 - 7.20 mm
• Jacket Colour: White
• Weight: 16/2 - 58 kg/km 16/4 - 98 kg/km
• Warranty: 1 Year
