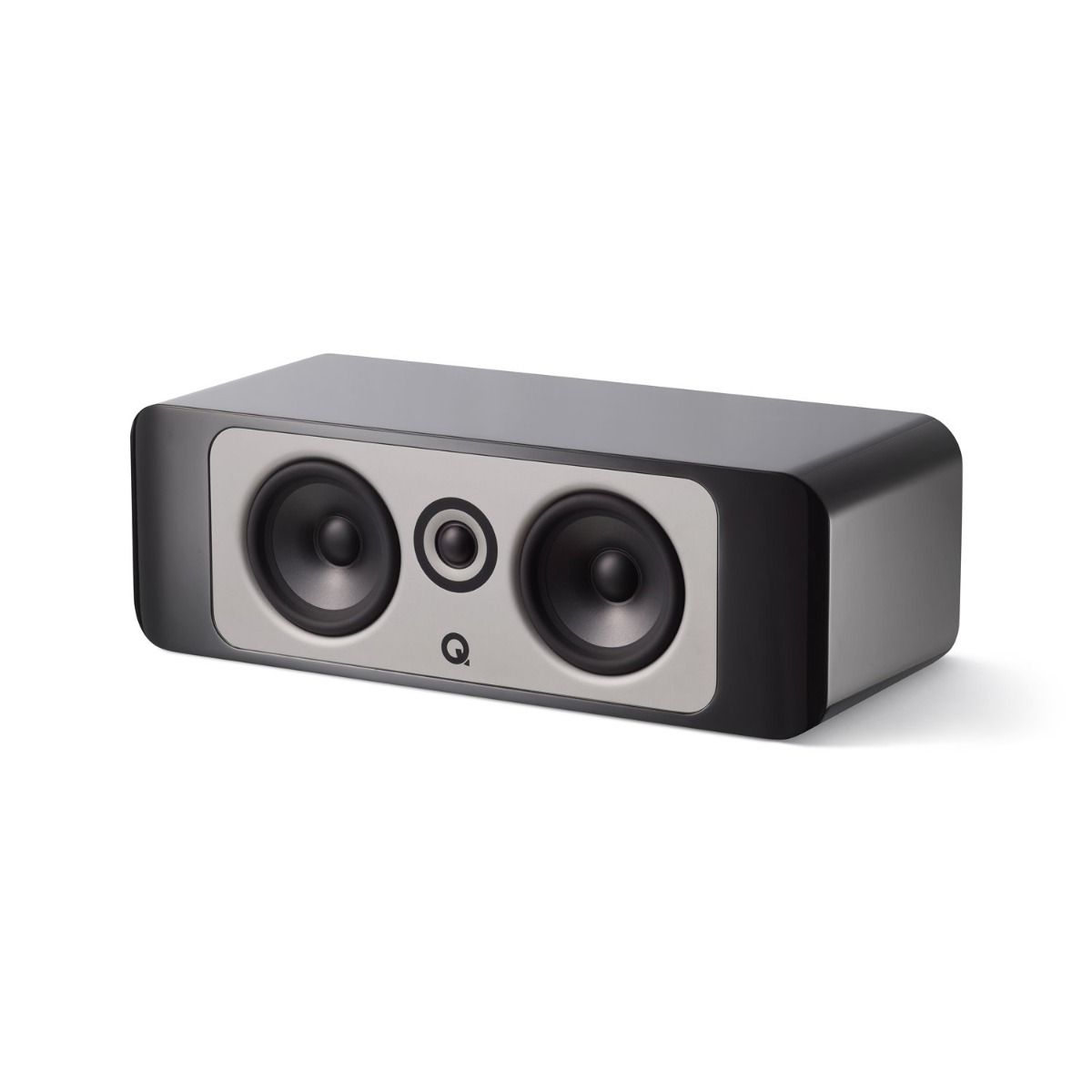

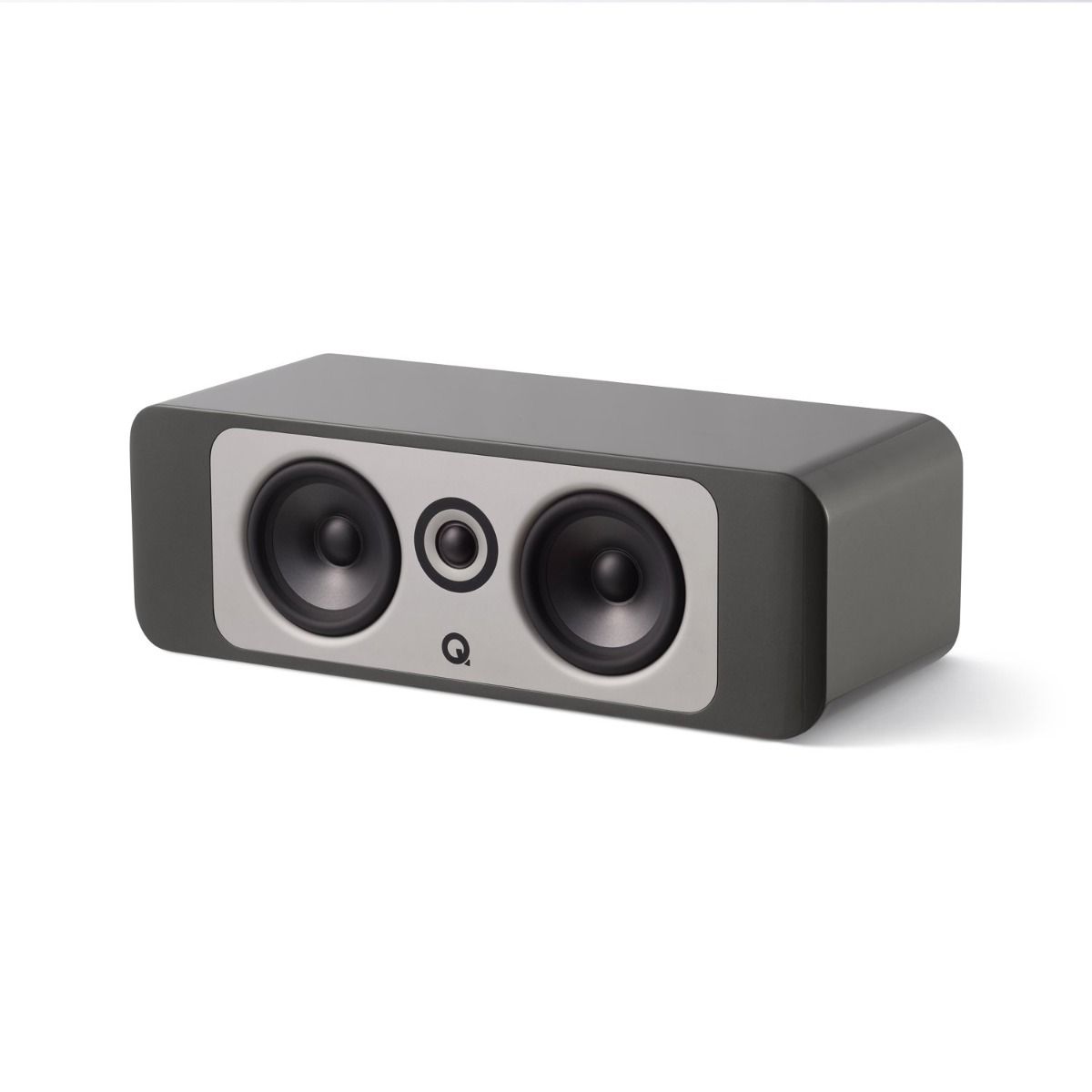

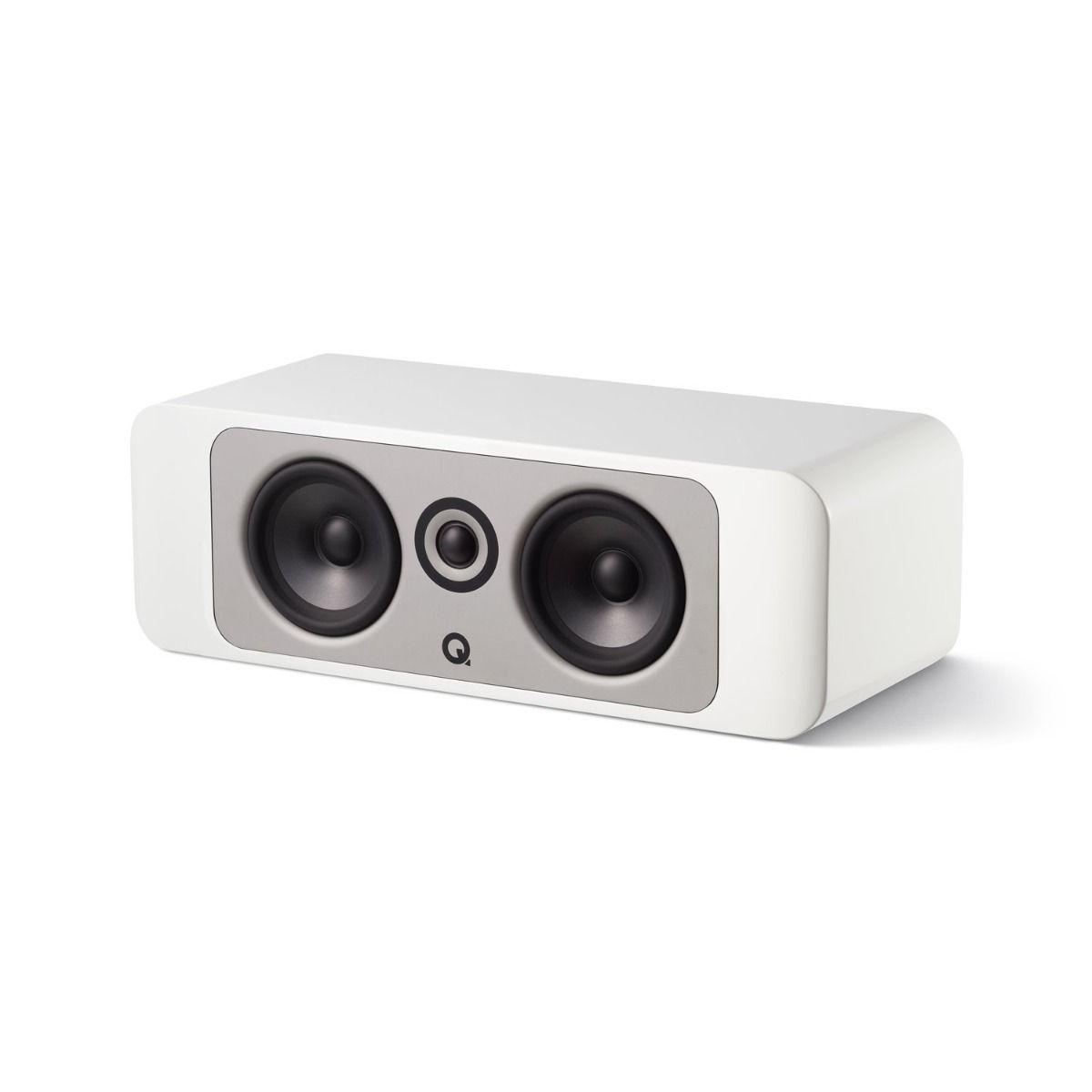

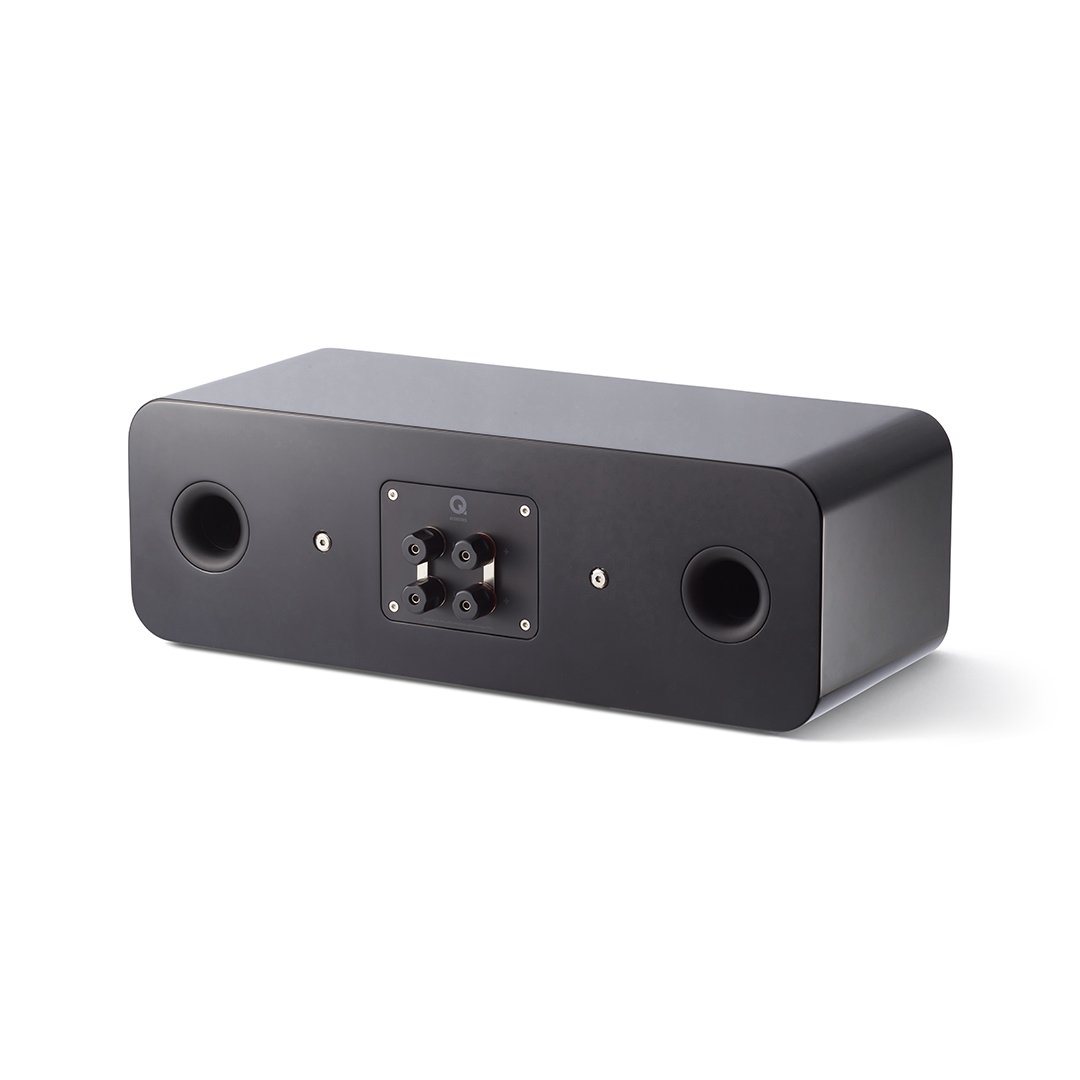

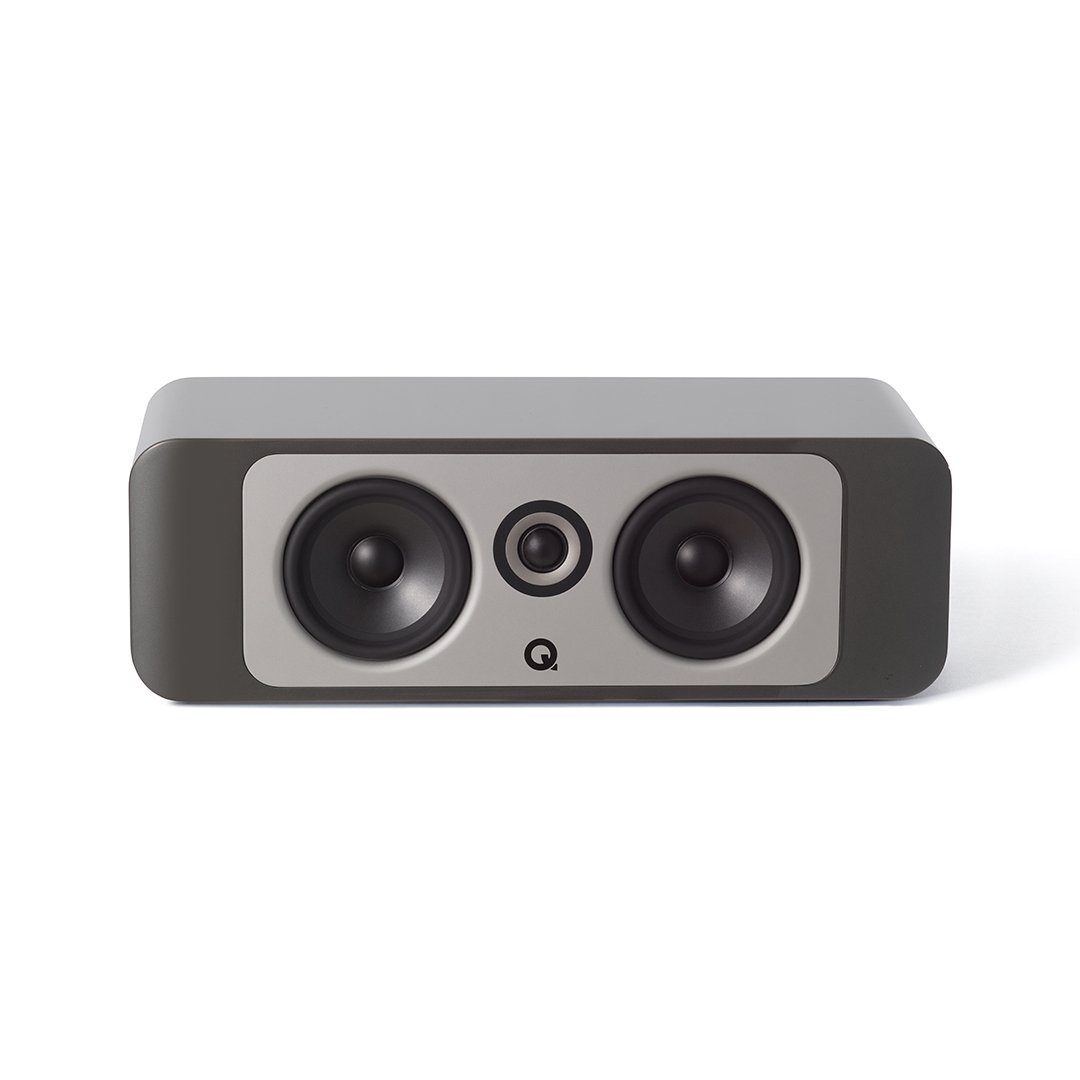

Q Acoustics Concept 90 Centre Speaker (Each)

At the heart of a Concept 5.1 home cinema set-up, the Concept 90 is our most high-performance centre channel speaker yet.

Able to deliver astonishingly dynamic and ultra-clear dialogue, this speaker is the star of the Concept home cinema range.

• Gelcore™ cabinet construction reduces higher frequency cabinet noise.
• Isolation suspension base eradicates unwanted external and internal vibrations.
• The driver assembly is mounted to the front aluminium baffle by pretensioned studs to give the correct acoustic seal, while dampen vibrations and minimise structural coupling of the assembly in main cabinet.
• Ground-up mid/bass and tweeter driver design for increased power handling.
• High-frequency driver is fully hermetically sealed and mechanically isolated (floating) from the front baffle to protect from internal resonances from the mid/bass driver.
• Crossover design is mounted on the isolation base, to minimise any microphonic pick up and away from electro-magnetic fields radiated by the drive units.

PRODUCT VIDEO

What You Get

• 1 x Concept 90 Speaker
• 1 x Grille
• 2 x Foam Bungs
• 1 x Owner’s Manual

Specifications

• Bass unit2 x 125 mm (5.0 in)
• Treble unit1 x 25 mm
• Frequency response(-6dB)67 Hz - 30 kHz
• Nominal impedance6 Ω
• Minimum impedance3.7 Ω
• Sensitivity (2.83V @ 1kHz)90 dB/w/m
• Recommended amplifier power25-150 W
• Crossover frequency2.1 kHz
• Distortion (120Hz - 20kHz, @2.83Vrms)<0.2%
• Effective volume11 L
• Dimensions (per loudspeaker / HxWxD)184 x 550 x 259 mm (7.2 x 21.7 x 10.2 in)
• Weight (per loudspeaker)12.3 kg
• Warranty: 5 Years
