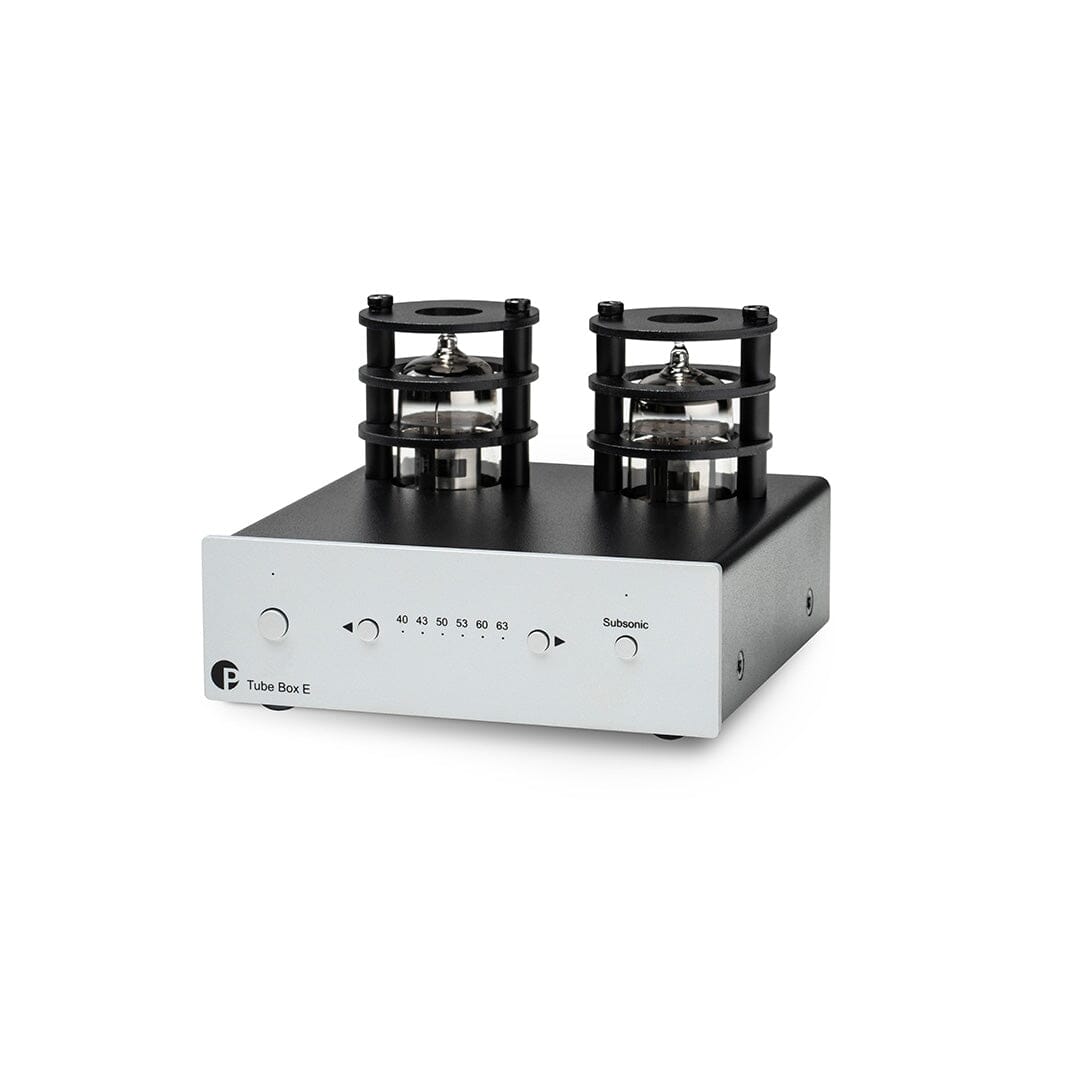

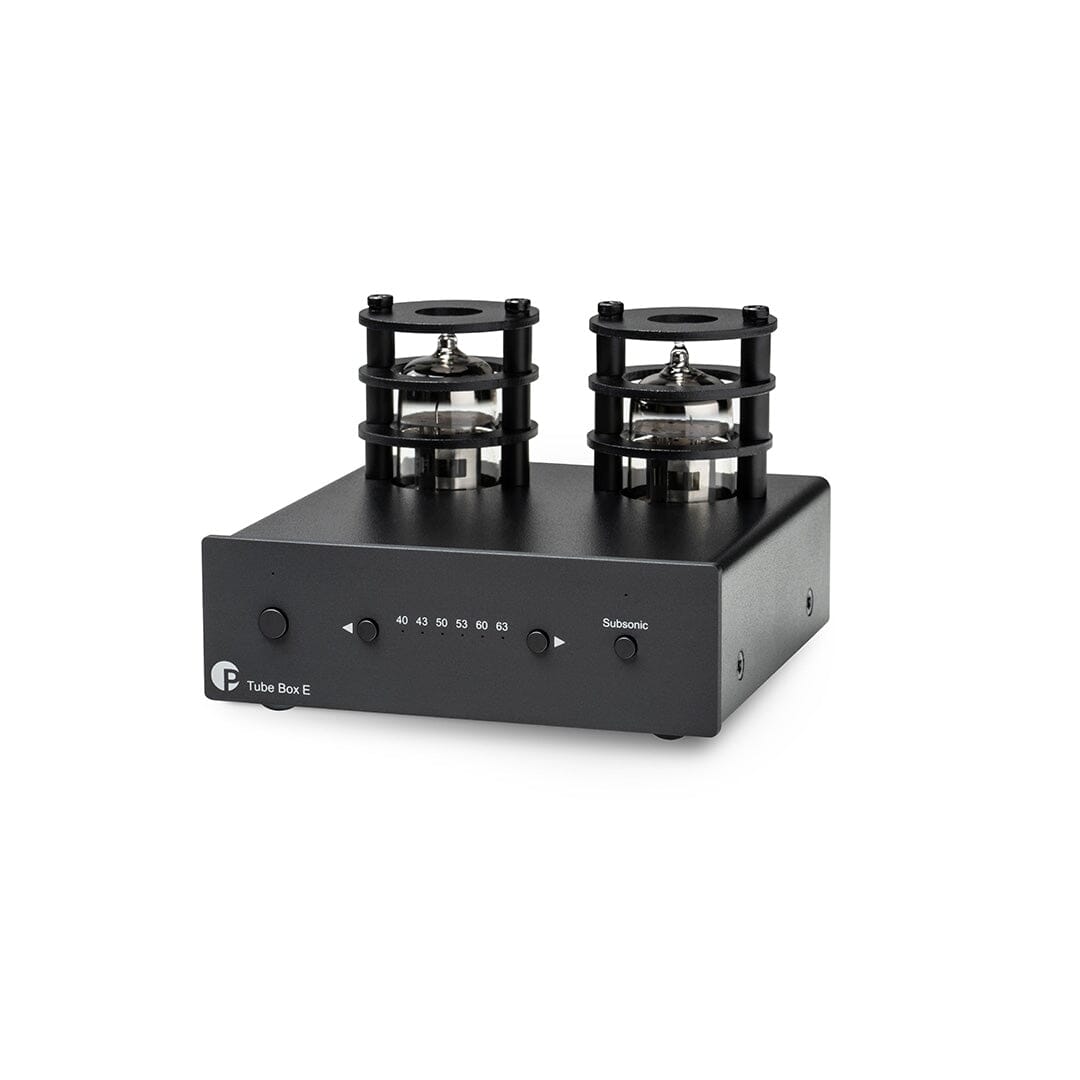

Pro-Ject Tube Box E Phono Stage
Description
Description
Experience warm, analogue sound with this entry-level tube phono stage, designed for vinyl lovers seeking rich audio and flexible cartridge support.
- Precise passive & active RIAA equalisation
- Fully discreet circuit design without OpAmps
- Ultra low noise circuitry with FET input stage
- Well-filtrated high-voltage anode power supply
- MM & MC Compatibility
- Dual-mono electrical design
-
Solid metal casing protects from interferences
Specifications
Specifications
- Tube assembly: 2x ECC83 (12AX7A)
- Input impedance: 10 / 100 / 1k / 2k ohms A
- Capacitance: 47 / 147 / 267 / 367 / 487 / 587 pF / 47k ohms B
- Gain: 40, 43 B / 50, 53 / 60, 63 dB A
- Noise floor: 77 dB (A weighted) at 40 dB input gain, 65 dB (A weighted) at 50 dB and 63 dB input gain
- THD: <0.03% at 40 dB input gain,<0.07% at 50 dB and 63 dB input gain
- RIAA curve accuracy: +/- 0.5 dB / 20Hz – 20kHz
- Subsonic filter: 20Hz @ 18 dB/octave

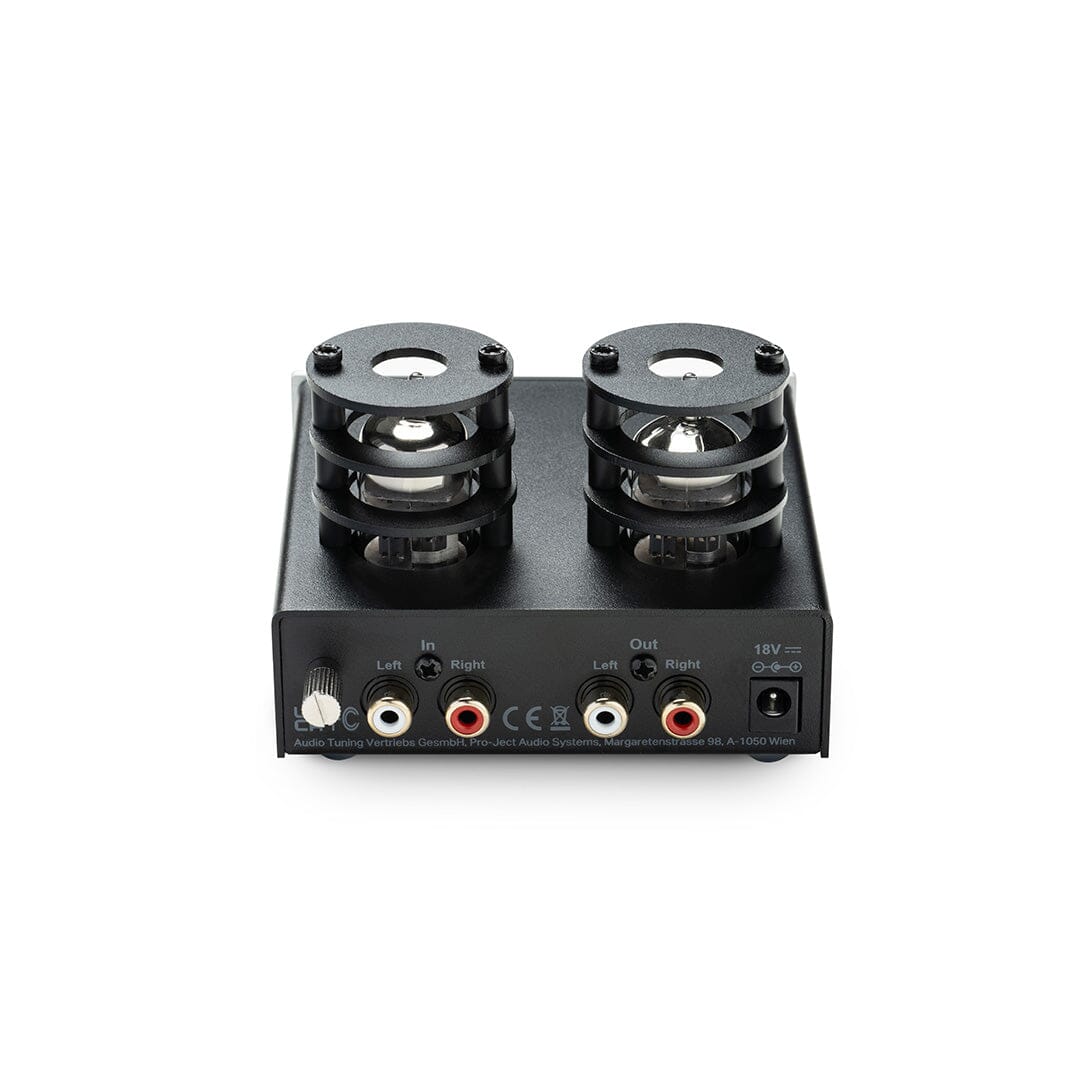

- Input / Output: 1x RCA / 1x RCA
- Outboard power supply: 18V / 1A DC
- Power consumption: 470 mA DC,<1W in standby
- Dimensions (W x H x D): 103 x 73 x 115 (131) mm (with sockets)
- Weight: 0.45kg without power supply
- Warranty: 2 Years
