OSD Audio XPA600 70V Amplifier - 600W

Deliver powerful, professional-grade audio throughout your garden or commercial space.

Designed for large gardens, outdoor areas, restaurants, retail, hospitality, or office environments, this high-efficiency 2-channel Class D amplifier delivers a total output of 600 watts and supports both 70V and 4/8-ohm systems.

It’s an ideal choice for driving multiple outdoor speakers with consistent, high-quality sound.

This versatile amplifier combines robust performance with smart integration.

It includes RS232 control, 12V trigger input, and IR remote compatibility, allowing seamless integration into custom AV systems.

With rack-mountable design, built-in fan cooling, and versatile connectivity, the AMP200VS is built for commercial reliability and ease of use.

FEATURES

• High Power Output: Delivers a combined 600 watts (2 x 300W @ 4Ω), ensuring ample volume and headroom for large installations.
• 70V/4-8 Ohm Compatibility: Easily supports distributed audio setups with 70V systems or standard low-impedance speakers.
• RS232 Control Integration: Enables advanced automation and control via third-party systems, ideal for commercial AV installers.
• 12V Trigger Input: Offers synchronised on/off control with other system components for streamlined operation.

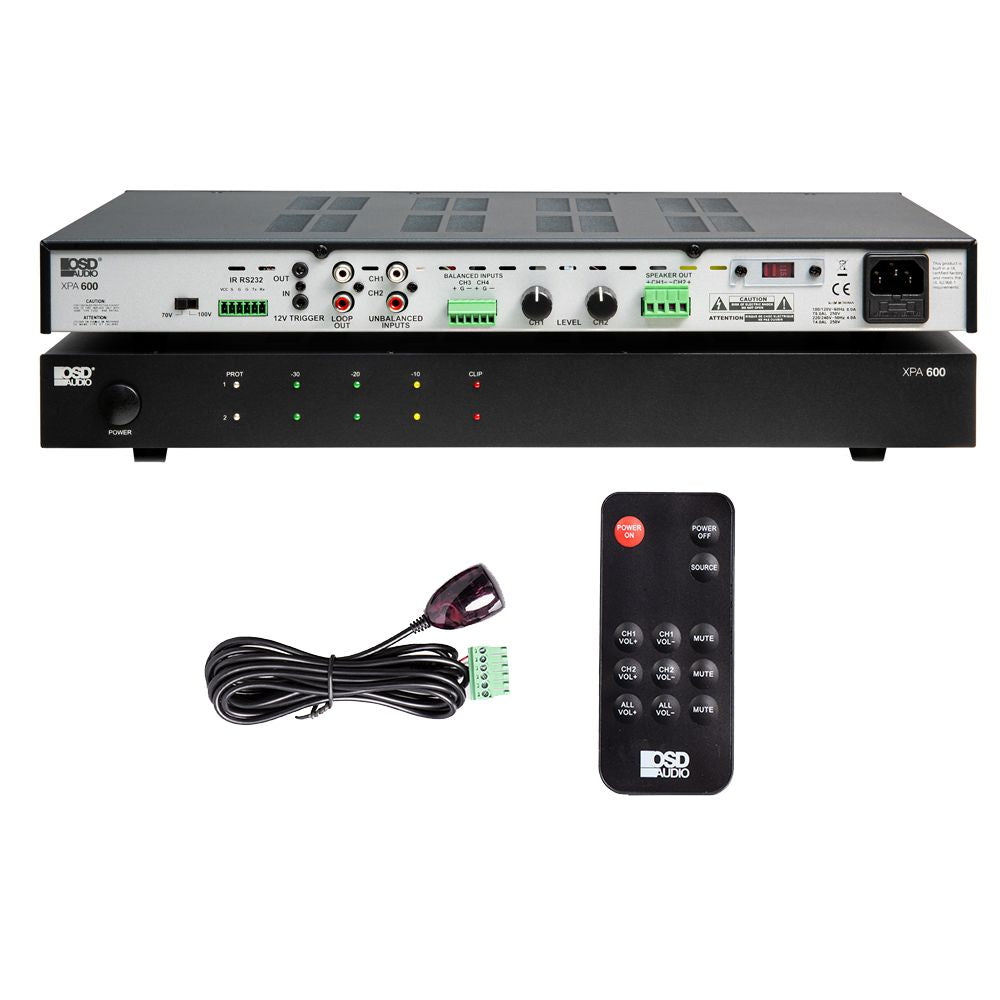

• Remote Control Access: Includes IR remote functionality for convenient volume and input control without accessing the rack.
• Class D Efficiency: Operates with low heat and energy consumption, reducing power costs and improving longevity.
• Rack Mountable Design: Comes with removable rack ears, making it easy to integrate into standard 19” AV equipment racks.

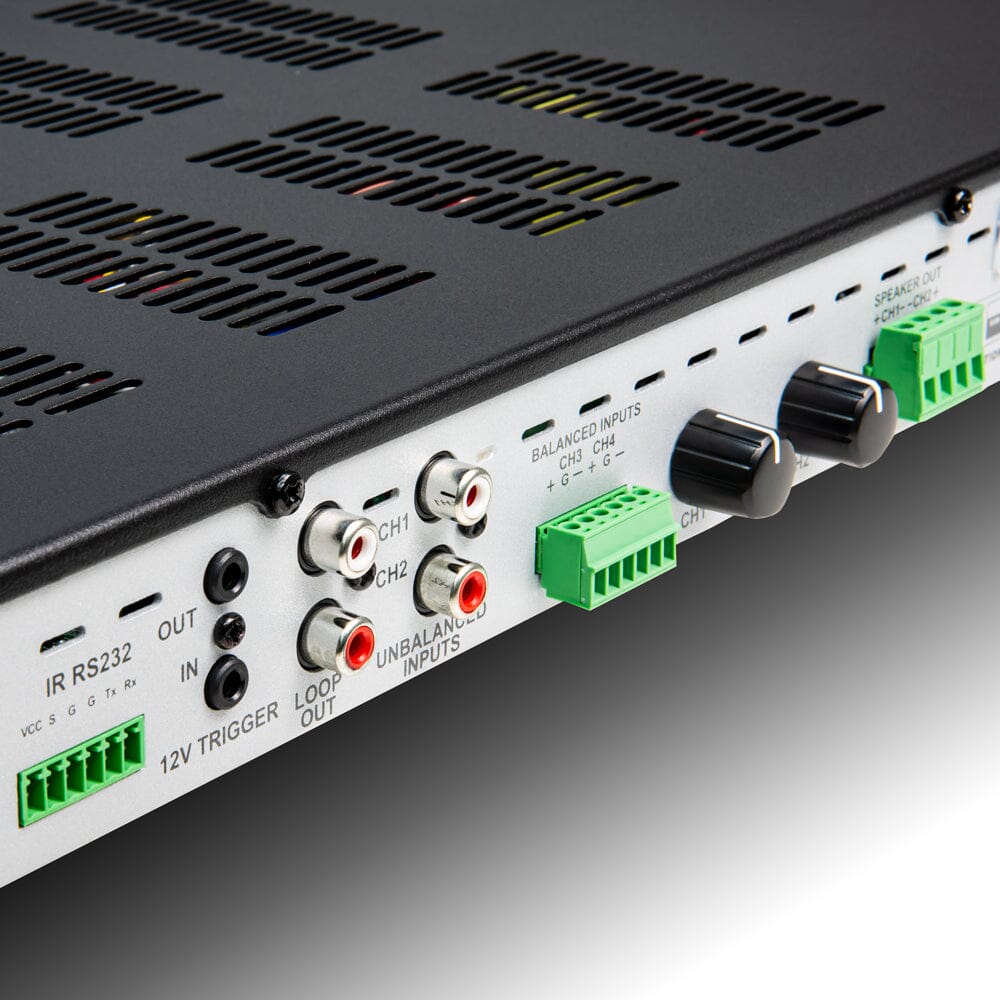

• Multiple Audio Inputs: Features stereo RCA line input and mono balanced XLR input, supporting a range of source devices.
• Fan Cooled Chassis: Keeps the amplifier running reliably even in demanding commercial environments.

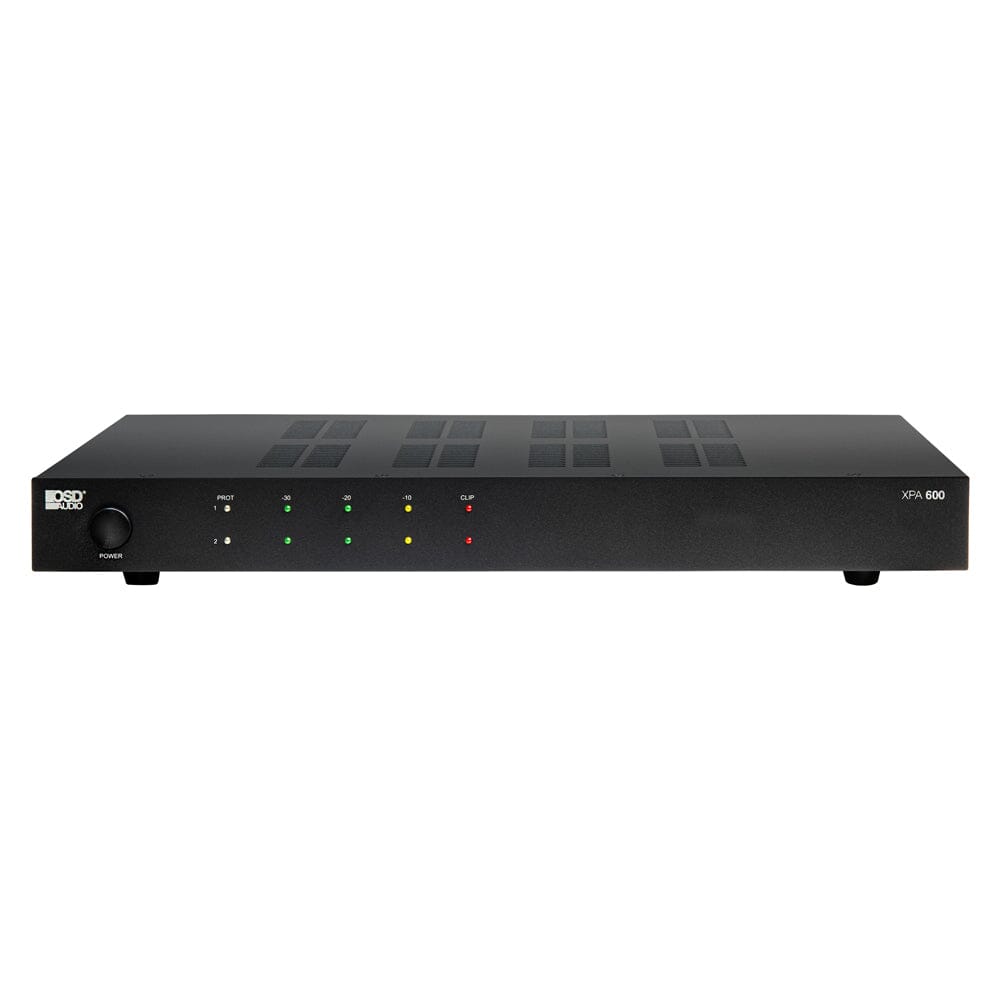

• Front Panel Controls & Indicators: Volume control, power switch, and LED status lights ensure easy monitoring and adjustments.
• Short Circuit and Overload Protection: Safeguards your equipment with built-in safety mechanisms for worry-free operation.
• Compact but Durable Build: Designed for professional installations with a sturdy metal chassis built to last.

What You Get

• 1 x Amplifier
• 1 x Power Lead
• 1 x Rack Mount Ears
• 1 x User Manual

Specifications

• Amplifier Type: Multi Channel: 70V / 100V
• Amplifier Class: Digital Class D
• Channels: 2
• Power Handling: 300W Per Channel
• Max Power Output: 600W Total
• Frequency Response: 20Hz - 22kHz +0/-2dB
• Signal to Noise Ratio: >90dB A Weighted
• Line Level Input Sensitivity: 510mV
• Inputs: Balanced and Unbalanced
• Output: Unbalanced Loop Line Output to Another Amplifier
• 12V Trigger Mode: Yes
• Fan Cooled: Yes
• Rack Mountable: Yes
• Remote Control: Yes
• Dimensions (L x H x D): 432mm x 43mm x 239mm
• Weight: 4.2kg
• Rating: UL/CE
• Warranty: 2 Years
