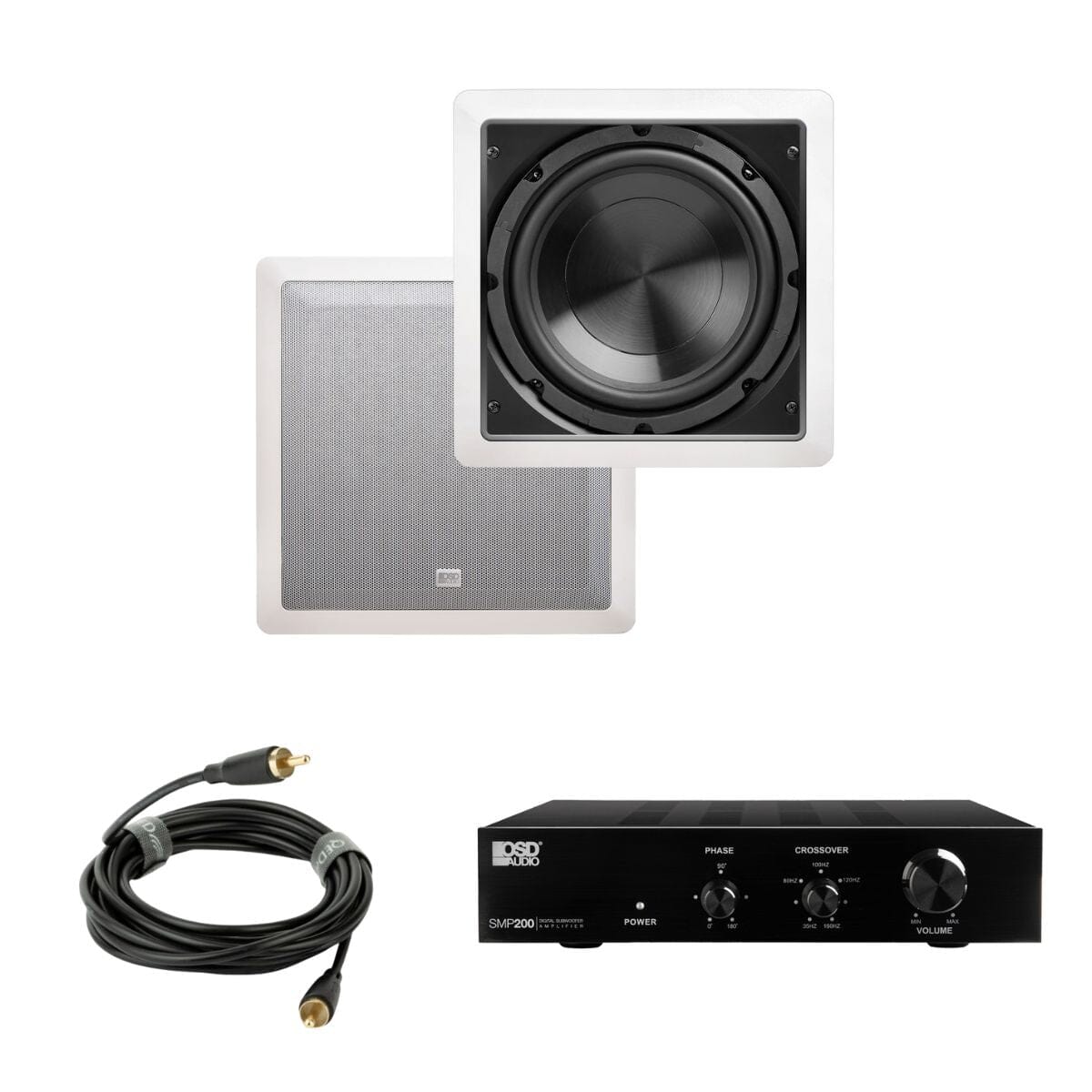

OSD Audio SMP200 + IWS8 8" In Wall Subwoofer Package - 200W

Bring deep, controlled bass to your home audio system with the OSD Audio SMP200 and IWS8 in-wall subwoofer package.

Perfect for home cinemas, media rooms, or living spaces where floor space is limited, this discreet system delivers impressive low-frequency performance without the clutter of a floor-standing subwoofer.

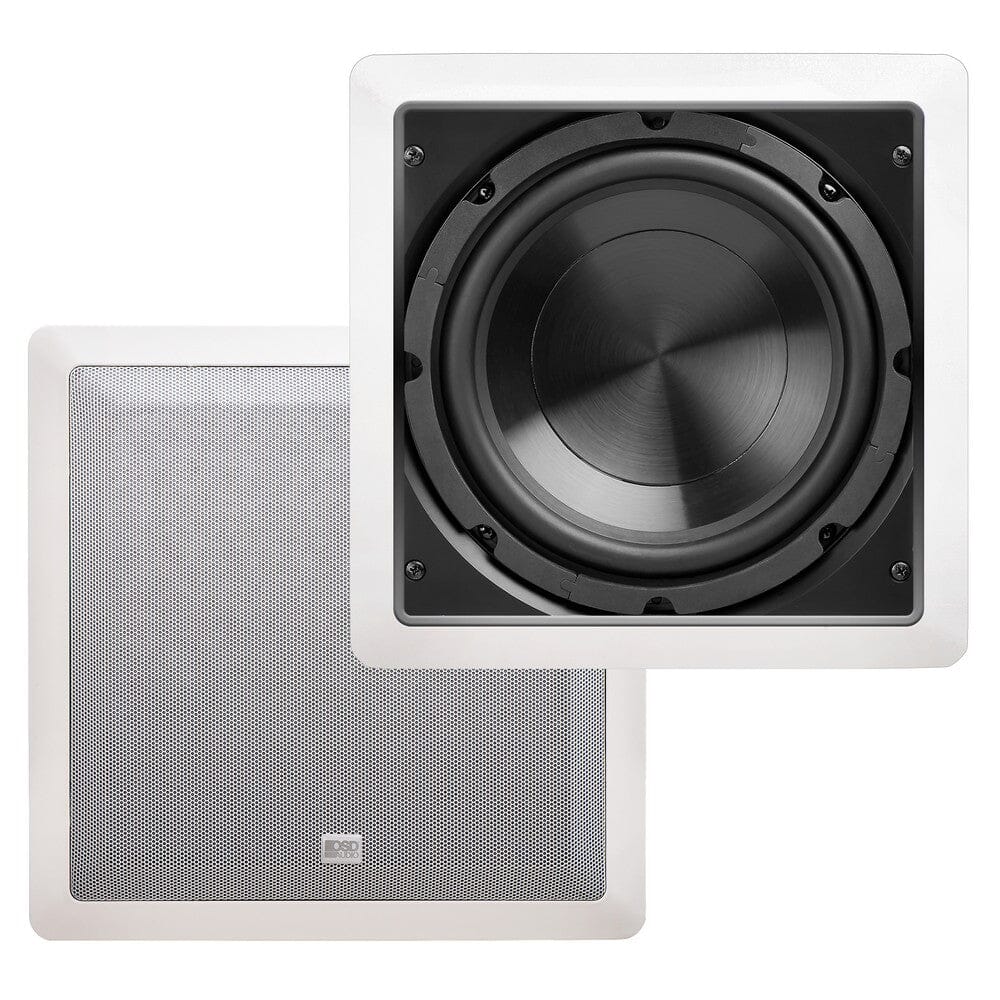

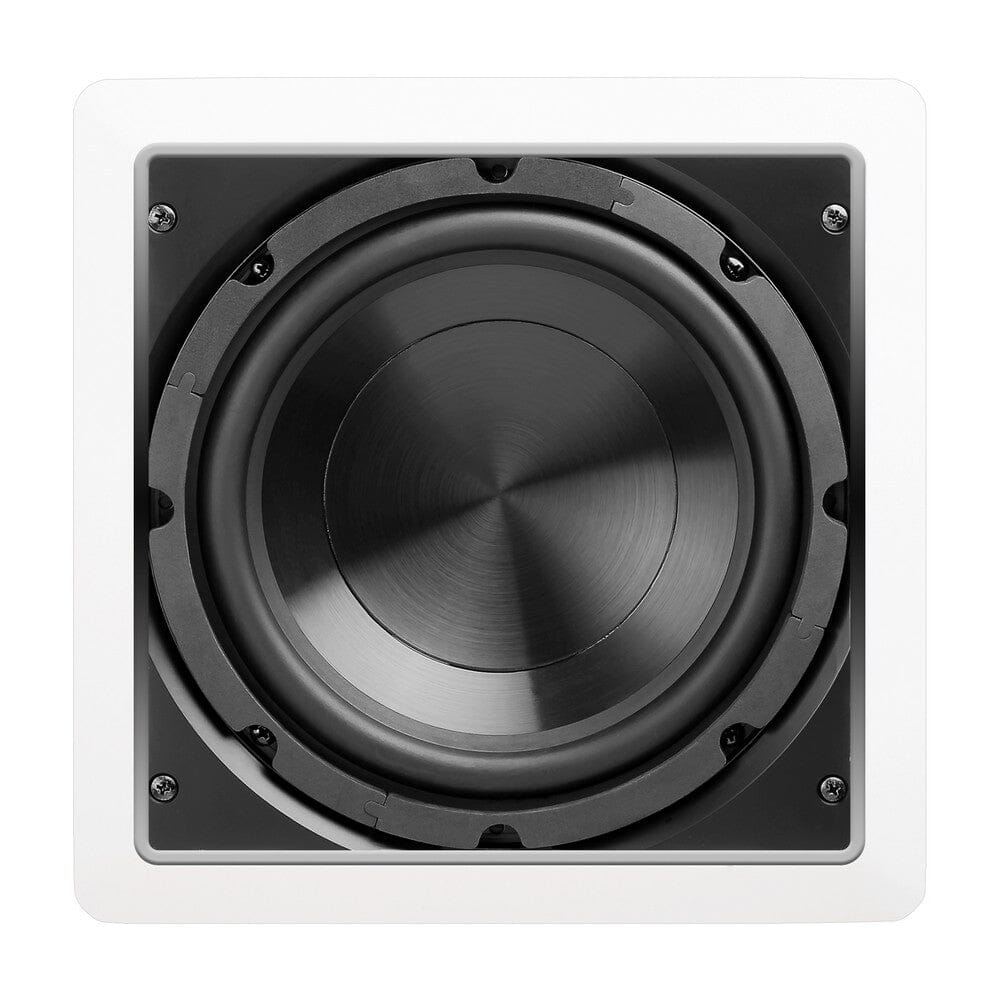

The OSD Audio IWS8 8" in-wall subwoofer blends seamlessly into your room design, providing a clean, flush-mounted installation with powerful bass response.

Driving the subwoofer is the SMP200, a 200W mono amplifier designed specifically for in-wall and in-ceiling subs, ensuring efficient power delivery and precise control over your low frequencies.

FEATURES

• Dedicated Subwoofer Amplifier: The SMP200 delivers up to 200W of power, perfectly matched to the IWS8 for tight, punchy bass.
• Custom Low-Frequency Driver: The IWS8 features an 8" long-excursion woofer designed to deliver deep, resonant bass from within the wall.
• Space-Saving Design: Flush-mounted installation keeps the subwoofer hidden in the wall, freeing up floor space while maintaining premium sound quality.
• Adjustable Controls: Fine-tune your bass performance with variable crossover and phase controls on the SMP200, ensuring seamless integration with your main speakers.
• Durable Build: Both the amplifier and in-wall subwoofer are engineered for long-lasting performance with high-quality components.
• Versatile Applications: Ideal for home theatres, living rooms, or any multi-room audio system requiring discreet yet impactful bass.

This package combines performance and practicality, making it easy to achieve rich low-end sound in a discreet and stylish setup.

What You Get

AMPLIFIER

• 1 x SMP200 Amplifier
• 1 x Power Cable

SUBWOOFER

• 1 x Subwoofer
• 1 x Grille
• 1 x Cut Out Template
• 1 x Instruction Manual

CABLES

• 10m x 2 Core Speaker Cable
• 1 x QED Connect 3M Subwoofer Cable

Specifications

AMPLIFIER

• Amplifier Type: Subwoofer
• Amplifier Class: Digital Class D
• Channels: 1
• Power Output: 200 Watts @ 4 Ohm
• Power Output: 120W RMS @ 8 Ohm w/ 240W Peak
• Power Output: 200W RMS @ 4 Ohm w/ 400W Peak
• Frequency Response: 20Hz-160Hz +/-1dB THD: 1%
• Variable Crossover: 35Hz-160Hz
• Variable Phase Switch: 0 To 180 Degrees
• Impedance: 8 Ohm And 4 Ohm Stable
• Signal To Noise Ratio: 95dB
• 12V Trigger Mode
• Inputs: Speaker (High) Level / Signal (Low) Level RCA
• Dimensions (L x H x D): 216mm x 44mm x 249mm
• Weight: 3.0kg
• Warranty: 2 Years

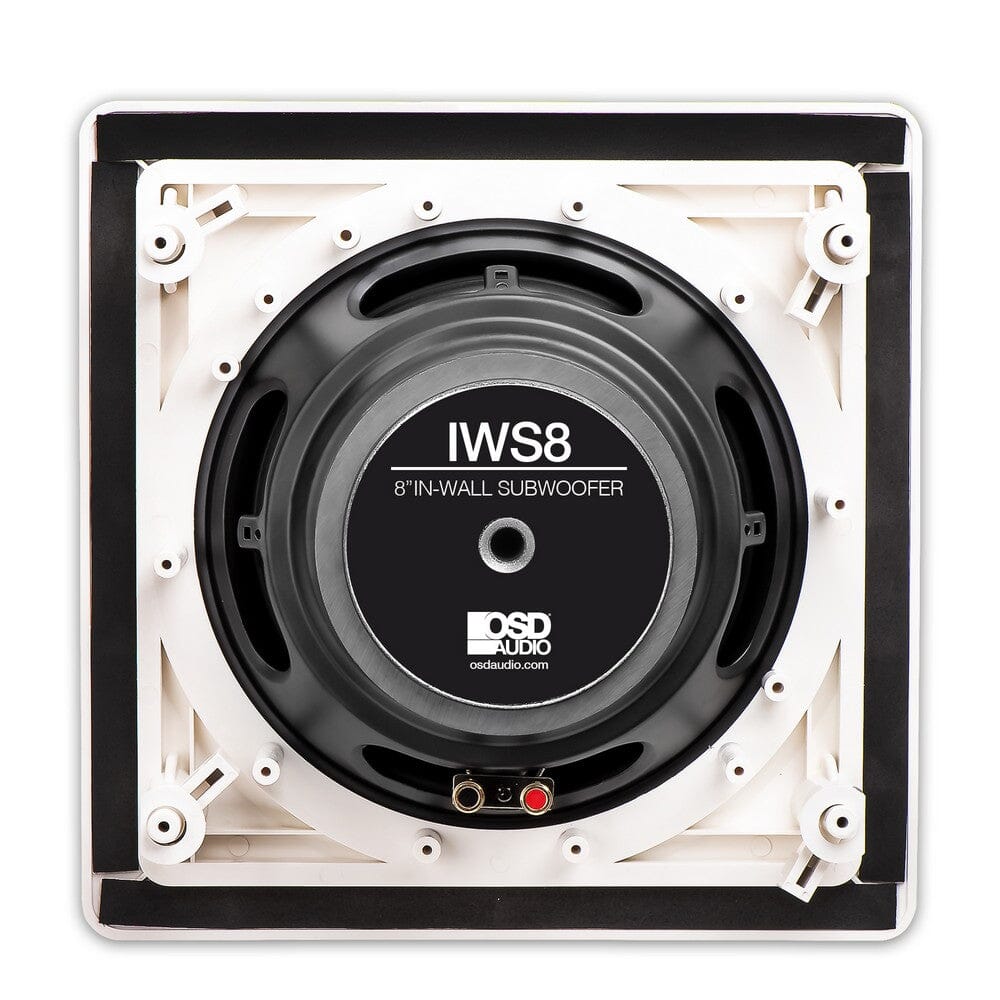

SUBWOOFER

• Speaker Type: 8"In-Wall Subwoofer
• Woofer: 8"Polypropylene
• Frequency Response: 40Hz - 200Hz +/-3dB
• Power Handling: 150 Watts
• Sensitivity: 2.83V/1m: 87 dB
• Impedance: 8 Ohms
• Inputs: Spring Binding Posts
• Installation: Install-Friendly Dog Ear Installation Brackets
• Included: Cut-Out Template For Easy Installation
• Grille: Paintable Grille&Frame Included
• Dust Shield: Integrated Rear Dust Shield
• Sold As: Single

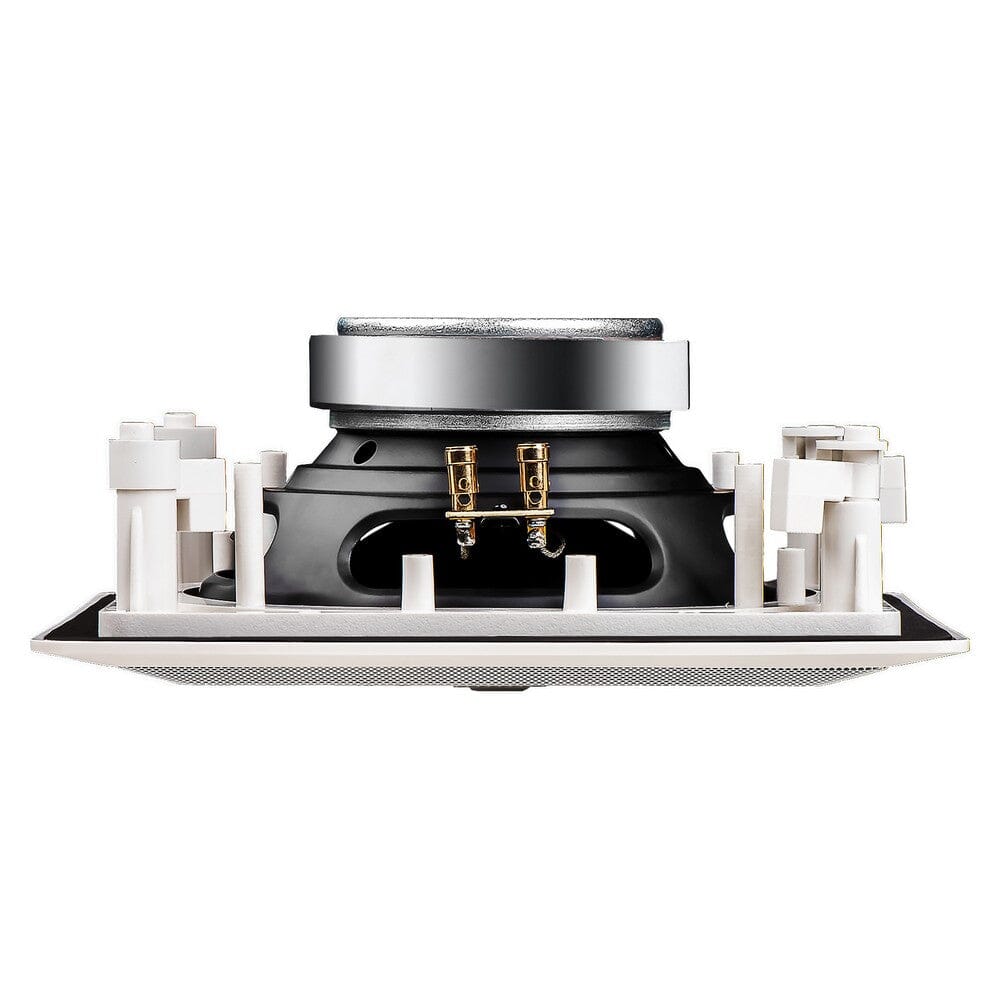

• Mounting Depth(Assuming 13mm Drywall): 92mm
• Unit Dimensions(L x H x D): 254mm x 254mm x 91mm
• Cutout Dimensions(L x H): 222mm x 222mm
• Weight: 2.9kg
• Warranty: 10 Years
• Note: Requires Additional Subwoofer Amplifier
