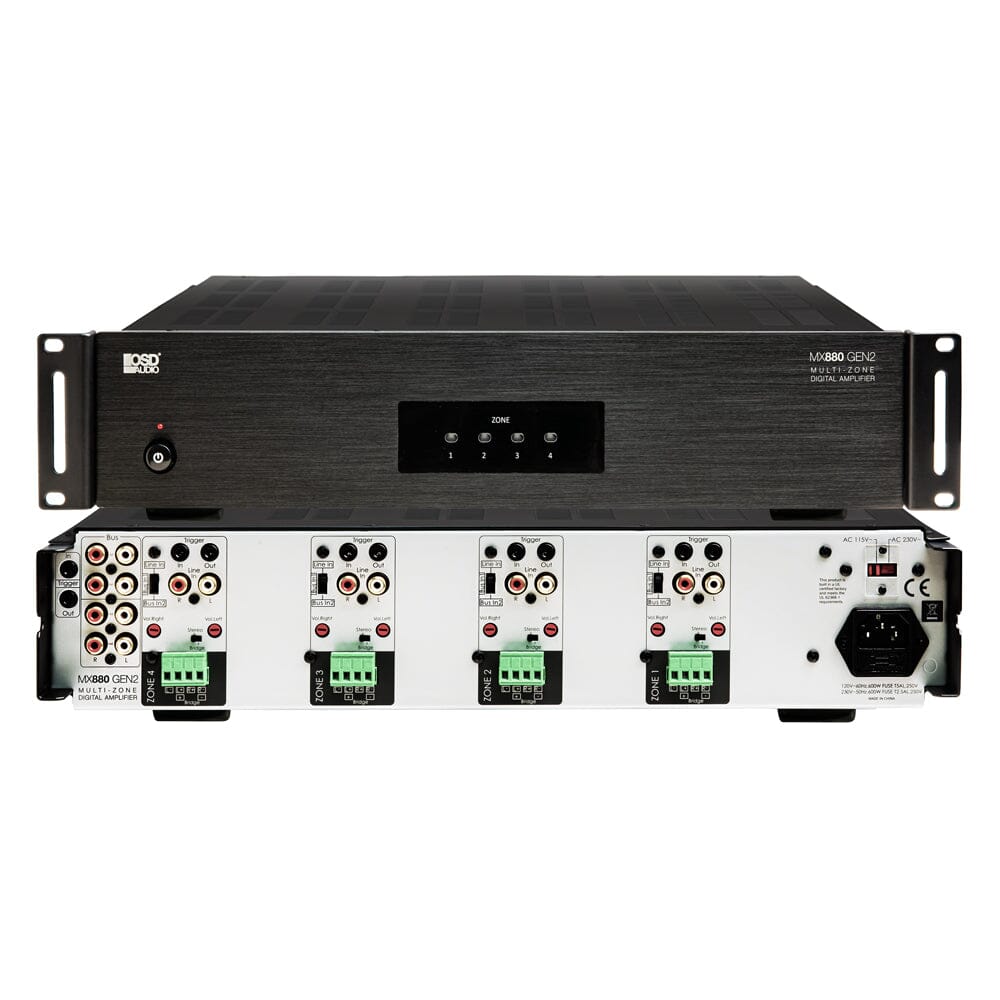

OSD Audio MX880 80W 4 Zone Amplifier

The OSD Audio MX880 is a powerful multi-room amplifier designed to distribute audio across up to four separate zones in your home or commercial space.

With eight channels of amplification delivering up to 80 watts per channel, it provides the power and flexibility needed for whole-home audio systems, background music installations, and multi-room entertainment setups.

Ideal for pairing with ceiling speakers or outdoor speaker systems, the MX880 allows each zone to play the same source or different audio sources depending on your system configuration.

Its rack-mountable design and reliable Class D amplification make it a practical choice for installers and homeowners who want efficient, high-quality sound distribution across multiple rooms.

FEATURES

• Four-Zone Multi-Room Audio: Power up to four separate listening areas from a single amplifier, making it ideal for whole-home audio systems in kitchens, living rooms, bedrooms, and outdoor spaces.

• Eight Channels Of Amplification: Delivers up to 80W per channel, providing strong, clean power for pairs of speakers in each zone without requiring multiple amplifiers.

• Efficient Class D Design: Modern Class D amplification runs cooler and more efficiently than traditional designs, ensuring reliable long-term performance with reduced energy consumption.

• Independent Zone Control: Each zone has its own level control, allowing you to balance the sound levels in different rooms to suit how each space is used.

• Multiple Source Inputs: Connect multiple audio sources such as music streamers, media players, or preamps and distribute them throughout your system.

• 12V Trigger Input And Output: Integrates easily with home automation systems or AV equipment, allowing the amplifier to power on automatically when your system is in use.

• Rack-Mountable Installation: Designed for professional installations, the MX880 fits neatly into standard AV racks for a clean and organised equipment setup.

• Speaker Protection Circuitry: Built-in protection helps safeguard your speakers and amplifier from overheating, short circuits, and overload conditions.

What You Get

• 1 x Amplifier
• 1 x Power Lead
• 1 x User Manual

Specifications

• Amplifier Type: Multi Channel
• Amplifier Class: Class D
• Channels: 8 Each, 4 Stereo Zones
• Power Handling: 50W (RMS) / 100W (MAX) Per Channel @ 8 Ohm, 80W (RMS) / 160W (MAX) Per Channel @ 4 Ohm
• Bridged Rating: 160W (MAX) @ 8 Ohm
• Impedance: 8 Ohm and 4 Ohm Stable
• Frequency Response: 20Hz to 20KHz +1.7/-1dB at 1W output into 8 Ohms
• Signal to Noise Ratio: 90 dB A-weighted
• 12V Trigger Mode: Bus

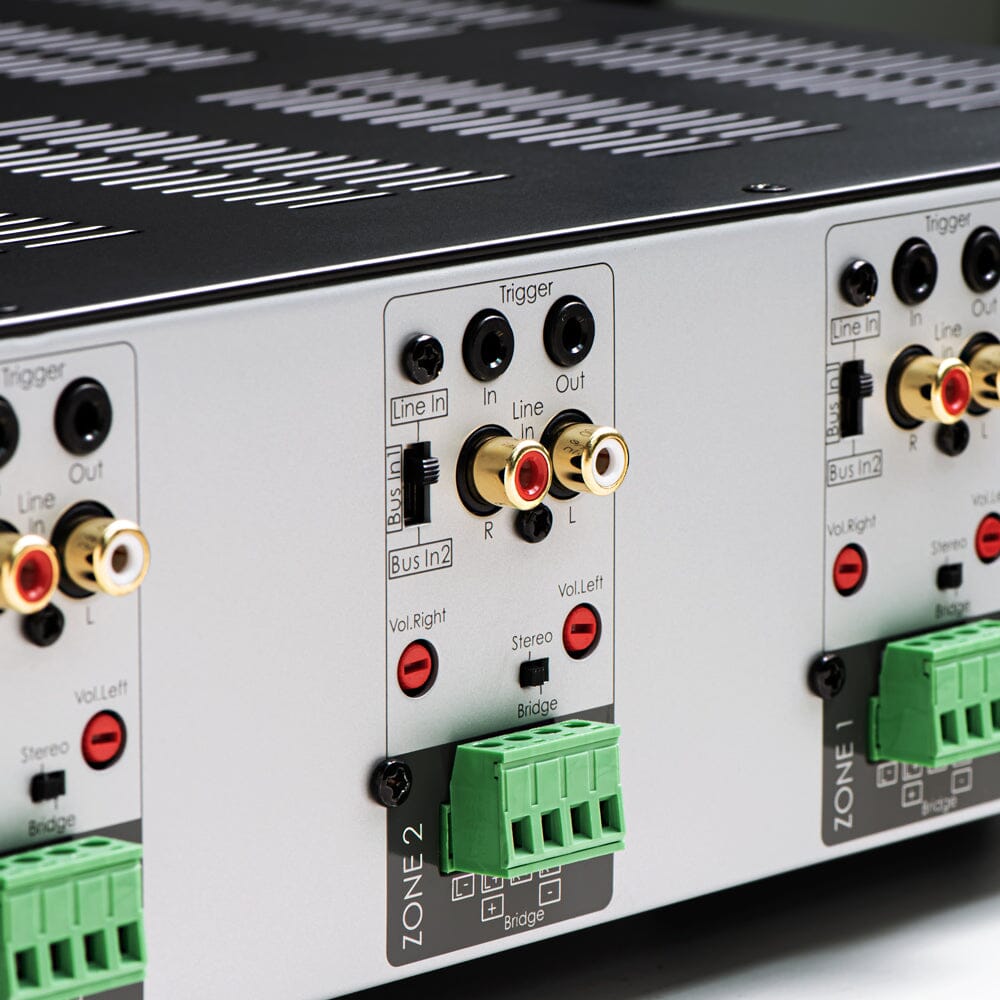

• Zone Line Input: Line In, Bus In 1, Bus In 2 Per Zone
• Output Controls: Individual Output Level Controls for Each Channel
• Speaker Connectors: Detachable Speaker Terminals, up to 14AWG
• Rack Mountable: Yes
• Dimensions: 42.7 × 8.8 × 417mm
• Weight: 8.6 kg
• Warranty: 2 Years
