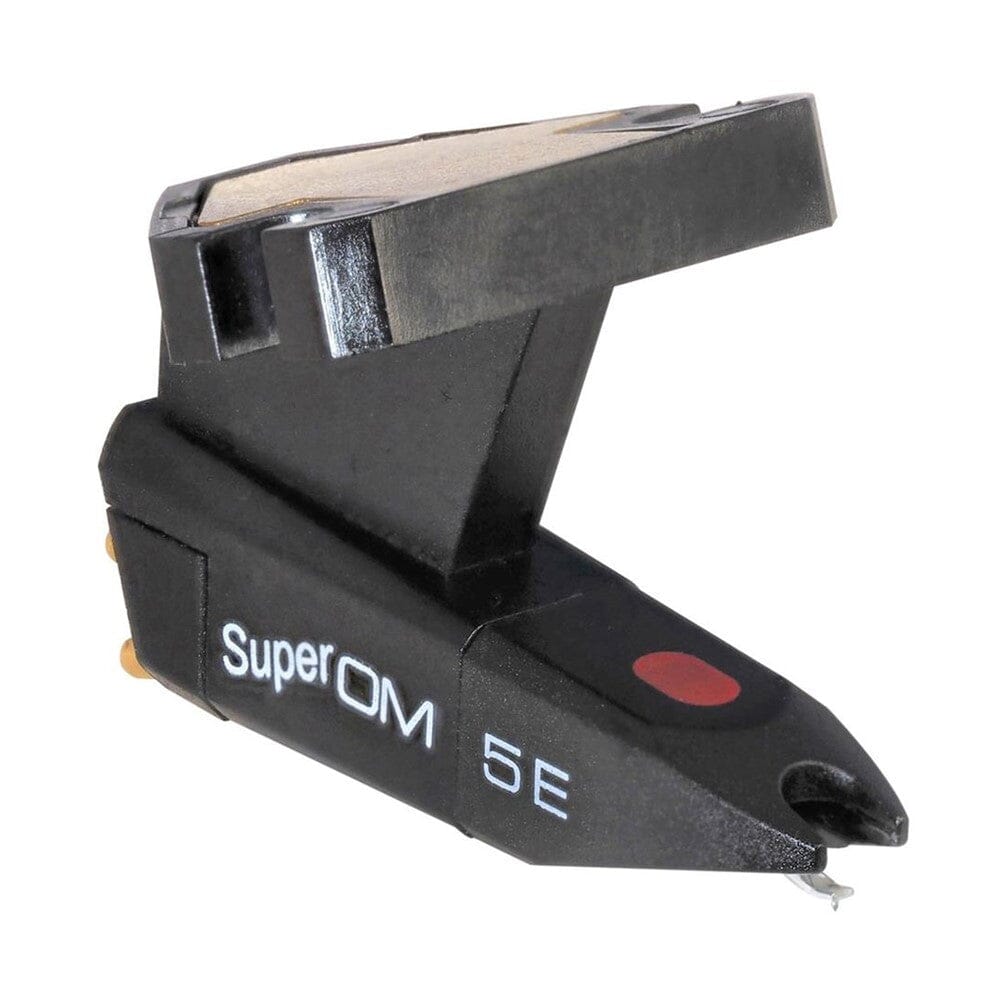

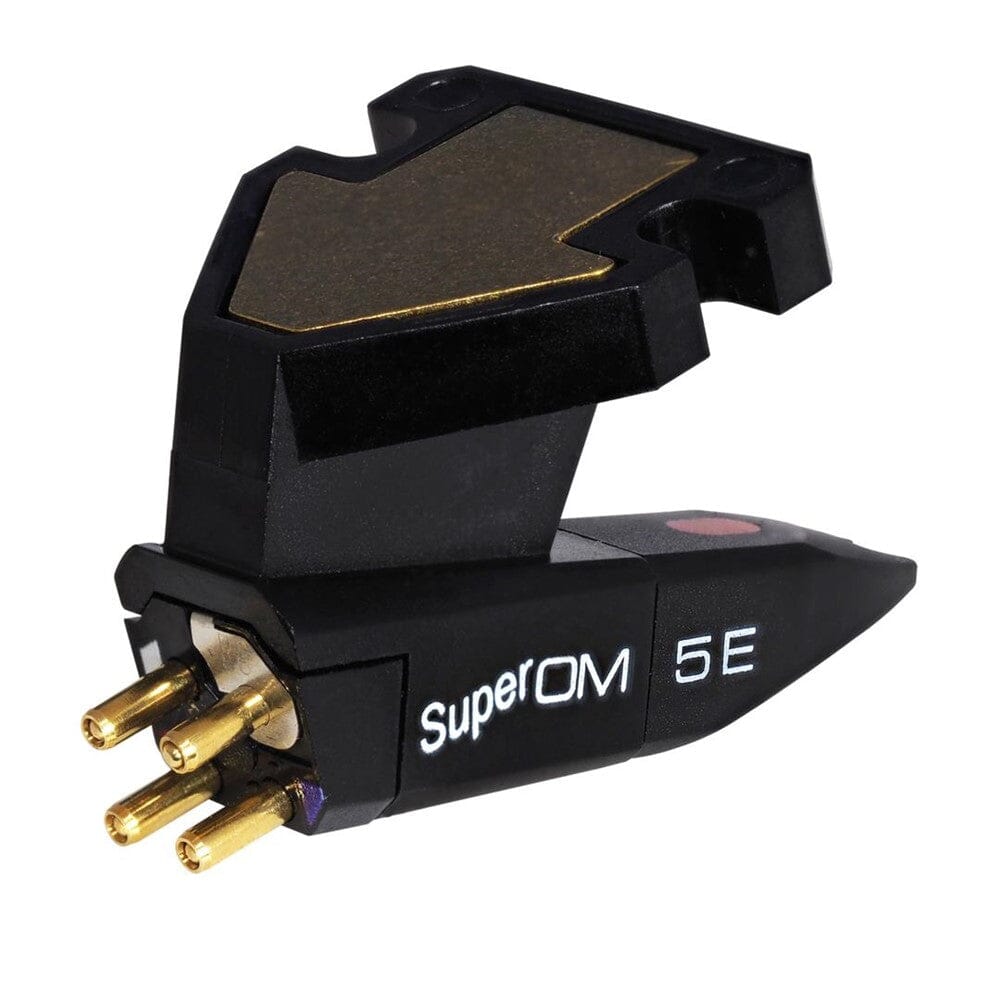

Ortofon Super OM 5E Cartridge
Need Advice? Call 02393 190955
Need Advice? Call 02393 190955
We’re more than just an online retailer. We’re passionate about audio and offering the best customer service in the industry.
Need some advice? Call our audio experts on 02393 190955, live chat or email us and we’ll help you make the best decision. Learn More
Warranty + 60 Day Returns
Warranty + 60 Day Returns
DELIVERY
All orders to mainland UK over £99 are eligible for free standard delivery.
Need it fast? No problem, you’ll find express next day delivery rates available on most products. Learn More
RETURNS
We’re so confident that you’ll be happy with your purchase that we’ve extended our returns policy to 60 days. We call it the “Happy Sound Guarantee”.
If you’re not happy with your purchase for any reason simply send it back to us for a full refund. Learn More
Found A Cheaper Price?
Found A Cheaper Price?
Description
Description
The Super OM 5E takes the standard OM design but bridges the gap with the 2M series by employing split pole pin technology for an improved performance.
FEATURES
- Tipped Elliptical diamond stylus profile
- Moving magnet cartridge with removable stylus
- Utilises Ortofon's split-pole pin technology to reduce the eddy current and to get a flat frequency response, like with an MC cartridge
- Interchangeable with other styli from the OM range
- Lightweight Noryl body with anti-resonant properties
The OM Series is the lowest-mass range of moving magnet (MM) cartridges offered by Ortofon. All cartridges in the series offer a minimal design profile for easy mounting and alignment, and they also all offer a clear, loud output for easy pairing with a phono stage. They truly warrant their name as "Optimum Match" (OM) cartridges.
As well as being easy to fit to any tonearm/headshell system, all OM cartridge bodies also benefit from a removable weight, housed above the mounting bracket. For standard tonearms you can leave the weight in place. However, for low-mass tonearms you have the ability to remove it, reducing the overall cartridge weight to just 2.5g.
The Super OM 5E also boasts an improved generator system compared to the standard OM 5E. In this generator system, the same split-pole pin technology that's found on the coveted 2M range is used. Split pole pins reduce eddy current losses caused by magnetic hysteresis, resulting in an extended, flat frequency response, similar to that found on a moving coil cartridge.
The Super OM 5E features an Elliptical (E) stylus that provides balanced and distortion-free playback. Elliptical diamonds are able to follow the groove oscillations more accurately than spherical diamonds due to their contoured shape. This results in better tracking and less distortion.
Specifications
Specifications
- Channel balance at 1 kHz: 1.5 dB
- Output voltage at 1 kHz, 5cm/sec: 4 mV
- Channel seperation at 1 kHz: 22 dB
- Channel seperation at 15 kHz: 15 dB
- Frequency response 20 Hz - 20 kHz: 20-22.000 Hz + 3 / -3
- Tracking ability at 315Hz at recommended tracking force: 60 µm
- Compliance, dynamic, lateral: 20 µm/mN
- Stylus type: Elliptical
- Stylus tip radius: r/R 8/18 µm
- Tracking force range: 1.5-2.0 g (15-20 mN)
- Tracking force, recommended: 1.75 g (17.5 mN)
- Tracking angle: 20°
- Internal impedance, DC resistance: 1 kOhm
- Cartridge colour: Black/Black
- Cartridge weight: incl. extra weight 5 g, excl. extra weight 2.5 g
- Recommended load resistance: 47 kOhm
- Internal inductance: 580 mH
- Recommended load capacitance: 200-500 pF
What's In The Box
What's In The Box
- Ortofon Super OM Cartridge inc. Stylus
