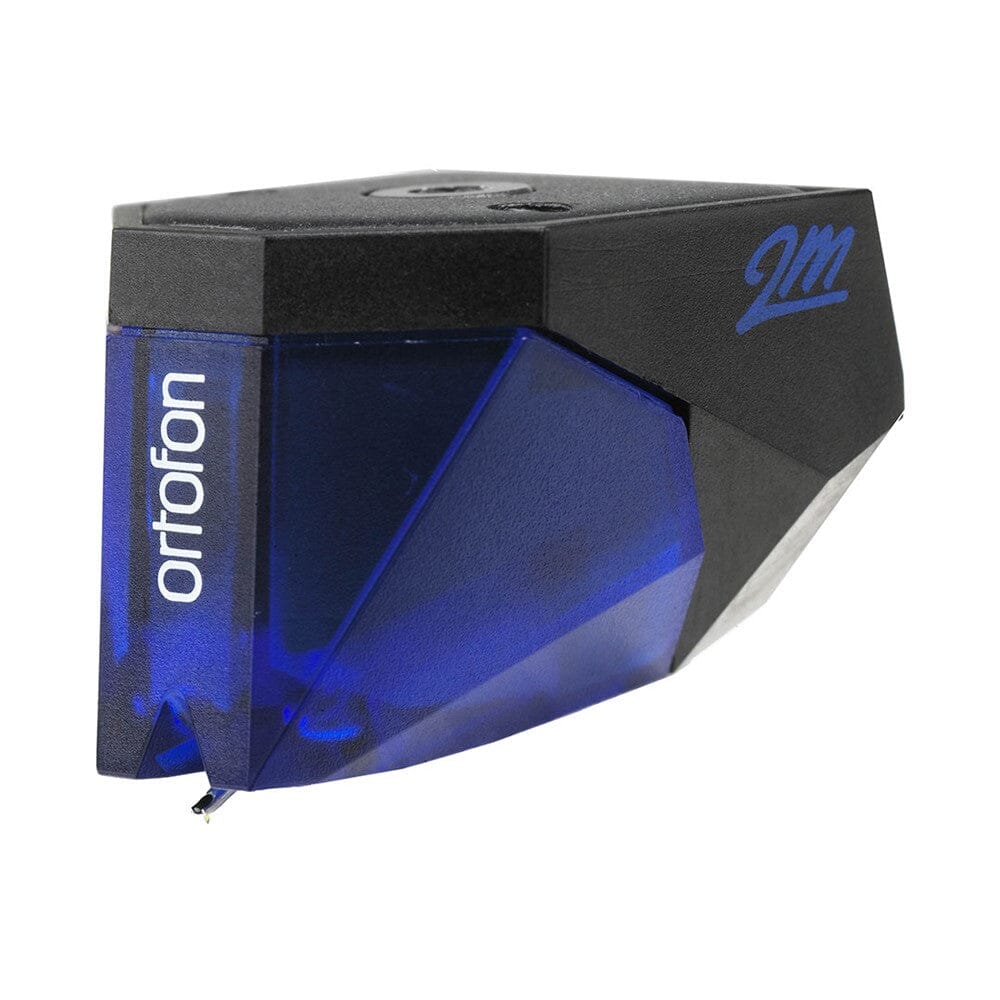

Ortofon 2M Blue Cartridge

The 2M Blue is designed for precise and accurate retrieval of the information in the record groove. Indeed, it is Ortofon's lasting philosophy to only ever play the recorded sound, without colouration.

FEATURES

• Dynamic cartridge with increased resolution and a more open sound
• Nude Elliptical diamond stylus profile
• Overhead mounting cartridge for installing into a headshell
• Moving magnet cartridge with removable stylus
• Utilises Ortofon's split-pole pin technology to reduce the eddy current and to get a flat frequency response, like with an MC cartridge
• Can be upgraded with other styli from the Ortofon 2M range

What You Get

• 1 x 2M Blue Cartridge inc. Stylus

Specifications

• Channel balance at 1 kHz: 1.5 dB
• Output voltage at 1 kHz, 5cm/sec: 5.5 mV
• Channel seperation at 1 kHz: 25 dB
• Channel seperation at 15 kHz: 15 dB
• Frequency response 20 Hz - 20 kHz: 20-20.000 Hz + 2 / - 1 dB
• Tracking ability at 315Hz at recommended tracking force: 80 µm
• Compliance, dynamic, lateral: 20 µm/mN
• Stylus type: Nude Elliptical
• Stylus tip radius: r/R 8/18 µm
• Tracking force range: 1.6-2.0 g (16-20 mN)
• Tracking force, recommended: 1.8 g (18 mN)
• Tracking angle: 20°
• Internal impedance, DC resistance: 1.3 kOhm
• Cartridge colour: Black/Blue
• Cartridge weight: 0.0072kg
• Premounted cartridge weight: 0.0167kg
• Recommended load resistance: 47 kOhm
• Internal inductance: 700 mH
• Stylus colour: Blue
• Recommended load capacitance: 150-300 pF
• Warranty: 1 Year
