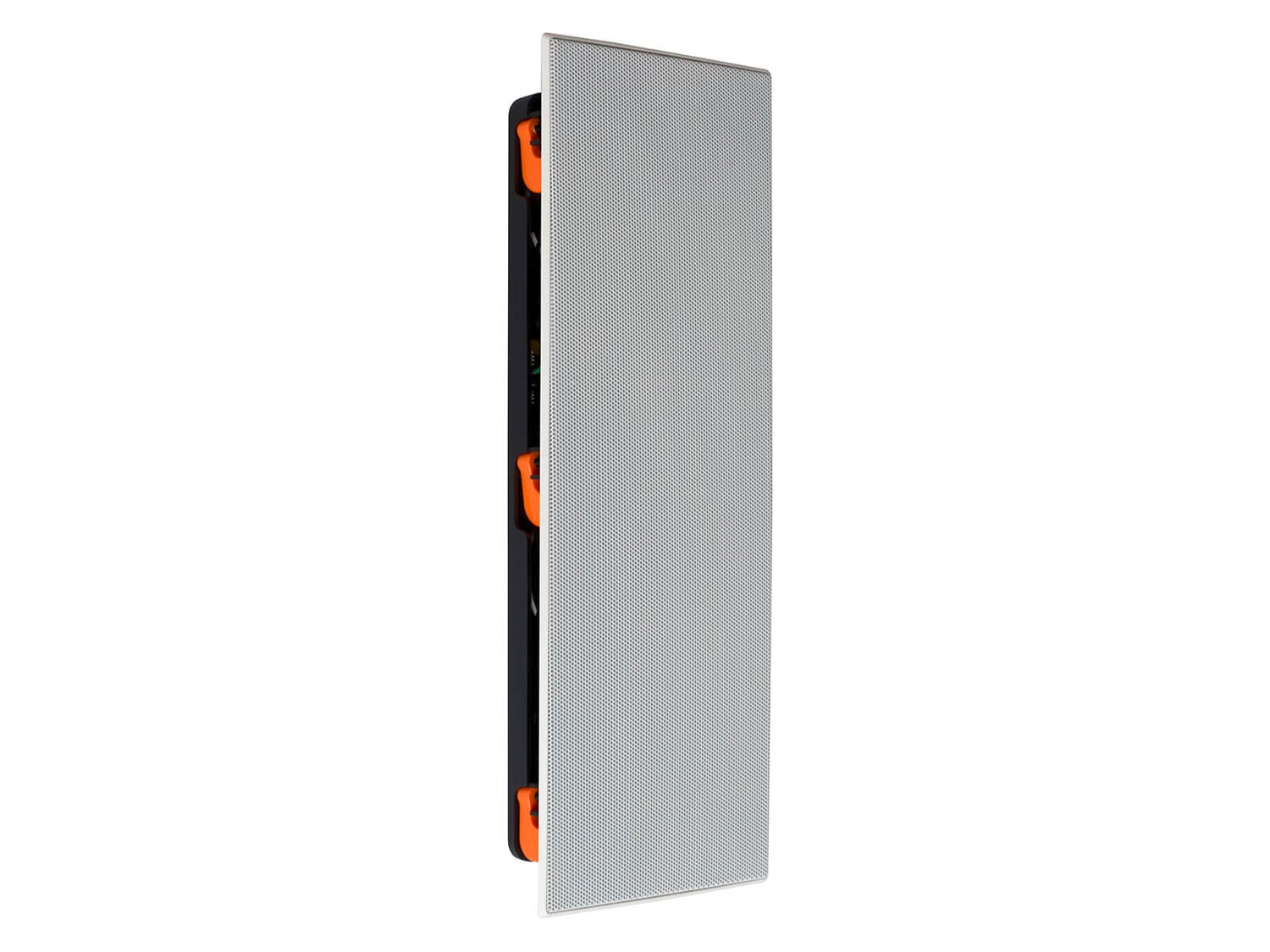

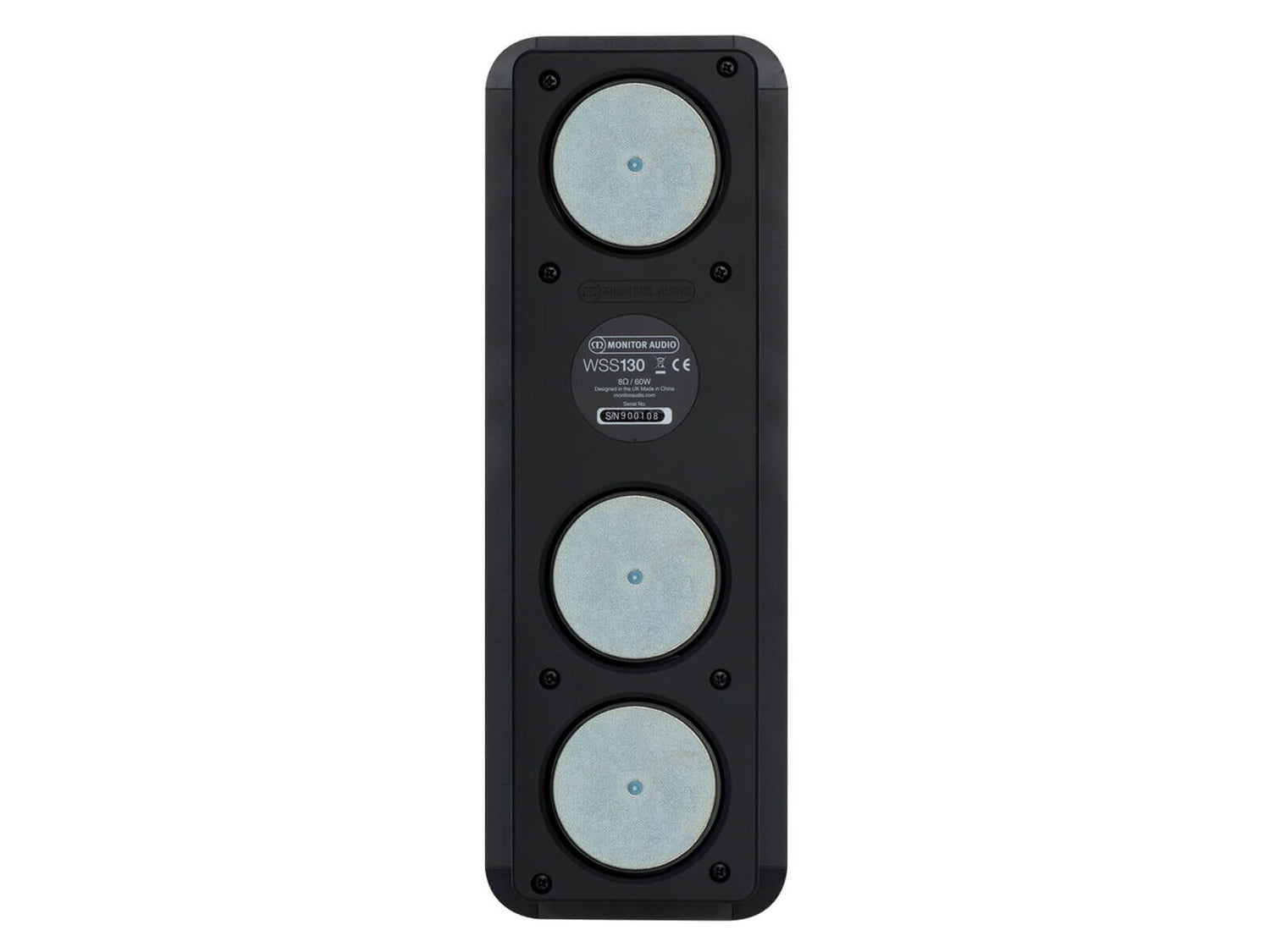

Monitor Audio WSS130 Super Slim In Wall Speaker (Each)

The Monitor Audio WSS130 marks the entry point into the Super Slim in-wall speaker range

It is perfectly suited to multi-room audio and home cinema installations.

A 25 mm Gold Dome tweeter augments MMP II cone drivers, enabling a smooth overall sonic character.

FEATURES

• Super-Slim depth 50 mm (2") – designed to fit in 2" stud walls or where space is restricted
• Designed for portrait or landscape installation – fits between standard 14" stud bays
• Elegant, slim profile only 385 x 140 mm wide
• Three, 3" bass/mid-range drivers featuring incremental technology and performance benefits – MMP II, C-CAM and dished C-CAM cones
• 25 mm C-CAM Gold Dome tweeter used on WSS130 and WSS230 models. WSS430 utilises MPD high frequency transducer from Platinum IC model and flagship Platinum II speaker range
• High quality crossover components – Selected and voiced for amazing sonic performance

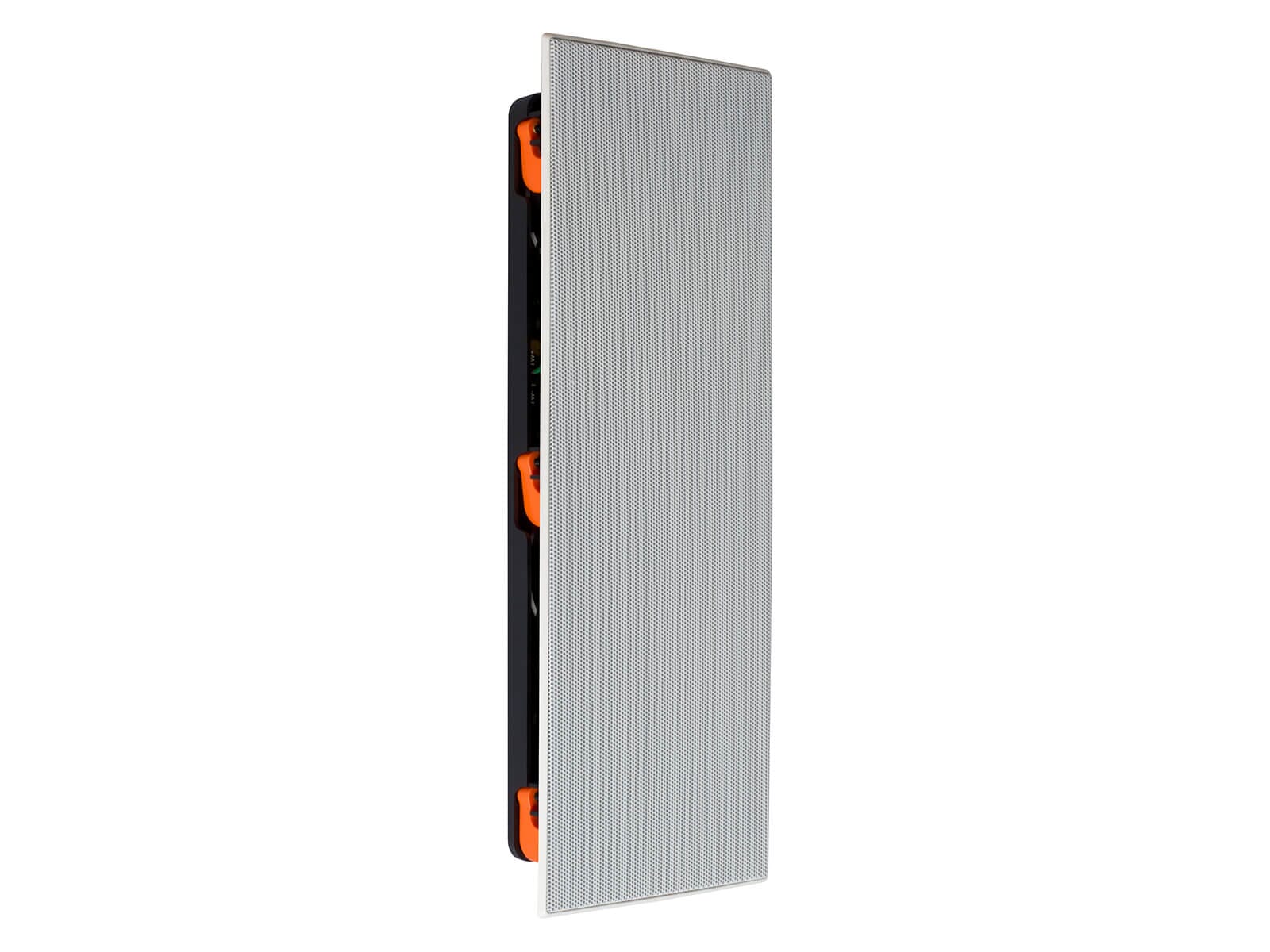

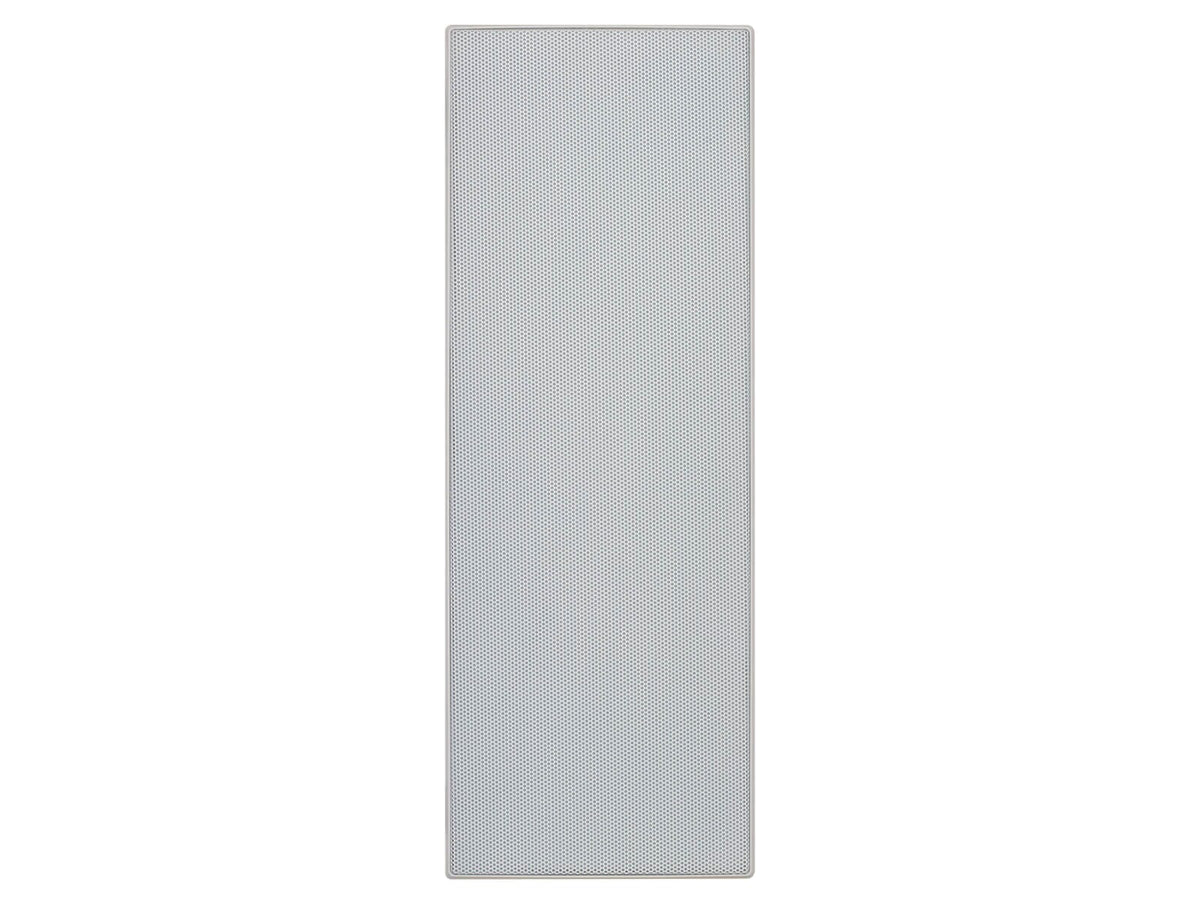

• Magnetically attached ‘trim-less’ grille – discreet, reliable, and easy servicing

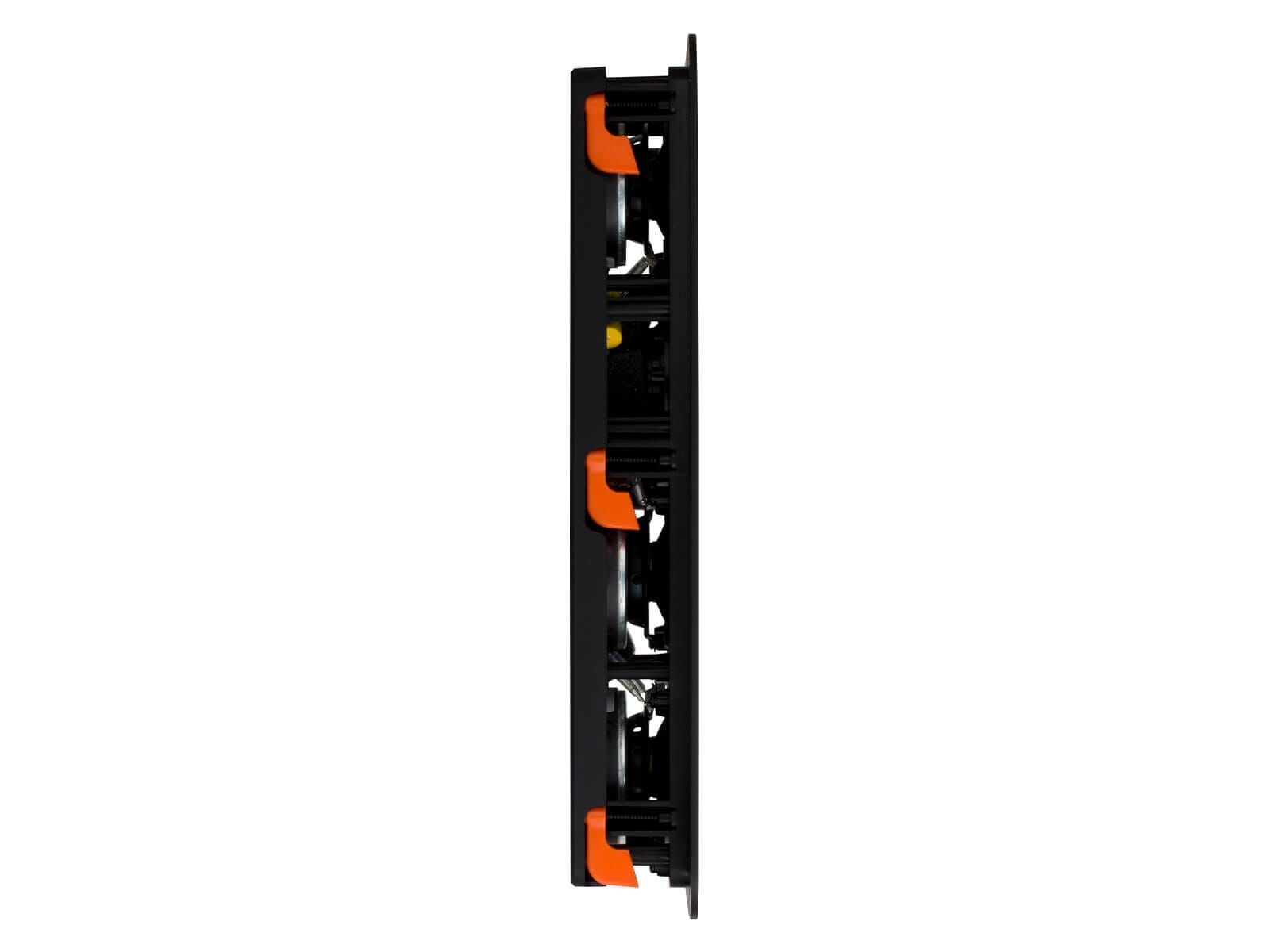

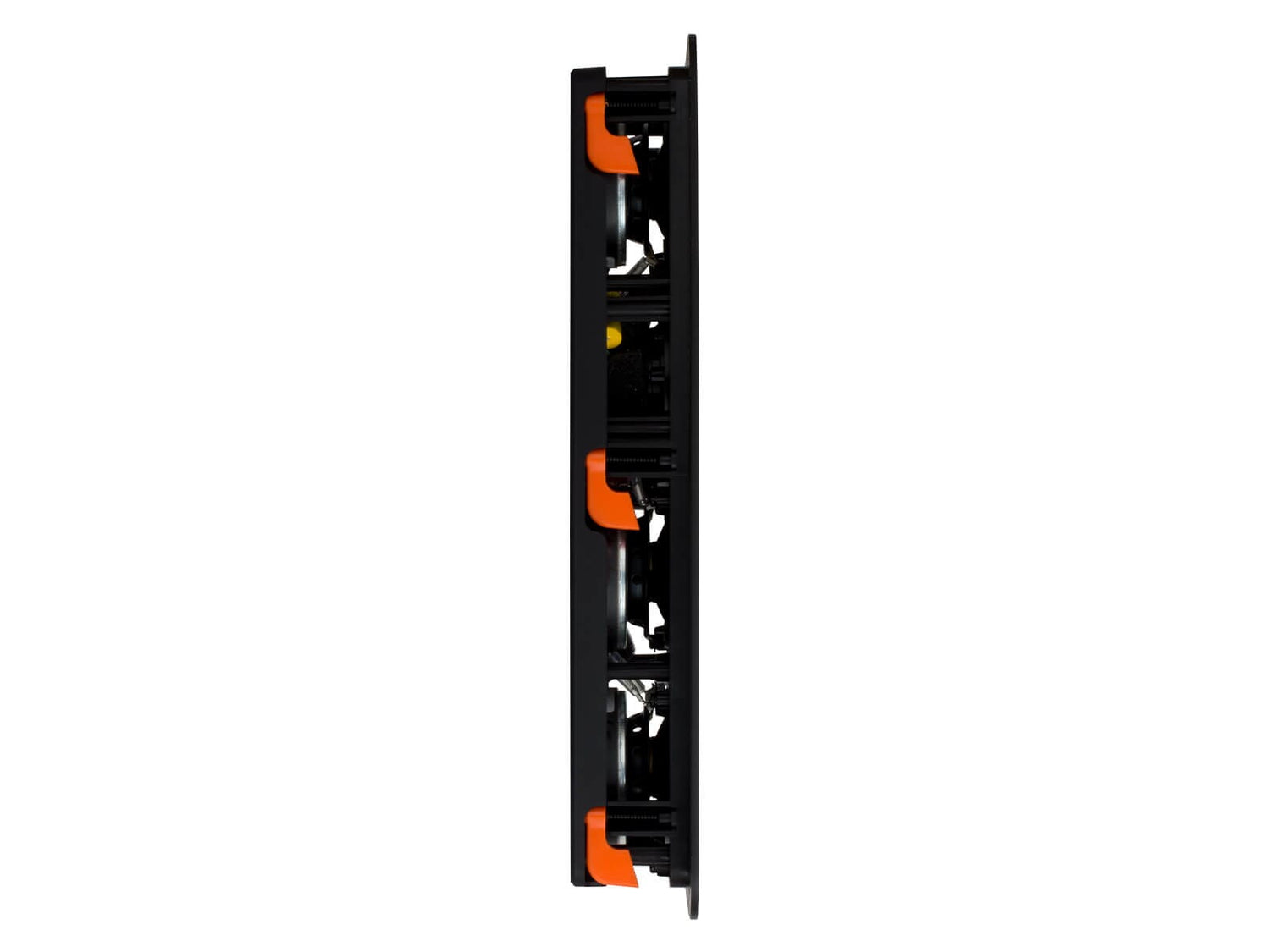

• Tri-Grip Dog leg fixings – reliable, robust, and quick to install
• Gold plated sprung push terminals – easy to connect and reliable

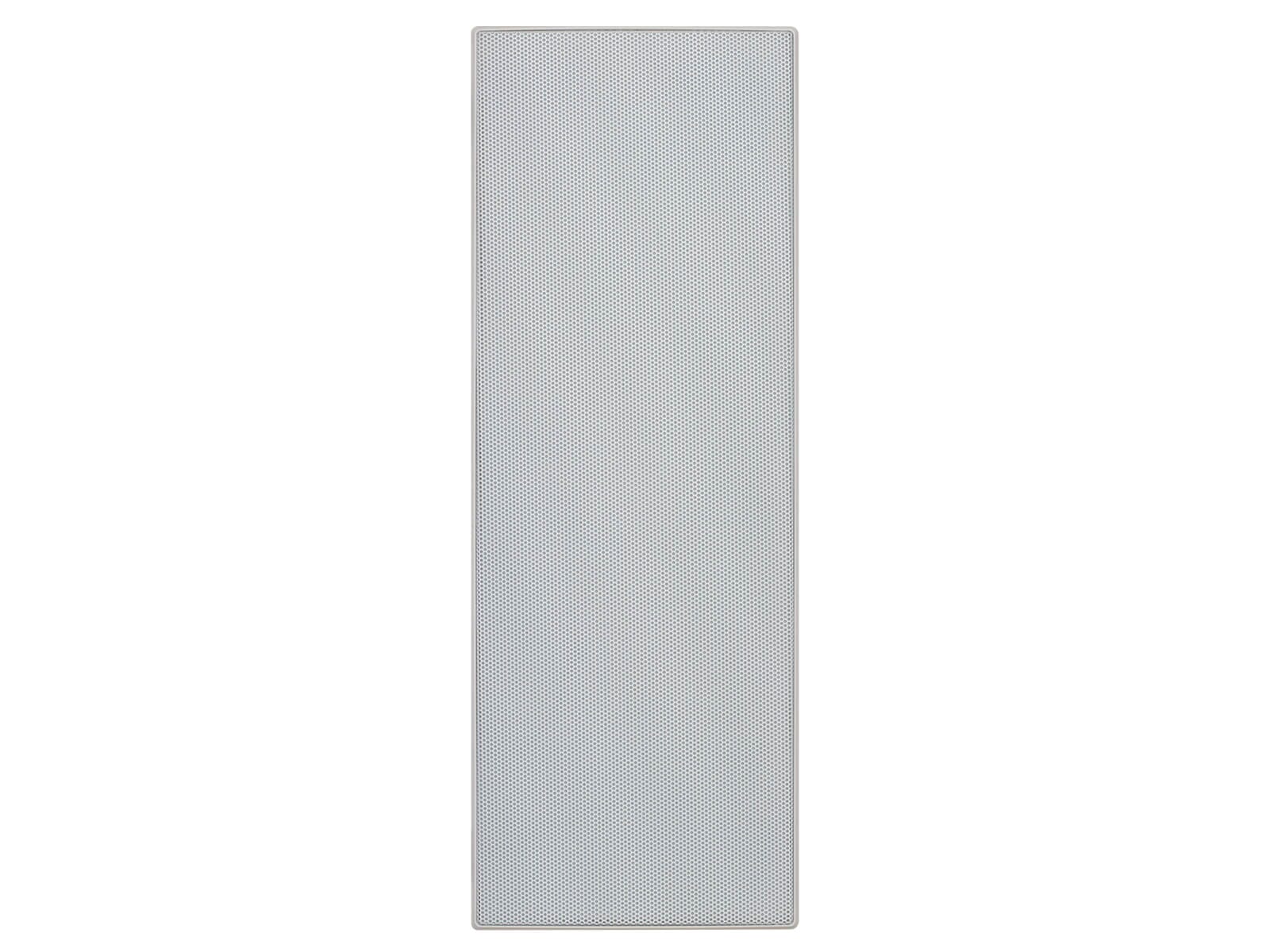

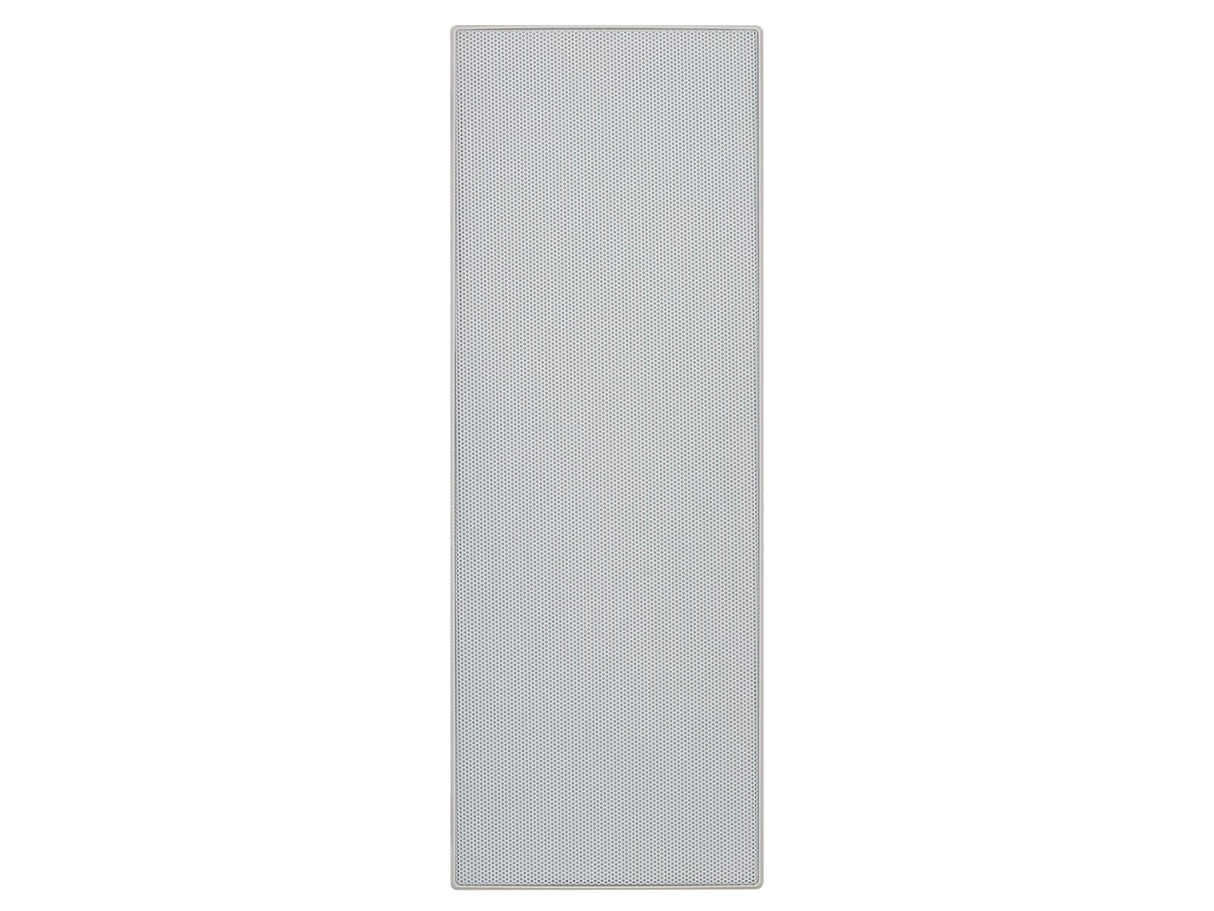

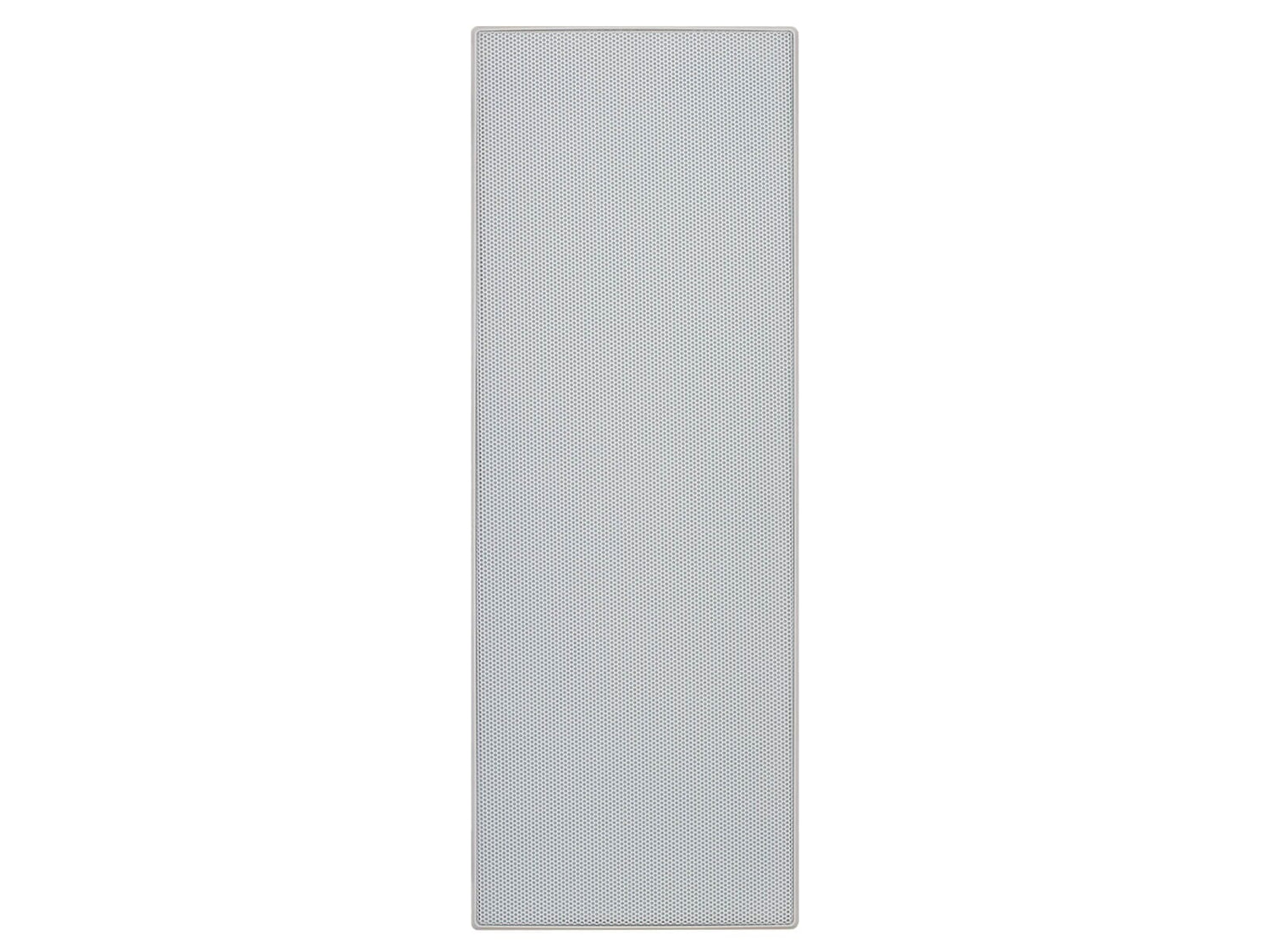

• Paintable grille – to complement and blend with décor
• WSS430 has rotating tweeter for optimum dispersion when used in landscape configuration

• Frequency Response (-6 dB): 75 Hz – 30 kHz
• Sensitivity (1W@1M): 87 dB
• Nominal Impedance: 8 ohms
• Maximum SPL: 105.6 dBA
• Power Handling: 60 W Full Range, 100 W with crossover set to 100 Hz @ 12 dB/Octave
• Recommended Amplifier Requirements: 10 – 100 W

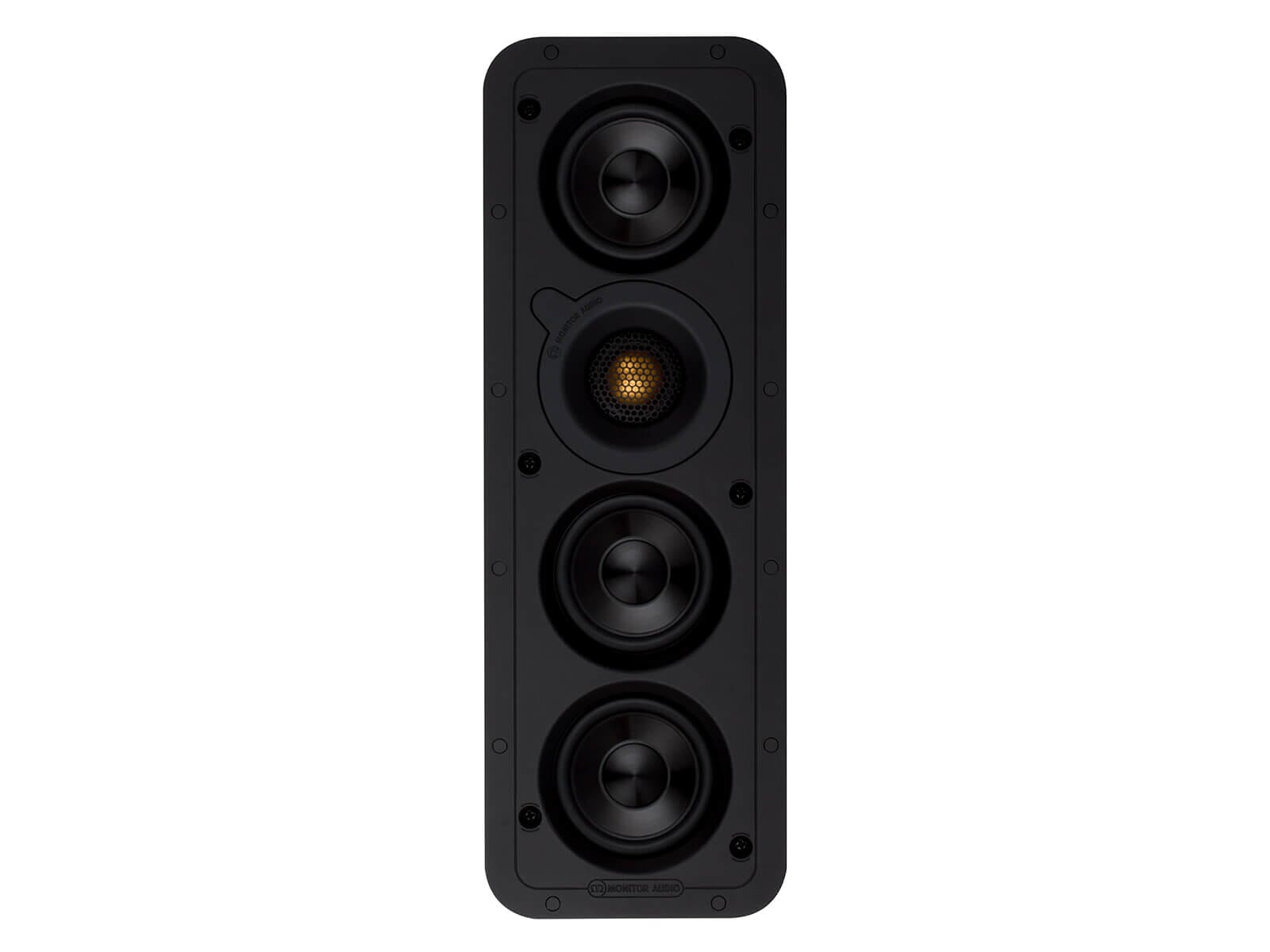

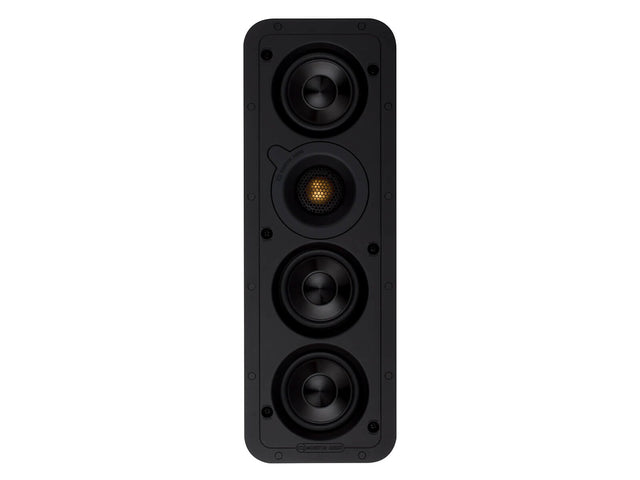

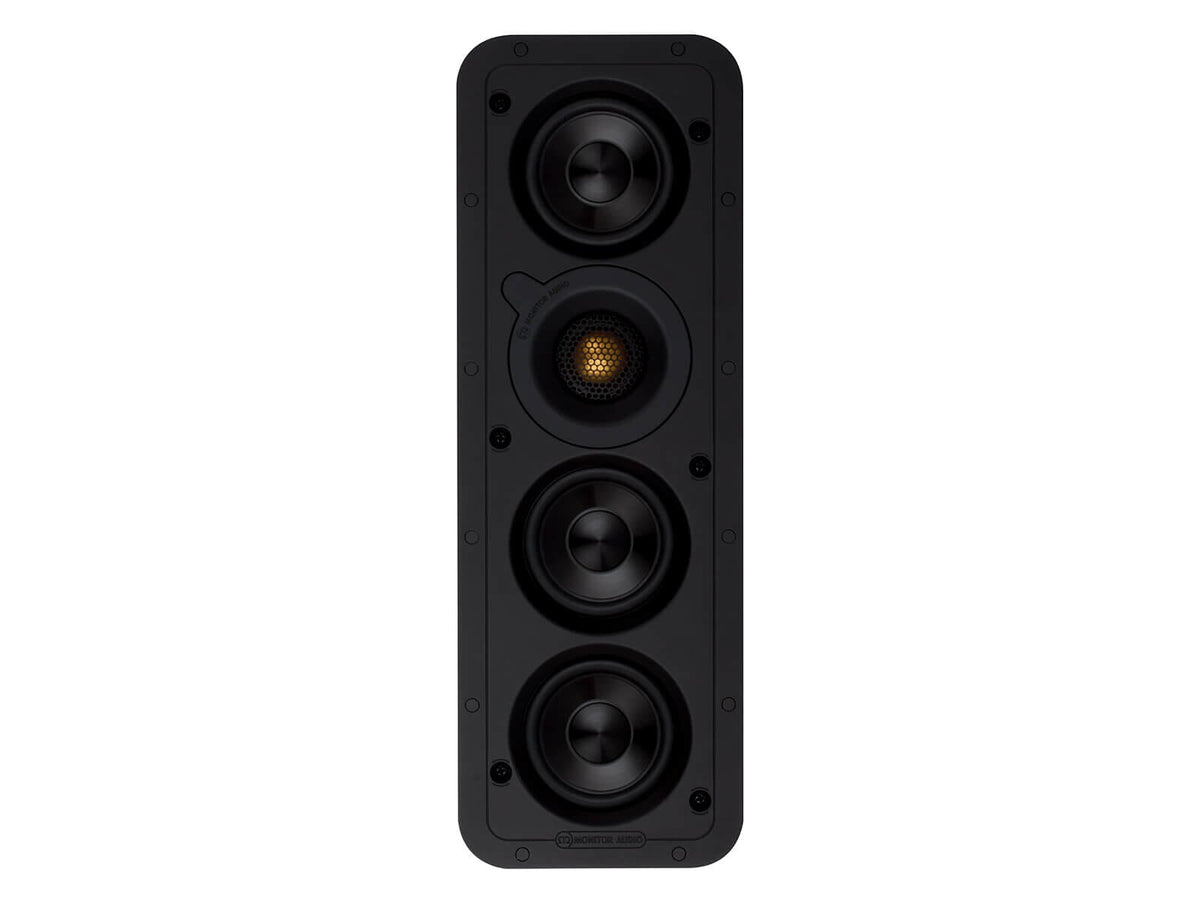

• Drive Unit Complement: 3 x 3" MMP II cone bass-mid drivers, 1 x 25 mm (1") C-CAM Gold Dome tweeter
• Crossover Recommendation (using AVR/Processor): 100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)
• Overall Dimensions: 385 x 140.5 mm (15 x 5½")
• Overall Depth (Including Grille): 54.25 mm (2⅛")
• Cut-Out Dimensions: 346 x 101 mm (13½ x 4")
• Mounting Depth: 50 mm (2")
• Connection: Gold-plated sprung push terminals for bare wire connection up to 3 mm²
• Fixing Type: 6-position Tri-Grip dog-leg fixings
• Construction Material: Mineral-filled ABS plastic, RoHS2 compliant; painted steel grille
• Weight: 1.4 kg (3 lb 2 oz)
• Pre-Construction Bracket: WB3 Pre-Construction Bracket (Dark Blue)
• Sold As: Single unit

• 1 x WSS130 In Wall Speaker
• 1 x White Grille
• 1 x Cut Out Template
• 1 x Instruction Manual
