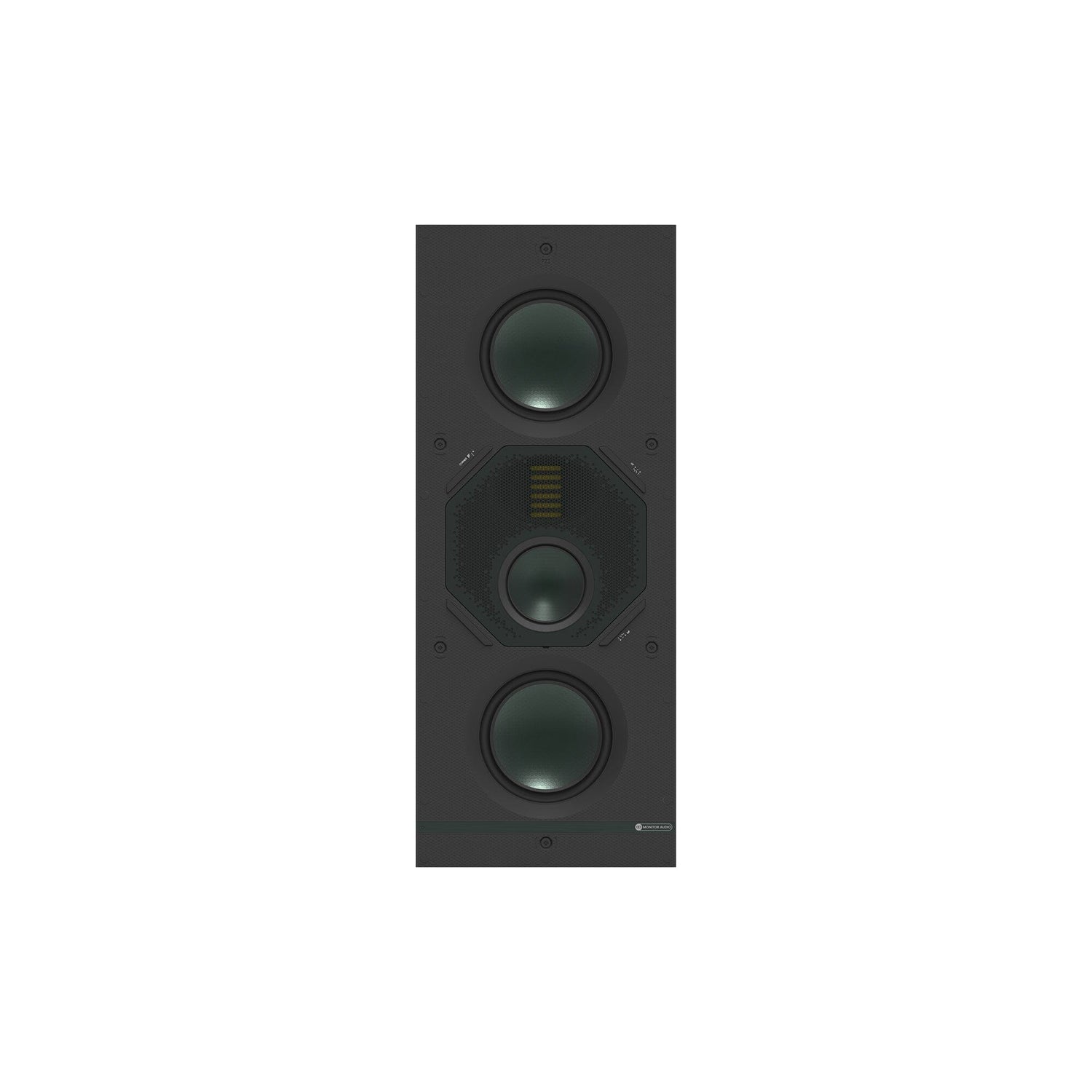

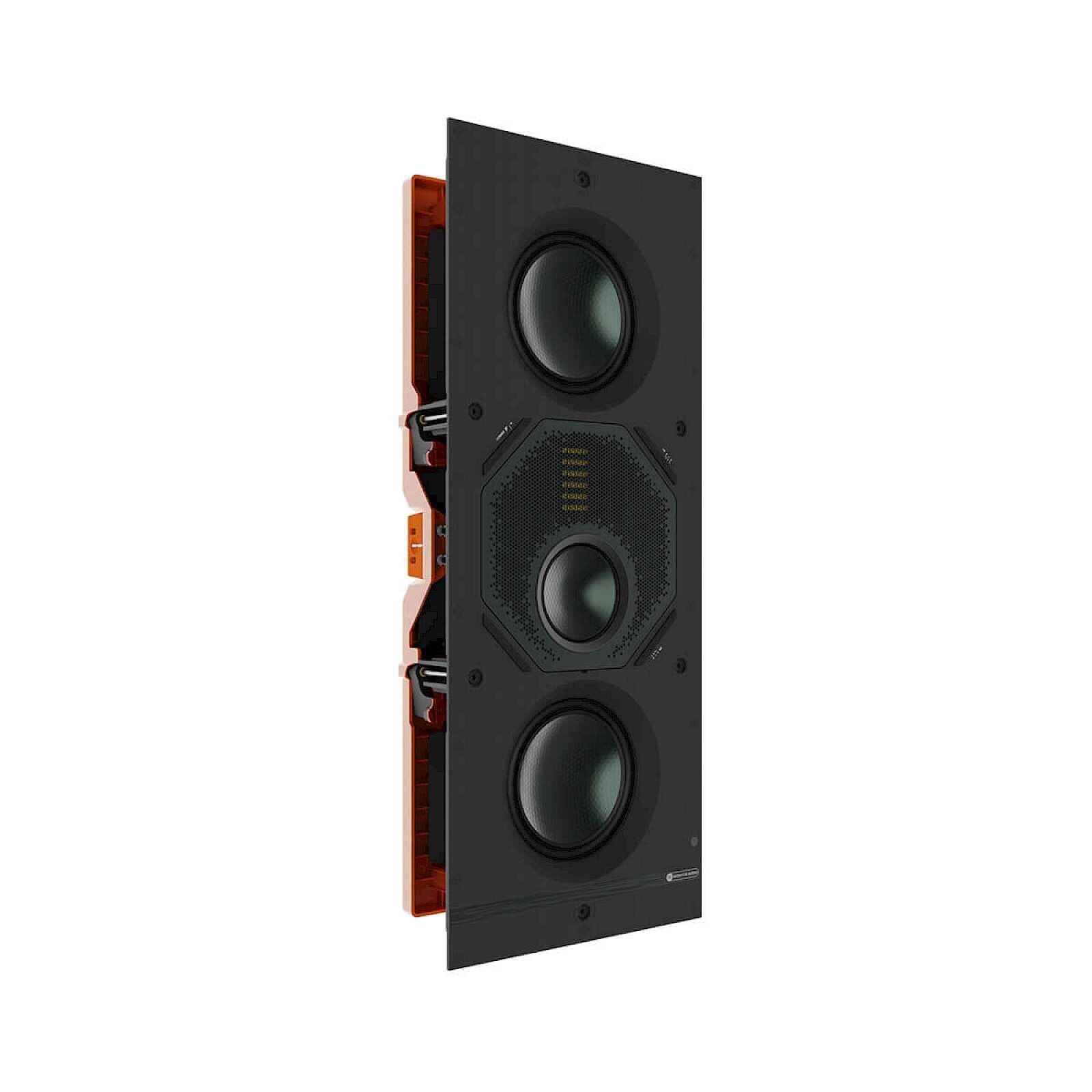

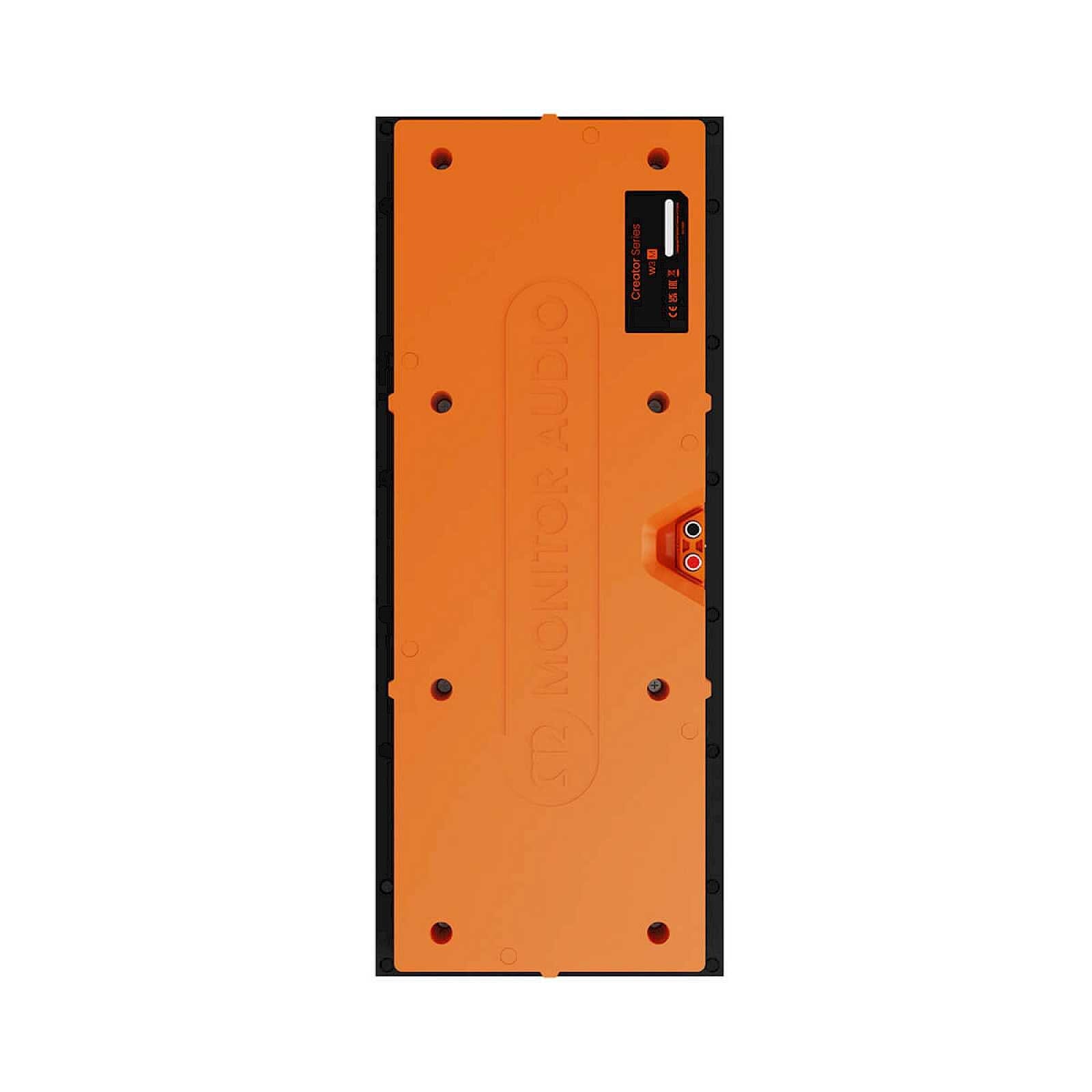

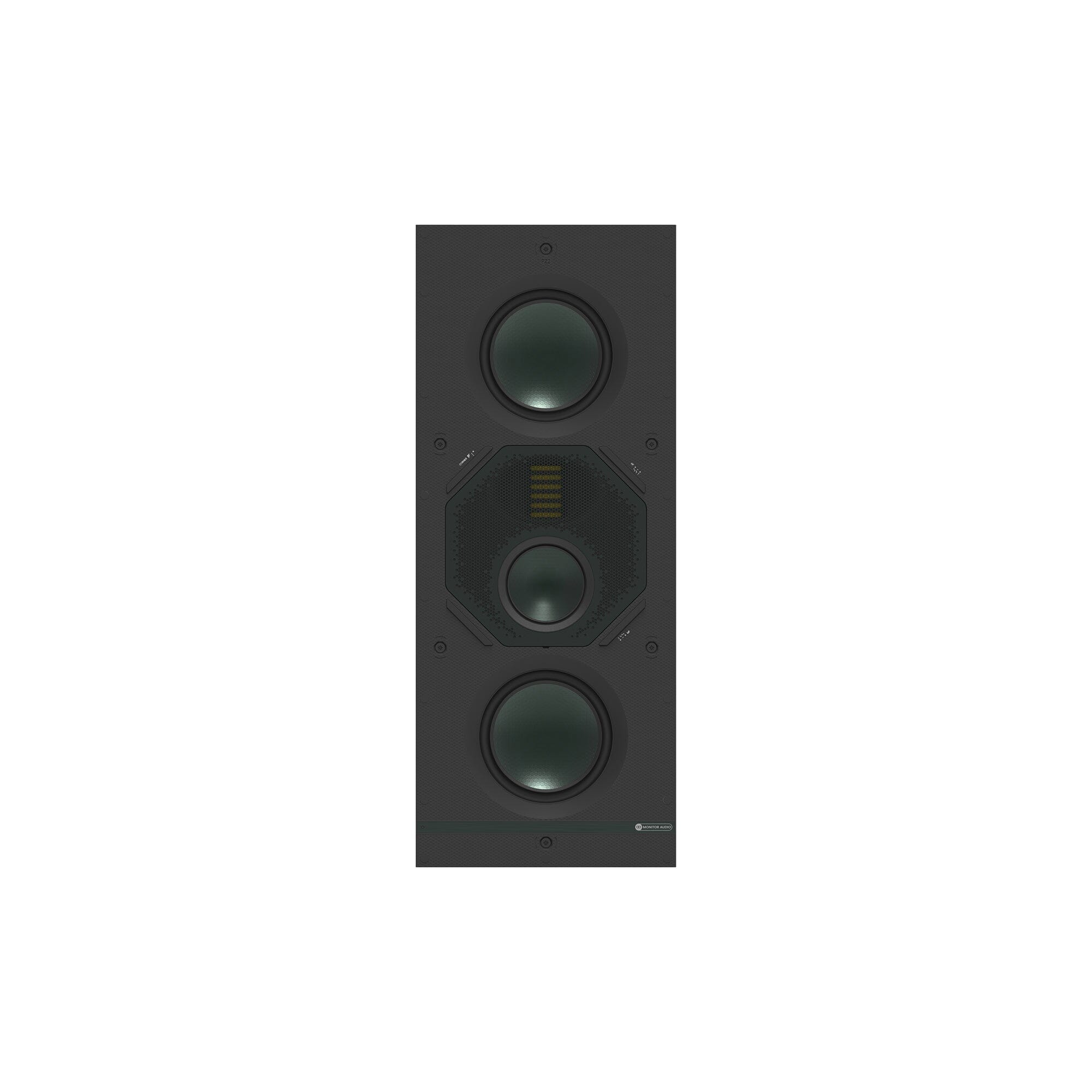

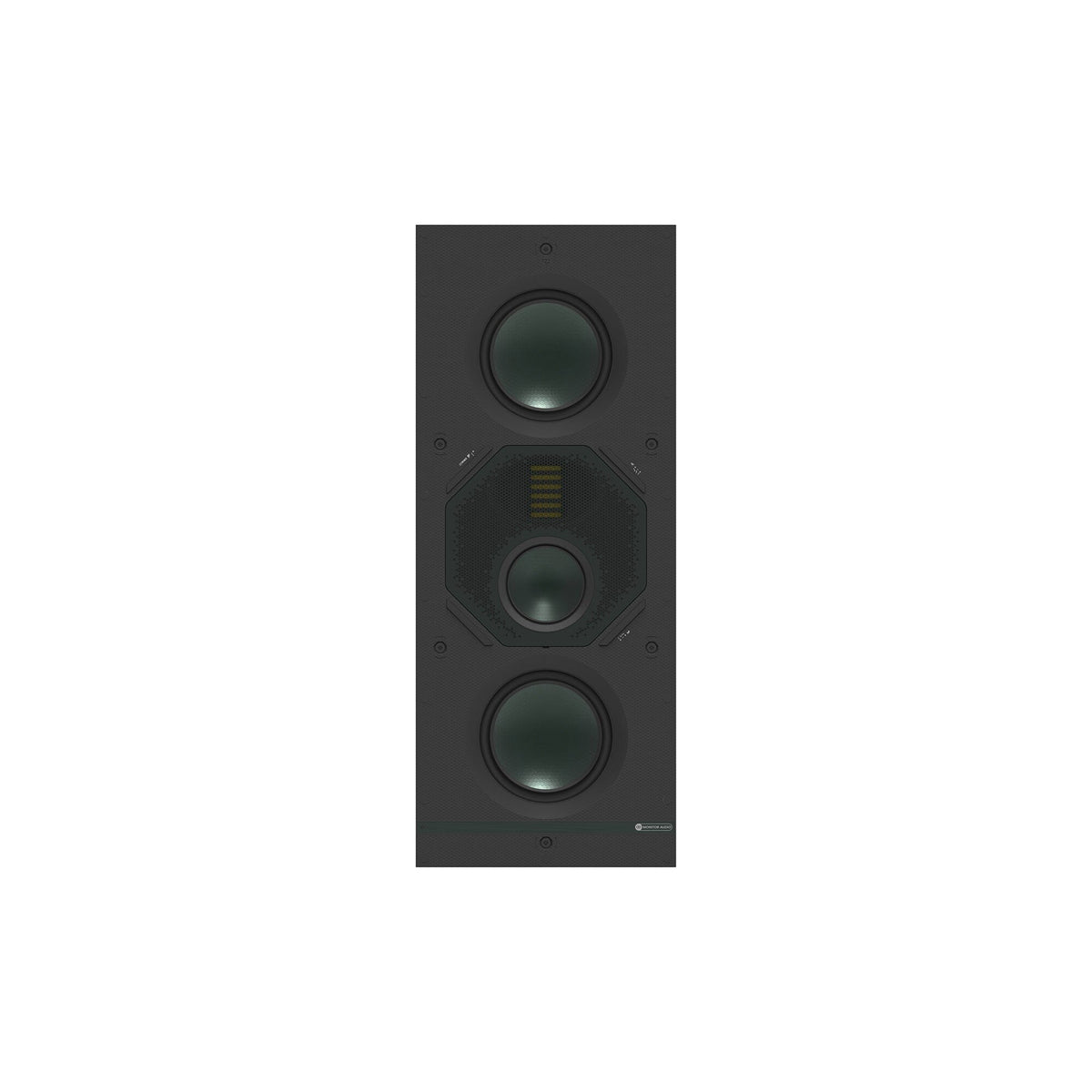

Monitor Audio W3M Creator Series In Wall Speaker - Medium (Each)

Monitor Audio  |  SKU: SCSW3M
£1,000.00
Contact Us To Order

This product is available but cannot be bought directly online. Please contact one of our audio experts by email, live chat or phone to discuss your requirements.

Description

This high-performance, medium-sized Tier 3 in-wall loudspeaker is a three-way model featuring two RDT III bass drivers, a C-CAM mid-range driver, and an MPD II transducer.

It has a cut-out dimension of 527 x 198 mm and revolutionary Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.

FEATURES

  • Ideal for installations where high-performance acoustics are desired
  • Three-way design
  • 1 x 1" MPD II transducer
  • 2 x 5" RDT III bass drivers
  • 1 x 3" C-CAM midrange driver
  • Quik-Link speaker cable connector for quicker installation
  • Tri-Grip II for easy and secure fitment

Key Features
  • Placement
    In Wall
  • Cut-Out Diameter
    527 x 198 mm (L x W)
  • Mounting Depth
    85 mm
  • Power Handling
    150 Ws
  • Impedance
    6 Ohms
  • Driver Size
    5"
  • Sensitivity
    88 dB
  • Frequency Response
    45 Hz - 60 kHz
  • Warranty
    Lifetime

Specifications
  • System Format: 3–Way
  • Channels: 1
  • Frequency Response, Installed (-6dB): 45 Hz – 60 kHz
  • Nominal Impedance: 6 ohm
  • Minimum Impedance (20Hz to 20kHz): 4.8 Ohm @ 150 Hz
  • Sensitivity (2.83Vrms@1m, Installed): 88 dB
  • Maximum Peak SPL (single speaker @ 1m Z-Weighted): 122 dB
  • Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor): 150 W
  • Recommended Amplifier Power (RMS into 8 OHM, Music Signal): 60 – 225 W
  • Drive Unit Complement: 2 x 5" (127 mm) RDT III bass driver, 1 x 3" (76 mm) C-CAM midrange driver, 1 x MPD II transducer
  • Crossover Frequency: LF/HF: 650 Hz, MF/HF: 3.5 kHz
  • Mounting Depth: 85 mm (3 3/8")
  • Cutout (L x W): 527 x 198 mm (20 3/4 x 7 13/16")
  • External Dimensions (Including Grille, H x W x D): 560 x 231 x 90 mm (22 1/16 x 9 1/8 x 3 9/16")
  • Weight (each): 4.7 kg (10 lb 6 oz)
  • Pre-Construction Bracket: WM-B
  • Cabinet Finish: Matte black & Orange & Green
  • Sold As: Single Unit
  • Corner Switch: On/Off
  • MF Switch: - / 0 / +
  • HF Switch: - / 0 / +
  • Warranty: Lifetime

What You Get
  • 1 x In Wall Speaker
  • 1 x Grille
  • 1 x Cut Out Template
  • 1 x Manual
