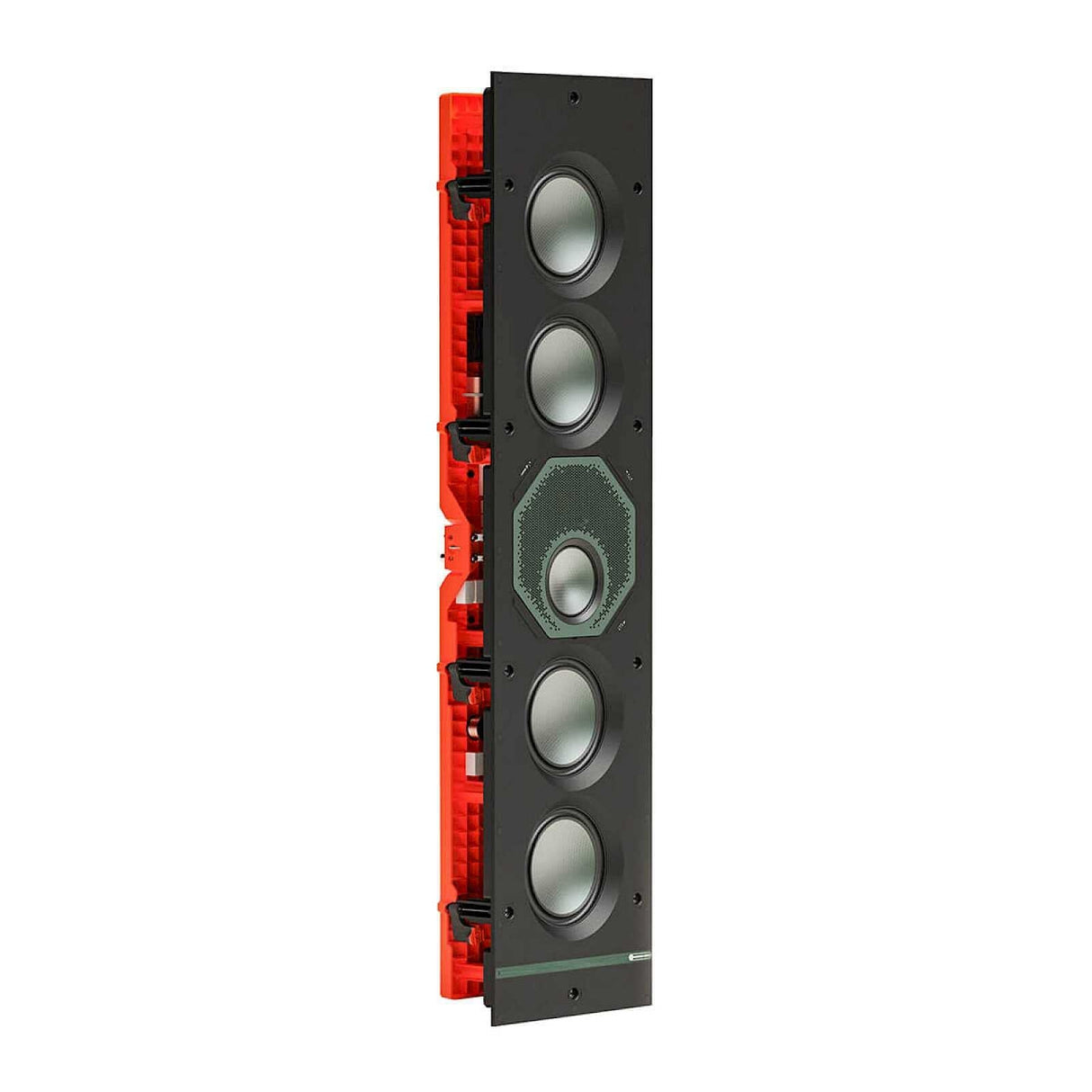

Monitor Audio W3L Creator Series In Wall Speaker - Large (Each)

Monitor Audio  |  SKU: SCSW3L
£2,250.00
Contact Us To Order

This product is available but cannot be bought directly online. Please contact one of our audio experts by email, live chat or phone to discuss your requirements.

Description

This high-performance, large-sized Tier 3 in-wall loudspeaker is a three-way model featuring four RDT III bass drivers, a C-CAM midrange driver, and an MPD II transducer.

It has a cut-out dimension of 880 x 202 mm and revolutionary Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.

FEATURES

  • Ideal for installations where high-performance acoustics are desired
  • Three-way design
  • 1 x 1" MPD II transducer
  • 4 x 5" RDT III bass drivers
  • 1 x 3" C-CAM midrange driver
  • Quik-Link speaker cable connector for quicker installation
  • Tri-Grip II for easy and secure fitment

Key Features
  • Placement
    In Wall
  • Cut-Out Diameter
    880 x 202 mm (L x W)
  • Mounting Depth
    85 mm
  • Power Handling
    300 Ws
  • Impedance
    4 Ohms
  • Driver Size
    5"
  • Sensitivity
    89 dB
  • Frequency Response
    36 Hz - 60 kHz
  • Warranty
    Lifetime

Specifications
  • System Format: 3–Way
  • Frequency Response, Installed (-6dB): 36 Hz – 60 kHz
  • Sensitivity (2.83Vrms@1m, Installed): 89 dB
  • Nominal Impedance: 4 Ohms
  • Minimum Impedance (20Hz to 20kHz): 4.5 Ohms @ 1.2 kHz
  • Maximum Peak SPL (AES75, Z-weighted): 123 dB
  • Continuous Power Handling (CTA 426-B): 300 W
  • Recommended Amplifier Power (RMS, Music Signal): 150 – 600 W into 4 ohms, 75 – 300 W into 8 ohms
  • Bass Alignment: Sealed
  • Crossover Frequency: LF/HF: 700 Hz, MF/HF: 3.25 kHz
  • Drive Unit Complement: 4 x 5" (127 mm) RDT III bass driver, 1 x 3" (76 mm) C-CAM midrange driver, 1 x MPD II transducer
  • Mounting Depth: 85 mm (3 3/8")
  • Cutout (L x W): 880 x 202 mm (34 5/8 x 7 15/16")
  • Pre-Construction Bracket: WL-B
  • External Dimensions (with all accessories fitted, H x W x D): 909 x 231 x 93 mm (22 1/16 x 9 1/8 x 3 9/16")
  • Weight (each): 12.4 kg (27 lb 5 oz)
  • Cabinet Finish: Matte black & Orange & Green
  • Sold As: Single Unit
  • Warranty: Lifetime

What You Get
  • 1 x In Wall Speaker
  • 1 x Grille
  • 1 x Cut Out Template
  • 1 x Manual
