Monitor Audio W1M-E Creator Series In Wall Speaker - Medium (Each)

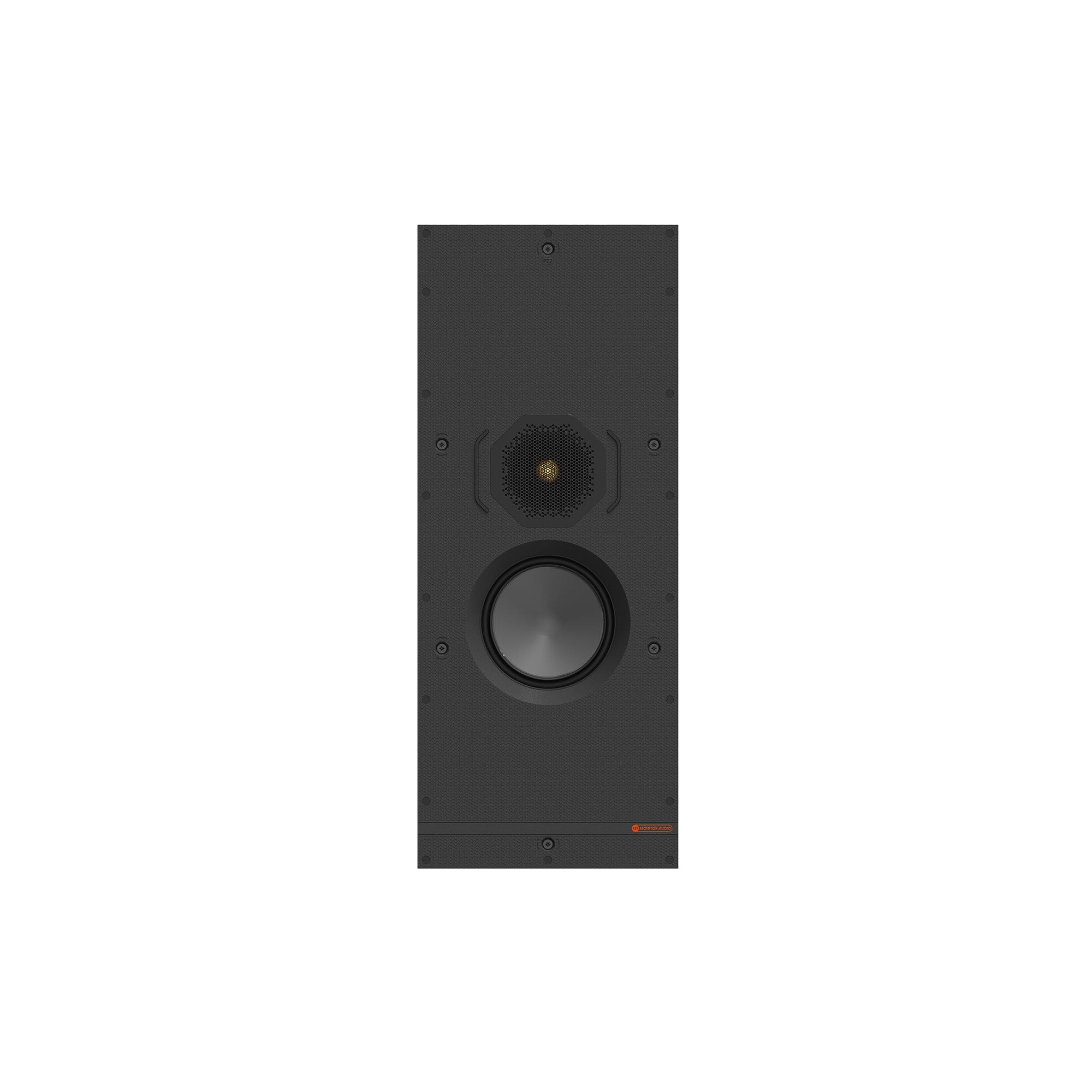

This medium-sized Tier 1 in-wall loudspeaker is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter.

It has a cut-out dimension of 527 x 198 mm and a revolutionary Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.

• Ideal for cost-effective installations
• Two-way design
• 1 x 1" C-CAM tweeter with UD Waveguide
• 1 x 5" C-CAM mid-bass driver

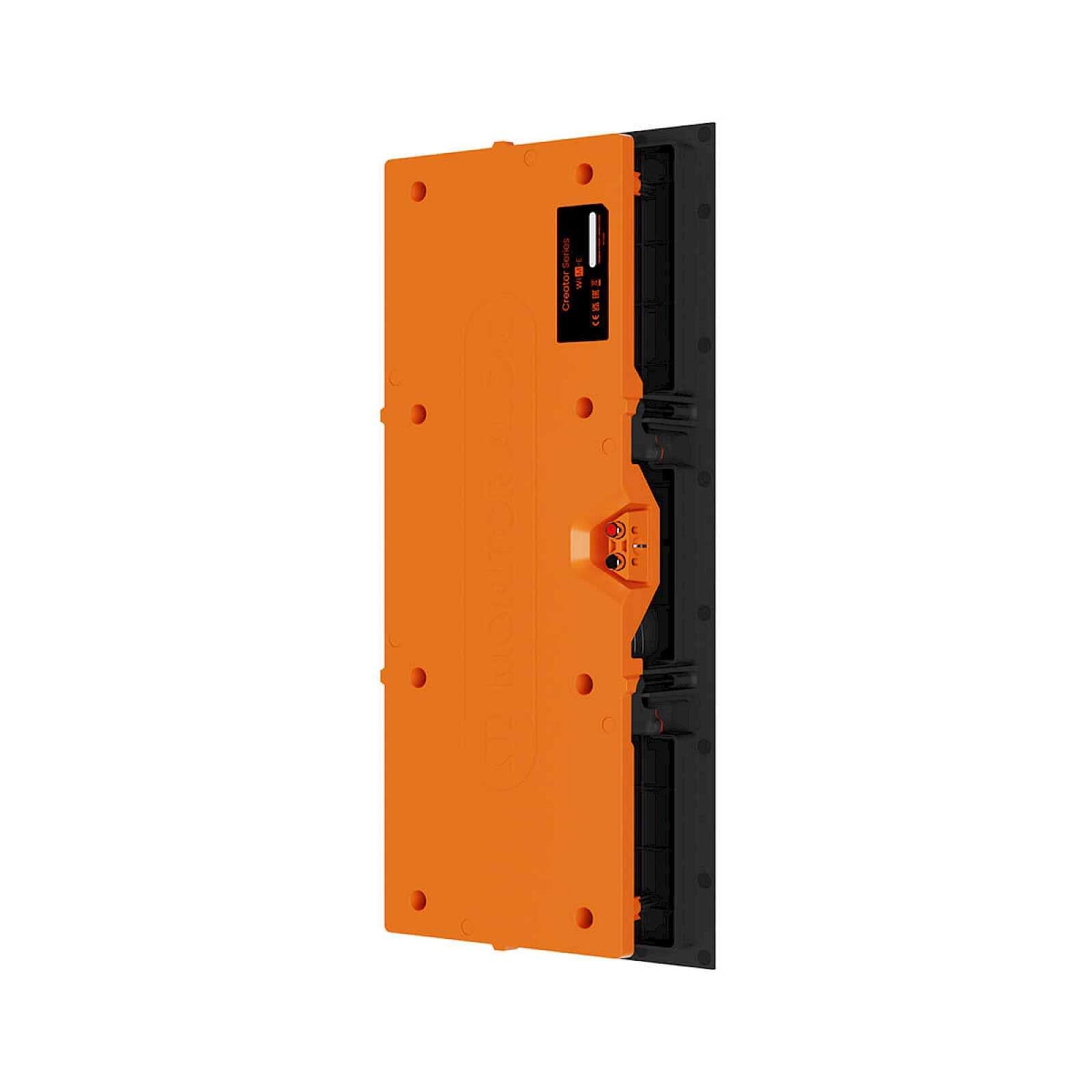

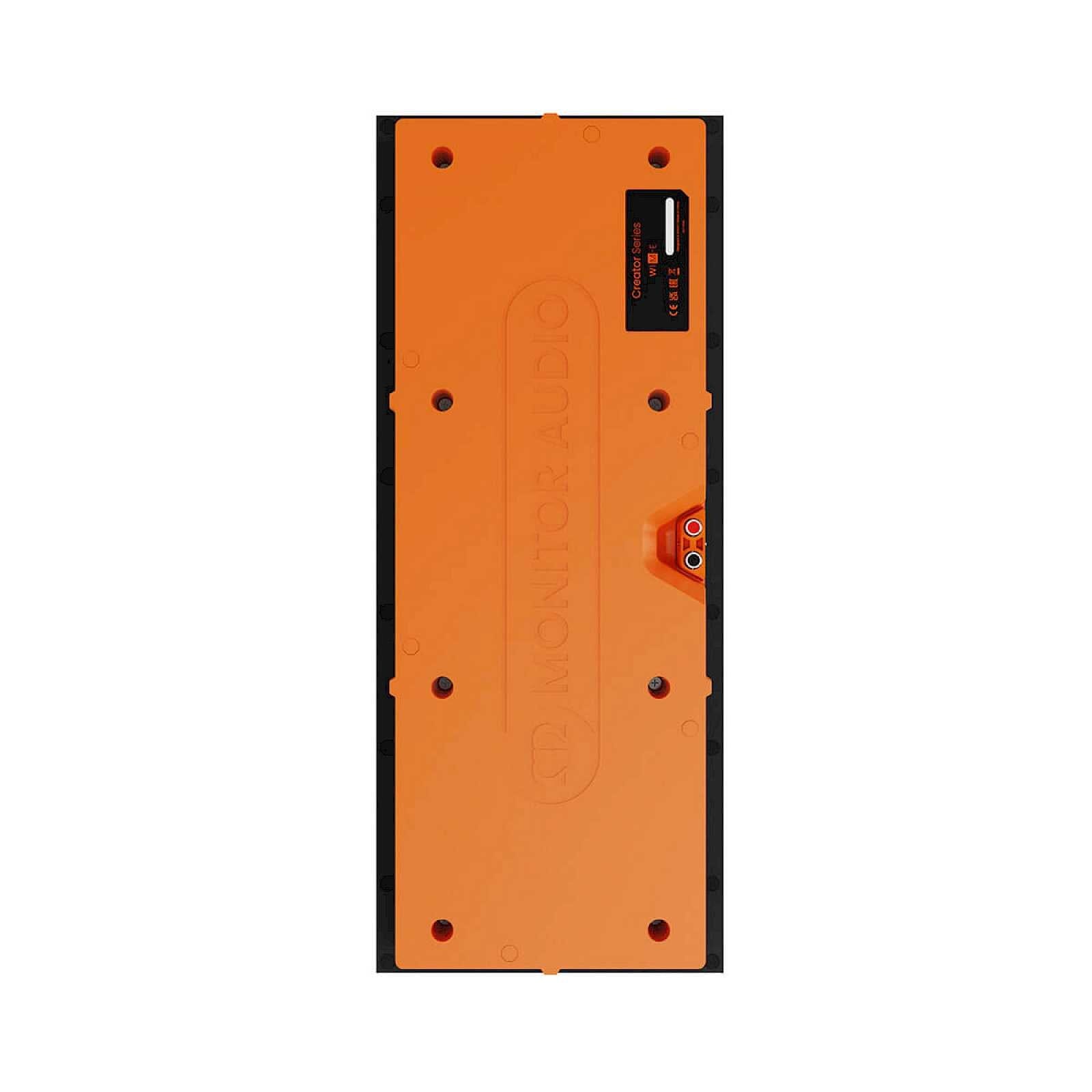

• Quik-Link speaker cable connector for quicker installation
• Tri-Grip II for easy and secure fitment

What You Get

• 1 x In Wall Speaker
• 1 x Grille
• 1 x Cut Out Template
• 1 x Manual

Specifications

• System Format: 2–Way
• Channels: 1
• Frequency Response, Installed (-6dB): 40 Hz – 30 kHz
• Nominal Impedance: 8 ohm
• Minimum Impedance (20Hz to 20kHz): 6.5 Ohm @ 200 Hz (6.2 Ohm @ 20 kHz)
• Sensitivity (2.83Vrms@1m, Installed): 84 dB
• Maximum Peak SPL (single speaker @ 1m Z-Weighted): 110 dB
• Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor): 50 W
• Recommended Amplifier Power (RMS into 8 OHM, Music Signal): 25 – 100 W
• Drive Unit Complement: 1 x 5"(127 mm) C-CAM mid-bass driver, 1 x 1"(25 mm) C-CAM tweeter
• Crossover Frequency: LF/HF: 2.5 kHz
• Mounting Depth: 85 mm (3 3/8")
• Cutout (L x W): 527 x 198 mm (20 3/4 x 7 13/16")
• External Dimensions (Including Grille, H x W x D): 560 x 231 x 90 mm (22 1/16 x 9 1/8 x 3 9/16")
• Weight (each): 2.6 kg
• Pre-Construction Bracket: WM-B
• Cabinet Finish: Matte black&Orange
• Sold As: Single Unit
• Warranty: Lifetime
