Monitor Audio W1L Creator Series In Wall Speaker - Large (Each)

Monitor Audio  |  SKU: SCSW1L
£1,000.00

Delivery £4.50 or Free Over £50

All orders to mainland UK over £50 are eligible for free standard delivery.

For orders under £50 we have delivery rates starting from just £2.99

Need it fast? No problem, you’ll find express next day delivery rates available on most products. Learn More

60 Day Returns + Lifetime Warranty

We’re so confident that you’ll be happy with your purchase that we’ve extended our returns policy to 60 days.

We call it the “Happy Sound Guarantee”.

If you’re not happy with your purchase for any reason simply send it back to us for a full refund. Learn More

Warranty

K&B Audio are authorised dealers for Monitor Audio. All sales come with a Lifetime manufacturers warranty and full technical support.

Description

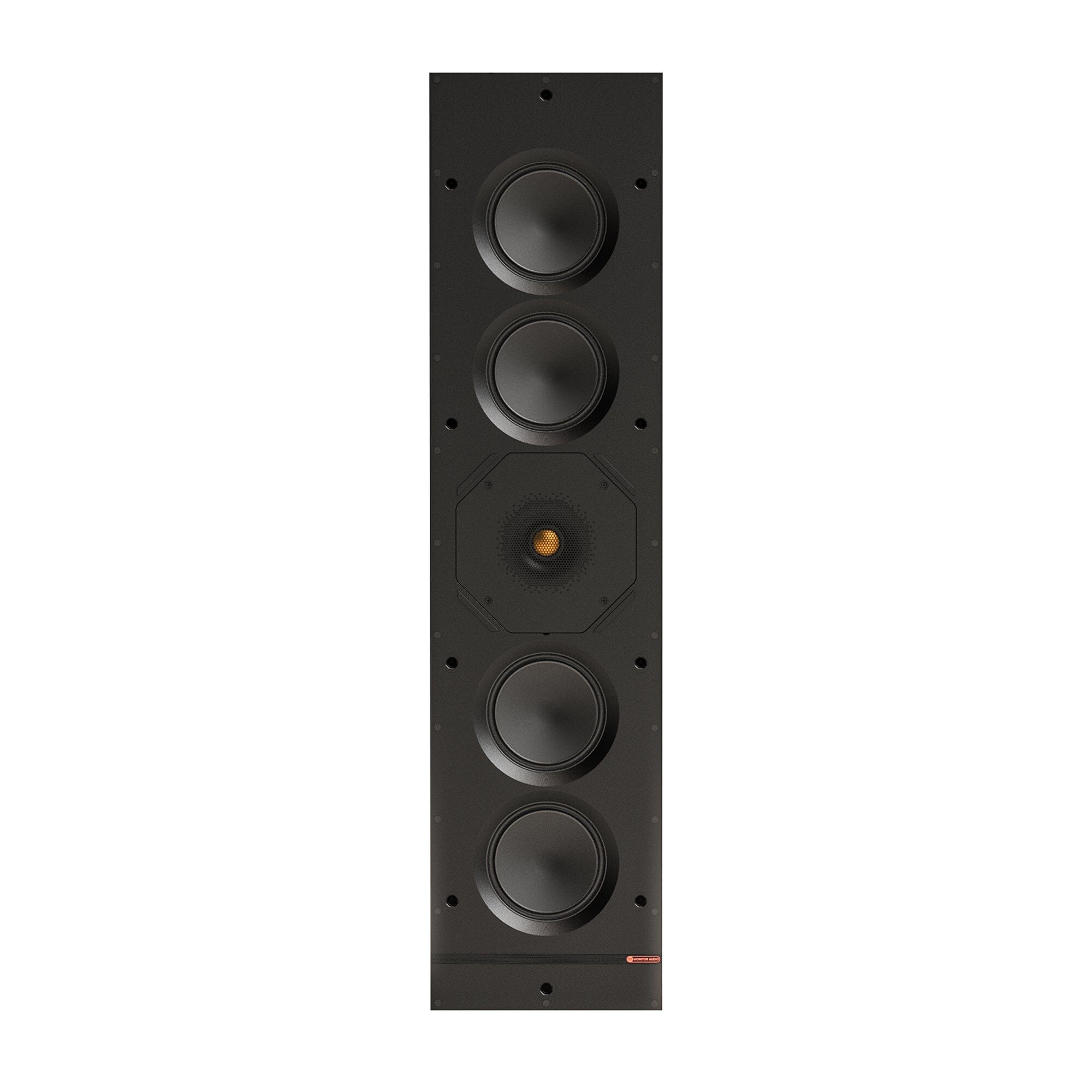

This large-sized Tier 1 in-wall loudspeaker is a two-way model featuring four C-CAM mid-bass drivers and a C-CAM tweeter.

It has a cut-out dimension of 880 x 202 mm and a revolutionary Quick-Link speaker cable connector and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.

FEATURES

  • Ideal for cost-effective installations
  • Two-way design
  • 1 x 1" C-CAM tweeter with UD Waveguide
  • 4 x 5" C-CAM mid-bass driver
  • Quik-Link speaker cable connector for quicker installation

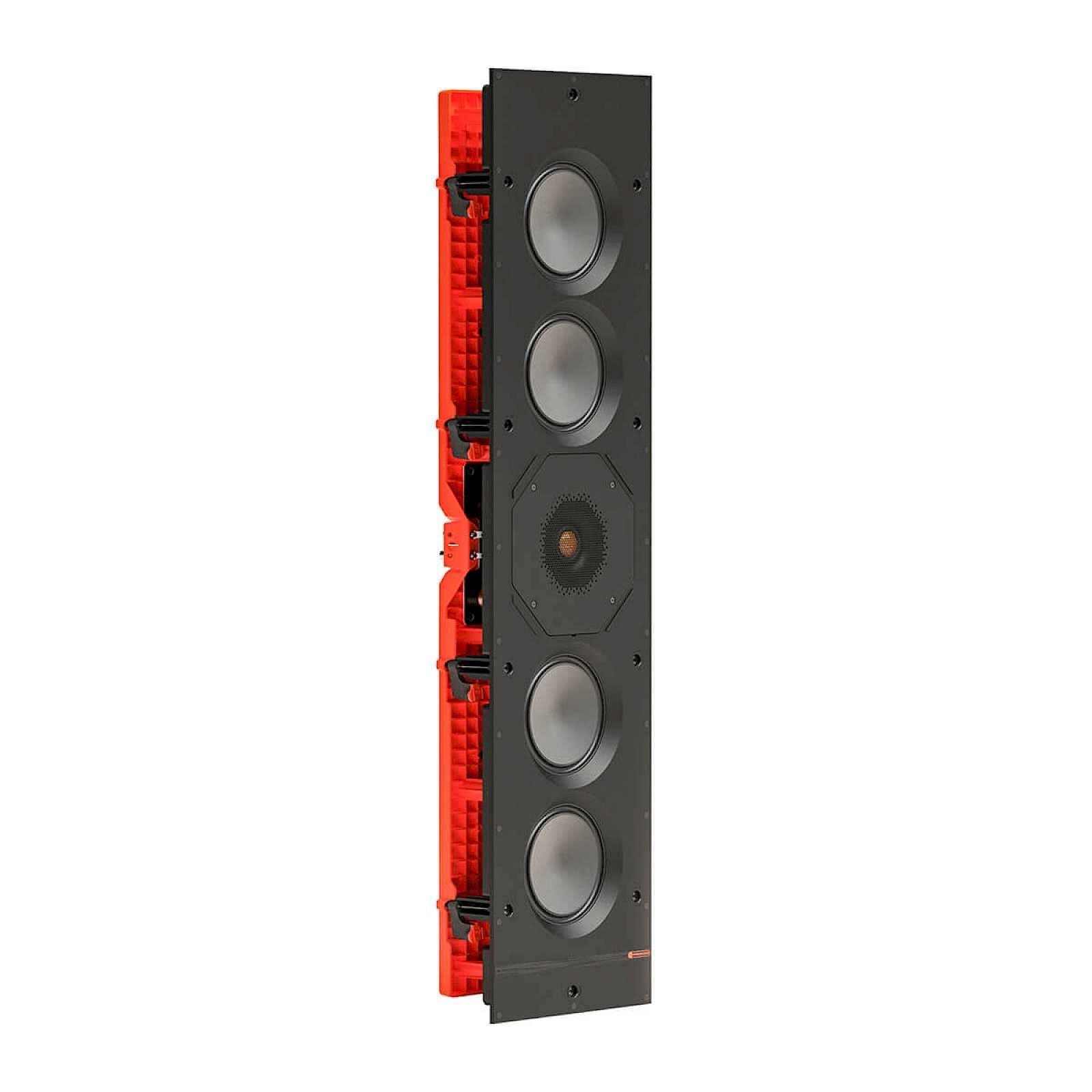

  • Tri-Grip II for easy and secure fitment

Key Features
  • Placement
    In Wall
  • Cut-Out Diameter
    880 x 202 mm (L x W)
  • Mounting Depth
    85 mm
  • Power Handling
    100 Ws
  • Impedance
    6 Ohms
  • Driver Size
    5"
  • Sensitivity
    88 dB
  • Frequency Response
    38 Hz - 30 kHz
  • Warranty
    Lifetime

Specifications
  • System Format: 2–Way
  • Frequency Response, Installed (-6dB): 38 Hz – 30 kHz
  • Sensitivity (2.83Vrms@1m, Installed): 88 dB
  • Nominal Impedance: 6 Ohms
  • Minimum Impedance (20Hz to 20kHz): 5.2 Ohms @ 13 kHz
  • Maximum Peak SPL (AES75, Z-weighted): 114 dB
  • Continuous Power Handling (CTA 426-B): 100 W
  • Recommended Amplifier Power (RMS, Music Signal): 80 – 300 W into 4 Ohms, 30 – 150 W into 8 Ohms
  • Bass Alignment: Sealed
  • Crossover Frequency: LF/HF: 2.7 kHz
  • Drive Unit Complement: 4 x 5" (127 mm) C-CAM mid-bass driver, 1 x 1" (25 mm) C-CAM tweeter
  • Mounting Depth: 85 mm (3 3/8")
  • Cutout (L x W): 880 x 202 mm (34 5/8 x 7 15/16")
  • Pre-Construction Bracket: WL-B
  • External Dimensions (with all accessories fitted, H x W x D): 909 x 231 x 93 mm (35 13/16 x 9 1/16 x 3 5/8")
  • Weight (each): With grille 6.69 kg, Without grille 5.84 kg
  • Cabinet Finish: Matte black & Orange

  • Sold As: Single Unit

  • Warranty: Lifetime

What You Get
  • 1 x In Wall Speaker
  • 1 x Grille
  • 1 x Cut Out Template
  • 1 x Manual
