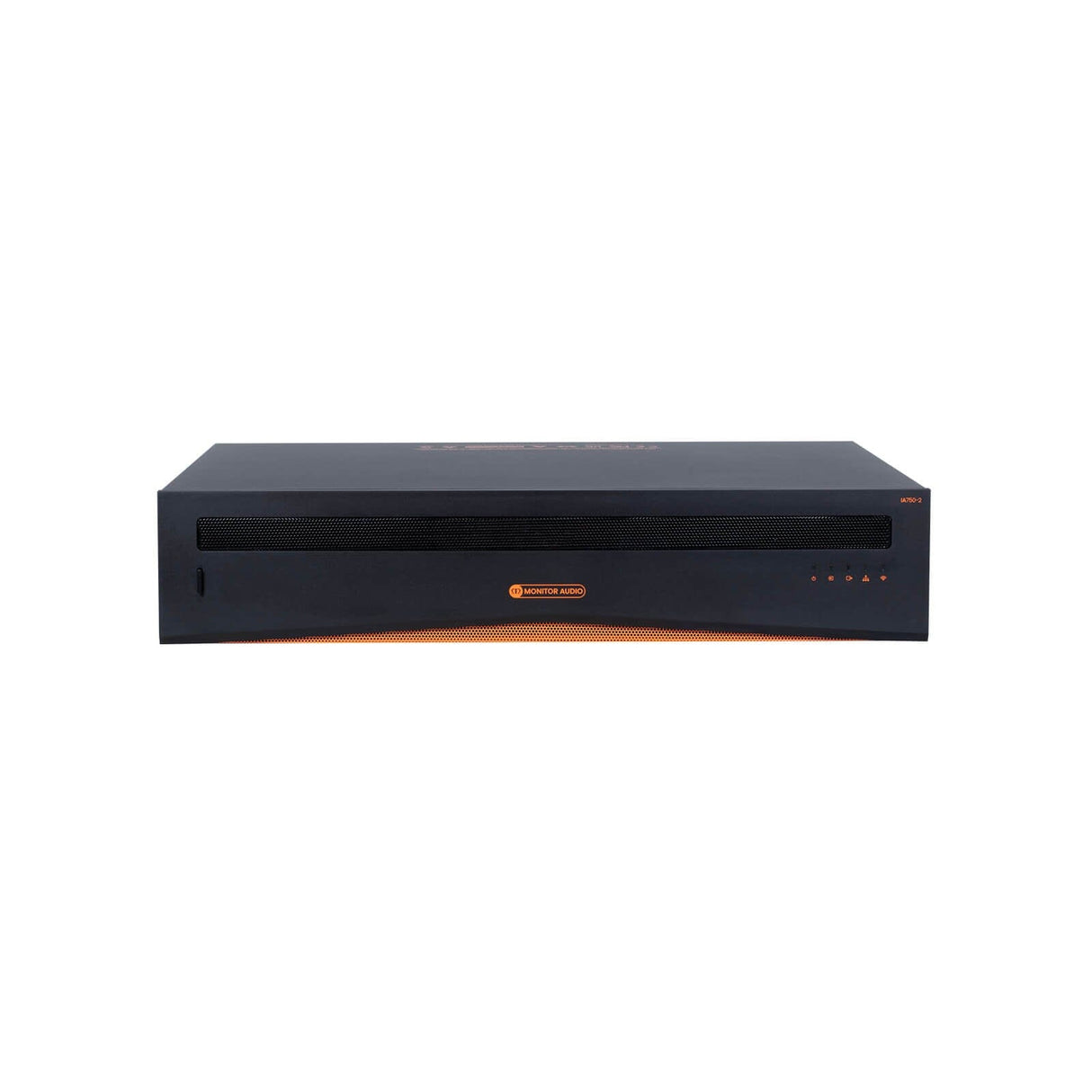

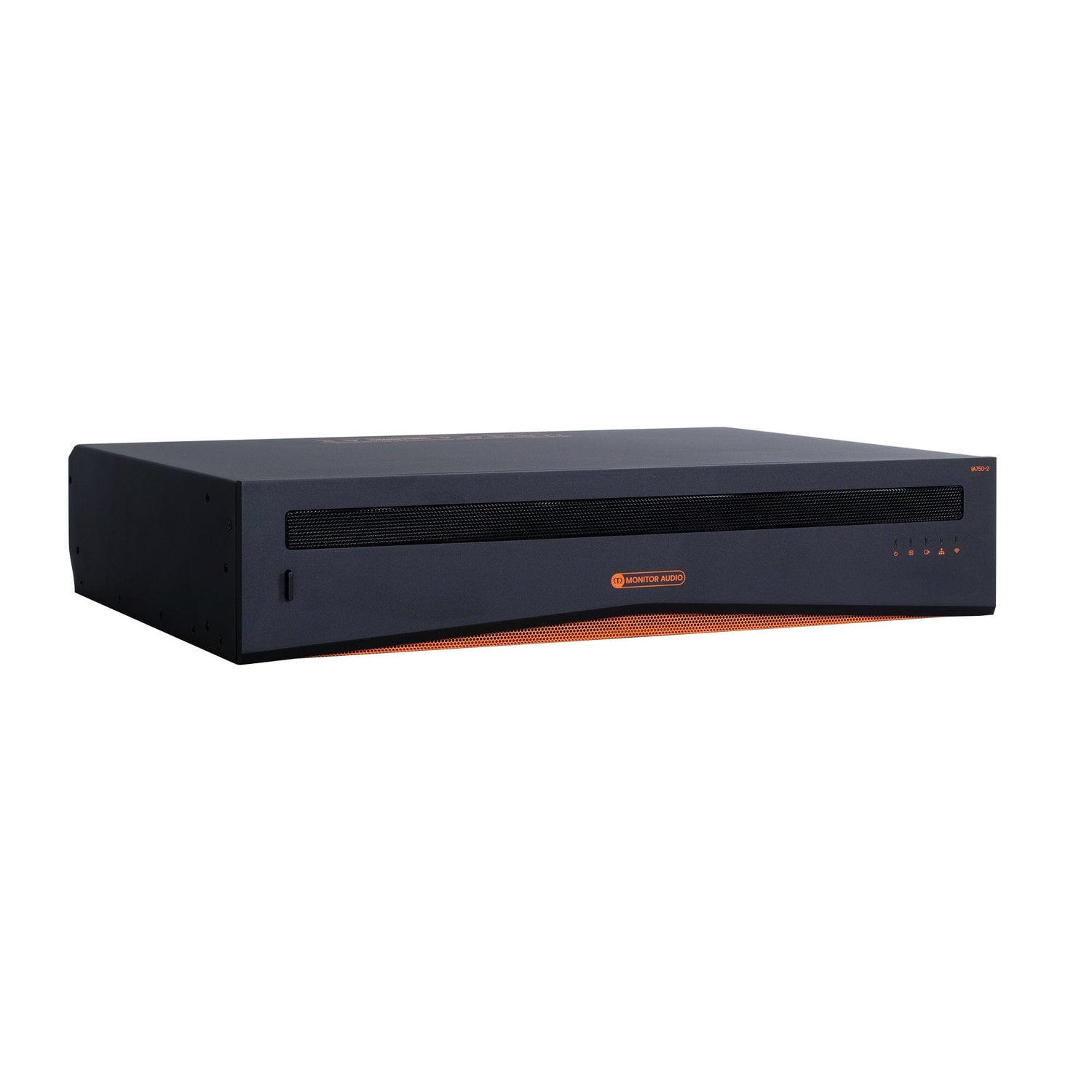

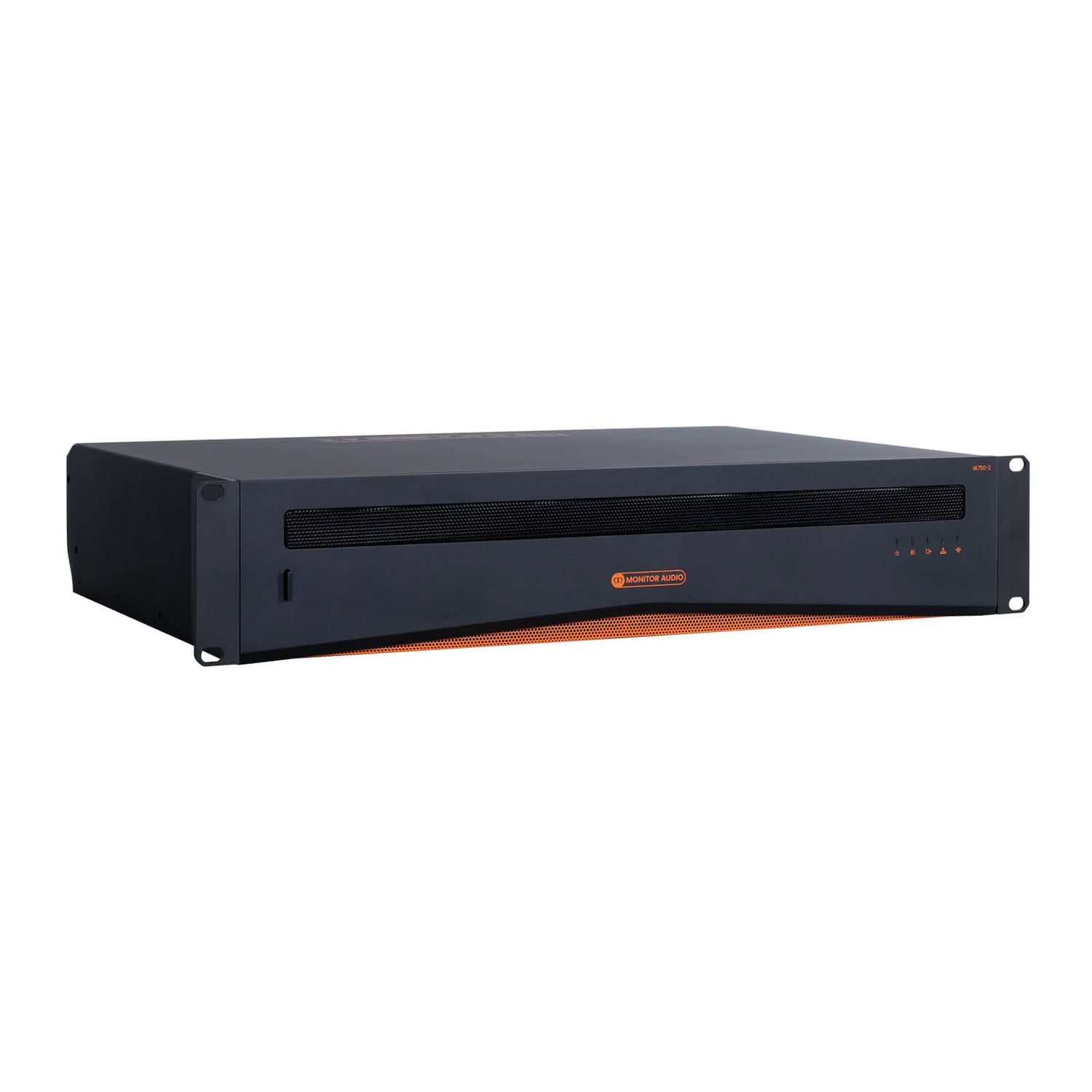

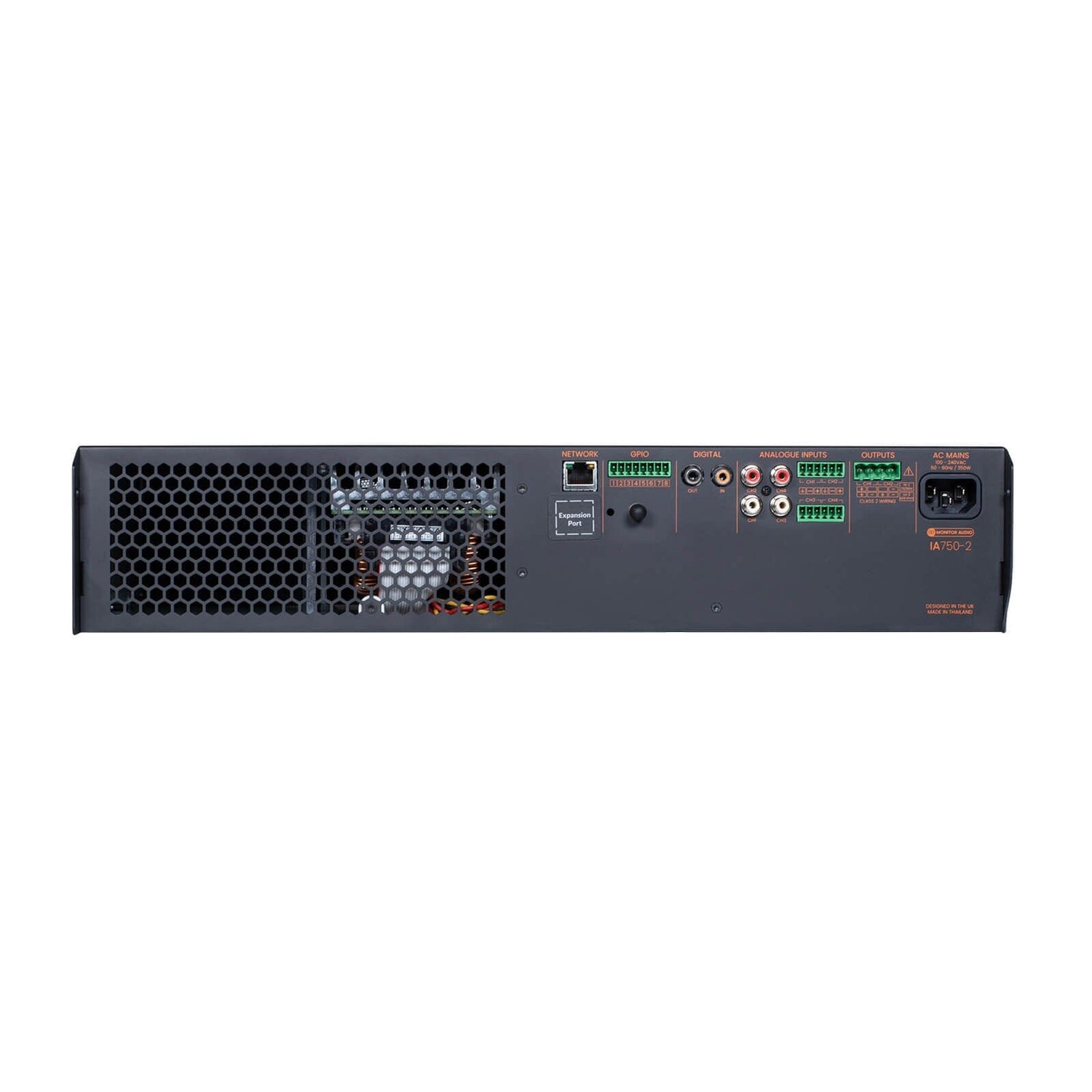

Monitor Audio IA750-2 Two Channel 750W Installation Amplifier

The Monitor Audio IA750-2 is a premium installation amplifier engineered to power high-performance audio zones with incredible clarity and control. Designed for custom integrators and home audio professionals, this two-channel Class D amplifier delivers 750 watts per channel into 4 ohms and is compatible with 70/100V line systems, making it ideal for larger spaces or commercial installations. With onboard DSP, Dante® audio networking, and a compact 1U rack-mount form factor, the IA750-2 is a powerful and flexible solution for scalable, multi-zone sound systems.

Its robust design ensures continuous operation even under demanding loads, while advanced monitoring and protection systems safeguard both the amp and connected speakers. Whether you're designing a premium residential setup or a sophisticated commercial audio network, the IA750-2 delivers efficiency, reliability, and exceptional sound quality.

FEATURES

• High Power Output: Delivers 750 watts per channel into 4 ohms or 1,500 watts bridged, providing powerful amplification for high-performance speaker systems.
• 70/100V Line Compatibility: Easily integrates into commercial environments with support for constant voltage systems, perfect for distributed audio applications.
• Dante® Network Audio: Seamlessly integrates with Dante-enabled systems for flexible digital audio routing over standard Ethernet networks.
• Onboard DSP Control: Built-in digital signal processing allows fine-tuning of audio output, ensuring optimal performance for different speakers and environments.
• Compact 1U Rack Mount Design: Slimline form factor saves space in rack installations while maintaining professional-grade build quality.
• Thermal & Overload Protection: Intelligent safety circuitry protects the amplifier and connected equipment, enhancing longevity and reliability.
• Signal Sense and Trigger Options: Supports signal sensing and 12V trigger input for automatic power-up, ideal for integrated automation systems.
• Web-Based Interface: Intuitive web configuration makes setup, calibration, and monitoring straightforward, even in complex systems.
• Fan Cooled Chassis: Maintains consistent thermal performance during extended use, ensuring the amp runs efficiently without overheating.

• Channels: 2
• Output Power @ 2 Ohms: 2 x 750W SE
• Output Power @ 4 Ohms: 2 x 750W SE, 1 x 1500W BTL
• Output Power @ 8 Ohms: 2 x 400W SE, 1 x 1500W BTL
• Output Power @ 70V: 1 x 1200W BTL
• Output Power @ 100V: 1 x 1500W BTL
• Maximum Total Output Power, all channels driven: 1500 W
• Power Consumption: 350 W
• Thermal Output: 1200 BTU
• Polarity (Default): Non-inverting
• Dimensions: 88 x 440 x 329 mm (3⁶/₁₆ x 17⁵/₁₆ x 12¹⁵/₁₆)
• Output Voltage: 80Vp / 160Vpp (SE unloaded), 160Vp / 320Vpp (BTL unloaded)
• Signal to Noise Ratio: >108dB (A-weighted, 20Hz – 20kHz, 8 Ohm load)
• THD+N (typical): <0.05% (20 Hz – 20 kHz, 8 Ohm load, 3dB below rated power)
• Frequency Response: +0/-0.25dB 20Hz – 20kHz (8 Ohm load, 3dB below rated power)
• Protection Circuits: Short circuit, DC, Undervoltage, Temperature, and Overload protection
• Power Supply: Switch mode power supply with Power Factor Correction (PFC) and standby converter
• Operating Voltage/Frequency: Universal Mains, 100 V – 240 V, 50 Hz – 60 Hz
• Standby Consumption: <0.5W
• Accessories: Rack mount kit (pre-installed)
• Power Ratings: 1% THD @ 120Vac and 230Vac
• Cabinet Finish: Black Anodised
• Warranty: 5 years

• 1 x Amplifier
• 1 x Mains Power Lead
• 1 x Connector Set
• 4 x Adhesive Feet
• 2 x Rack Mount Brackets
