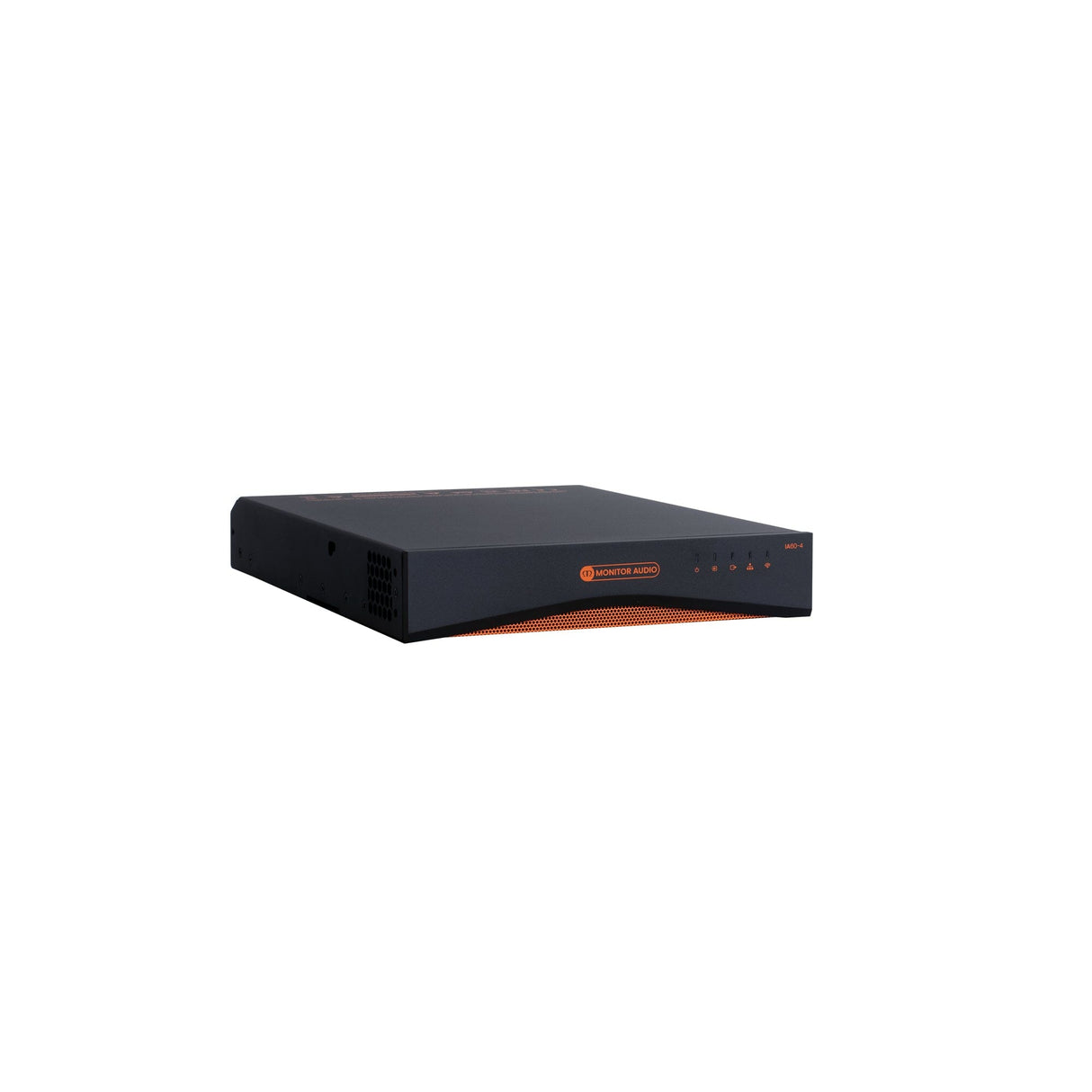

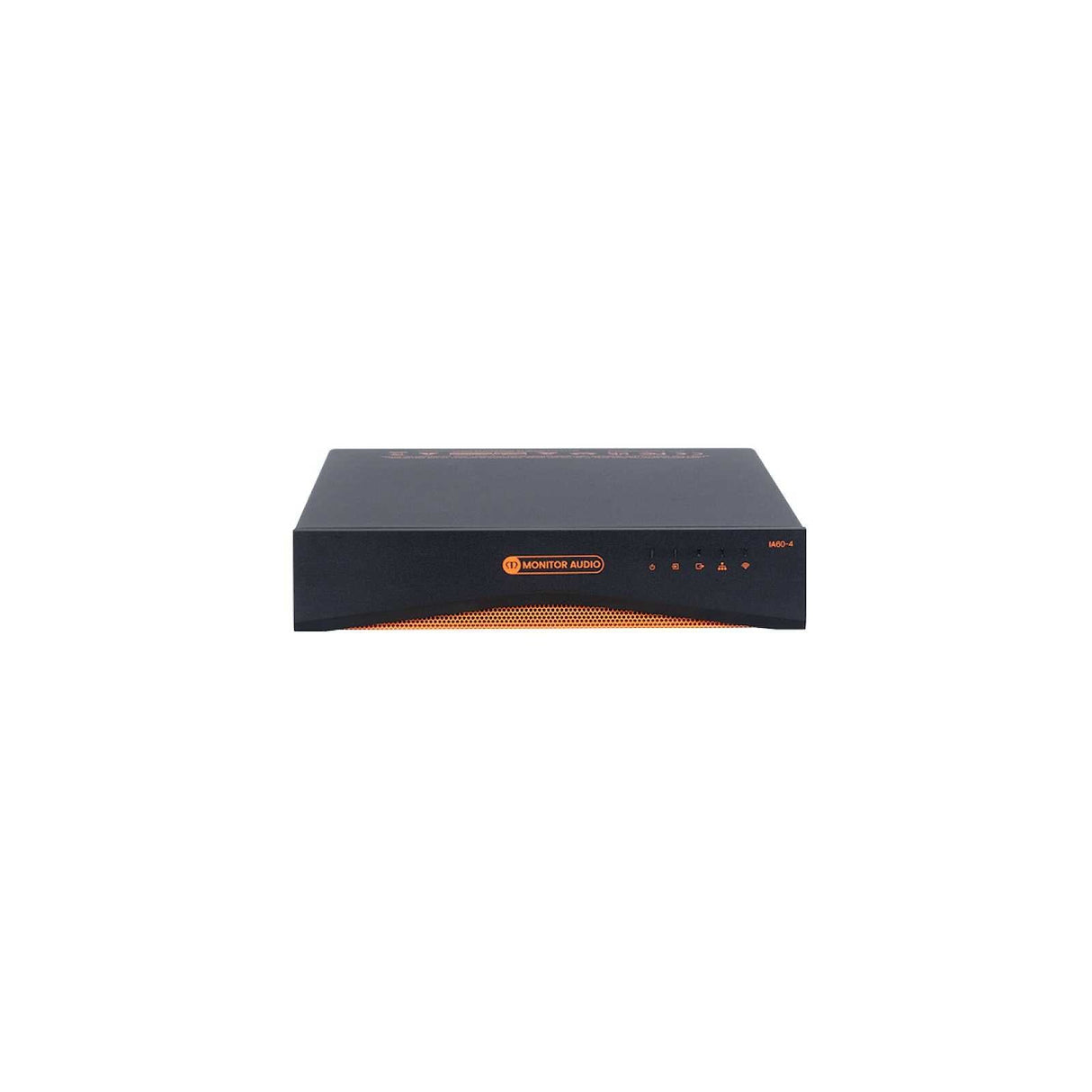

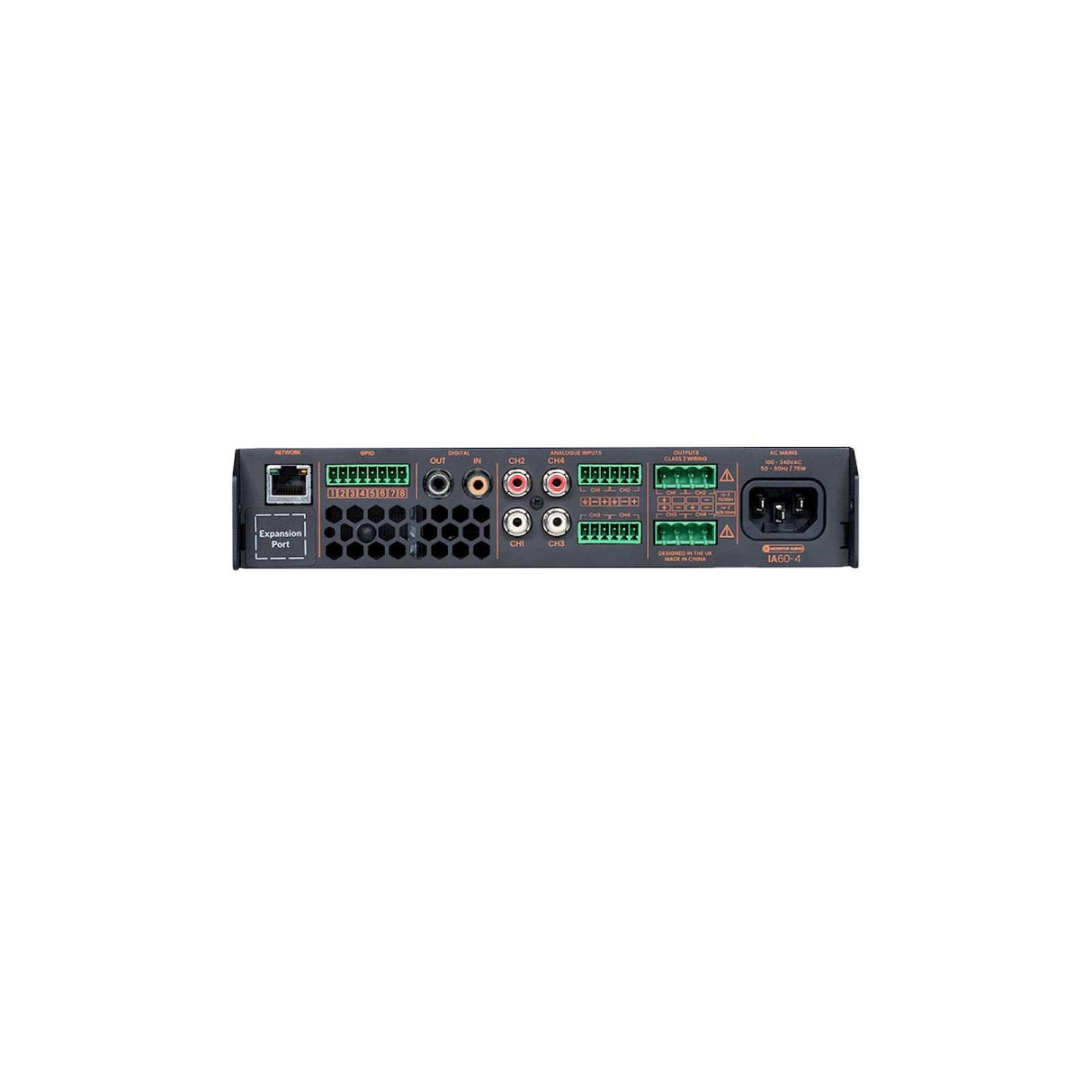

Monitor Audio IA60-4 Four Channel Stereo Amplifier

The Monitor Audio IA60-4 is a high-performance four-channel installation amplifier designed to deliver outstanding audio fidelity with maximum installation flexibility.

Ideal for custom home audio setups, multi-room sound systems, or commercial audio solutions, it effortlessly drives in-wall and ceiling speaker systems with precision and efficiency. Designed for professional AV integrators and audiophiles alike, it provides powerful sound output in a compact 1U form factor.

This versatile amplifier can be configured in multiple ways, including stereo, bridged, or parallel modes, offering unrivalled adaptability to suit a wide range of audio applications. With a robust build, Class-D efficiency, and simple web-based configuration, the IA60-4 ensures reliable, high-quality performance in even the most demanding installations.

FEATURES

• Four Channels of High-Quality Audio: Power up to four speakers with 60W per channel at 4 ohms, ideal for multi-room audio installations.
• Configurable Output Modes: Use in stereo, bridged, or parallel mode for ultimate flexibility across different speaker configurations.
• Compact 1U Rack Size: Space-saving design fits neatly into standard AV racks without compromising on power or performance.
• Efficient Class-D Amplification: Enjoy cooler running and energy-efficient operation while maintaining superb sound clarity.
• Web-Based Configuration Interface: Set up and manage the amplifier with ease using a browser-based interface, even from remote locations.
• Loop Outputs for System Expansion: Easily daisy-chain multiple units or integrate with other audio systems to scale up your installation.
• Trigger Input/Output and RS232 Control: Seamlessly integrate into smart home or commercial control systems for fully automated operation.
• Universal Power Supply: Globally compatible 100-240V input ensures reliable operation in any region or environment.
• Overload and Thermal Protection: Built-in safety features guard against overheating and electrical faults, ensuring long-term reliability.
• Ultra-Reliable Construction: Built to Monitor Audio’s premium standards, ensuring consistent performance and long operational life.

What You Get

• 1 x Amplifier
• 1 x Mains Cable
• 1 x Connector Set
• 4 x Adhesive Feet

Specifications

• Channels: 4
• Output Power @ 4 Ohms/8 Ohms: 4 x 60W SE*
• Output Power @ 70/100V: 2 x 125W BTL**
• Poweshare (up to): 1 x 250 W
• Power Consumption: 75 W
• Thermal Output: 256 BTU
• Polarity (Default): Non-inverting
• Dimensions: 44 x 220 x 325 mm (13/4 x 811/16 x 115/8")
• Output Voltage: 70Vp / 140Vpp (SE unloaded), 140Vp / 280Vpp (BTL unloaded)
• Signal to Noise Ratio: >106dB (A-weighted, 20 Hz – 20 kHz, 8 Ohm load)
• THD+N (typical): <0.05% (20 Hz – 20 kHz, 8 Ohm load, 3dB below rated power)
• Frequency Response: +0/-0.25dB 20Hz - 20kHz (8 Ohm load, 3dB below rated power)
• Protection Circuits: Short circuit, DC, Undervoltage, Temperature, and Overload protection
• Power Supply: Switch mode power supply with Power Factor Correction (PFC) and standby converter
• Operating Voltage/Frequency: Universal Mains, 100 V – 240 V, 50 Hz – 60 Hz
• Standby Consumption: <0.5 W
• Accessories: Rack Mount Kit, Wall/desktop mount kit (sold separately)
• Power Ratings: 1% THD @ 120Vac and 230Vac
• Cabinet Finish: Black Anodised
• Warranty: 5 years
