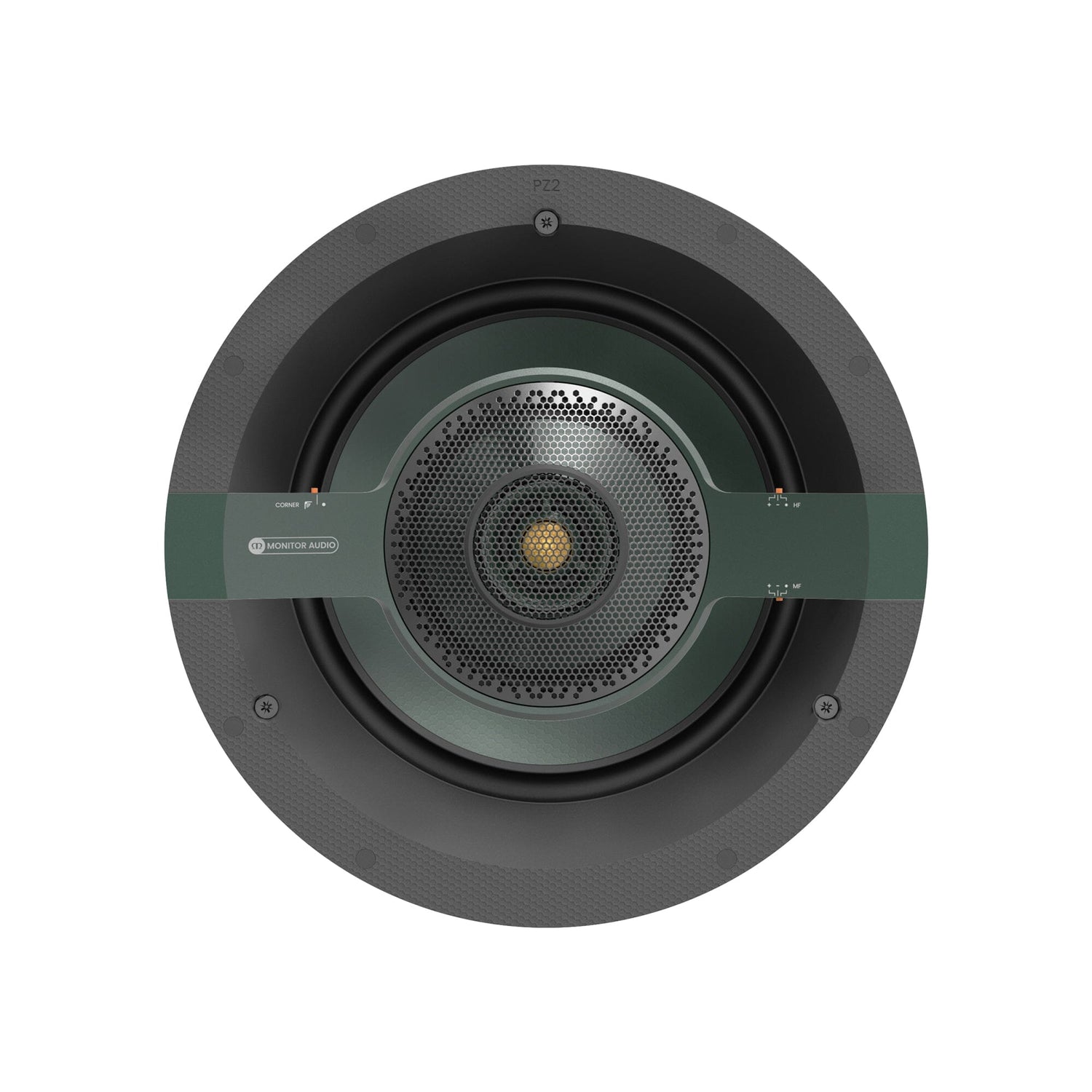

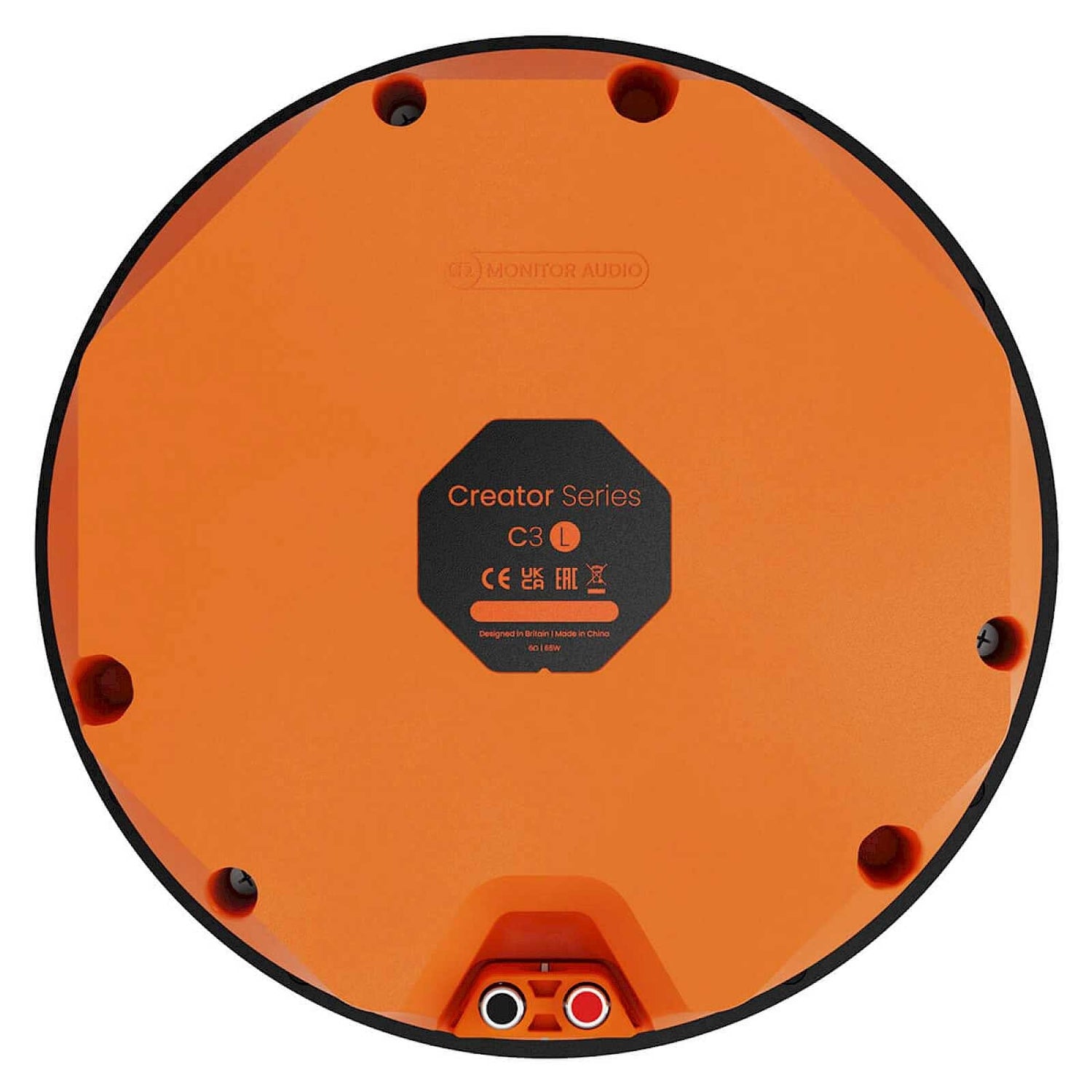

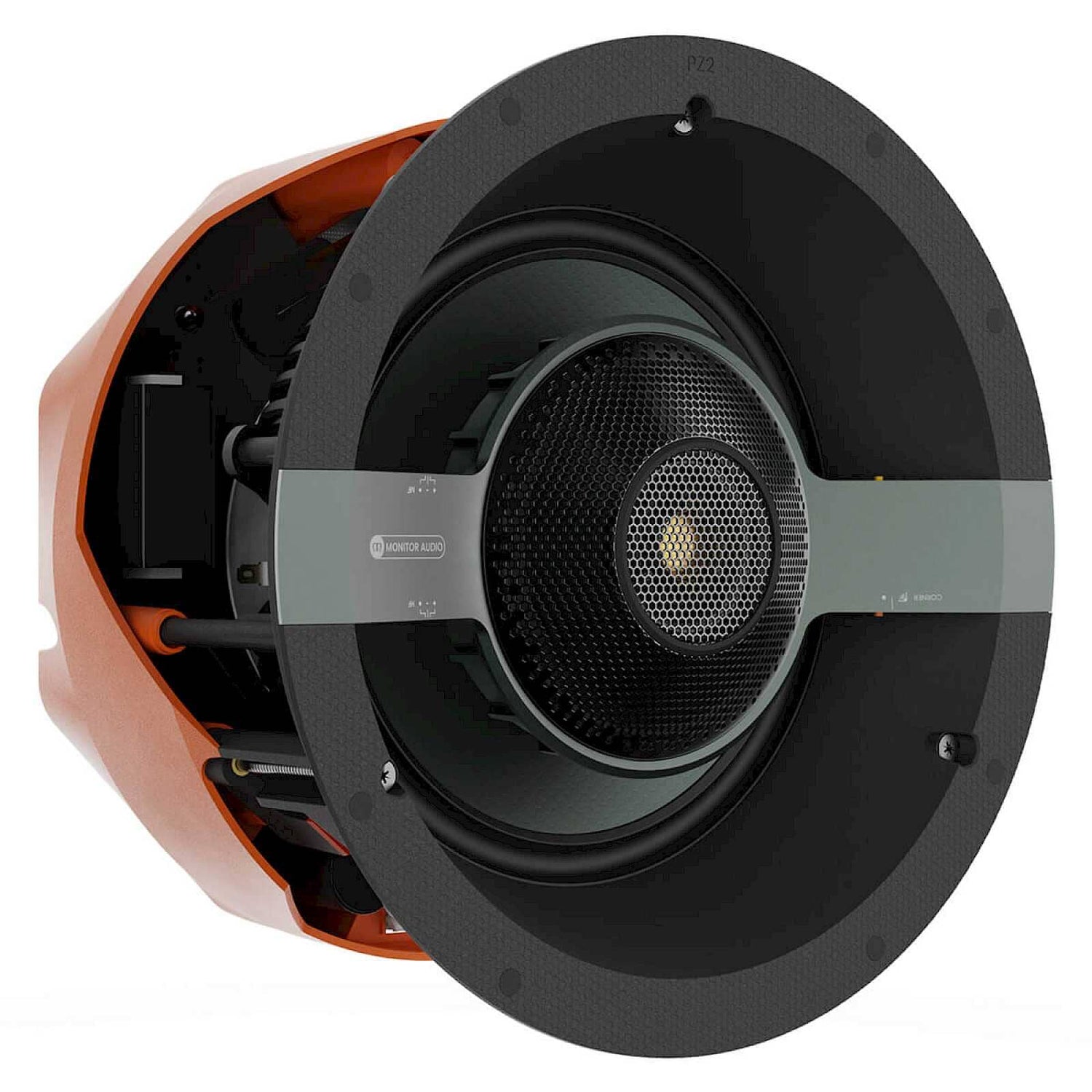

Monitor Audio C3L Creator Series In Ceiling Speaker - Large (Each)

This large Tier 3 in-ceiling loudspeaker is a three-way model featuring an RDT III bass driver, IDC II midrange driver, and IDC II tweeter with UD Waveguide II.

It has a cut-out diameter of 248 mm and revolutionary Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.

• Ideal for installations where high-performance acoustics are desired
• Three-way design
• Mid-frequency ‘mid-pod array’
• 1 x 1" IDC II tweeter with UD Waveguide II for lifelike sound
• 1 x 9" RDT III bass driver
• 1 x 4" IDC II midrange driver
• Quik-Link speaker cable connector for quicker installation
• Tri-Grip II for easy and secure fitment

What You Get

• 1 x In Ceiling Speaker
• 1 x Grille
• 1 x Cut Out Template
• 1 x Manual

Specifications

• System Format: 3–Way
• Channels: 1
• Frequency Response, Installed (-6dB): 45 Hz – 35 kHz
• Nominal Impedance: 6 ohm
• Minimum Impedance (20Hz to 20kHz): 4.8 Ohm @ 2 kHz
• Sensitivity (2.83Vrms@1m, Installed): 89 dB
• Maximum Peak SPL (single speaker @ 1m Z-Weighted): 119 dB
• Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor): 150 W
• Recommended Amplifier Power (RMS into 8 OHM, Music Signal): 60 – 225 W
• Drive Unit Complement: 1 x 9"(229 mm) RDT III bass driver, 1 x 4"(102 mm) IDC II midrange driver, 1 x 1"(25 mm) IDC II tweeter
• Crossover Frequency: LF/MF: 700 Hz, MF/HF: 3.5 kHz
• Mounting Depth: 157 mm (6 3/16")
• Cut-Out Hole Diameter: 248 mm (9 3/4")
• External Dimensions (Including Grille, H x W x D): 278 x 278 x 161 mm (10 15/16 x 10 15/16 x 6 5/16")
• Weight (each): 5 kg
• Pre-Construction Bracket: CL-B
• Cabinet Finish: Matte black&Orange&Green
• Sold As: Single Unit with CL-Round Grille (white)
• Corner Switch: On/Off
• HF Switch: - / 0 / +
• F Switch: - / 0 / +
• Warranty: Lifetime
