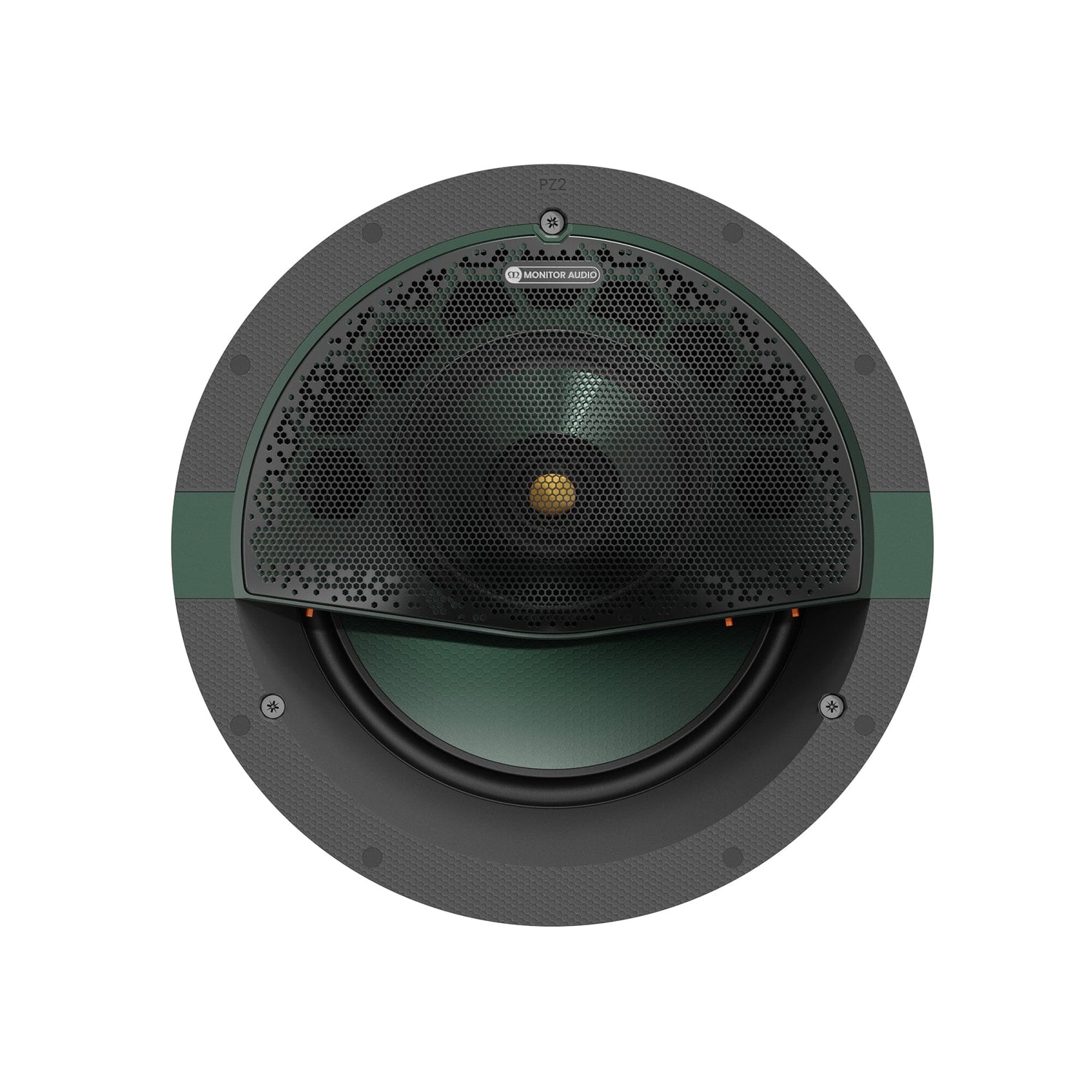

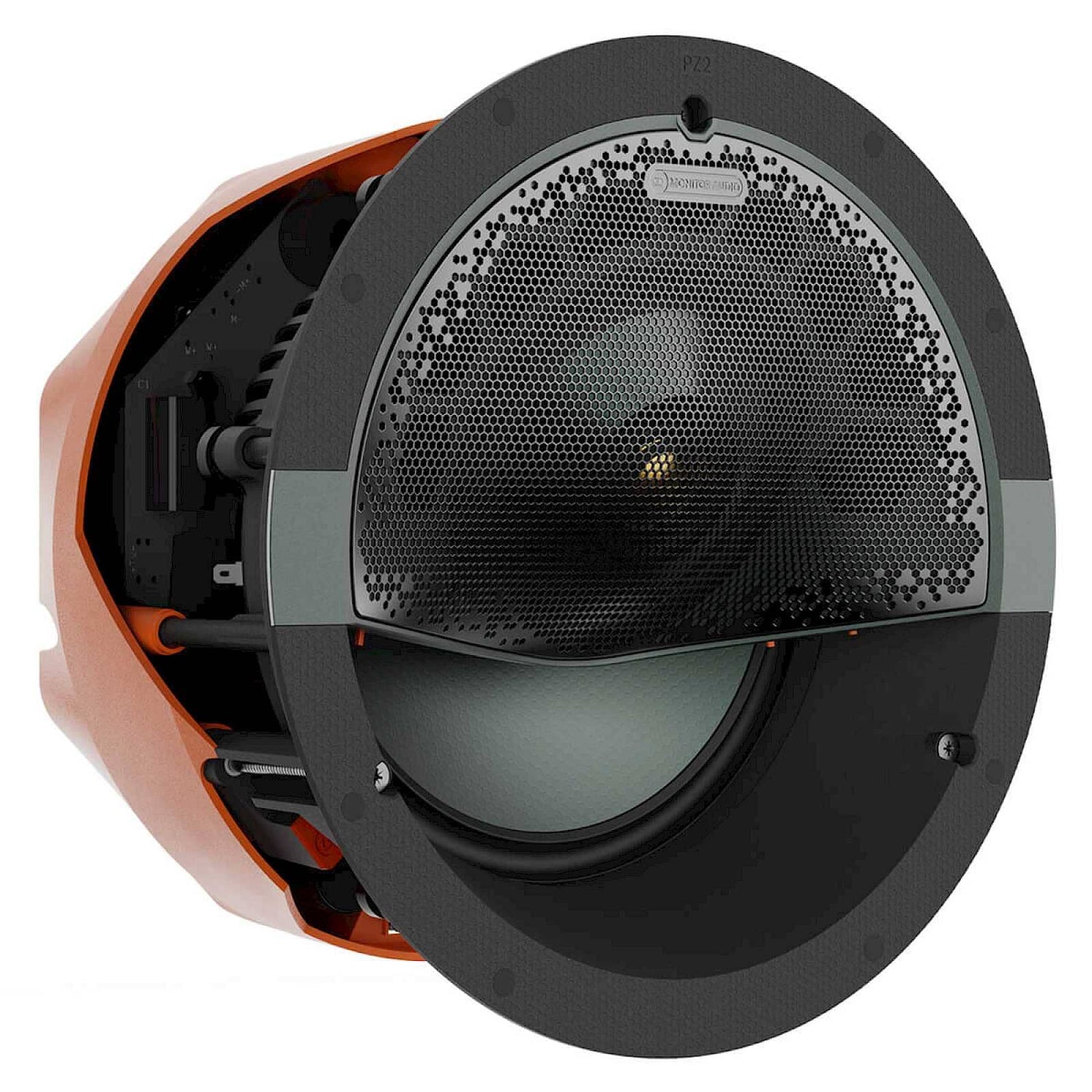

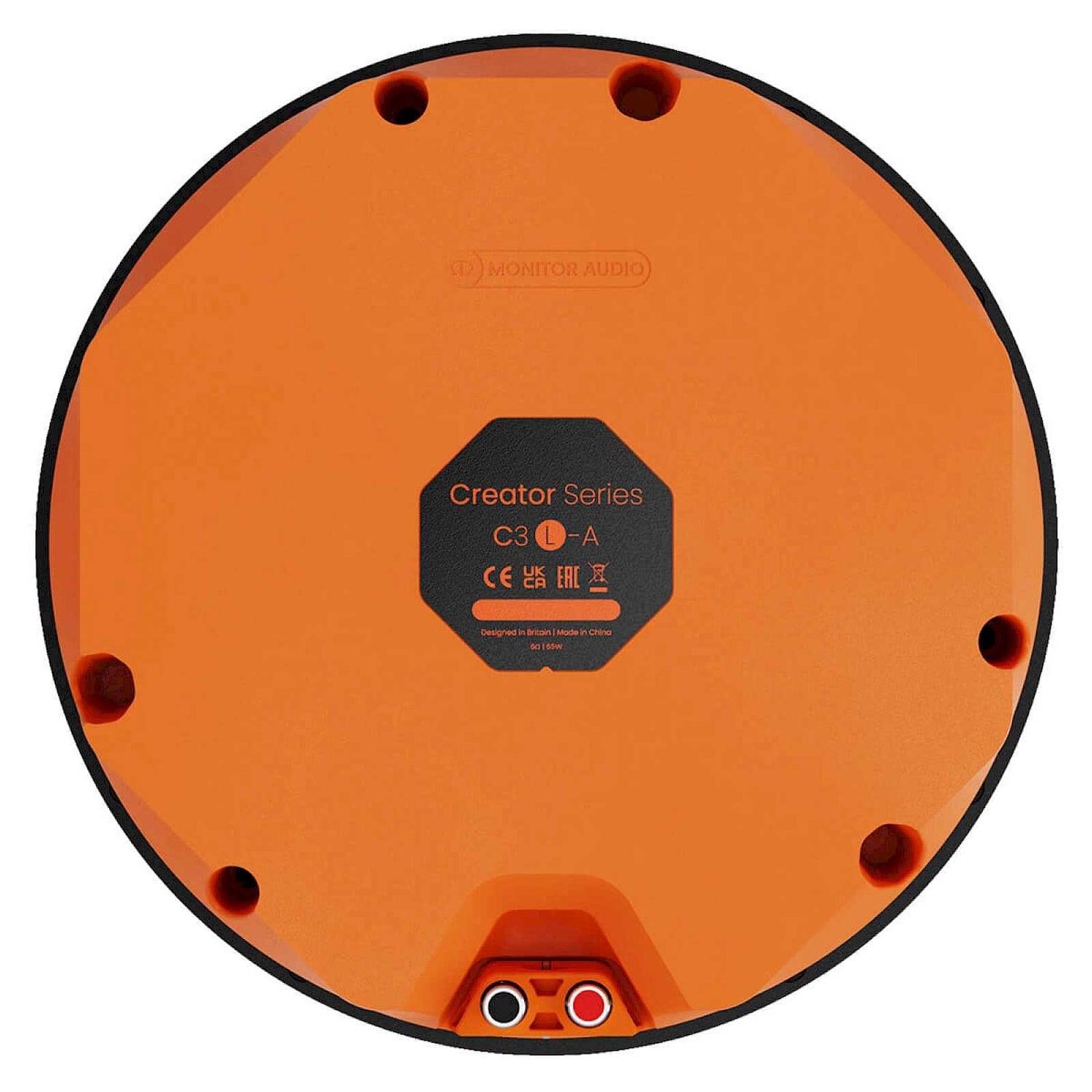

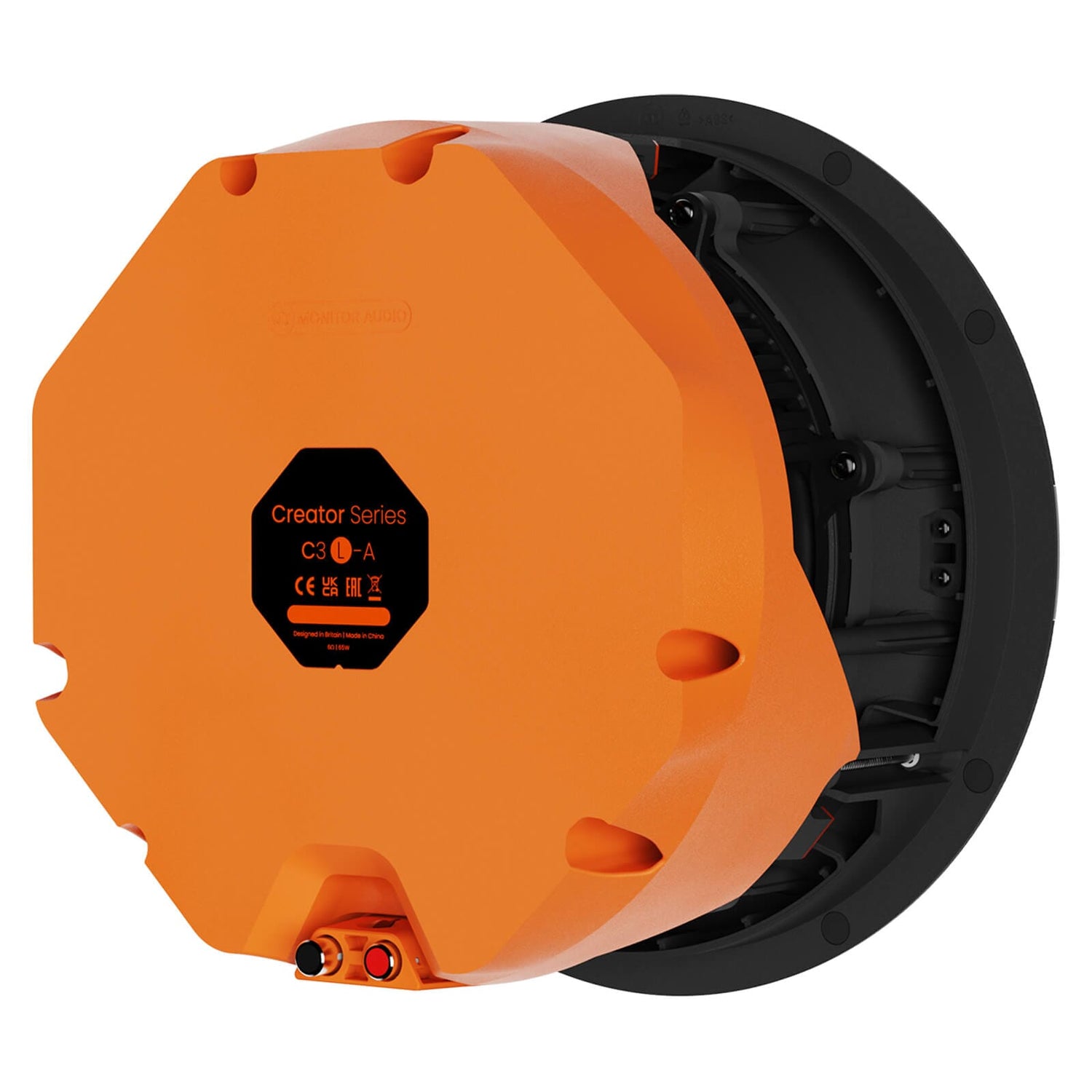

Monitor Audio C3L-A Creator Series Angled In Ceiling Speaker - Large (Each)

Monitor Audio  |  SKU: SCSC3LA
£950.00
Contact Us To Order

This product is available but cannot be bought directly online. Please contact one of our audio experts by email, live chat or phone to discuss your requirements.

Description

This large Tier 3 in-ceiling loudspeaker is a three-way model with an angled IDC II driver array that focuses sound mid-range and high-frequency sound into the listening area for improved clarity.

It has a cut-out dimension of 248 mm and revolutionary Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.

FEATURES

  • Ideal for installations where high-performance acoustics are desired
  • Angled IDC II projects sound into the room for pin-point accuracy
  • Three-way design
  • Mid-frequency ‘mid-pod array’
  • 1 x 1" IDC II tweeter with UD Waveguide II for lifelike sound
  • 1 x 9" RDT III bass driver
  • 1 x 4" IDC II midrange driver
  • Quik-Link speaker cable connector for quicker installation
  • Tri-Grip II for easy and secure fitment

Key Features
  • Placement
    In Ceiling
  • Cut-Out Diameter
    248 mm
  • Mounting Depth
    157 mm
  • Power Handling
    150 Ws
  • Impedance
    6 Ohms
  • Driver Size
    9"
  • Sensitivity
    89 dB
  • Frequency Response
    45 Hz – 35 kHz​
  • Warranty
    Lifetime

Specifications
  • System Format: 3–Way
  • Channels: 1
  • Frequency Response, Installed (-6dB): 45 Hz – 35 kHz
  • Nominal Impedance: 6 ohm
  • Minimum Impedance (20Hz to 20kHz): 4.6 Ohm @ 2 kHz
  • Sensitivity (2.83Vrms@1m, Installed): 89 dB
  • Maximum Peak SPL (single speaker @ 1m Z-Weighted): 119 dB
  • Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor): 150 W
  • Recommended Amplifier Power (RMS into 8 OHM, Music Signal): 60 – 225 W
  • Drive Unit Complement: 1 x 9" (229 mm) RDT III bass driver, 1 x 4" (102 mm) IDC II midrange driver, 1 x 1" (25 mm) IDC II tweeter
  • Crossover Frequency: LF/MF: 700 Hz, MF/HF: 3 kHz
  • Mounting Depth: 157 mm (6 3/16")
  • Cut-Out Hole Diameter: 248 mm (9 3/4")
  • External Dimensions (Including Grille, H x W x D): 278 x 278 x 161 mm (10 15/16 x 10 15/16 x 6 5/16")
  • Weight (each): 5.6 kg (12 lb 5 oz)
  • Pre-Construction Bracket: CL-B
  • Cabinet Finish: Matte black & Orange & Green
  • Sold As: Single Unit with CL-Round Grille (white)
  • Corner Switch: On/Off
  • HF Switch: - / 0 / +
  • MF Switch: - / 0 / +
  • Warranty: Lifetime

What You Get
  • 1 x In Ceiling Speaker
  • 1 x Grille
  • 1 x Cut Out Template
  • 1 x Manual
