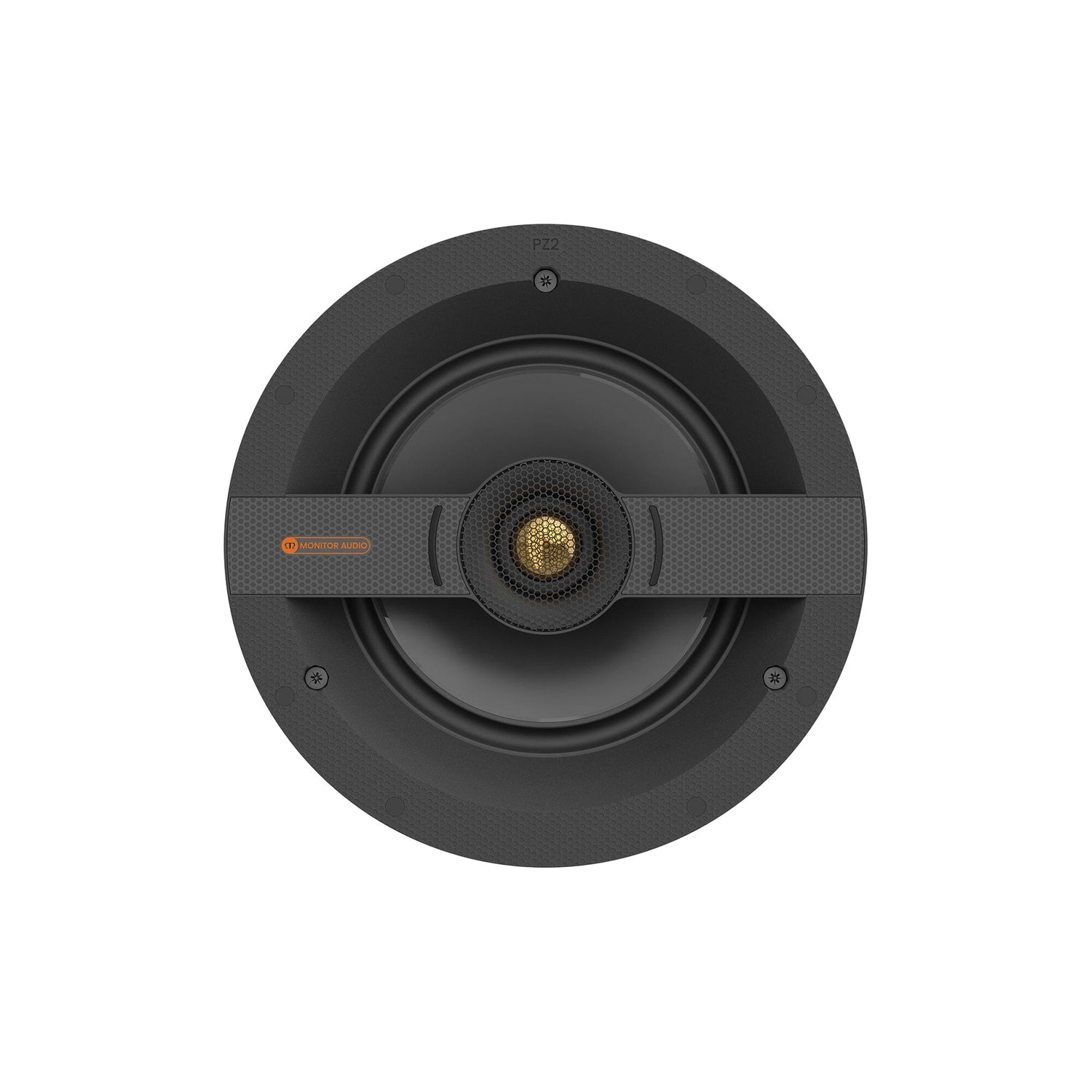

Monitor Audio C1M Creator Series In Ceiling Speaker - Medium (Each)

Monitor Audio  |  SKU: SCSC1M
£300.00
Contact Us To Order

This product is available but cannot be bought directly online. Please contact one of our audio experts by email, live chat or phone to discuss your requirements.

Description

This medium Tier 1 in-ceiling loudspeaker is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter.

It has a cut-out dimension of 212 mm, a revolutionary Quik-Link speaker cable connector, and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.

FEATURES

  • Ideal for cost-effective installations
  • Two-way design
  • 1 x 1" C-CAM tweeter with UD Waveguide
  • 1 x 7" C-CAM mid-bass driver
  • Quik-Link speaker cable connector for quicker installation
  • Tri-Grip II for easy and secure fitment

Key Features
  • Placement
    In Ceiling
  • Cut-Out Diameter
    212 mm
  • Mounting Depth
    99 mm
  • Power Handling
    65 Ws
  • Impedance
    8 Ohms
  • Driver Size
    7"
  • Sensitivity
    86 dB
  • Frequency Response
    35 Hz – 30 kHz​
  • Warranty
    Lifetime

Specifications
  • System Format: 2–Way
  • Channels: 1
  • Frequency Response, Installed (-6dB): 35 Hz – 30 kHz
  • Nominal Impedance: 8 ohm
  • Minimum Impedance (20Hz to 20kHz): 6.5 Ohm @ 150 Hz
  • Sensitivity (2.83Vrms@1m, Installed): 86 dB
  • Maximum Peak SPL (single speaker @ 1m Z-Weighted): 113 dB
  • Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor): 65 W
  • Recommended Amplifier Power (RMS into 8 OHM, Music Signal): 35 – 130 W
  • Drive Unit Complement: 1 x 7" (178 mm) C-CAM mid-bass driver, 1 x 1" (25 mm) C-CAM tweeter
  • Crossover Frequency: LF/HF: 2 kHz
  • Mounting Depth: 99 mm (3 7/8")
  • Cut-Out Hole Diameter: 212 mm (8 3/8")
  • External Dimensions (Including Grille, H x W x D): 242 x 242 x 103 mm (9 1/2 x 9 1/2 x 4 4/16")
  • Weight (each): 1.9 kg (4 lb 3 oz)
  • Pre-Construction Bracket: CM-B
  • Cabinet Finish: Matte black & Orange
  • Sold As: Single Unit with CM-Round Grille (white)
  • Warranty: Lifetime

What You Get
  • 1 x In Ceiling Speaker
  • 1 x Grille
  • 1 x Cut Out Template
  • 1 x Manual
