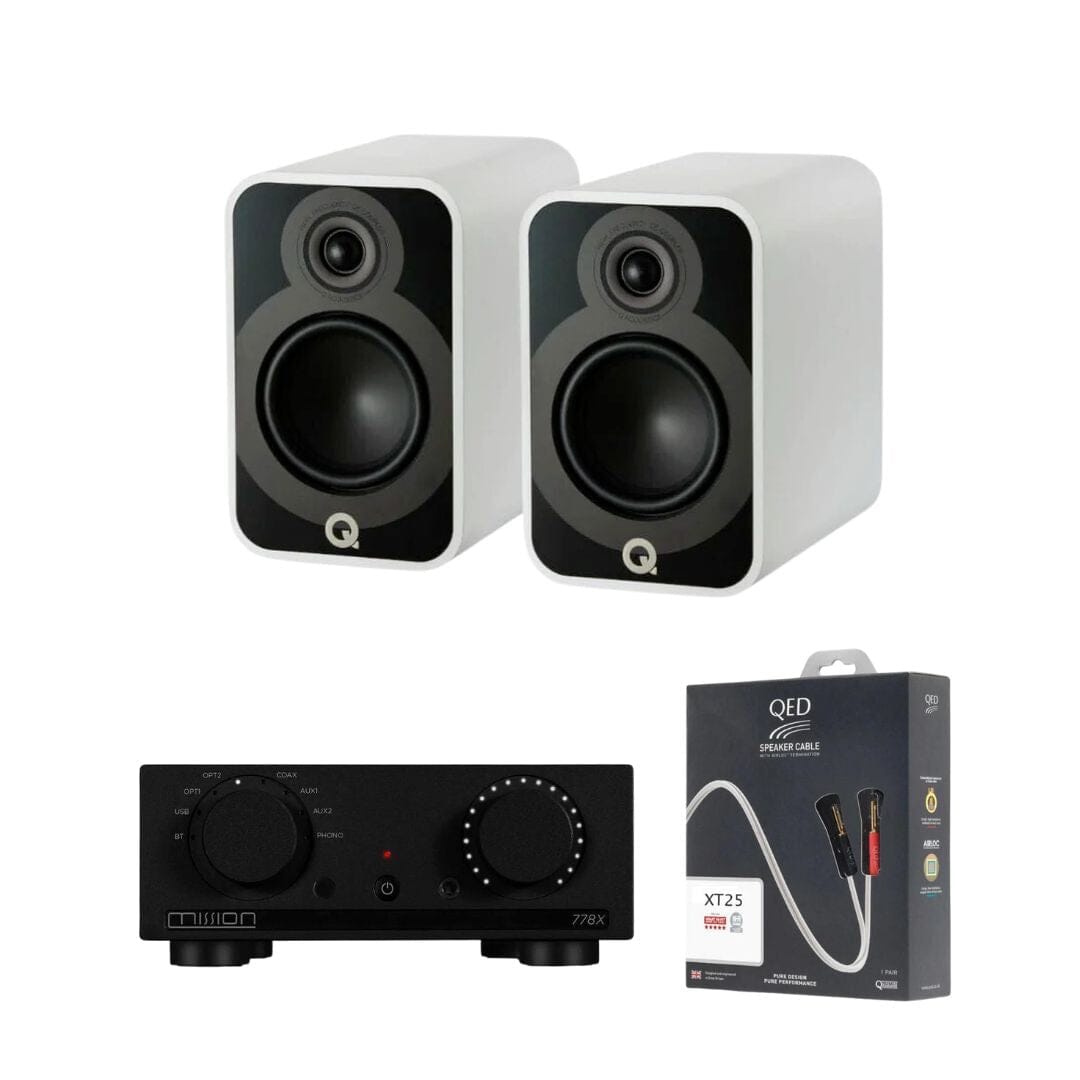

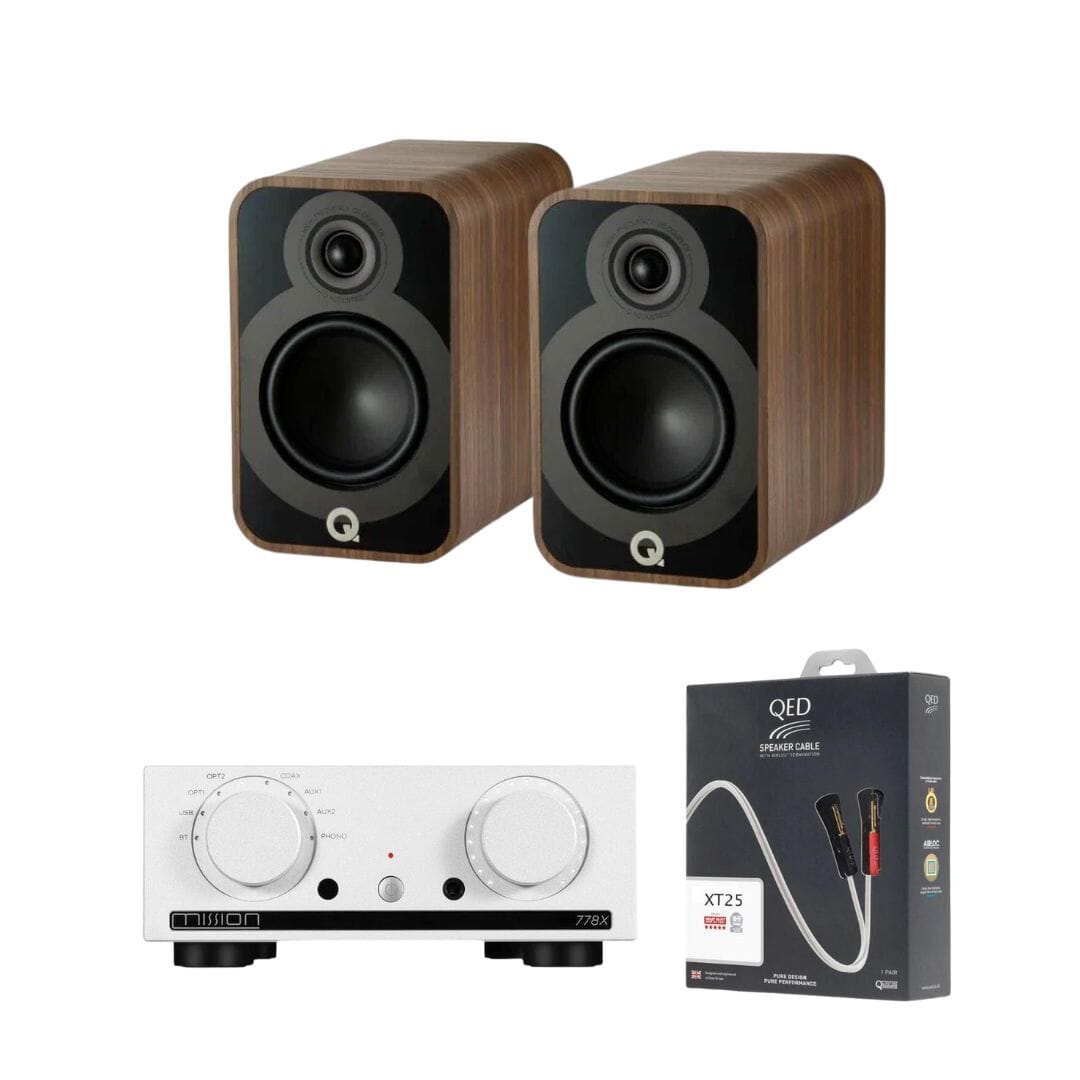

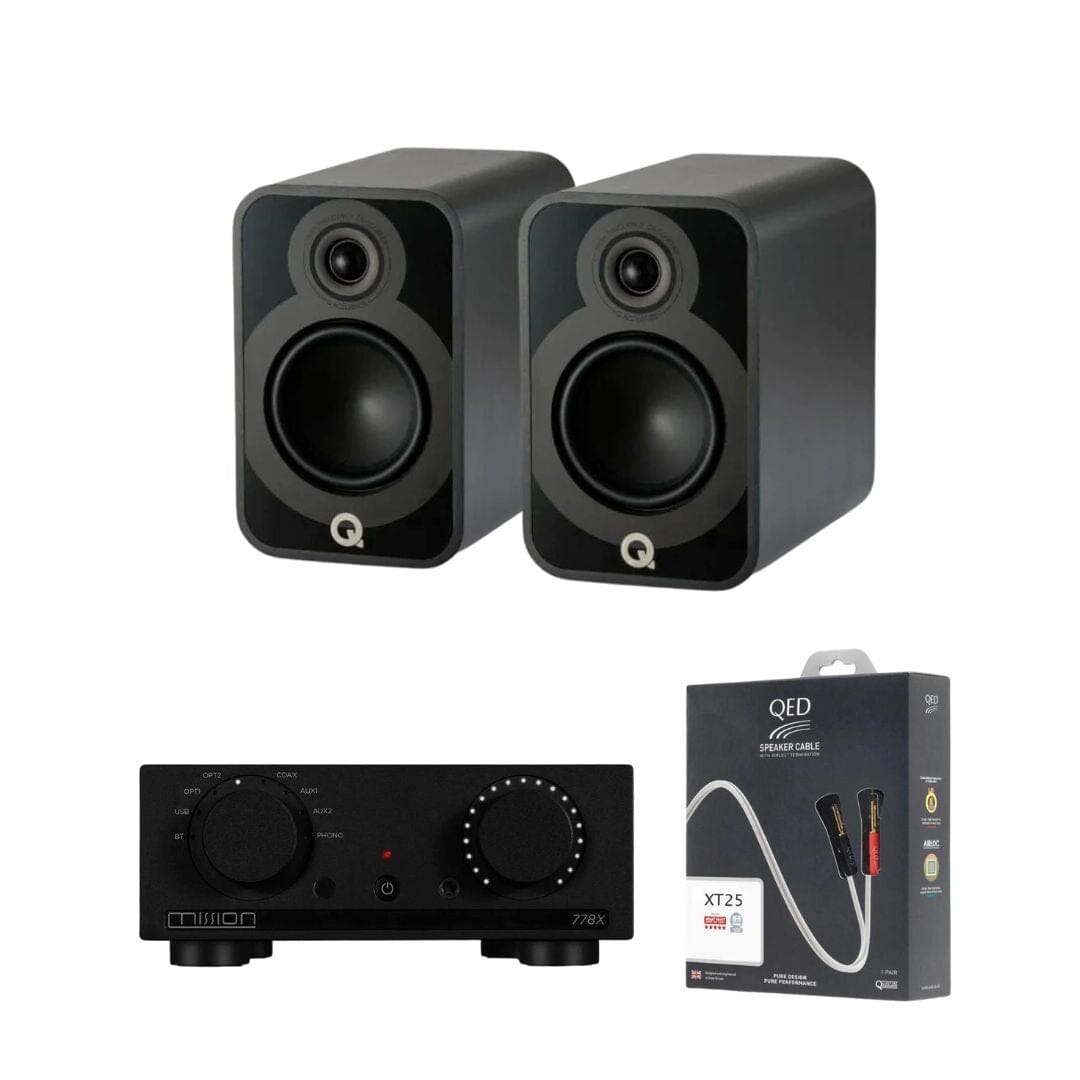

Mission 778X Amplifier + Q Acoustics 5020 Bookshelf 5" Speakers Bundle

Audiolab  |  SKU: KB00072
£979.00 £1,228.90
Available
Amplifier Colour
Speakers Colour

Need Advice? Call 02393 190955

We’re more than just an online retailer. We’re passionate about audio and offering the best customer service in the industry.

Need some advice? Call our audio experts on 02393 190955, live chat or email us and we’ll help you make the best decision. Learn More

2 Years Warranty + 60 Day Returns

DELIVERY

All orders to mainland UK over £99 are eligible for free standard delivery.

Need it fast? No problem, you’ll find express next day delivery rates available on most products. Learn More

RETURNS

We’re so confident that you’ll be happy with your purchase that we’ve extended our returns policy to 60 days. We call it the “Happy Sound Guarantee”.

If you’re not happy with your purchase for any reason simply send it back to us for a full refund. Learn More

Description

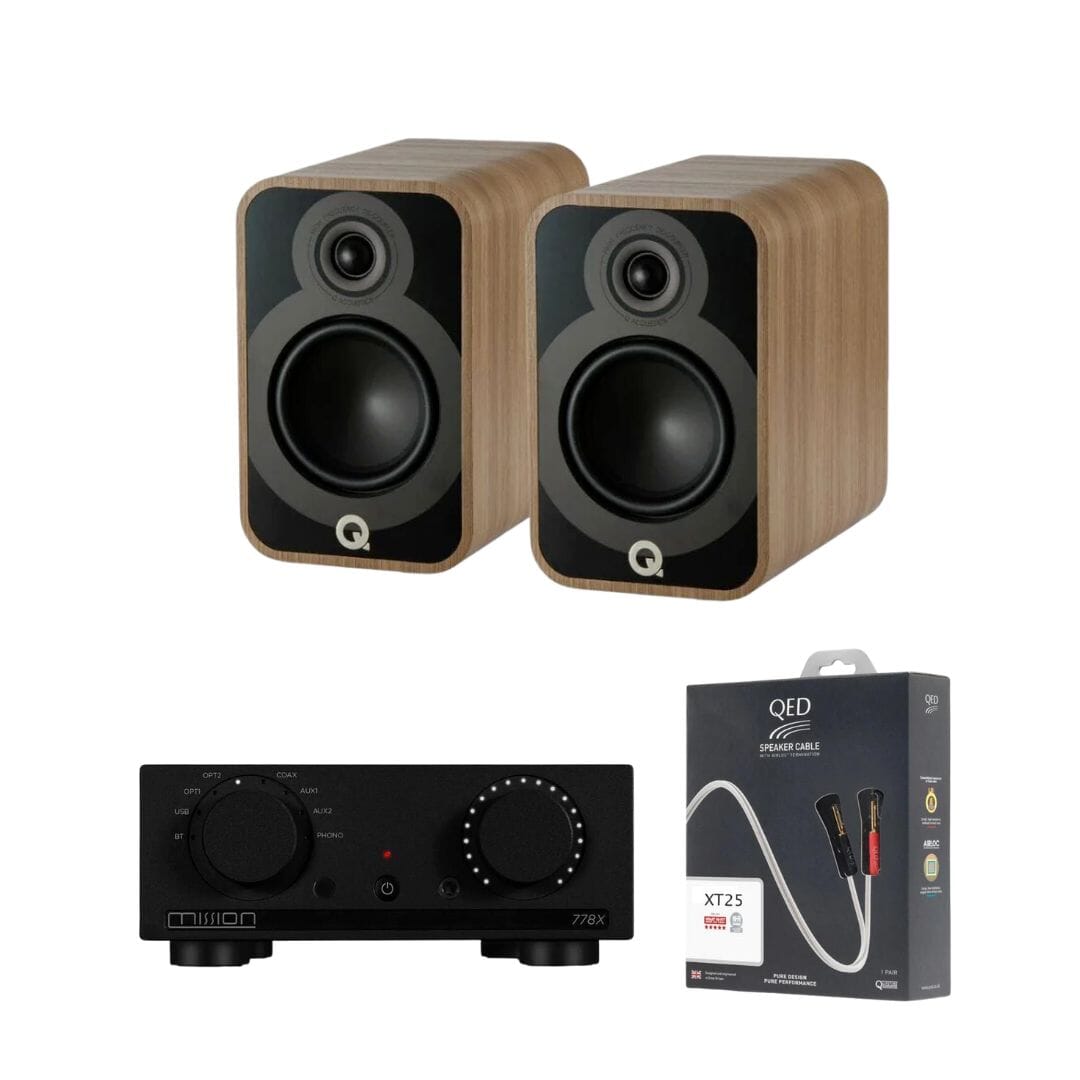

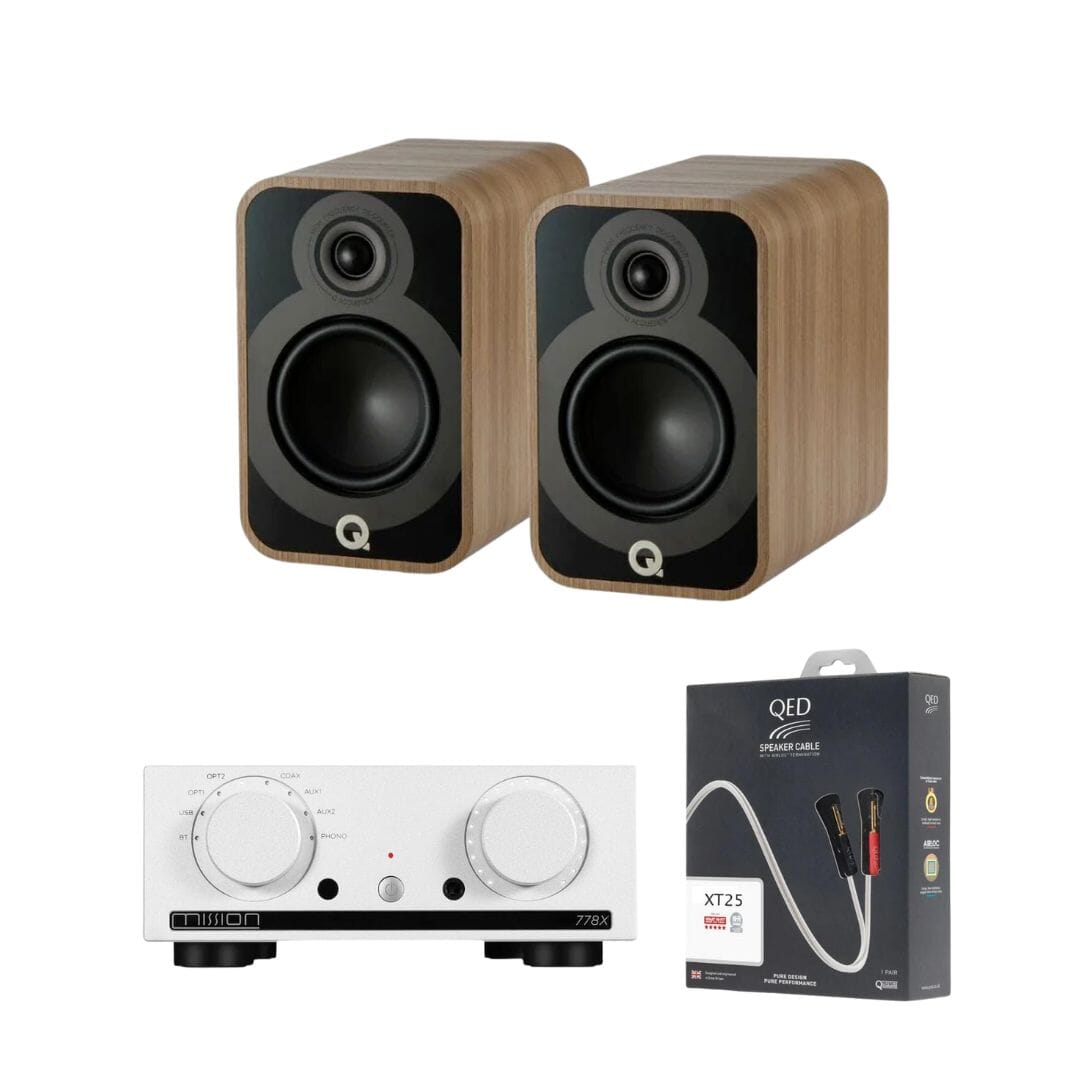

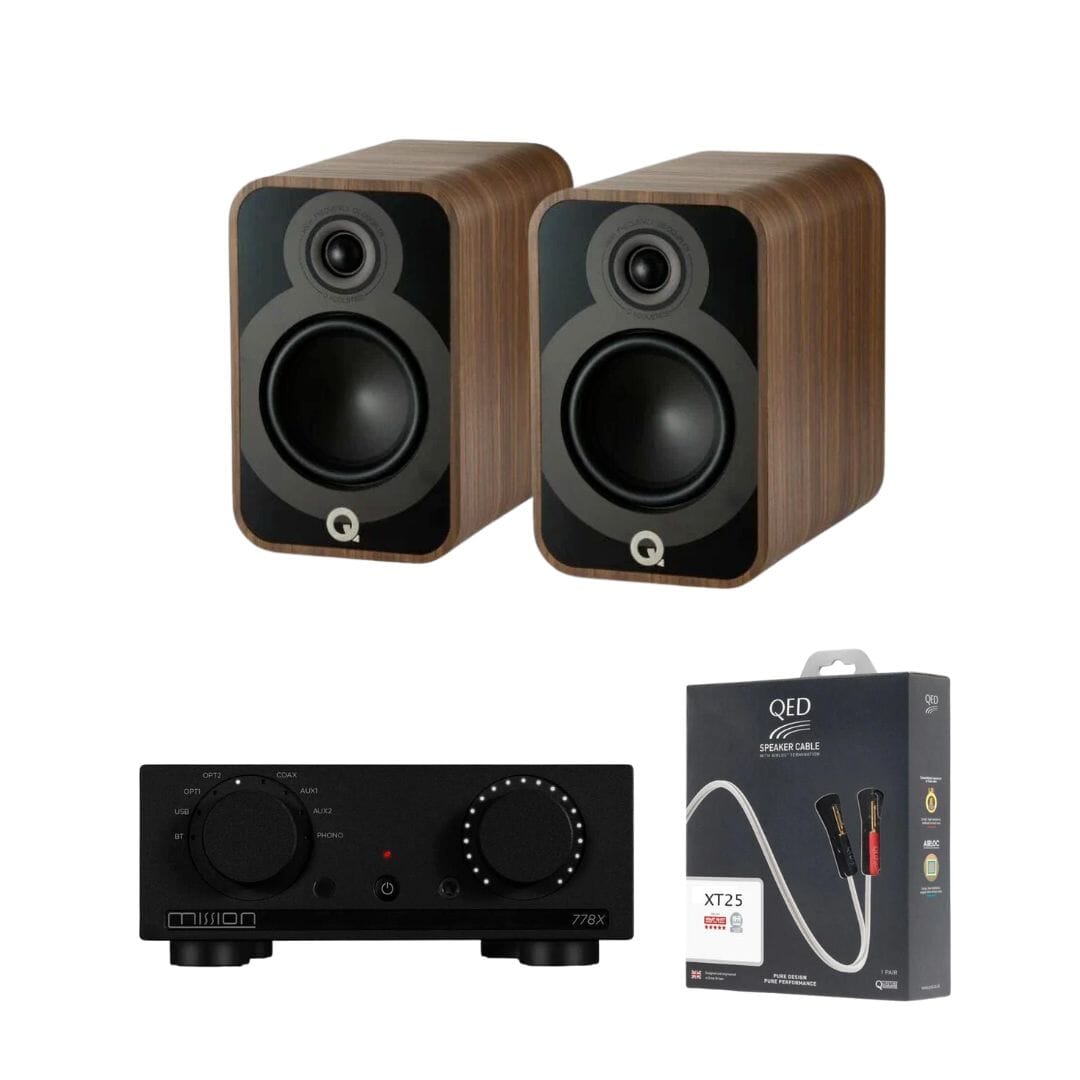

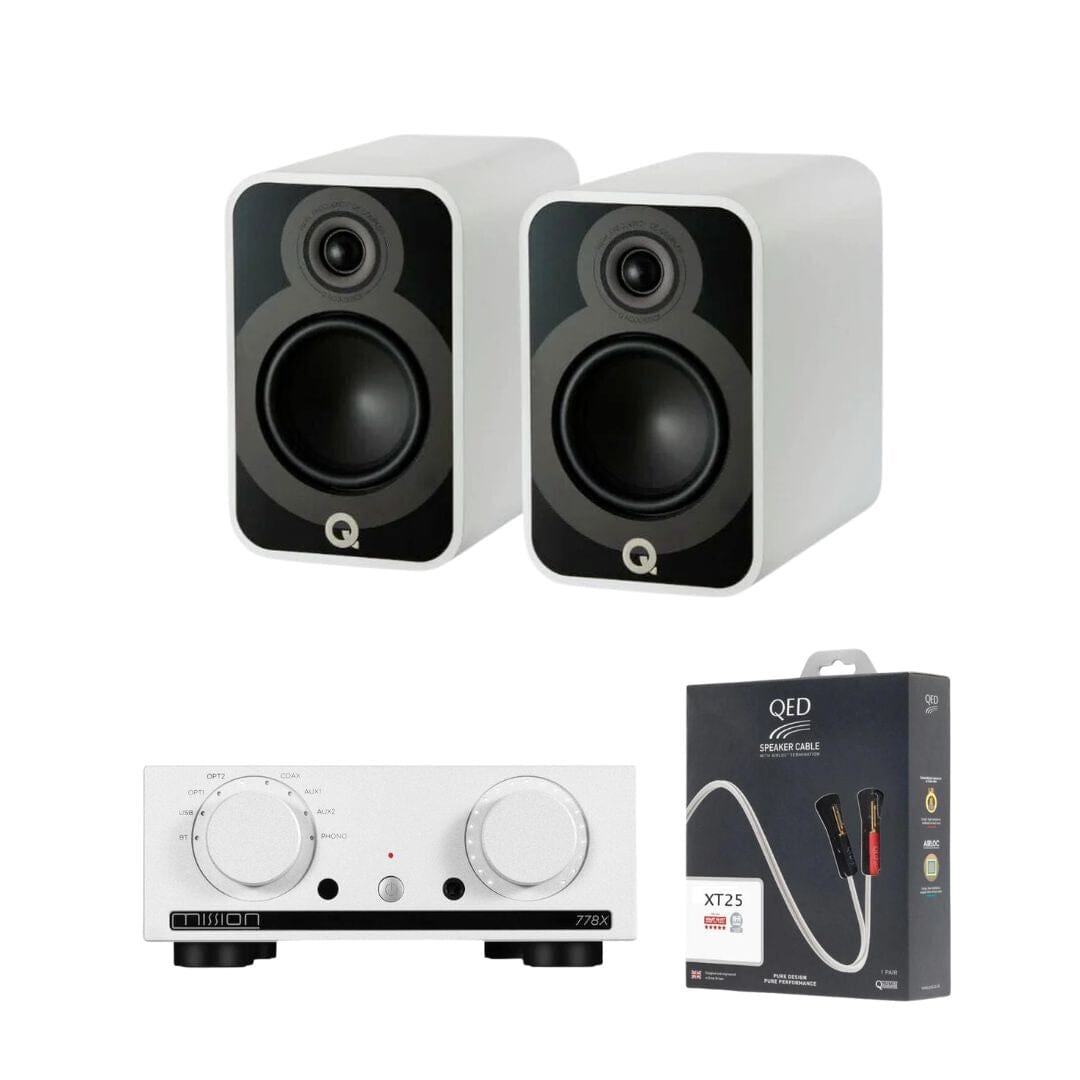

Enhance your audio experience with the Mission 778X Amplifier paired with the Q Acoustics 5020 Bookshelf Speakers.

This bundle offers premium sound quality and versatile connectivity options for a superior listening experience.

FEATURES

  • 2m Cable Included in the Bundle: Enjoy added convenience with the included 2m cable, ensuring seamless connectivity between the amplifier and speakers right out of the box.

  • Plug & Play Set Up: Experience hassle-free installation with plug-and-play functionality, allowing you to quickly set up and enjoy your audio system without complicated configurations.

  • Bluetooth from Any Streaming Device: Stream your favourite music wirelessly from any Bluetooth-enabled device to the speakers, providing convenient and flexible audio playback options.

  • Phono Ready: Connect your turntable directly to the amplifier's phono input for enhanced sound quality and authentic vinyl playback, ensuring every detail of your records is faithfully reproduced.

  • Amazon Echo Compatible: Seamlessly integrate your Amazon Echo device with the amplifier.

Key Features

  • Placement
    Bookshelf, Freestanding
  • Music Sources
    Bluetooth
  • Inputs
    Coaxial, Optical, USB, 3.5mm AUX, RCA
  • Outputs
    Optical Out, RCA Line Out
  • Impedance
    8 Ohms
  • Warranty
    2 Years

Specifications

    SPEAKERS

  • Treble Unit: 1 x 25 mm (1.0 in)
  • Frequency Response(-6dB) 53 Hz - 30 kHz
  • Nominal Impedance 6 Ω
  • Minimum Impedance 3.3 Ω
  • Sensitivity (2.83V @ 1kHz): 87.9 dB/w/m
  • Recommended Amplifier Power: 25-100 W
  • Crossover Frequency: 2.5 kHz
  • Effective Volume: 6.8 L
  • Dimensions (per loudspeaker / HxWxD): 284 x 180 x 293 mm (11.2 x 7.1 x 11.5 in)
  • Weight (per loudspeaker): 7.0 kg (15.4 lbs)

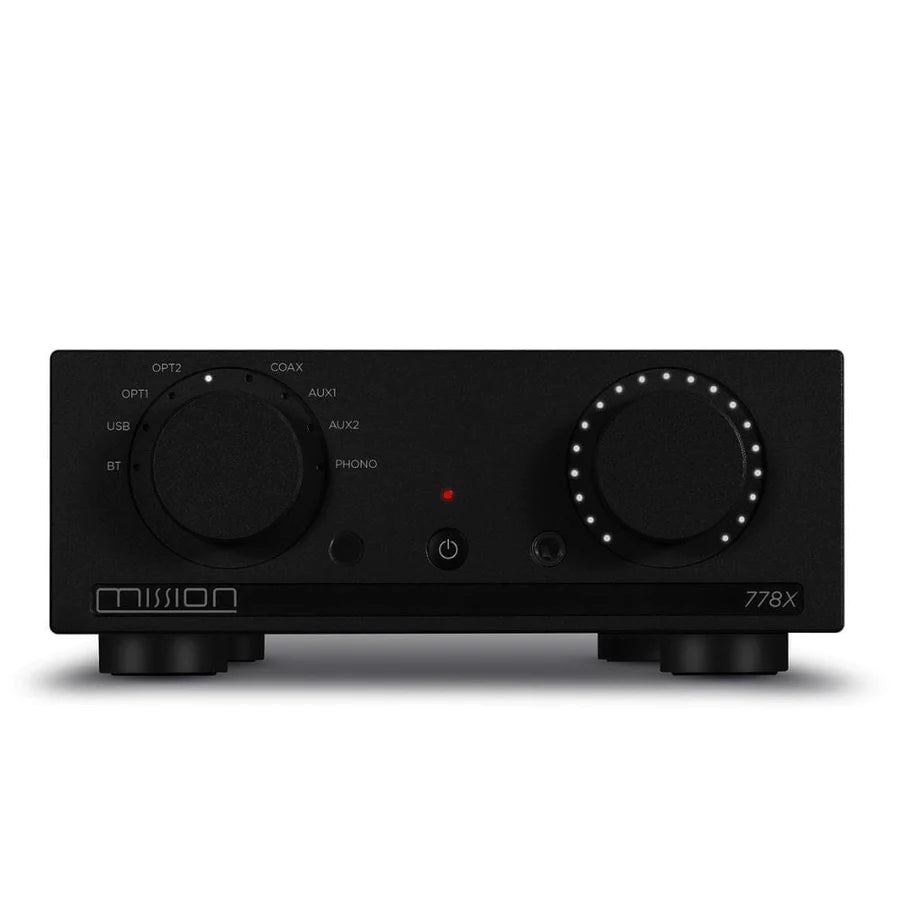

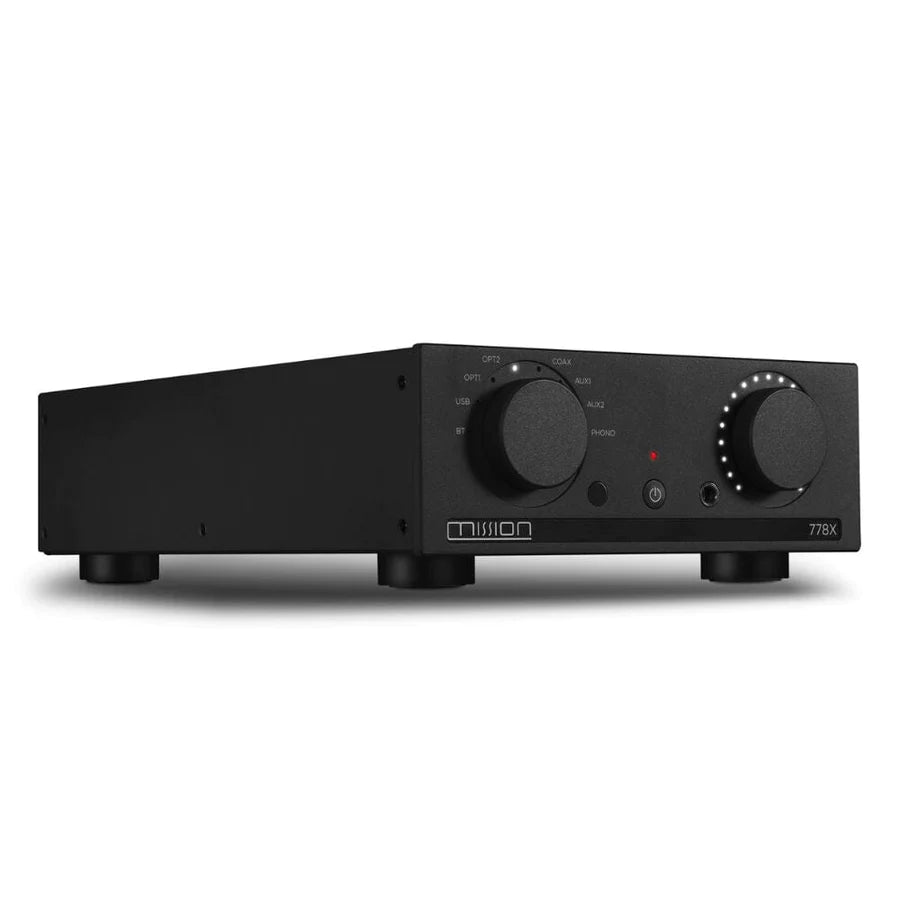

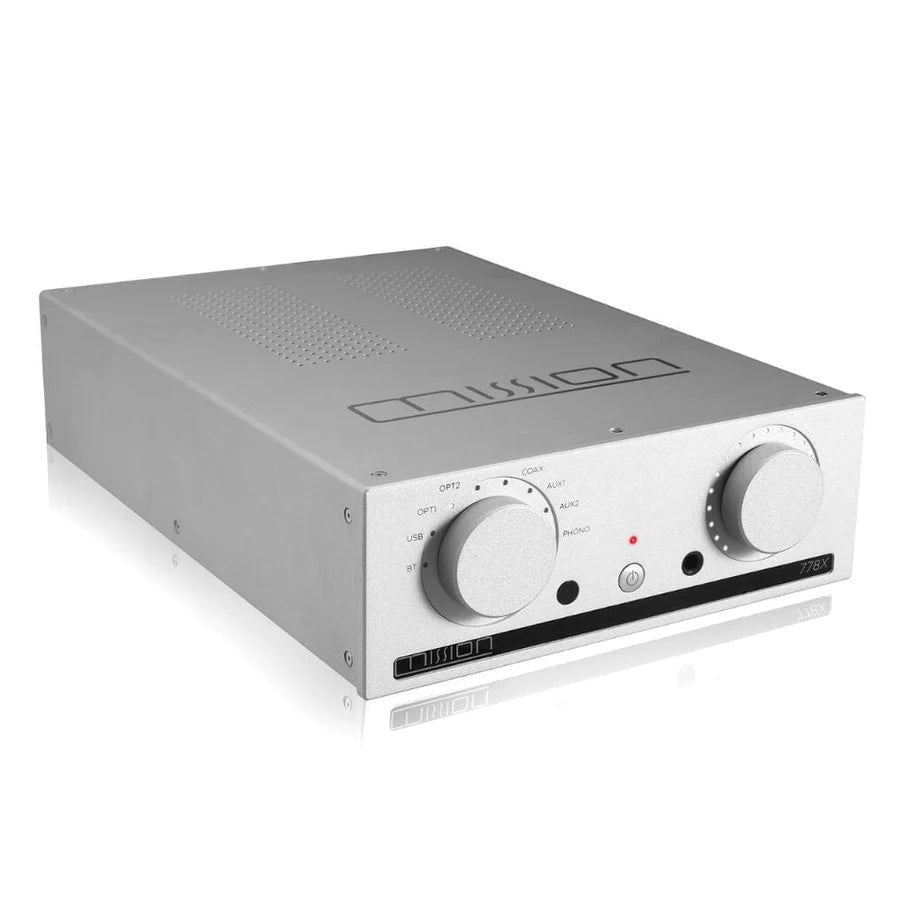

AMPLIFIER

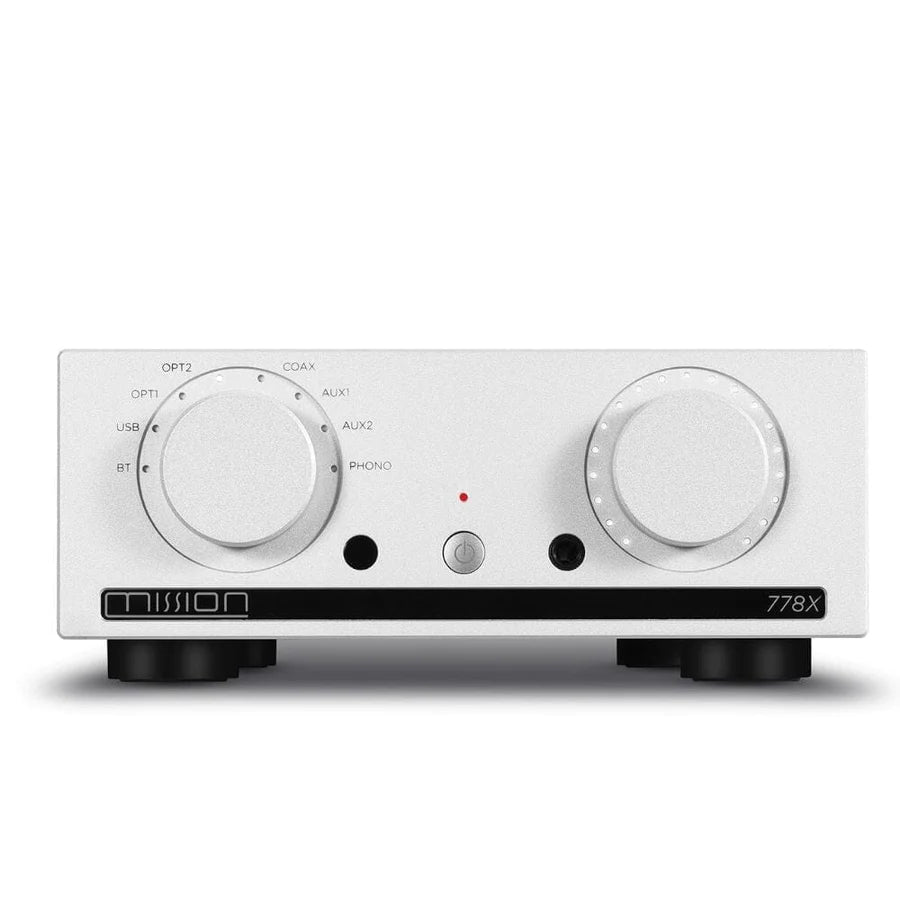

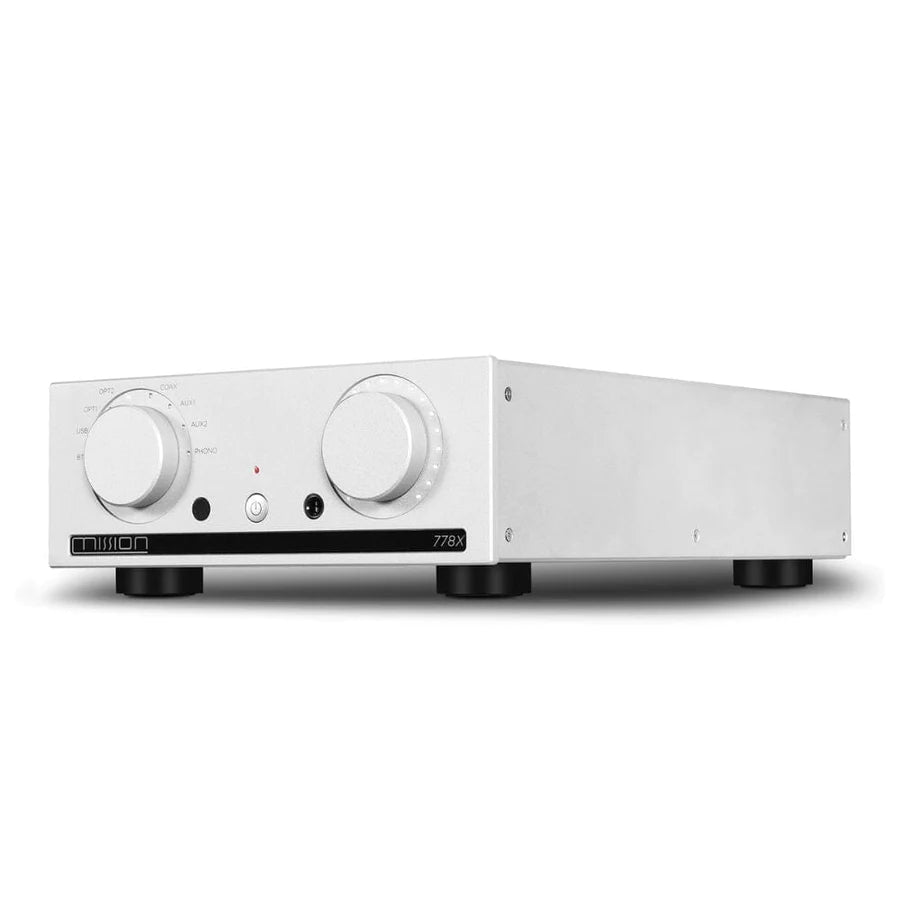

  • Model: 778X
  • General Description: Digital-to-Analogue Converter, Stereo Amplifier
  • Integrated Amplifier: (45 watts @8 ohms, 65 watts @4 ohms)
  • Reference Chip: ESS Sabre32 ES9018K2M Reference Chip
  • Ultra-low Noise: Digital Audio File Compability (384kHz PCM, DSD256)
  • Bluetooth: 5.0 (aptX / AAC) Support
  • Phono Stage: Dedicated High-performance, Low-noise MM Phono Stage
  • Headphone AMP: With High-speed Output Signal Transition
  • Large Tractile Controls: With LED Level Indicators

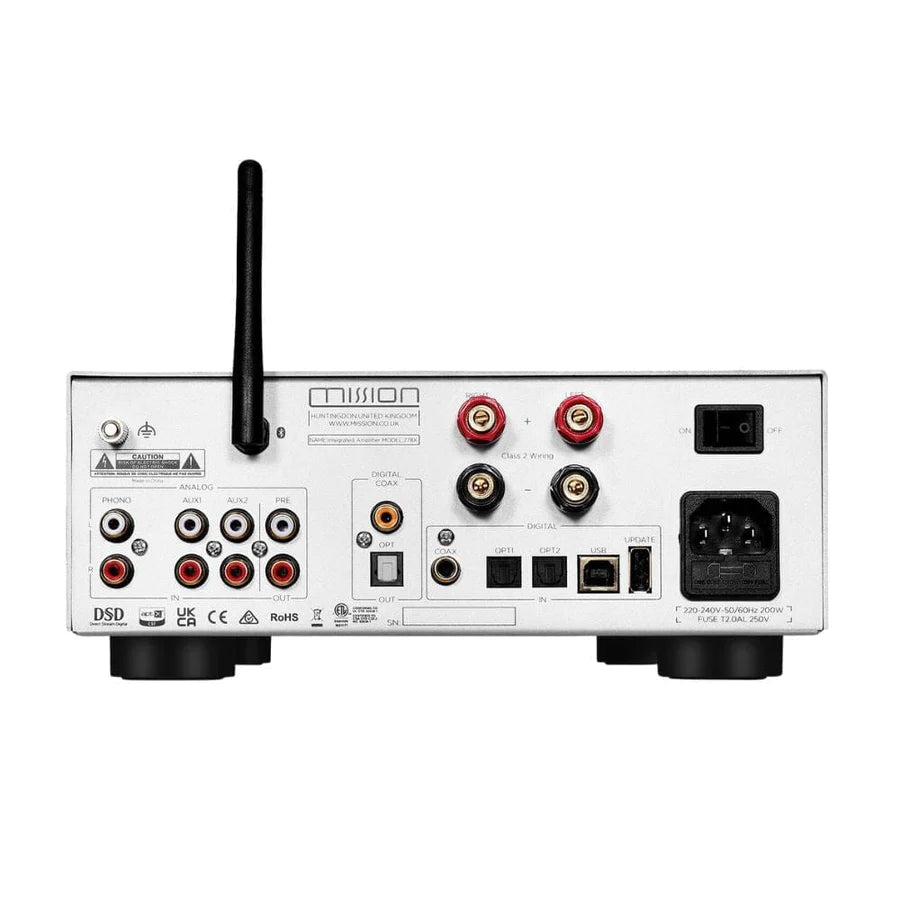

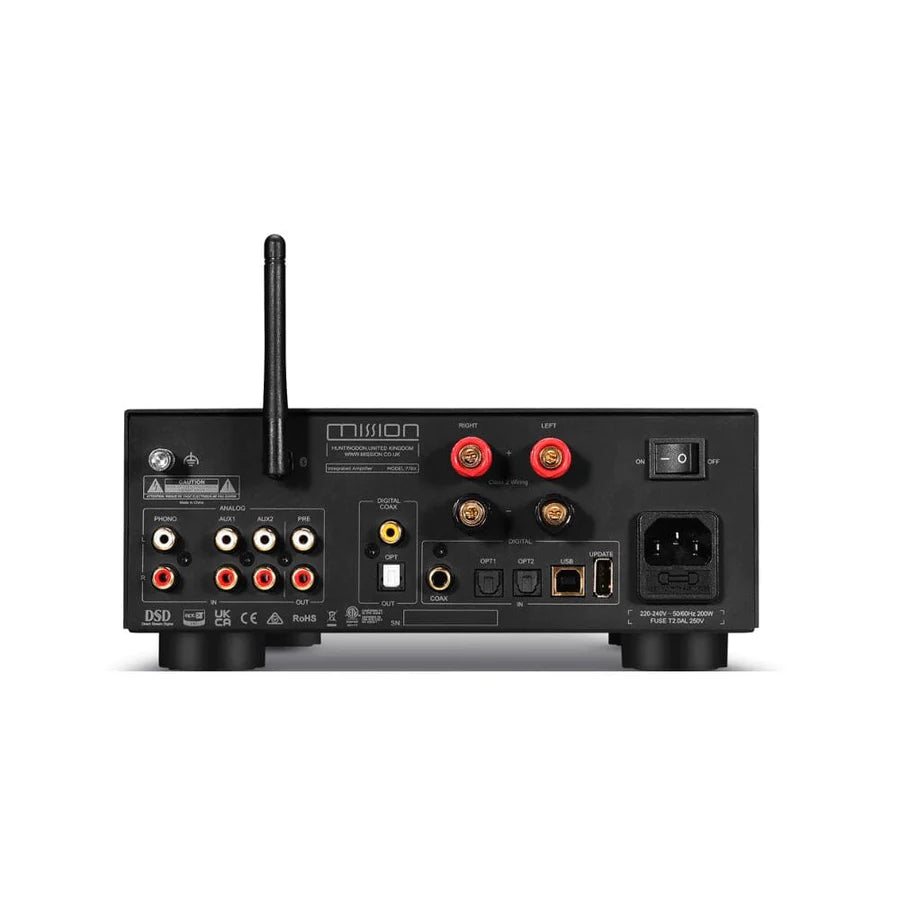

  • Inputs: 1 x Coaxial, 2 x Toslink Optical, 1 x PC USB, 1 x Bluetooth (aptX/AAC), 2 x AUX,1 x RCA (Phono MM)
  • Outputs: 1 x Coaxial, 1 x Toslink Optical, 1 x RCA (PRE Out)
  • Sampling Frequency: Optical / Coaxial: 44.1kHz-192kHz; PC USB:44.1kHz-384kHz(PCM) / DSD64, DSD128, DSD256
  • Preamplifier Section: Gain (max.) +0dB (Line), +47dB (Phono MM)
  • Input Impedance: 10K (AUX); 47K//100pF (Phono MM)
  • Frequency Response (ref. 1kHz): 20Hz-20kHz (±0.1dB)
  • PRE Output Level: 2.1Vrms (max.)
  • PRE Output SNR: >110dB (A-weighted)
  • DAC - D to A Converter: ESS Sabre32 ES9018K2M
  • Resolution: 32-bit
  • Max. Sampling Frequency: Optical/Coaxial: 192kHz; / USB: PCM 384kHz / 11.2896MHz (DSD256)
  • Total Harmonic Distortion (THD): < 0.001% (1KHz @ 0dBFS)
  • Output level (0dBFS, 1KHz): 2.1Vrms
  • Power Amplifier Section - Gain/+31dB
  • Rated Power Output: 2x45W(@8ohms); 2 x 65W (@ 4 ohms)
  • Frequency Response (ref. 1kHz): 20Hz-20KHz (± 0.5dB)
  • Total Harmonic Distortion (THD): <0.005% (30W / 8 ohms)
  • Standby Power Consumption: <0.5W
  • Headphone Amplifier-Output Impedance: 4.7 ohms
  • Load impedance: 20-600 ohms
  • Dimensions (mm) (W x H x D): 236x98x380.6
  • Net Weight: 6.3kg
  • Finish: Black / Silver

What's In The Box

    Amplifier:

    • 1 x Mission 778X Integrated Amplifier
    • 1 x Power Cable
    • 1 x Remote Control
    • 1 x Antenna
    • 1 x User Manual

    Speakers

    • 1 x 5020 Bookshelf Speaker Pair
    • 2 x Foam Bung
    • 1 x User Manual

    Cables

    • 2m Speaker Cable
