Lithe Audio Optical Lithe Link Cables

The Lithe Audio Optical Link Pack allows you to connect multiple compatible Lithe Audio Bluetooth master ceiling speakers, so they can play the same audio together across a larger room or adjoining areas.

It is ideal for linking two or three Lithe Audio Bluetooth speaker systems, such as a kitchen and dining room, bedroom and en-suite, or several areas within an open-plan space. Each master speaker can also power its usual passive partner, allowing up to six ceiling speakers to play together.

Important compatibility information: These optical cables only work with the newer V3 Lithe Audio Bluetooth ceiling speakers fitted with black and white optical input and output connections. Please check the connections on the side of every master speaker before ordering.

This pack will not work with older V2 Lithe Audio Bluetooth speakers fitted with pink and green 3.5mm analogue connections. If your speakers have 3.5mm jack connections rather than optical input and output ports, you will require the older analogue linking cables instead.

Connect Multiple Bluetooth Speaker Systems

Lithe Link creates a hardwired digital audio connection between compatible Bluetooth master speakers. Once connected, audio received by the primary master speaker can be passed to the additional master speakers, allowing all connected speaker systems to play in sync.

The connection is made between the master Bluetooth speakers. If a master speaker is connected to a passive speaker, that passive speaker will continue to receive audio from its own master through the standard speaker cable.

Choose the Correct Pack

• Two Speaker Link: Designed to link two compatible master speakers. This can create a four-speaker system when each master is connected to a passive speaker.
• Three Speaker Link: Designed to link three compatible master speakers. This can create a six-speaker system when each master is connected to a passive speaker.

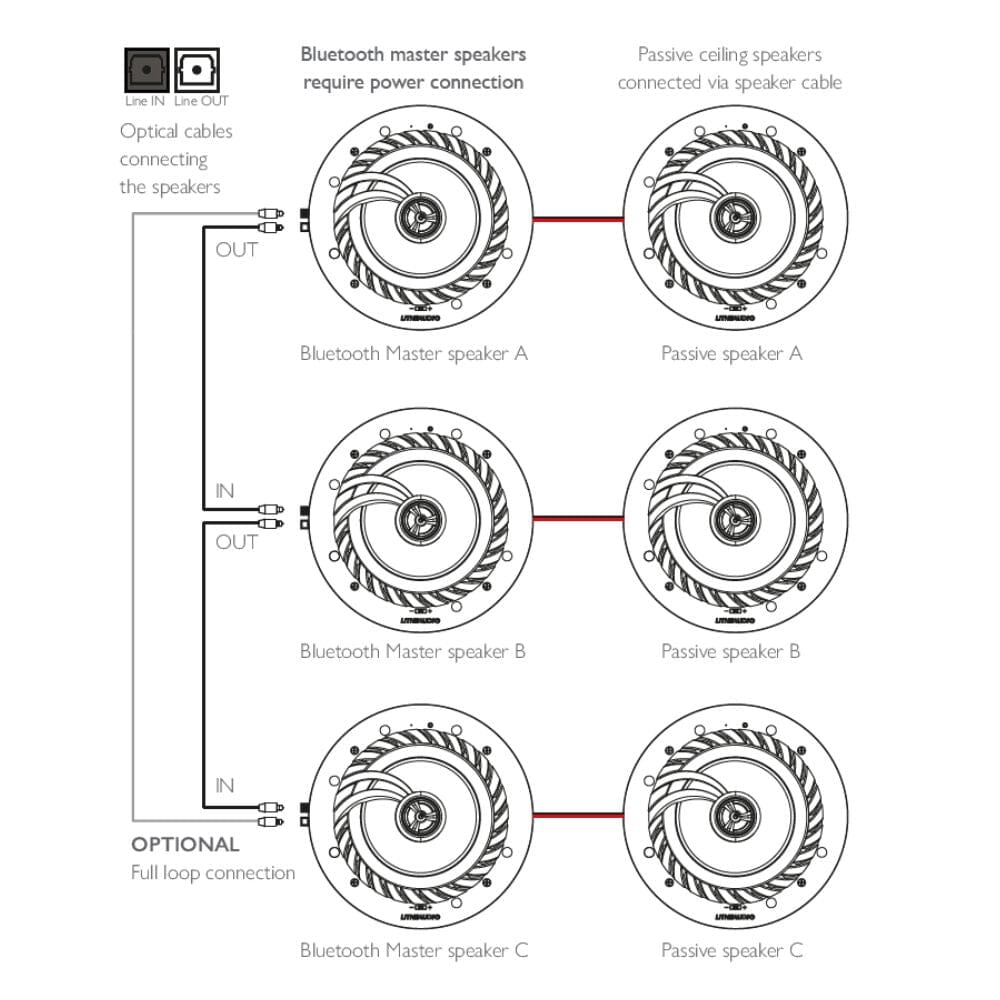

Half-Loop or Full-Loop Wiring

The Lithe Link system can be wired in two different ways depending on how you want to use the speakers:

• Half Loop: Connect the optical output of the first master speaker to the optical input of the next. Audio connected to the first master will play through the linked speakers, while connecting directly to a later master may play through only that speaker and any speakers further along the chain.
• Full Loop: Complete the optical loop between the master speakers. This allows audio connected to any linked master speaker to play through the complete speaker system.

Each pack contains enough optical cables to create a full loop. We recommend installing all supplied cables during the initial installation, even if you do not intend to connect the complete loop immediately. This avoids needing to regain access above the ceiling if your requirements change.

Before You Order

• Check that every master speaker is a newer V3 Lithe Audio Bluetooth model.
• Look for black and white optical input and output connections on the side of each master speaker.
• Do not order this optical pack if your speakers have pink and green 3.5mm analogue sockets.
• The pack links Lithe Audio Bluetooth master speakers. It is not a general-purpose optical cable pack for TVs, amplifiers or other speaker brands.
• Only one Bluetooth source device should be connected to the linked system during use.
• If you're buying a four or six speaker pack from our website you do not need this product as it is already included in the bundle.

If you are unsure which version of Lithe Audio speaker you own, please contact our team with a clear photograph of the connections on the side of the master speaker before ordering.

Specifications

• Product Type: Optical speaker-link cable pack
• System: Lithe Link
• Compatible Speakers: Newer V3 Lithe Audio Bluetooth master ceiling speakers with optical input and output connections
• Not Compatible With: Older V2 Lithe Audio Bluetooth speakers with pink and green 3.5mm analogue connections
• Maximum Linked System: Three master speakers, or up to six ceiling speakers when each master is connected to a passive speaker
• Cable Length: 10m per cable
• Connection Type: Optical
• Available Packs: Two-speaker link or three-speaker link
• Warranty: 1 year

What You Get

Two Speaker Link Pack:

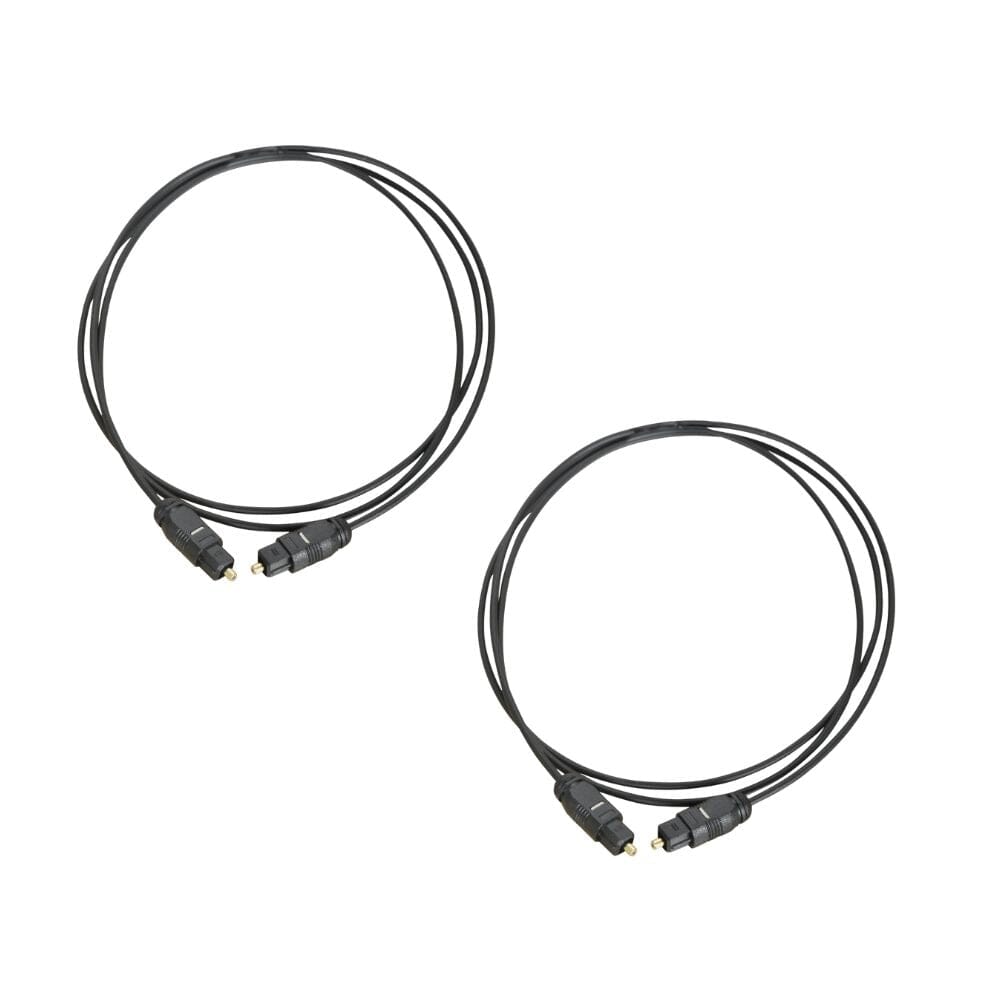

• 2 × 10m optical Lithe Link cables

Three Speaker Link Pack:

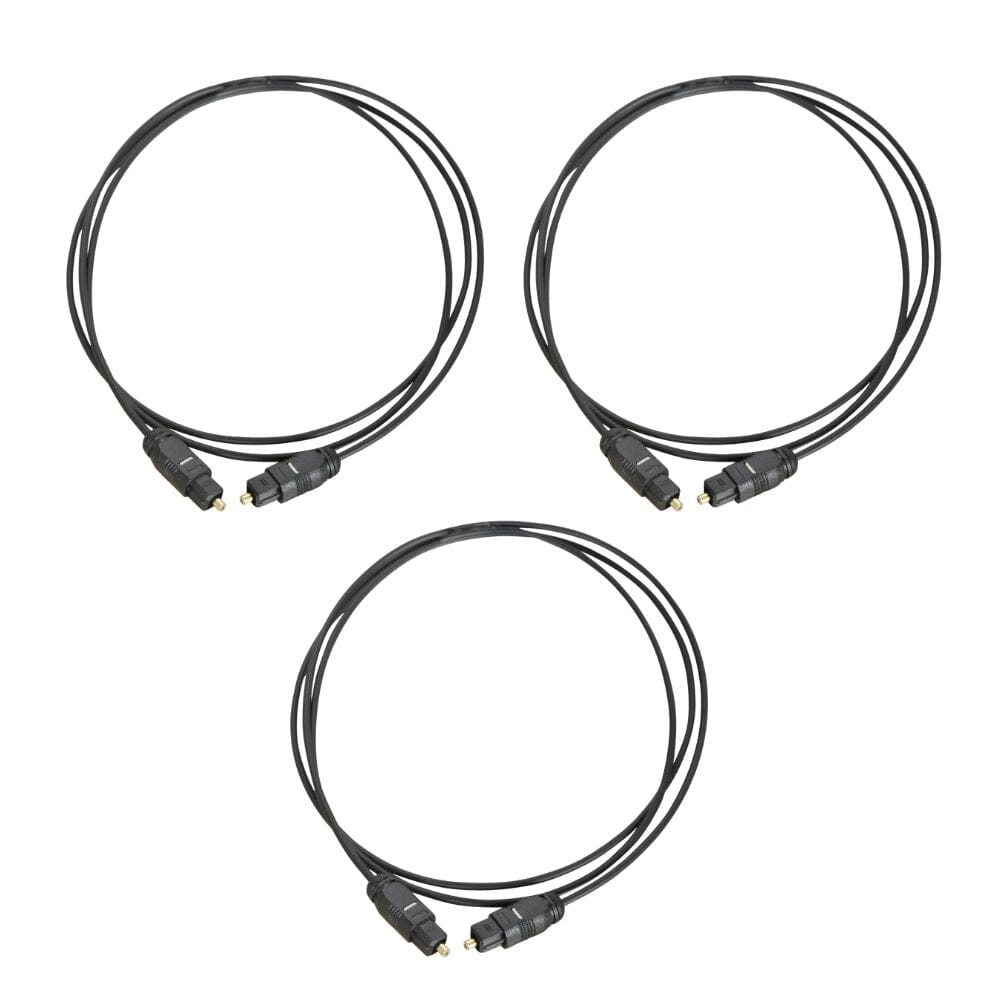

• 3 × 10m optical Lithe Link cables
