Goldring  |  SKU: GL0056

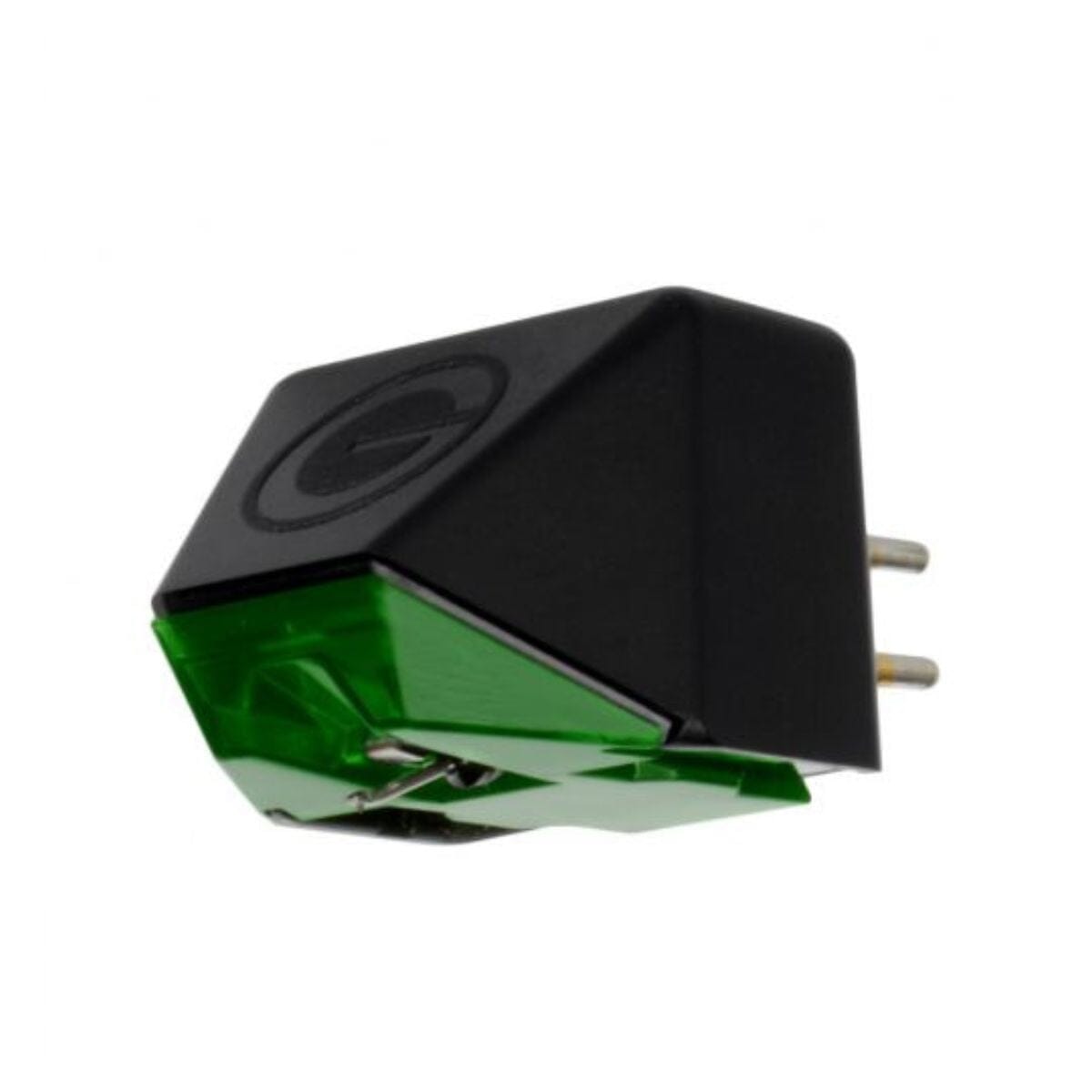

Goldring E2 Moving Magnet Cartridge

£85.00

Includes Warranty + 60 Day Returns

Need Advice? Call 02393 190955

We’re more than just an online retailer. We’re passionate about audio and offering the best customer service in the industry.

Need some advice? Call our audio experts on 02393 190955, live chat or email us and we’ll help you make the best decision. Learn More

Spend £99 For Free Delivery

All orders to mainland UK over £99 are eligible for free standard delivery.

Need it fast? No problem, you’ll find express next day delivery rates available on most products. Learn More

Extended 60 Day Returns

We’re so confident that you’ll be happy with your purchase that we’ve extended our returns policy to 60 days. We call it the “Happy Sound Guarantee”.

If you’re not happy with your purchase for any reason simply send it back to us for a full refund. Learn More


Description

The Goldring philosophy is to promote the accurate replication of the original record production, maintaining the creative nuances, musicality and rhythm the artist intended you to hear. With the versatile E Series, this is easy to achieve; each is designed to be simple to fit to the majority of budget to medium priced turntables.

The E2 cartridge, the middle in the range, features the same spherical stylus profile as the E1 but with the additional benefit of an upgraded aluminium cantilever. This is both stiff and light weight allowing the stylus to more accurately trace medium to high frequencies offering more detail and reducing distortion and mis-tracking during loud passages.

Magnetic Duplex Technology™

All cartridges in the range feature Magnetic Duplex Technology™-a 'dual magnet' generator assembly with an identical geometry to that of the original cutting head. This means it can more accurately reproduce the stereo information in the record groove, providing better channel separation and a more involving and musical sound stage.

Expert Adjustment

The E-series cartridges have been designed to allow micro-adjustments to be made during production using a special adjustment screw. This means the cartridge can be safely installed in a typical turntable because the angle that the stylus makes with the record surface has been pre-set. The result is an optimised channel balance with zero degrees of horizontal tracking adjustment required. This ensures a consistent and reassuring performance for the life of the product.

Stylus/Cantilever

Featuring spherical styli with a choice of cantilevers, the E1 and E2 models are ideal as an upgrade to any budget, pre-fitted or obsolete cartridge. The E3 model with its re­fined super elliptical stylus is a worthwhile upgrade for those wishing to squeeze even more information and detail from the record groove.

Specifications

    • Colour: Green
    • Cantilever: Aluminium
    • Stylus profile: Spherical
    • Stylus radius: 0.6 mil
    • Frequency range: 20 Hz - 20 kHz
    • Channel balance: 1.5 dB at 1 kHz
    • Channel separation: >20 dB at 1 kHz
    • Sensitivity: 3.5 mV (1 kHz @ 5 cm/sec)
    • Static compliance: 20 mm/N
    • Vertical tracking angle: 20°
    • Load resistance: 47 kΩ
    • Load capacitance: 100 - 200 pF
    • Internal inductance: 400 mH
    • Internal resistance: 410 Ω
    • Cartridge mass: 6.9 g
    • Fixing centres: 12.7 mm (0.5 in)
    • Playing weight: 1.5 g - 2.5 g (2.0 g recommended)
