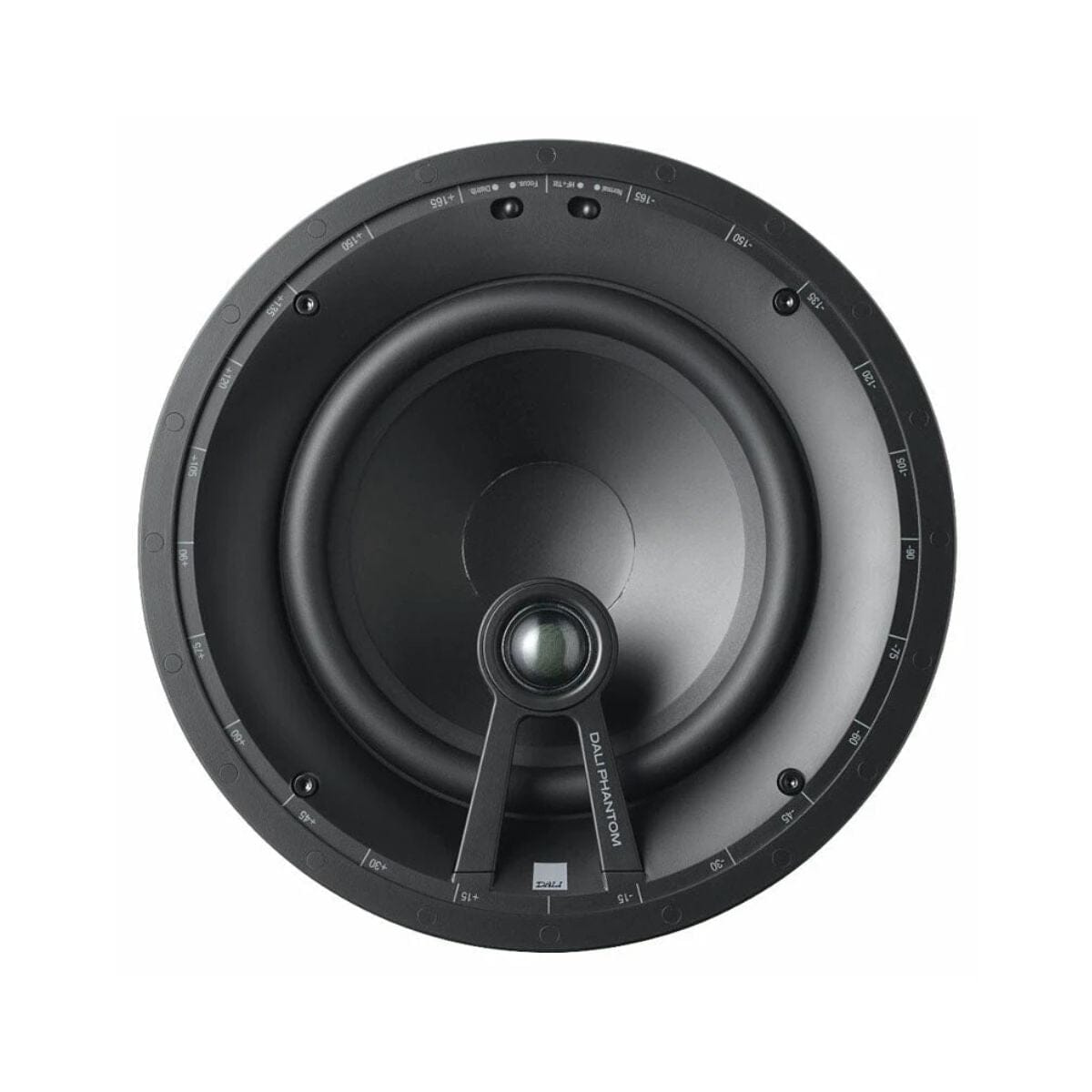

DALI Phantom E-80 8" Ceiling Speaker (Each)

The DALI Phantom E-80 is a high-performance in-ceiling speaker designed to deliver powerful, room-filling sound while remaining discreetly hidden within your ceiling.

Featuring a large 8-inch bass driver and DALI’s wide-dispersion tweeter technology, it produces deep, controlled bass and clear, detailed highs that fill the room evenly.

It is an excellent choice for music systems in living rooms, kitchens, or larger open-plan spaces where strong audio performance is required.

With its slim magnetic grille and flush mounting design, the Phantom E-80 blends seamlessly into modern interiors and can be painted to match the ceiling for an almost invisible finish.

Combining premium acoustic engineering with simple installation, it offers a clean and elegant way to enjoy high-quality sound throughout the home.

FEATURES

• Large 8-Inch Woofer: The oversized bass driver produces deeper, more powerful low frequencies, making it ideal for larger rooms or spaces where fuller sound is desired.

• 28mm Soft Dome Tweeter: A high-quality soft dome tweeter delivers crisp, natural high frequencies with excellent detail across vocals and instruments.

• Wide Dispersion Technology: DALI’s wide dispersion design spreads sound evenly throughout the room, ensuring consistent audio coverage without requiring precise speaker placement.

• Low-Profile Magnetic Grille: The slim magnetic grille provides a clean, modern finish and can be painted to match the ceiling for a discreet, almost invisible installation.

• Rigid Mineral-Filled Polypropylene Woofer: The durable woofer material improves rigidity and damping, helping deliver accurate bass response and reduced distortion.

• Simple Dogleg Installation: The integrated dogleg mounting system allows fast and secure ceiling installation, suitable for both professional installers and experienced DIY users.

• Hi-Fi Sound Quality: Designed using DALI’s acoustic expertise, the speaker delivers balanced and detailed sound suitable for background music or more immersive listening.

What You Get

SINGLE

• 1 x E-80 Ceiling Speaker
• 1 x Grille
• 1 x Cut Out Template
• 1 x User Manual

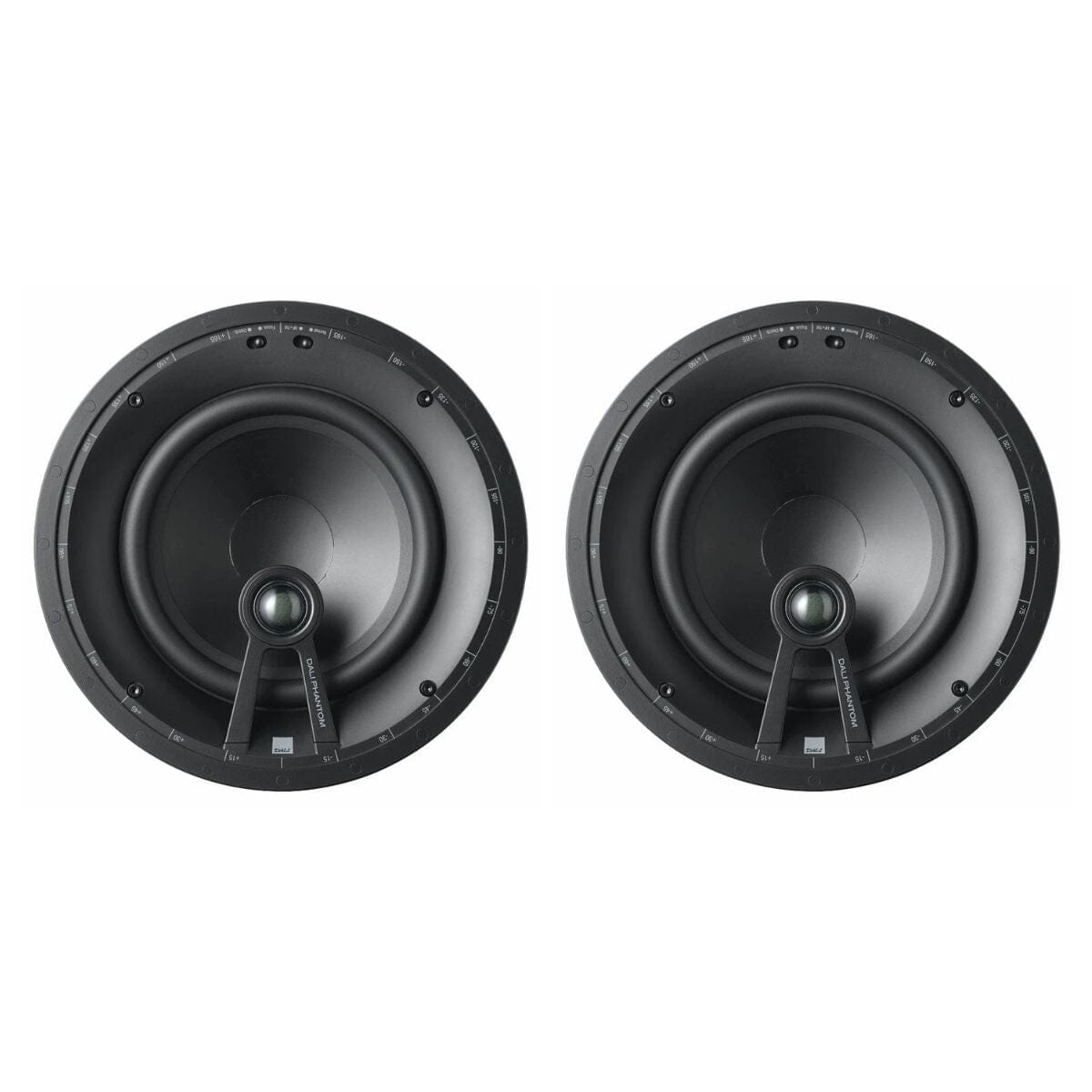

PAIR

• 2 x E-80 Ceiling Speakers
• 2 x Grilles
• 2 x Cut Out Template
• 1 x User Manual

Specifications

• Frequency Range: 49–25,000 Hz ±3 dB
• Sensitivity: 89.5 dB @ 1m (2.83V)
• Nominal Impedance: 6 ohm
• Maximum SPL: 107 dB
• Crossover Frequency: 3,200 Hz
• Crossover Principle: 2-way
• Recommended Amplifier Power: 30–150 W
• High Frequency Driver: 1 × 25 mm soft dome
• High Frequency Diaphragm: Soft woven fabric
• Low/Mid Frequency Driver: 1 × 8"
• Low/Mid Frequency Diaphragm: Polypropylene
• Connection Input: Single wire
• Enclosure Type: Open back
• Other Features: Normal/High+, Normal/Mid+
• Installation Location: In-ceiling / In-wall
• Recommended Placement: Ceiling / Front / Centre / Surround
• IP Rating: N/A
• Outer Dimensions (Incl. Grille): Ø295 × 116 mm
• Outer Dimensions (Excl. Grille): Ø278 × 113 mm
• Cut-out Dimensions: Ø261 mm
• Mounting Depth: 109 mm
• Recommended Rear Volume (Backbox): 10–100 litres
• Optimum Rear Volume: 30 litres
• Ceiling/Wall Thickness (Dog-leg Span): 10–70 mm
• Weight (Incl. Grille): 2.5 kg
• Shipping Weight: 3.5 kg
• Finish: White
• Accessories: Manual, Cut-out template, Front grille, Logo badge
• Optional Accessories: Classic, Square and Design grilles, Pre-construction kit, PHANTOM UNIVERSAL 25 backbox
• Warranty: 5 Years
