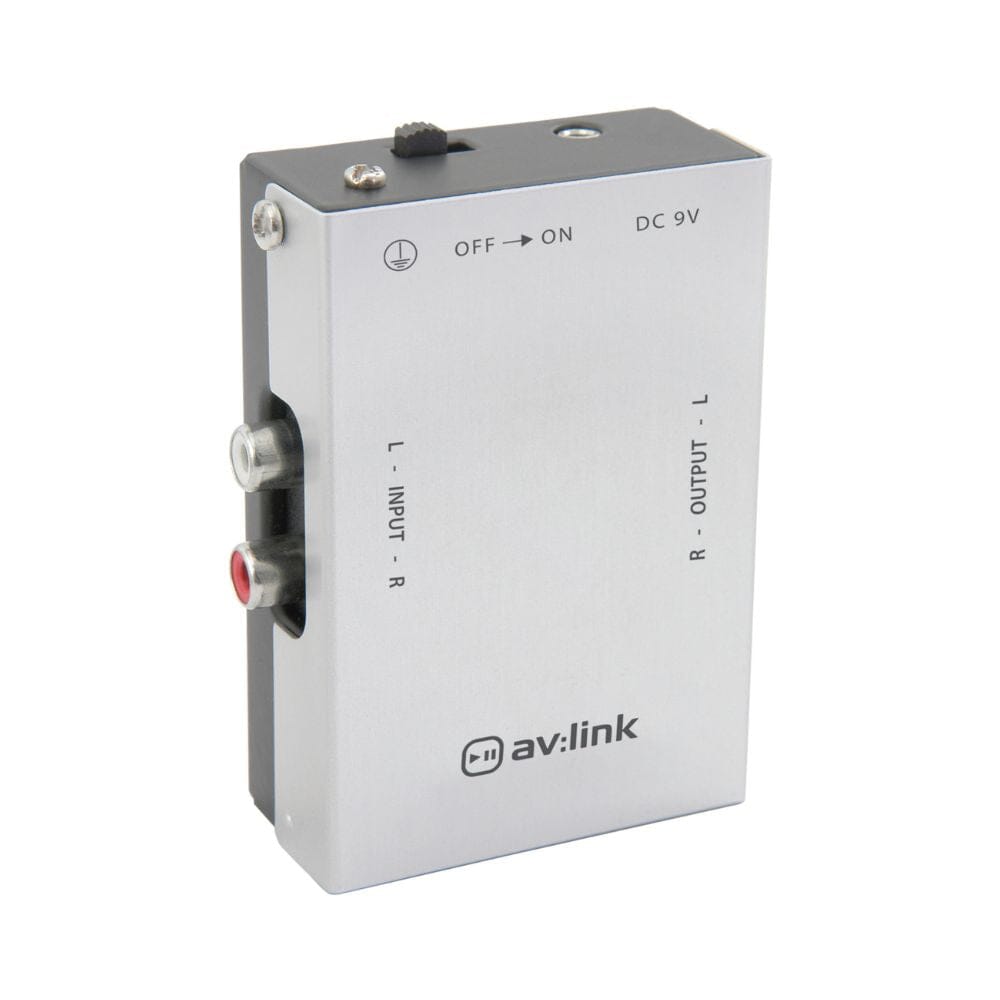

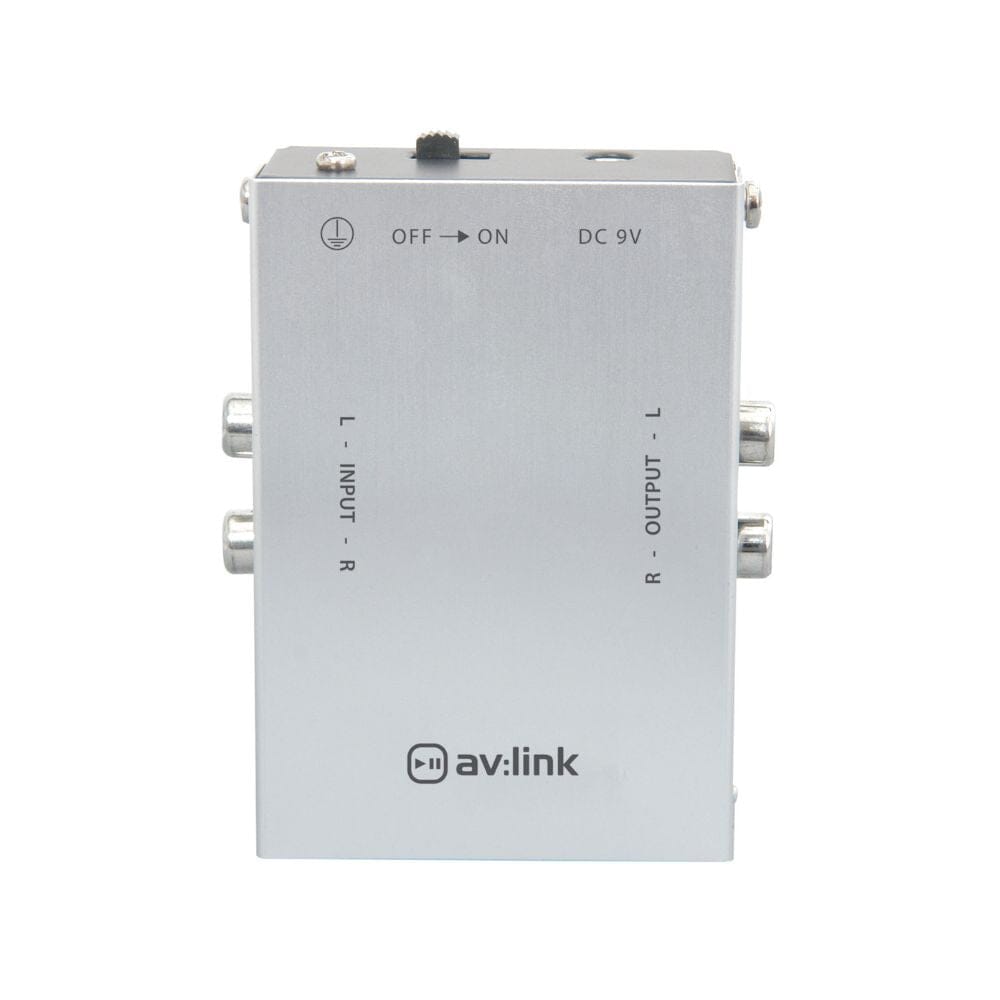

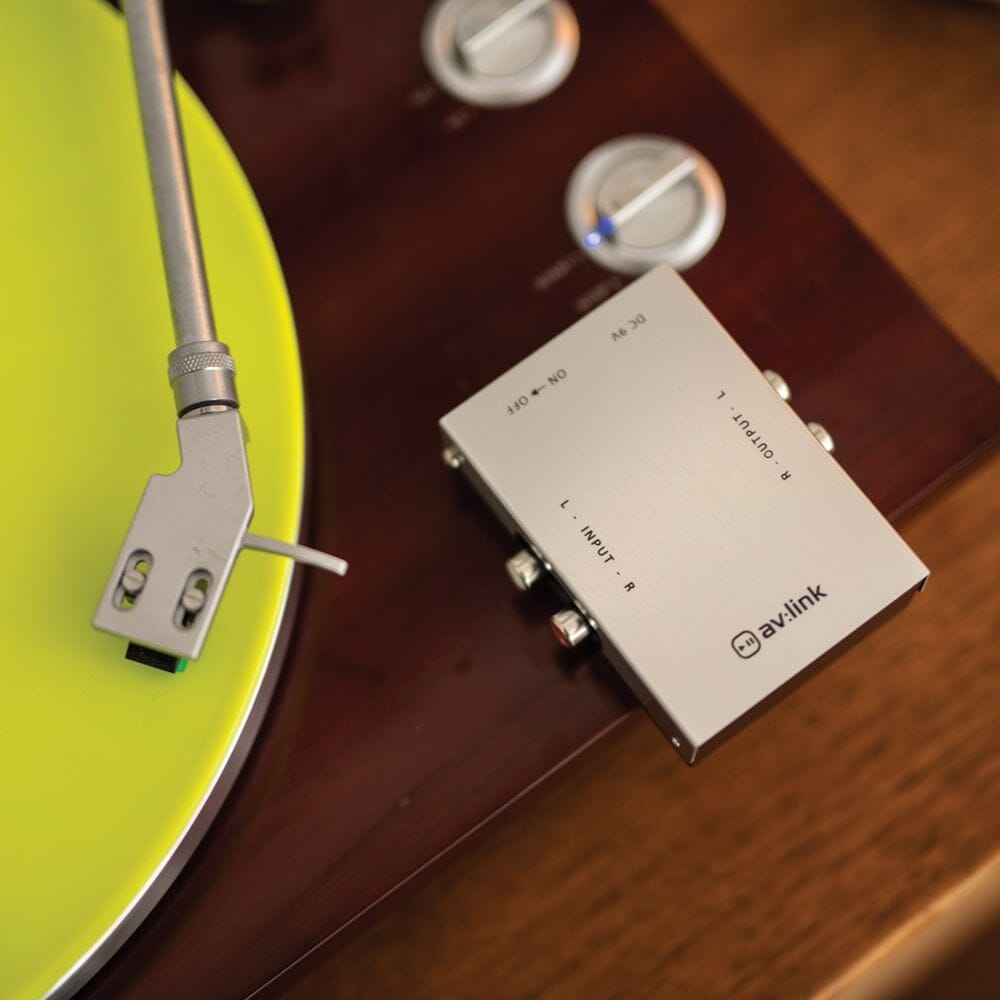

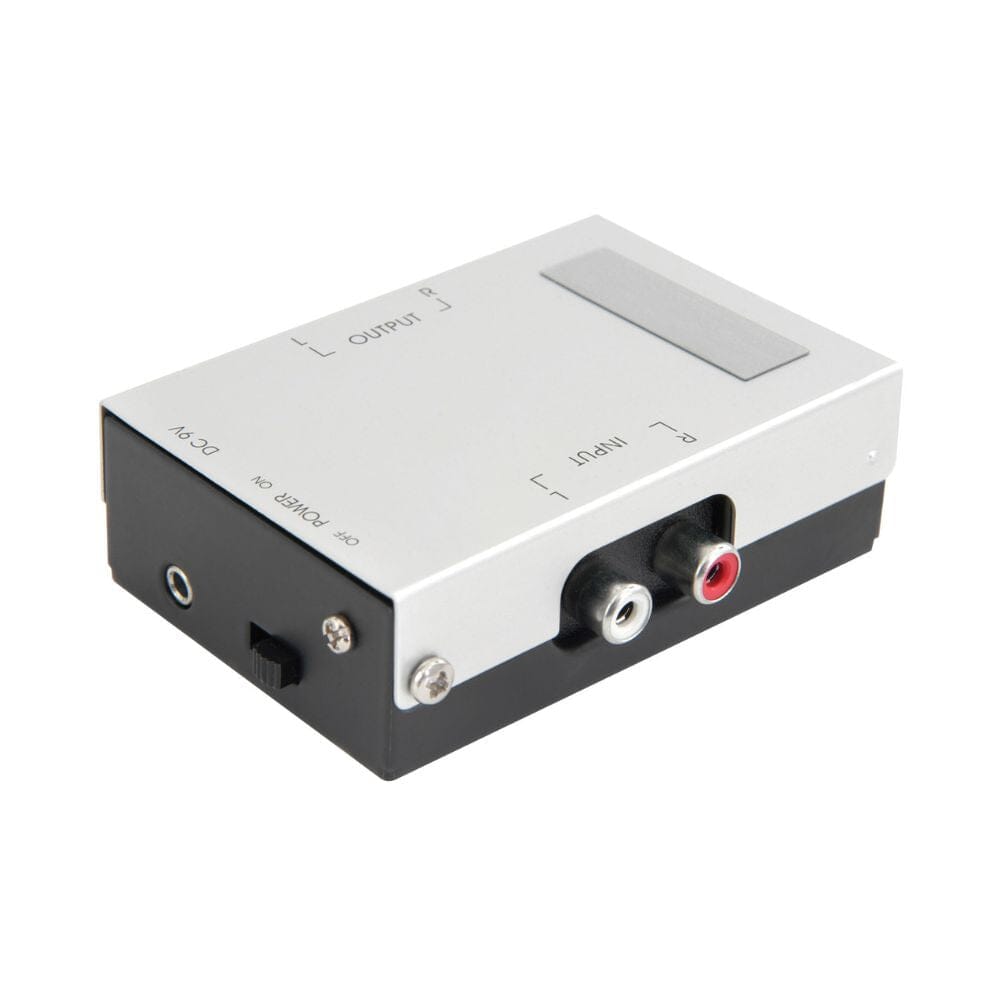

AV Link Turntable Pre-Amplifier

AV Link  |  SKU: 128.513UK
£19.99

Description

A compact ultra-low noise pre-amp that amplifies phono signals from a turntable to line level signals.

The unit can be powered using the provided UK power supply or additional 9V battery if preferred (not supplied) and comes fitted with a grounding screw to eliminate additional noise from inference.

FEATURES

  • Stereo pre-amplifier for use with turntables fitted with magnetic cartridges
  • Amplifies the signal to match it to the line or CD input of an amplifier
  • On/Off switch and grounding screw
  • UK Mains adaptor included or can be powered by additional 9V battery if preferred (not supplied)

Key Features

  • Warranty
    1 Year

Specifications

    • Power Supply: 9V DC, 100mA
    • Battery (optional): 9V DC (1 x PP3)
    • Equalization: RIAA correction
    • Frequency Response: 30Hz - 20kHz
    • Gain: 34dB
    • Input Impedance: 50k ohms
    • Output Impedance: 50k ohms
    • Dimensions: 30 x 70 x 90mm
    • Weight: 250g
