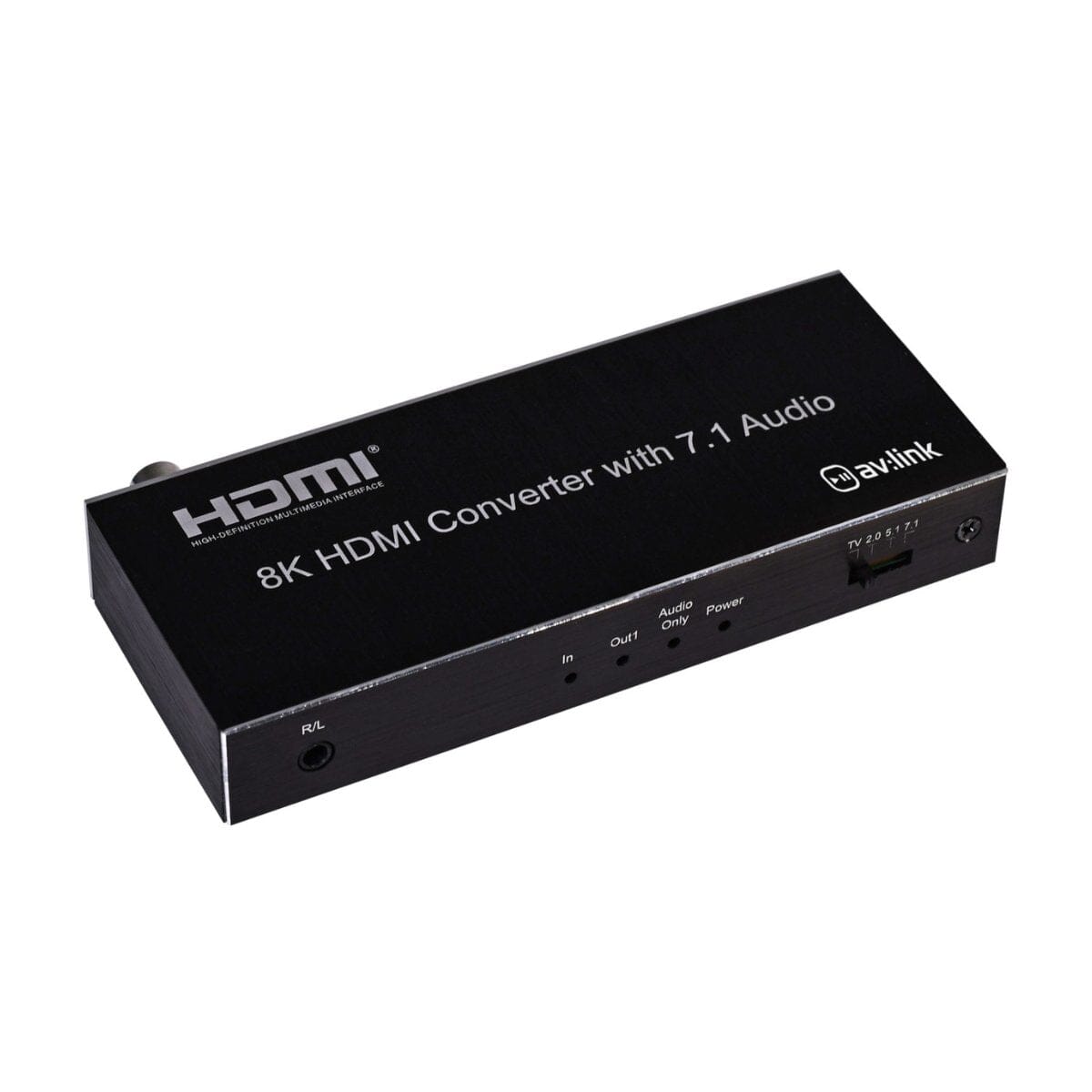

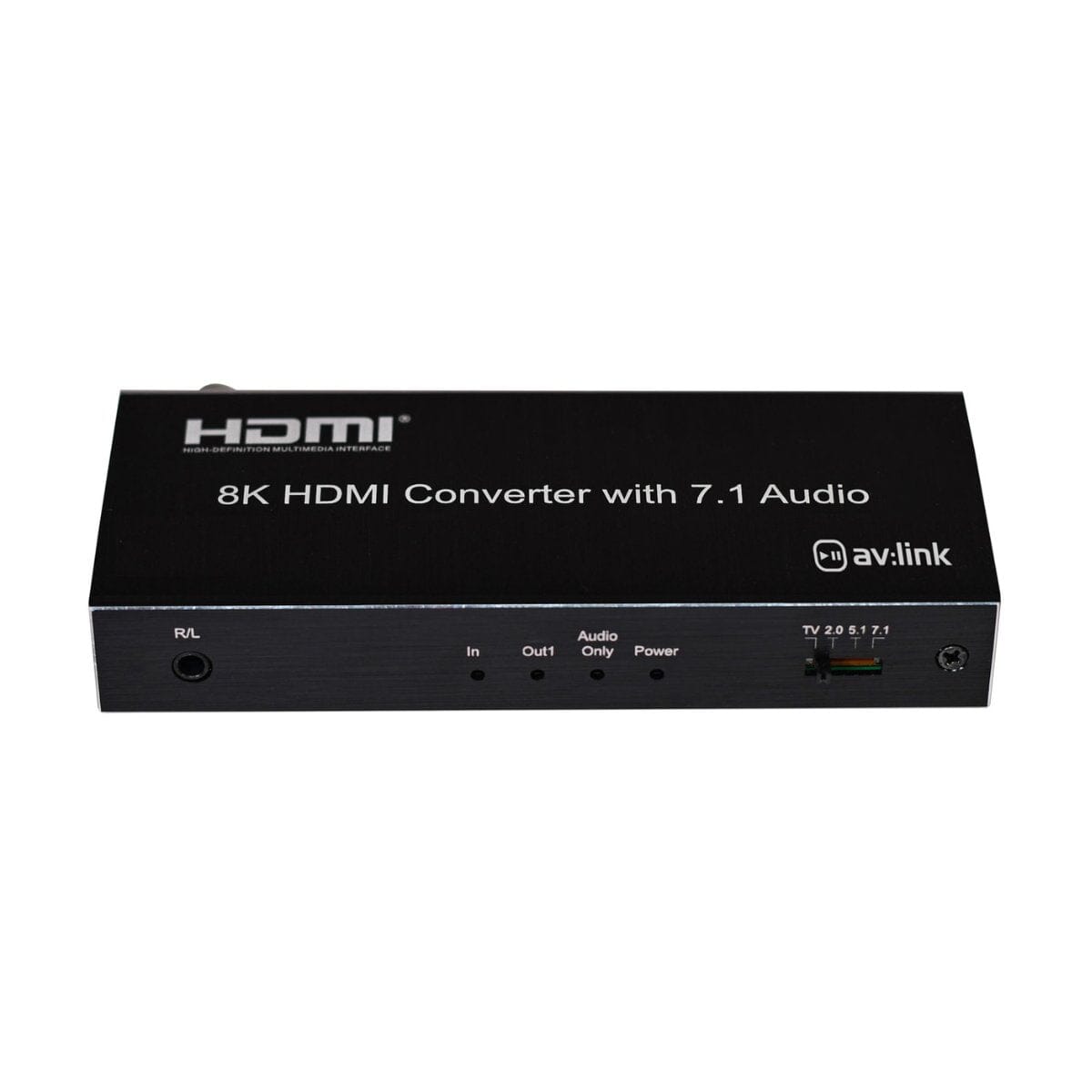

AV Link 8K HDMI Audio Extractor

State of the art audio converter that extracts digital (HDMI, Toslink and Coaxial) and/or Analogue (3.5mm stereo) audio signals from a single 8K HDMI source device.

With support for newer technologies including VRR, LPCM5.1/7.1 and Dolby Atmos this unit is ideal for audio separation from the latest PC's and games consoles.

• Extracts digital (HDMI, Toslink and Coaxial) and/or Analogue (3.5mm stereo) audio signals from a single HDMI source device
• Supports HDMI input/output resolutions up to 7680×4320 @ 60Hz
• Supports Variable Refresh Rate (VRR) and HDR10
• Simple plug and play installation and instant synchronisation without delay
• Attractive brushed metal finish
• UK mains adaptor supplied (DC5V/1A)

What You Get

• 1 x 8K audio extractor

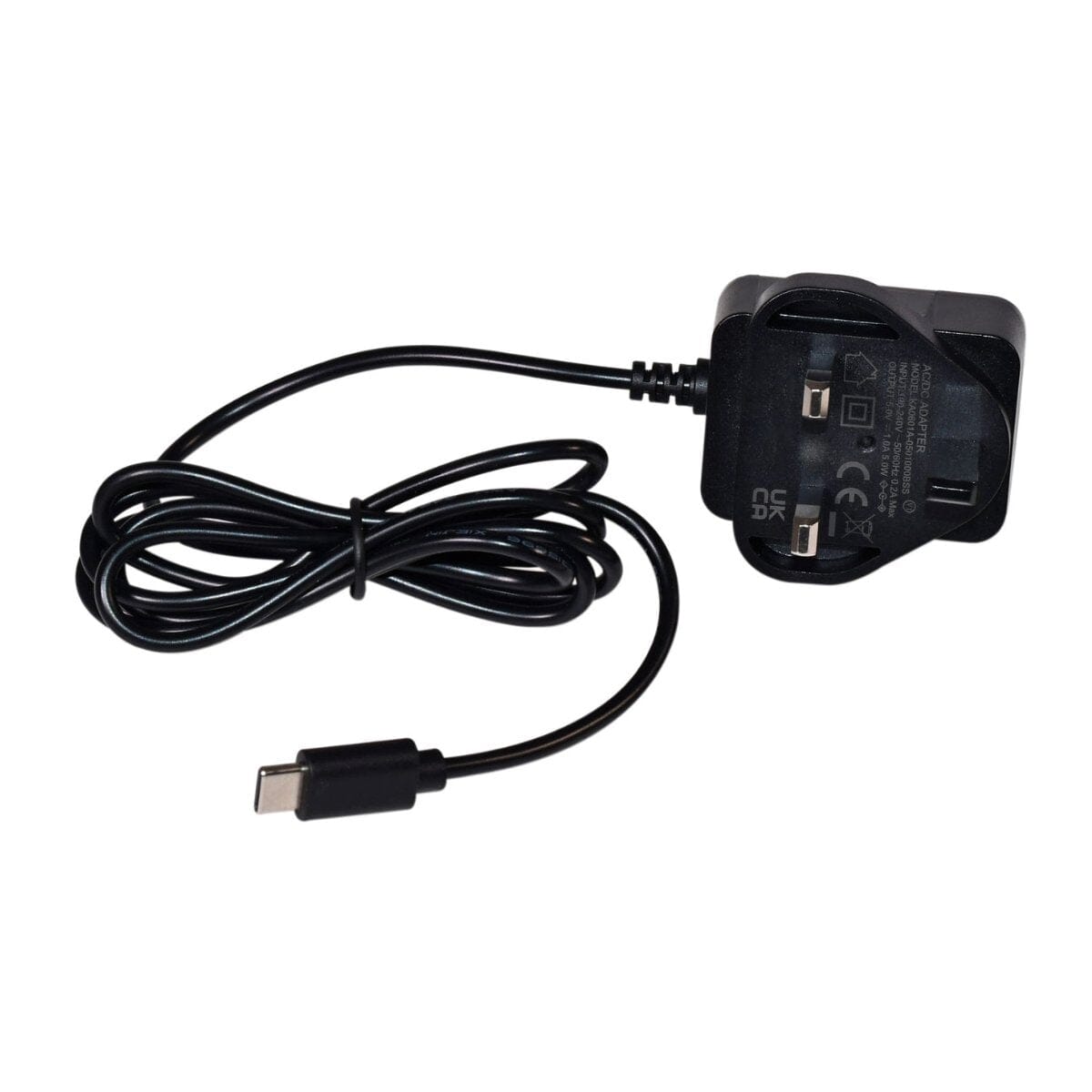

• 1 x 5V DC USB power supply
• 4 x Self-adhesive rubber feet
• 1 x User manual

Specifications

• Input Connections: HDMI (8K), USB-C (DC/5V power input)

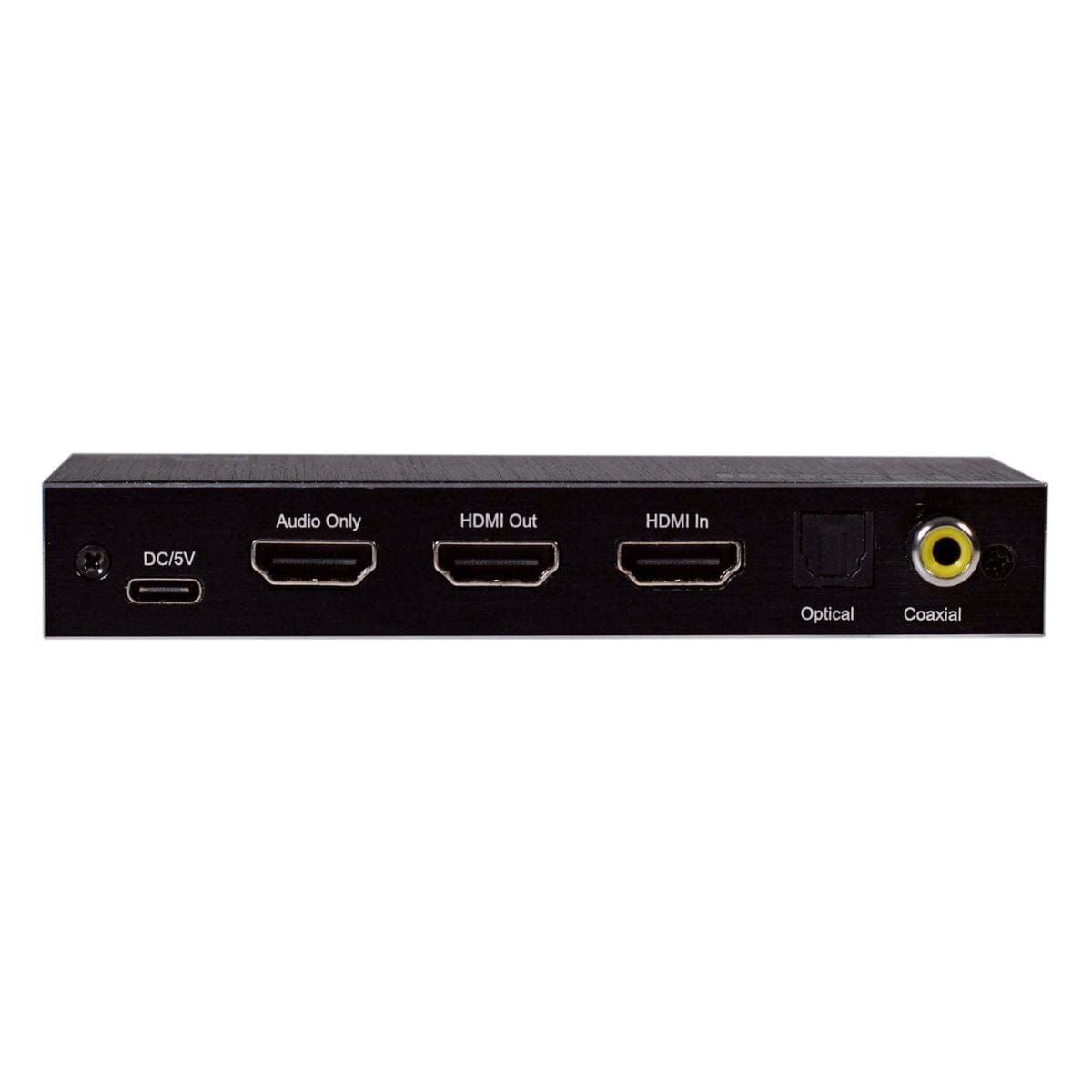

• Output Connections: HDMI (8K), HDMI (audio only), Optical (Toslink), Coaxial, 3.5mm (Stereo)
• Video Resolution: Up to 7680 × 4320 @ 60Hz
• Video Format: 8/10/12-bit deep colour
• Max. Baud Rate: 40Gbps
• Audio Output (HDMI): PCM2.0, LPCM5.1/7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS: X
• Audio Output (SPDIF/COAX): LPCM2.0/5.1, Dolby Digital 2.0/5.1, DTS 2.0/5.1
• Audio Output (3.5mm Jack): Analogue stereo 2.0ch
• Max. Cable Length: Input: 8K/60Hz ≤3m, Output: 8K/60Hz ≤5m
• Power Supply: Input AC (50Hz, 60Hz) 100V-240V; Output: DC5V/1A
• Dimensions (W x H x D): 121 x 57 x 19 mm
• Weight: 0.118kg
• Warranty: 1 Year
