Anthem MRX 740 8K 11.2 Channel AV Receiver

The Anthem MRX 740 8K is an 11.2 channel AV receiver that sits at the heart of Anthem's MRX range, delivering a serious step up in power and flexibility. Seven built-in amplifier channels let you run a 7.2 or 5.2.2 Dolby Atmos system straight out of the box.

With 11.2 channel processing, you can expand to a 9.2.2 system by adding external amplification. Seven 8K HDMI 2.1 inputs, eARC, a dedicated Zone 2 HDMI output, Anthem's latest ARC Genesis room correction and built-in streaming make it a superb centrepiece for a cinema room or high-end living room system.

Its amplifier channels can also be reassigned to bi-amp your front speakers or power a second zone, so it adapts as your system grows.

FEATURES

• 11.2 CHANNEL PROCESSING: Seven built-in amplifier channels (five at 140W into 8 ohms and two at 60W), with 11.2 channel processing for systems up to 9.2.2.
• DOLBY ATMOS & DTS:X: Decodes Dolby Atmos, DTS:X, IMAX Enhanced, Dolby TrueHD and DTS-HD Master Audio, with Dolby Surround, DTS Neural:X and AnthemLogic upmixing.
• 8K HDMI 2.1: Seven 8K inputs plus two main outputs including eARC and a dedicated Zone 2 output, with 8K/60Hz and 4K/120Hz passthrough and HDCP 2.3.
• NEXT-GEN GAMING: VRR, ALLM and QFT support for smooth, low-latency gaming on the latest consoles and gaming PCs.
• ARC GENESIS ROOM CORRECTION: The newest version of Anthem's award-winning room correction, with a redesigned, more accurate calibration microphone.
• 32-BIT/768kHz DACS: High-performance digital-to-analogue conversion for detailed, dynamic sound from every source.
• WIRELESS STREAMING: Built-in Apple AirPlay 2, Google Cast, Spotify Connect and Bluetooth, plus hi-res FLAC, ALAC, WAV and DSD playback.
• ZONE 2 & FLEXIBLE AMPS: Reassign amplifier channels to bi-amp your front speakers or power a second zone, with a dedicated Zone 2 HDMI output.
• CUSTOM INSTALL READY: IP and RS-232 control with drivers for Control4, Savant, Crestron, URC, RTI and ELAN, plus an optional 4U rackmount kit.

Seven Channels of Anthem Power

Seven high-performance amplifier channels give you clean, effortless power for a 7.2 or 5.2.2 system. The main five channels deliver a conservative 140W each into 8 ohms (170W into 6 ohms), so demanding home cinema speakers stay controlled even at reference volumes.

Two subwoofer outputs make it easy to add a pair of subwoofers, while 11.2 channel pre-amp outputs let you expand with external amplification.

8K HDMI 2.1 for Movies & Gaming

Seven dedicated 8K HDMI inputs and two main outputs, including eARC, plus a dedicated Zone 2 HDMI output, pass through 8K/60Hz and 4K/120Hz video with HDCP 2.3, so your 4K Blu-ray player, streaming box and games console all connect in one place.

HDR10, HDR10+, Dolby Vision and HLG are all supported, along with VRR, ALLM and QFT for smooth, responsive gaming. eARC also lets your TV send high-quality audio, including Dolby Atmos, from its built-in apps back to the receiver.

Immersive Dolby Atmos & DTS:X Sound

The MRX 740 8K decodes Dolby Atmos, DTS:X and IMAX Enhanced soundtracks, placing every effect precisely around you. Run a 5.2.2 Dolby Atmos layout with two ceiling speakers straight out of the box, or add external amplification for a 9.2.2 system.

Premium 32-bit/768kHz DACs ensure everything from film soundtracks to hi-res music is reproduced with detail, dynamics and clarity.

ARC Genesis Room Correction

Your room has a huge effect on how your speakers sound. Anthem's award-winning ARC Genesis uses a precision calibration microphone and advanced algorithms to measure every speaker and subwoofer, then corrects frequency response, level and phase to fix room problems rather than mask them.

The latest version features a redesigned, more accurate microphone, and you can store up to four profiles for different listening setups.

Built-In Wireless Streaming

Stream music straight to the MRX 740 8K with Apple AirPlay 2, Google Cast, Spotify Connect and Bluetooth, with no extra streamer needed.

Hi-res FLAC, ALAC, WAV and DSD files are supported, and AirPlay 2 lets you group the receiver with other AirPlay speakers around your home for multi-room listening.

Flexible Amplifiers & Zone 2

Unused amplifier channels can be reassigned to bi-amp demanding front speakers, power presence speakers or drive a second zone, so you can put the power exactly where your system needs it.

With Zone 2 audio and a dedicated Zone 2 HDMI output, you can enjoy a different source in another room, ideal for a kitchen, bar or garden room.

Simple Setup with the Web Interface

Anthem's web interface lets you configure every setting from a browser on your phone, tablet or laptop, from speaker setup and levels to inputs and listening modes.

Up to 30 virtual inputs let you pair any video source with any audio input and speaker profile, so your system works exactly the way you want.

Ready for Custom Installation

With IP and RS-232 control, the MRX 740 8K integrates seamlessly with Control4, Savant, Crestron, URC, RTI and ELAN control systems, making it a dependable choice for custom installers.

An optional rackmount kit (sold separately) lets you fit it into a standard 19-inch AV rack in 4U of space.

Anthem Remote App

Control volume, inputs, listening modes and ARC from your phone with the free Anthem Remote app, or use the included remote control.

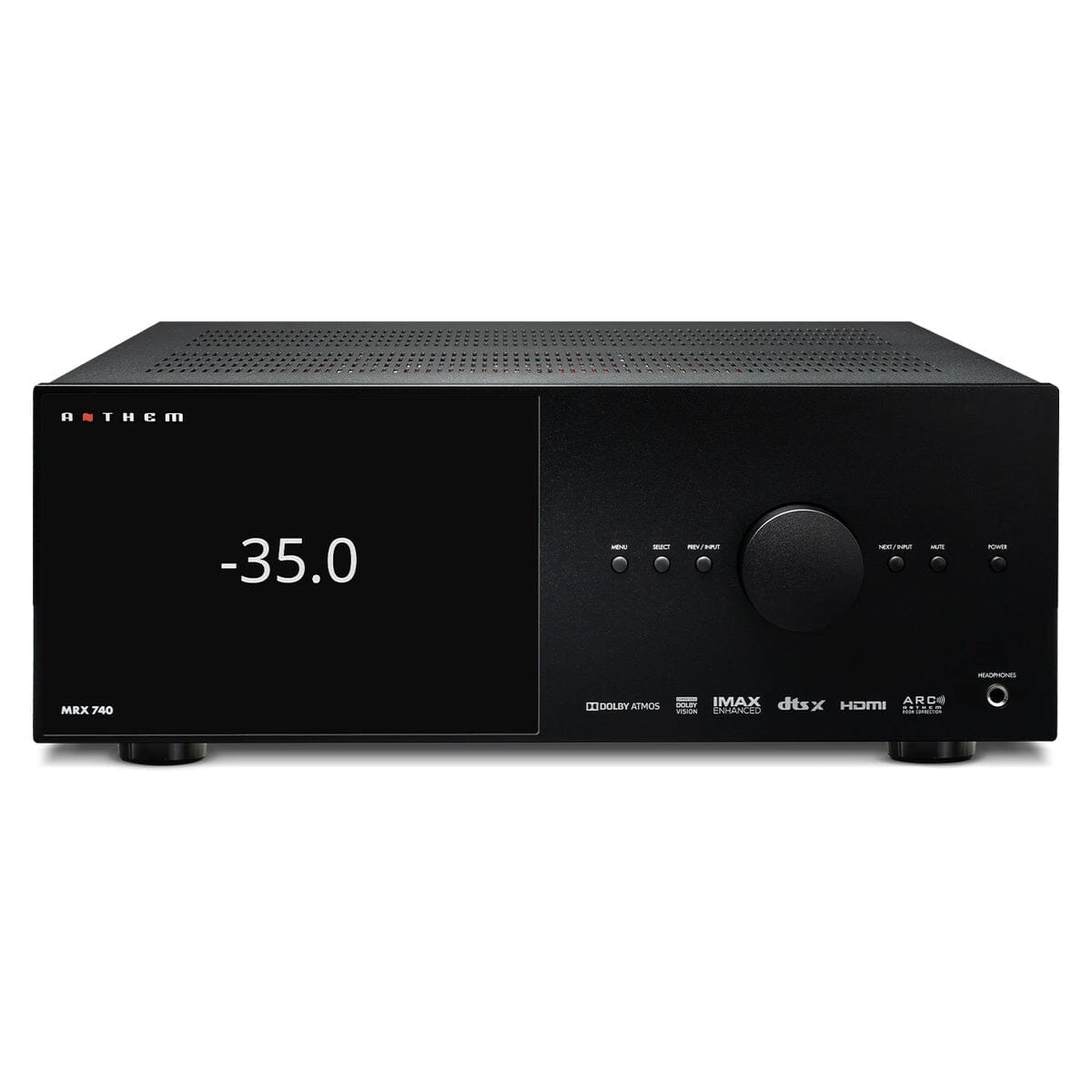

The 6-inch colour front display keeps volume and input information clear at a glance.

What You Get

• 1 x Anthem MRX 740 8K AV Receiver
• 1 x Remote Control (AAA batteries not included on UK models)
• 2 x Wireless Antennas (Wi-Fi / Bluetooth)
• 1 x ARC Genesis Calibration Microphone
• 1 x Mains Power Cable
• 1 x Quick Start Guide

Specifications

• Amplifier Channels: 7
• Power Output: Channels 1–5: 140W into 8Ω / 170W into 6Ω. Channels 6–7: 60W into 8Ω / 75W into 6Ω (two channels driven, 20Hz – 20kHz, 1% THD)
• Speaker Impedance: 4Ω or higher
• Processing Channels: 11.2
• Maximum Speaker Configuration: 9.2.2
• Surround Formats: Dolby Atmos, Dolby Atmos Music, Dolby TrueHD, Dolby Surround, DTS:X, DTS-HD Master Audio, DTS Neural:X, DTS Virtual:X, IMAX Enhanced, AnthemLogic Music & Cinema
• Room Correction: ARC Genesis (Anthem Room Correction)
• DAC: 32-bit / 768kHz
• Hi-Res Audio: FLAC, ALAC, WAV, DSD
• HDMI: 7 x Inputs (8K), 2 x Outputs (including eARC), 1 x Zone 2 Output
• HDMI Version: HDMI 2.1, HDCP 2.3, 8K/60Hz and 4K/120Hz passthrough
• HDR Support: HDR10, HDR10+, Dolby Vision, HLG, Dynamic HDR
• Gaming Features: VRR, ALLM, QFT
• Analogue Inputs: 5
• Digital Inputs: 3 x Optical, 2 x Coaxial
• Digital Output: 1 x Optical
• Pre-Amplifier Outputs: Yes (11.2)
• Subwoofer Outputs: 2
• Line Output: 1
• Speaker Terminals: 7 pairs (FL, FR, C, SL, SR, BL, BR)
• Zone 2: Yes (audio and HDMI)
• Pre-Amp Frequency Response: 20Hz – 30kHz (±0.2dB)
• Pre-Amp Signal-to-Noise Ratio: 110dB (IEC-A)
• Pre-Amp THD+N: -100dB
• Wireless Streaming: Apple AirPlay 2, Google Cast, Spotify Connect, Bluetooth v4.2
• Network: Wi-Fi, Ethernet
• Control: Anthem Remote app, web interface, IR remote, IP and RS-232 control (Control4, Savant, Crestron, URC, RTI, ELAN)
• Front Display: 6" colour TFT
• USB: 1 x USB-A (service only)
• Construction: Aluminium chassis with machined aluminium faceplate
• Dimensions (W x H x D): 432 x 152 x 364mm (4U with optional rackmount kit)
• Weight: 15.1kg
• Power Consumption: 485W typical, 0.3W standby (1.8W with IP control, 4.9W with HDMI bypass)
• Power Supply: 220 – 240V, 50Hz
