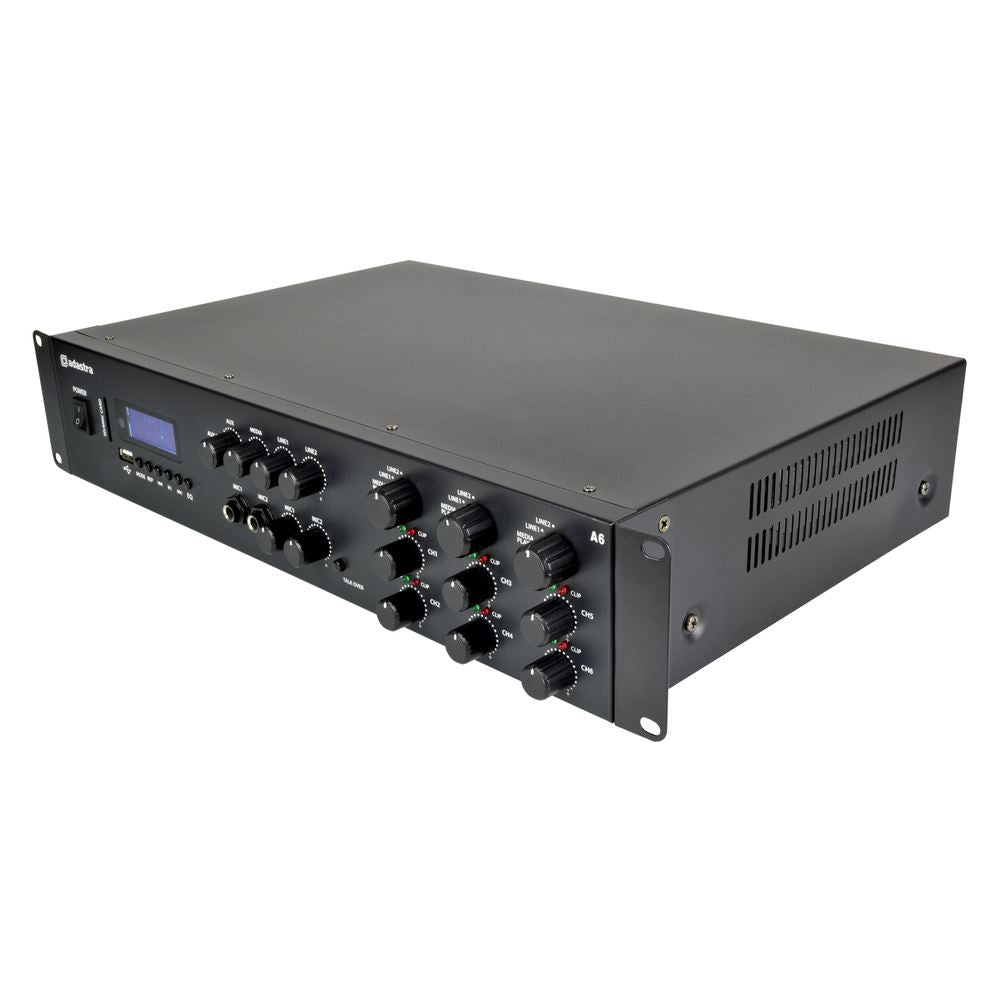

Adastra A6 Tri Stereo Amplifier 6 x 200W

Multi-zone amplifiers with 2 microphone inputs and a switchable stereo input for each zone. An inbuilt media player section offers playback of mp3 audio tracks from USB drive or SD card and also has a B/T wireless receiver and FM radio tuner.

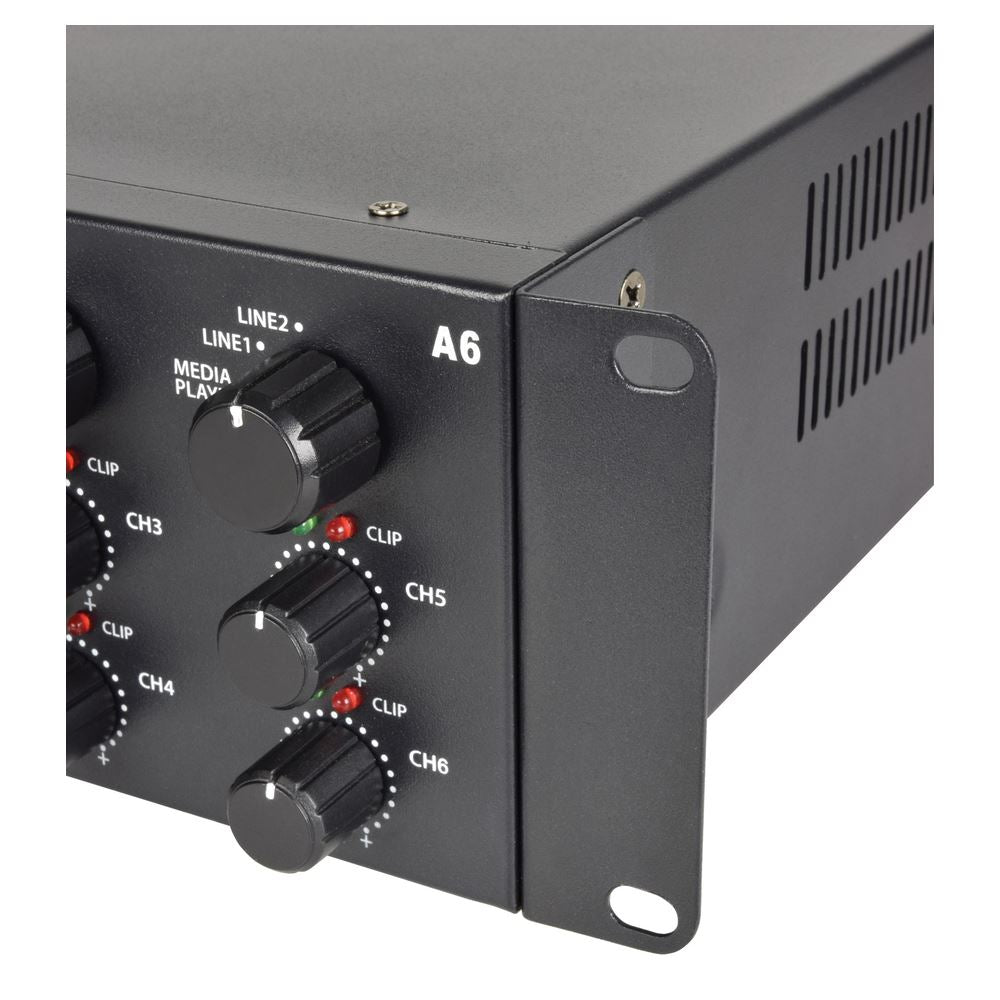

A rotary switch for each output zone selects the stereo playback audio from a choice of 2 rear stereo inputs, a front 3.5mm stereo input or the built-in media player. Mic inputs 1 and 2 are live to all output zones at all times..

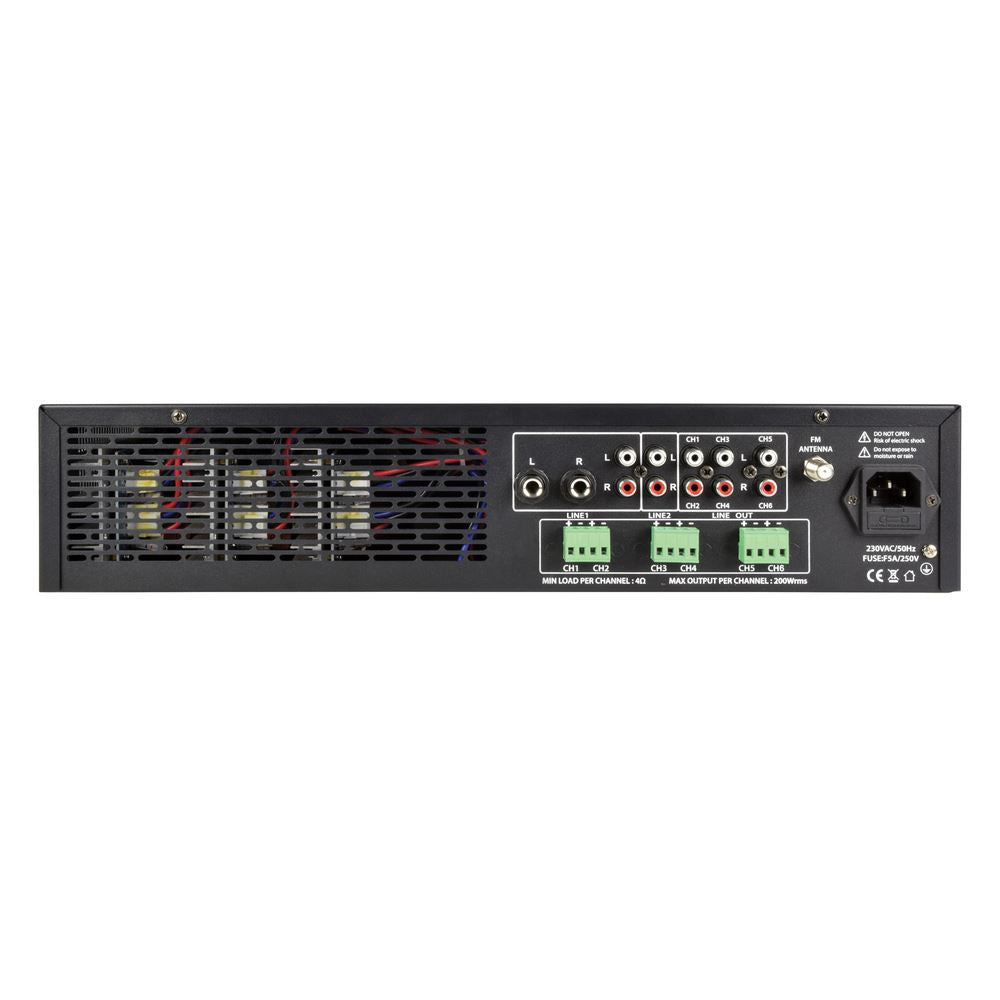

Speakers are connected from the rear panel Euroblock terminals to deliver up to 200W per output at 4 Ohms. Designed for installations requiring high quality stereo sound in multiple rooms or listening areas.

• Power supply - 230Vac, 50Hz (IEC)
• Fuse - F5A, 250V
• Amplifier: construction - Class D
• Frequency response - 20Hz - 20kHz ±0.5dB
• Microphone inputs - 2 x 6.3mm jack (mono)
• Line inputs - Line 1: L+R (6.3mm jack/RCA), Line 2: L+R (RCA)
• Input sensitivity : line - 0.775Vrms
• Auxiliary input - 3.5mm stereo jack
• Input sensitivity : aux - 0.480Vrms
• Input impedance - 20k Ohms (balanced), 10k Ohms (unbalanced)
• Audio source - USB/SD mp3 playback, FM tuner, B/T receiver
• B/T wireless version - 2.3
• Input controls - Aux, Media, Line1, Line2, Mic1, Mic2, Talkover
• Antenna connection - F type (FM tuner)
• Dynamic range
• THD +N
• Protection - Thermal, over-current, over-voltage, short-circuit

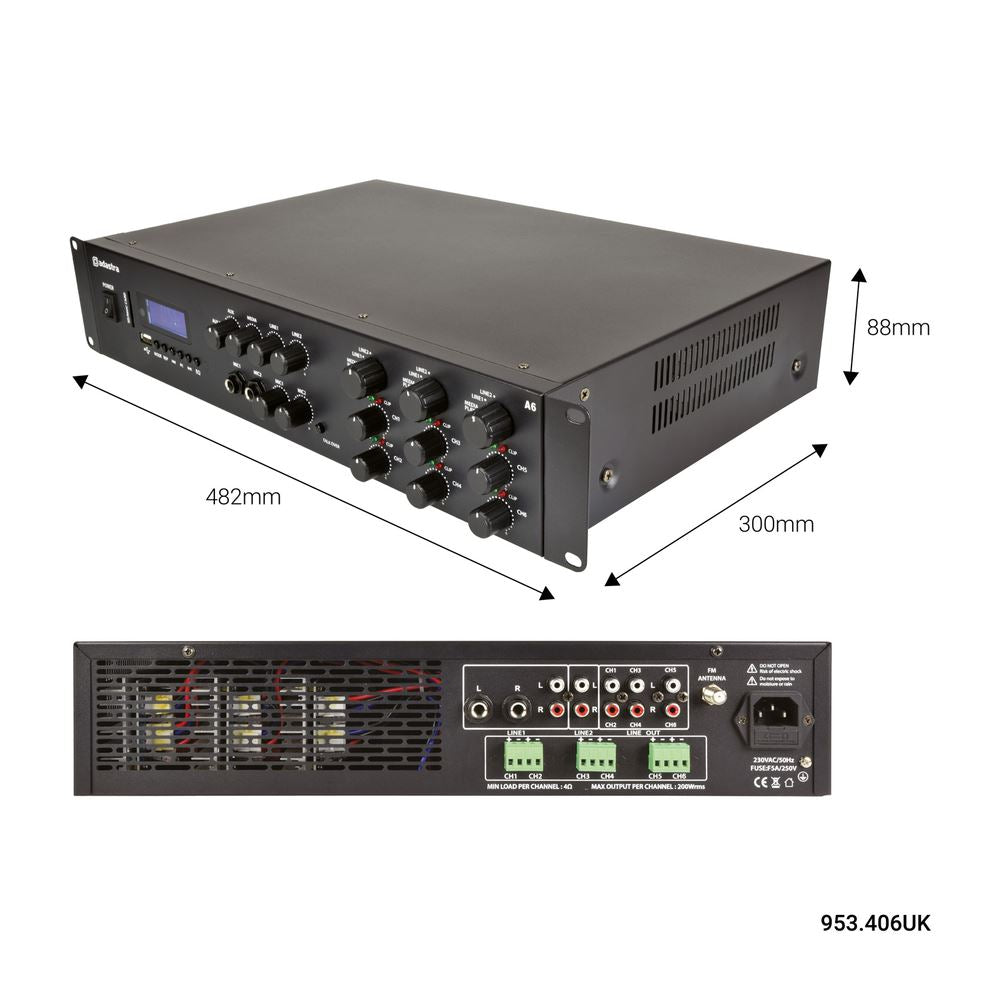

• Dimensions - 482 x 300 x 88mm

• M-series multi-stereo amplifier
• I.R. remote control (media player)
• IEC power lead(s)

• Rackmount Tri-Stereo Amplifier with Media Player - User Manual
