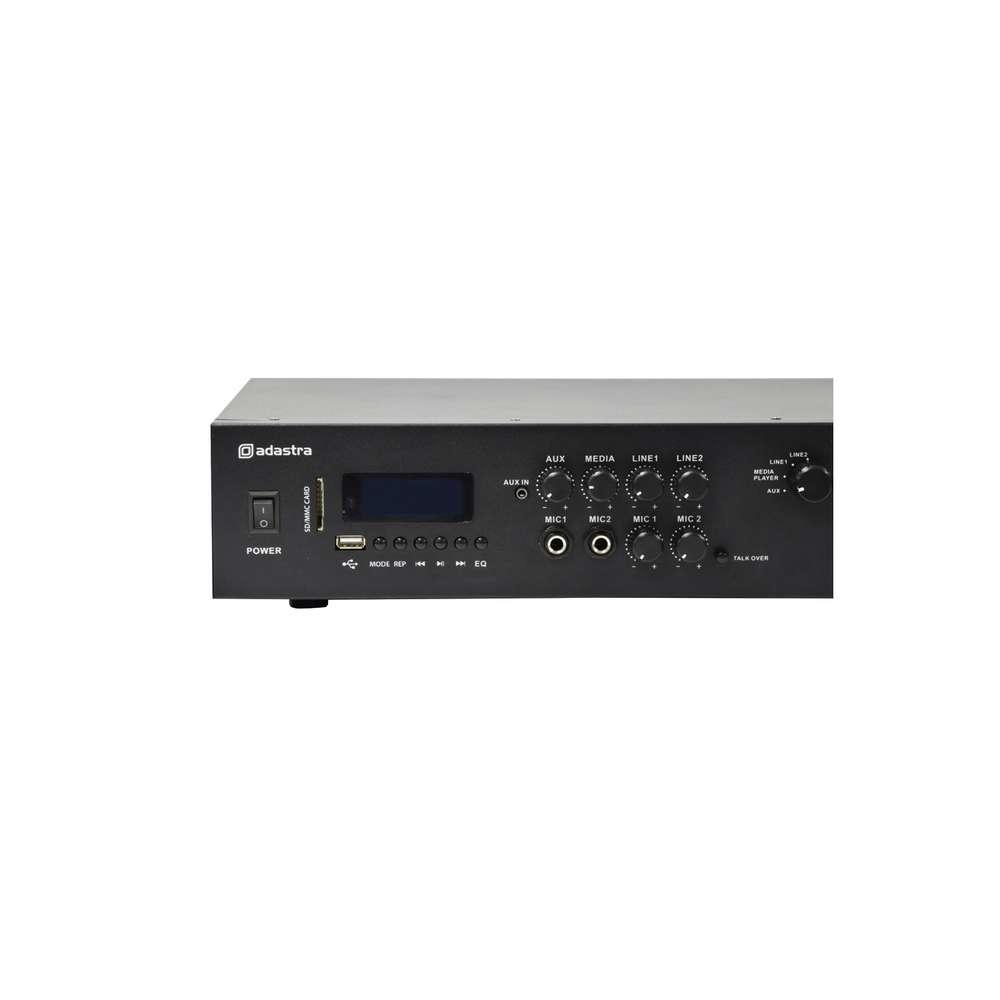

Adastra A2 200W Stereo Amplifier with FM Radio/Bluetooth & Media Player

Fully featured stereo amplifier with mixer section for 2 microphones and a stereo audio source.

An inbuilt media player section offers playback of MP3 audio tracks from USB drive or SD card and also has a Bluetooth receiver and FM radio tuner.

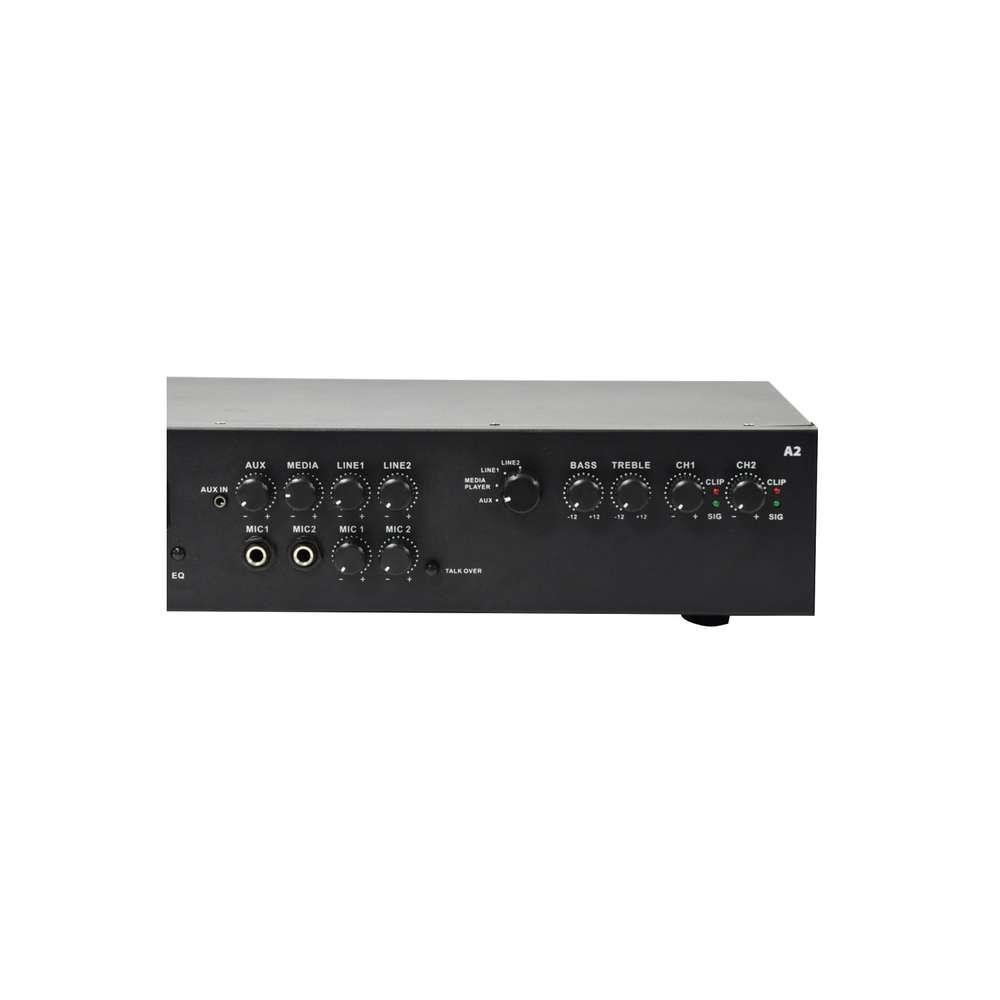

A rotary switch selects between 2 rear stereo inputs, a front 3.5mm stereo input or the built-in media player.

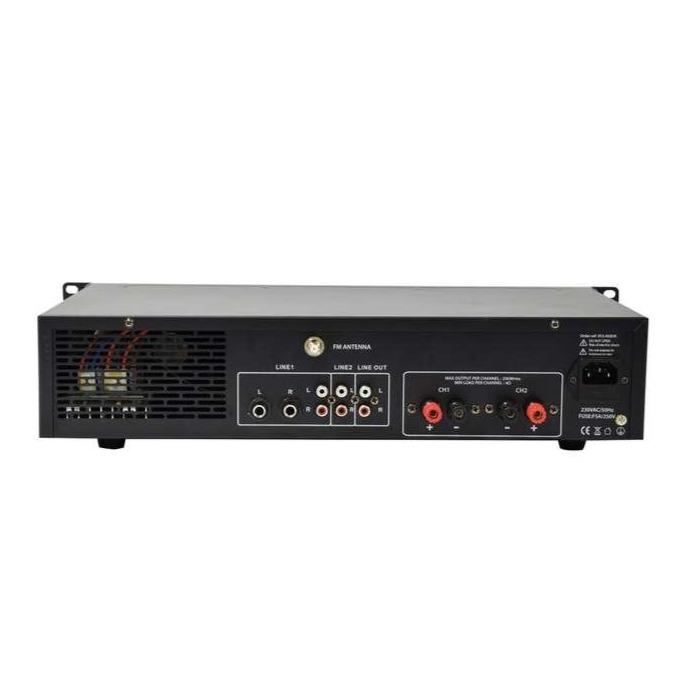

Speaker connections on the rear panel are via 4mm binding posts, which can drive up to 2 x 8 Ohm speakers per channel to deliver 2 x 200W.

Designed to offer installers a flexible solution for P.A. and music playback in bars, restaurants and function rooms.

FEATURES

• Media player with USB/SD playback
• FM radio tuner with external aerial connection
• Bluetooth receiver

• Power supply: 230Vac, 50Hz (IEC)
• Fuse: F5A, 250V
• Output power: rms @ 4 Ohms2 x 200W
• Output power: rms @ 8 Ohms2 x 100W
• Amplifier : constructionClass D
• Frequency response: 20Hz - 20kHz ±0.5dB
• Microphone inputs: 2 x 6.3mm jack (mono)
• Line inputs: Line 1: L+R (6.3mm jack/RCA), Line 2: L+R (RCA)
• Input sensitivity: line0.775Vrms
• Auxiliary input: 3.5mm stereo jack
• Input sensitivity: aux0.480Vrms
• Input impedance :20k Ohms (balanced), 10k Ohms (unbalanced)
• Audio source: USB/SD mp3 playback, FM tuner, BT receiver
• Bluetooth version: 2.3
• Input controls: Aux, Media, Line1, Line2, Mic1, Mic2, Talkove
• Line output: 2 x RCA
• Speaker outputs: 4mm binding posts (2 channels)
• Antenna connection: F type (FM tuner)
• Output controls: Source select, Bass, Treble, Ch1, Ch2
• Dynamic range: 92dB
• THD +N: <0.1%
• Protection: Thermal, over-current, over-voltage, short-circuit
• Dimensions: 482 x 240 x 88mm
• Weight: 5.21kg

• A2 stereo amplifier
• IEC power lead
