Wharfedale  |  SKU: 12-1-B

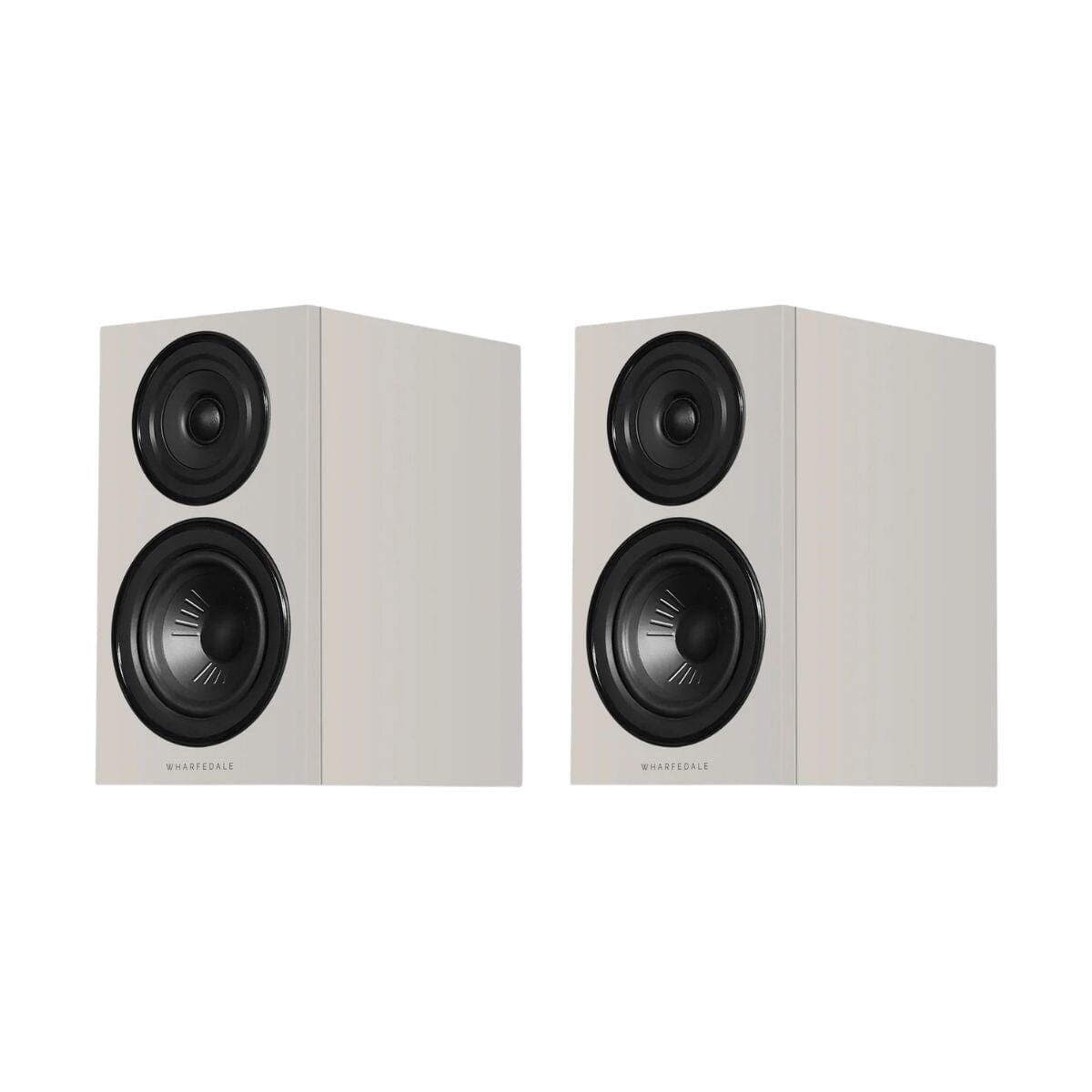

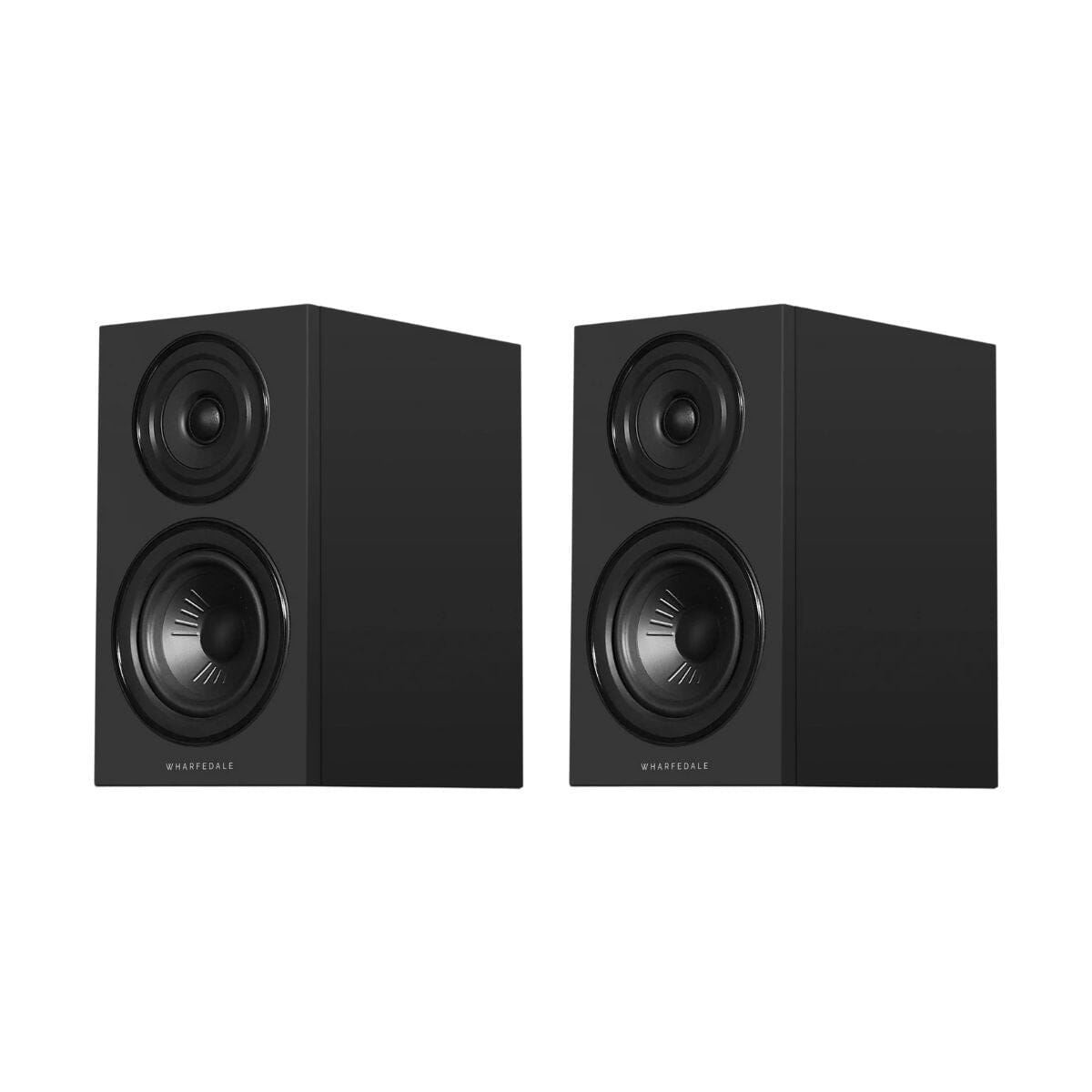

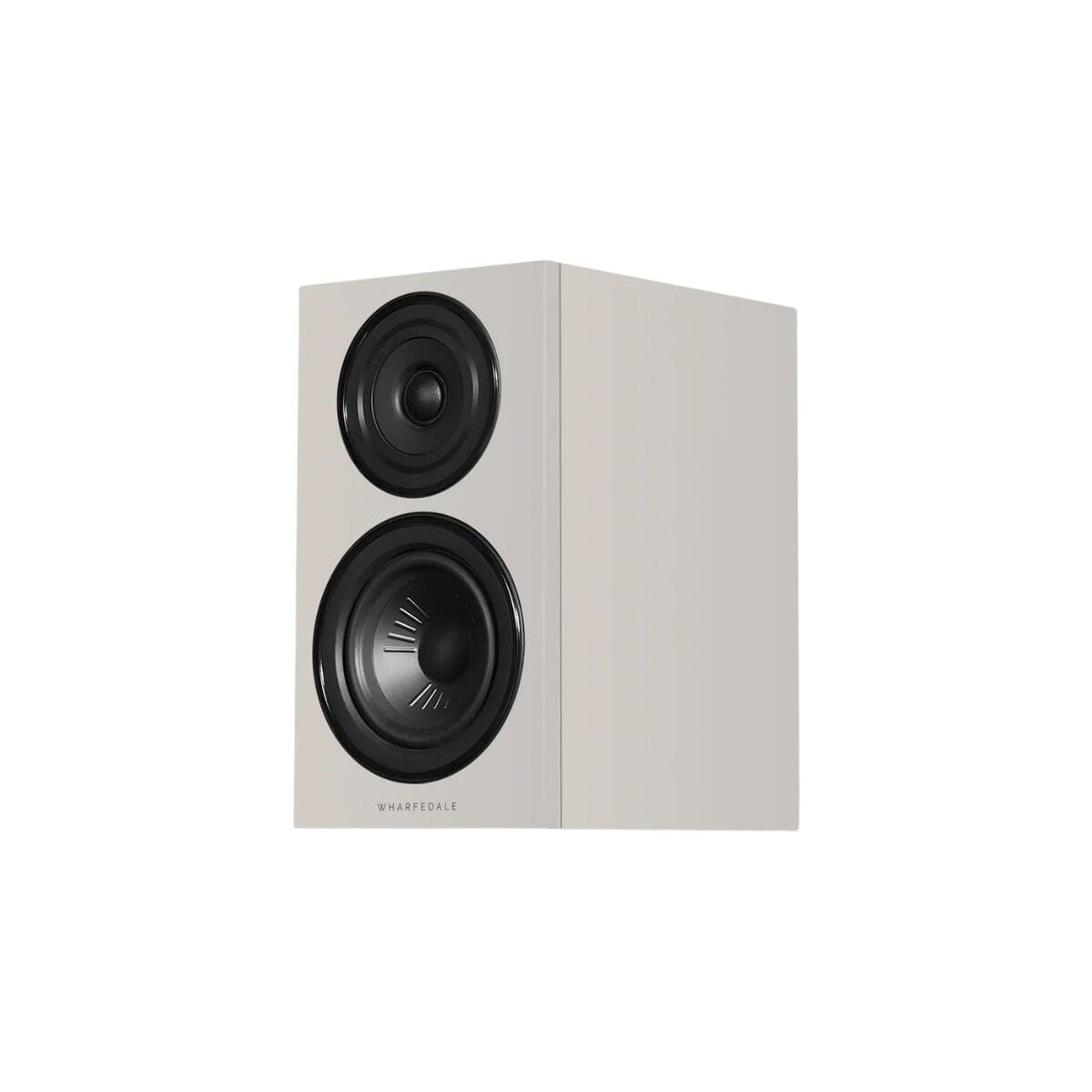

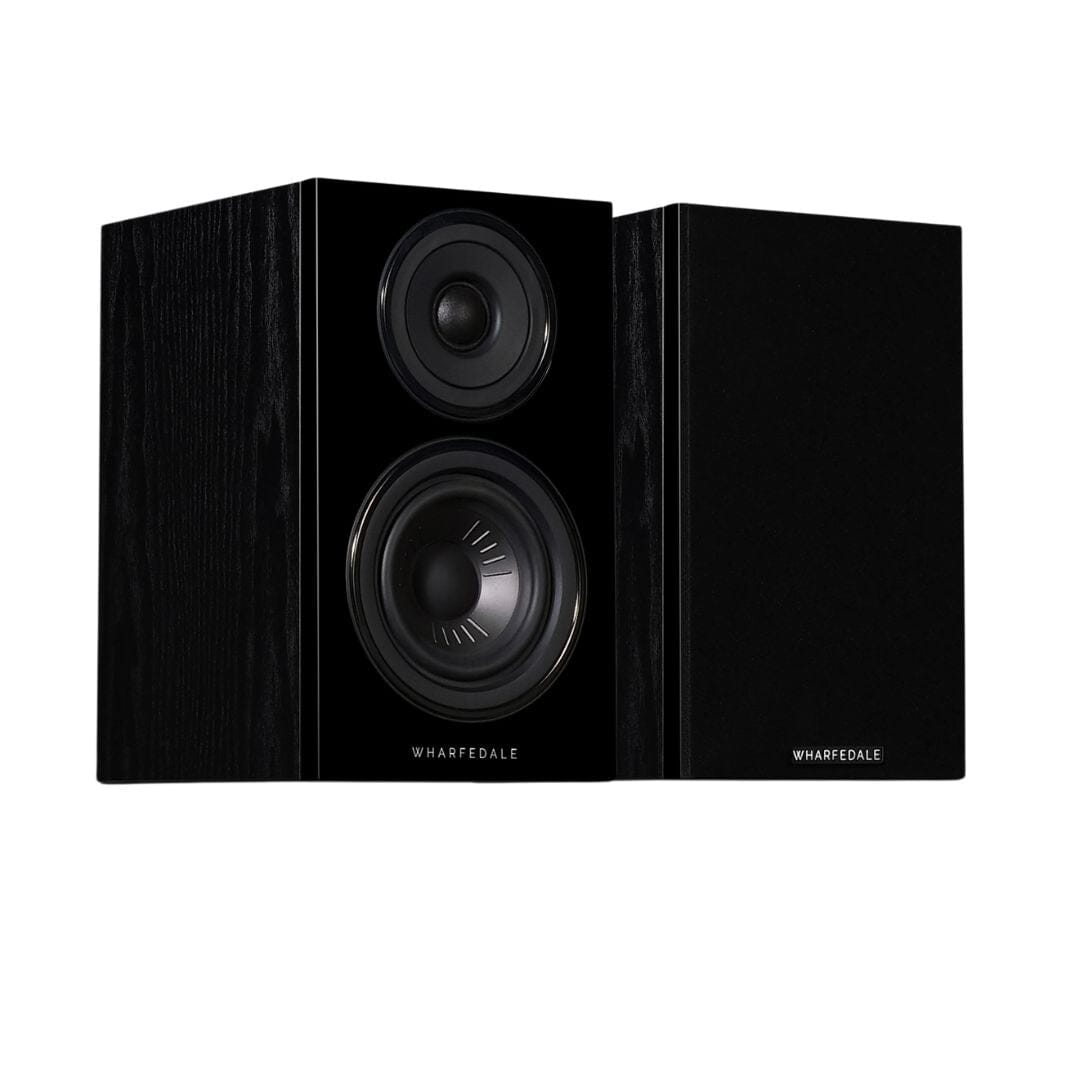

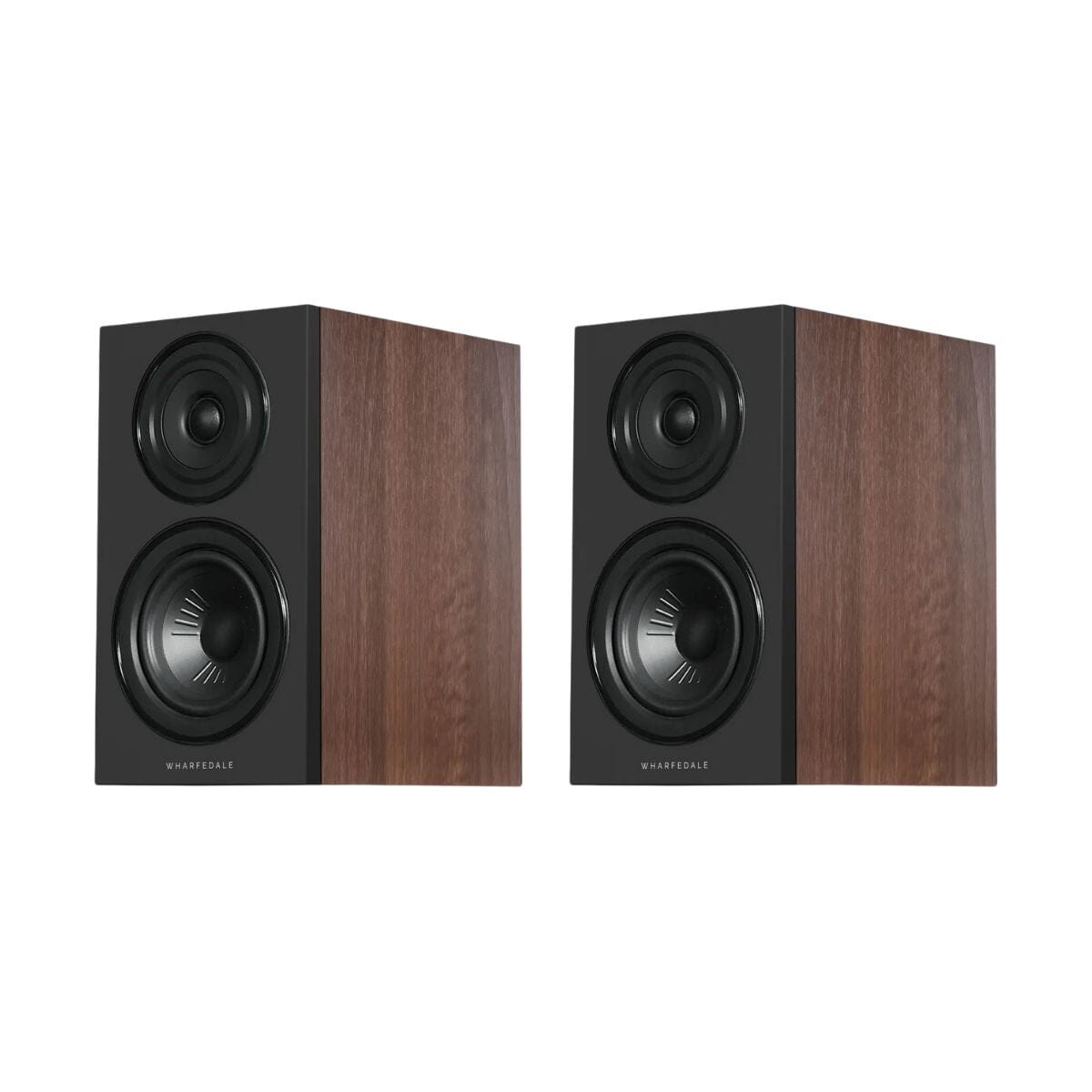

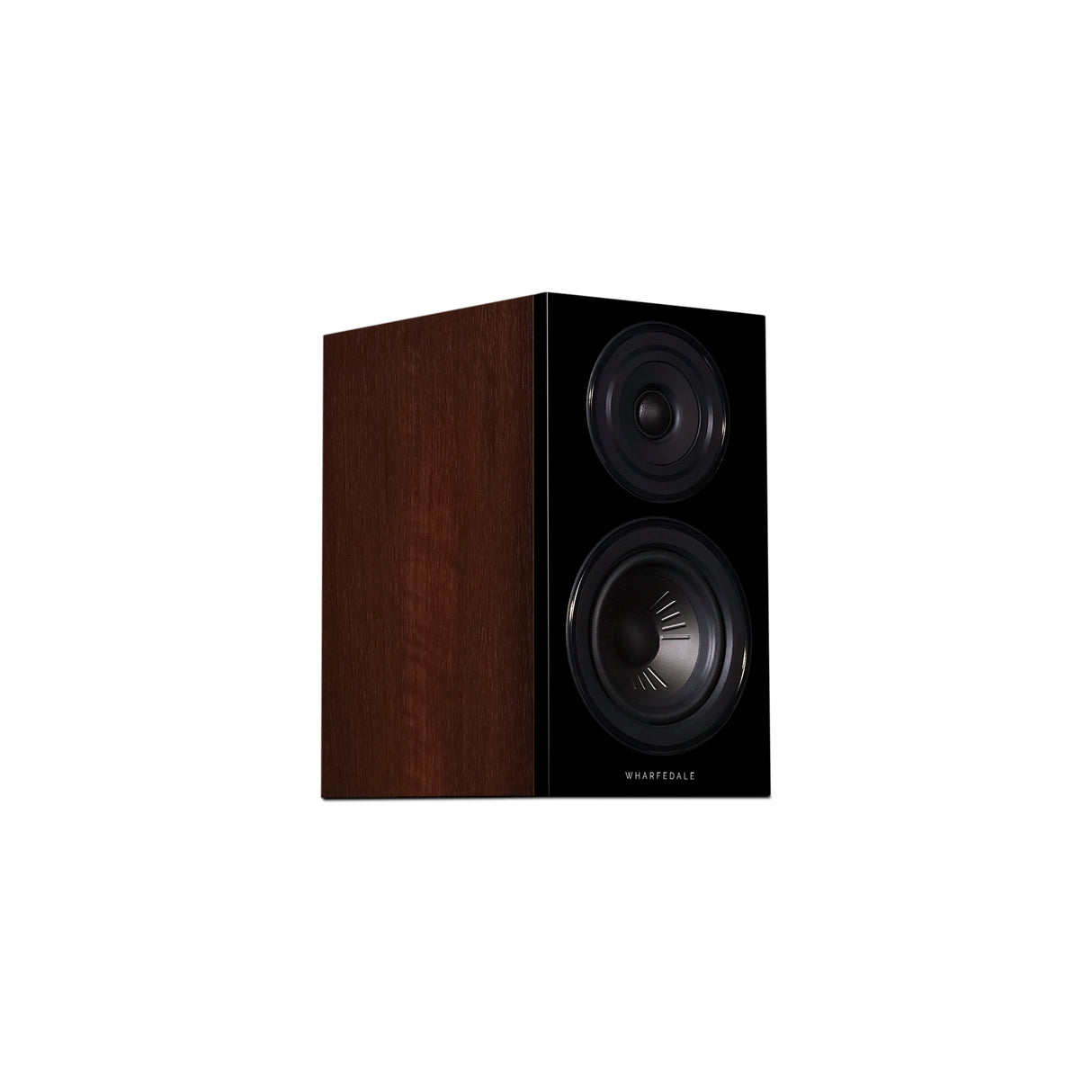

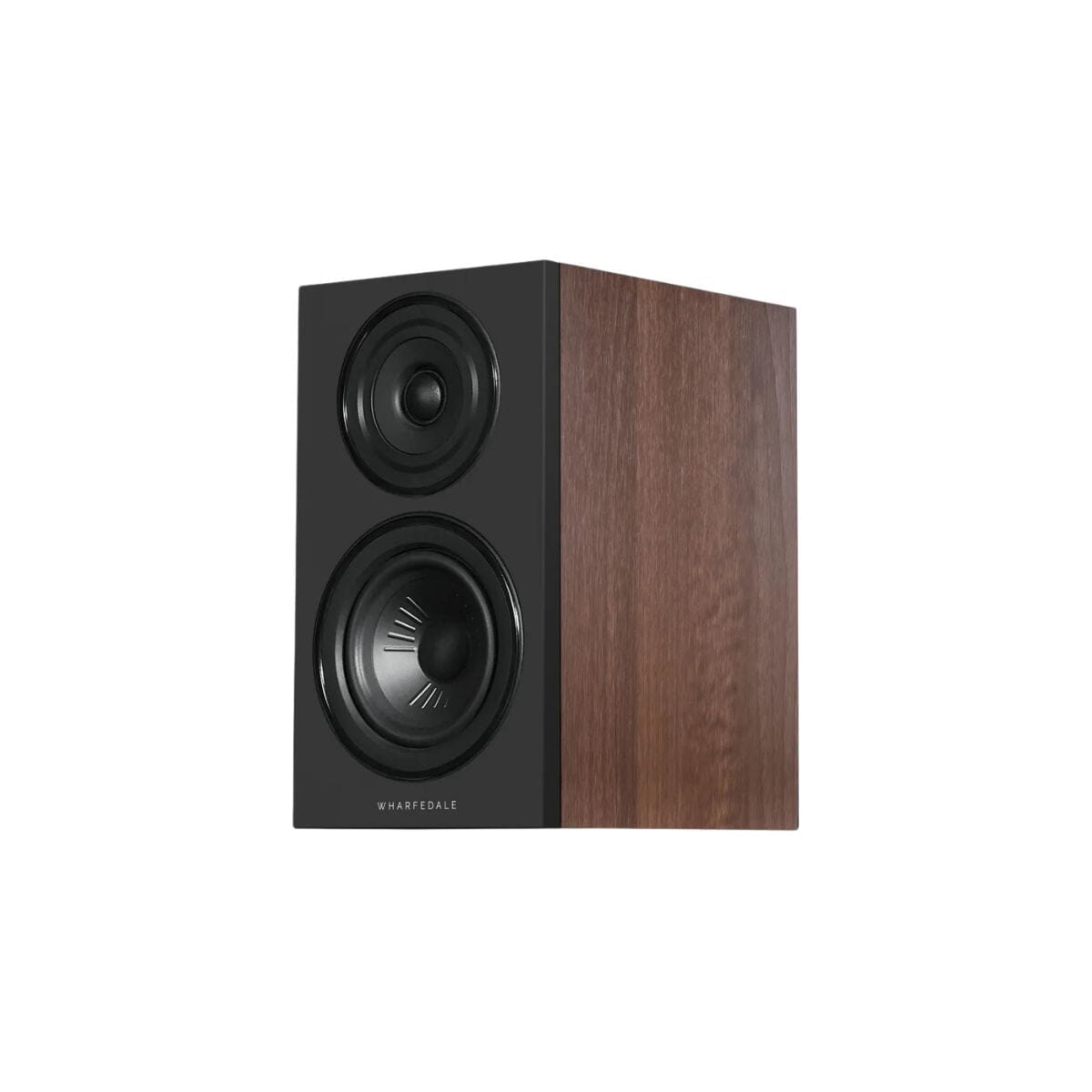

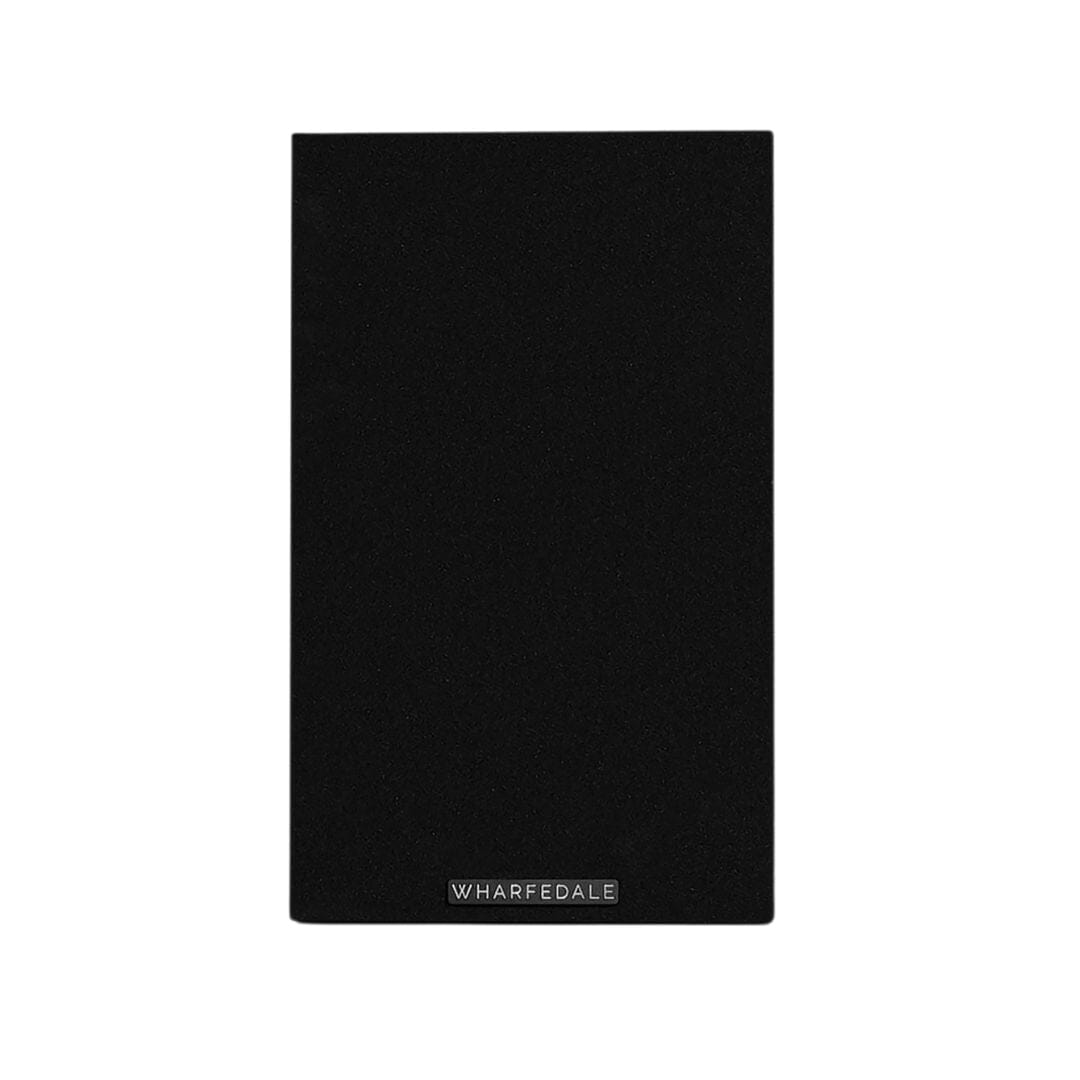

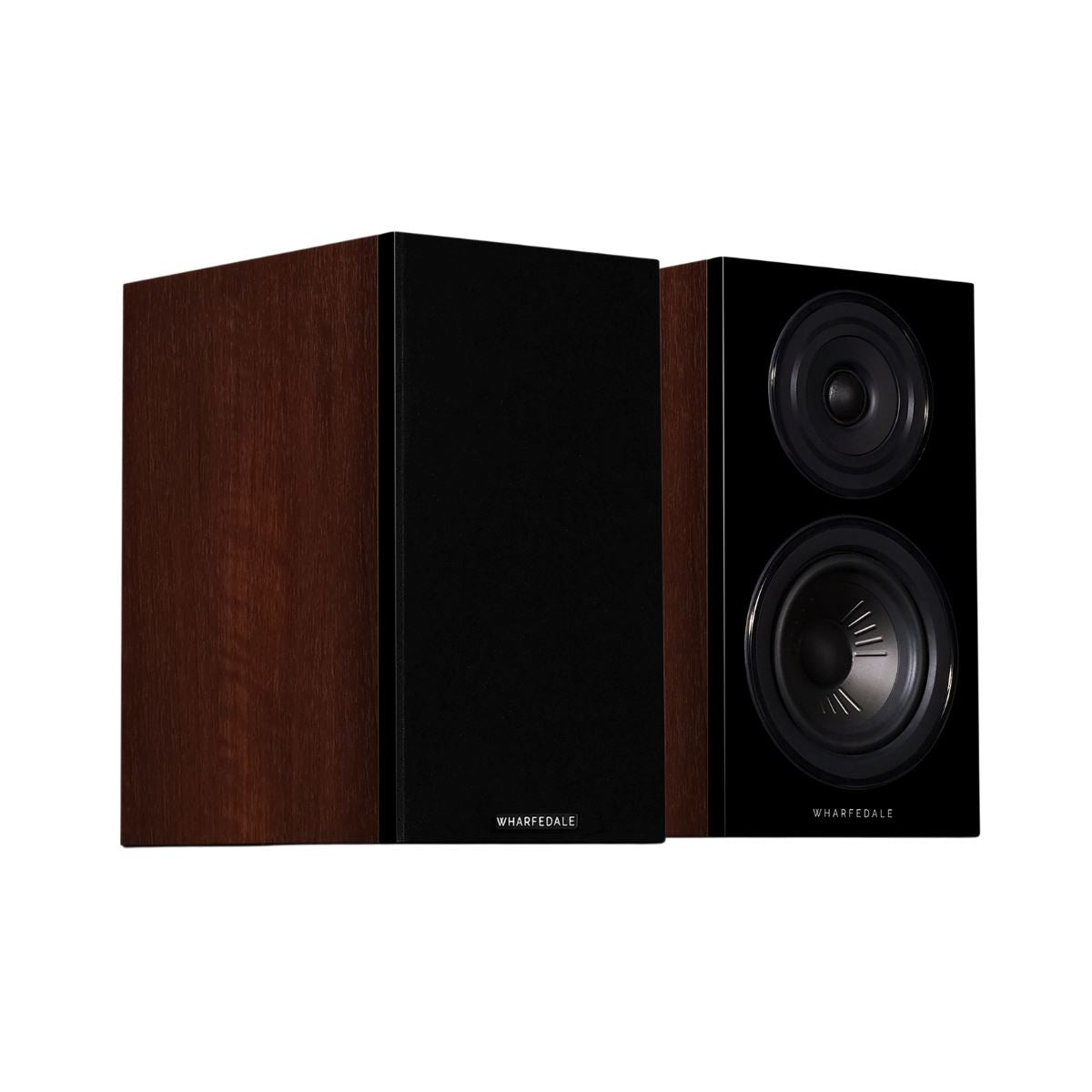

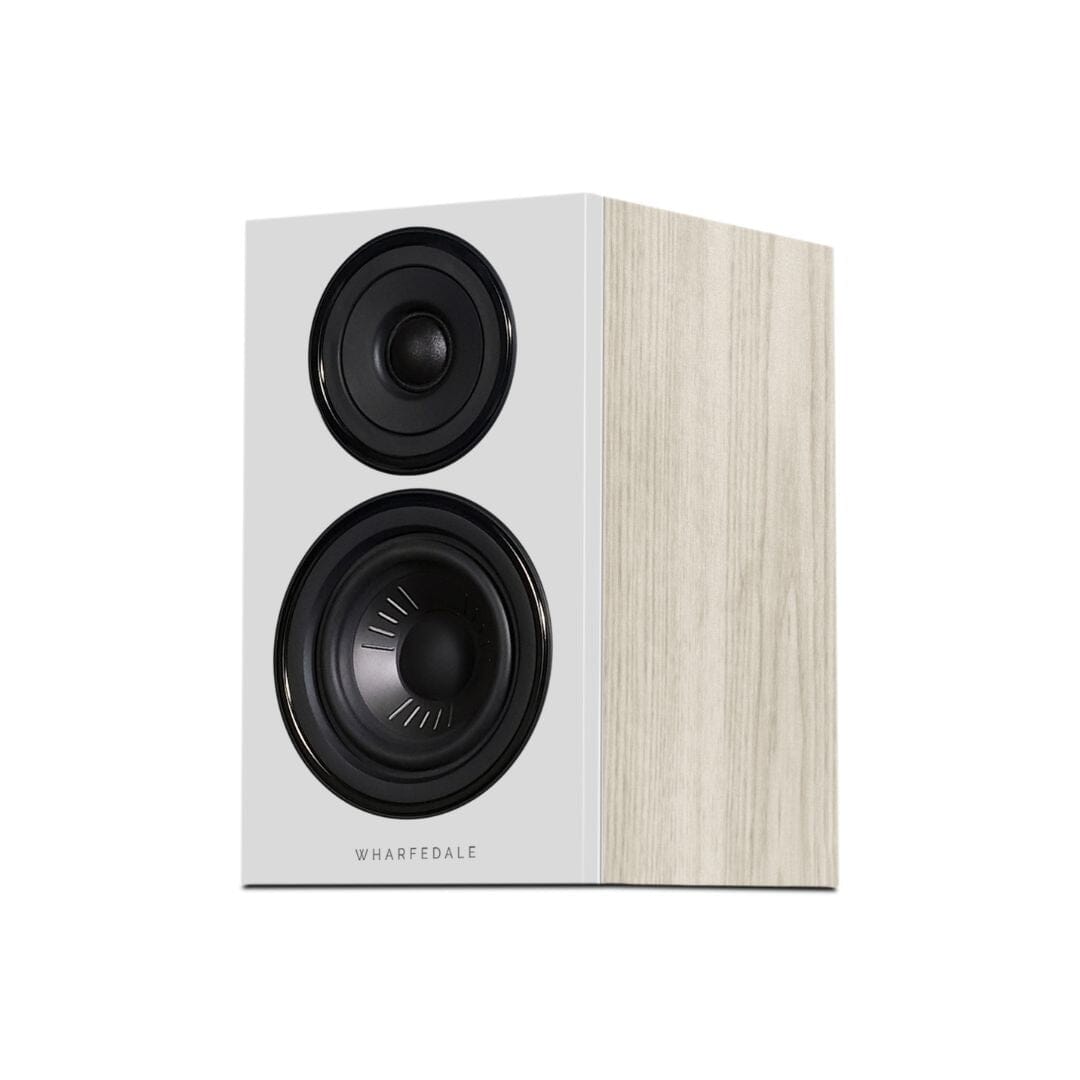

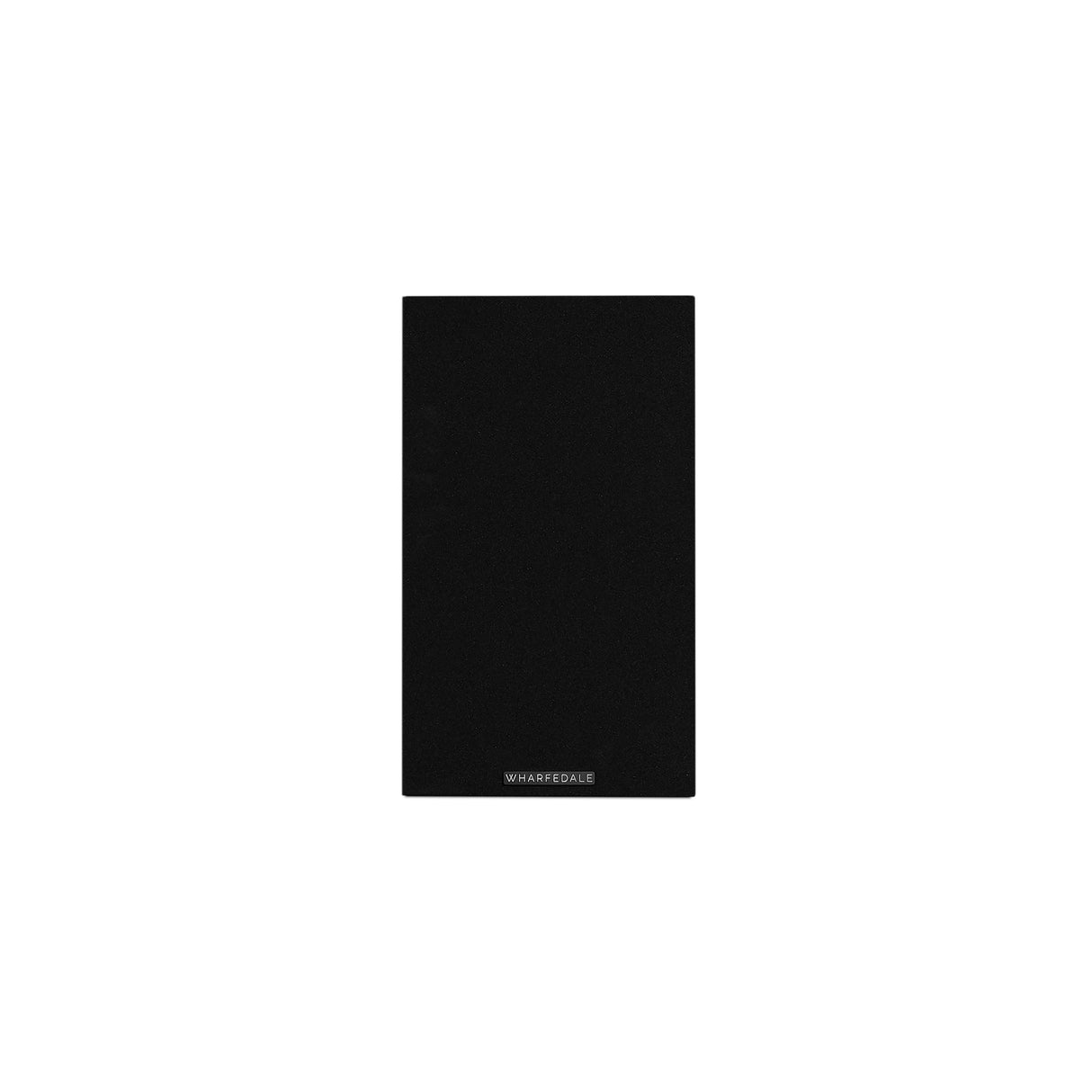

Wharfedale Diamond 12.1 Bookshelf Speakers (Pair)

Color: Black Oak

Includes 2 Years Warranty + 60 Day Returns

Need Advice? Call 02393 190955

We’re more than just an online retailer. We’re passionate about audio and offering the best customer service in the industry.

Need some advice? Call our audio experts on 02393 190955, live chat or email us and we’ll help you make the best decision. Learn More

Spend £99 For Free Delivery

All orders to mainland UK over £99 are eligible for free standard delivery.

Need it fast? No problem, you’ll find express next day delivery rates available on most products. Learn More

Extended 60 Day Returns

We’re so confident that you’ll be happy with your purchase that we’ve extended our returns policy to 60 days. We call it the “Happy Sound Guarantee”.

If you’re not happy with your purchase for any reason simply send it back to us for a full refund. Learn More


The true all-rounder, the Wharfedale DIAMOND 12.1 is a traditional standmount (or bookshelf) speaker that embodies the history and performance values of the Wharfedale DIAMOND series.

The perfect ‘affordable’ hi-fi speaker, the DIAMOND 12.1 offers the best of both worlds – compact size with power and detail.

Perfect for 2-channel hi-fi systems, thanks to its intricate performance but also compact and capable for immersive home theatre, the DIAMOND 12.1 is designed and certified to perform, regardless of room size and application.

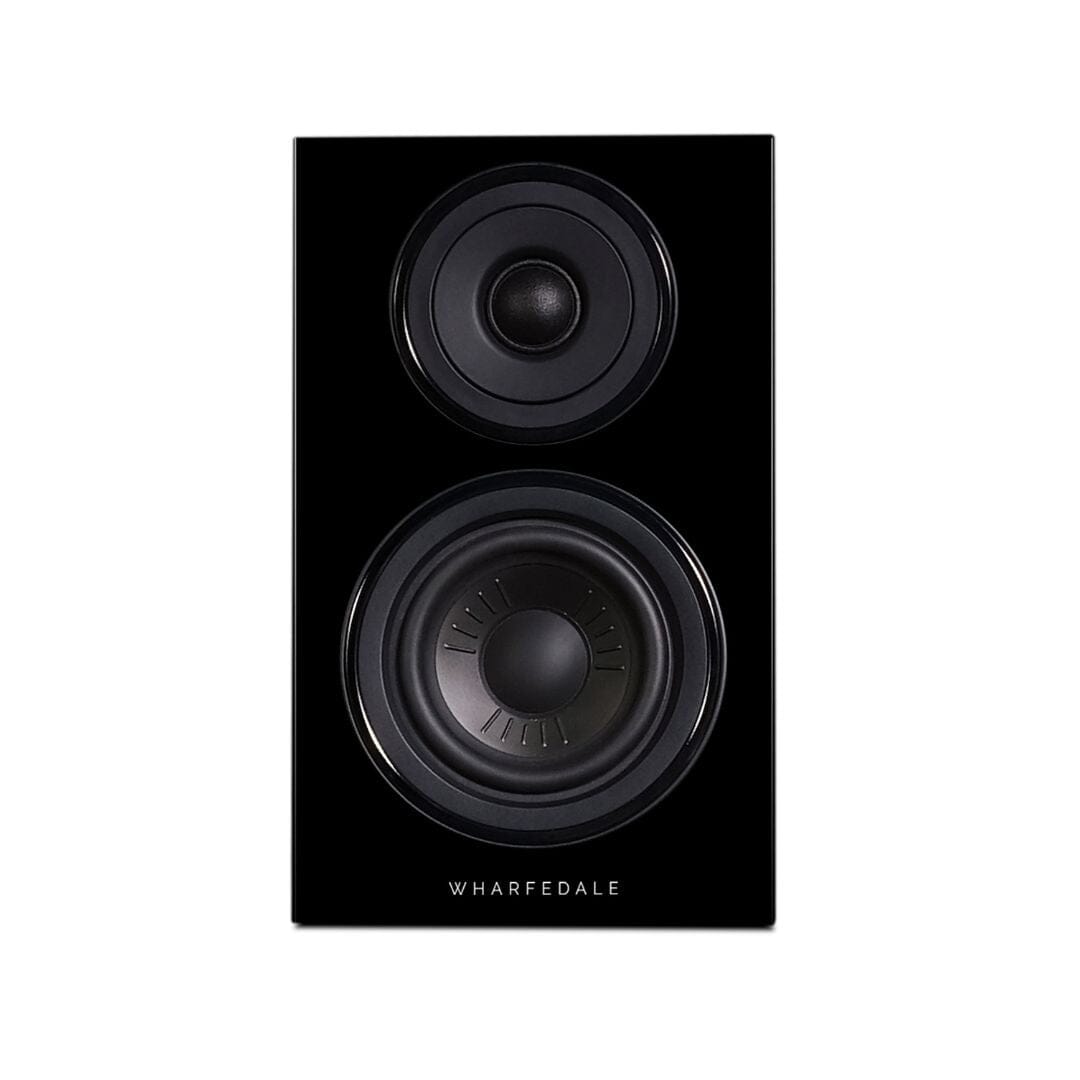

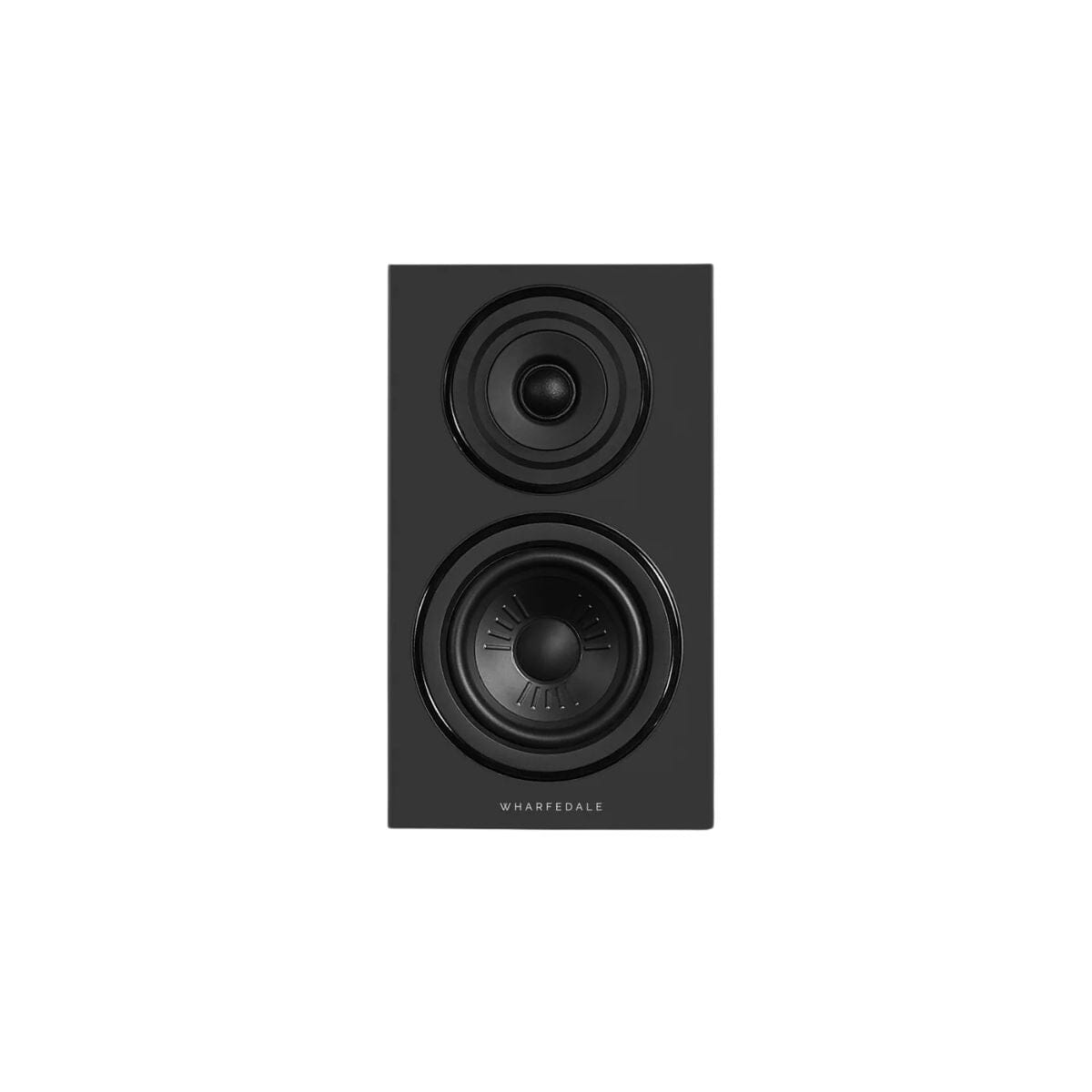

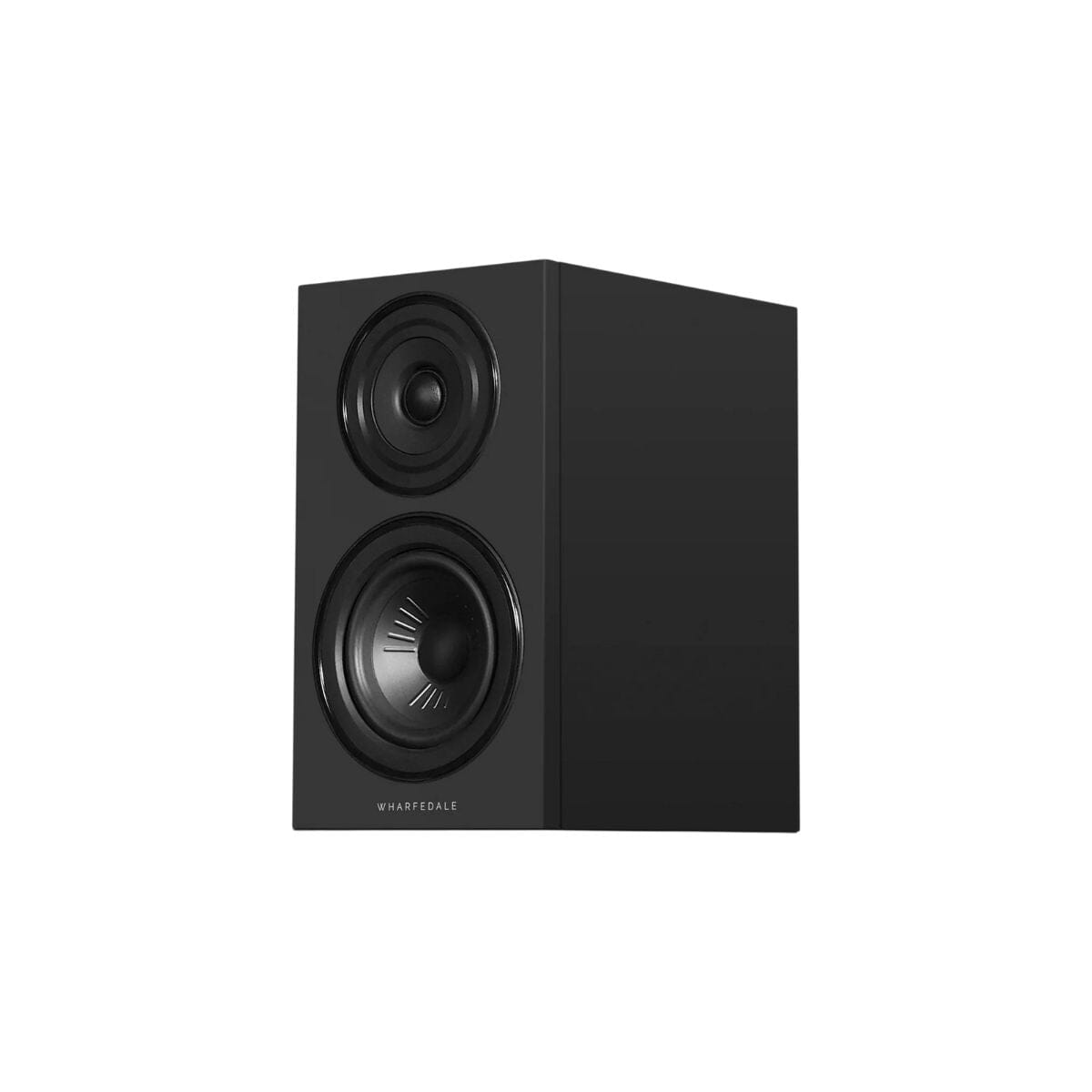

The DIAMOND 12.1 features a high-performance 130mm (5”) KlarityTM driver for exceptional timing and refined bass. The superb 25mm (1”) woven polyester dome tweeter delivers open and smoothly extended high frequencies.


  • Klarity Affords Focus: NEW Klarity™ cone material, formulated from a blend of Polypropylene and mica adds stiffness to reduce flexing, enabling a lightweight cone with high rigidity, low colouration and lightning-fast response.

  • Low Colour and Expression: The Klarity™ cone is fitted with a low-damping surround, thereby achieving both low colouration and expressive dynamics.

    By simulating many different cone shapes and adding ribs to provide further stiffening, a flat response curve was achieved without resorting to a high-damping surround, thereby striking the ideal balance.

  • A Magnet of Forces: A precision-made magnet system with an aluminium compensation ring to minimise the effect of variations in inductance as the voice coil travels.

    This contributes to an absence of distortion and intermodulation generated by the ‘motor system’.

  • A Voice Coil Beyond this Class: The voice coil is wound on a high-power epoxy/glass fibre bobbin highly unusual in speakers at this price level.

    This has the advantage of not adding eddy currents and delivering greater power handling than an aluminium bobbin, whilst also being much stiffer than the Kapton type associated with this price-class.

  • DIAMOND Highs: The 25mm dome is made from a woven polyester film with a high-loss coating to deliver open and smoothly extended high frequencies.

    The magnet system and the front plate have been optimised for wide dispersion and uncompressed behaviour.

    The front plate is flat and exposes the dome as much as possible; only a very short duct on the front plate balances the acoustic load and improves the SPL (sound pressure level) measurement.

Key Features

  • Impedance
    8 Ohms
  • Driver Size
  • Sensitivity
  • Warranty
    2 Years

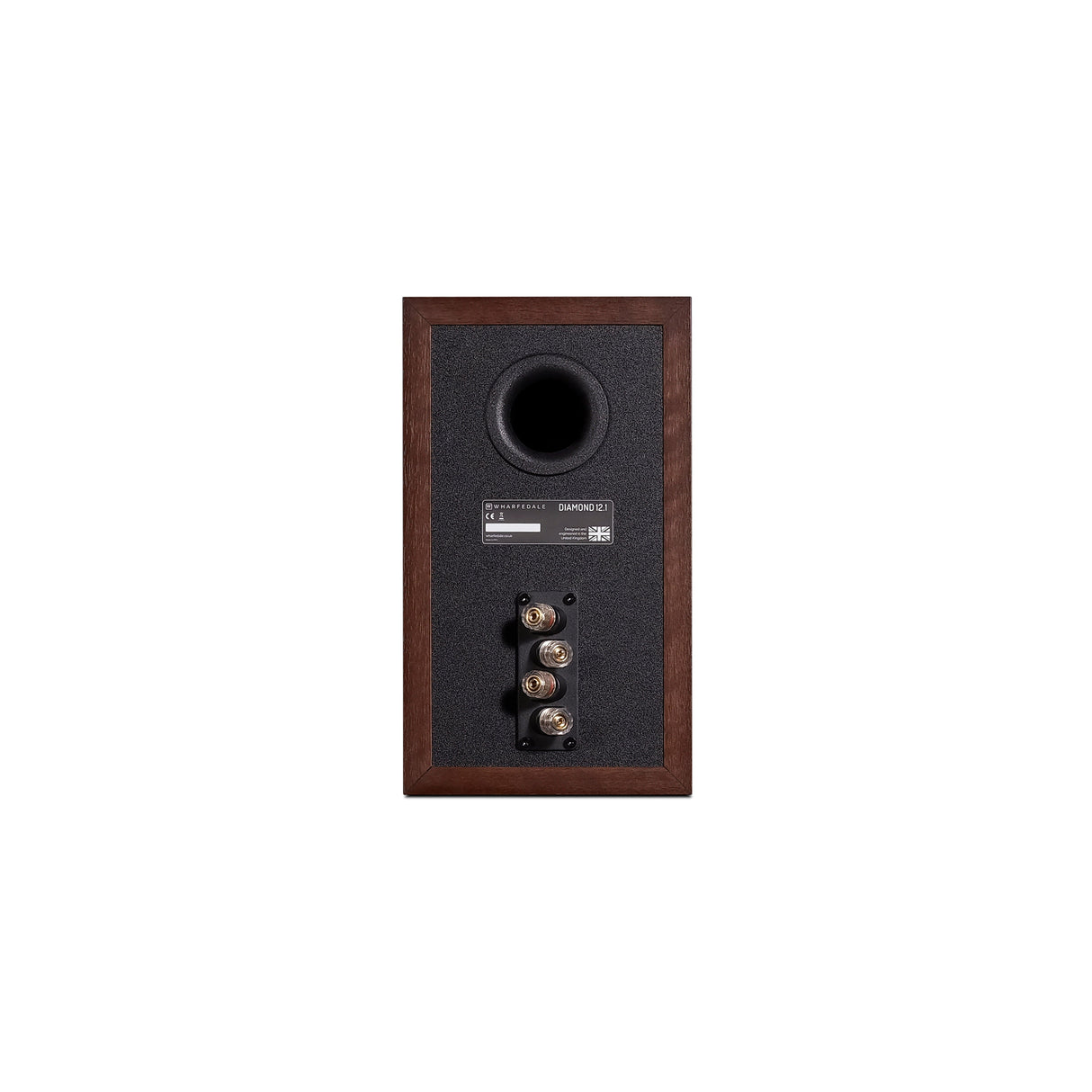

    • Enclosure Type: bass reflex
    • Transducer Complement: 2-way
    • Bass Driver: 5"(130mm) advanced PP Cone
    • Treble Driver: 1"(25mm) Textile Dome
    • AV Shield: No
    • Sensitivity(2.83V @ 1m): 88dB
    • Recommended Amplifier Power: 20-100W
    • Peak SPL: 96dB
    • Nominal Impedance: 8Ω Compatible
    • Minimum Impedance: 4.0Ω
    • Frequency Response(+/-3dB): 65Hz ~ 20kHz
    • Bass Extension(-6dB): 60Hz
    • Crossover Frequency: 2.6kHz
    • Cabinet Volume (in litres): 8.2L
    • Dimensions (H x W x D): 312 x 180mm x (250+28) mm
    • Net Weight: 6.8kg/pcs

What's In The Box

    • 2 x 12.1 Bookshelf Speakers
